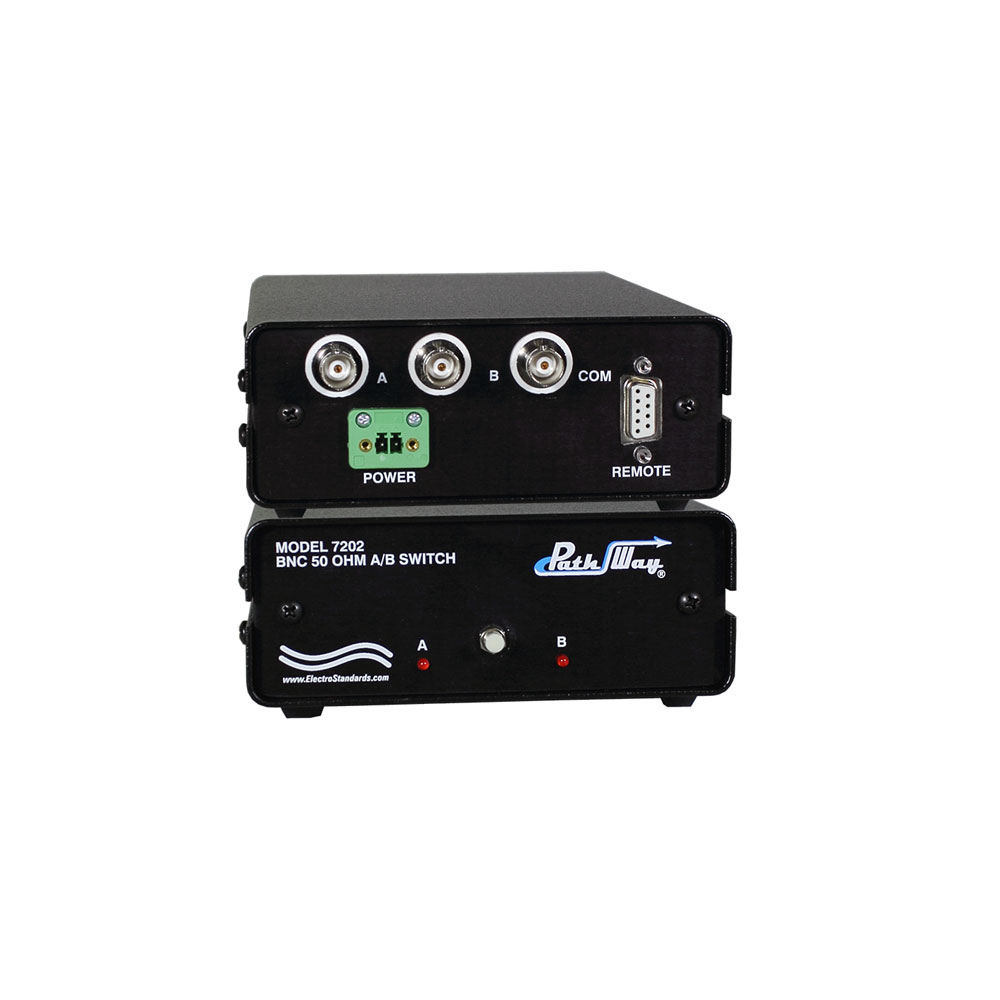

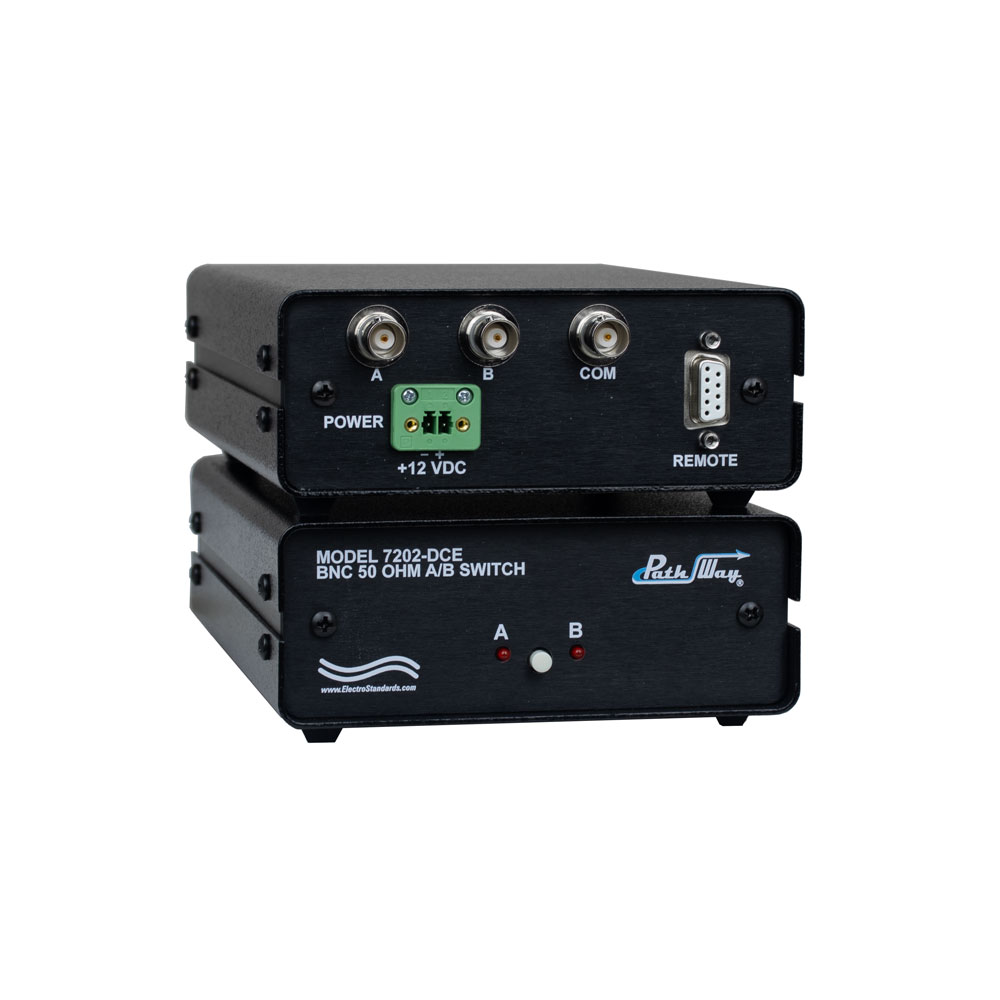

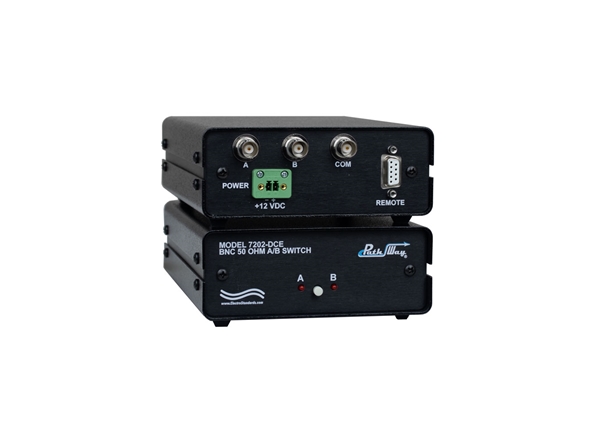

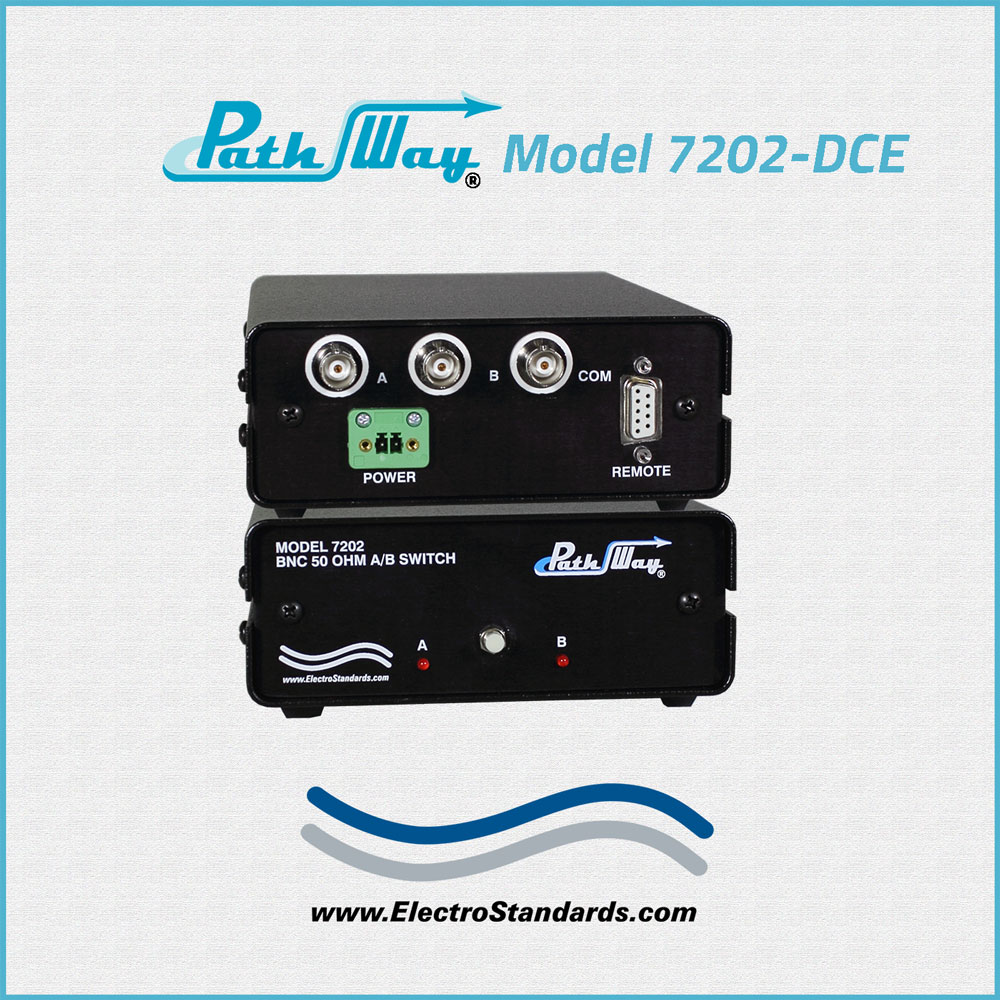

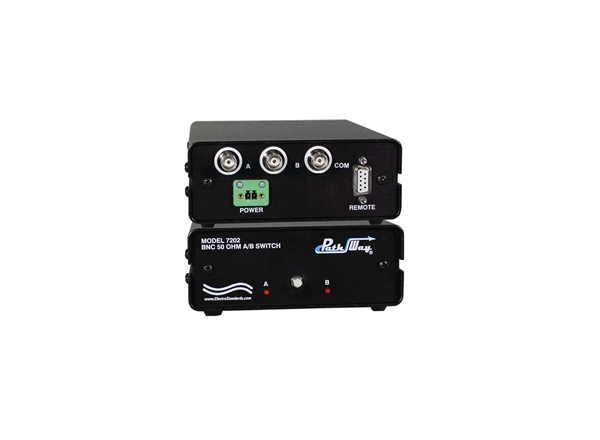

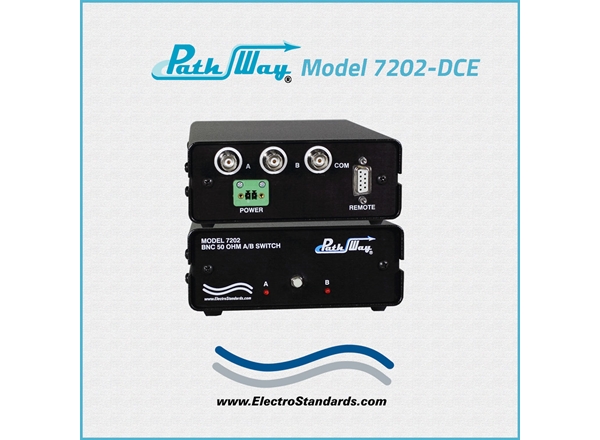

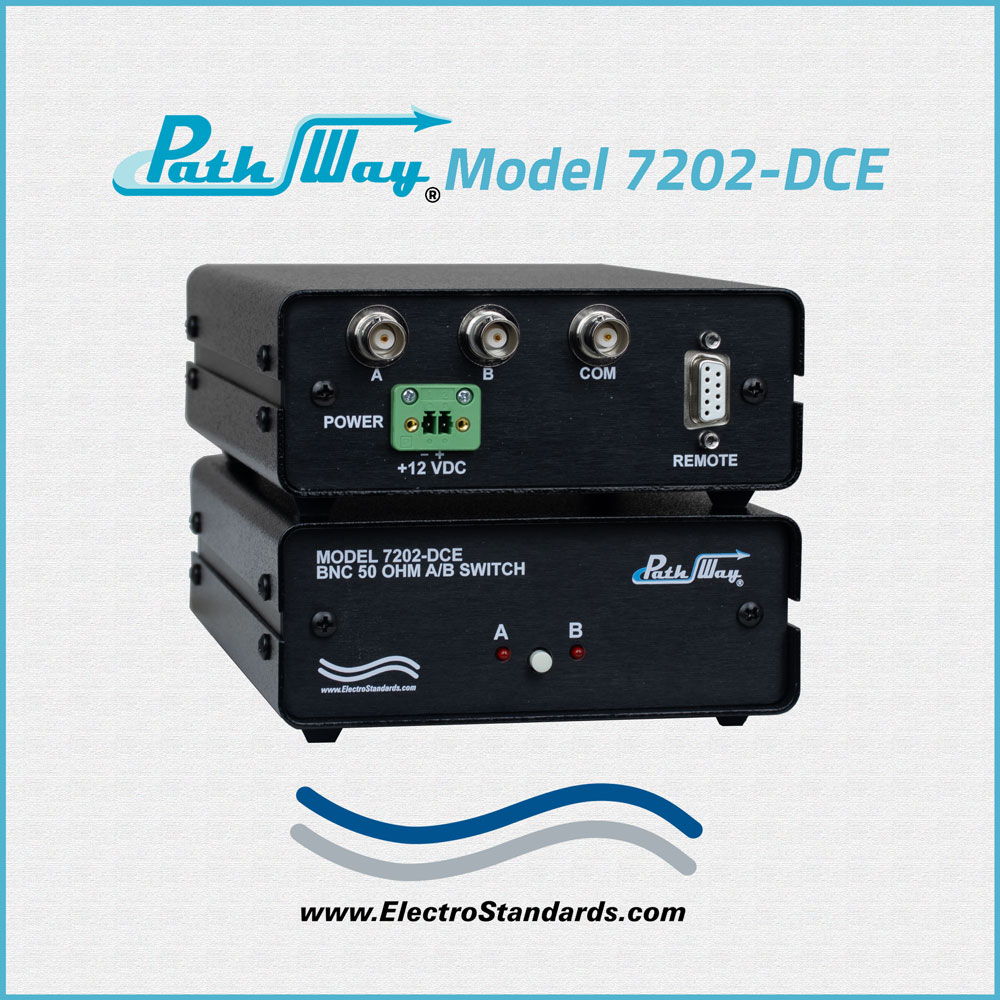

Catalog # 307202-DCE - Model 7202-DCE BNC 2-Position Switch, 50 Ohm

    Model 7202-DCEModel 7202-DCEModel 7202-DCE
Click image to enlarge
    • Model 7202-DCE
    • Model 7202-DCE
    • Model 7202-DCE
Base Price:
$423.00
Catalog No: 307202-DCE
Model No: 7202-DCE
Protocol:ASCII
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:Coax Switch Ports
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:RS232 Serial
Configuration:Desktop
Ohms:50
Pins Switched:Center Pin and Shell
Remote Port:DB9
Local Control:Pushbutton

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview



Path Way Remotely Controllable Network Switch, BNC Coaxial
Model 7202-DCE 50 Ohm Impedance BNC A/B Switch Box with RS232 Serial Remote Port

  • Ideal for sharing laboratory test equipment having a BNC coaxial interface.

  • Field proven in university and high technology research laboratories

  • Remote RS232 Port pinout configured as a DCE device.

SPECIFICATIONS:

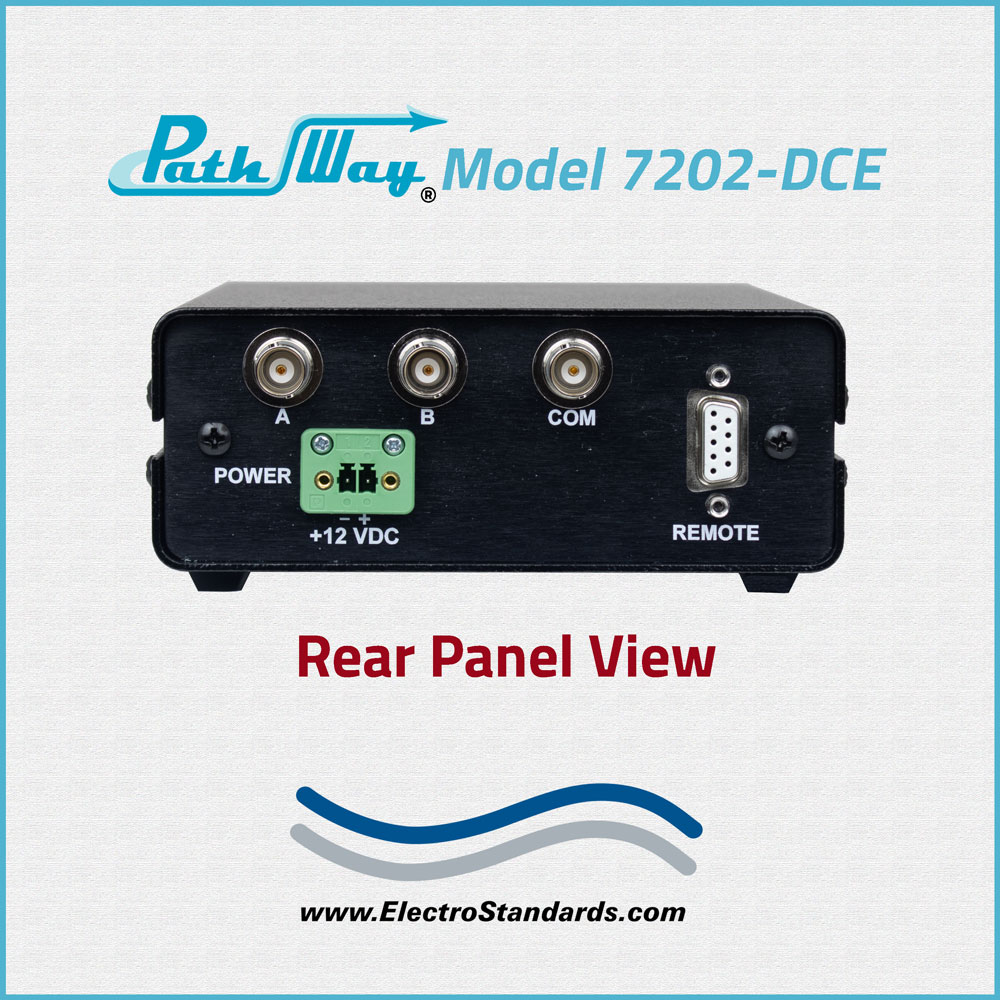

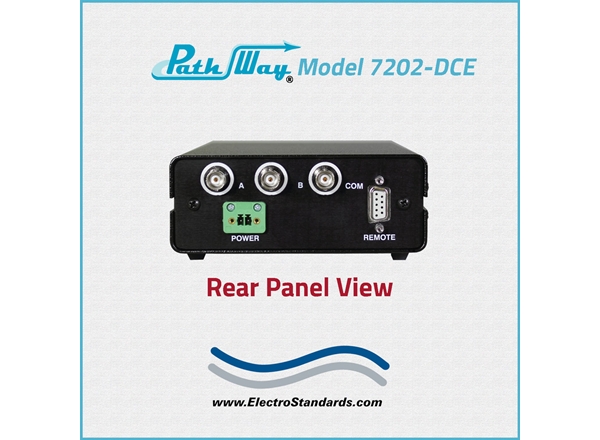

  • PORT CONNECTORS: (3) BNC (F) connectors labeled A, B and COMMON.

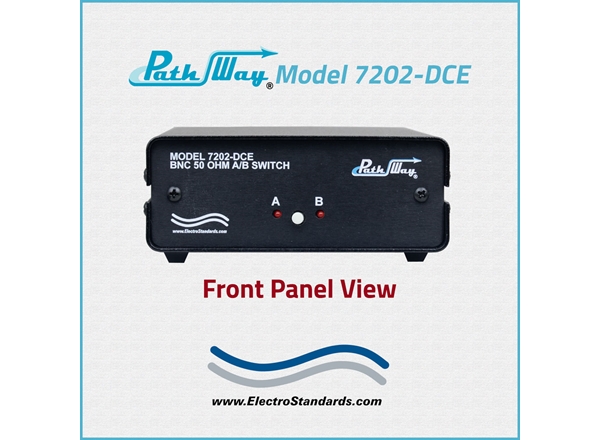

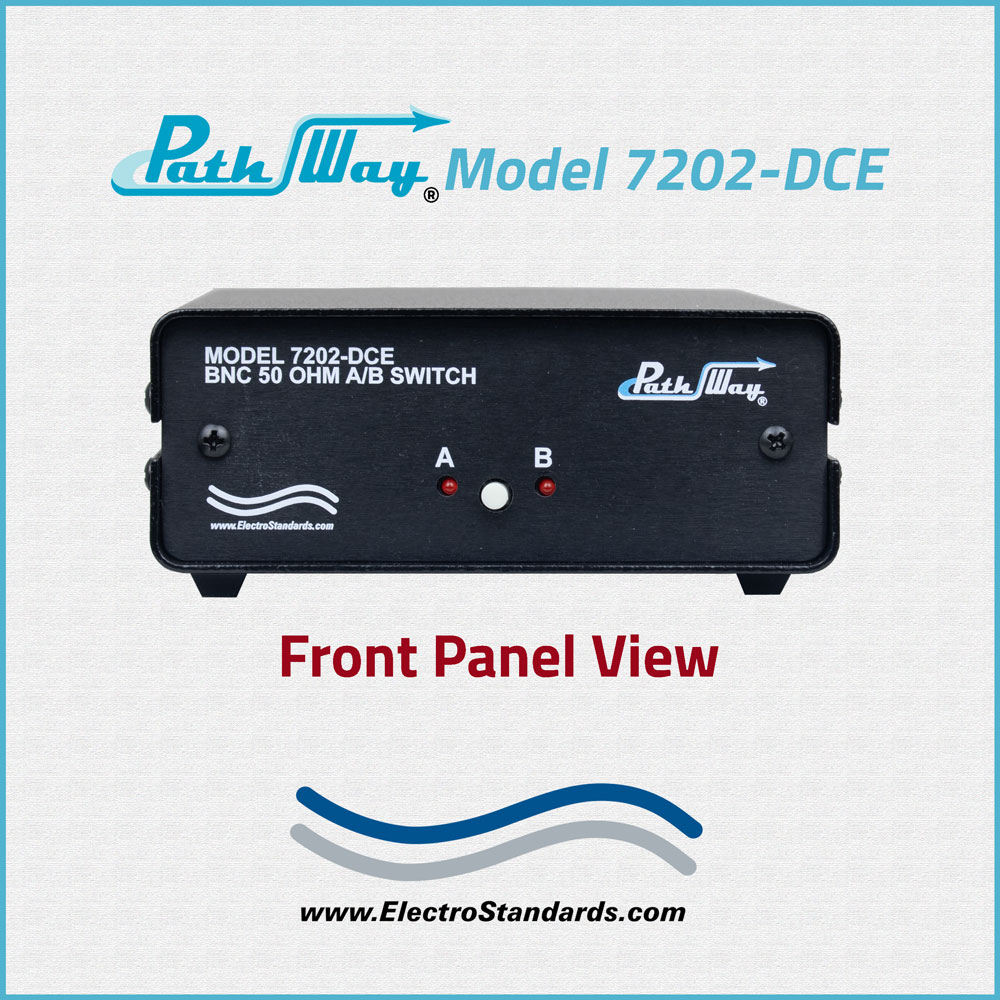

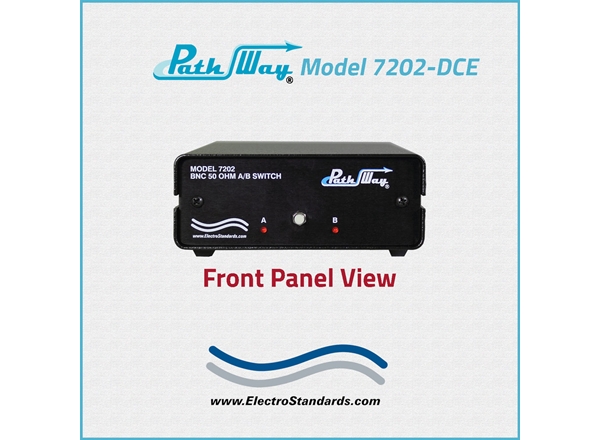

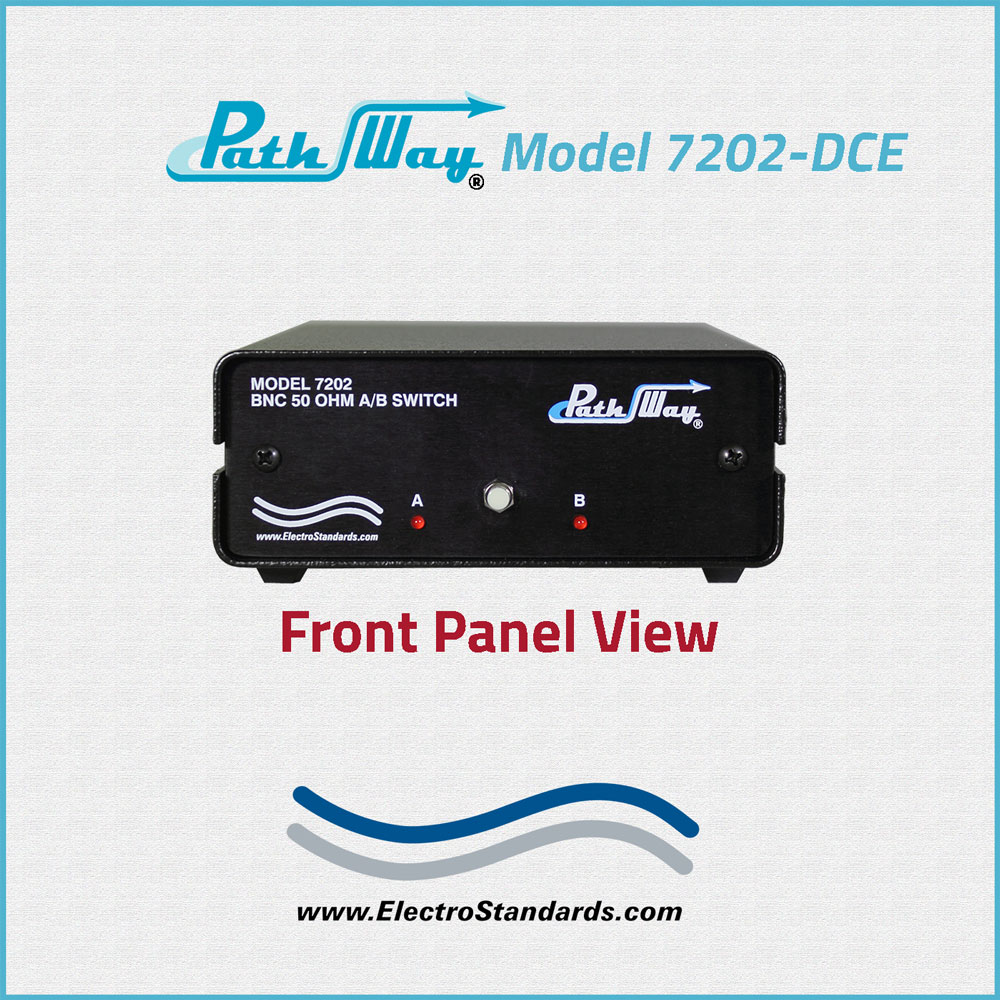

  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
  • DISPLAY: (2) Front panel LED's display switch position and power status.

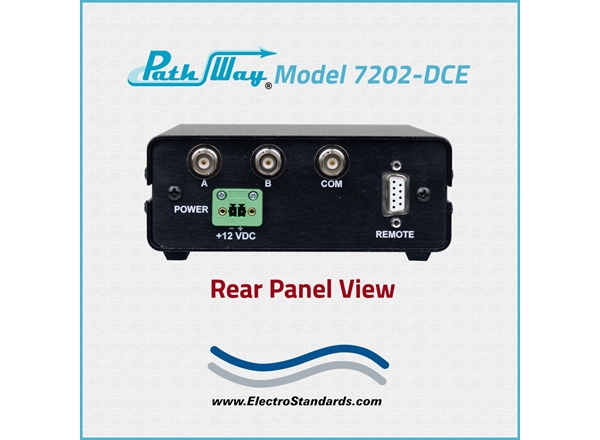

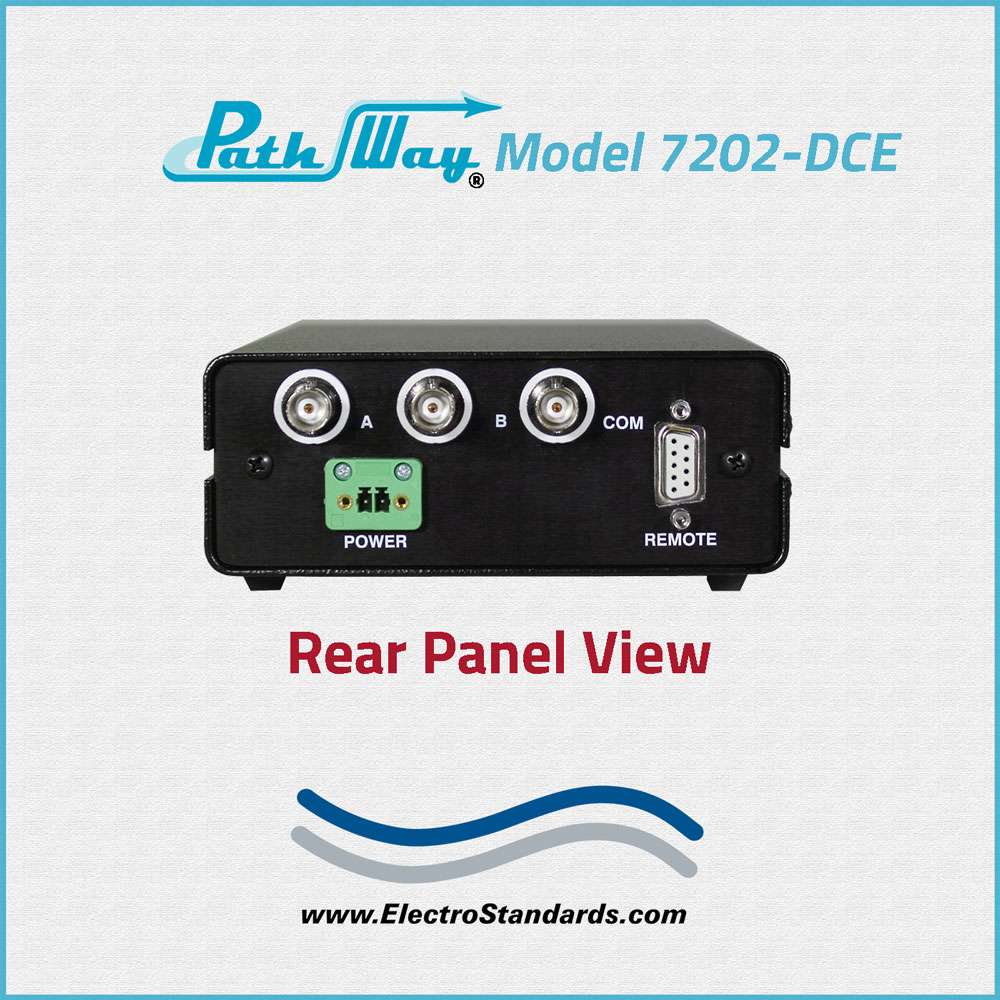

  • REMOTE CONTROL: (1) DB9(F) REMOTE connector on rear panel accepts ASCII RS232 Serial Data. GUI Software Interface available as an option.
  • POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500 mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Desktop 5.44" W x 7.27" D x 2.26" H [13.9 x 18.5 x 5.8 cm]
  • WEIGHT: Approximately 1.2 lb, (0.6 kg)

50 OHM IMPEDANCE BNC NETWORK APPLICATION WITH RS232 REMOTE PORT:

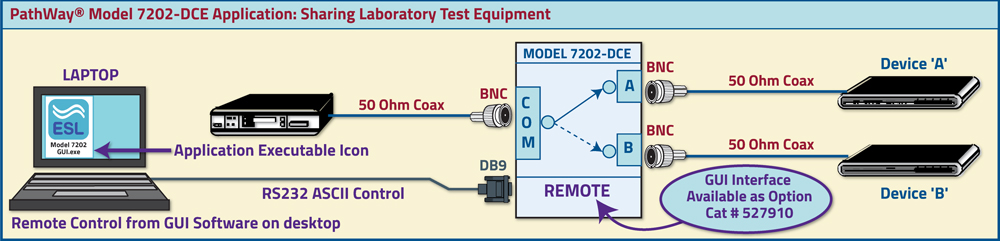

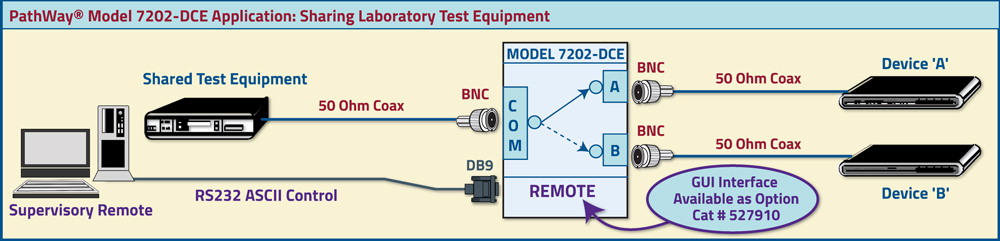

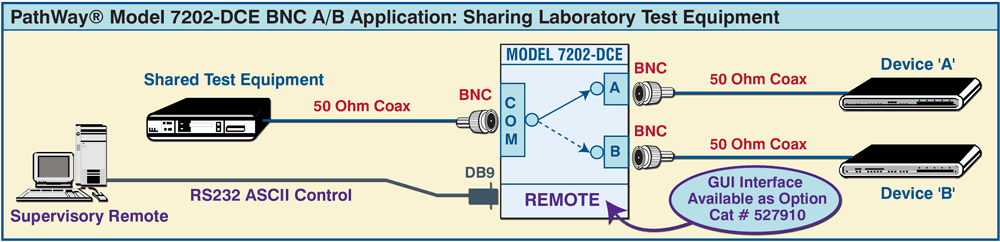

All BNC ports are impedance matched to support 50 Ohm equipment. The diagram illustrates a shared test equipment (50 Ohm) connected to the COMMON port sharing between Device A (50 Ohm) and Device B (50 Ohm) connected to the A and B ports. The DB9 Remote accepts ASCII RS232 Serial data commands for Remote Control Operation. Optionally a GUI Interface (Cat No 527910) is available to remotely control the Model 7202-DCE .

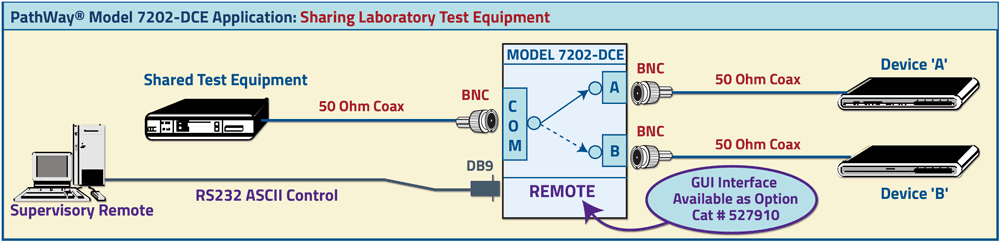

PathWay® Model 7202-DCE Application

MODEL 7202-DCE APPLICATION: Sharing Laboratory Test Equipment.

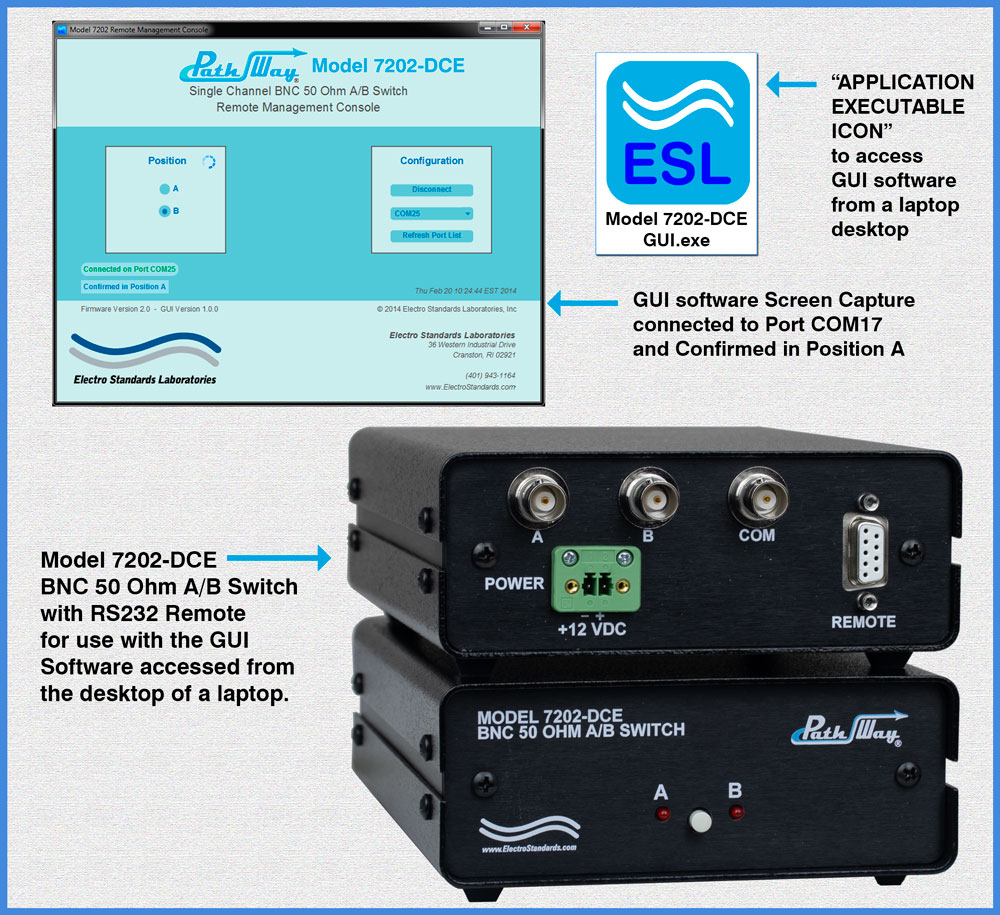

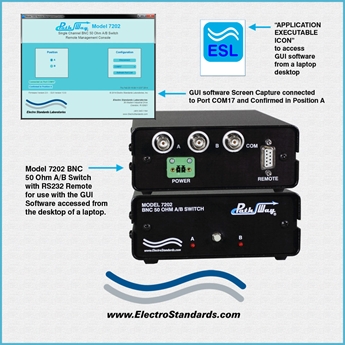

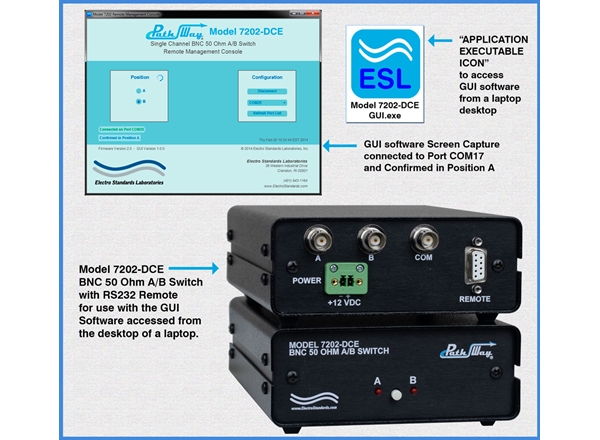

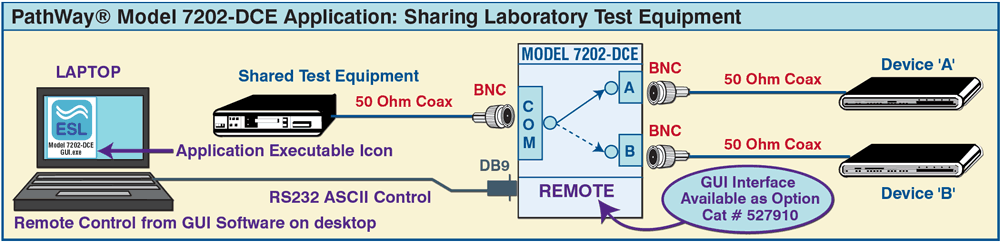

The application drawing illustrates a Remote Control from a GUI Software on the Laptop. Simply double click the Application Executable Icon to the launch the software. The user can then remotely control the Model 7202-DCE from the laptop to select the Shared Test Equipment.

PathWay® Model 7202-DCE  Application w/GUI

For a BNC Switch with RS422 Remote Serial Data Port,
see the
Model 7203, Catalog Number 307203.

For 93 Ohm BNC Switch, see Model 7402, Cat No 307402
For 75 Ohm BNC Switch, see
Model 7302, Cat No 307302

FEATURES:

  • Switch locally via front panel pushbutton, or remotely via an RS232 Remote Serial Control port.
  • Both the center and shell of the BNC interface are switched via break-before-make electromechanical relays.
  • All BNC ports are impedance matched to support 50 Ohm equipment.
  • The switch ports are transparent to all data.
  • The unit maintains last set position on power loss and continues to pass data.
  • Front-panel pushbutton control.
  • Remote RS232 ASCII commands that allow the user to control switch position, obtain switch status, as well as, query firmware version number, query serial number, and enable/disable autosend of switch positions.
  • Remote RS232 Port pinout configured as a DCE device.
  • Front panel LED's display switch present position and power status.

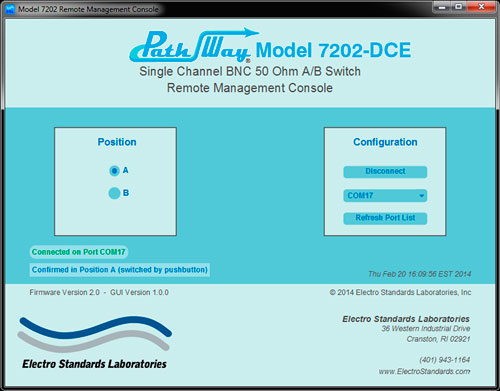

  • Optional GUI Software can be used to control the switch and obtain switch status, for details, click here: Catalog# 527910 or see Accessories below.
  • Attractive anodized black box packaging provides EMI/RFI shielding.
  • Custom length 50 Ohm BNC coaxial cables available for your switch installation. Call for quote.

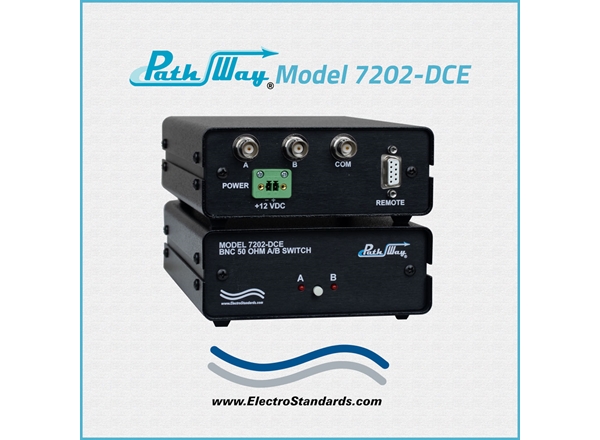

The PathWay® Model 7202-DCE BNC 50 Ohm A/B Switch Box with Remote Control allows the user the capability of accessing two separate 50 Ohm BNC devices, ports A and B, via a connection through a device connected to the COMMON port of the switch. The Model 7202-DCE is packaged in a slim desktop style enclosure.

The switch may be controlled manually via the front panel pushbutton or remotely from an RS232 Serial port located on the rear of the unit.

Switch position state may be attained via the LED display on the front of the unit.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.
