Path Way Remotely Controllable Network Switch, BNC Coaxial

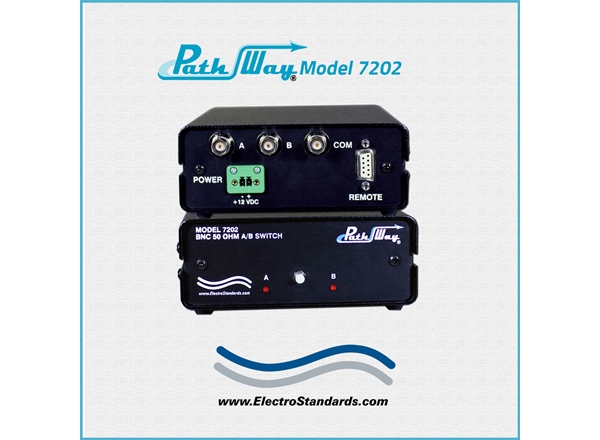

Model 7202 50 Ohm Impedance BNC A/B Switch Box with RS232 Serial Remote Port
Ideal for sharing laboratory test equipment with a BNC coaxial interface.
Field proven in university and high technology research laboratories.

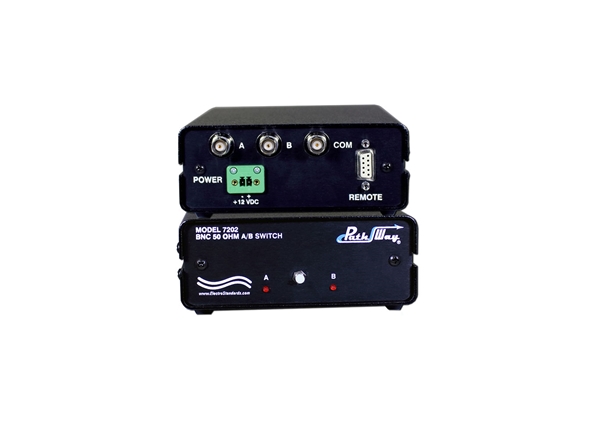

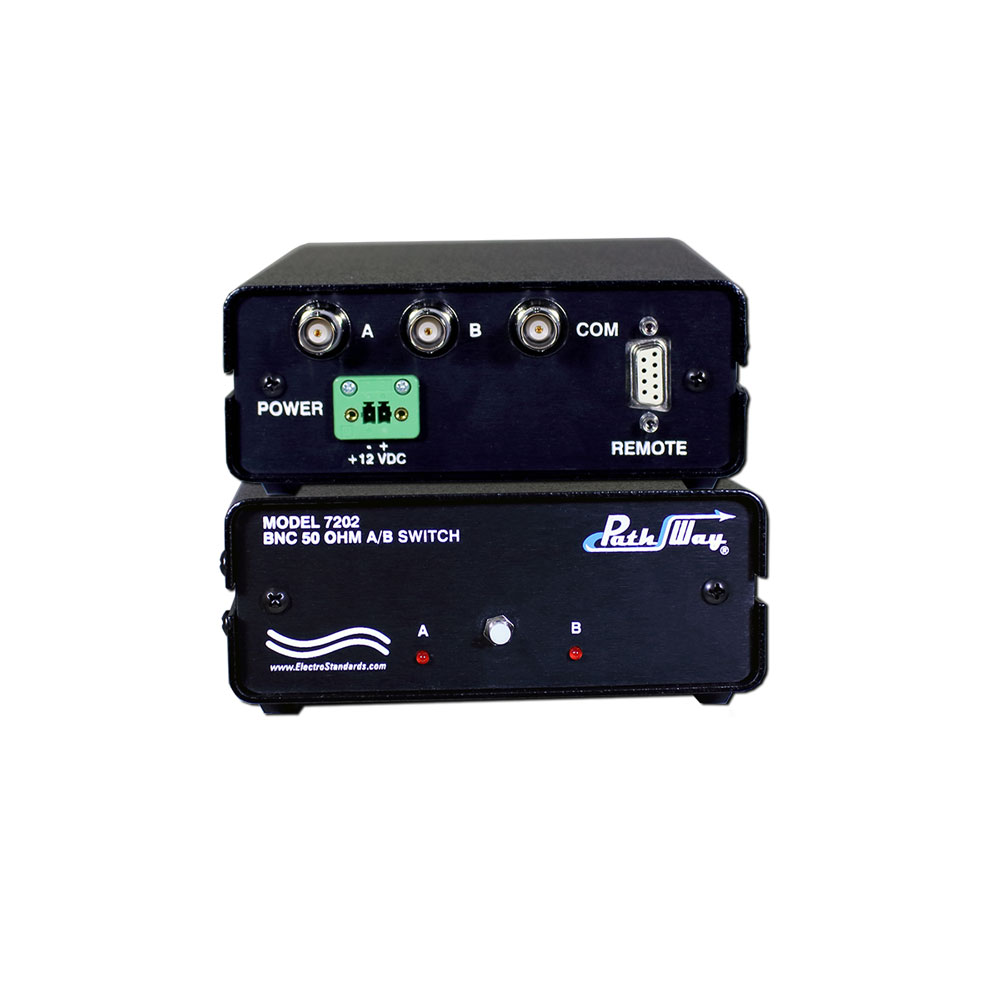

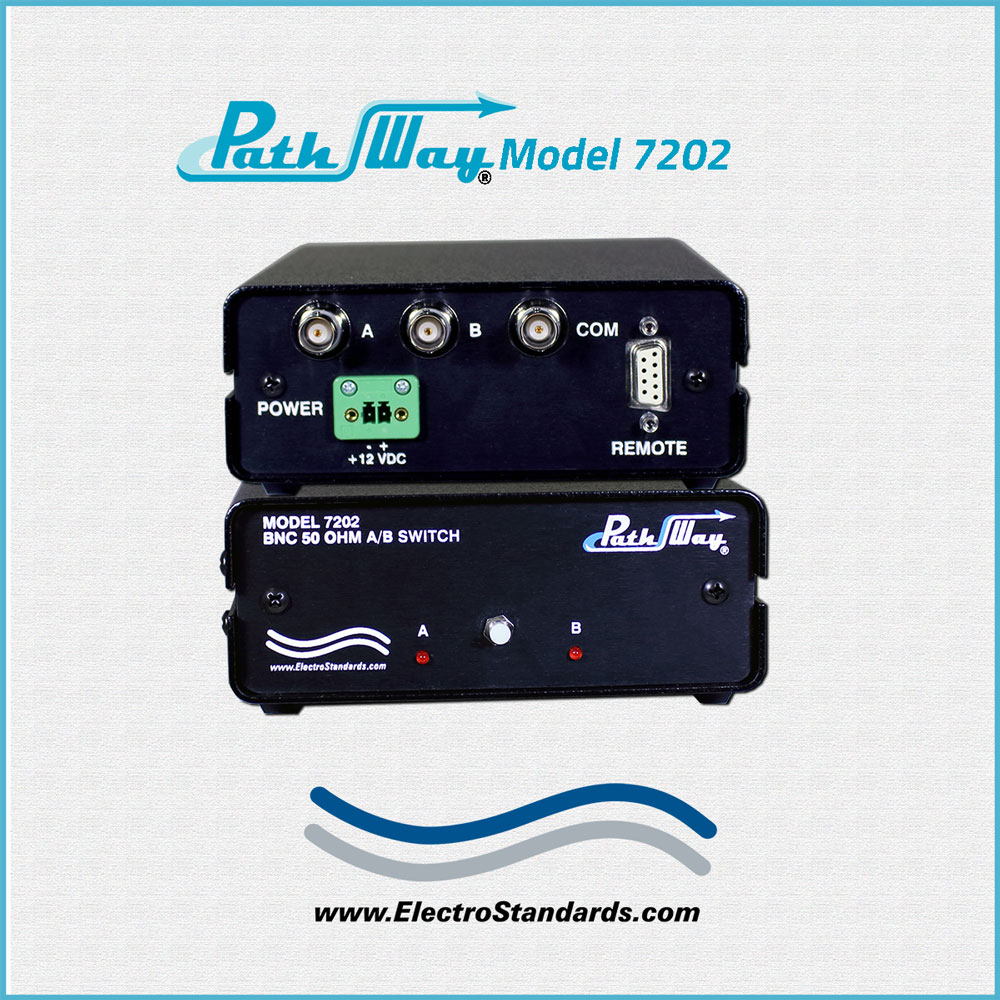

- PORT CONNECTORS: (3) BNC (F) connectors labeled A, B and COMMON.

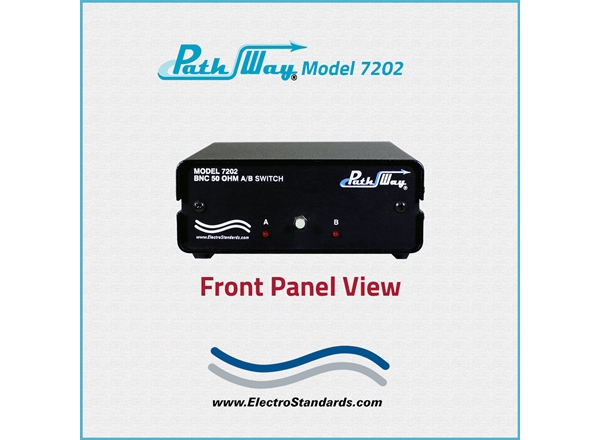

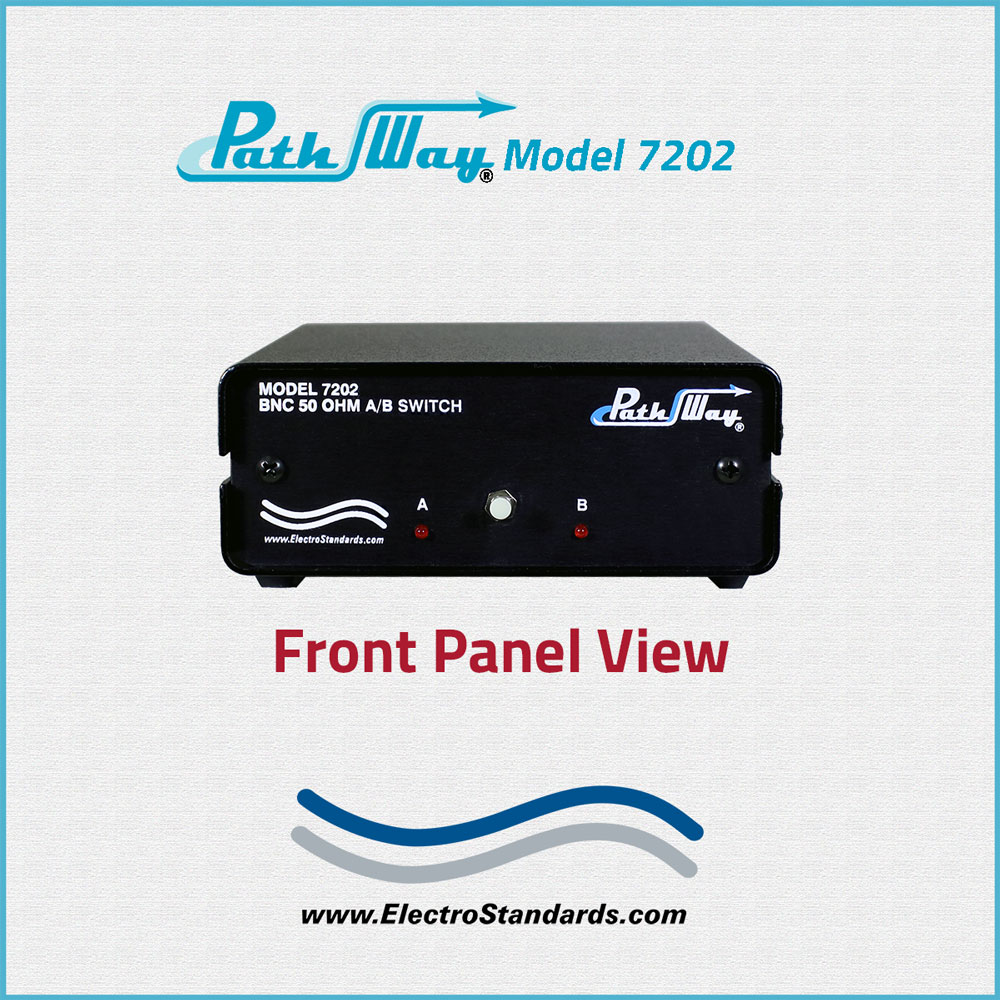

- FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
- DISPLAY: (2) Front panel LED's display switch position and power status.

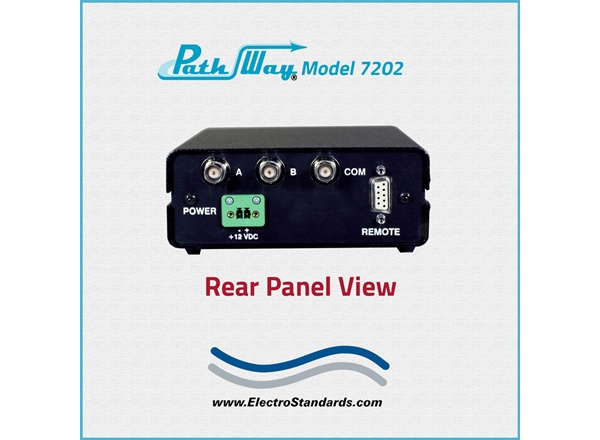

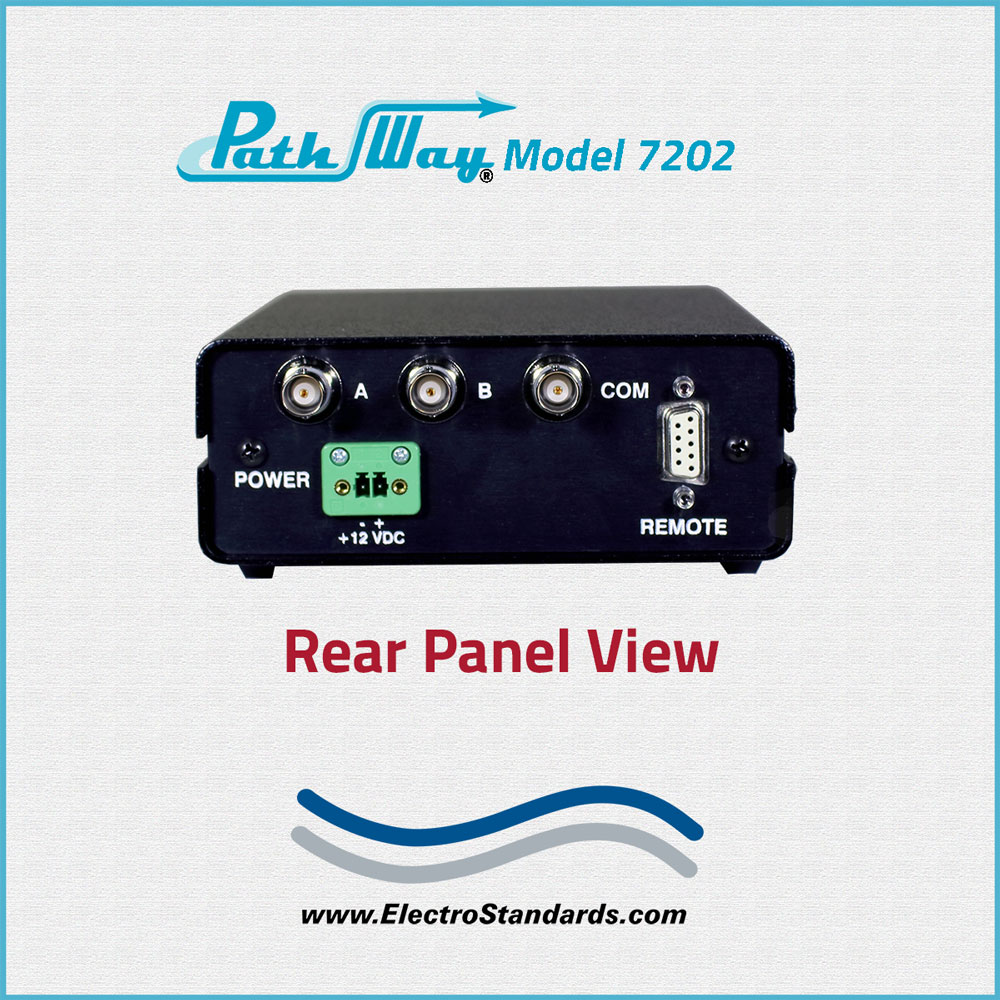

- REMOTE CONTROL: (1) DB9(F) REMOTE connector on rear panel accepts ASCII RS232 Serial Data. GUI Software Interface available as an option.
- POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500 mA to the unit. Has 2-prong, US, non-polarized plug.
- DIMENSIONS: Desktop 5.44" W x 7.27" D x 2.26" H [13.9 x 18.5 x 5.8 cm]
- WEIGHT: Approximatey 1.2 lbx (0.6 kg)
50 OHM IMPEDANCE BNC NETWORK APPLICATION WITH RS232 REMOTE PORT:

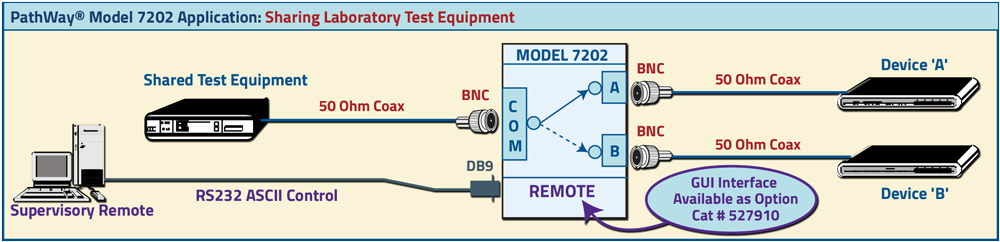

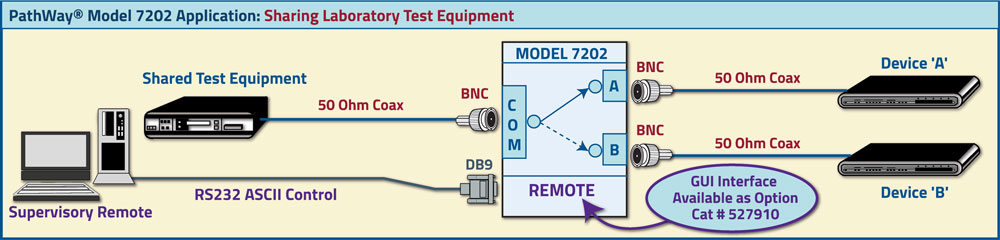

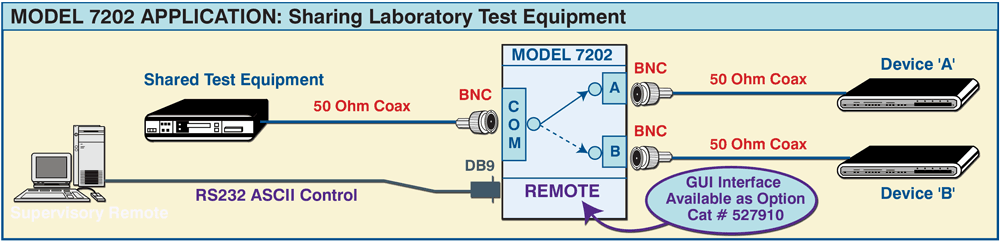

All BNC ports are impedance matched to support 50 Ohm equipment. The diagram illustrates a shared test equipment (50 Ohm) connected to the COMMON port sharing between Device A (50 Ohm) and Device B (50 Ohm) connected to the A and B ports. The DB9 Remote accepts ASCII RS232 Serial data commands for Remote Control Operation. Optionally a GUI Interface (Cat No 527910) is available to remotely control the Model 7202.

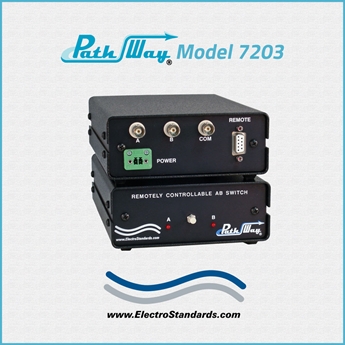

For a BNC Switch with RS422 Remote Serial Data Port,
see the Model 7203, Catalog Number 307203.
For 93 Ohm BNC Switch, see Model 7402, Cat No 307402
For 75 Ohm BNC Switch, see Model 7302, Cat No 307302
- Allows quick connection to any one of two 50 Ohm impedance BNC interface devices from one 50 Ohm impedance COMMON device.
- The switch ports are transparent to all data.
- Both the center pin and shell of each BNC interface are switched via break-before-make electromechanical relays.
- The unit maintains last set position on power loss and continues to pass data.
- Front-panel pushbutton control.
- Remote RS232 ASCII commands that allow the user to control switch position and obtain switch status.
- Remote RS232 Port pinout configured as a DTE device.
- Front panel LED's display switch present position and power status.
- All BNC ports are impedance matched to support 50 Ohm equipment.

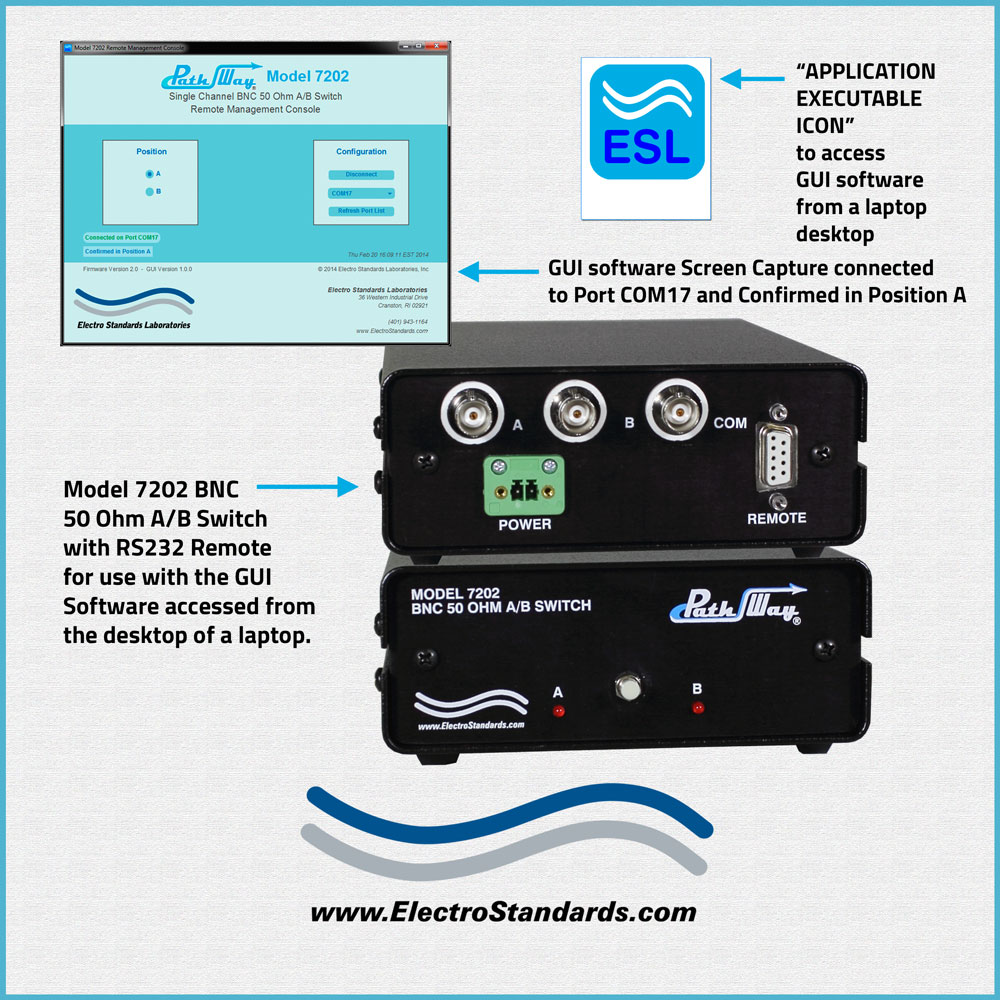

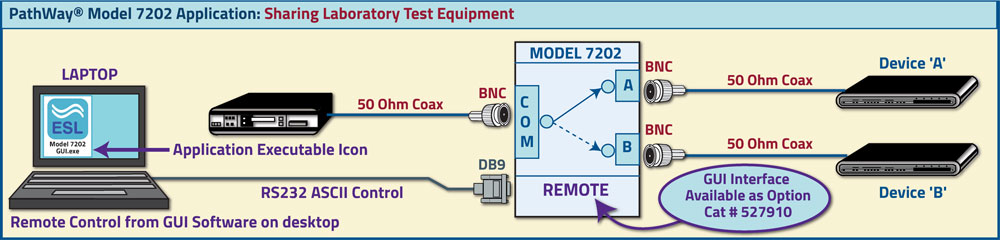

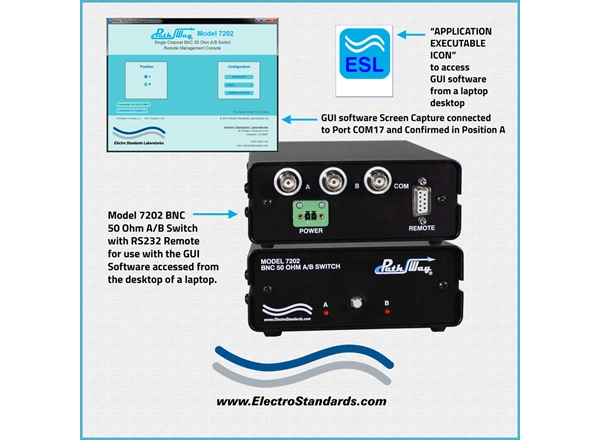

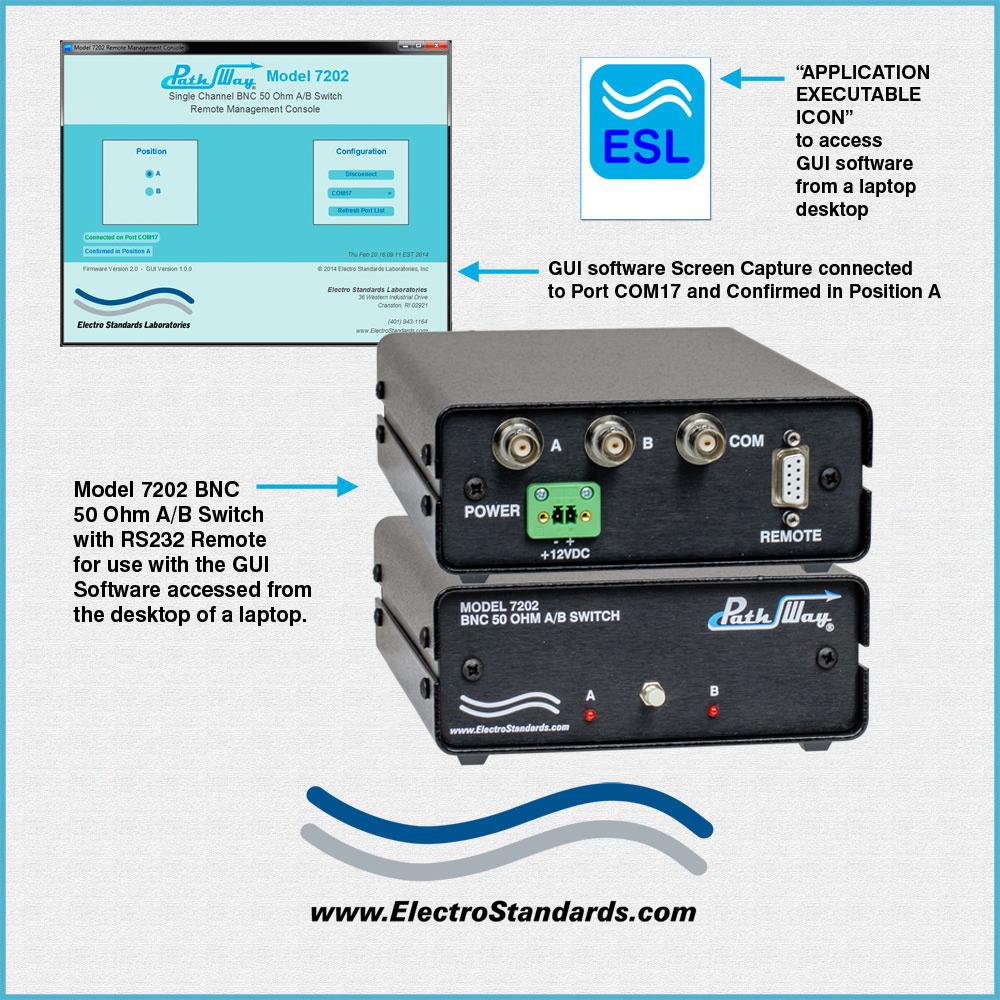

- Optional GUI Software can be used to control the switch and obtain switch status, for details, click here: Catalog# 527910 or click on Accessories tab.
- Eliminates the need to plug and unplug cables.
- Attractive anodized black box packaging provides EMI/RFI shielding.
- Custom length 50 Ohm BNC coaxial cables available for your switch installation. Call for quote.
- Municipalities, schools, government: This product on GSA Schedule!
The PathWay Model 7202 BNC 50 Ohm A/B Switch Box with Remote Control allows the user the capability of accessing two separate 50 Ohm BNC devices, ports A and B, via a connection through a device connected to the COMMON port of the switch. The Model 7202 is packaged in a slim desktop style enclosure.
The switch may be controlled manually via the front panel pushbutton or remotely from an RS232 Serial port located on the rear of the unit.
Switch position state may be attained via the LED display on the front of the unit.
This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here for GSA details.
Model 7202 50 Ohm Impedcance BNC A/B Switch is available to government purchasers on our GSA Schedule GS-35F-0286V. Call for discounted price and terms.
Check out suggested cables for use with the Model 7202 Switch.
|Suggested cables for use with Model 7202 Switch
RG58 Coaxial Cable, 50 ohm, 6ft. (M/M)
RG58 Coaxial, 50 ohm, 10ft. (M/M)
Thinnet RG58 Coaxial Cable, 50 ohm, 6ft (M/M)
Thinnet RG58 Coaxial Cable, 50 ohm, 10ft (M/M)
Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.
