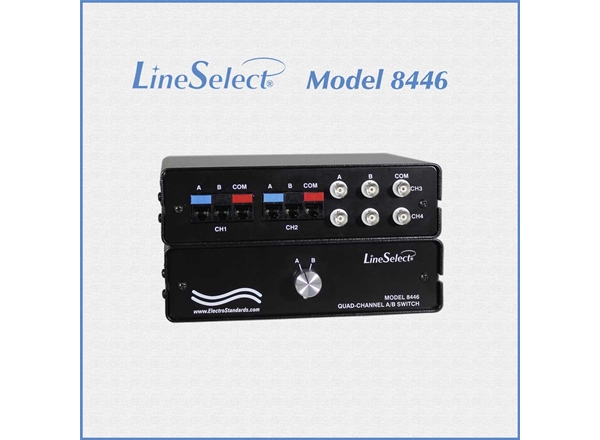

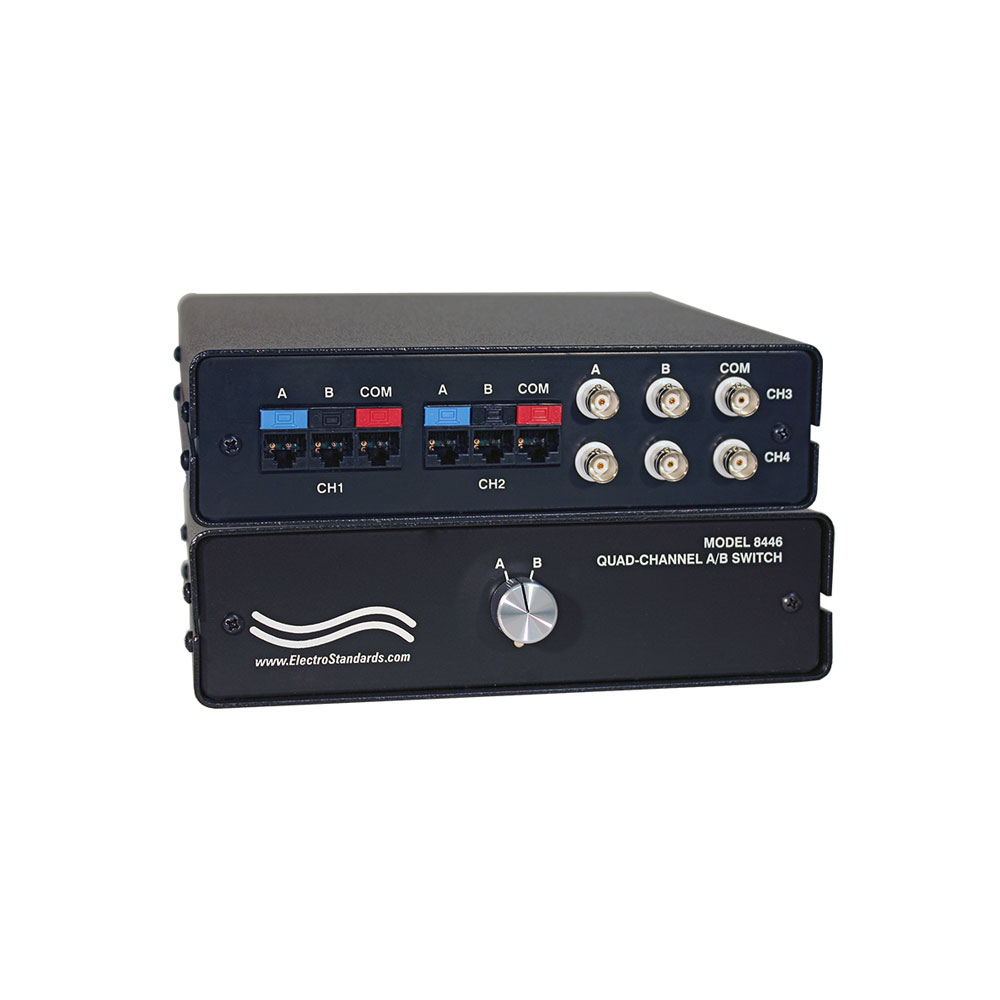

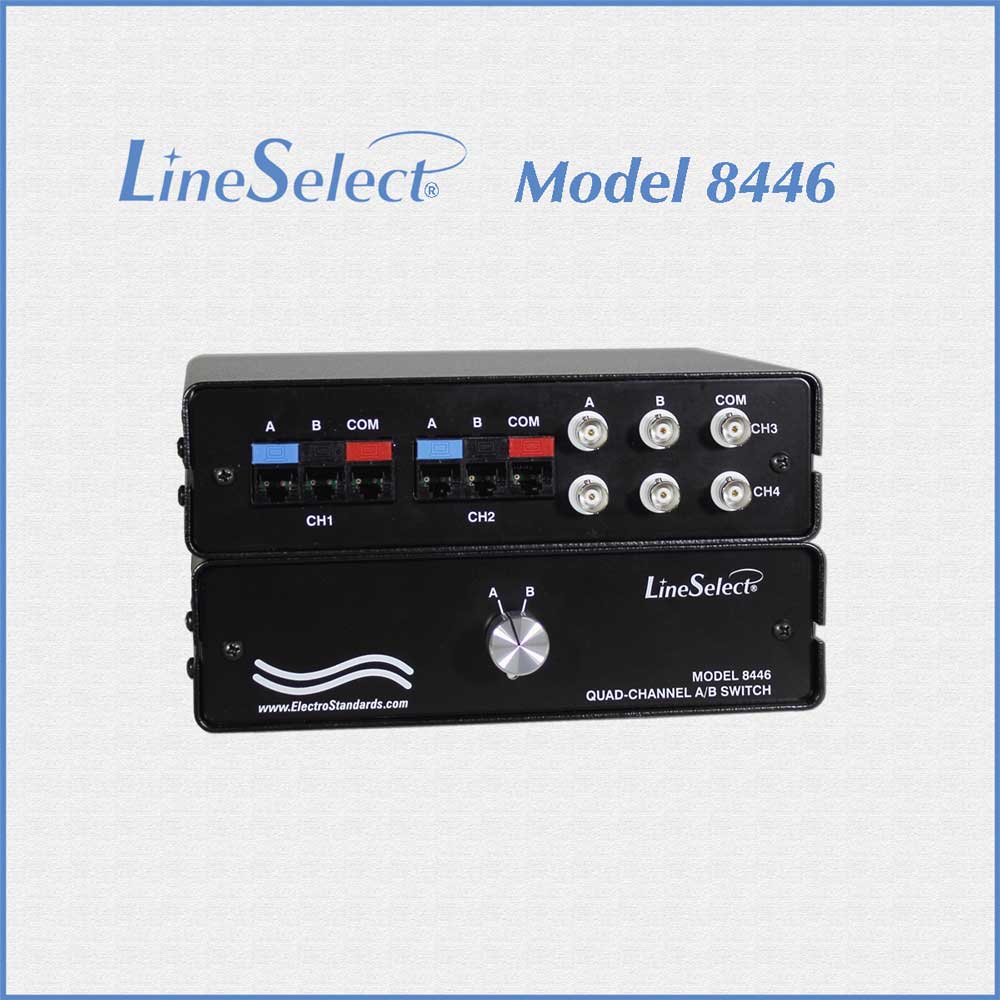

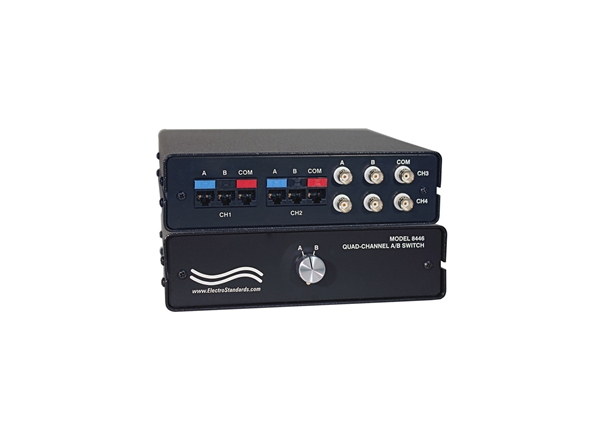

Model 8446 4-Channel RJ45 / BNC A/B Switch, Manual Operation, Catalog # 308446

Click image to enlarge

Base Price:

$1,324.00

Catalog No:

308446

Model No:

8446

Product Type:

Switches: Copper

Interface:

RJ45/BNC

Positions:

Cable Type/Port Connector:

RJ45, Coax Switch Ports

Channels per Switch Chassis:

Manual Control/No Power Required:

LineSelect® Manual Operation

Channel Control:

Simultaneous Channel Control

Compliance/Standards:

Cat5e

Configuration:

Desktop

Pins Switched:

All 8 of RJ45, Center Conducter and Shield of BNC

Local Control:

Rotary Knob

Qty

Add to Cart

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

LineSelect® Model 8446 Quad-Channel RJ45/BNC A/B Switch, Manual Operation

Overview

The LineSelect® Model 8446 Quad-Channel RJ45 / BNC A/B Switch enables access to two devices per each of its four channels. Channel 1 allows access to RJ45 devices 1-A or 1-B. Channel 2 allows access to RJ45 devices 2-A or 2-B. Channel 3 allows access to BNC devices 3-A or 3-B. Channel 4 allows access to BNC devices 4-A or 4-B. All channels are switched simultaneously. The 4-Channel Network Switch supports all 8 pins of the RJ45 Cat5e interfaces, and supports both the center conductor and shield of the BNC interfaces. The Model 8446 is enclosed in a slim desktop style enclosure.

Ideal for switching "Ethernet-over-Coax-Converters”
High Quality Manual Data Network Switches Increase the Reliability of Your Network!

FEATURES OF THE MODEL 8446 QUAD-CHANNEL A/B SWITCH:

Simultaneously switches two RJ45 Channels and two BNC Channels locally via a knob located on the front panel.
RJ45 channels are tested for Cat5e compliance.
All (8) pins of the RJ45 interface are switched via a break-before-make rotary switch.
Both the shield and center conductor of the coaxial interface are switched via break-before-make rotary switch.

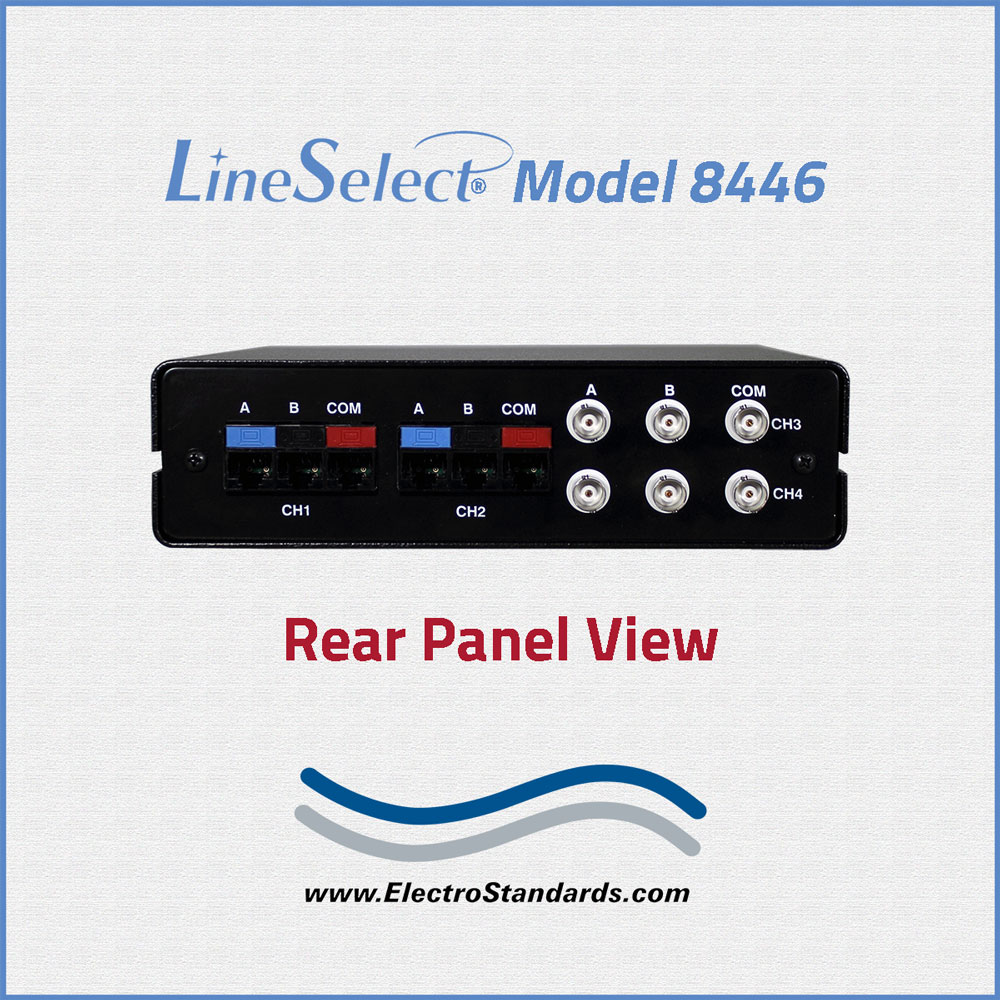

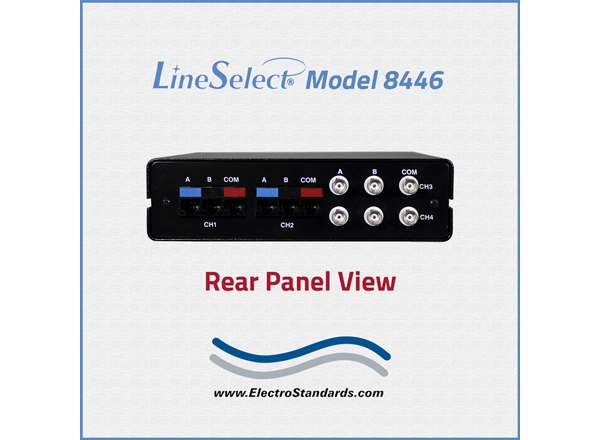

All ports located on rear panel: (6) RJ45 female and (6) BNC female.
Attractive anodized black box packaging provides EMI/RFI shielding.
Four threaded screw holes located on the bottom panel.
Switching is manually operated. Requires no power.
Custom length cables available for your switch installation.

TECHNICAL SPECIFICATIONS:

PORT CONNECTORS:
- (6) RJ45 (F) category 5e connectors on rear panel.
- (6) BNC (F) Connectors on rear panel.

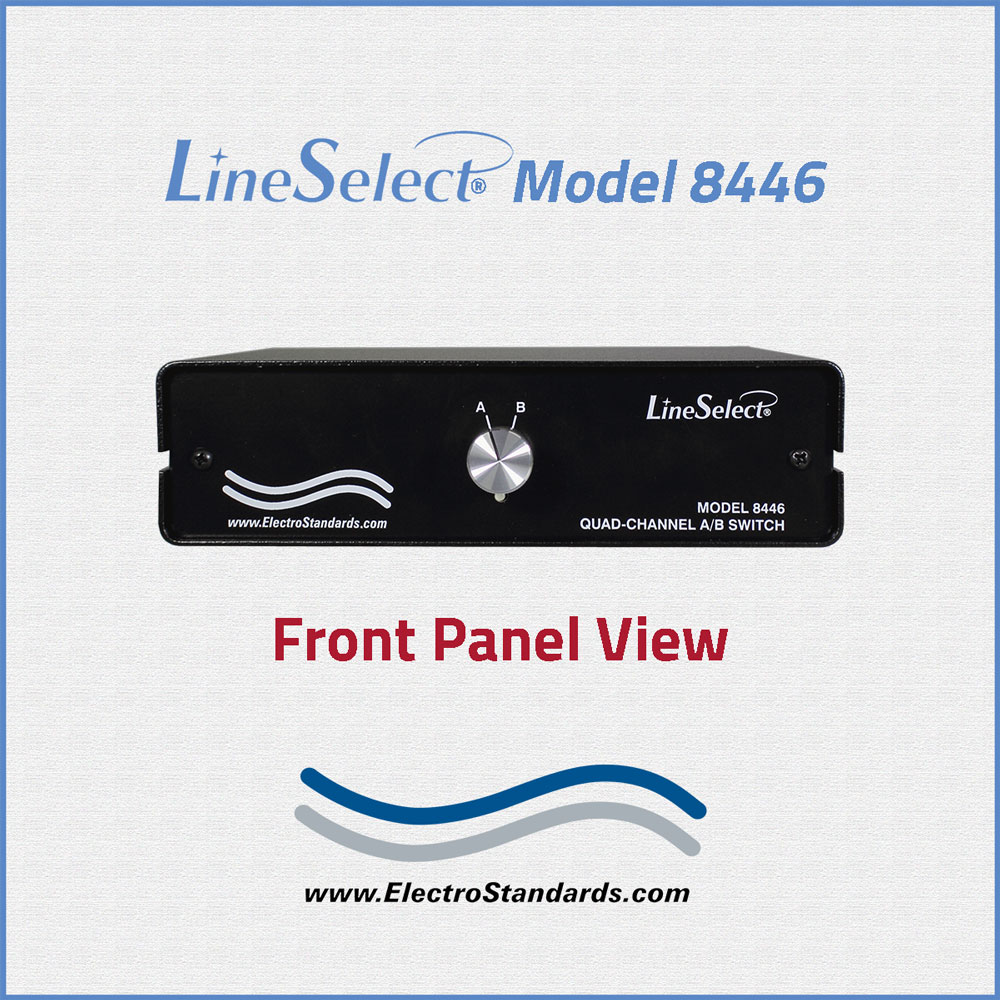

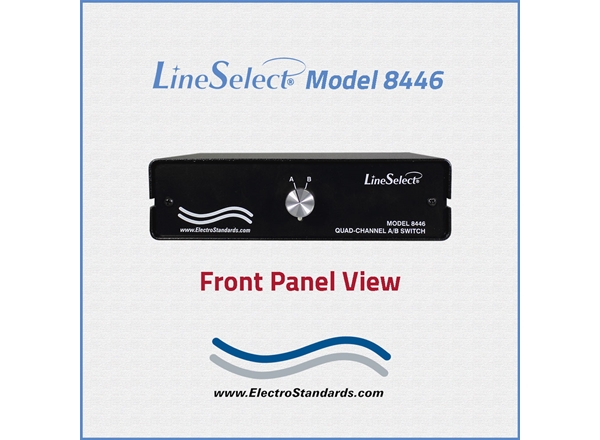

FRONT PANEL CONTROLS: (1) Rotary Switch on front panel selects A or B.
PINS SWITCHED:
RJ45: All (8) pins switched,
BNC: Center conductor and Shield.
POWER: Manually operated. No power required.
ENCLOSURE: Shielded Aluminum Enclosure.
DIMENSIONS: 8.1"W x 2.18"H x 8.0"D. (20.6 x 5.6 x 20.4 cm)
WEIGHT: Approximately 1.6 lb (0.8 kg.)

LineSelect® Model 8446 Quad Channel RJ45/BNC A/B Multi-Interface Copper Network Application:

Ideal for switching "Ethernet-over-Coax-Converters”

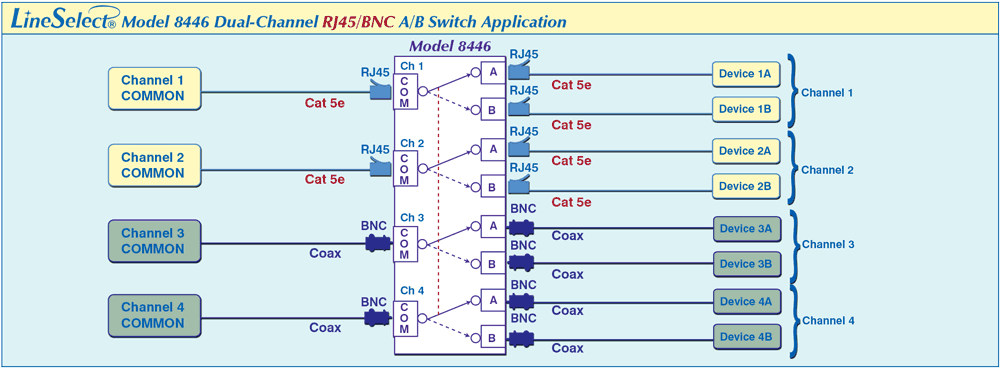

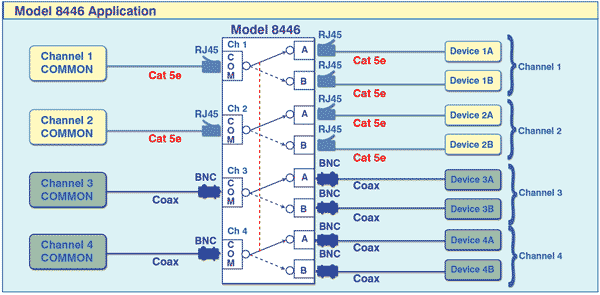

The application diagram shows a COMMON device connected to the RJ45 COMMON port with access to Device A and Device B, connected to the RJ45 A port and the RJ45 B port, respectively for each of two channels. The application diagram also illustrates a COMMON device connected to the BNC COMMON port with access to Device A and Device B, connected to the BNC A port and the BNC B port, respectively for each of two channels. All four channels are switched simultaneously.

LineSelect Model 8446 Dual Channel RJ45 /BNC A/B Switch Application

Ordering Information

Catalog Number: 308446
Model Number: 8446
Base Price: See website or contact us for current pricing and availability.
Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
We welcome international inquiries and ship worldwide.

Shipping and Returns

Shipped via UPS ground (unless otherwise requested).
Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.
