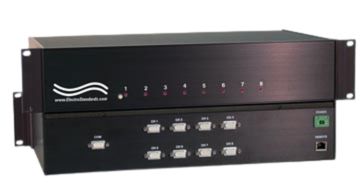

Catalog # 307810 - Model 7810 8-to-1 HD15 Switch, LAN Access

    8-to-1 HD15 Switch, LAN Access8-to-1 HD15 Switch, LAN Access
Click image to enlarge
    • 8-to-1 HD15 Switch, LAN Access
    • 8-to-1 HD15 Switch, LAN Access
Base Price:
$3,203.00
Catalog No: 307810
Model No: 7810
Product Type:Switches: Copper
Positions:8
Cable Type/Port Connector:HD15 Switch Ports
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:Ethernet
Configuration:Rackmount
Pins Switched:12
Remote Port:RJ45
Local Control:Pushbutton
Feature:LAN Access/Password Protection

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview


Path Way® Remotely Controllable Network Switch
Model 7810 8-to-1 HD-15 Switch with 10/100 Base-T LAN Access

  • IP Addressable for Critical Network Alternate-Path Switching!
  • Extensive Graphical User Interface (GUI) features!

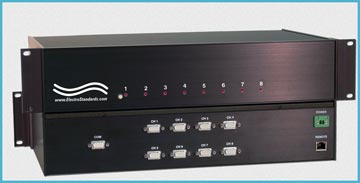

Model 7810 8-to-1 HD-15 Switch with 10/100 Base-T LAN Access

SPECIFICATIONS:

  • PORT CONNECTORS: (9) HD15 (F) connectors labeled
    CHANNEL 1-8 and COMMON.
  • REMOTE PORT: (1) RJ45 (F), accepts 10/100 Base-T LAN access
    Ethernet for Remote Control.
  • POWER: UL Approved 100/240VAC, 50Hz/60 Hz wall mount
    power module supplies 12 VDC, 500 mA to the Model 7810.
  • DISPLAY: (8) Red LED's indicate switch position, status and power.
  • CONTROL: (1) Pushbutton control allows local switching.
  • DIMENSIONS: 19" W x 3.5" H x 10" D. (48.3 x 8.9 x 25.4 cm)
  • WEIGHT: 4.5 lbs. (2.0 Kg)



APPLICATION: LAN Ethernet Data Network Solution, HD15 network switch, 8 to 1 Switching, and POINT AND CLICK Software. The drawing illustrates one COMMON device connected to the HD15 COM port sharing among eight other devices connected to ports 1 through 8. The RJ45 10/100 Base-T Lan Ethernet port allows the user to control the switch with a simple POINT-N-CLICK SOFTWARE.

Application Diagram for Model 7810 8-to-1 HD-15 Switch with 10/100 Base-T LAN Access

FEATURES:

  • IP Addressable.
  • Allows quick connection to any one of eight HD15 devices from one COMMON device.
  • Pins 1 through 12 of the HD15 interface are switched.
  • Eliminates the need to plug and unplug cables.
  • Transparent to data speed and format.
  • Remote control of the switch position from a 10/100 Base-T LAN Ethernet environment or alternatively, the front panel pushbutton.
  • Secure Setup / Configuration access limited by password protection.
  • Front-panel pushbutton control can be locked out, remotely.
  • Front panel LED's display switch position and power status.
  • All switched signals are passed via copper contact relays that maintain their position and continuity in the event of power loss.
  • Attractive anodized black box packaging provides EMI/RFI shielding.
  • Custom length HD15 cables available for your switch installation.
  • Municipalities, schools, government: This product on GSA Schedule!

The PathWay® Model 7810 8-to-1 HD-15 Data Switch with 10/100 Base-T LAN Access, allows the user the capability of sharing a single port HD-15 interface device connected to the "COMMON" port among eight other devices connected to the Channel 1-8 ports with local and remote access functionality.  Remote access can be accomplished by a 10/100 Base-T connection.

Proper authentication is required for remote access via the 10/100 Base-T connection.  Users can remotely monitor status, control switch functions, lock/unlock front panel access and configure the LAN Access port.

OPTION: WIDE RANGE POWER MODULE
(Cat No 517277) CE and UL listed table mount power module, 100 VAC / 240 VAC, 50Hz/60Hz in place of standard 115VAC power module.  Ideal for international applications.

To read the article: "ADVANCES IN NETWORK SWITCHES", click link to read as a pdf. You need Acrobat Reader to view this file.

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here or on GSA icon for details.

UTILIZING THE USER FRIENDLY REMOTE GRAPHICAL USER INTERFACE SOFTWARE
To connect to the switch from a workstation or computer having access to the LAN to which the Model 7810 LAN port is connected, simply launch a standard web browser and type in the appropriate IP address.  You need Java JRE 6.0 or higher installed on the PC to run this GUI.  If the JRE is installed, the Java Applet will be automatically uploaded from the switch upon connection.  If not, the user must install the Java Runtime Engine.  See http://www.sun.com for the proper installation.

LOGIN TO THE MODEL 7810
The default password to login to the Model 7810 is "111111".  The password should be changed to something more secure as soon as the user first connects to the unit.  Passwords must be 6 digits long.

Once logged in, the user can perform one of several tasks:

  • Changing the switch position,
  • Lockout control of the switch's front panel,
  • Changing the login password, and
  • Re-configuring the switch's IP address.

 SOFTWARE FEATURES

  • Access User Interface via standard web browser.
  • Login password authentication required.
  • Easy to use, simple point and click operation.
  • Remote access to control or monitor the Model 7810 Switch System.
  • Users can change the login password and/or switch's IP address.
  • Lockout front panel manual access.
  • LAN access gives users across the LAN or over the Internet access to control if user network is configured accordingly.

Figure 1: GUI in a Standard Web Browser

Model 7810 GUI in a Standard Web Browser



Figure 2: GUI in Device Installer

Model 7810 Login Screen



CHANGING POSITION
To change the switch position,select the radio button from those labeled "1 through 8" and click on it.

Model 7810 Screen Shot of Changing Switch Position

REMOTE FRONT PANEL LOCKOUT
To lock out the Model 7810 from manual switching, click on "Lock" checkbox.  When the "Lock" checkbox is checked, the front panel access is locked out.  Click again to unlock (uncheck the checkbox).

The LOCK function will lockout front panel control.  Lockout control can only be overridden remotely by using this software.  It cannot be changed manually using the switch's front panel pushbutton.

Model 7810 Screen Shot of Remote Front Panel Lockout

Electro Standards can supply all of your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at
401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
All ESL products are available for export.
