Catalog # 306277 - Model 6277 SC Duplex Online/Offline Fiber Switch

    SC Duplex Online/Offline Fiber SwitchSC Duplex Online/Offline Fiber SwitchSC Duplex Online/Offline Fiber SwitchSC Duplex Online/Offline Fiber Switch
Click image to enlarge

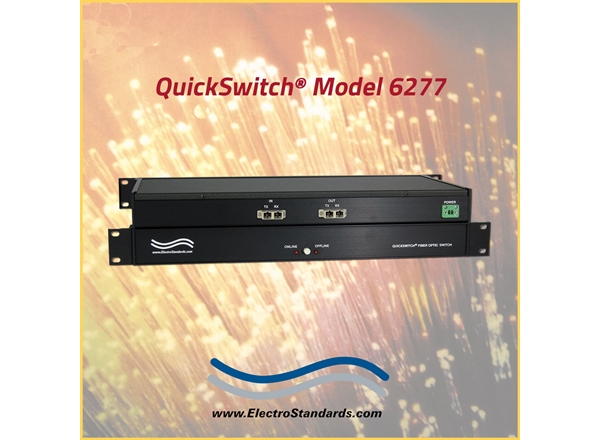

    • SC Duplex Online/Offline Fiber Switch
    • SC Duplex Online/Offline Fiber Switch
    • SC Duplex Online/Offline Fiber Switch
    • SC Duplex Online/Offline Fiber Switch
Base Price:
$1,910.00
Catalog No: 306277
Model No: 6277
Product Type:Switches: Fiber Optic
Positions:2, Offline
Cable Type/Port Connector:SC
Channels per Switch Chassis:1
Electronic Switches/Power Required:QuickSwitch® Fiber Optic
Security:Offline Position
Configuration:Rackmount
Fiber Mode:Multimode
Fiber Size:62.5/125
Fiber Type:Duplex
Local Control:Pushbutton
Mirror Technology:OO
Wavelength Nano:850 nm

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

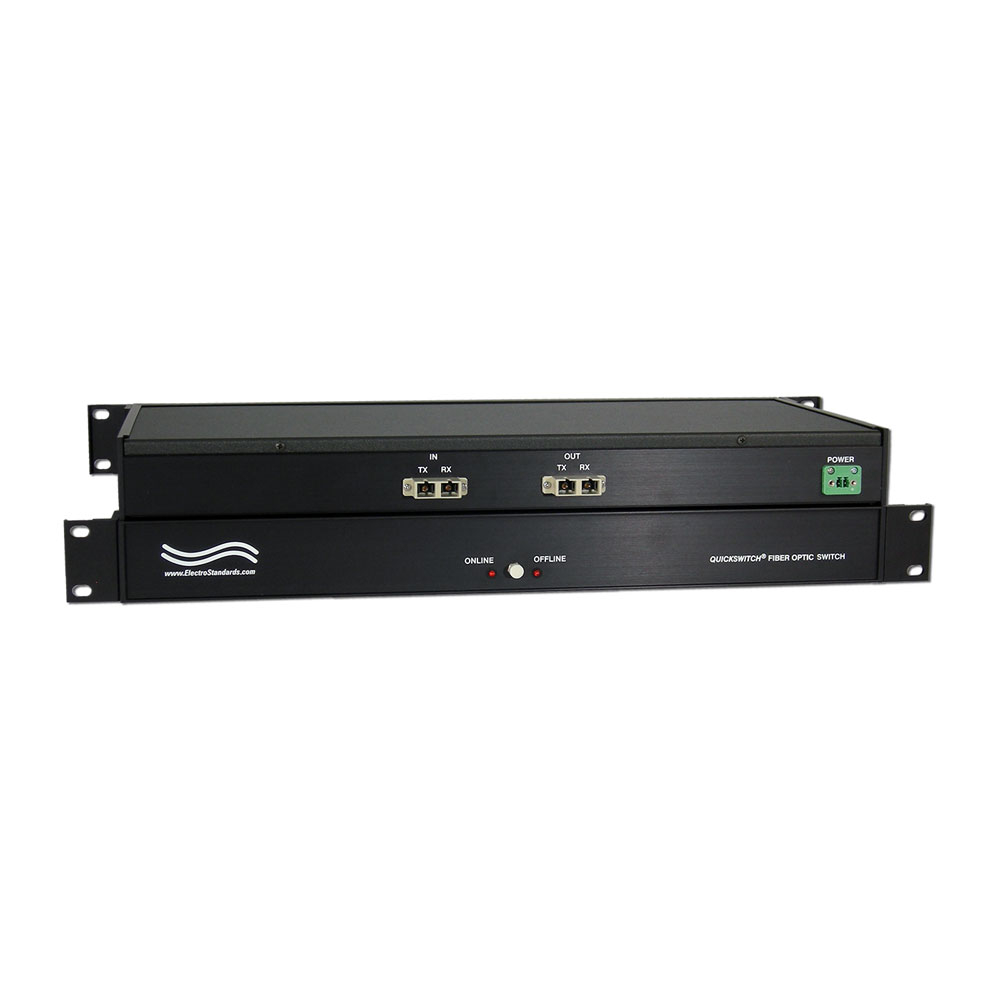

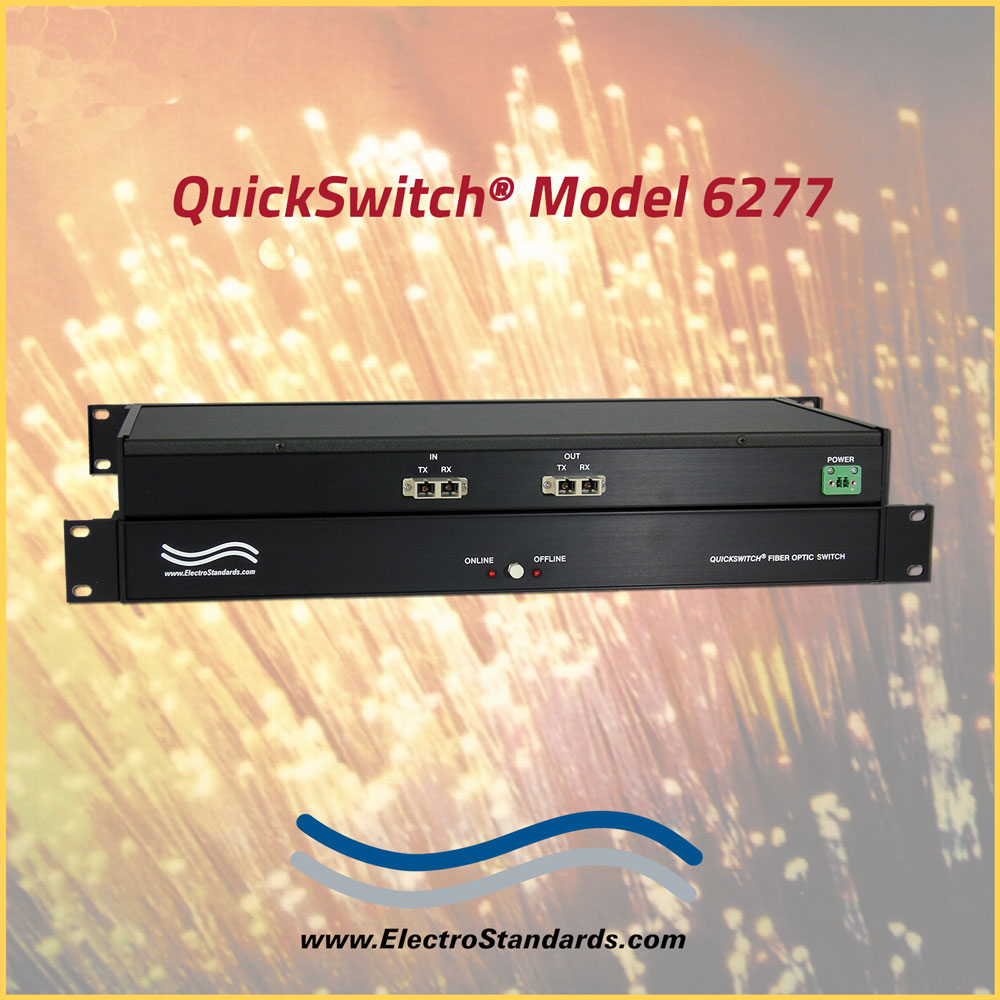

QuickSwitch® Fiber Optic Network Switch, SC Duplex

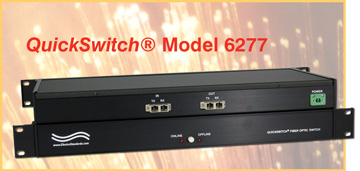

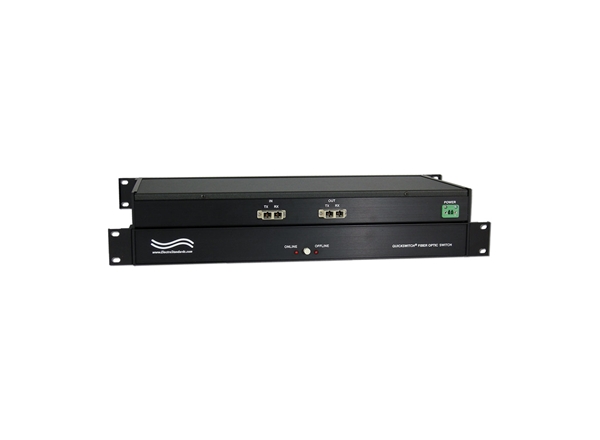

QuickSwitch® 6277 Fiber Optic SC Duplex Online/Offline Switch

  • Quick Connect/Disconnect to/from network.

  • Absolutely NO DATA passes when switch is in the OFFLINE position.

  • The Ultimate FIREWALL!

SPECFICATIONS:

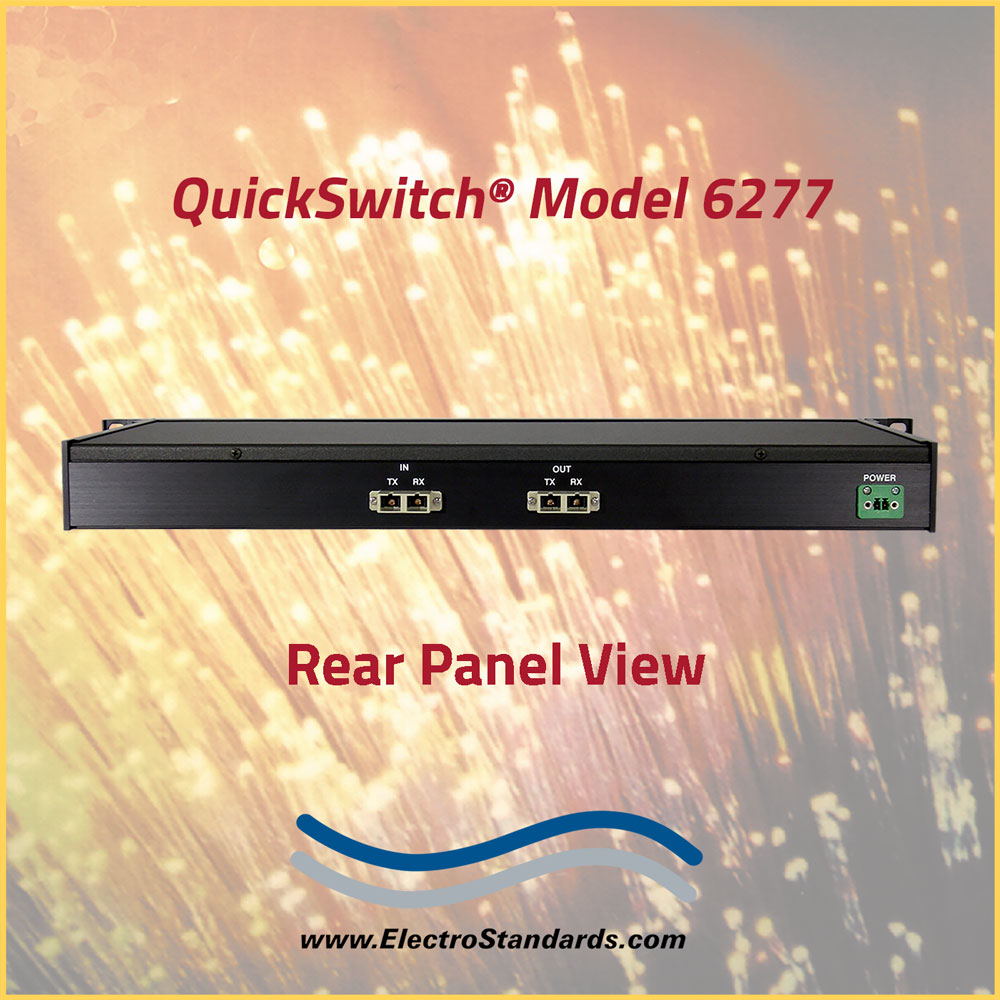

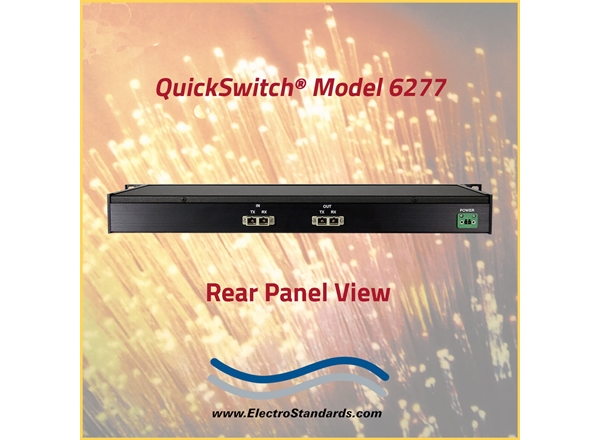

  • PORT CONNECTORS: (2) SC Duplex female connectors labeled IN and OUT.
  • FIBER SIZE: 62.5/125 micron, 850 nm.

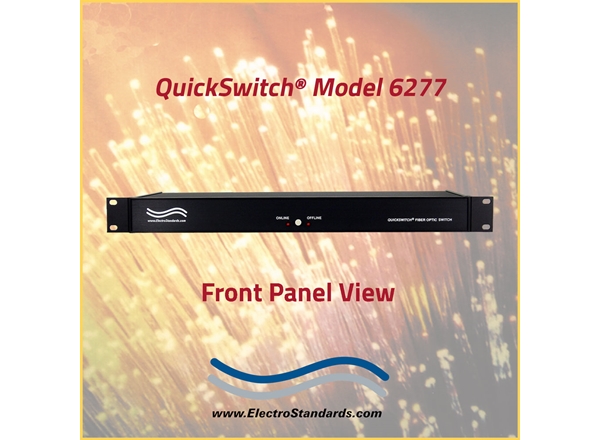

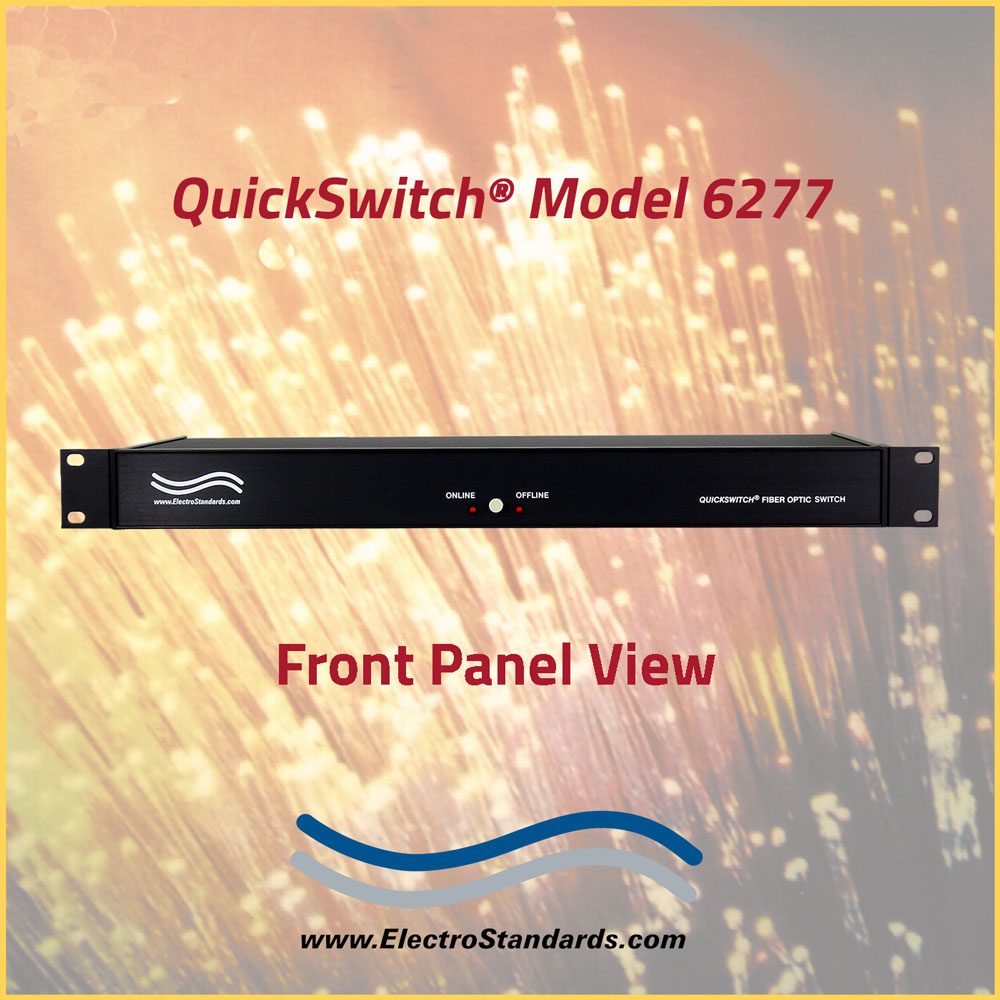

  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
  • DISPLAY: (2) Front-panel LED's display switch position and power status.
  • NO REMOTE CONTROL.
  • POWER: UL approved 100VAC-240VAC, 50 Hz-60 Hz wall mount power module supplies 12VDC 500mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Rackmount, 19.0" W x 1.75" H x 8.78" D (48.3 x 4.4 x 22.4 cm)
  • WEIGHT: Approximately 4.1 lbs. (1.9 kg).

QuickSwitch® SC Duplex Multi-Mode Online/Offline Fiber Optic Switch:

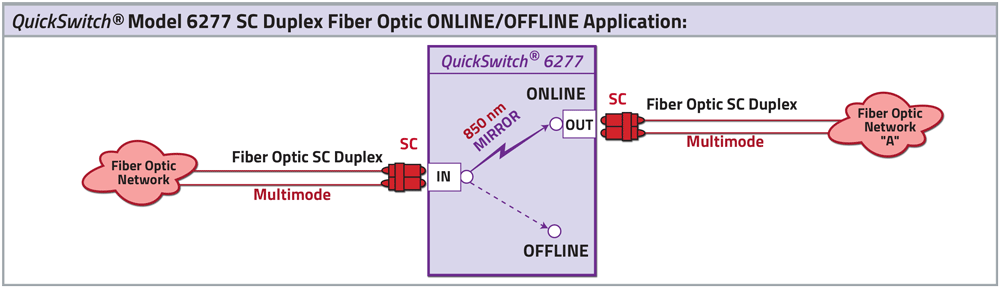

The drawing illustrates a Fiber Optic Network connected to the SC Duplex Multimode IN port and a Fiber Optic Network connected the SC Duplex Multimode OUT port. When the ONLINE position is selected the Fiber Optic Networks are connected. When the OFFLINE position is selected the Fiber Optic Networks are disconnected and NO DATA passes.
