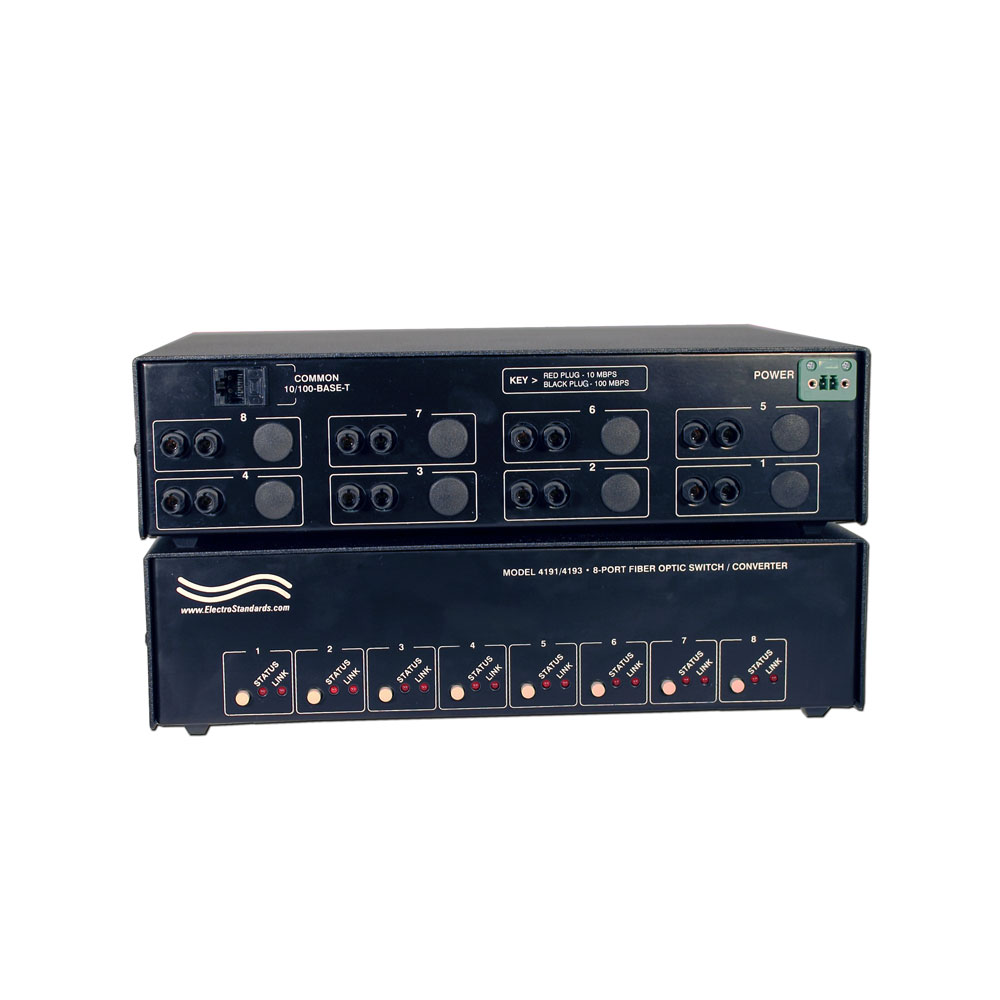

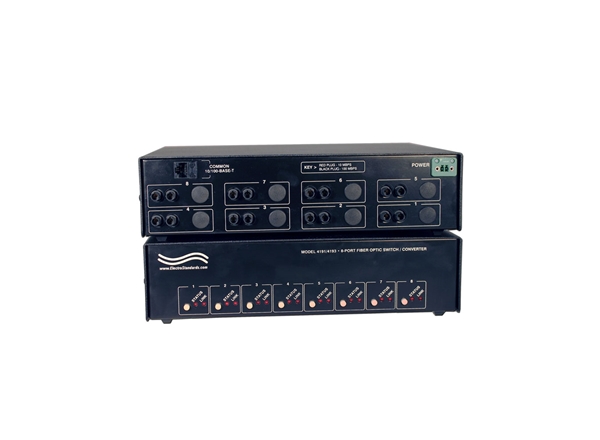

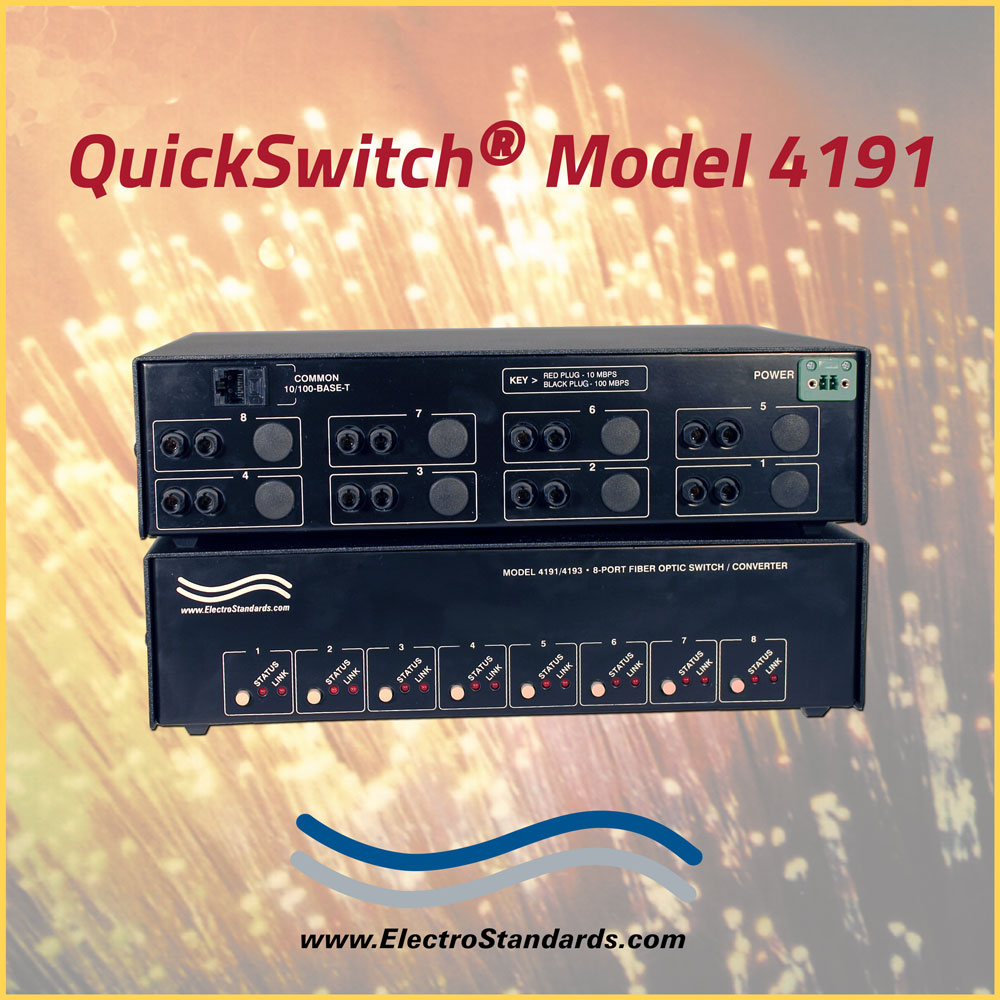

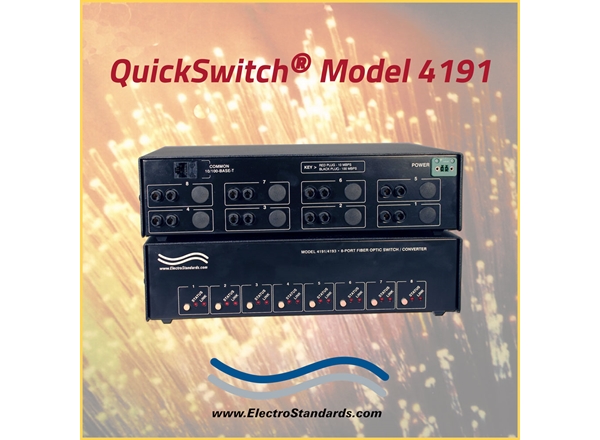

QuickSwitch® Model 4191 6-Way Fiber Optic Switch/Converter

Overview

QuickSwitch® Model 4191 ST Duplex Fiber Optic Switch/Converter allows the user the capability of sharing any one of six single port interface devices via ports 1, 2, 3, 4, 5, or 6 from a workstation or device, connected to the COMMON port. The QuickSwitch® 4191 is packaged in a slim desktop style enclosure.

All six of the fiber optic ports are 1300nm, 100 Mbps, ST Duplex Multimode ports. The built-in electronics will automatically convert the COMMON port to 10/100Base-T twisted pair media. The switch is controlled manually via front panel pushbuttons. The switch position status and fiber optic link presence can be determined by the front panel LED's.

The QuickSwitch® Model 4191 is fully compliant with the 802.3u 100Base-FX standard.

FEATURES OF THE MODEL 4191 6-WAY FIBER OPTIC SWITCH:

Front panel pushbutton control.
When power is lost, unit isolates all communication ports and does not pass data.
When power is restored, the unit automatically switches to the last known position.
Front panel LED's display present Status and Link.
The Common Port is a 10/100Base TX Fast Ethernet port. The 10/100 Base TX "COMMON" port will convert and pass data to and from the selected fiber port.
All fiber optic ports are ST Duplex connectors, Multimode, 62.5/125 micron, and support a wavelength of 1300nm and speeds of 100 Mbps.
All fiber ports are standard fiber optic transceivers that receive and drive the fiber optic signal, where the TX is on the left and the RX is on the right.
Model 4191 is field expandable to become an 8-Way unit (Model 4193) by adding fiber modules.
A 4-Port model is available. See Model 4189, Cat. No. 303189.

TECHNICAL SPECIFCATIONS:

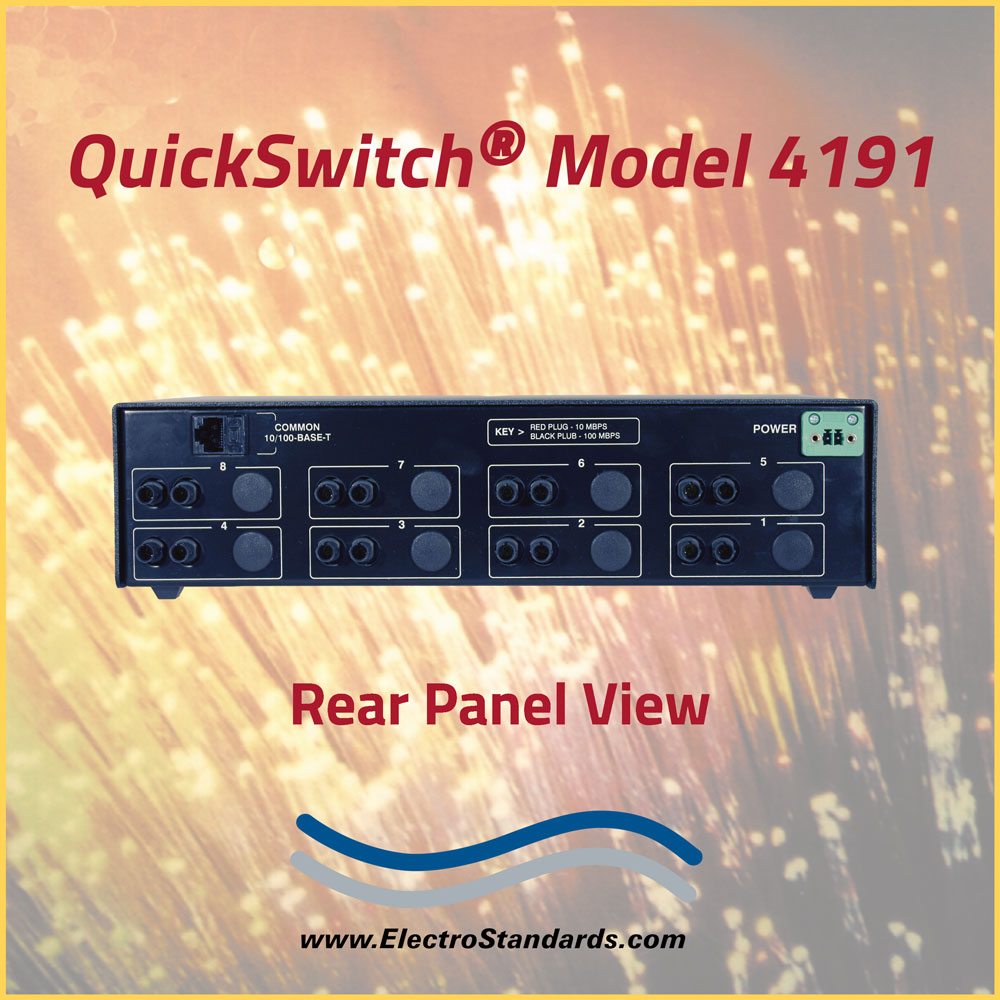

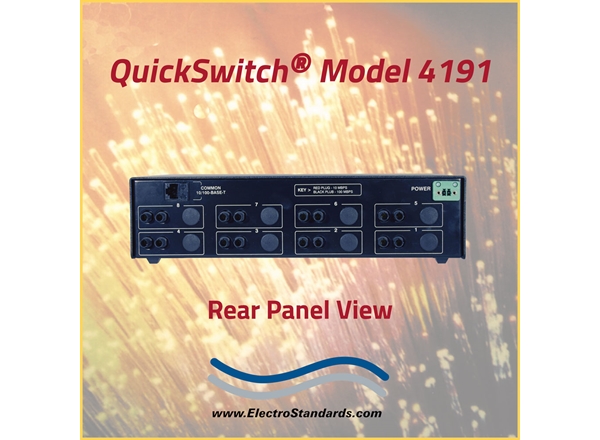

PORT CONNECTORS:

Ports 1-6 are 100 Base FX fiber optic ST duplex ports.
COMMON port is RJ45 10/100Base-T.

FIBER OPTIC INTERFACE:

Wavelength 1300nm, speed 100 Mbps, multimode fiber, full duplex transmission.

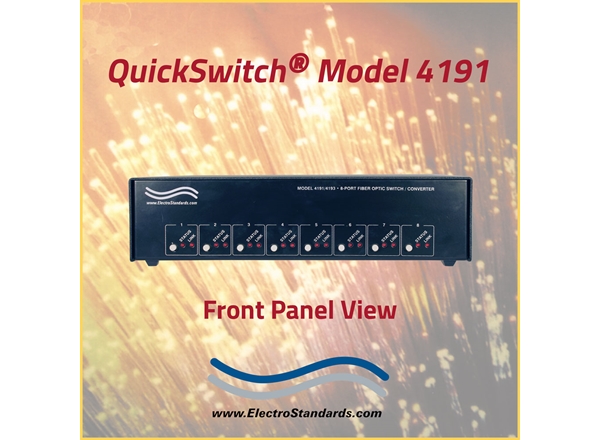

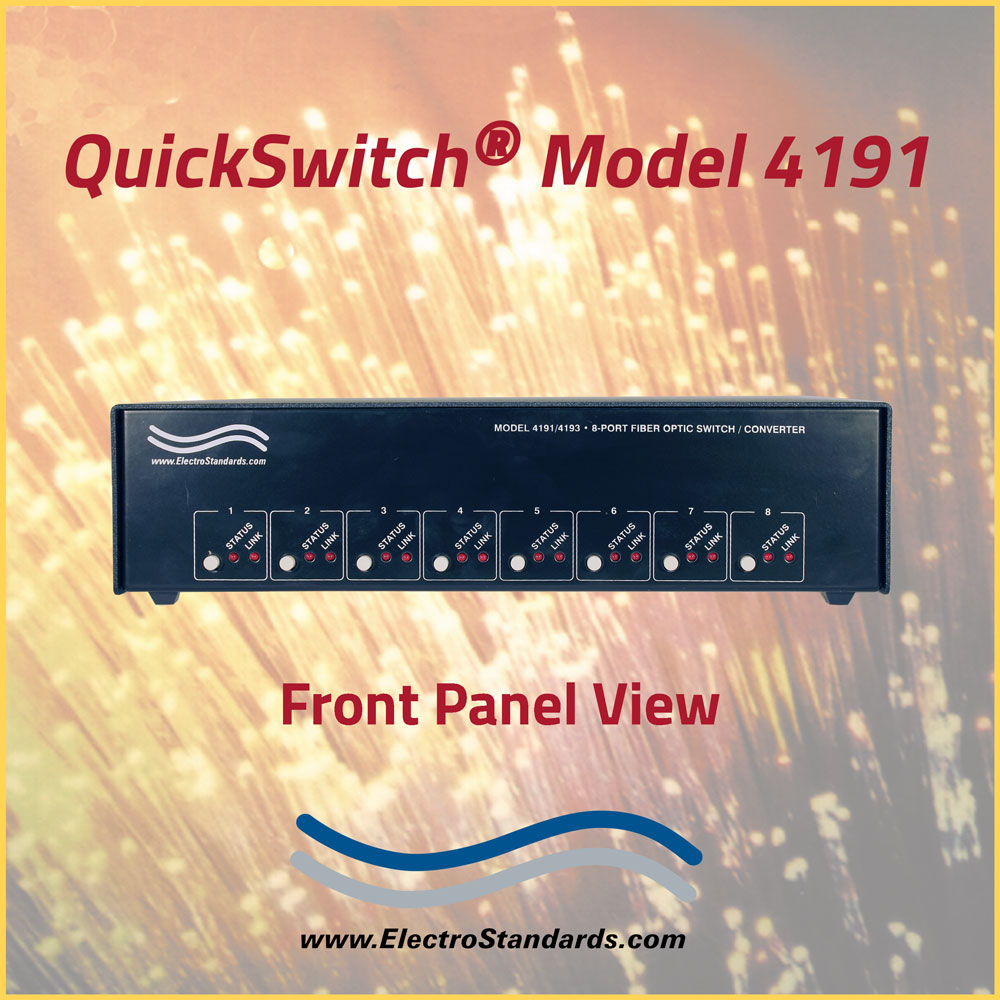

FRONT PANEL CONTROLS:

(6) pushbuttons 1-6 to select network port.
Pushbuttons 7-8 for field expansion. (No REMOTE Control, Local Control only)
DISPLAY:
(6) Status red LED's
(6) Link red LED's
(2) Status red
(2) Link red for field expansion
POWER: UL approved 100/240VAC, 50/60Hz table mount power module supplies power to the unit, P/N 522586.
DIMENSIONS: 11.32" W x 3.0" H x 9.34" D (28.8 x 7.7 x 23.8 cm)
WEIGHT: Approximately 3.5 lbs. (1.6 kg)
No Remote Control

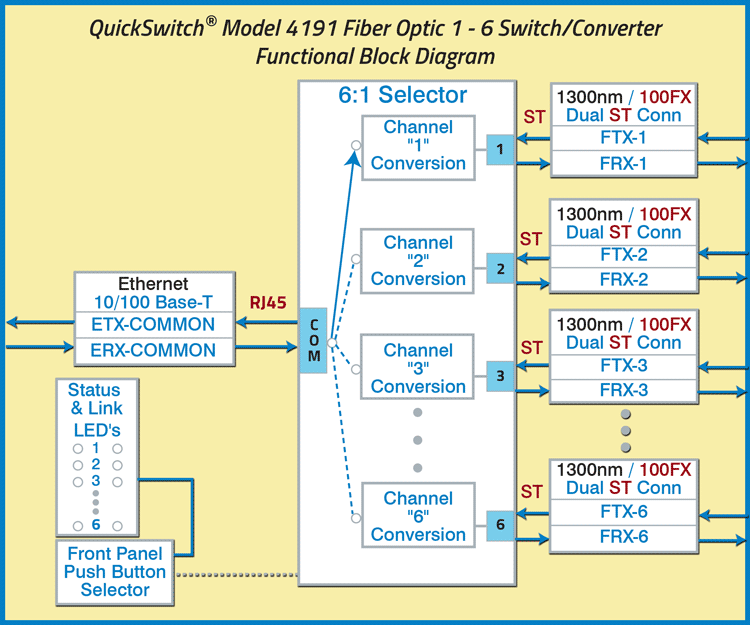

QuickSwitch 4191 Fiber Optic 1 - 6 Switch Converter Function BlockcDiagram

Ordering Information

Catalog Number: 303191
Model Number: 4191
Base Price: See website or contact us for current pricing and availability.
Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
We welcome international inquiries and ship worldwide.
