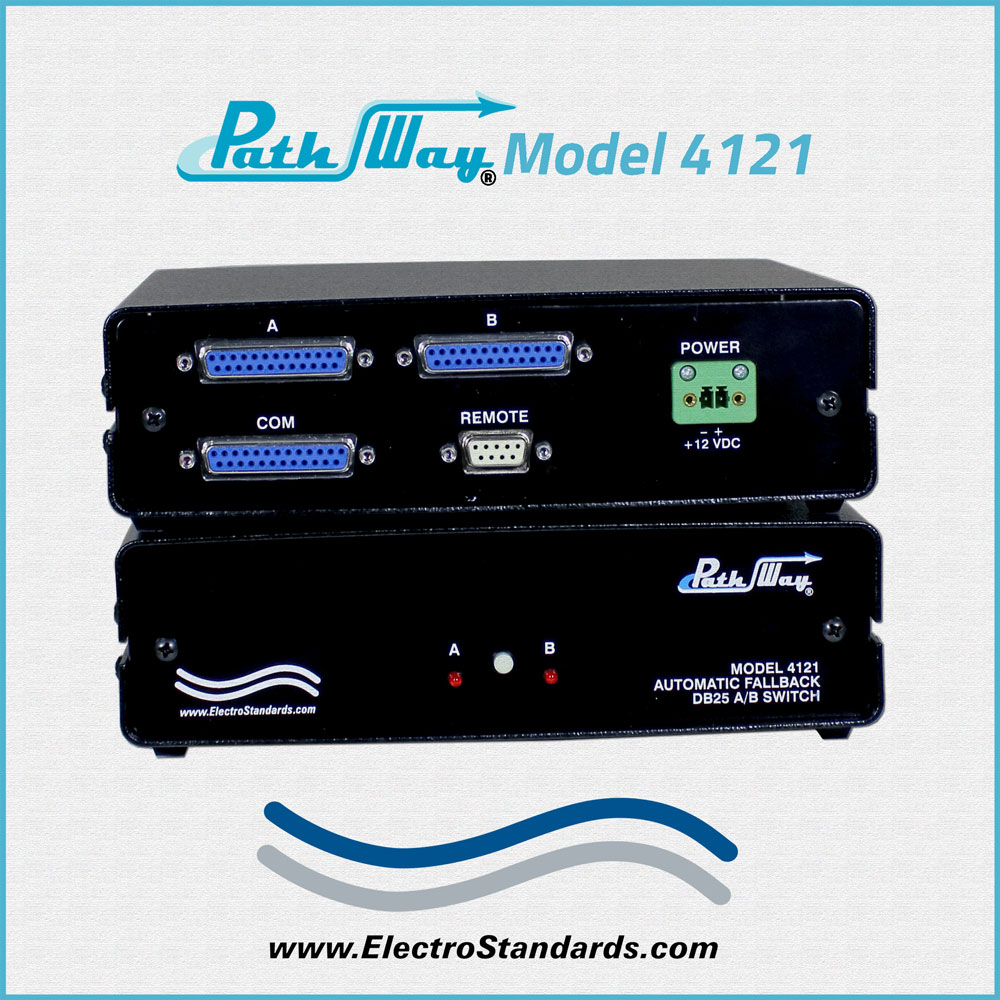

Catalog # 303121 - Model 4121 Auto Fallback & Recover DB25 A/B Switch

    Auto Fallback & Recover DB25 A/B SwitchAuto Fallback & Recover DB25 A/B SwitchAuto Fallback & Recover DB25 A/B SwitchAuto Fallback & Recover DB25 A/B Switch
Click image to enlarge
    • Auto Fallback & Recover DB25 A/B Switch
    • Auto Fallback & Recover DB25 A/B Switch
    • Auto Fallback & Recover DB25 A/B Switch
    • Auto Fallback & Recover DB25 A/B Switch
Base Price:
$895.00
Catalog No: 303121
Model No: 4121
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:DB25 Switch Ports
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:Auto Fallback, RS232 Serial
Configuration:Desktop
Auto Fallback:Data Monitor Port A
Pins Switched:1-8, 20
Remote Port:DB9
Local Control:Pushbutton

  • Automatic Fallback and Recovery based on pins 2 and 3 of  Port A.
  • DB9 RS232 Serial Remote Control.
  • Contact Closure Status on pins 6, 7, and 8 for dry contact logic to obtain switch position.





UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

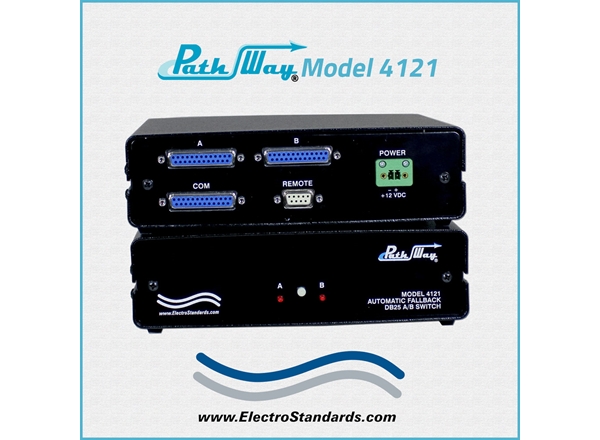

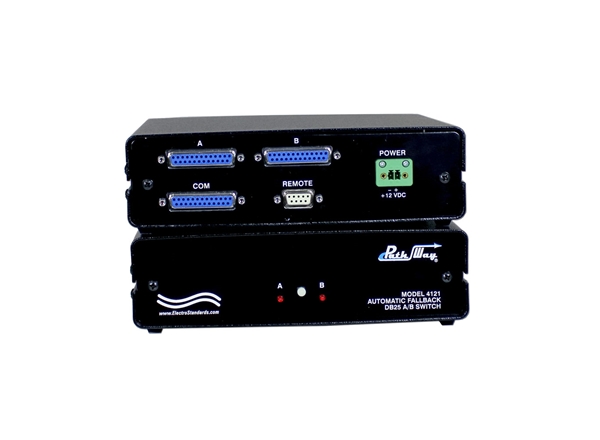

Model 4121 Automatic Fallback and Recovery DB25 A/B Switch with RS232 Remote Control

  • This Smart Switch provides a “Fallback” data path “B” based on loss of Data Activity on Port “A”, and a “Recovery” to “A” when Data Activity returns!
  • Automatic Fallback: The time that connection to the Primary Channel device needs to be lost before the unit automatically switches from A position to B position, is selectable from 0 to 90 sec.
  • Automatic Recovery: The time a signal must be present again in the Primary Channel before the unit automatically switches back from B position to A position, is selectable from 0 to 90 sec.

SPECIFICATIONS:

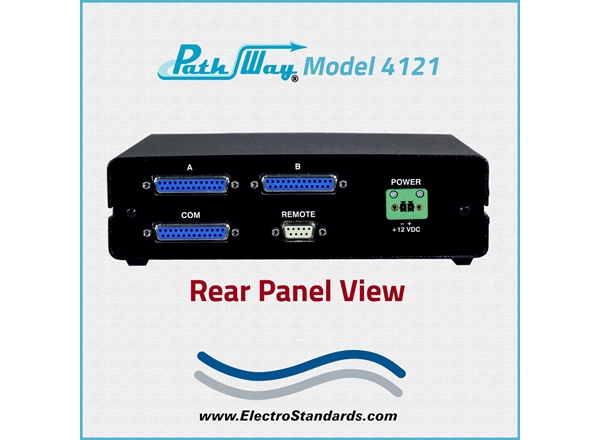

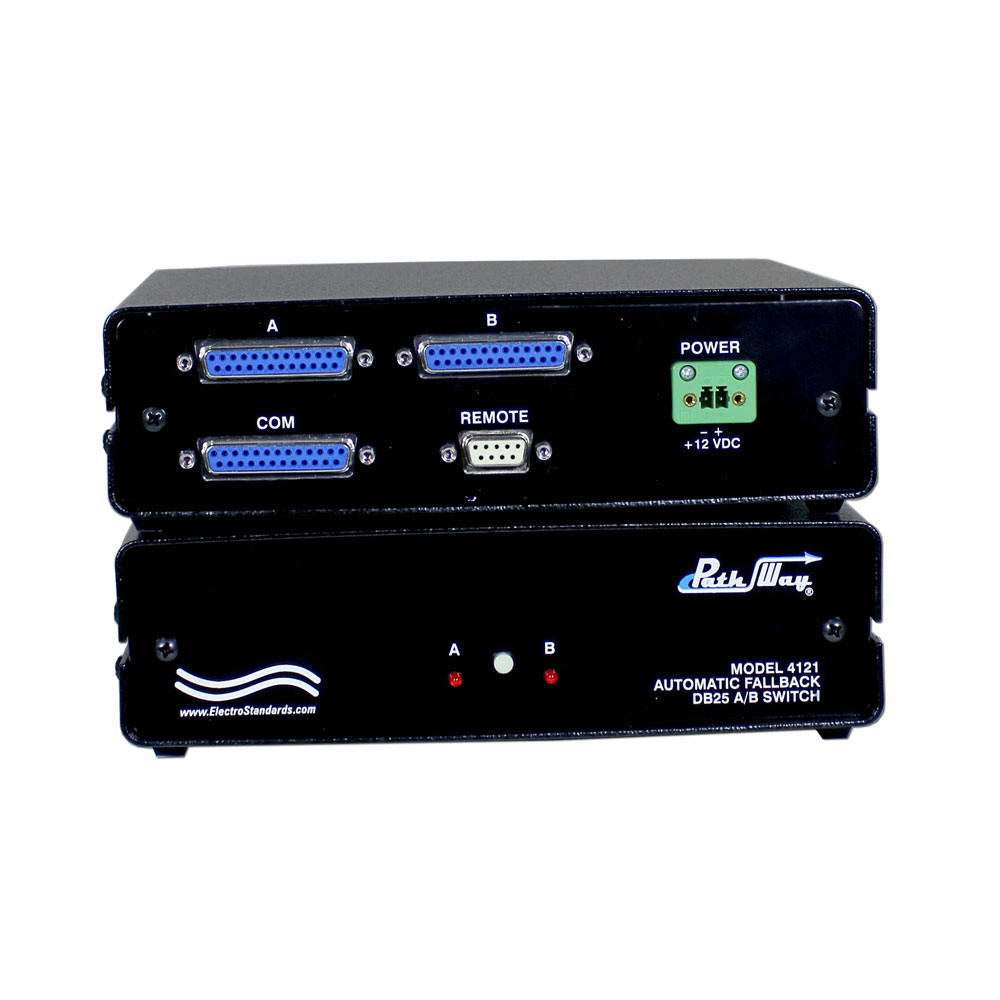

  • PORT CONNECTORS: (3) DB25 female connectors labeled A, B, and COMMON.

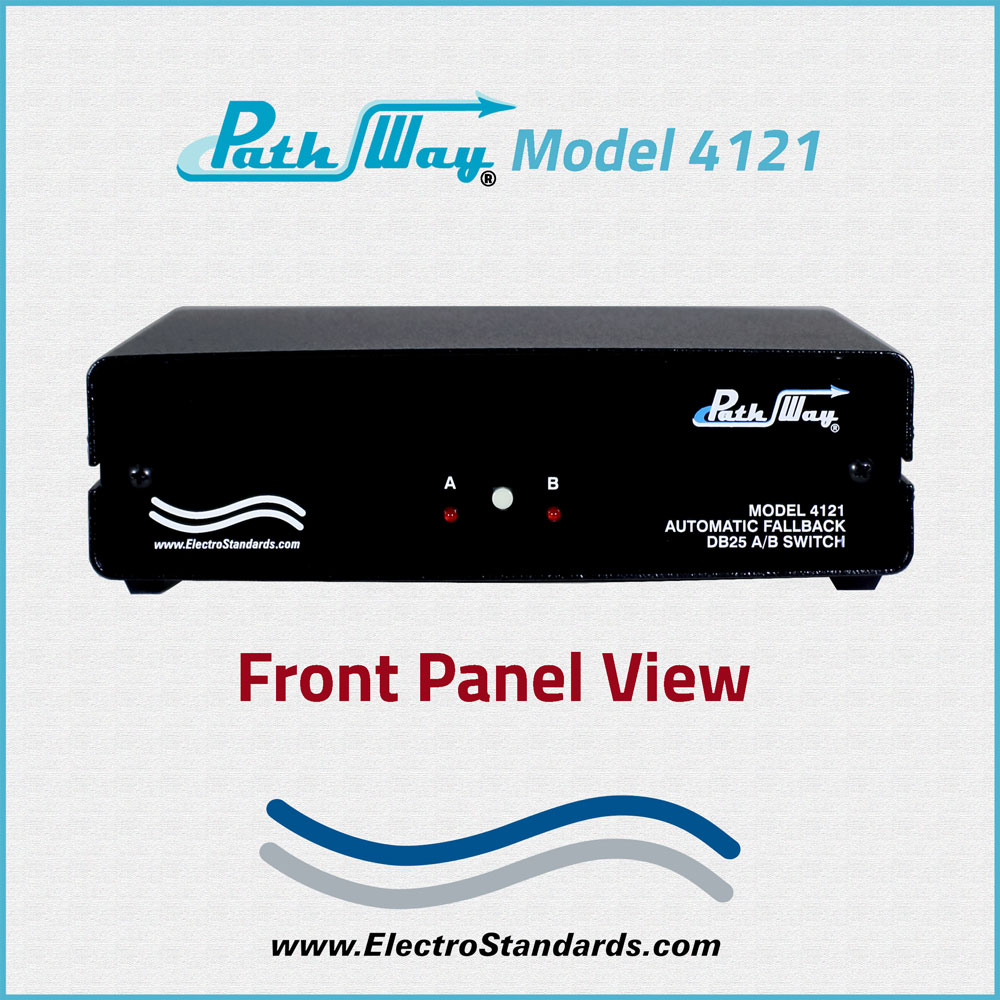

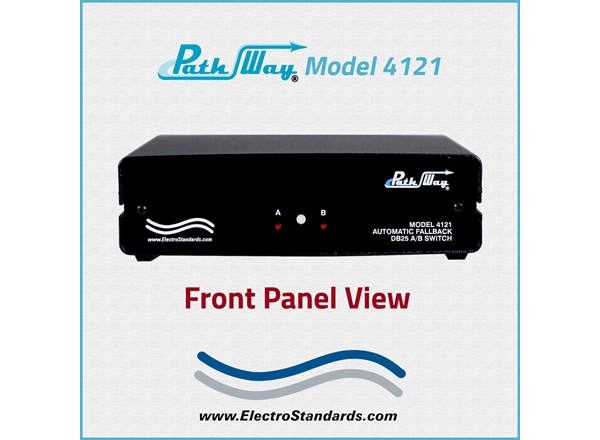

  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
  • DISPLAY: (2) Front panel LEDs display switch position and power status.

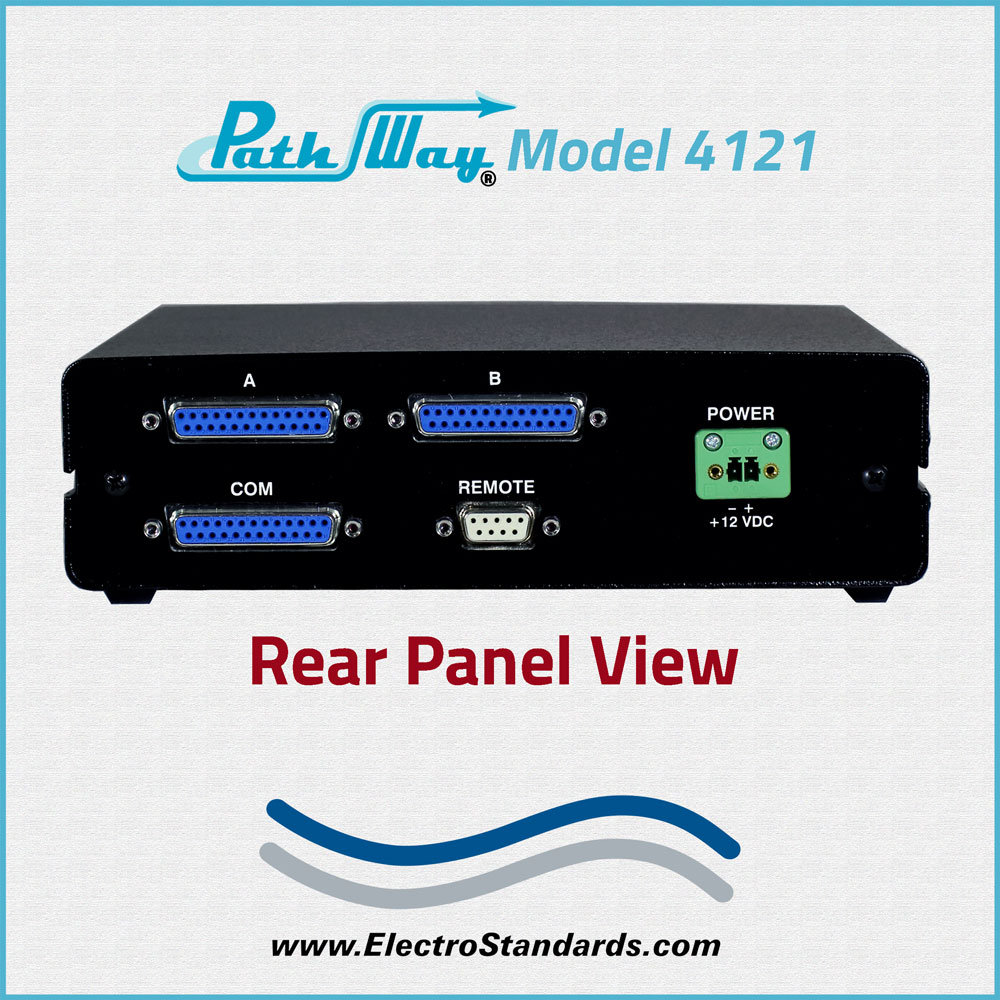

  • REMOTE CONTROL: (1) DB9 female connector on rear panel accepts ASCII RS232 Serial Data for Remote Control operation.
  • POWER: UL approved 100VAC/\-240VAC 50 Hz-60Hz wall mount power module supplies 12VDC, 500 mA to the unit.
  • DIMENSIONS: Desktop configuration 8.1" W x 2.39" H x 7.26" D (20.6 x 6.1 x 18.5 cm)
  •  WEIGHT:  Approximately 1.9 lbs. (0.9 kg)

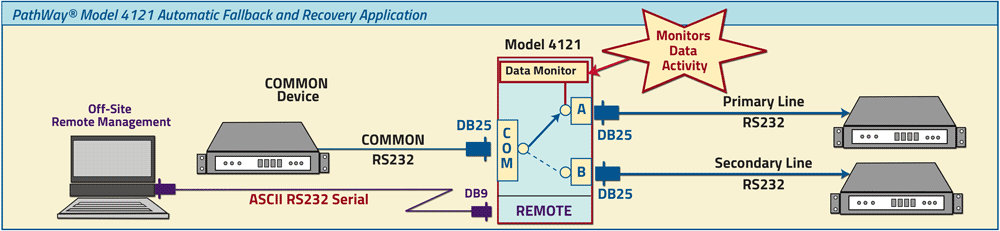

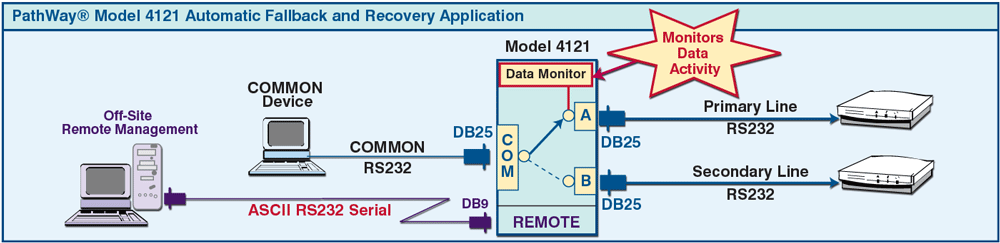

PathWay® Model 4121 Automatic Fallback and Recovery Application drawing.

Ideal for automatic fallback applications based on loss of data on Port A. Monitor data activity. Smart switch provides a "Fallback" data path "B" based on loss of Data Activity on Port "A". The diagram illustrates a DB9 Remote port that accepts RS232 Serial data commands.

  • Automatic Fallback and Recovery based on pins 2 and 3 of Port A.
  • DB9 RS232 Serial Remote Control.
  • Contact Closure Status on pins 6, 7, and 8 for dry contact logic to obtain switch position.

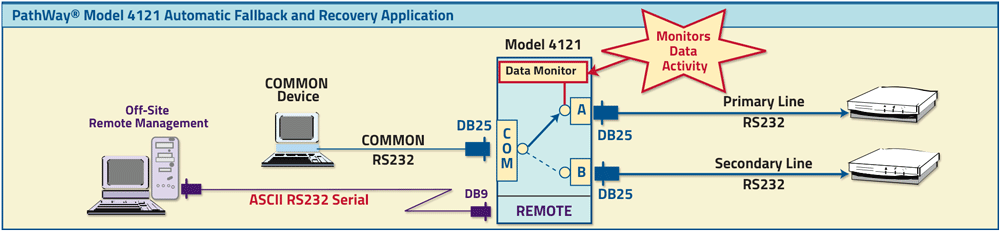

PathWay® Model 4121 Automatic Fallback and Recovery Application
