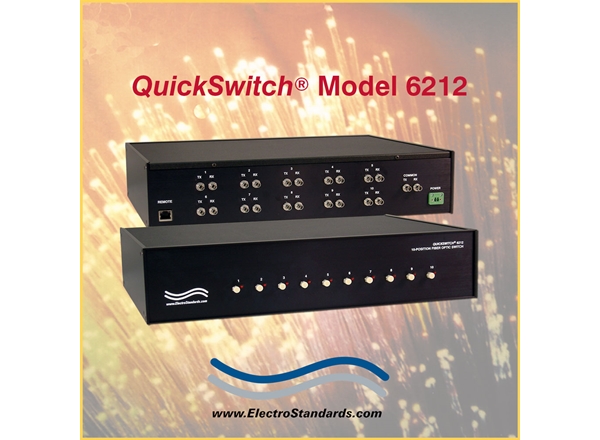

Catalog # 306212 - Model 6212 10-Position Fiber Optic Switch

    10-Position Fiber Optic Switch10-Position Fiber Optic Switch10-Position Fiber Optic Switch10-Position Fiber Optic Switch
Click image to enlarge

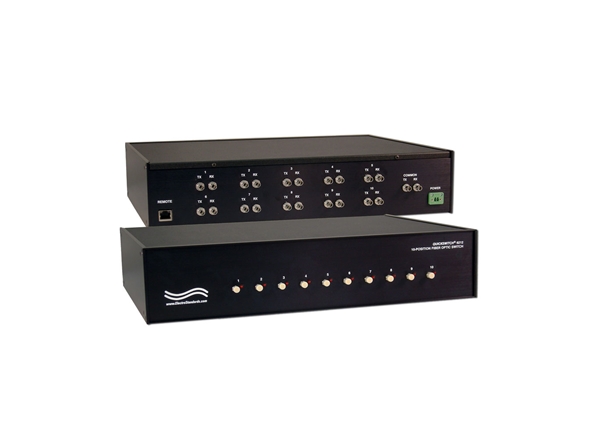

    • 10-Position Fiber Optic Switch
    • 10-Position Fiber Optic Switch
    • 10-Position Fiber Optic Switch
    • 10-Position Fiber Optic Switch
Base Price:
$9,720.00
Catalog No: 306212
Model No: 6212
Product Type:Switches: Fiber Optic
Positions:10
Cable Type/Port Connector:ST
Channels per Switch Chassis:1
Electronic Switches/Power Required:QuickSwitch® Fiber Optic
Remote Control:Ethernet
Configuration:Desktop
Fiber Mode:Multimode
Fiber Size:62.5/125
Fiber Type:Duplex
Remote Port:RJ45
Local Control:Pushbutton
Mirror Technology:OO
Speed:Gigabyte
Wavelength Nano:1300

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

QuickSwitch® Fiber Optic Network Switch, ST Duplex

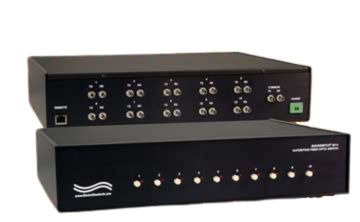

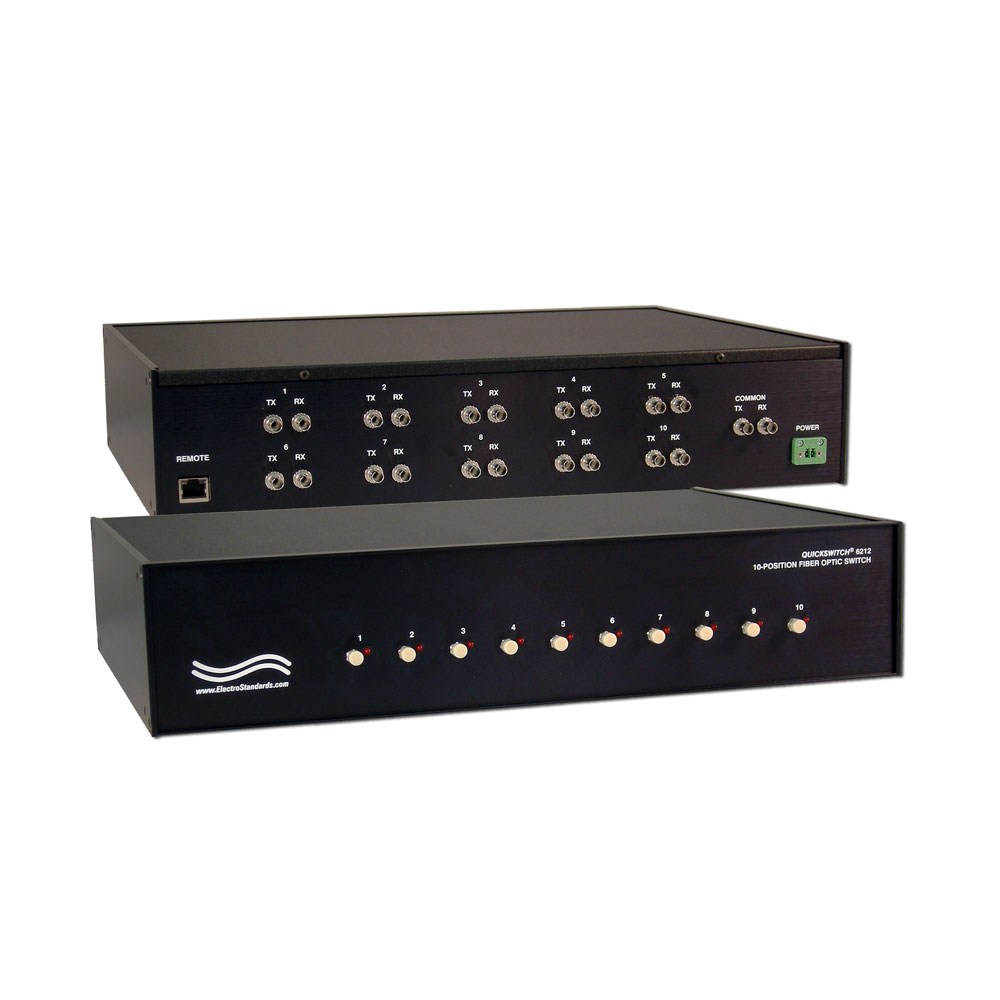

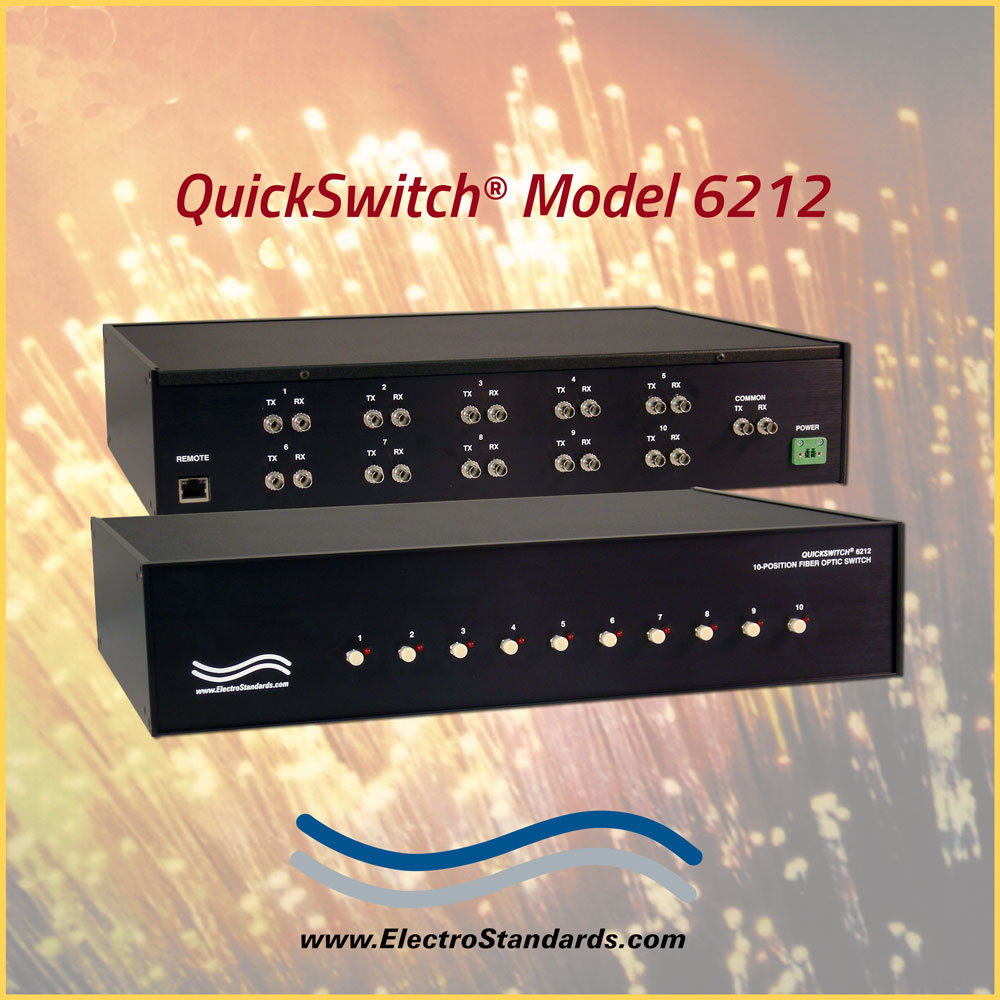

QuickSwitch® 6212 ST Duplex Fiber Optic 10-Position Switch with Remote Ethernet Port and GUI

SPECIFICATIONS:

  • FIBER SIZE: 62.5/125 Micron, 1300nm

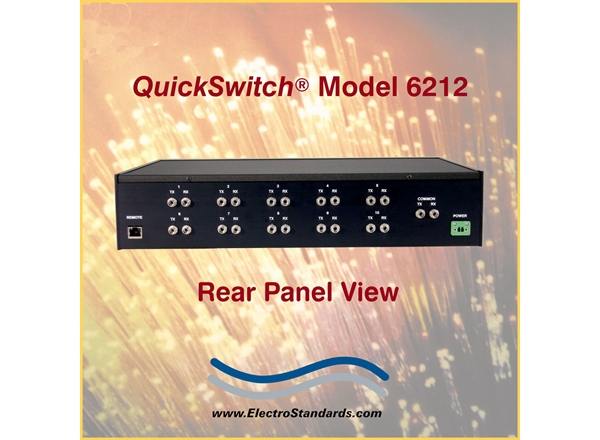

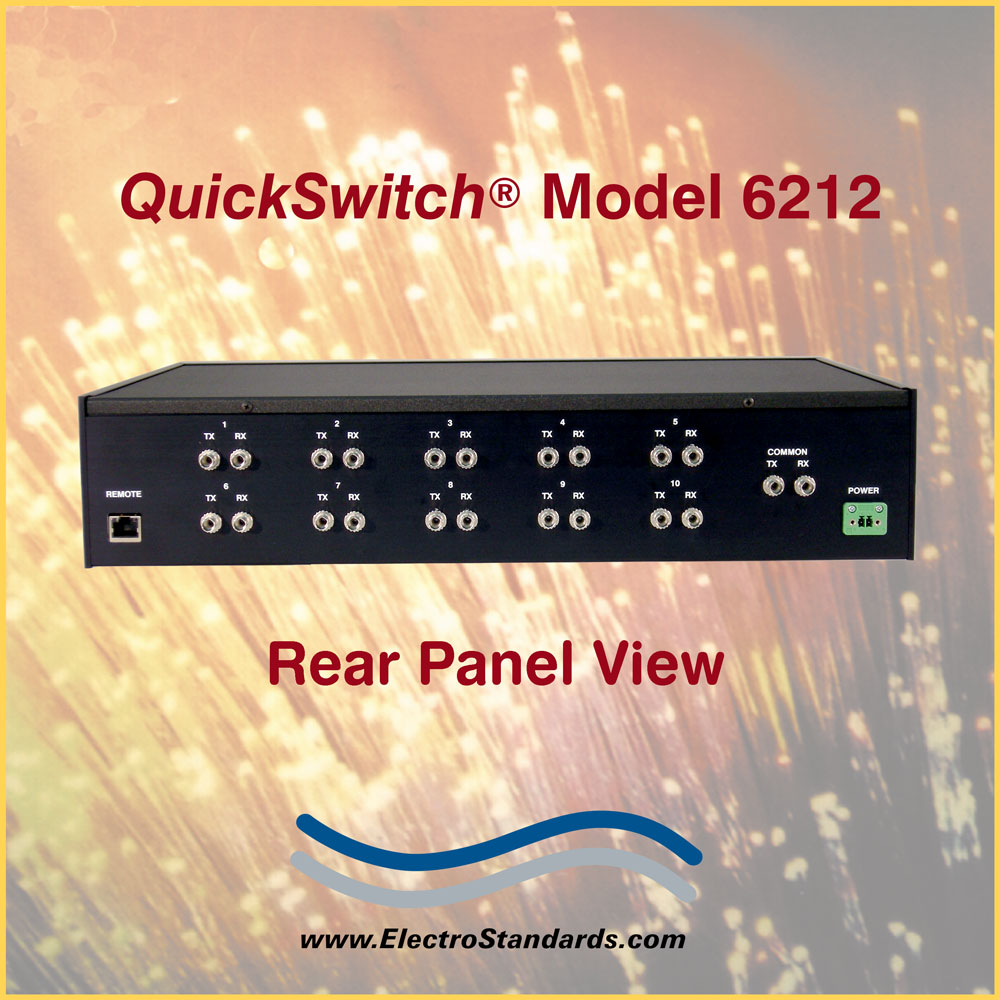

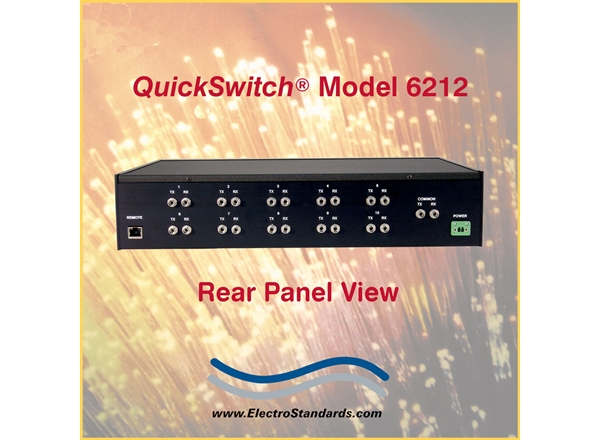

  • PORT CONNECTORS: (11) Fiber Optic ST duplex connectors labeled 1 thru 10 and COMMON.
  • REMOTE CONTROL: (1) RJ45 (F) connector accepts 10/100 Base-T LAN Ethernet, Telnet and Graphical User Interface commands.

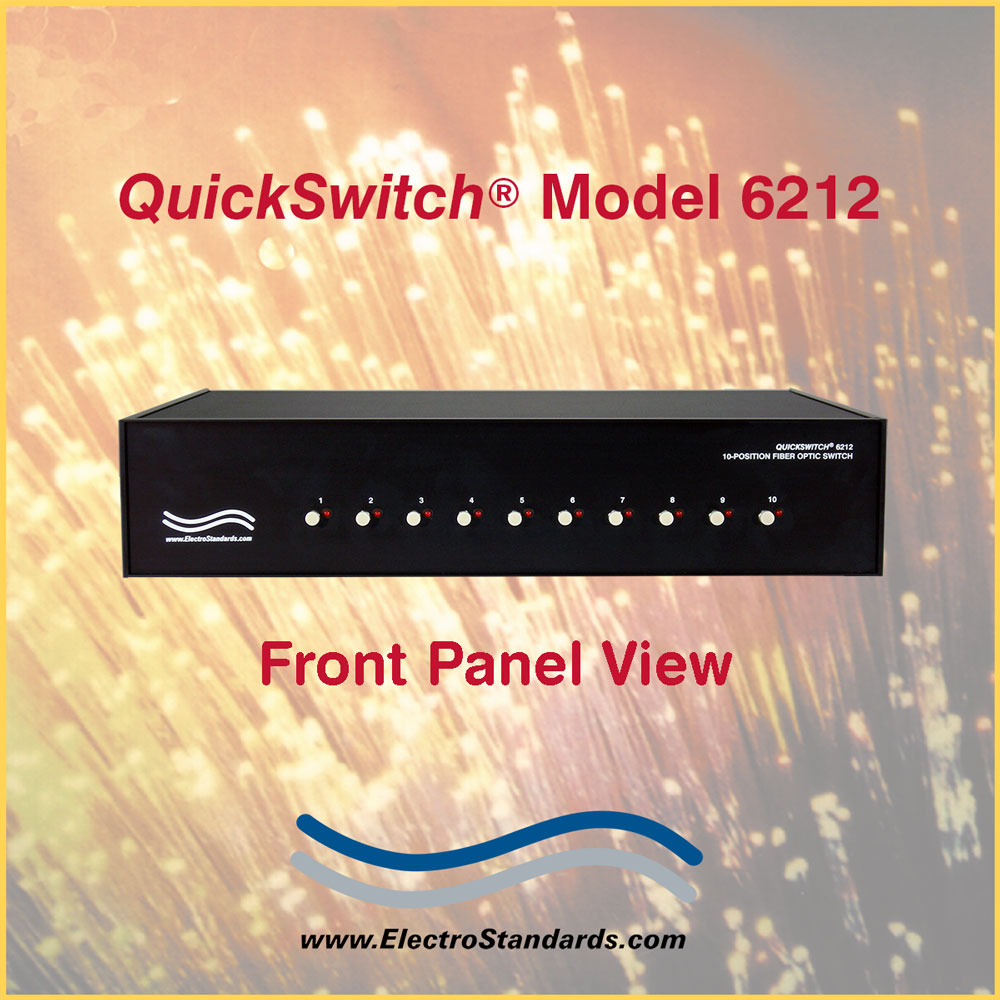

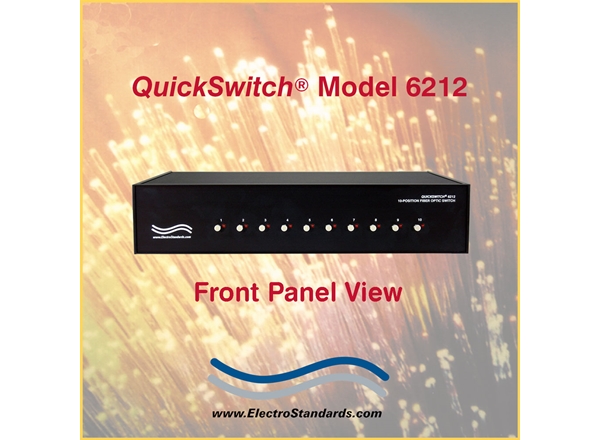

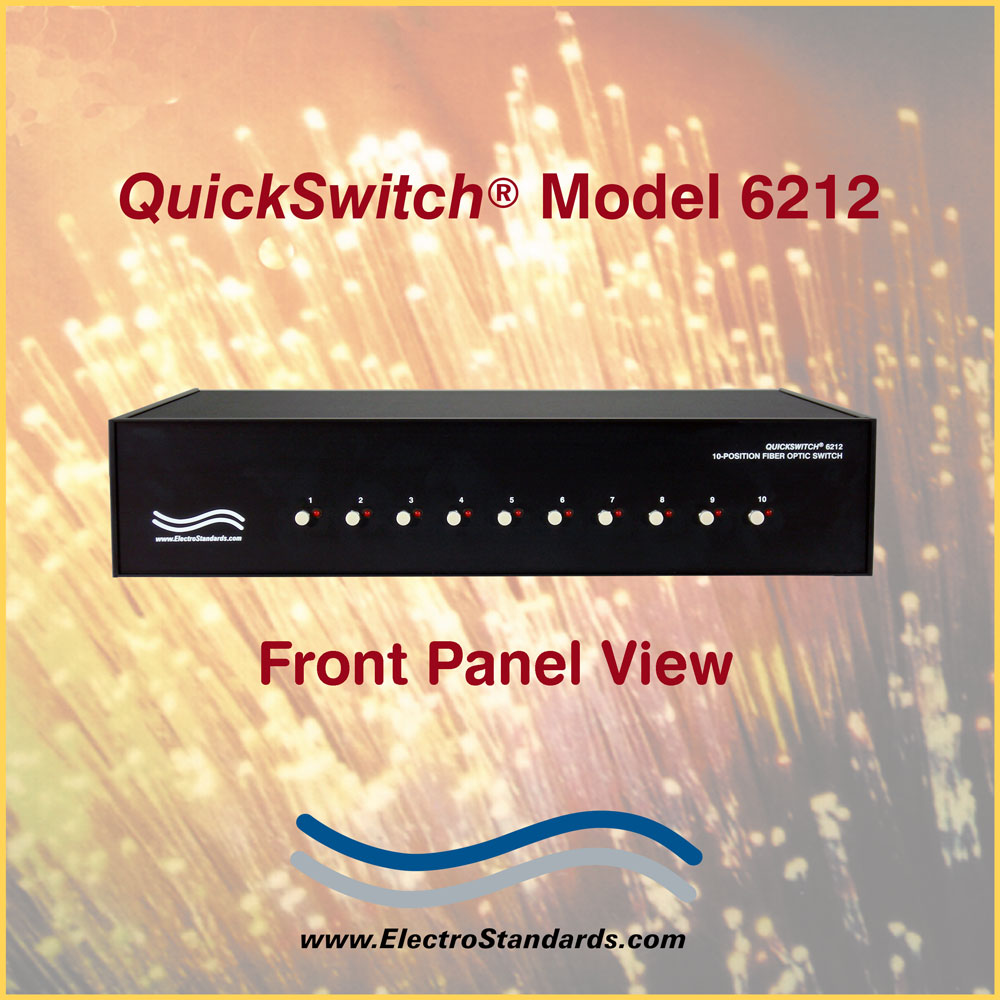

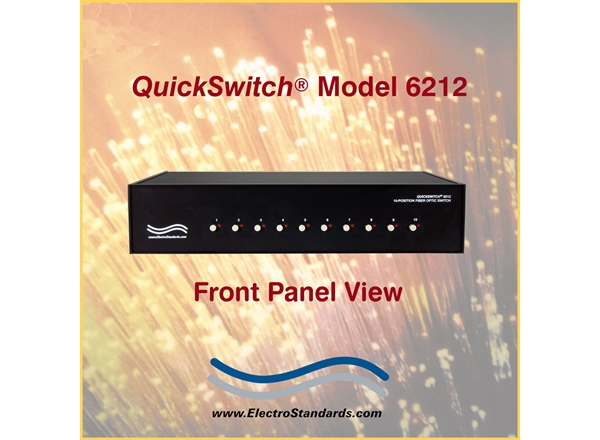

  • CONTROLS: (10) Front panel pushbuttons allow selection of switch position.
  • DISPLAY: (10) Red LED's indicate switch position and power presence.
  • POWER: UL approved 100 VAC-240VAC, 50Hz-60Hz wall mount power module supplies 12 VDC, 500 mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Desktop Configuration: 16.49" W x 8" D x 3.5" H (41.9 x 20.3 x 8.9 cm)
  • WEIGHT: Approximately 6.0 lbs. (2.72 kg)

QuickSwitch® 6212 ST Duplex Multimode 10-Position fiber optic switch Application with an RJ45, 10/100 Base-T, IP addressable switch and GUI Commands for Remote Control Operation.

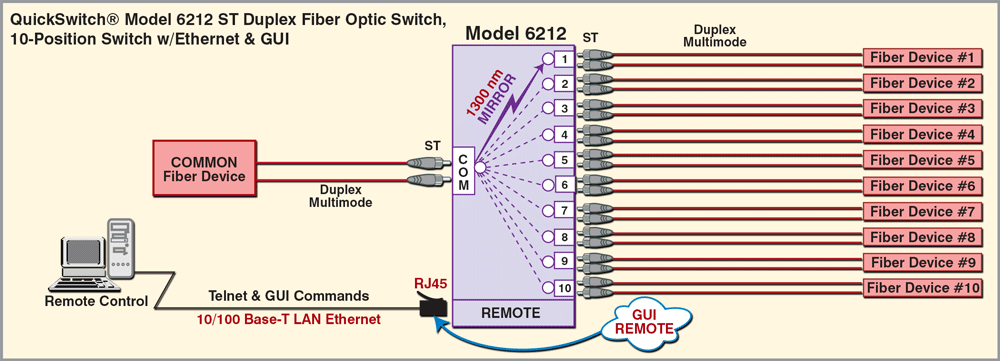

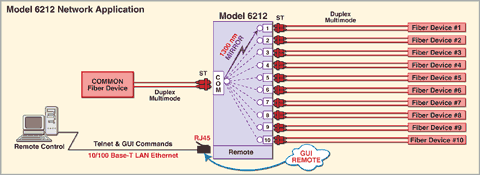

The drawing illustrates a COMMON device connected to the ST Duplex COMMON port with access to ten ST Duplex interface devices connected to the ST Duplex ports 1, 2, 3, 4, 5, 6, 7, 8, 9 and 10. The COMMON Device has access to one Device at a time. The RJ45, 10/100 Base-T, IP addressable switch and GUI Commands for Remote Control Operation.

QuickSwitch 6212 ST Duplex 10-Position switch w/Ethernet Remote Port Application

FEATURES:

  • One ST duplex Common fiber optic port has access  to connect to any one of ten ST duplex ports, one port at a time.
  • All fiber optic signals passed through the switch are maintained in fiber optic light transmission media.
  • MEMS-based mirror/prism switch technology supports Gigabit data rates.
  • All ports are ST Duplex, Multimode, 62.5/125 Micron, 1300nm.
  • Control of the switch position from a 10/100-Base-T LAN Ethernet environment or the front panel pushbuttons.
  • Remote Telnet command interface or Graphical User Interface that allow the user to control switch position and obtain switch status.
  • Front panel LED's display the current switch position and power status.
  • Remote commands to lock front panel pushbutton control.
  • The switch is latching and will maintain its position and continue to pass data in the event of a power failure.
  • IP Addressable.
  • Municipalities, schools, government: This product is on GSA Schedule!

The QuickSwitch® 6212 ST Duplex 10-position Fiber Optic Switch with Remote Ethernet Port allows the user to switch one Common ST Duplex port to any one of ten ST Duplex ports.  The system affords local and remote access functionality.  The Remote Ethernet Port allows for both Telnet and GUI remote control.  A User can locally or remotely monitor status and control switch functions.

OPTION: WIDE RANGE POWER MODULE (Cat. No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC-240VAC, 50Hz-60Hz for use in place of the standard power module that is included with the unit.  Has IEC 60320 C14 inlet.  Ideal for international applications.

UTILIZING THE USER FRIENDLY REMOTE GRAPHICAL USER INTERFACE SOFTWARE

To connect to the switch from a workstation or computer having access to the LAN that the QuickSwitch® Model 6212 LAN port is connected to, simply launch a standard web browser and type in the appropriate IP address.  The Java Applet will be automatically uploaded from the switch upon connection.  The environment requirement for the GUI is Java 1.7 and above.

10/100BASE-T LAN SETUP

Network Setup

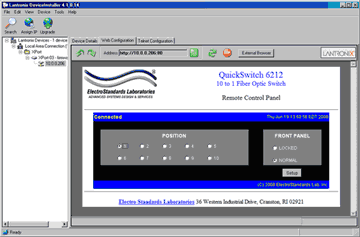

The switch is configured from the factory to use DHCP to automatically get its IP address from a DHCP server on the local area network when connected to the network and powered up. Therefore, a DHCP server is needed on the local area network for the initial configuration. After that, the switch can be configured to use a static IP address.  To find the IP address of a switch that it has gotten from the DHCP server, or to reconfigure the IP Address of the switch, use the Lantronix® DeviceInstaller application.

Getting DeviceInstaller

DeviceInstaller requires Microsoft’s .NET Framework version 4.0 or higher. If the .NET Framework is not already installed, it must first be installed. The .NET Framework can be downloaded from Microsoft’s website, either as a web install, or as a standalone installation.  The latest version of DeviceInstaller can be downloaded from Lantronix’s website

SOFTWARE FEATURES

  • Access User Interface via standard web browser.
  • Login password authentication required.
  • Easy to use, simple point and click GUI operation.
  • Remotely access to control or monitor the QuickSwitch® 6212, 10 Position Fiber Optic Switch System.
  • Users can change the switch's IP address.
  • Lockout front panel manual access.
  • LAN access gives users across the LAN or over the Internet access to control if user network is configured accordingly.

Figure 1: GUI in a Standard Web Browser

CHANGING SWITCH POSITION

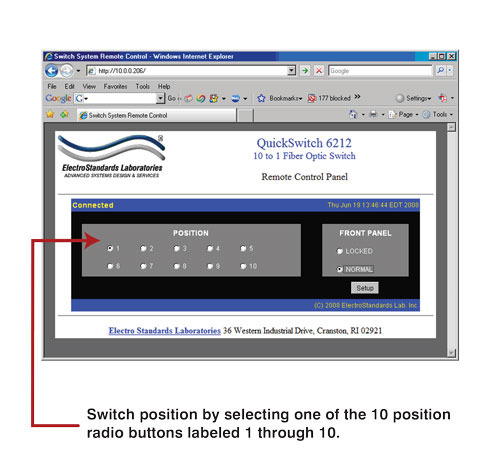

To change the switch position, select any one of ten radio buttons by clicking on the radio button for a new position as desired. Radio buttons are labeled 1 through 10.  See Figure 2.

Figure 2: Change the position from the GUI

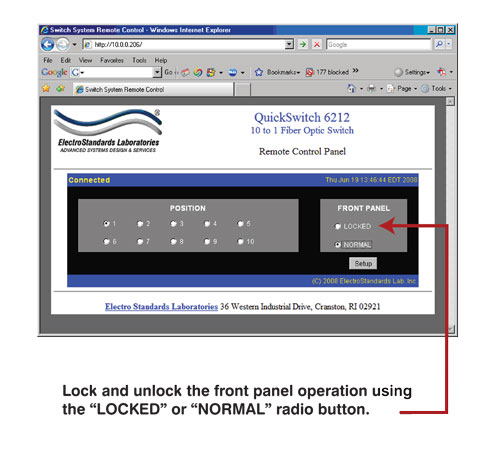

Figure 3: Control the front panel lock status from the GUI

CHANGING LOCK STATUS FROM VIA THE GUI

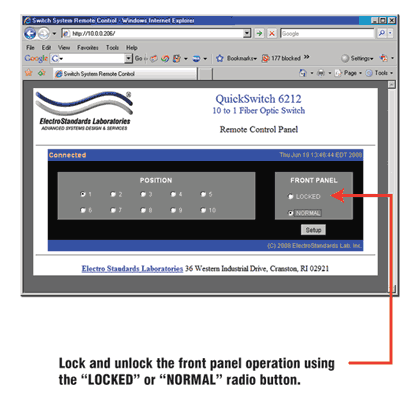

Locking and unlocking the front panel pushbutton can be done by clicking on the “Locked” or “Normal” radio buttons. See Figure 3.
