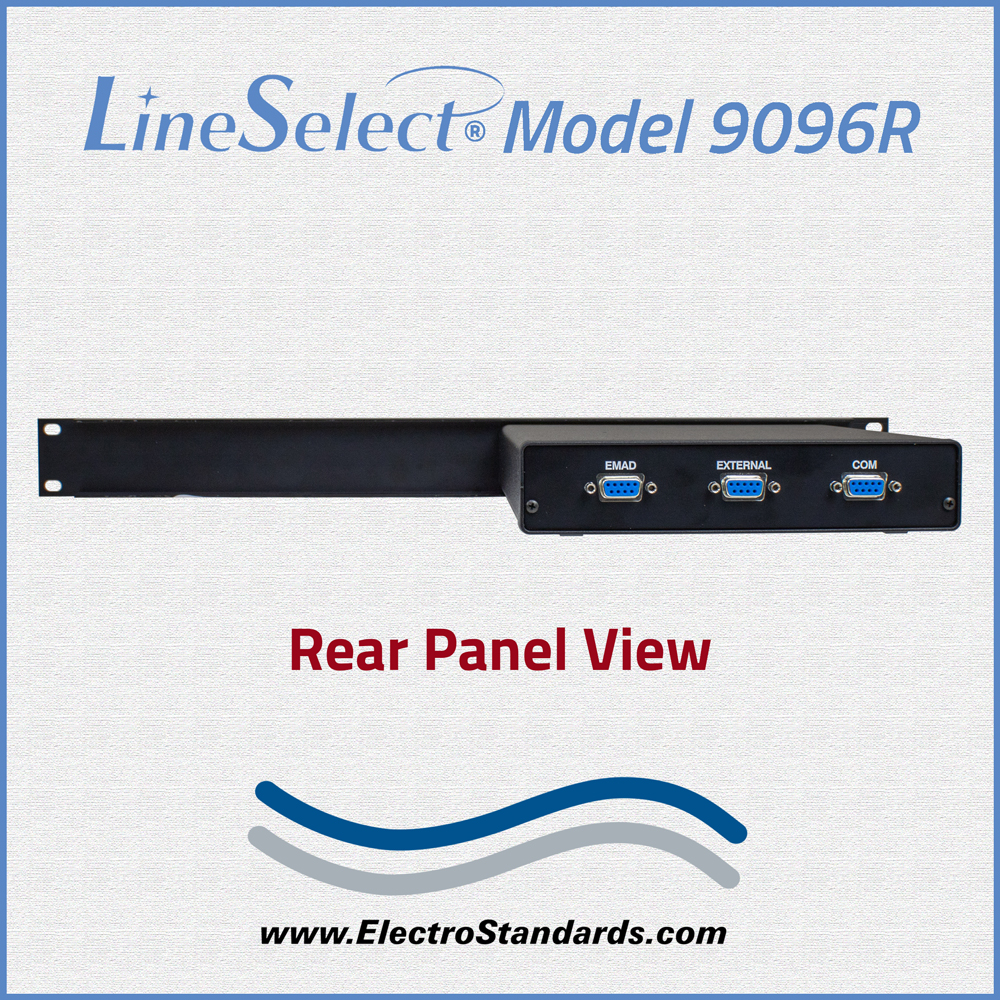

Click image to enlarge

Base Price:

$835.00

Catalog No:

309096R

Model No:

9096R

Product Type:

Switches: Copper

Positions:

Cable Type/Port Connector:

DB9 Switch Ports

Channels per Switch Chassis:

Manual Control/No Power Required:

LineSelect® Manual Operation

Configuration:

Rackmount

Pins Switched:

Local Control:

Keylock

Qty

Add to Cart

1-Channel with 3 Positions (ABC):

3 Female DB9 Connectors (EMAD/COMMON/EXTERNAL)

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

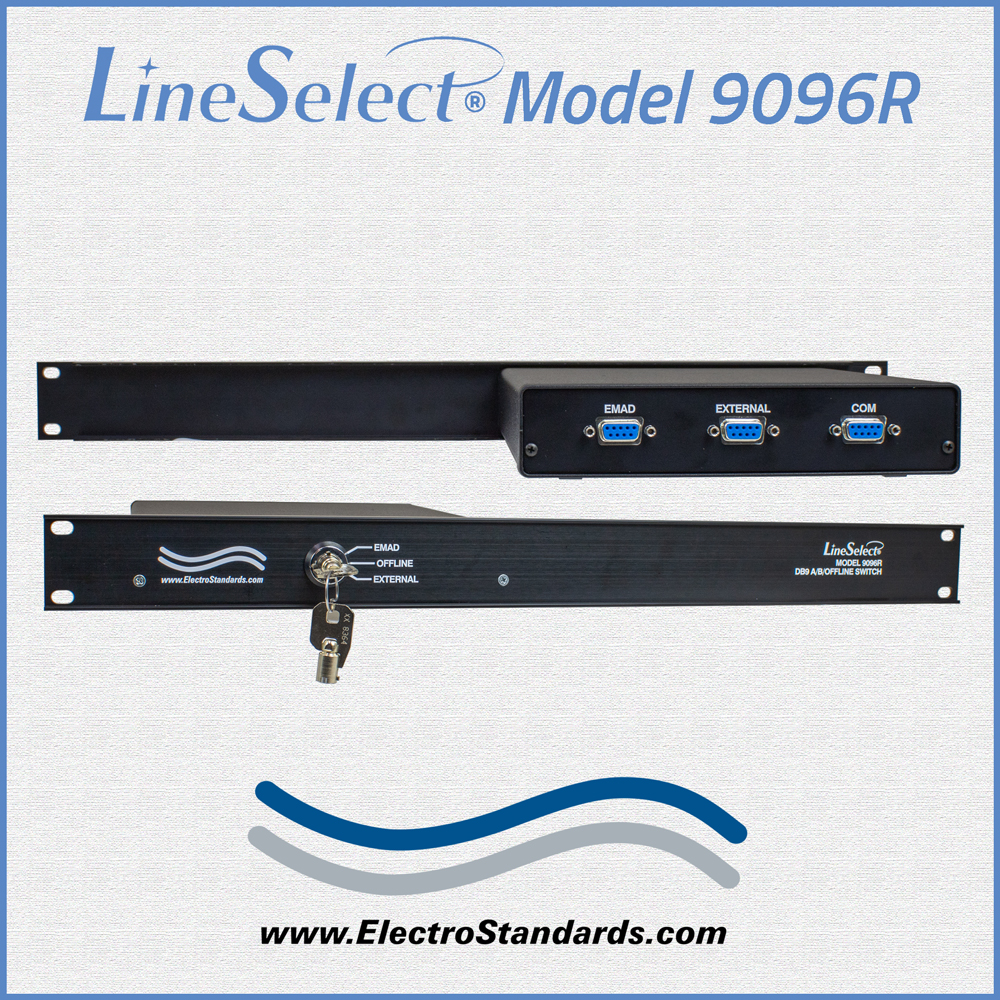

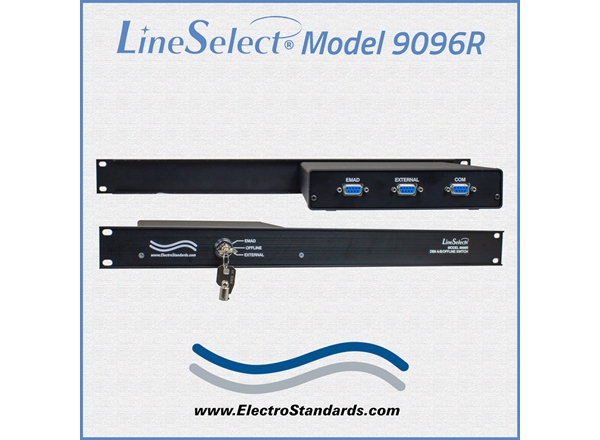

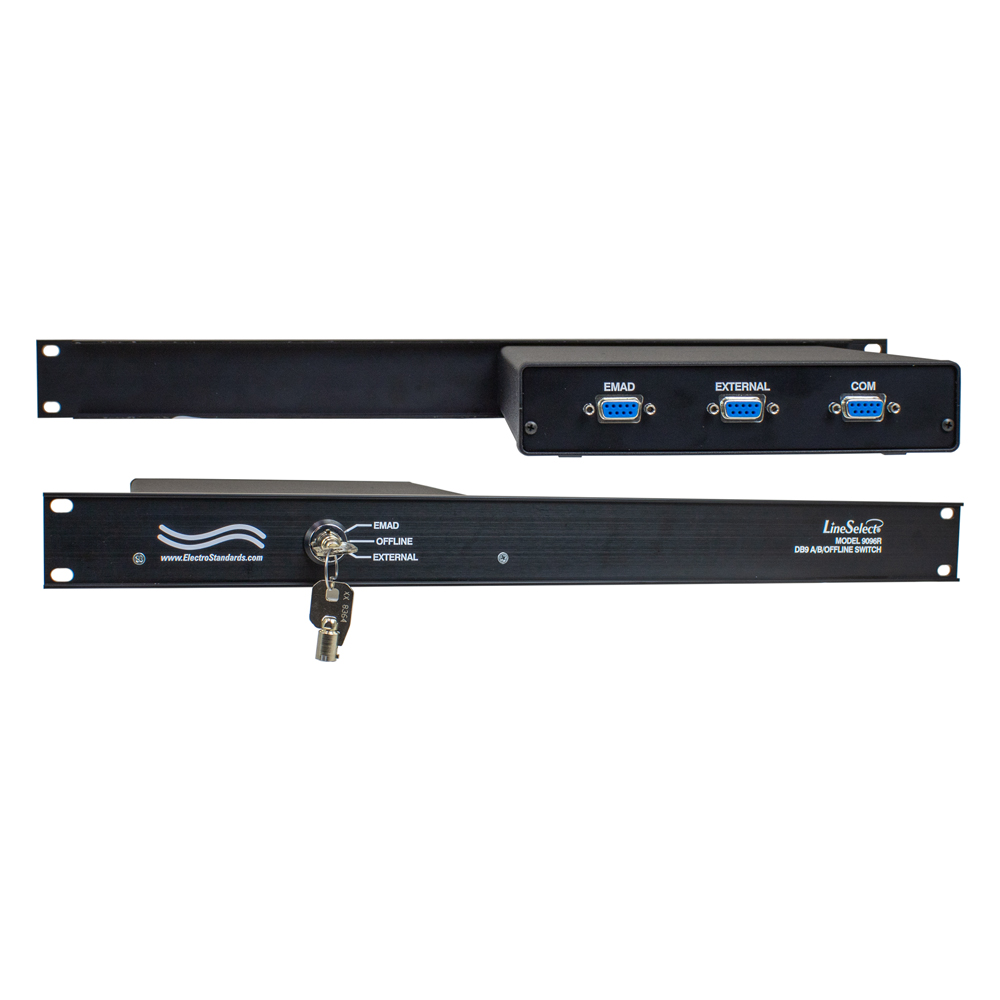

LineSelect® Model 9096R Manual Switch with Keylock, Half Rackmount Enclosure

Overview

The LineSelect® Model 9096 DB9 EMAD/OFFLINE/EXTERNAL (A/B/C) Switch allows the user to access two DB9 devices connected to its A (EMAL), and C (EXTERNAL) ports and one “OFFLINE” (B) port, connected by one DB9 device connected to its COMMON port. The unit is manually operated, requiring no power. Port selection is quick and easy via front panel keylock, with the key being removable in the Offline position. The LineSelect® Model 9096R is enclosed in a desktop size enclosure with a 1U full rack size front panel, and an all metal chassis designed to provide EMI/RFI shielding and fit in a standard 19” rack.

• Switch ANY device having a DB9 interface, since all nine pins are switched.

FEATURES OF THE MODEL 9096R KEYLOCK MANUAL SWITCH:

Manually control via one keylock mechanism located on the front panel - with the key being removable in the Offline position
Manually operated, no power required.
All 9 pins switched

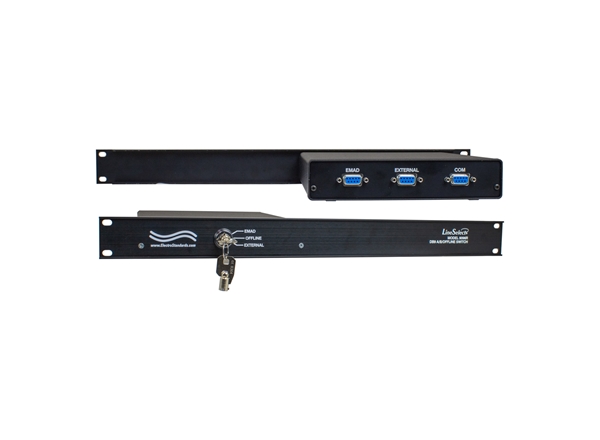

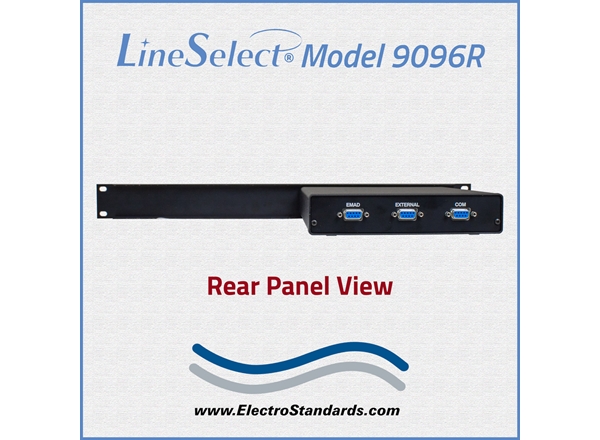

All ports located on the rear panel: (3) DB9 female ports
Half-Rackmount chassis w/full 19” faceplate, 19” Wide x 1.75” (1U) High x 8” Deep.
RoHS compliant
Lifetime warranty against defects on manufacturer parts and labor.

TECHNICAL SPECIFICATIONS:

PORT CONNECTORS: (2) DB9 female connectors on rear panel labeled EMAD, EXTERNAL, and COMMON.

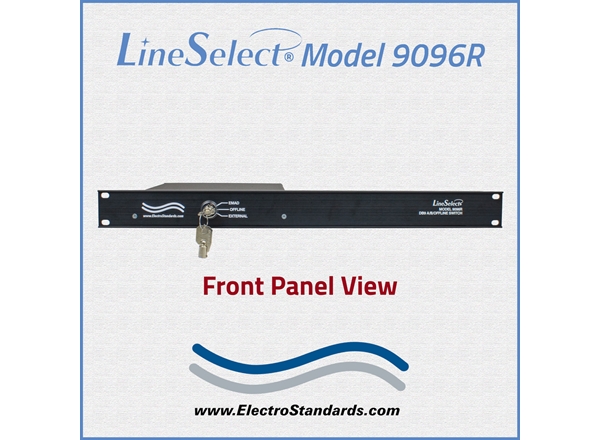

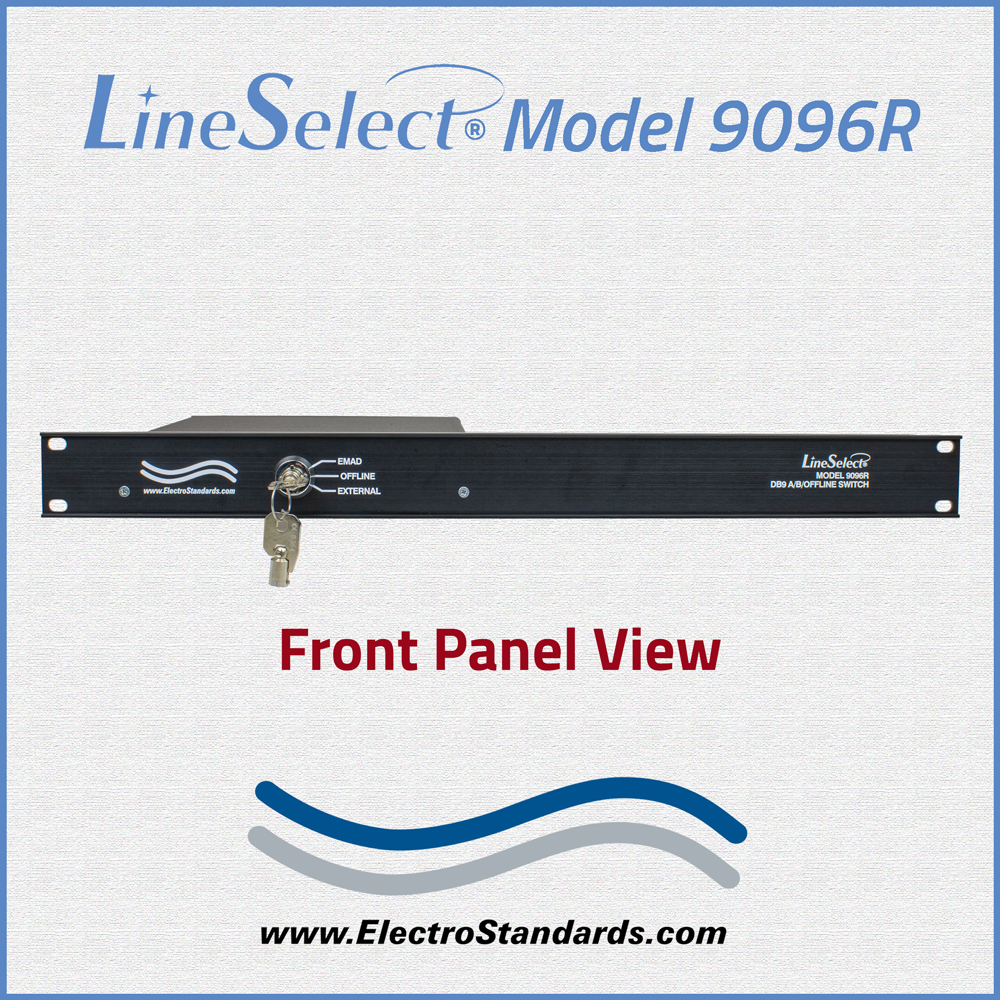

FRONT PANEL CONTROL: (1) Keylock Switch on front panel selects EMAD, EXTERNAL, or OFFLINE.
PIN SWITCHED: 9 pins switched.
POWER: No power required.
ENCLOSURE: Aluminum slim rackmount enclosure.
DIMENSIONS: 19.0" W x 1.75" H x 10.18" D. [48.3 x 3.8 x 25.9 cm]
WEIGHT: Approximately 4.0 lbs. 1.9 kg)

DB9 KEYLOCK SWITCH APPLICATION: RoHS Compliant

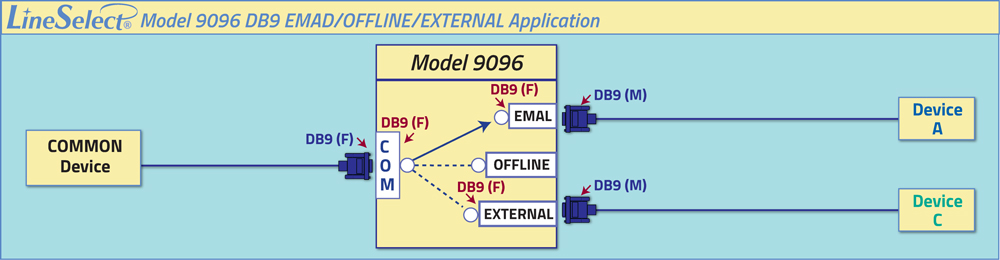

The drawing illustrates a COMMON Device connected to the DB9 port with access to either the EMAL, EXTERNAL, or OFFLINE position. The Network A is connected to the DB9 port "EMAL" and the Network B is connected to the DB9 port "EXTERNAL".

LineSelect Model 9096 DB9 A/B Switch Application, RoHS Compliant

Ordering Information

Catalog Number: 309096
Model Number: 9096
Base Price: See website or contact us for current pricing and availability.

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
