Catalog # 307410 - Model 7410 16-Channel Individual Control RJ45 A/B Switch w/Dual Remote Ports and Dual Power Supply

Model 7150 Automatic Fallback 16-Channel AB Switch w/GUI

Click image to enlarge

Base Price:

$6,925.00

Catalog No:

307410

Model No:

7410

Product Type:

Switches: Copper

Positions:

Cable Type/Port Connector:

RJ45

Electronic Switches/Power Required:

PathWay® Copper

Channel Control:

Independent Channel Control

Remote Control:

RS232 Serial

Configuration:

Rackmount

Remote Port:

RJ45

Local Control:

Pushbutton

Feature:

Dual Power Supply Ports, Dual RS232 Remote Control Ports

Qty

Add to Cart

SPECIFICATION SHEET

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Model 7410 16-Channel Individual Control RJ45 RS232 A/B Switch, with Dual Remote Ports and Dual Power Supplies

Overview

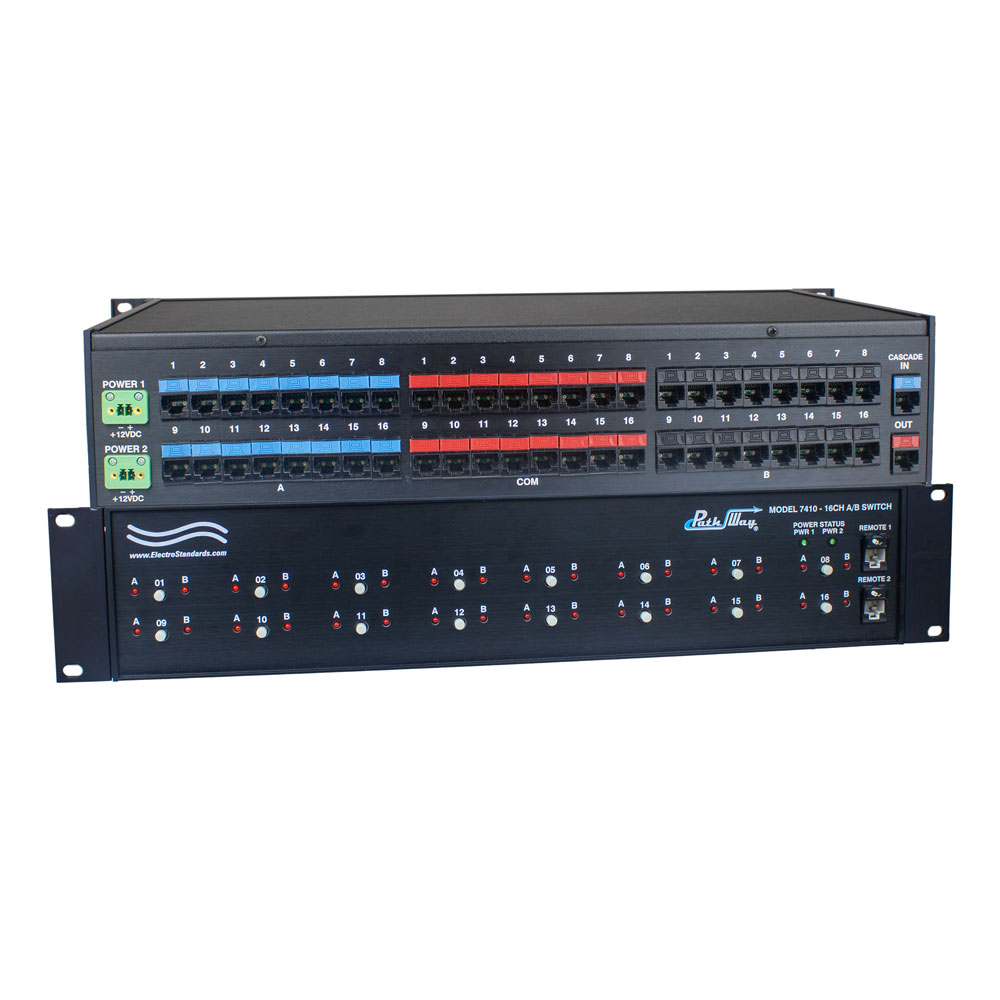

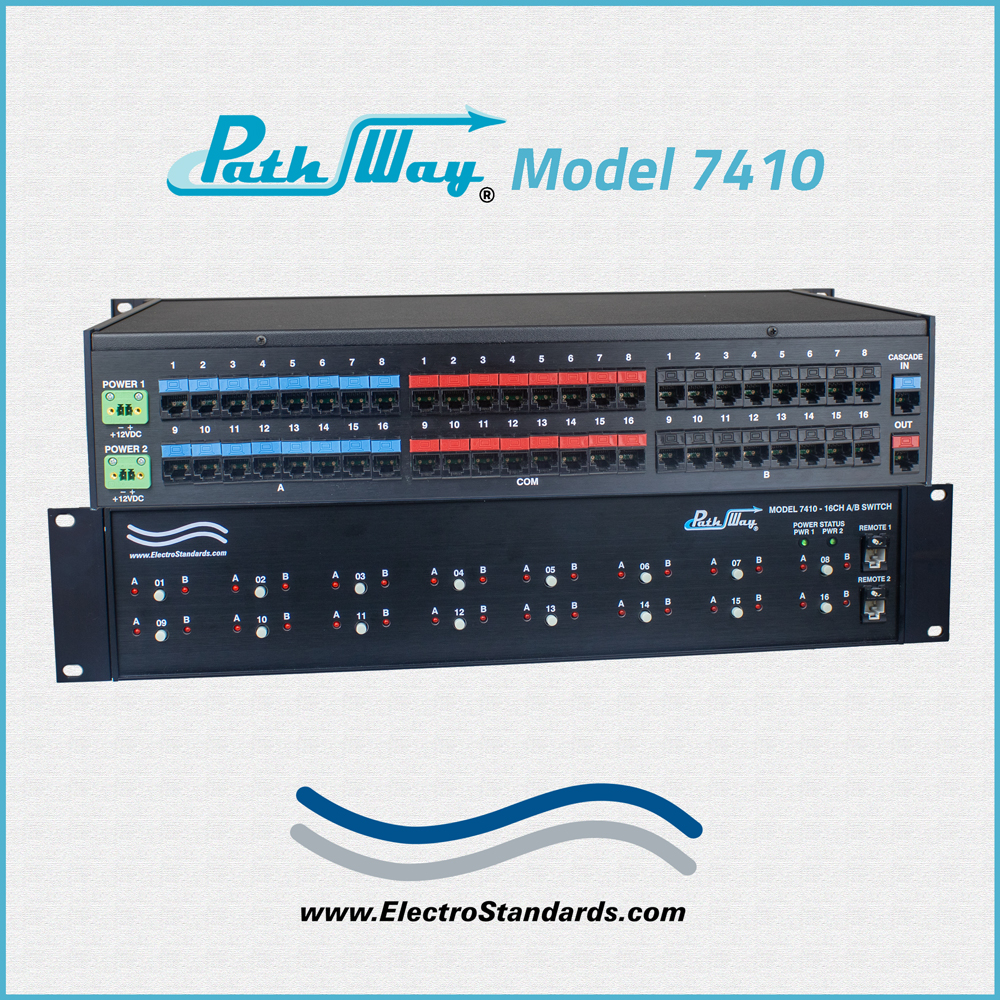

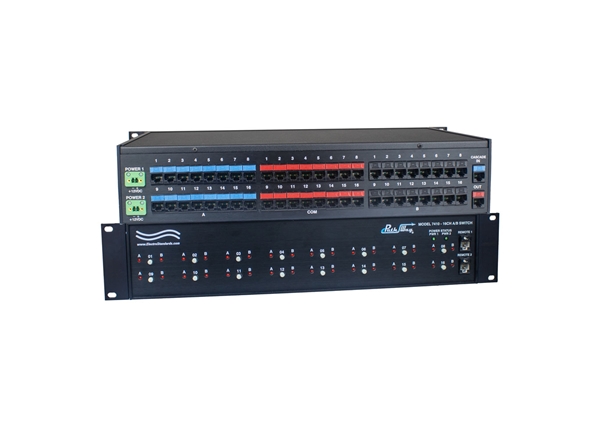

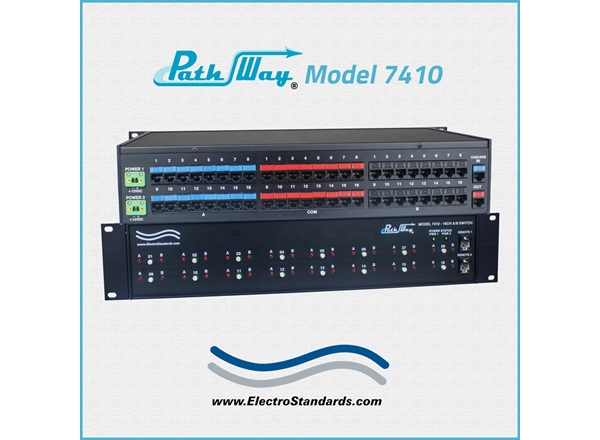

The PathWay® Model 7410 16-Channel RJ45 RS232 A/B Switch with Dual Remote Ports and Dual Power Supplies allows the user the capability of sharing a single port RJ45 interface device, connected to the "COMMON" port, among two other devices, connected to the A and B ports, with individual control of each channel. The Model 7410 is enclosed in a 2U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

The unit can be operated by either the front panel pushbuttons or via the dual remote ports. The Model 7410 also supports cascade operation, where other supported units can be connected and operated through a single remote port interface. The state of the unit can be obtained from the front panel LED's or through the Dual Remote Ports.

* Custom RJ45 Cascade Operation allows multiple units to be connected together!

*Dual ASCII RS232 Remote Control Serial Ports

FEATURES OF THE MODEL 7410 RS232 A/B SWITCH:

The switch ports are transparent to all data.
All (8) pins of the RJ45 interface are switched via break-before-make electromechanical relays.
Switch maintains last set position on power loss and continues to pass data.
Individual control of all (16) channels.
Front panel pushbutton control.
Remote Control of the switch from ASCII RS232 Serial Supervisory Stations.
Dual Remote Control RJ45 for RS232 ports that allow the user to control switch position, lockout front panel operations, control Cascaded Units, as well as obtaining status and receive Cascade Unit status updates.
Cascade operation allows control of switch position and lockout of individual channels as well as obtaining the status of other units connected to the Cascade Ports through the Remote RJ45 female port of a single unit.
Front panel LED's display present position, lockout, and power status.
EIA/TIA-561 RS-232 compliance.
Dual Power Supplies protect unit in case of power failure, provides backup power supply to keep the unit running.
Wide Range Power Supplies allows operation within a wider range of voltages. Ideal for international applications!

TECHNICAL SPECIFICATIONS:

SIZE
- Width: 19" (48.3 cm) (19" full rack size)
- Height: 3.5" (8.9 cm) (2U)
- Depth: 10.11" (25.4 cm)
- Weight: 8.27 lbs. (3.75 kg)
POWER REQUIREMENTS
- DC Voltage: 12VDC
- DC Current: 480mA (peak), 240mA (nominal)
- AC Power: 6W (peak), 3W (nominal)

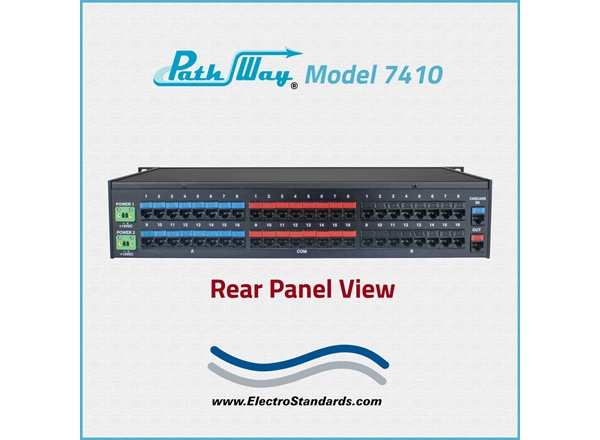

SIGNAL PORT INTERFACE:

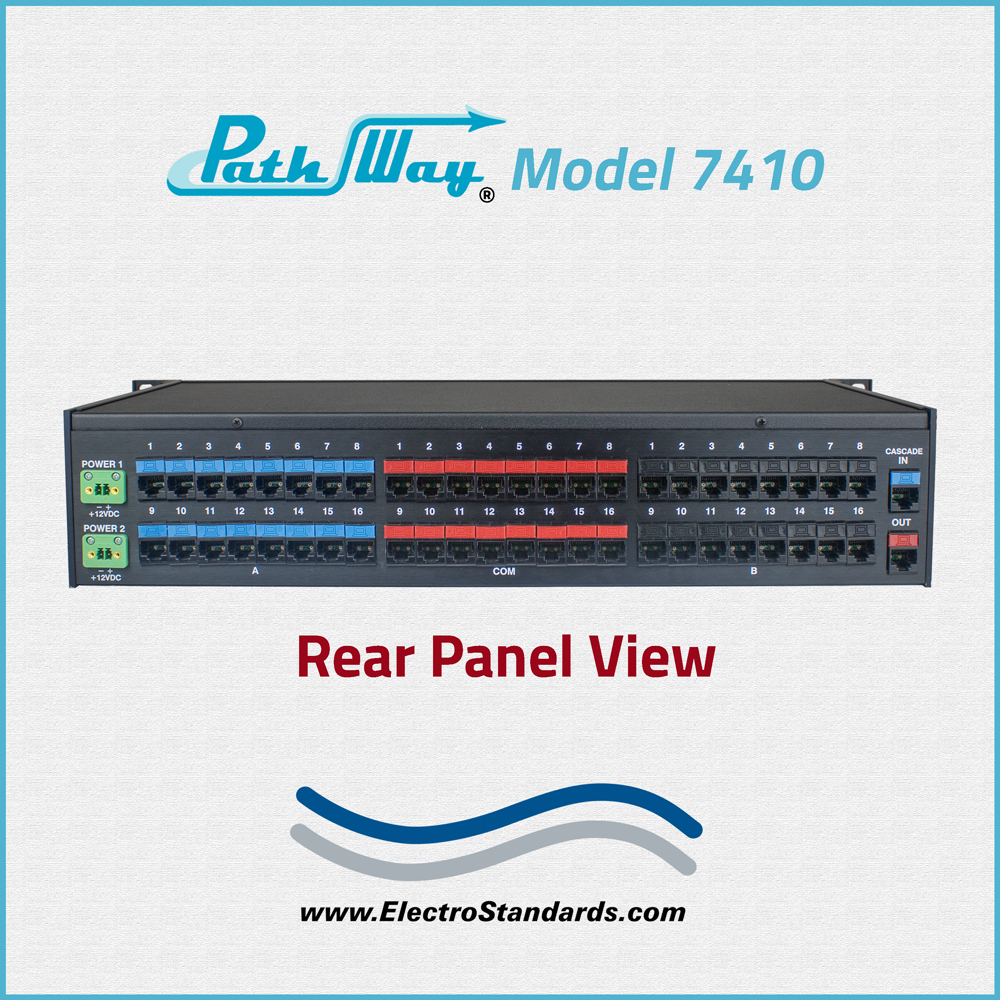

- (48) RJ45 Signal ports
- (16) Channels of RJ45 A/B/COM ports
- Individual Control
REMOTE PORT INTERFACE:
- (2) RJ45 (F) RS232 Remote Ports
- (2) RJ45 (F) Cascade Ports (In, Out) with Custom Pinout

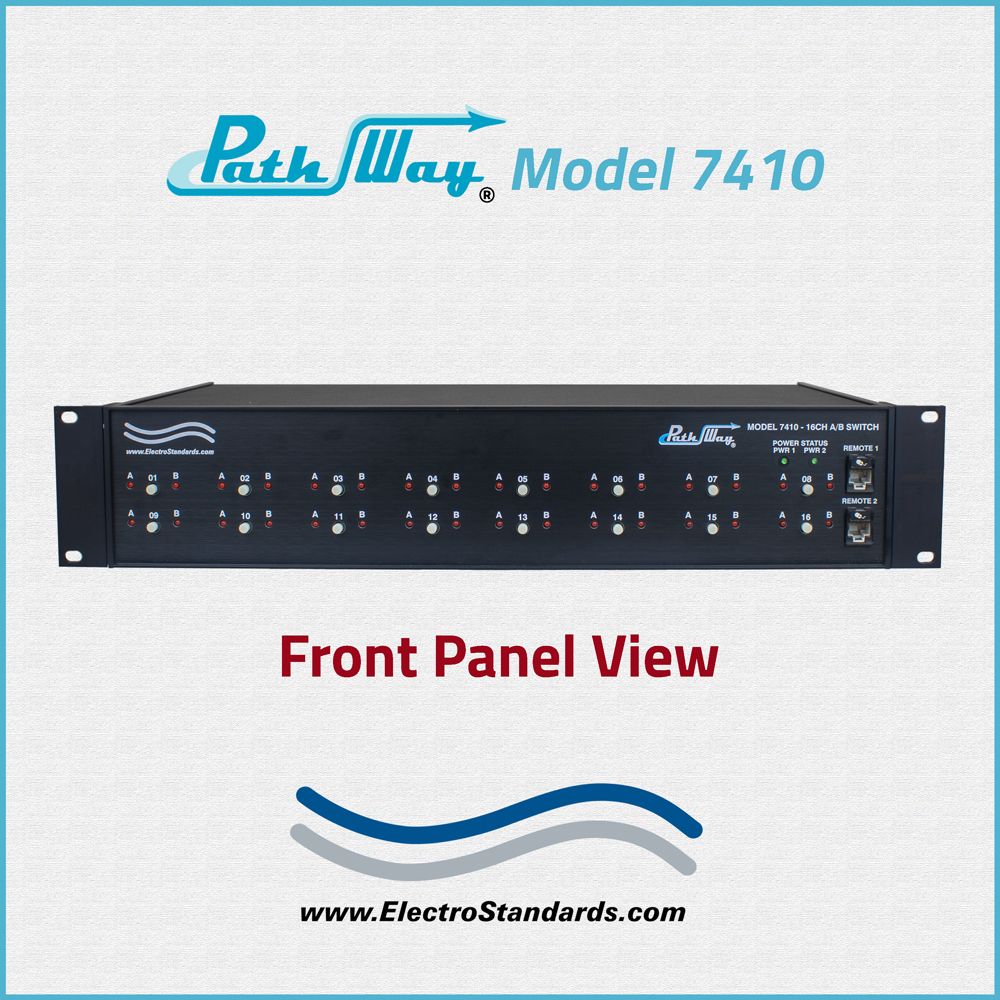

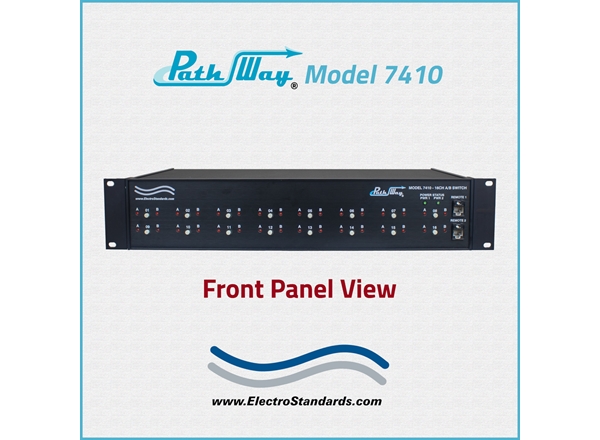

FRONT PANEL CONTROL AND INDICATORS:
- (32) Red LED's
- (32) Green LED's
- (16) Pushbuttons
POWER SUPPLY 517277:
- Input 100-240VAC, 50Hz/60Hz, 0.5A
- Output: 12VDC (regulated), 1.5A
ENVIRONMENT:
- Operation Temperature: 0ºC to 50ºC
- Storage Temperature: -40ºC to 85ºC
- Humidity 10% to 90% without condensation

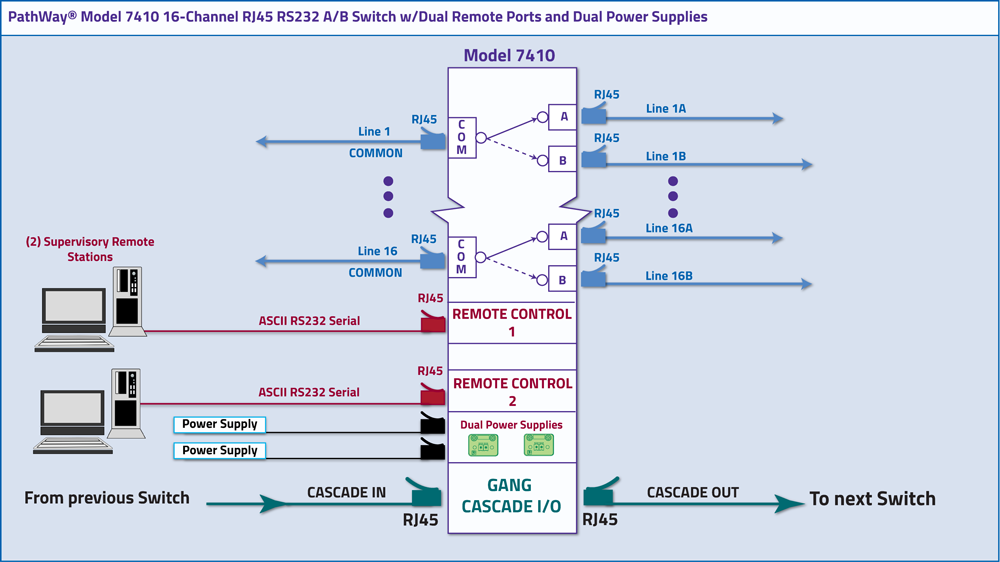

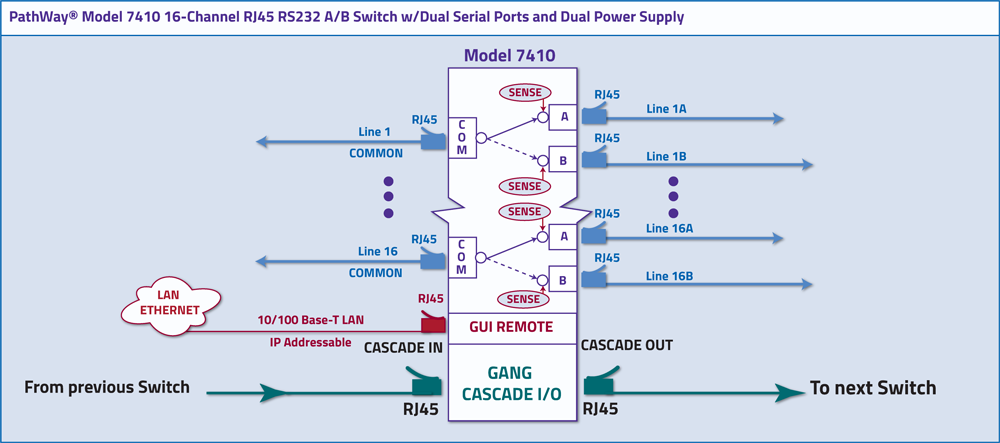

RS232 A/B SWITCH APPLICATION WITH TELLNET 7 GUI REMOTE CONTROL:

The drawing illustrates up to 16 COMMON lines connected to the 16 COMMON ports being shared between two sources, A and B lines. The dual RS232 Serial Remote Ports allow for remote access to ASCII commands via either of 2 Supervisory Remote Stations.

PathWay® Model 7410 16-Channel RJ45 RS232 A/B Switch w/Dual Serial Ports and Dual Power Supply.

Ordering Information

Catalog Number: 307410
Model Number: 7410
Base Price: See website or contact us for current pricing and availability.
Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
We welcome international inquiries and ship worldwide.

Shipping and Returns

Shipped via UPS ground (unless otherwise requested).
Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

Electro Standards Laboratories can supply all of your Network Cable requirements.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com

All ESL products are available for export.

Pathway® is a registered trademark of Electro Standards Laboratories.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.
