Model 7908 10-Channel A/B/Offline Multi-Interface Switch with PoE, Audio, RJ45 Cat5e, HDMI, 120-Volt RS232 Remote, Catalog 307908

    Model 7908 10 Channel A/B/Offline SwitchModel 7908 10 Channel A/B/Offline SwitchModel 7908 10 Channel A/B/Offline SwitchModel 7908 10 Channel A/B/Offline Switch
Click image to enlarge

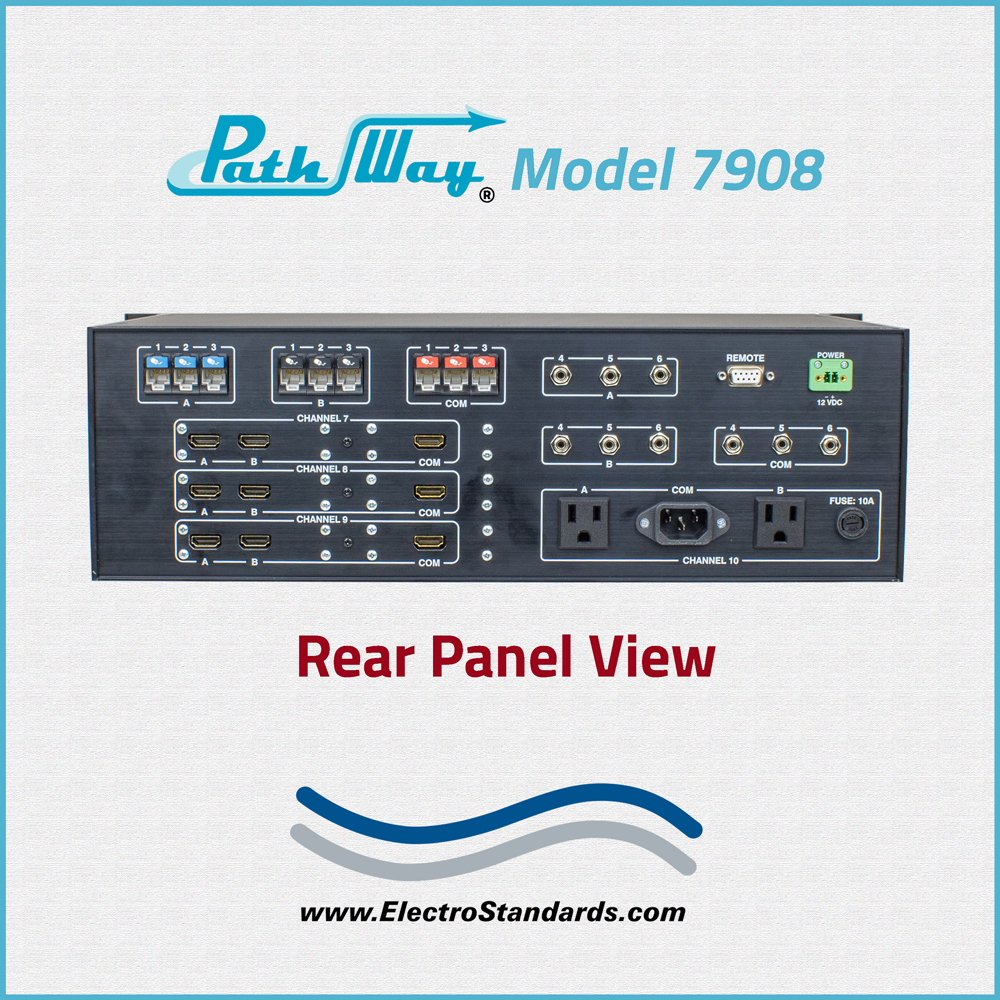

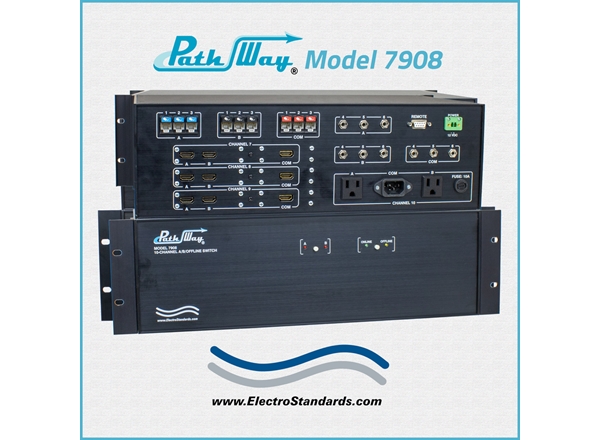

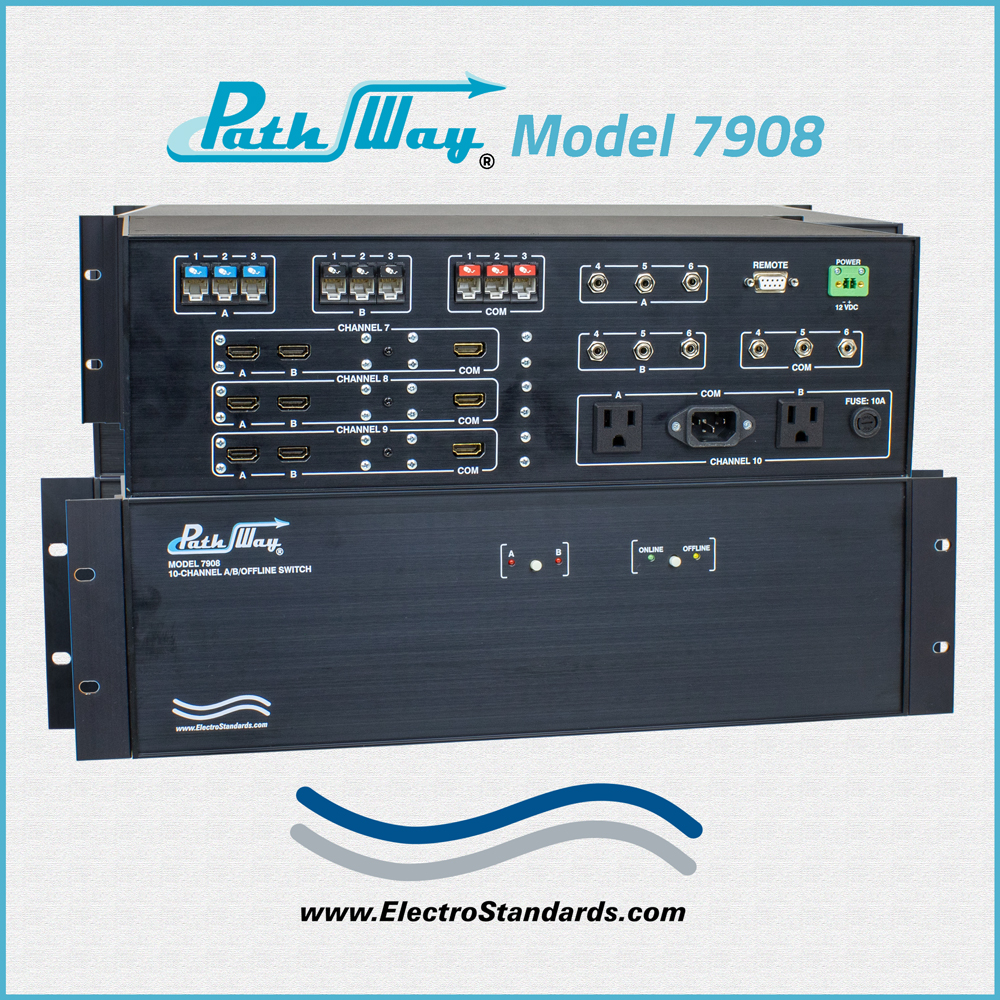

    • Model 7908 10 Channel A/B/Offline Switch

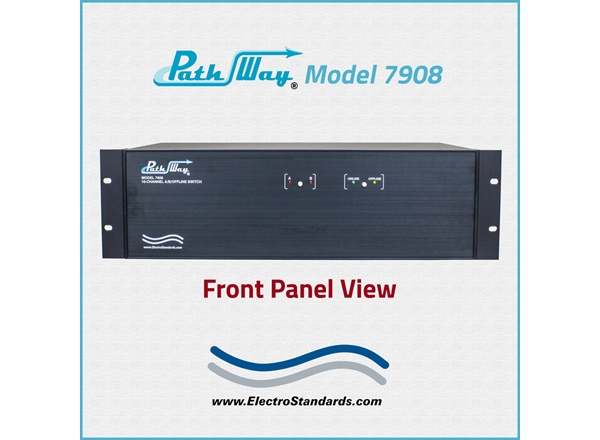

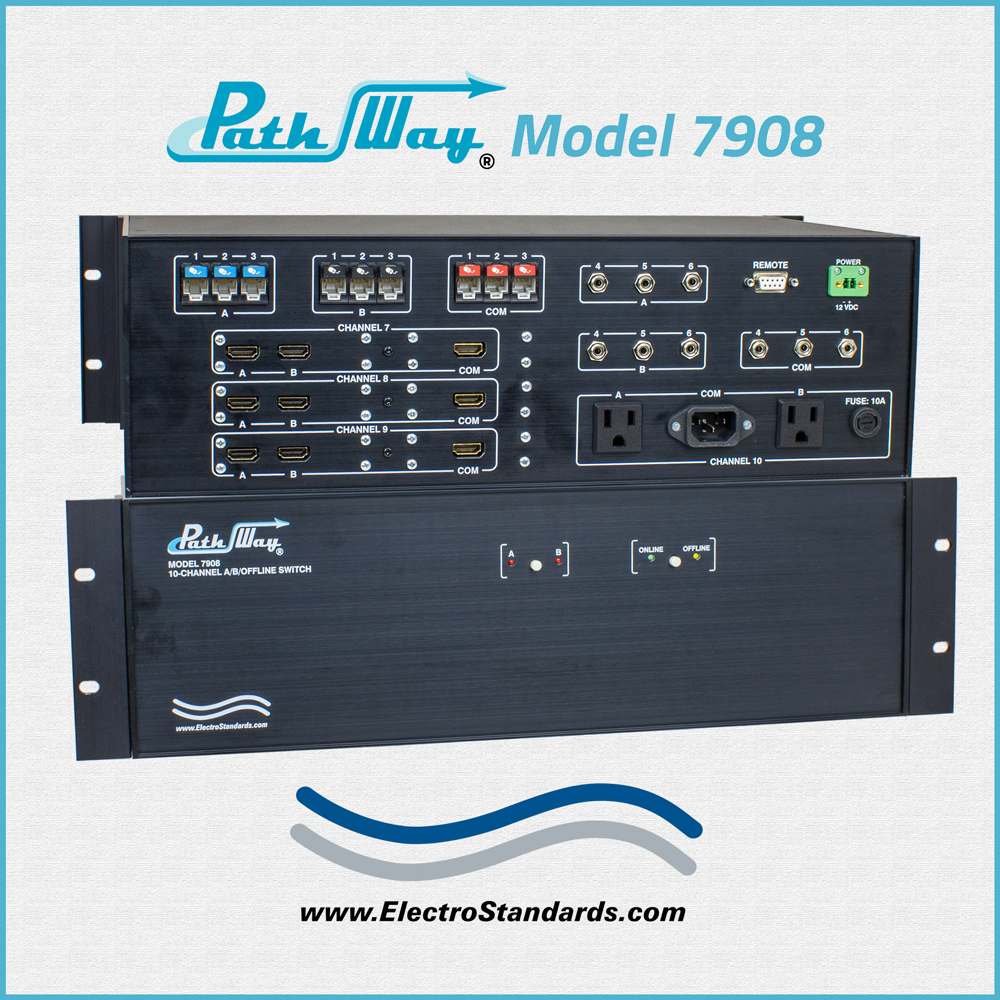

    • Model 7908 10 Channel A/B/Offline Switch

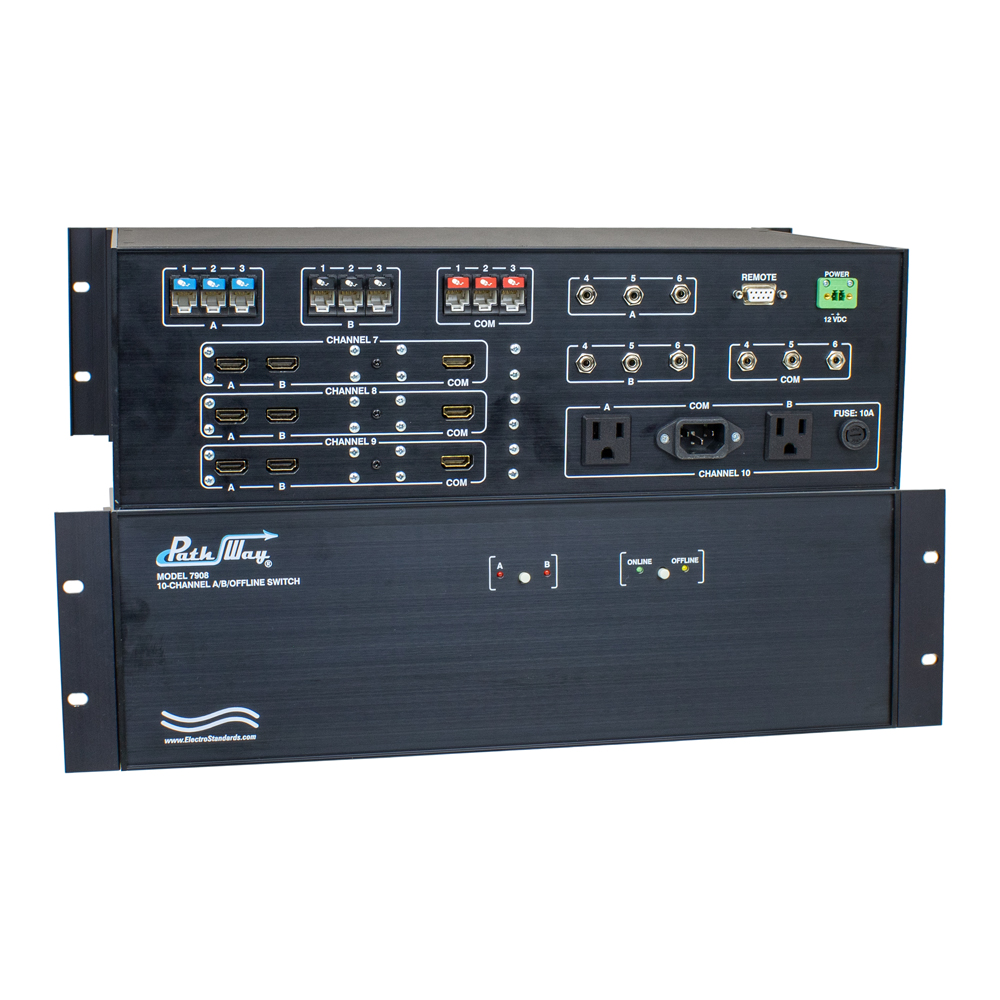

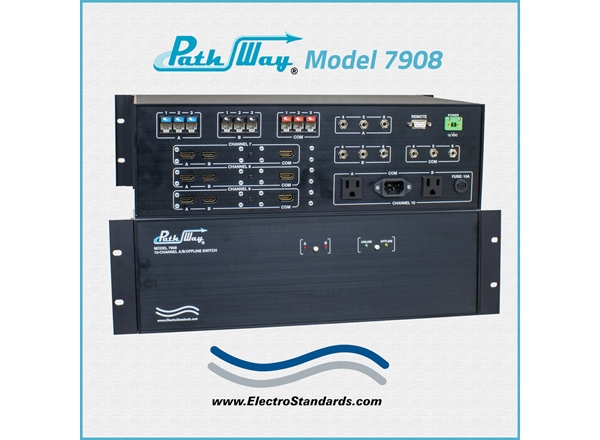

    • Model 7908 10 Channel A/B/Offline Switch
    • Model 7908 10 Channel A/B/Offline Switch
Base Price:
Call for Price
Catalog No: 307908
Model No: 7908
Product Type:Switches: Copper
Positions:2
Switch Application:Audio/Video Switching
Cable Type/Port Connector:HDMI, RJ45, 4-Pin 3.5mm, AC Power
Channels per Switch Chassis:10
Channel Control:Simultaneous Channel Control
Remote Control:RS232 Serial
Compliance/Standards:802.3af & 802.3at, Cat5e, PoE
Configuration:Rackmount
Remote Port:DB9
Local Control:Pushbutton
Feature:PoE, Power over Ethernet

  • Quickly and easily switch all ten channels (Data, Audio, Video and Power) simultaneously!
  • Ideal for conference room applications that require switching video cameras to codec or display units.
  • Ideal for conference room applications that employ smart cameras having an HDMI Video Channel, an Ethernet port to control camera movement, an audio port for integrated sound.
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

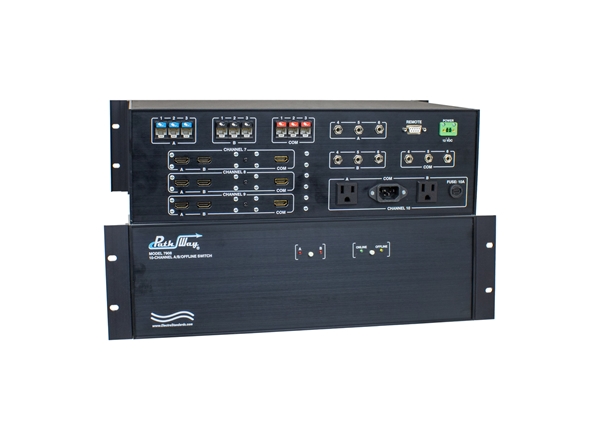

PathWay® Model 7908 10-Channel A/B/OFFLINE Multi-Interface Switch with RS232 Remote, PoE Interface

Overview

The PathWay® Model 7908 10-Channel (3) RJ45 Cat5e POE 802.3af & 802.3at Compliant, (3) 4-Pin 3.5mm, (3) HDMI A/B/Offline Switch, and 120 Volts A/B/Offline Switch with RS-232 Remote allows the user the capability of sharing a single port RJ45 Cat5e, 3.5mm, HDMI and/or 120 Volts interface device, connected to the "COMMON" port, among two other devices, connected to the 'A" and "B" ports. The Online/Offline status of all channels can be switched simultaneously via front panel pushbutton control. The Model 7908 is enclosed in a 3U, full rack size, all metal, black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

The Model 7908 may be controlled manually via front panel pushbuttons or remotely from an RS-232 Serial port located on the rear of the unit.

  • Quickly and easily switch all ten channels (Data, Audio, Video and Power) simultaneously!

  • Ideal for conference room applications that require switching video cameras to codec or display units.

  • Ideal for conference room applications that employ smart cameras having an HDMI Video Channel, an Ethernet port to control camera movement, an audio port for integrated sound.

FEATURES OF THE MODEL 7908 MULTI-INTERFACE SWITCH:

  • Simultaneously switch all ten channels between A, B, and Online/Offline positions locally via front panel pushbuttons.
  • The Online/Offline status of all channels can be switched simultaneously via front panel pushbutton control.
  • The switch ports are transparent to all data.
  • All (8) pins of the RJ45 Data interface are switched via break-before-make electromechanical relays.
  • All (4) leads of the 4-Pin 3.5mm Audio interface are switched via break-before-make electromechanical relays.
  • All (19) pins of the HDMI Video Interface are switched via break-before-make electromechanical relays.
  • IEC C14 male connector port for the COMMON port.
  • COMMON port is power in.
  • AC Socket for A and B ports.
  • Contacts rated for 120 VAC 10A current (Non-inductive load).
  • Power only on the port selected, with no power going to the non-selected port.
  • The unit maintains last set position on power loss and continues to pass data for the 3.5mm Audio and Rj45 Cat5e ports.
  • Upon power loss, the HDMI Video Channels remain in present position, but shuts down and does not pass signals.
  • Upon power return, the switch will remain in the OFFLINE position and will not allow data or switch power to pass.
  • Front Panel pushbutton control.
  • Remote RS232 ASCII commands that allow the user to control switch position, lockout front panel operations, obtain status, query firmware version number, query serial number, and enable/disable autosend of switch positions.
  • Simultaneous control of channels.
  • Front panel LED's display the present position and power status.
  • Certified for Cat 5e compliance.
  • Certified for POE 802.3af & 802.3at compliance.
  • HDMI supports 1080p.

TECHNICAL SPECIFICATIONS:

  • PORT CONNECTORS: (9) RJ45 Cat5e female connectors; three labeled A, B, and COMMON for each channel. (9) 4-Pin 3.5mm connectors; three labeled A, B, and COMMON for each channel. (9) HDMI connectors; three labeled A, B, and COMMON for each channel. (2) AC Socket (F) A/B/C Signal ports. (1) IEC C14 (M) Common Signal port.
  • FRONT PANEL CONTROL: (2) manual pushbuttons allow local A/B switching of operating channels and online/offline status.
  • DISPLAY: (4) Front panel LED's display switch position and Online/Offline status. Indicates power status for the A/B ports. (2) Red LEDs display switch position, (1) Green LED displays Online status, and (1) Amber LED displays Offline status.
  • REMOTE PORT: (1) DB9 female connector on rear panel accepts RS232 Serial Data for Remote Control operation.
  • POWER: UL approved wall mount 100VAC-240VAC, 50Hz-60Hz power module supplies 12 VDC, 500 mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: 19.0"W x 5.2"H x 10.3"D (48.3 x 8.9 x 26.0 cm).
  • WEIGHT: Approx. 9.1 lbs. (4.2 kg).

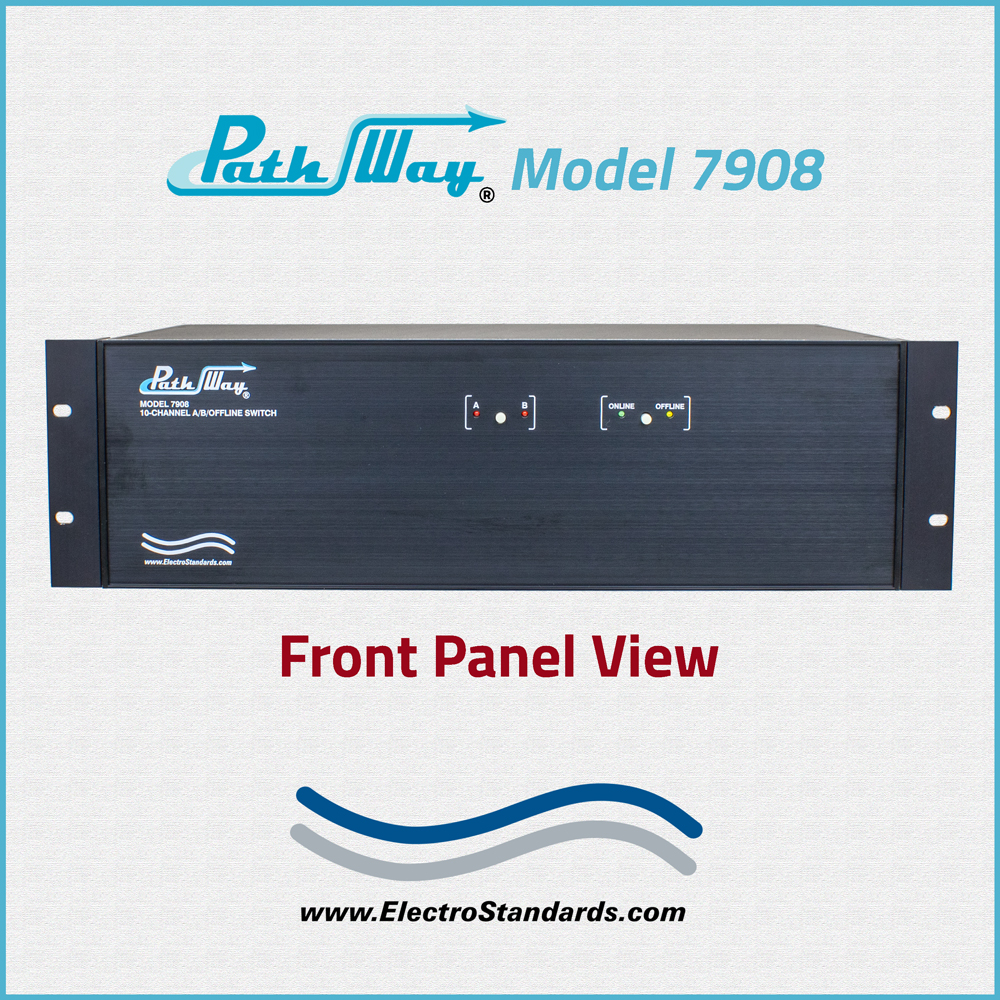

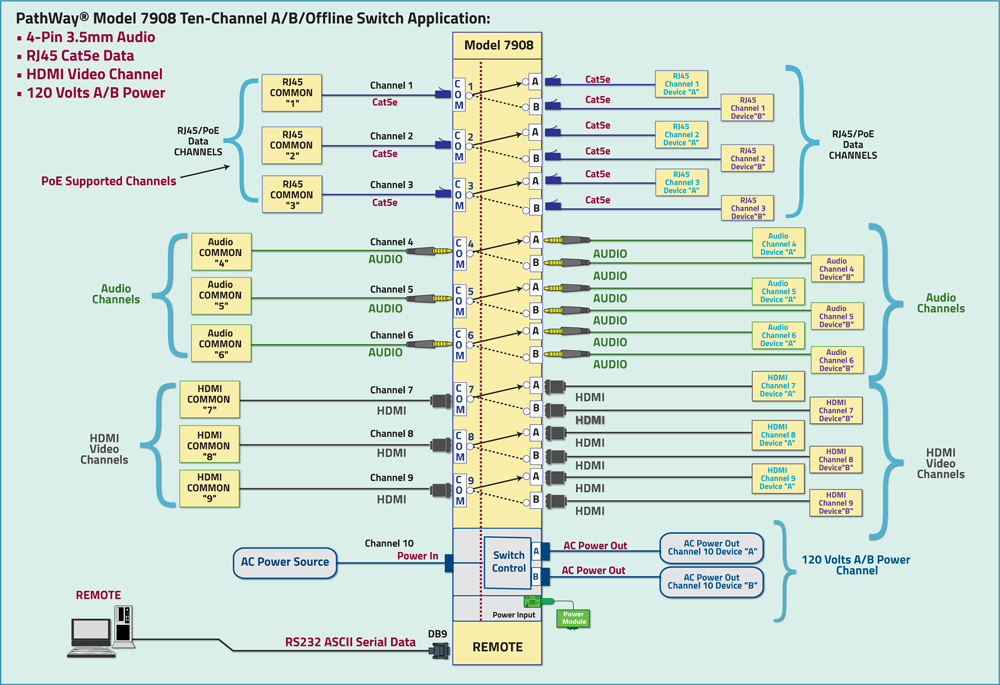

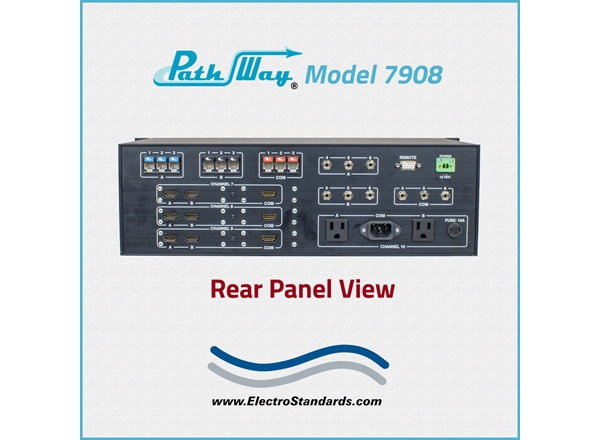

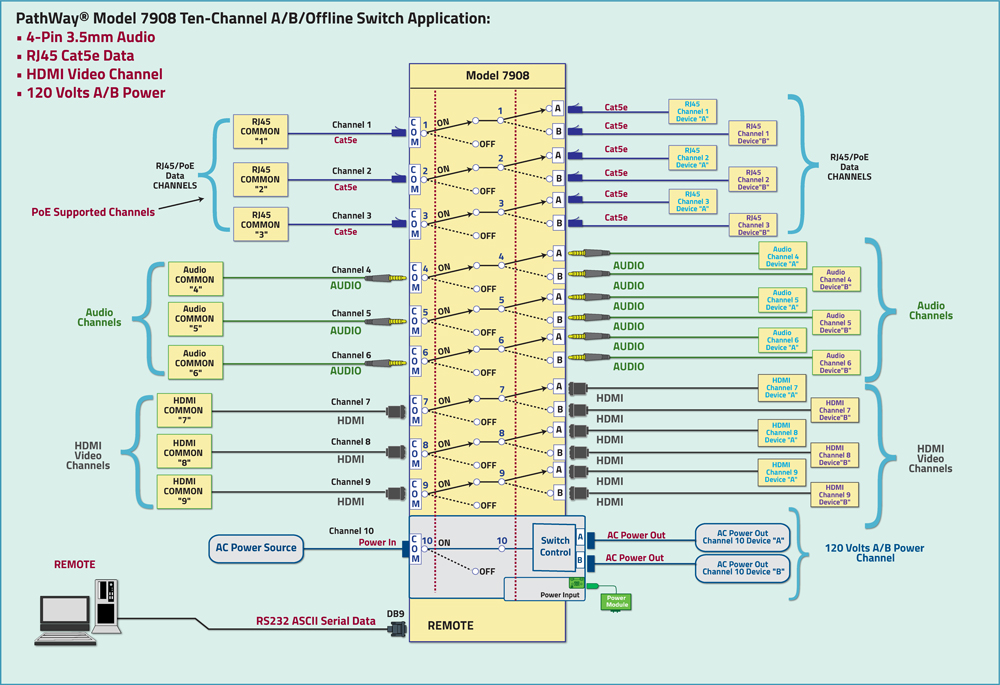

PathWay® Model 7908 10-Channel A/B/OFFLINE Multi-Interface Switch Application Diagram:

The drawing illustrates the operation of the 10 channels of the M7908:

PathWay Model 7908 10 channel switch application

Ordering Information

  • Catalog Number: 307908
  • Model Number: 7908
  • Base Price: See website or contact us for current pricing and availability.
  • Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

  • Specification Sheet (PDF) Download Available.
  • Product Manual available upon request.
  • For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
  • We welcome international inquiries and ship worldwide.
