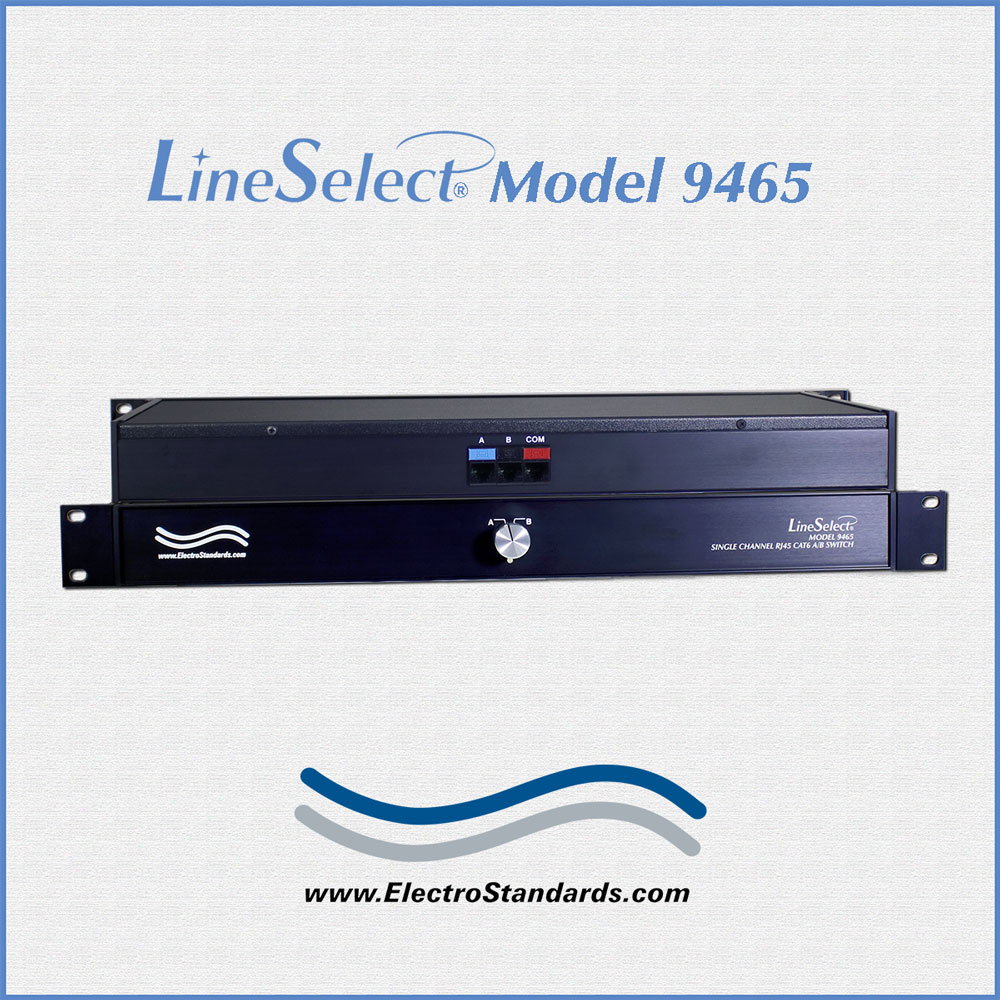

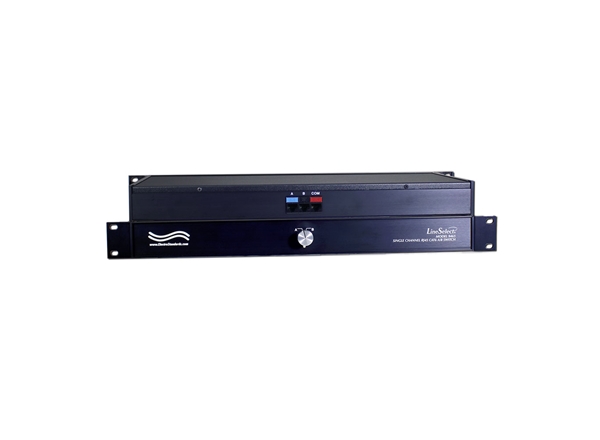

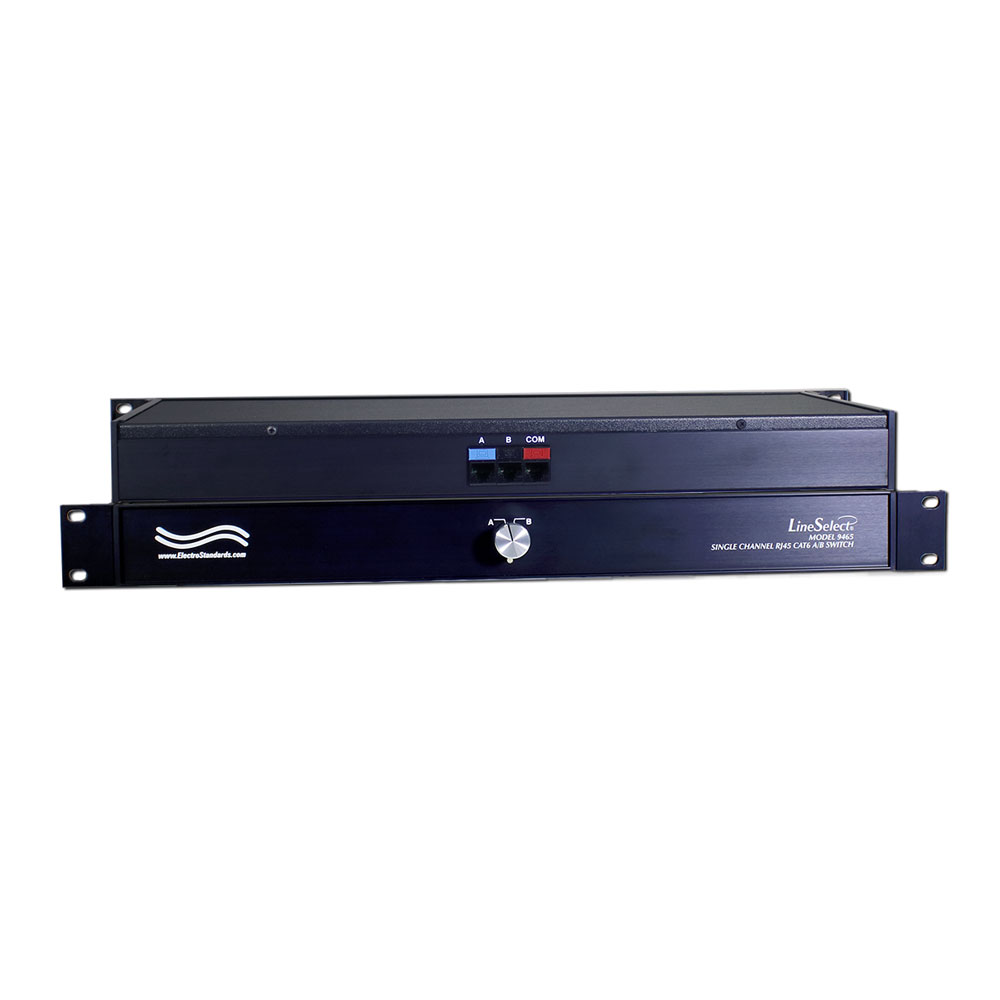

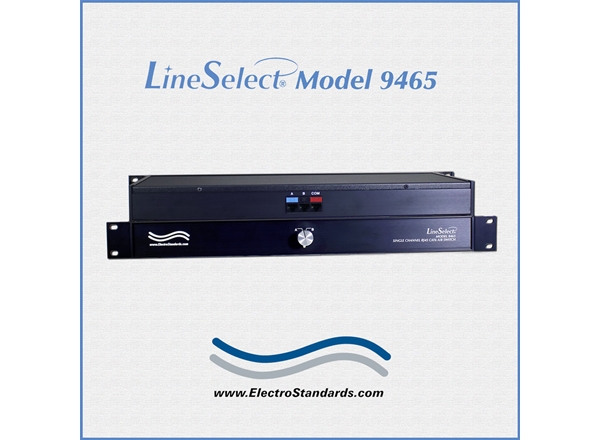

Catalog # 309465 - Model 9465 RJ45 Cat6 A/B Manual Switch, Rackmount

    RJ45 Cat6 A/B Manual Switch, Rackmount
Click image to enlarge
Base Price:
$487.00
Catalog No: 309465
Model No: 9465
Switch Media:Copper
Interface:RJ45
Positions:2
Channels per Switch Chassis:1
Connector/Port:RJ45
Manual Control/No Power Required:LineSelect® Manual Operation
Compliance/Standards:Cat6
Enclosure Configuration:Rackmount
Local Control:Rotary Knob

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

 LineSelect™
Cat6 Manual Network Switch, RJ45
LineSelect™ Model 9465 RJ45 A/B Switch, Manual, Cat6 Compliant

  • Switches all 8 pins. Allows compatibility with ALL RJ45 interfaces.
  • Field proven data network switch, highly reliable.

LineSelect™ Model 9465 RJ45 A/B Switch, Manual, Cat 6 Compliant.

SPECIFICATIONS:

  • PORT CONNECTORS: (3) RJ45 female connectors labeled A, B, and COMMON.

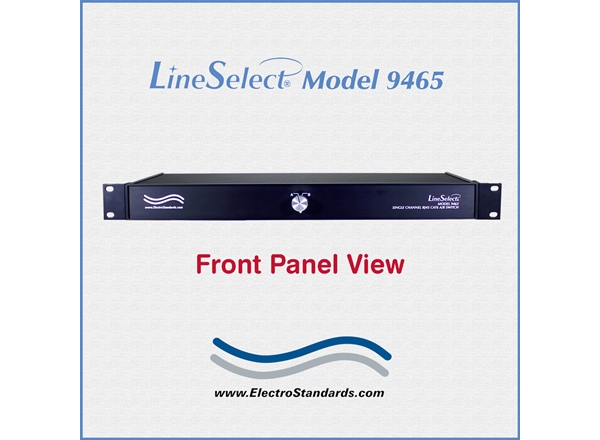

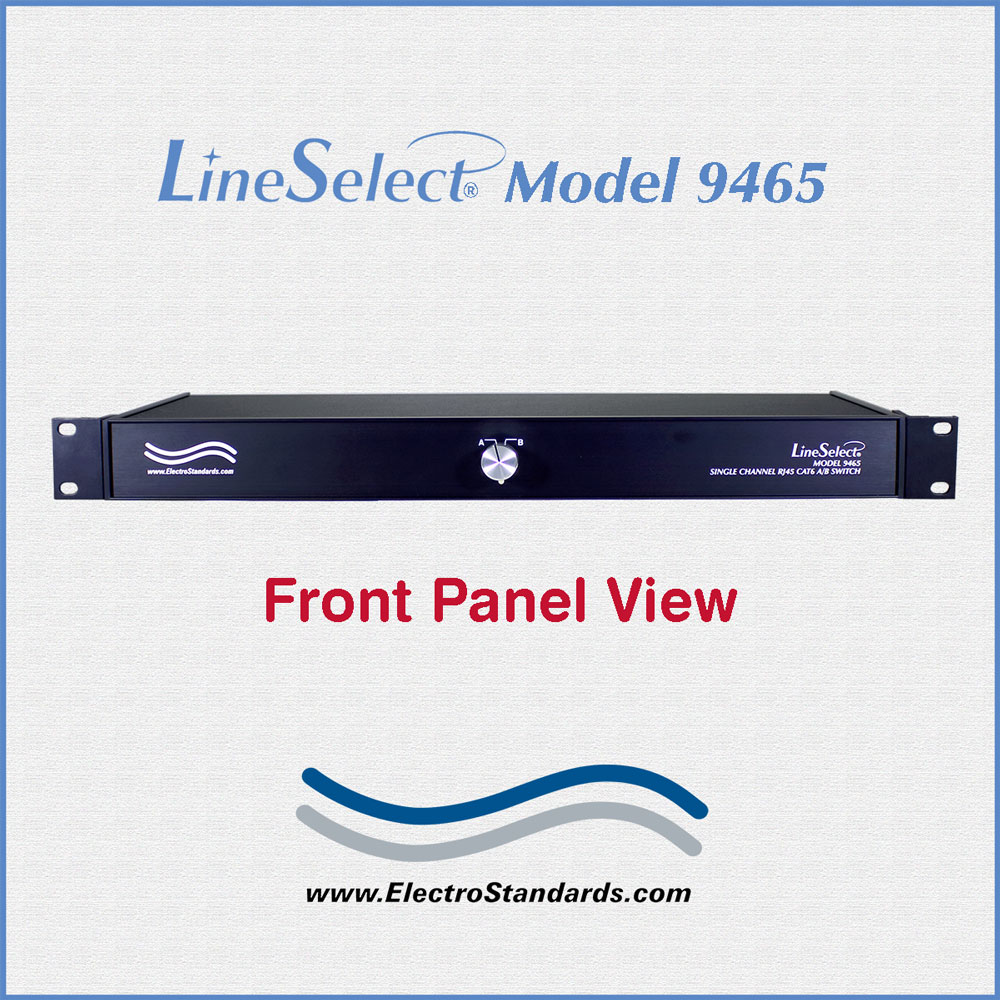

  • FRONT PANEL CONTROL: (1) Rotary Switch on front panel selects A. or B.
  • PINS SWITCHED: All 8 pins are switched.
  • POWER:  No power required. Manually operated.
  • ENCLOSURE:  Shielded aluminum enclosure.
  • DIMENSIONS:  Rackmount 19" W x 1.75" H x 8.64" D. (48.3 x4.4x 22.0 cm)
  • WEIGHT:  Approximately 3.9 lb. (1.8 kg).

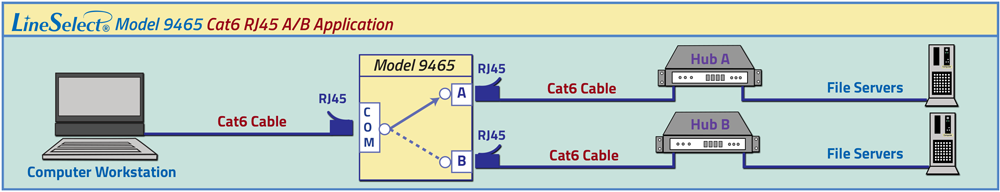

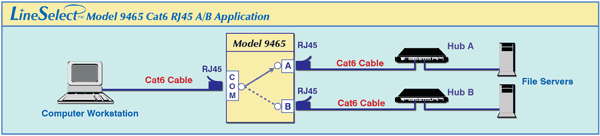

RJ45 CAT6 A/B NETWORK APPLICATION: The diagram illustrates a COMMON device connected to the COMMON port allowing the user to switch between two 10/100/1000 Base-T networks, connected to the RJ45 ports A and B via the front panel rotary switch knob.

LineSelect™ Model 9465 Cat6 RJ45 A/B Application drawing.

 FEATURES:

  • Allows access to two networks from one computer or workstation.
  • Certified for Cat6 compliance.
  • High quality sealed switch with self wiping contacts.
  • Eliminates the need to plug and unplug cables.
  • The ports are transparent to all data.
  • All 8 pins of the RJ45 interface are switched via a break-before-make rotary switch.
  • No external power required.
  • Manual control via knob located on front panel.
  • Rated for 10/100/1000 networks (Up to Cat6).

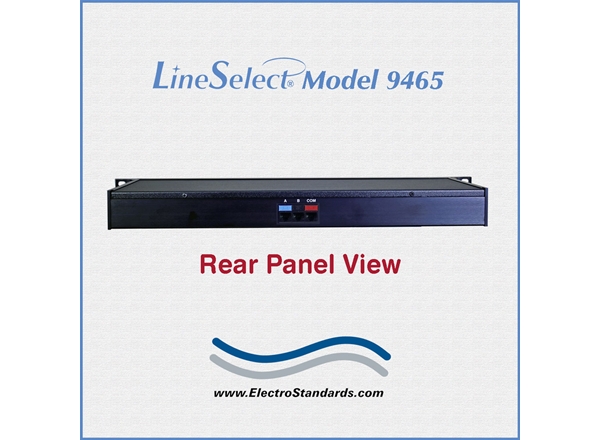

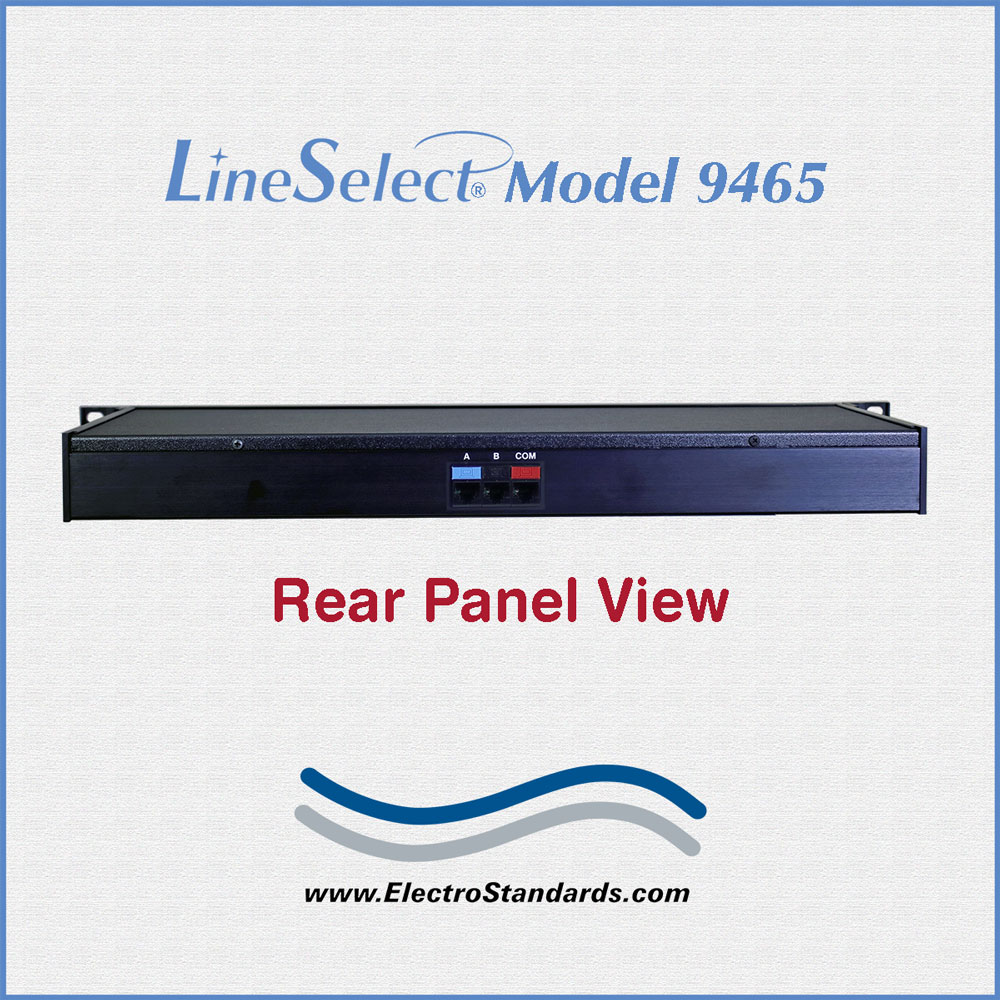

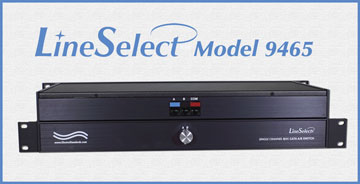

  • (3) RJ45 Connections, ports A, B, and Common, located on rear panel.
  • Attractive all metal black box packaging provides EMI/RFI shielding.
  • Switching mechanism is sealed precious metal contact switch.
  • Custom length CAT6 cables available for your switch installation.
  • Lifetime warranty against manufacturing defects.

 The LineSelect™ Model 9465 enables access to two 10/100/1000 Base-T networks. The LineSelect™ Model 9465 Category 6 A/B Switch allows the user to reroute data between two networks with a simple flip of a switch.  The unit supports all 8 pins of the RJ45 Cat6 interface.  No need to plug and unplug cables thereby eliminating connector wear. The LineSelectModel 9465 is enclosed in a 1U, full rack size, all metal chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

 Custom Network Switches are available. Contact us by phone, email, or complete the Online Custom Products Form. /Products-Custom/Copper-Switch/

Electro Standards can supply all of your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

All ESL products are available for export.

 *Prices online are subject to change and verification.
