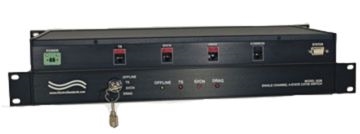

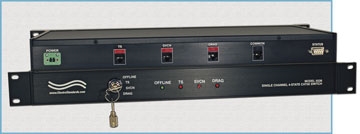

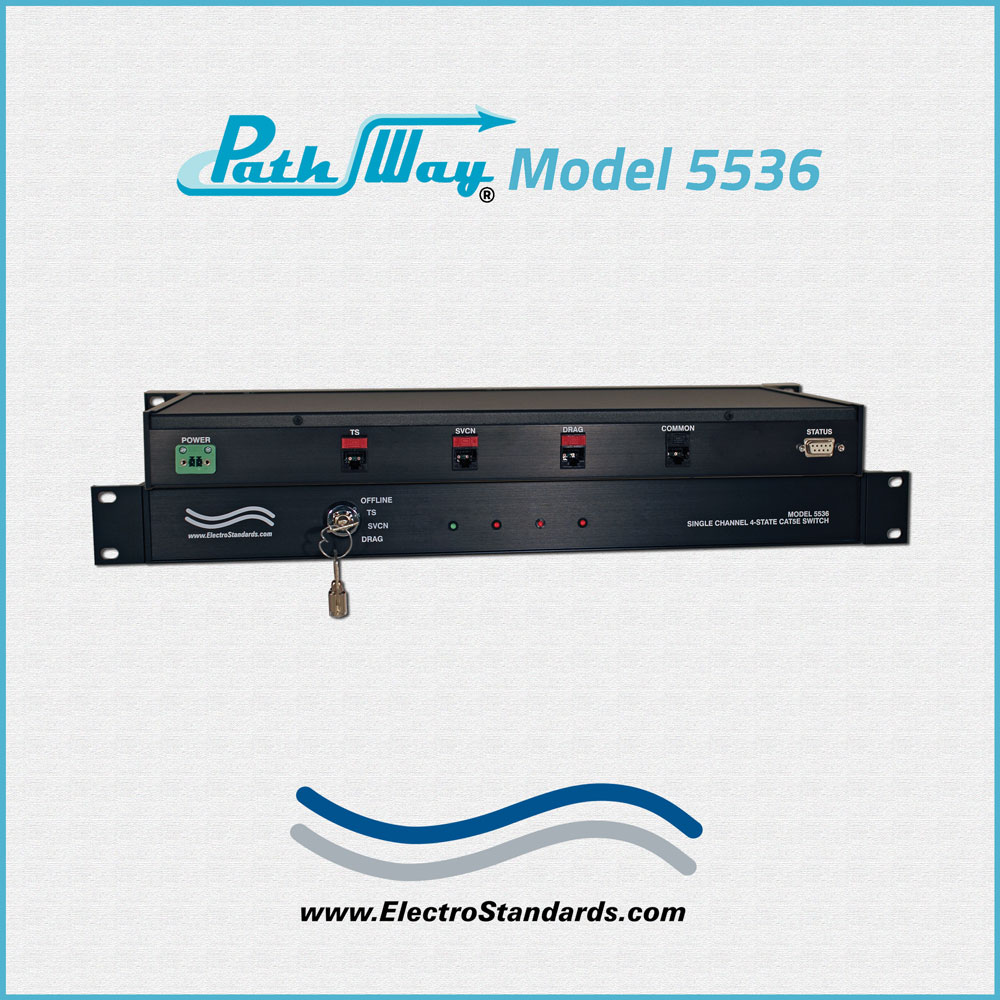

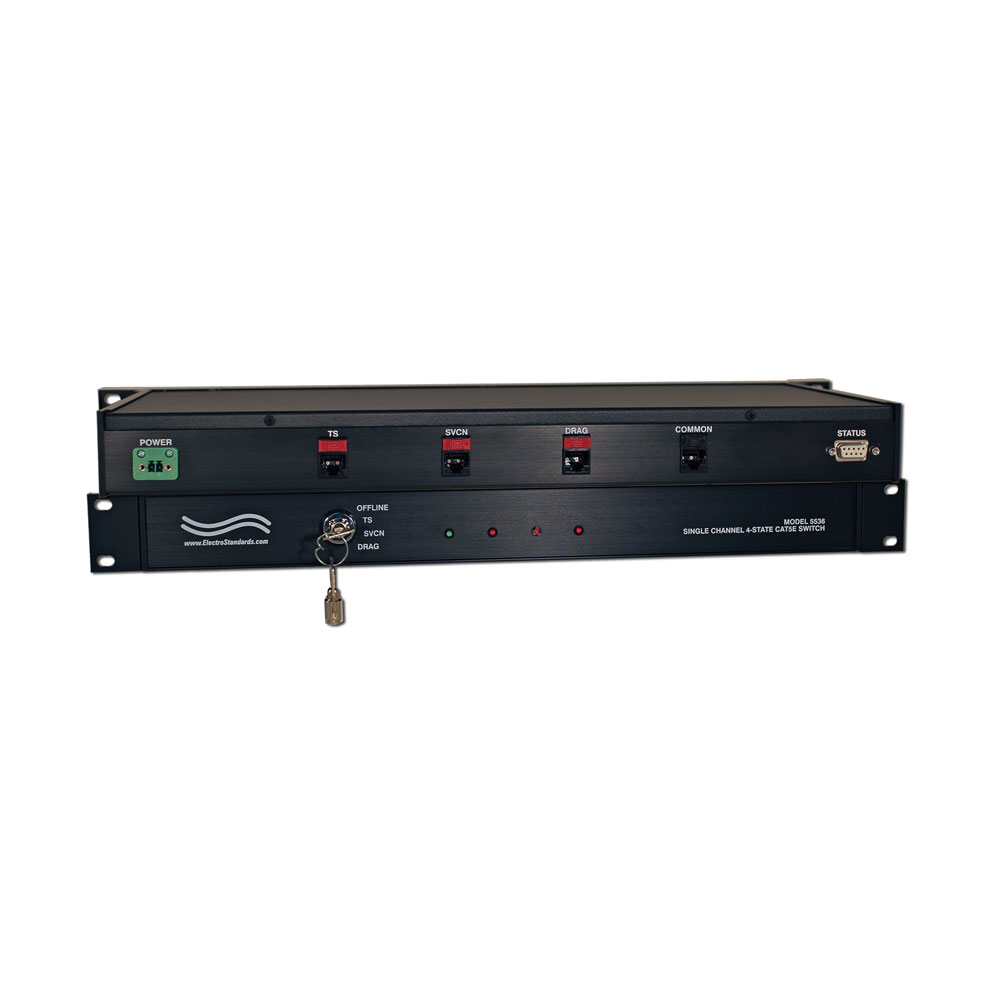

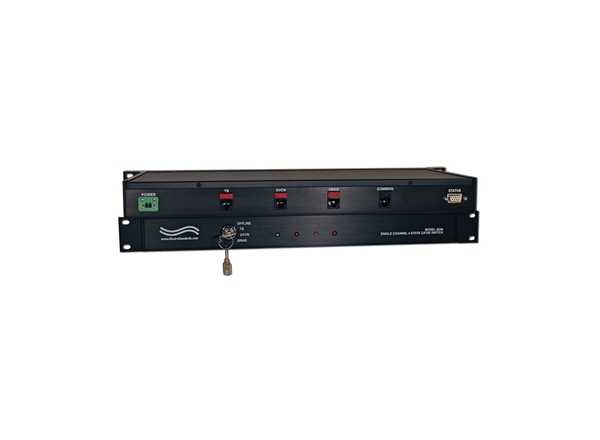

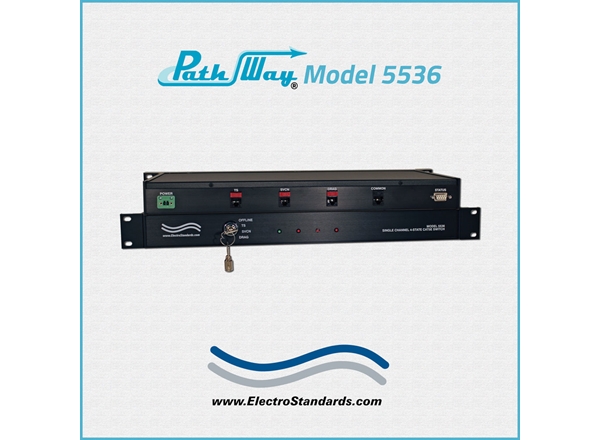

LineSelect® Model 5536 4-State OFFLINE/TS/SVCN/DRAG RJ45 Cat5e Switch

Overview

The Model 5536 4-State OFFLINE/TS/SVCN/DRAG RJ45 Cat5e Switch allows the user the capability of accessing three separate devices, ports TS, SVCN, and DRAG, via a connection through a device connected to the COMMON port or isolating all ports in the OFFLINE position.

The Model 5536 is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

Ideal for secure conference room communication applications!

FEATURES:

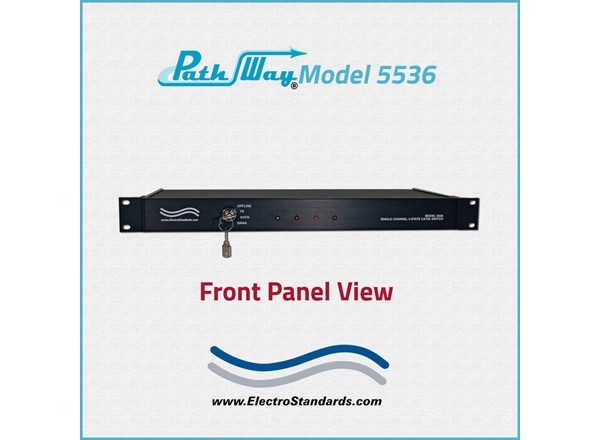

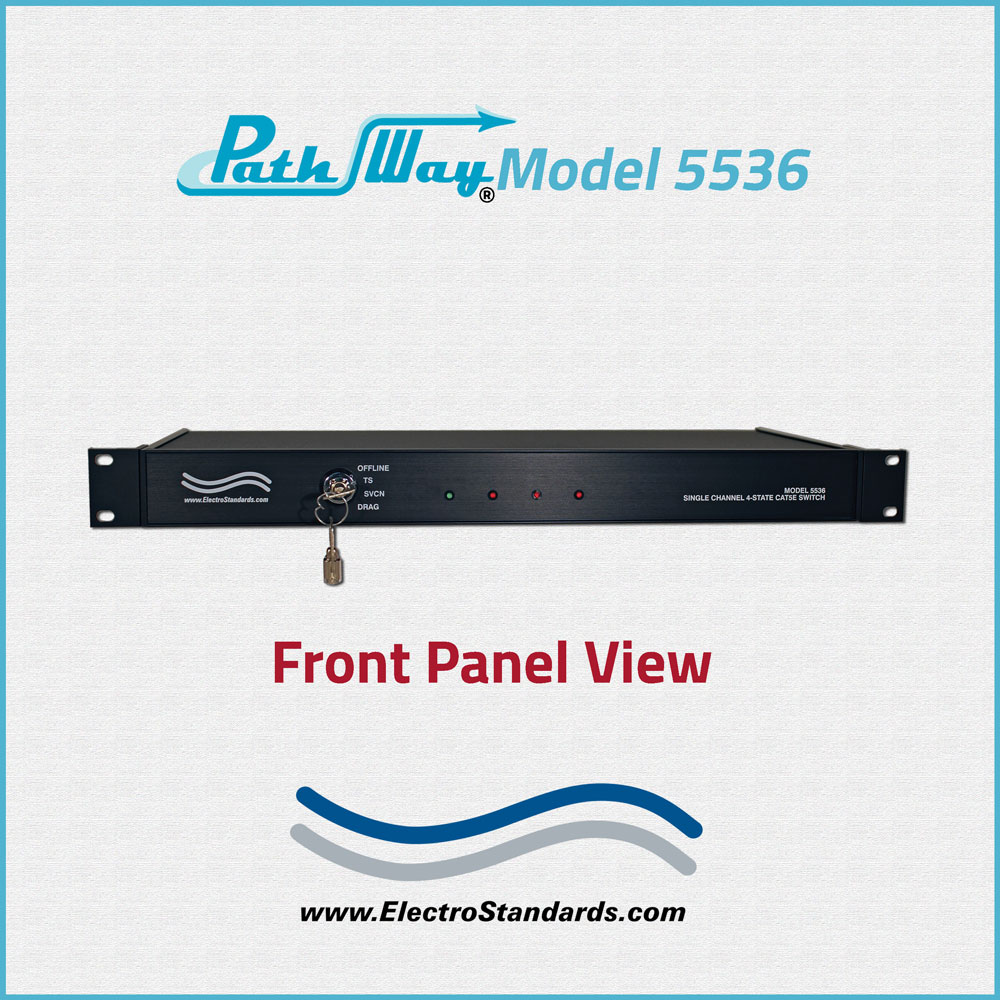

Unit switched via front panel Keylock Actuator.
The position will follow the Keylock Actuator position at all times.
The front panel indicator LED's will display the position status of the unit when power is connected.
All (8) pins of the RJ45 interface are switched.
High quality sealed switch with self-wiping low impedance contacts.
Certified for Cat5e compliance.
The switch ports are transparent to all data.
The key can only be removed from the Keylock Actuator in the OFFLINE position.
No power is required to operate unit.
Contact Closure Status port provides dry contact logic to obtain the switch position.
Attractive all metal black box packaging provides EMI/RFI shielding.
Custom length Cat5e cables available for your switch installation.
Lifetime guarantee against manufacturing defects.
Custom length cables are available for quick delivery!

TECHNICAL SPECIFICATIONS:

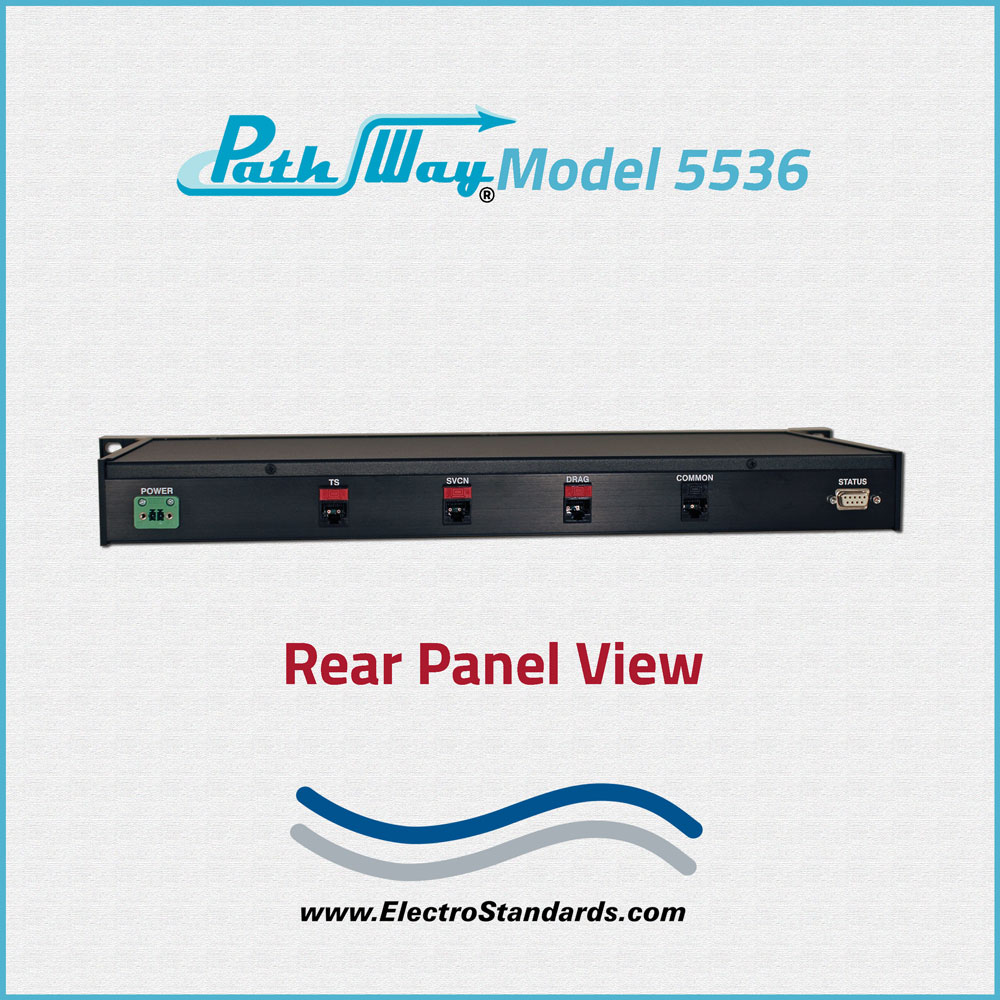

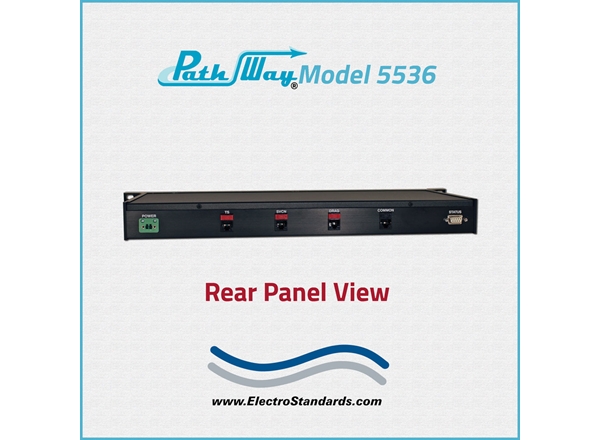

PORT CONNECTORS: (4) RJ45 female connectors labeled TS, SVCN, DRAG, and COMMON.
FRONT PANEL CONTROLS: (1) Four-position keylock actuator to select OFFLINE, TS, SVCN and DRAG position.
DISPLAY: (3) Front panel Red LED's and (1) Green LED displays switch position and power status.
STATUS PORT: (1) DB9 (F) Custom Contact Closure Monitor port.
POWER: "WIDE RANGE" CE and UL listed table power module (Cat. No. 521895) 100VAC/240VAC, 50Hz/60Hz is included with the unit. This power supply is required only to power the LED's. No power is required to operate the switch.
DIMENSIONS: 19" W x 1.75" H x 8.0" D.
(48.3 x 4.5 x 20.4 cm)
WEIGHT: 4.2 lbs. (1.9 Kg)

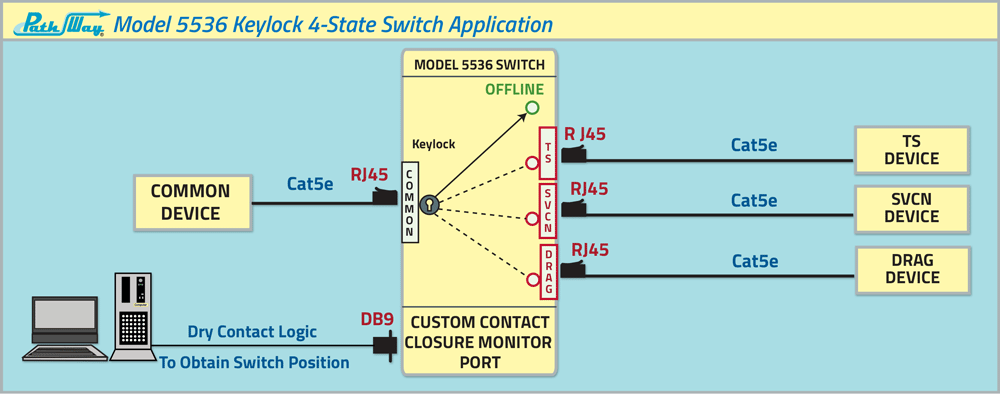

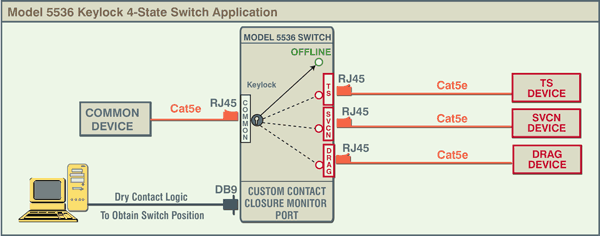

KEYLOCK 4-STATE SWITCH APPLICATION: The diagram illustrates a COMMON device connected to the RJ45 COMMON port with access to three other devices connected to the custom labeled ports. The user can also select the OFFLINE position to isolate the ports. A Keylock Switch is used to select one of four states TS DEVICE, SVCN DEVICE, DRAG DEVICE or OFFLINE. There is a DB9 REMOTE port that accepts dry contact logic to obtain the switch state.

Network Application Diagram for Model 5536 4-State OFFLINE/TS/SVCN/DRAG RJ45 Cat5e Switch:

Network Application Diagram for Model 5536 4-State OFFLINE/TS/SVCN/DRAG RJ45 Cat5e Switch

Ordering Information

Catalog Number: 305536
Model Number: 5536
Base Price: See website or contact us for current pricing and availability.
Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
