Model 8444 Quad Channel A/B Switch: 1 Channel RJ45 Cat5e & 3 Channels BNC 75 Ohm, Catalog # 308444

    4-Channel RJ45 / BNC A/B Switch, 75 Ohm4-Channel RJ45 / BNC A/B Switch, 75 Ohm
Click image to enlarge
    • 4-Channel RJ45 / BNC A/B Switch, 75 Ohm
    • 4-Channel RJ45 / BNC A/B Switch, 75 Ohm
Base Price:
$1,295.00
Catalog No: 308444
Model No: 8444
Product Type:Switches: Copper
Interface:RJ45/BNC
Positions:2
Cable Type/Port Connector:RJ45, Coax Switch Ports
Channels per Switch Chassis:4
Manual Control/No Power Required:LineSelect® Manual Operation
Channel Control:Simultaneous Channel Control
Compliance/Standards:Cat5e
Configuration:Desktop
Ohms:75
Pins Switched:All 8 of RJ45, Center Conducter and Shield of BNC
Local Control:Rotary Knob

Add to Cart

Simultaneously Switches 1 Channel RJ45 (Cat5e) and 3 Channels BNC (75 Ohm)

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

LineSelect® Model 8444 Quad-Channel RJ45/BNC A/B Switch, Manual Operation

Overview

Each channel of the LineSelect® Model 8444 Quad-Channel A/B Switch allows a device connected to the COMMON port to access devices connected to the A or B ports. Channels 1 utilizes RJ45 connectors and are certified for Cat 5e compliance. Channels 2, 3, and 4 utilize BNC Coaxial connectors.  All four channels switch simultaneously

  • Simultaneously Switches 1 Channel RJ45 (Cat5e) and 3 Channels BNC (75 Ohm)

FEATURES OF THE MODEL 8444 A/B MANUAL SWITCH:

  • Each channel allows quick connection to any one of two devices from one COMMON device.
  • Simultaneously switches all four channels via front-panel rotary switch.
  • The RJ45 channel is rated for 10/100/1000 Base-T networks. (Up to Cat 5e)
  • All 8 pins of the RJ45 interface are switched via break-before-make rotary switch.
  • Channels 2, 3 and 4, switch both the shield and center conductor of the 75 Ohm coaxial interface via break-before-make rotary switch.
  • High quality sealed switch with self-wiping low impedance contacts.
  • The ports are transparent to all data.
  • Eliminates the need to plug and unplug cables.
  • No external power supply required.
  • Attractive anodized black box packaging provides EMI/RFI shielding.
  • Custom length RJ45 or BNC Coax cables are available for your switch installation.
  • For equivalent switch wired for 50 Ohm interface, see Model 8448, Cat No 308448.
  • Lifetime warranty against manufacturing defects.

TECHNICAL SPECIFCATIONS:

  • CHANNEL 1: PORT CONNECTORS: (3) RJ45 female connectors labeled A, B, and COMMON.
  • CHANNELS 2, 3 and 4: PORT CONNECTORS: Each of three channels has (3) BNC female connectors labeled A, B, and COMMON.
  • FRONT PANEL CONTROL: (1) Rotary Switch on front panel selects A or B.
  • POWER: No power required.
  • DIMENSIONS: Desktop 8.11" W x 8.03" D x 2.45" H (20.6 x 20.4 x 6.3 cm)
  • WEIGHT: Approximately 1.7 lbs. (0.8 kg)

LineSelect® Model 8444 Multi-Interface RJ45 (Cat5e) / BNC A/B SWITCH APPLICATION:

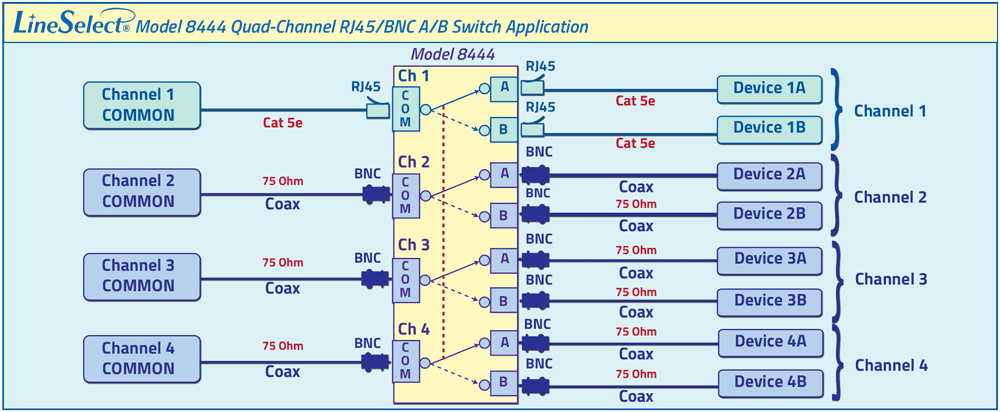

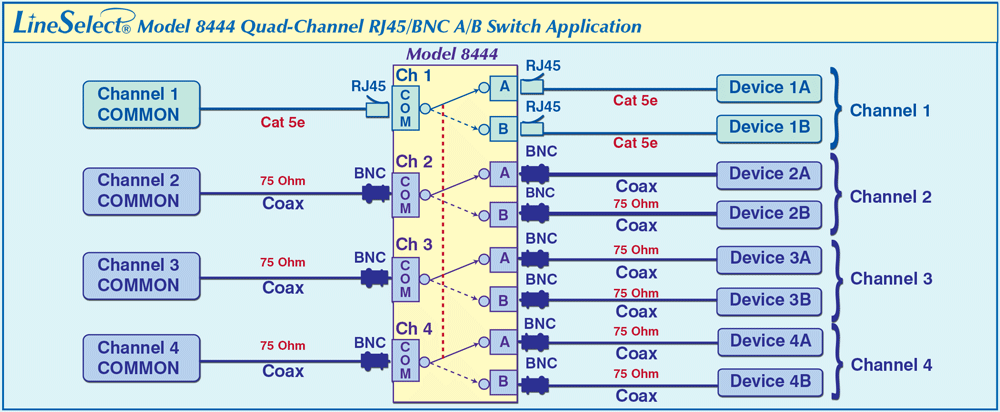

The drawing illustrates four channels of A/B switching.

  • Channel 1 is a Cat5e RJ45 A/B switch.
  • Channel 2, 3, and 4 are BNC A/B switches (75 Ohm coaxial interface).
  • Each channel has a COMMON port with access to two ports labeled A and B. All four channels are switched simultaneously from A position to B position or from B position to A position via front panel rotary switch.
  • Simultaneously switches all four multi-interface channels.

LineSelect Model 8444 Quad Channel Cat5e RJ45 / BNC (75 Ohm) A/B Switch Application

Ordering Information

  • Catalog Number: 308444
  • Model Number: 8444
  • Base Price: See website or contact us for current pricing and availability.
  • Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

  • Specification Sheet (PDF) Download Available.
  • Product Manual available upon request.
  • For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
  • We welcome international inquiries and ship worldwide.

Shipping and Returns           UPS

  • Shipped via UPS ground (unless otherwise requested).
  • Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
  • Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

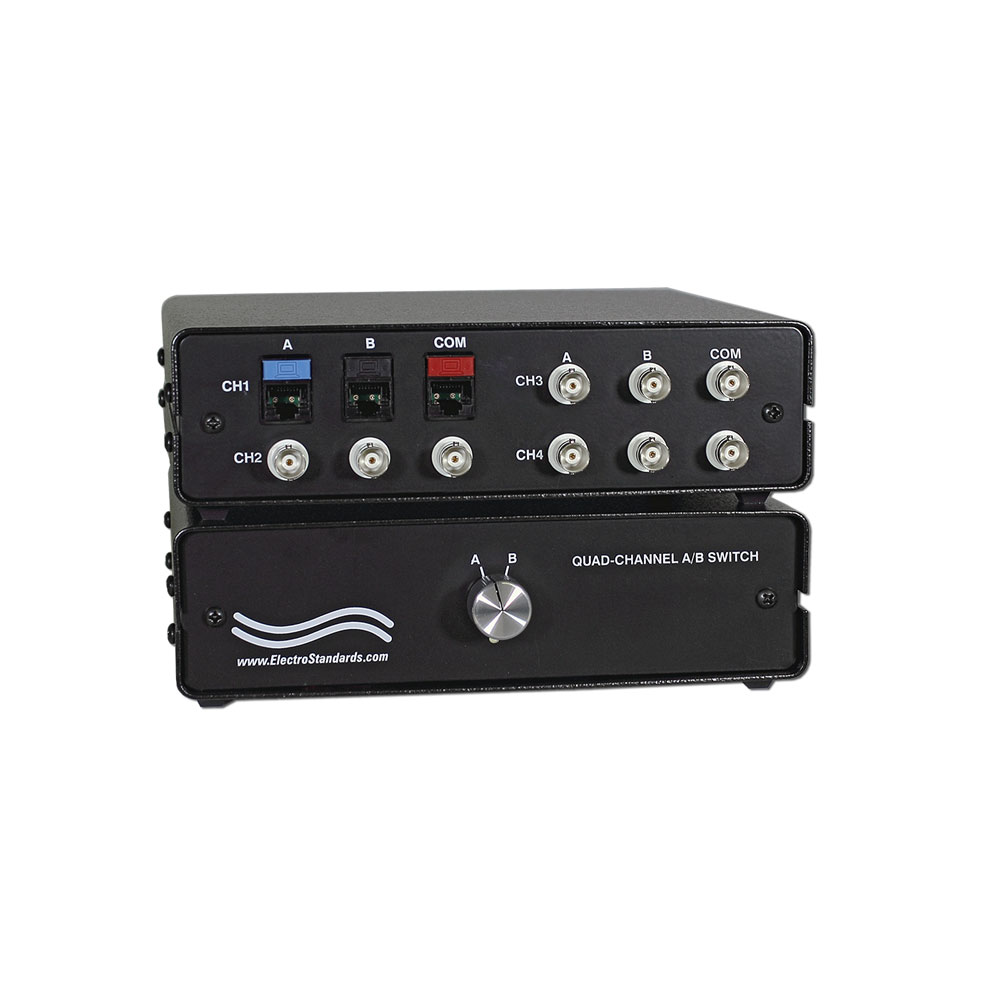

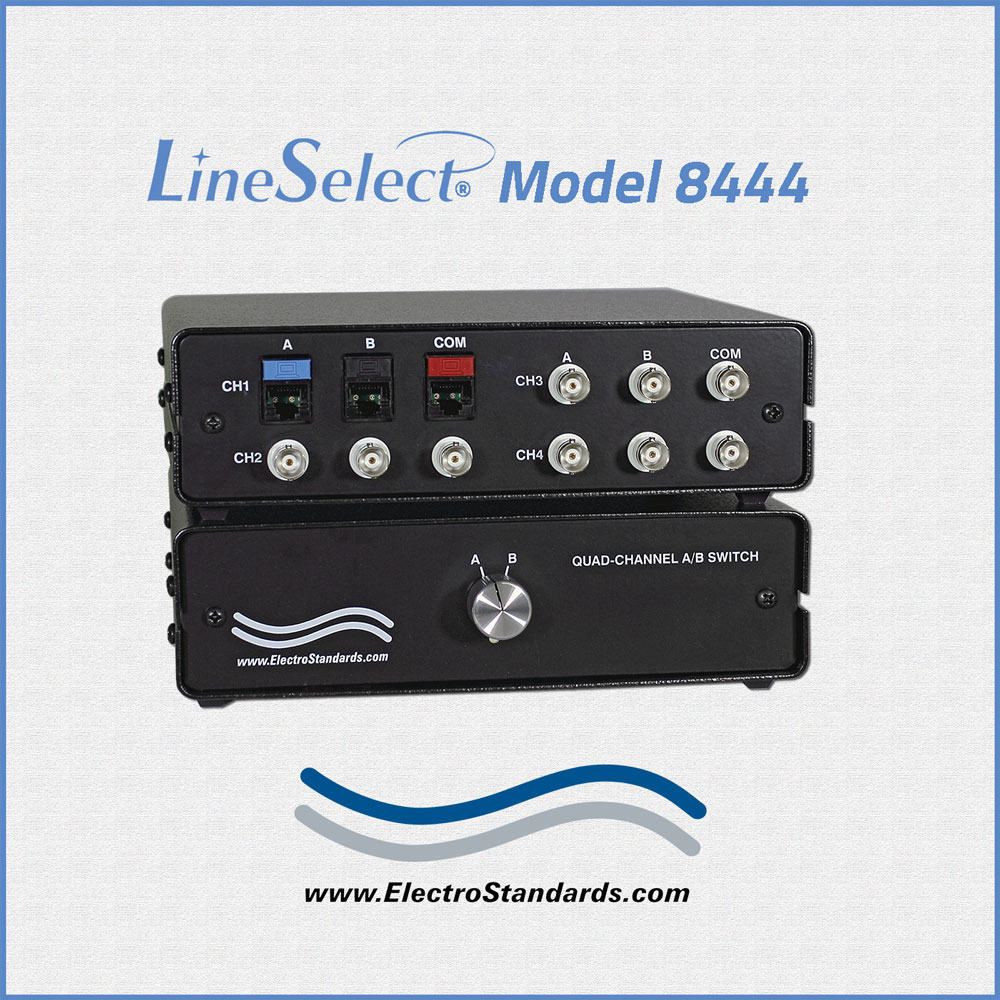

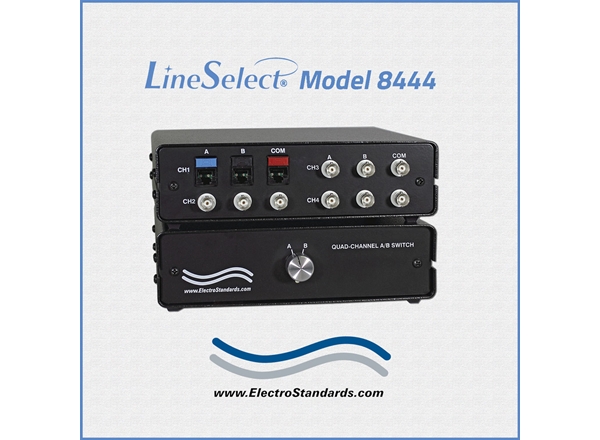

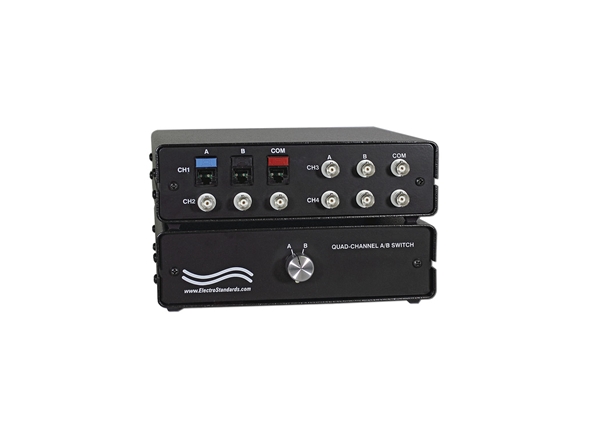

The LineSelect® Model 8444 is enclosed in a slim desktop style enclosure.

Check out suggested cables for use with the Model 8444 Switch.
