Model 8442 Tri-Channel A/B Switch: 1 Channel RJ45 Cat5e & 2 Channels BNC 75 Ohm, Catalog # 308442

Click image to enlarge

Base Price:

$1,135.00

Catalog No:

308442

Model No:

8442

Product Type:

Switches: Copper

Interface:

BNC/RJ45, Cat5e

Positions:

Cable Type/Port Connector:

RJ45, Coax Switch Ports

Channels per Switch Chassis:

Manual Control/No Power Required:

LineSelect® Manual Operation

Channel Control:

Simultaneous Channel Control

Compliance/Standards:

Cat5e

Configuration:

Desktop

Ohms:

Pins Switched:

Local Control:

Rotary Knob

Qty

Add to Cart

Simultaneously Switches 1 Channel RJ45 (Cat5e) and 2 Channels BNC (75 Ohm)

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

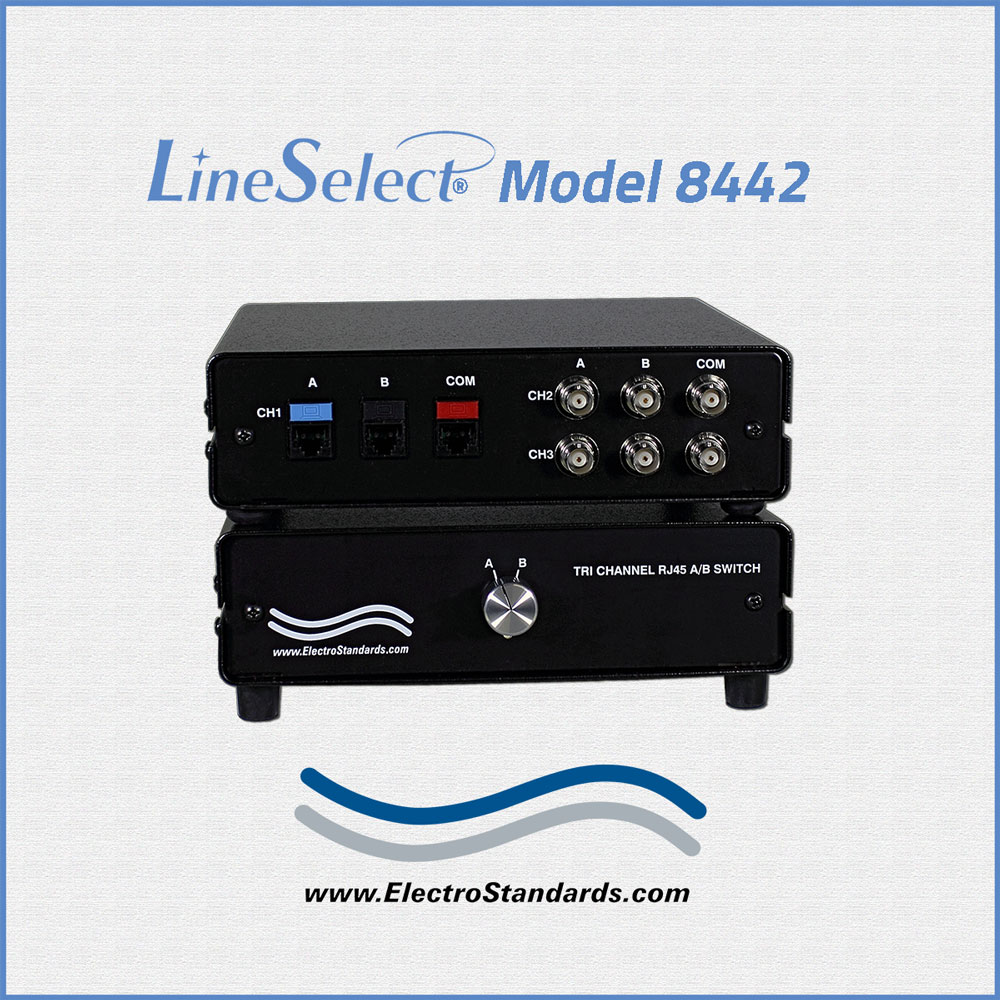

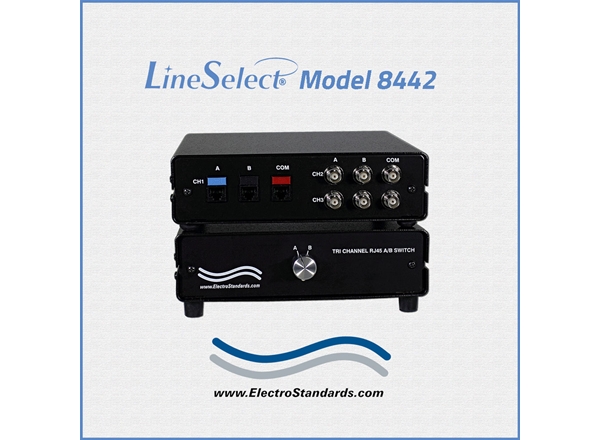

LineSelect® Model 8442 Tri-Channel RJ45/BNC A/B Switch, Manual Operation

Overview

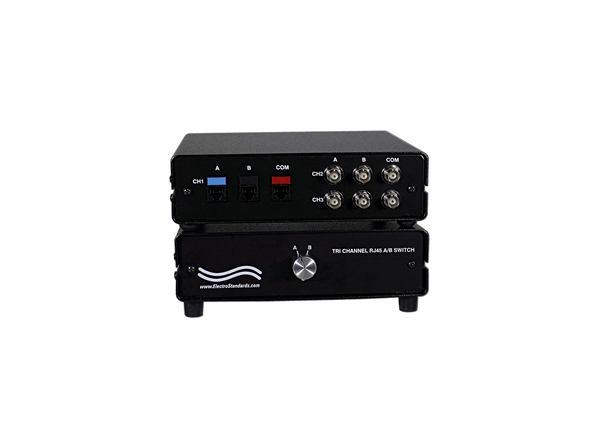

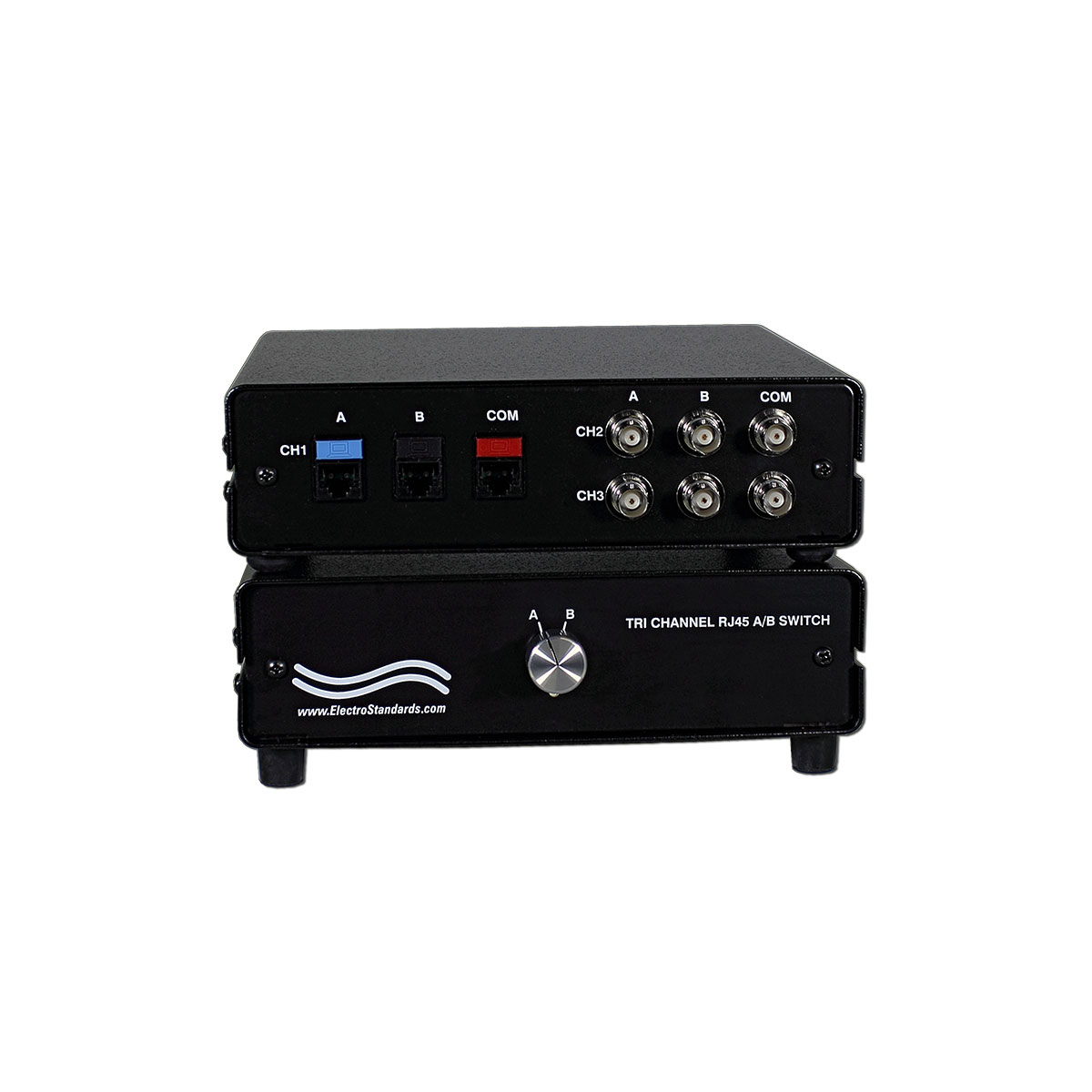

The LineSelect® Model 8442 Tri-Channel RJ45/BNC A/B Switch enables access to two devices per each of its three channels. Channel 1 allows access to RJ45 devices 1-A or 1-B. Channel 2 allows access to BNC devices 2-A or 2-B. Channel 3 allows access to BNC devices 3-A or 3-B. All channels are switched simultaneously. This network switch supports 8 pins for the RJ45 Cat5e interface, and supports both the center conductor and shield of the BNC interface. The LineSelect® Model 8442 is enclosed in a slim desktop style enclosure.

Simultaneously Switches 1 Channel RJ45 (Cat5e) and 2 Channels BNC (75 Ohm)
Increases network efficiency by facilitating sharing of peripherals.
Field Proven, Highly Reliable!

FEATURES OF THE MODEL 8442 A/B MANUAL SWITCH:

Simultaneously switches one RJ45 Channel and two BNC channels locally via a knob located on the front panel.
RJ45 channel tested for Cat5e compliance.
All (8) pins of the RJ45 interface are switched via break-before-make rotary switch.
Both the shield and center conductor of the 75 Ohm coaxial interface are switched via break-before-make rotary switch.
All ports located on the rear panel: (3) RJ45 female and (6) BNC female
Attractive anodized black box packaging provides EMI/RFI shielding.
Four threaded screw holes located on the bottom panel.
Switching is manually operated. Requires no power.
Custom length cables are available.
For equivalent switch wired for 50 Ohm coax interface, See Model 8445, Cat No. 308445.

TECHNICAL SPECIFICATIONS:

PORT CONNECTORS:
- (3) RJ45 (F), Category 5e connectors on rear panel
- (6) BNC (F) Connectors on rear panel
CONTROLS: (1) Rotary Switch on front panel selects A or B.
PINS SWITCHED:
- RJ45: All 8 Pins Switched
- BNC: Center Conductor and Shield
POWER: No power required.
ENCLOSURE: Desktop Aluminum Enclosure.
DIMENSIONS: 8.10"W x 2.80"H x 8.03"D. (20.6 x 7.2 x 20.4 cm)
WEIGHT: Approximately 1.8 lbs. (0.8 kg)

TRI-CHANNEL RJ45/BNC MULTI-INTERFACE COPPER NETWORK APPLICATION:

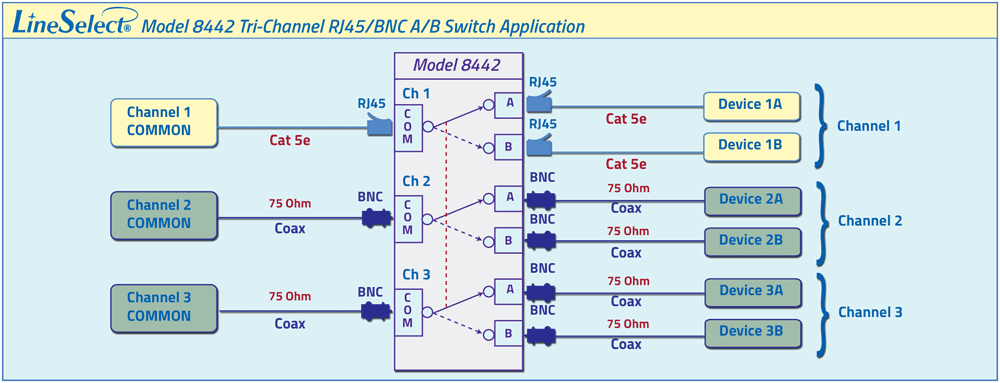

The drawing illustrates one channel of Cat5e RJ45 A/B Switching and two channels of 75 Ohm BNC Interface A/B switching.

Channel One (Cat5e) has an RJ45 interface device connected to the RJ45 COMMON port with access to two other RJ45 interface devices, connected to the RJ45 A and B ports, respectively.
Channel Two and Channel Three (75 Ohm), each have a BNC device connected to its BNC COMMON port with access to two other devices BNC interface devices, connected to the BNC A and B ports respectively.
Simultaneously switches all three multi-interface channels.

LineSelect® Model 8442 RJ45/BNC application drawing

Ordering Information

Catalog Number: 308442
Model Number: 8442
Base Price: See website or contact us for current pricing and availability.

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
We welcome international inquiries and ship worldwide.

Shipping and Returns

Shipped via UPS ground (unless otherwise requested).
Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

Check out suggested cables for use with the Model 8442 Switch.

Suggested cables for use with Model 8442 Switch
Part Number	Description
990137-006 990137-010 990137	BNC Coaxial Cable, 75 ohm, 6ft. (M/M) BNC Coaxial Cable, 75 ohm, 10ft. (M/M) BNC Coaxial Cable, 75 Ohm, (M/M) Custom Length
