Path Way® Remotely Controllable Network Switch, Cat5e

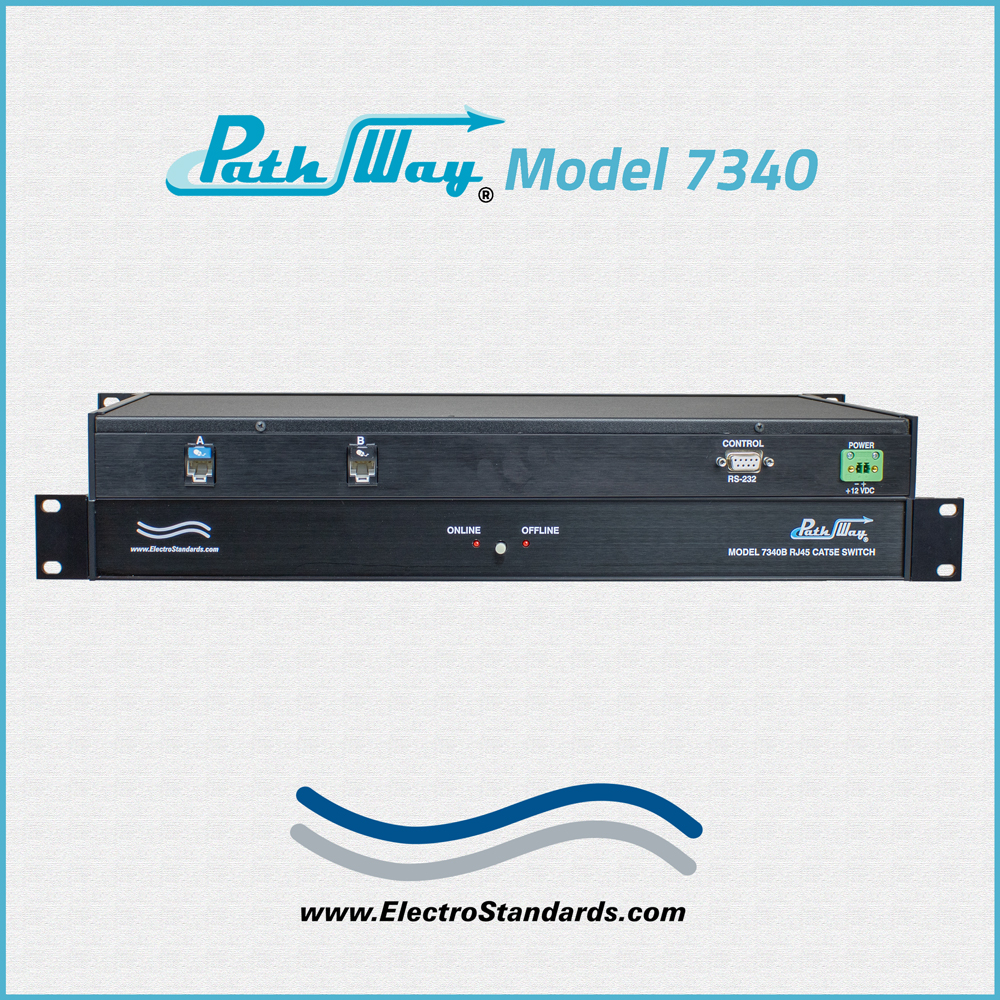

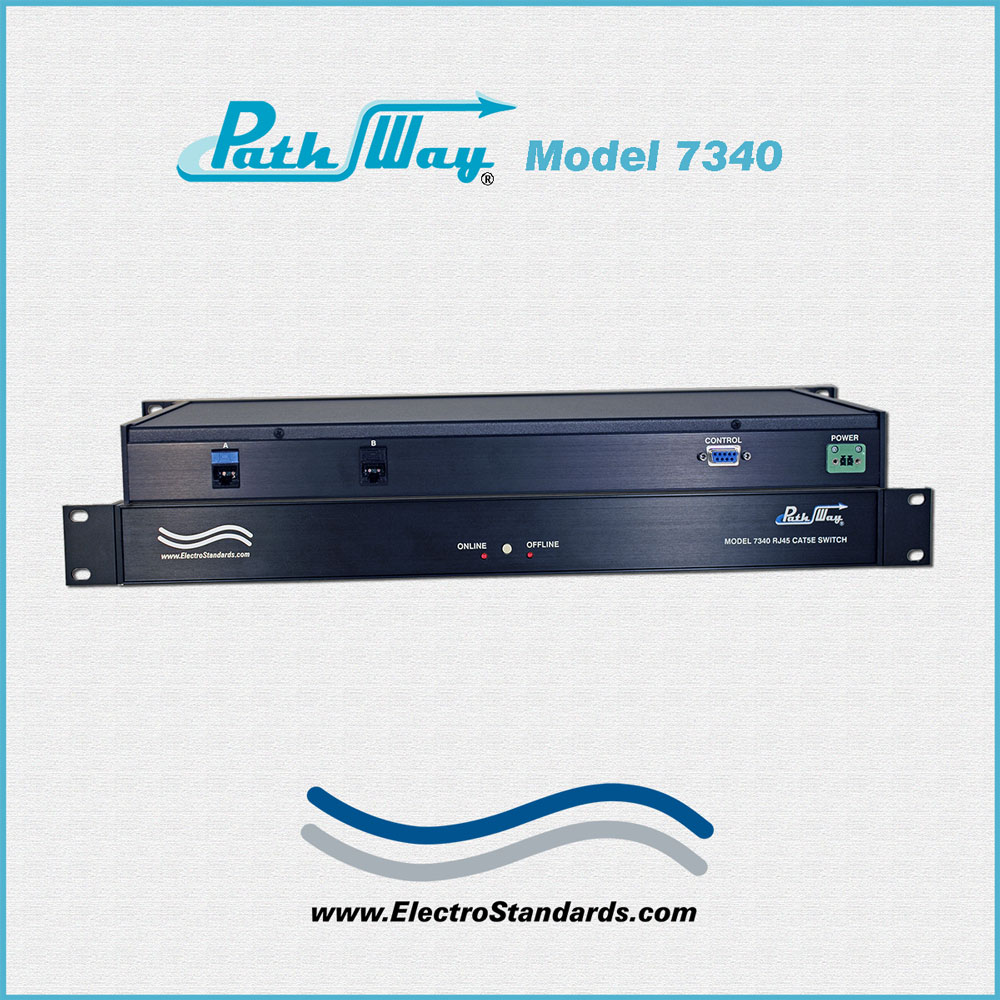

Model 7340 RJ45 CAT 5e On-Line/Off-Line Switch with Contact Control Remote Port, 1U Rackmount
Absolutely NO data passes through the switch when in the OFF-LINE position!
The Ultimate FIREWALL!

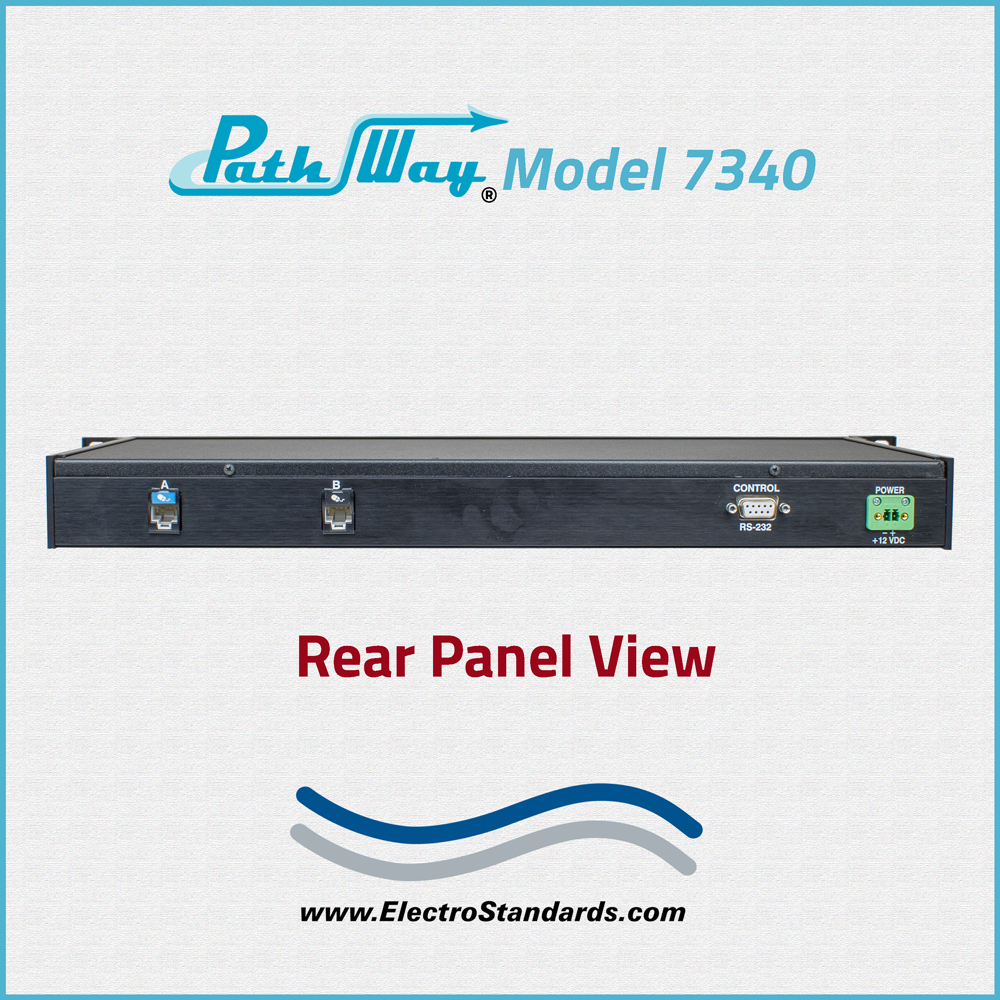

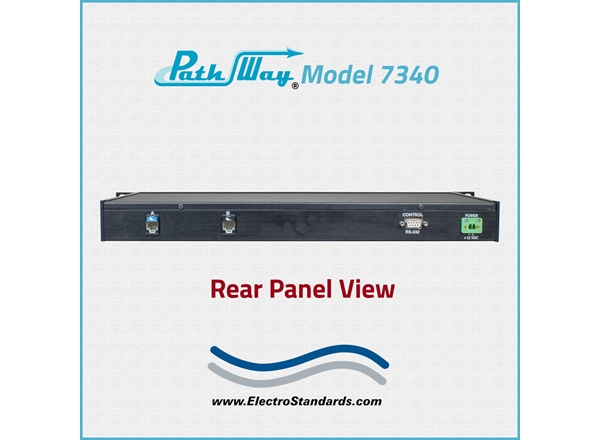

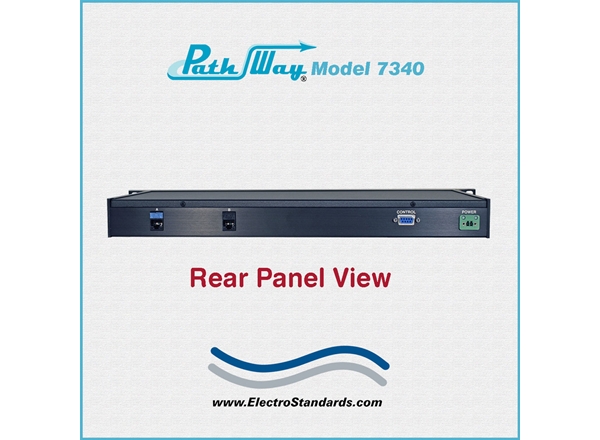

- PORT CONNECTORS: (2) RJ45 Female connectors labeled A and B.

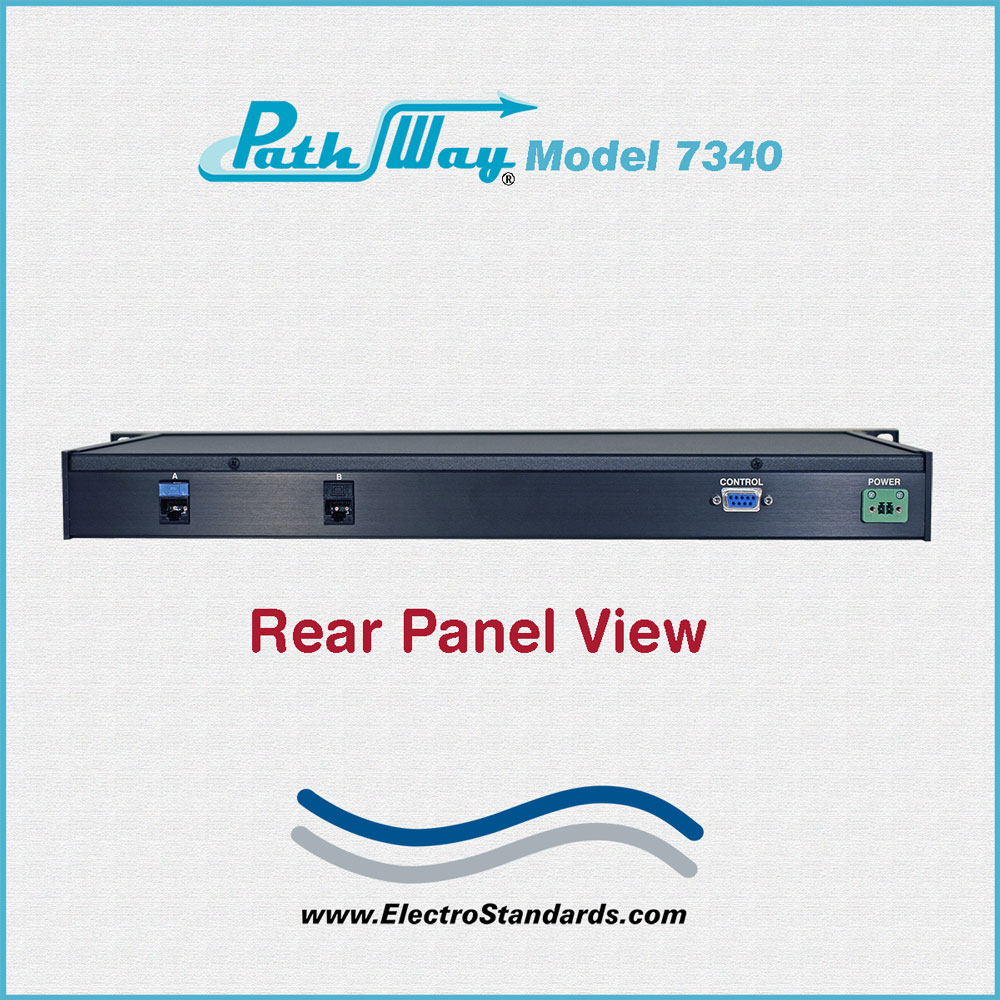

- REMOTE CONTROL CONNECTOR: (1) DB9 female connector labeled REMOTE.

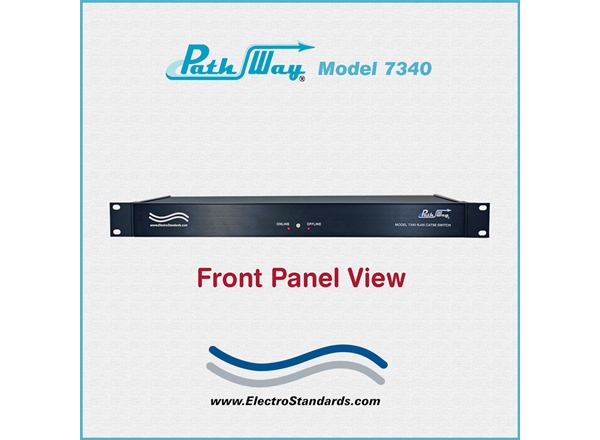

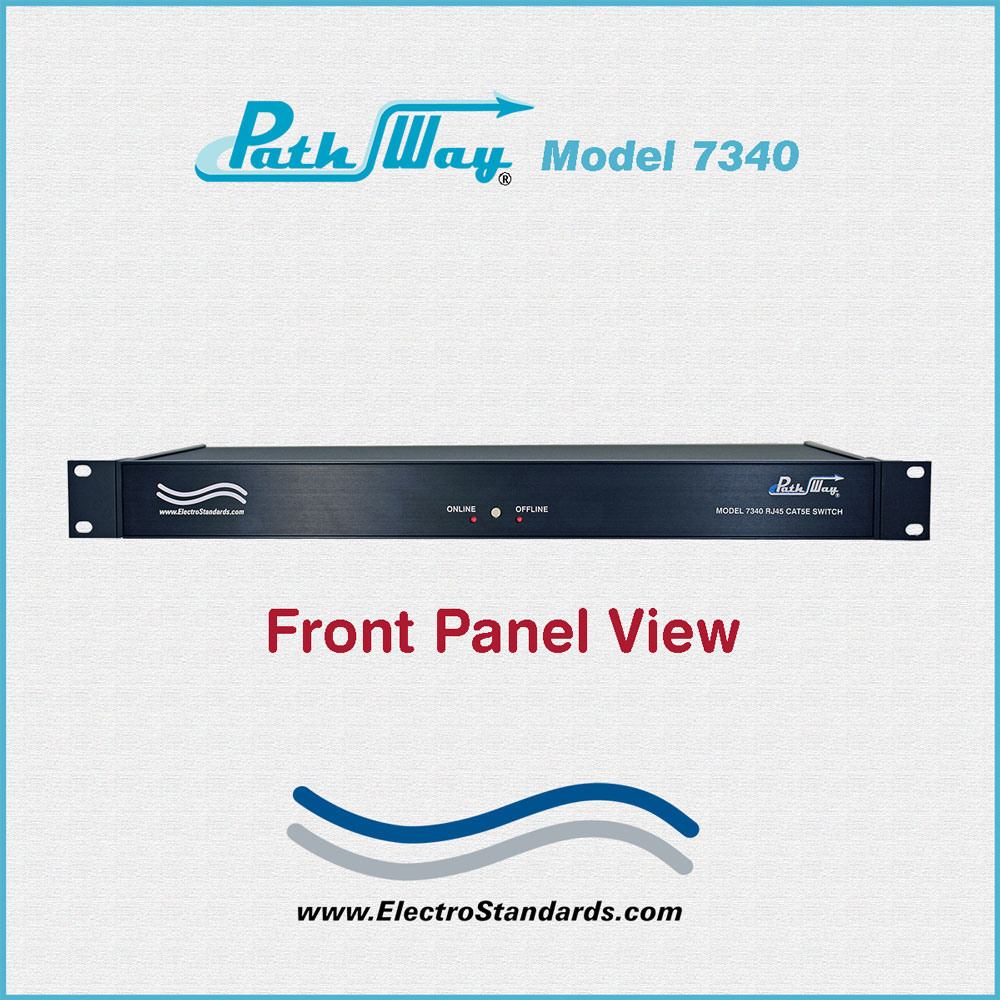

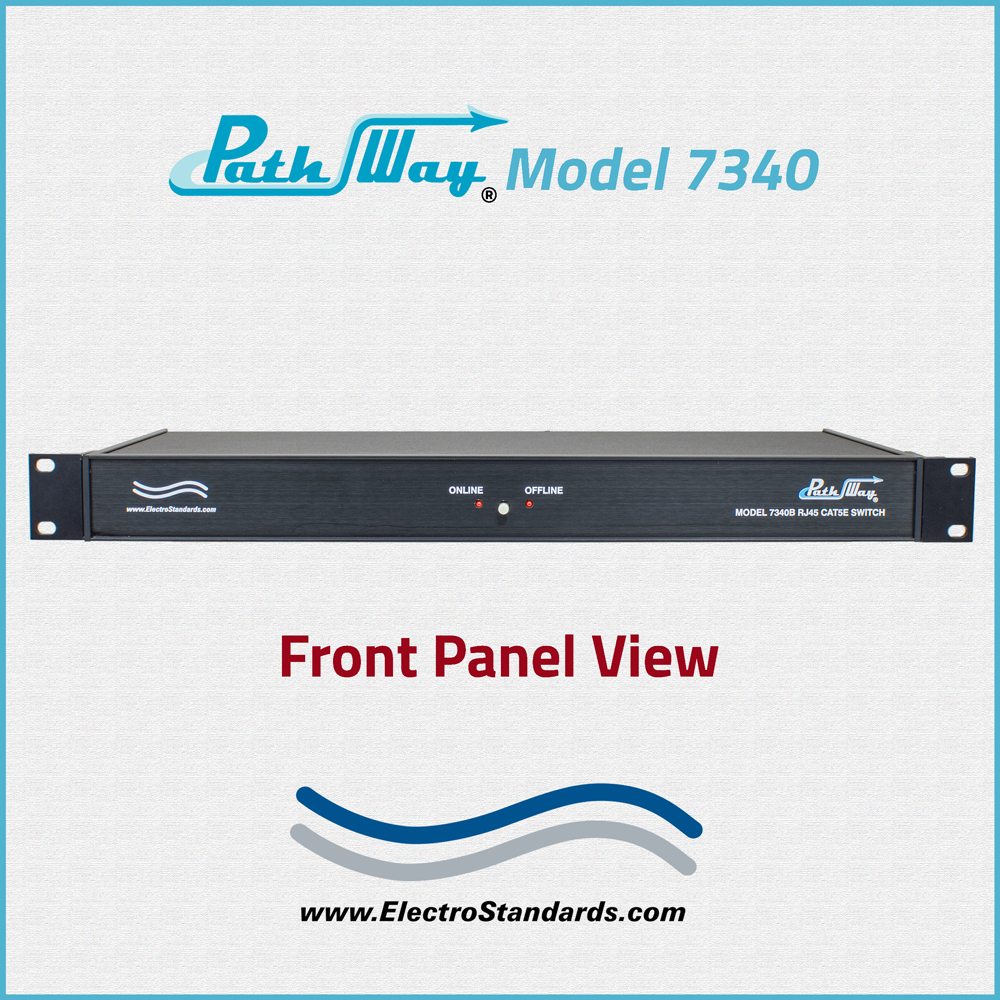

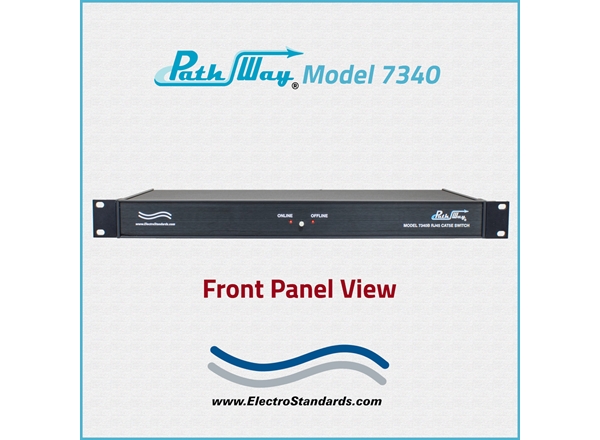

- FRONT PANEL LED DISPLAY: (2) Red LED's display switch position.
- POWER: UL approved 100 VAC-240VAC, 50Hz-60 Hz, power module included with the unit supplies 12 VDC, 500 mA to the unit. Has 2-prong, US, non-polarized plug.
- DIMENSIONS: Rackmount, 19" W x 1.75" H x 8.15" D. (48.3 x 4.4 x 20.8 cm)
- WEIGHT: Approximately 4.1 lbs. (1.9 kg)
PathWay® Model 7340 Cat5e ONLINE/OFFLINE Application:

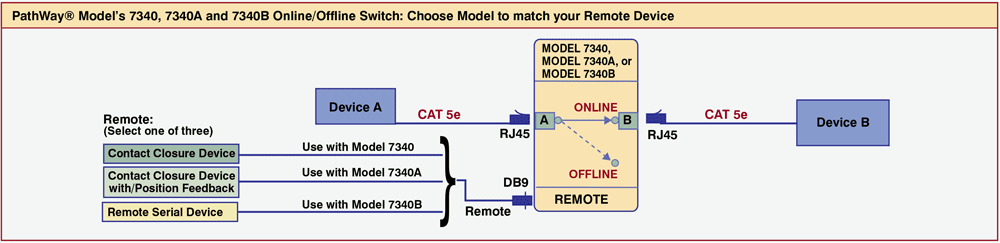

The application drawing illustrates an ONLINE/OFFLINE Switch showing Device A either connected to Device B or disconnected from Device B. In the OFFLINE position, port A is disconnected and isolated from port B. The DB9 Remote port accepts dry contact open / close logic to control the switch.

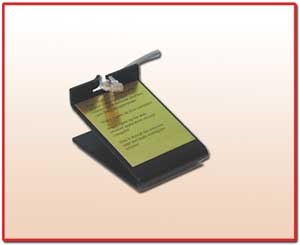

ONE RJ45 ONLINE/OFFLINE SWITCH: THREE REMOTE POSSIBILITIES:
SELECT THE REMOTE THAT IS RIGHT FOR YOUR APPLICATION.
- On-Line switch position connects port A to port B.
- Off-Line switch position disconnects and isolates port A from port B.
- The switch ports are transparent to all data.
- The DB9 Remote port provides access to remotely switch the unit.
- Front panel pushbutton control can be locked out remotely through contact closure.
- The unit maintains last set position in the event of a power loss and continues to pass data.
- Front panel LEDs display the present switch position and the switch power status.
- All (8) signals of the interface are switched via break-before-make electromechanical relays.

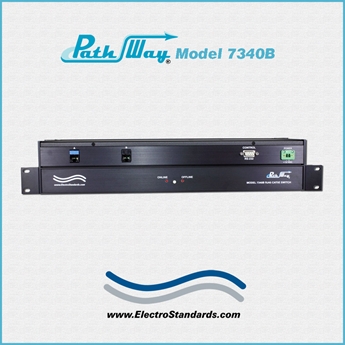

- Pin 9 of the remote-control port has a 5-volt signal capable of providing up to 300 mA of current. (Model 7340B, only)
- Certified for Cat5e compliance.
- Rackmount configuration is standard.
- Municipalities, schools, government: The Model 7340 is on GSA Schedule GS-35F-0286V.

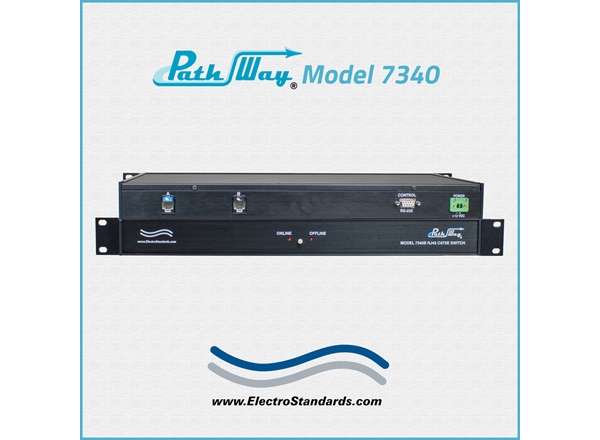

The PathWay® Model 7340 RJ45 CAT 5e On-Line/Off-Line network switch with Remote Port allow the user the capability of connecting two separate devices through ports A and B, via On-Line or Off-Line connection. The switch may be controlled manually via the front panel pushbutton or remotely from a DB9 port located on the rear of the unit.

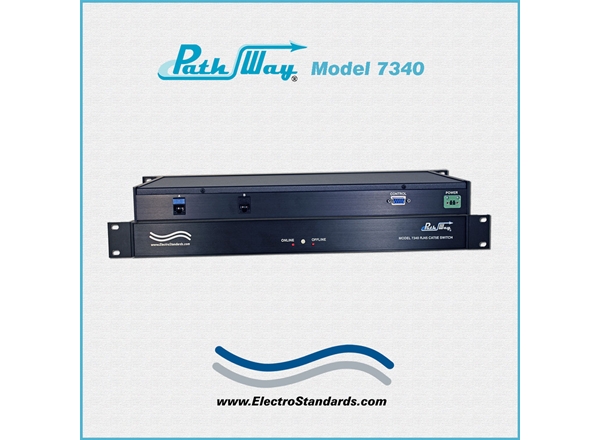

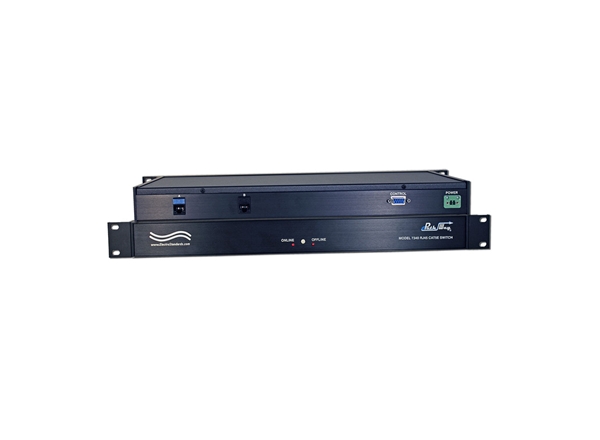

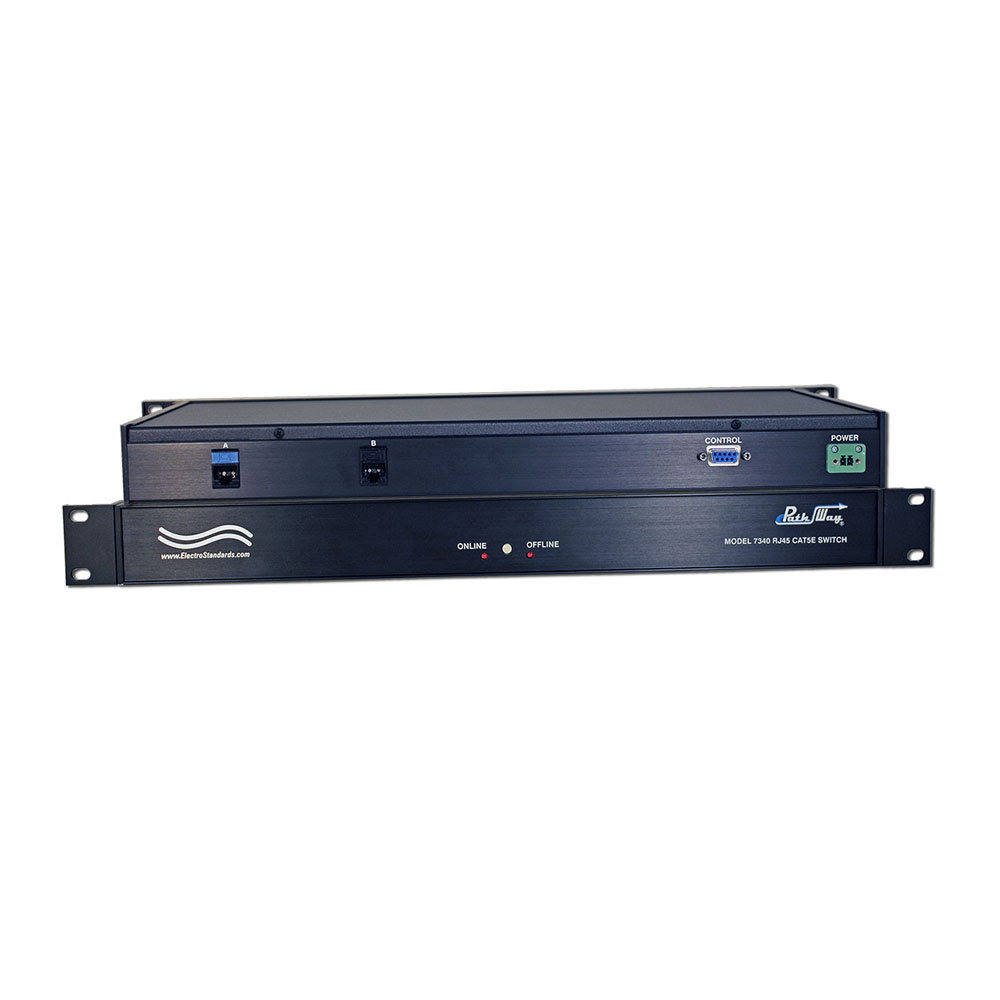

The Model 7340 is enclosed in a 1U, full rack size, all metal, black chassis designed to provide EMI/RFI shielding in a standard 19' rack.
OPTION: WIDE RANGE POWER MODULE
(Cat No 517277) CE, RoHS, and UL listed table mount power module, 100 VAC-240 VAC, 50Hz-60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.
This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here for GSA details.
