Catalog # 306259 Model 6259 16-Channel ST Simplex Fiber Switch with A/B & Offline Position

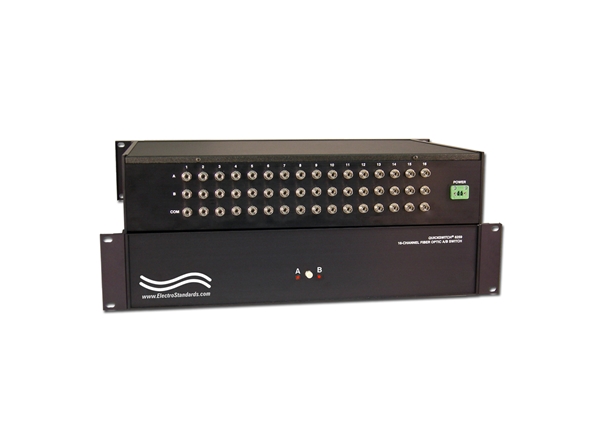

    16-Channel A/B/Off-Line Fiber Switch16-Channel A/B/Off-Line Fiber Switch
Click image to enlarge
    • 16-Channel A/B/Off-Line Fiber Switch
    • 16-Channel A/B/Off-Line Fiber Switch
Base Price:
$19,217.00
Catalog No: 306259
Model No: 6259
Product Type:Switches: Fiber Optic
Positions:2, Offline
Cable Type/Port Connector:ST
Channels per Switch Chassis:16
Electronic Switches/Power Required:QuickSwitch® Fiber Optic
Channel Control:Simultaneous Channel Control
Security:Offline Position
Configuration:Rackmount
Fiber Mode:Multimode
Fiber Size:62.5/125
Fiber Type:Simplex
Mirror Technology:OO
Wavelength Nano:850 nm

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

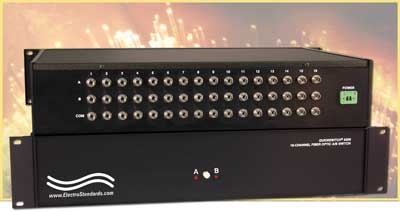

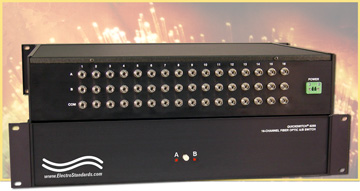

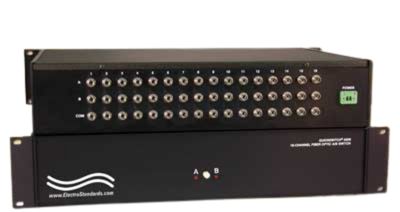

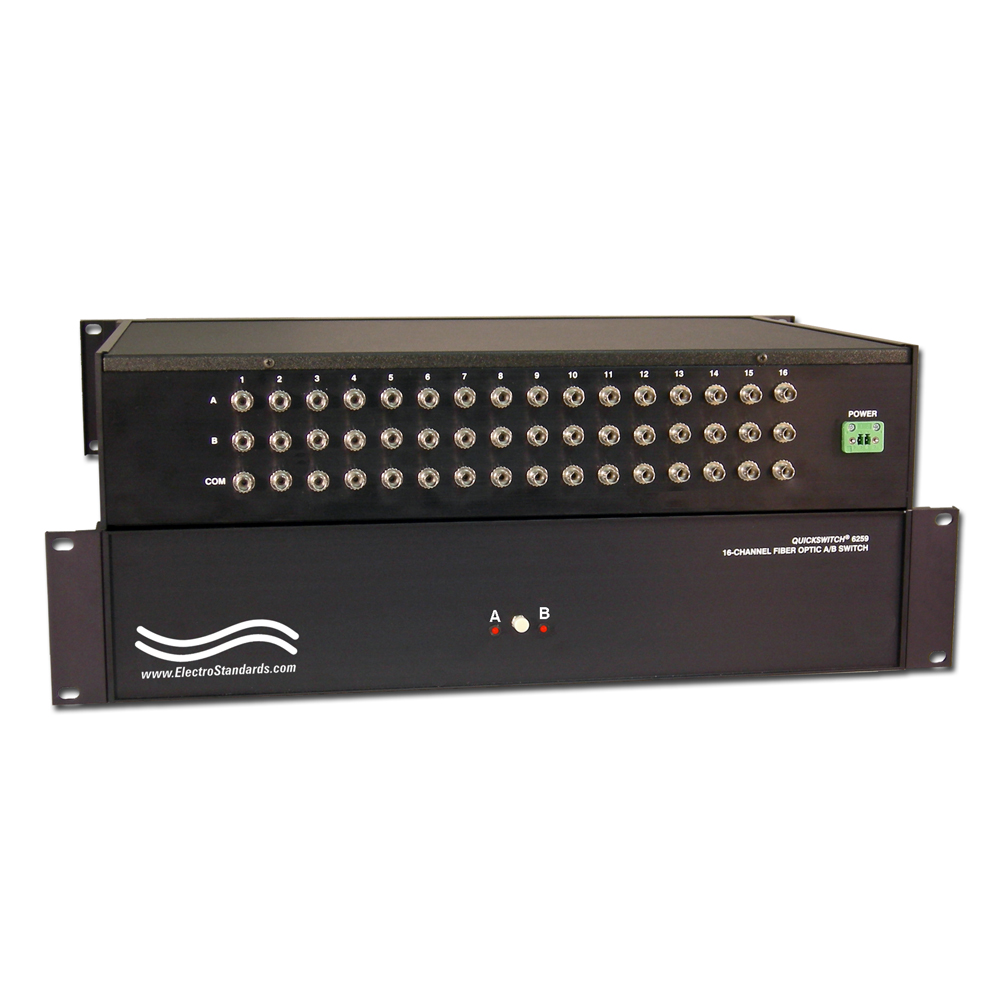

QuickSwitch® 6259 16-Channel ST Simplex Fiber Optic Switch Provides Simultaneous Channel Switching via Pushbutton Local Control with Automatic Disconnect to OFFLINE Position

The QuickSwitch® 6259 16-Channel ST Simplex A/B Switch, with local control only allows a device connected to a COMMON port access to the A and B port for each of the 16 channels. One front panel pushbutton allows simultaneous control of the switch to/from A or B positions for all twelve channels at the same time. Upon loss of power the switch disconnects to the OFFLINE position and no data is passed.  The front panel LED display indicates all of the switch positions and unit power status. The switch can ONLY be controlled manually via the front panel pushbutton. There is no remote control.

  • Failsafe Design: If power is lost, the unit automatically disconnects to prevent unintended network connections — critical for secure systems

  • Simultaneous Switching: All 16 channels toggle together with one action — no need to switch channels one by one.

  • Ideal for controlled environments where manual switching is preferred

FEATURES OF THE MODEL 6259 ST SIMPLEX A/B FIBER SWITCH WITH OFFLINE POSITION:

  • All switch control is from the front-panel. No remote control!
  • Front panel LED's for display of current position of all channels as well as the power status.
  • All 16 channels switch simultaneously.
  • MEMS-based mirror/prism switch technology supports Gigabit data rates.
  • Bit-rate and data transparent.
  • Optical data throughput scalability.
  • All fiber ports are ST simplex, multimode, 62.5/125 micron and support a wavelength of 850 nm.
  • When power is lost, unit goes off-line and does not pass data.
  • When power is restored, unit will retain last position.

SPECIFICATIONS:

  • PORT CONNECTORS: (48) ST female connectors (A group of (3) labeled A, B, and COMMON for each of the 16 channels).
  • WAVELENGTH: 850 nm
  • FRONT PANEL CONTROLS: (1) Manual pushbutton allows local switching.
  • DISPLAY: (2) Front panel LED's display switch position and power status.
  • POWER: WIDE RANGE CE and UL listed table mount power module (Cat.No. 988147) 100VAC/240VAC, 50Hz/60Hz supplies 12VDC to the unit. Ideal for international applications.
  • DIMENSIONS: 19" W x 3.5" H x 12" D (48.3 x 8.9 x 30.5cm)
  • WEIGHT: 8.5 lbs (3.9 kg)

TYPICAL APPLICATIONS:

  • Fiber optical redundancy switching in enterprise or lab environments
  • Manual re-routing of fiber links between devices
  • Secure fiber networks that must go offline on loss of power
  • Backup path switching for critical infrastructure

16-CHANNEL ST SIMPLEX A/B/OFFLINE APPLICATION:

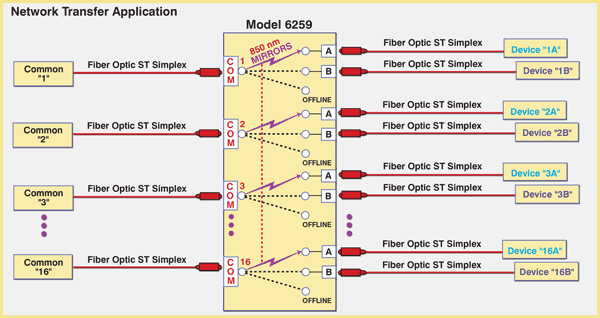

The diagram illustrates a 16 channel A/B/OFFLINE fiber optic switch with local control only. All channels are switched simultaneously.  For each channel a Device is connected to the ST Simplex COMMON port with access to either of two devices connected to the ST Simplex A and B ports. Upon loss of power the switch goes to the OFFLINE position an no data is passed. There is no remote control.

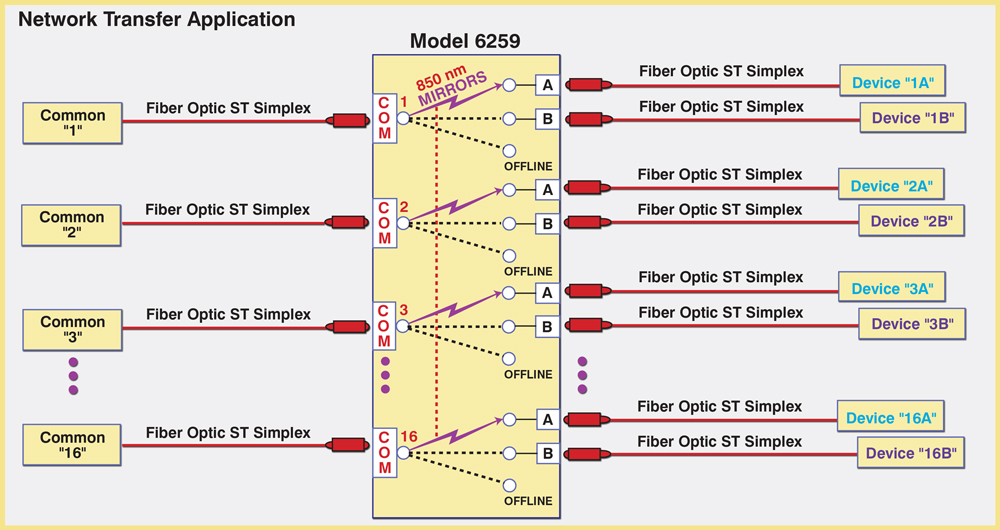

Model 6259 16-Channel ST Simplex Fiber Optic A/B/OFFLINE Switch Application Note
