Model 5529 Cat5e Secure Video Conference Room Switch, RJ45, Catalog # 305529

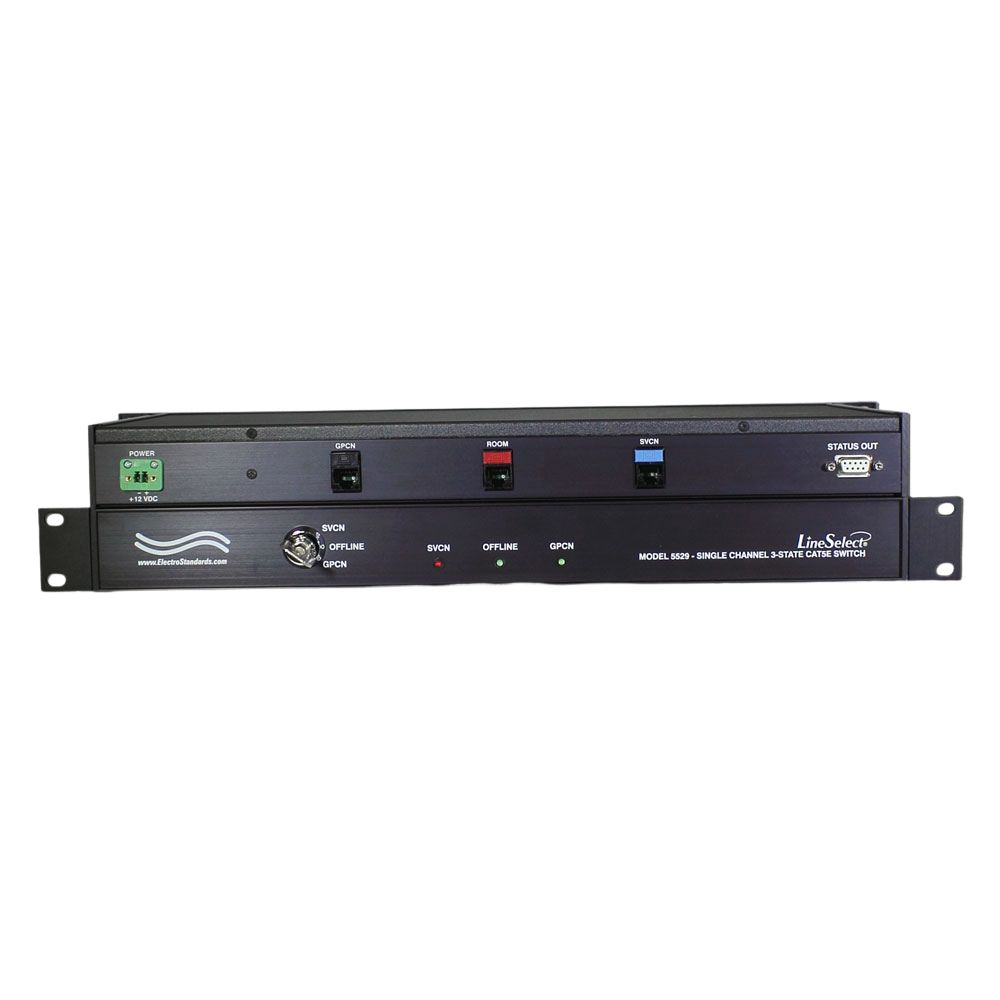

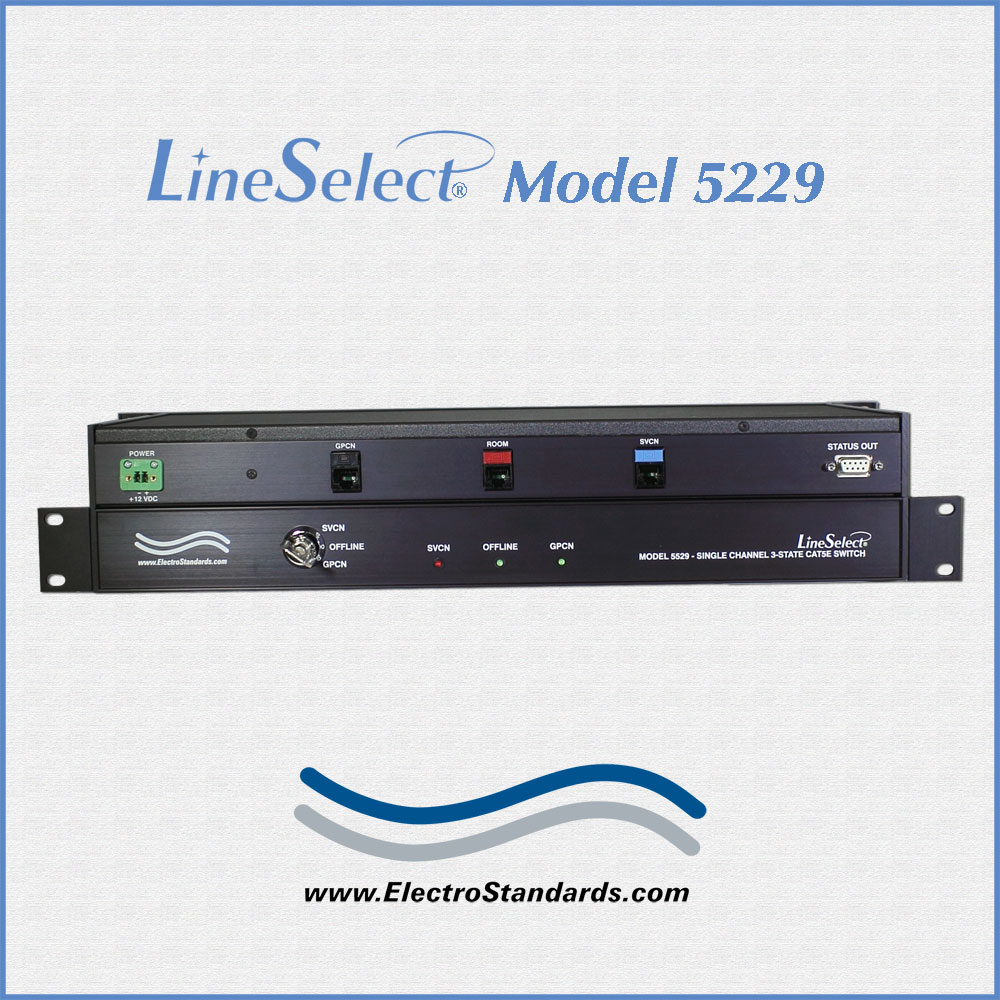

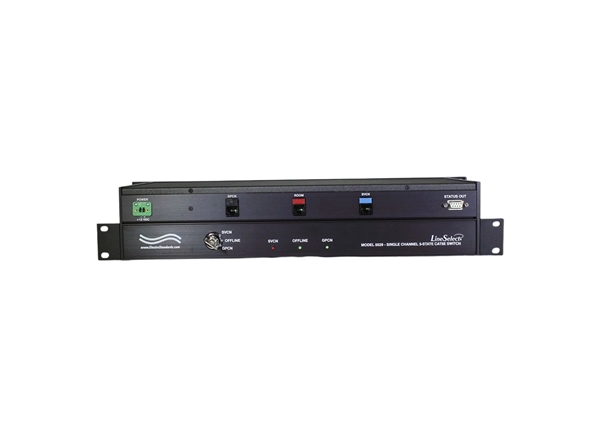

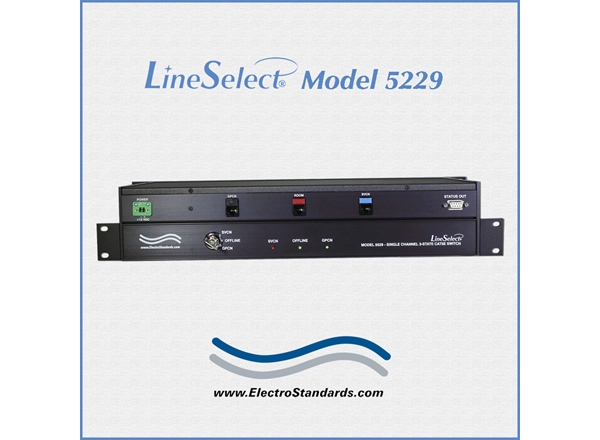

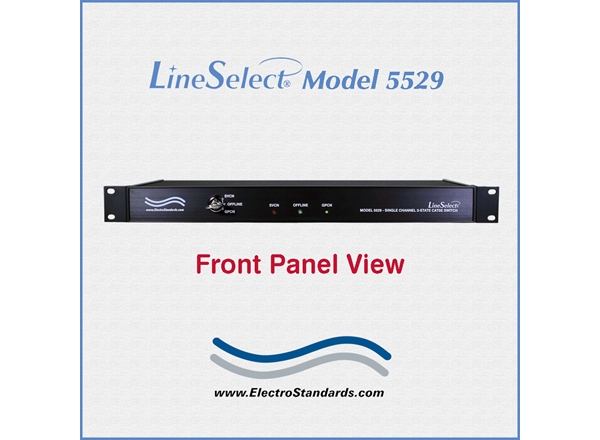

Click image to enlarge

Base Price:

$1,486.00

Catalog No:

305529

Model No:

5529

Product Type:

Switches: Copper

Positions:

3, Offline

Switch Application:

Audio/Video Switching

Cable Type/Port Connector:

RJ45

Channels per Switch Chassis:

Manual Control/No Power Required:

LineSelect® Manual Operation

Security:

Keylock, Offline Position

Compliance/Standards:

Cat5e

Configuration:

Rackmount

Pins Switched:

All 8 pins of the RJ45

Local Control:

Keylock

Qty

Add to Cart

Custom labeling available, call us with your request 401-943-1164!

SPECIFICATION SHEET

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Model LineSelect® Model 5529 Single Channel 3-State SVCN/GPCN/OFFLINE RJ45 Cat5e Switch

Overview

The LineSelect® Model 5529 allows the user the capability of accessing two separate devices, ports SVCN and GPCN via connection through a device connected to the ROOM port. Users can link this model to the Model 5527A SVCN/GPCN/OFFLINE Display Indicator unit for a robust conference communications switching system. The Model 5529 is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

Keylock actuator insures secure switch operation.
Custom labeling available, call us 401-943-1164!

FEATURES OF THE MODEL 5529 3-STATE RJ45 SWITCH:

Unit permits signal to pass uninterrupted (SVCN and GPCN positions) or isolates in/out copper (OFFLINE position).
Unit switches via front panel Keylock Actuator.
All (8) pins of the RJ45 interface are switched via a break-before-make rotary switch.
Certified Cat5e compliance.
The switch ports are transparent to all data.
The position of the Model 5529 will follow the Keylock Actuator position at all times.
The key can only be removed from the Keylock Actuator in the OFFLINE position.
The front panel indicator LED's on the Model 5529 will display the position status of the unit when linked to a powered Model 5527A unit.
Status port for linking the switch system unit to the Model 5527A SVCN/GPCN/OFFLINE display indicator unit.
No power is required to operate unit.
Installs in a standard 19" wide equipment rack.
Included Optional external power supply can be used to illuminate LED's when not powered by the Model 5527A

TECHNICAL SPECIFICATIONS:

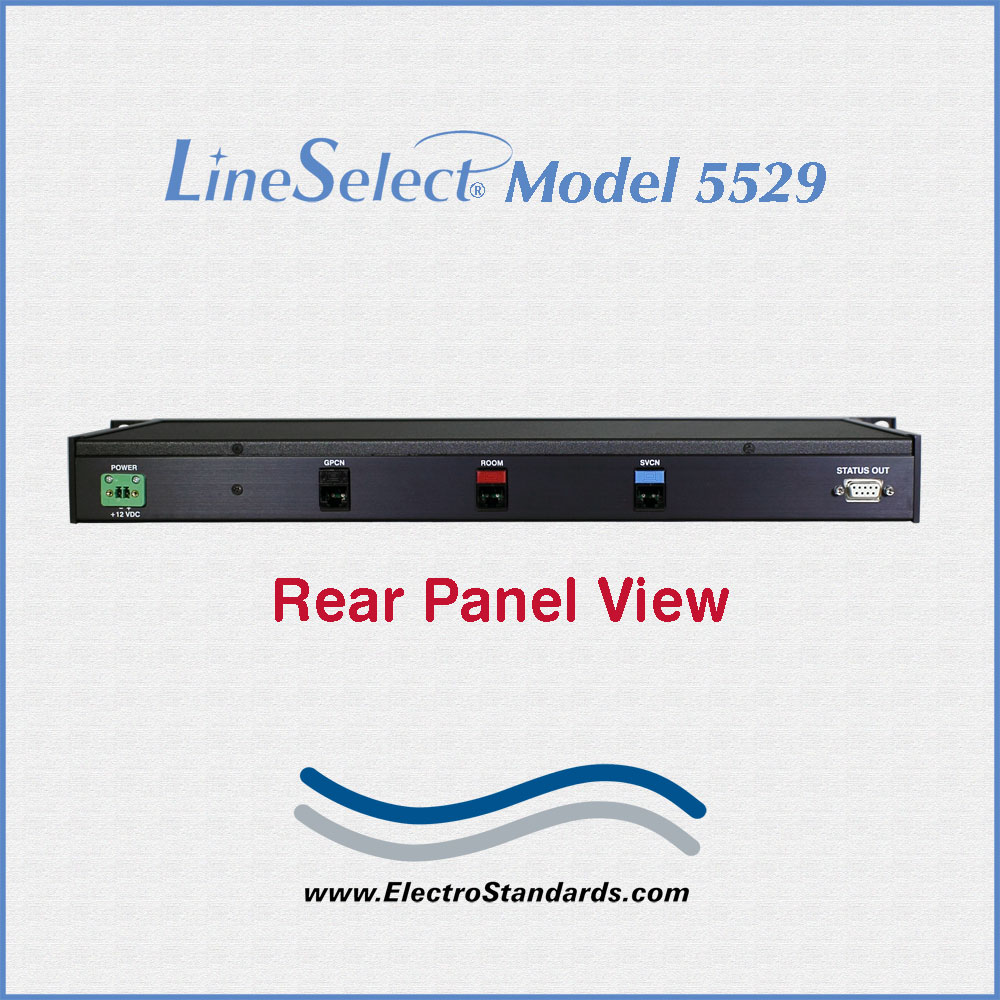

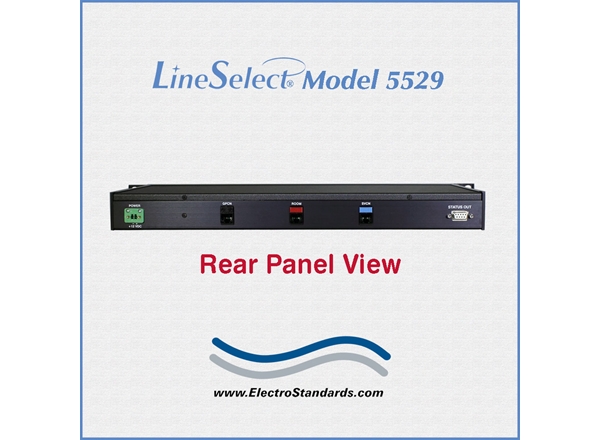

PORT CONNECTORS: (3) RJ45 female connectors labeled SVCN, GPCN, and ROOM.

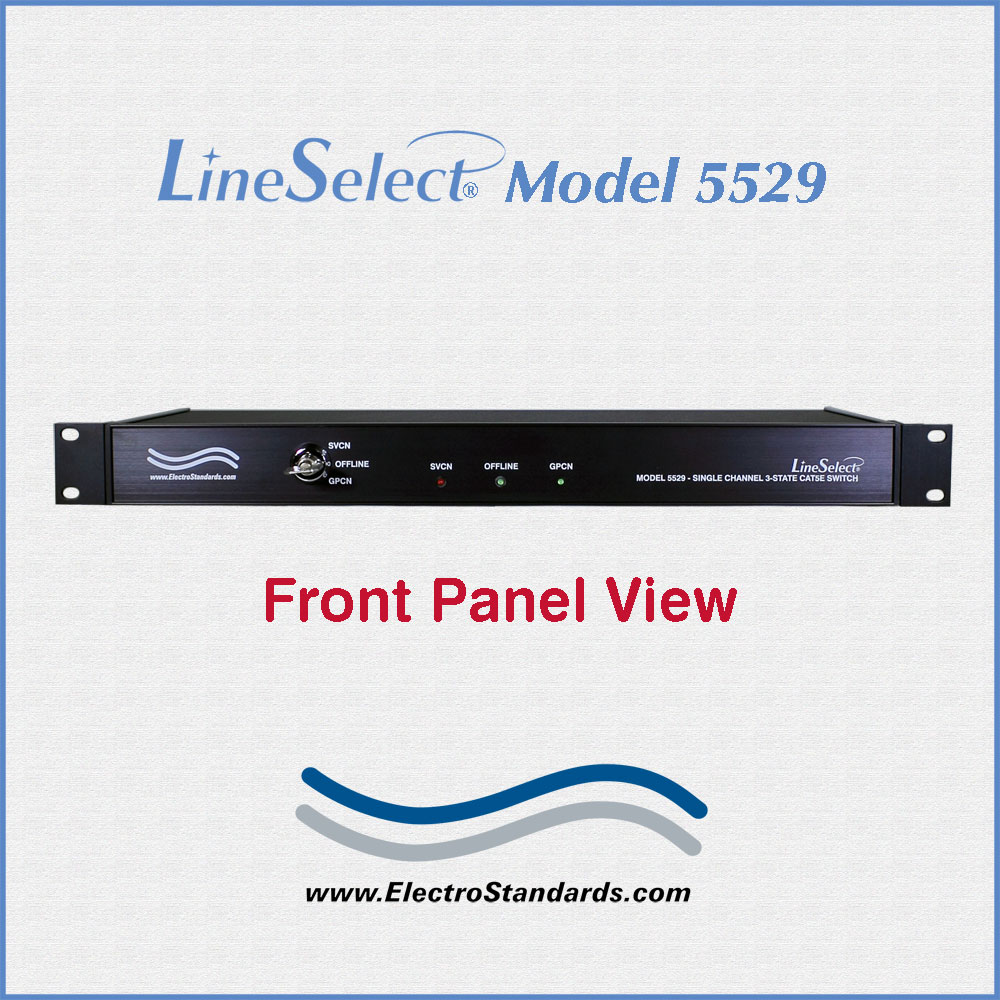

FRONT PANEL CONTROL: (1) Three-position keylock actuator.
DISPLAY: (3) Front panel LED's display switch position when linked to a powered Model 5527A unit.
STATUS OUT: (1) DB9 (F) port allows linking the Model 5529 switch to a remote large character alpha display unit, Model 5527A. Contact closures indicate switch position: OFFLINE, SVCN, GPCN.
POWER: LEDs can be powered from the Model 5527A Display Unit through Status Out port of the Model 5529, or optionally by the external power module Cat No 516682 that is supplied with the unit.
DIMENSIONS: 19" W x 1.75" H x 8.0" D. (48.3 x 4.4 x 20.3 cm)
WEIGHT: 4.1 lbs. (1.9 kg)

CONFERENCE ROOM APPLICATION

CAT5e KEYLOCK 3-STATE RJ45 SWITCH:

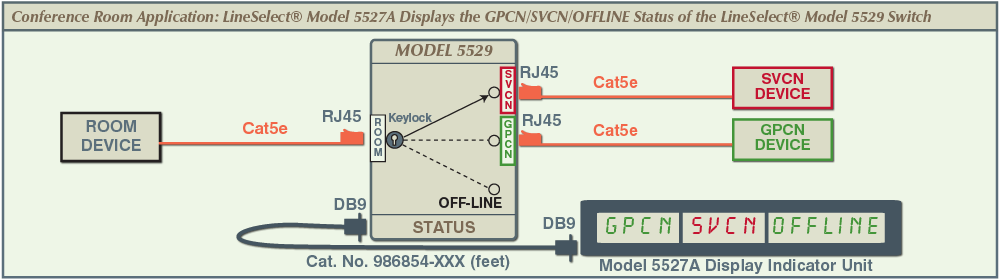

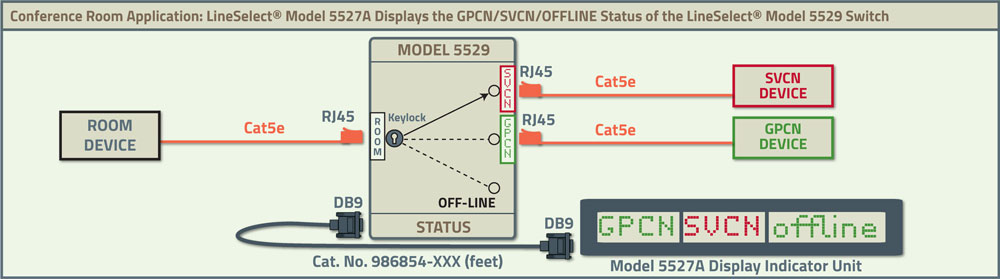

The drawing illustrates a ROOM Device connected the RJ45 port labeled ROOM with access to an SVCN, device or a GPCN device, as well as an OFFLINE position. The STATUS port can be connected to the Model 5527A display unit using the cable Cat No 986854. The display unit shows the status of the Model 5529 as GPCN, SVCN or OFFLINE.

Conference Room Application Diagram of Model 5527A displaying the GPCN/SVCN/OFFLINE Status of the Model 5529 Switch.

Option: Wide Range Power Supply: (Cat No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC/240VAC, 50/60Hz for use in place of the standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.

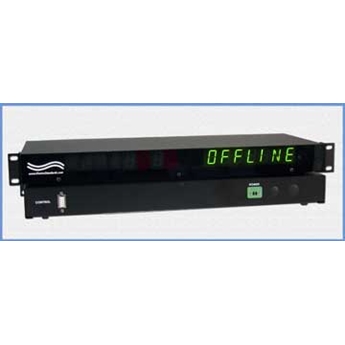

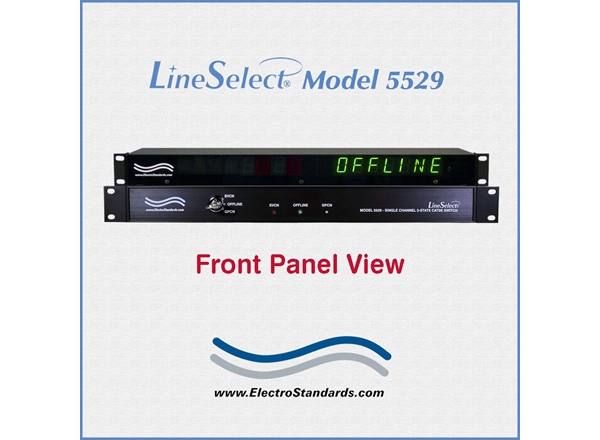

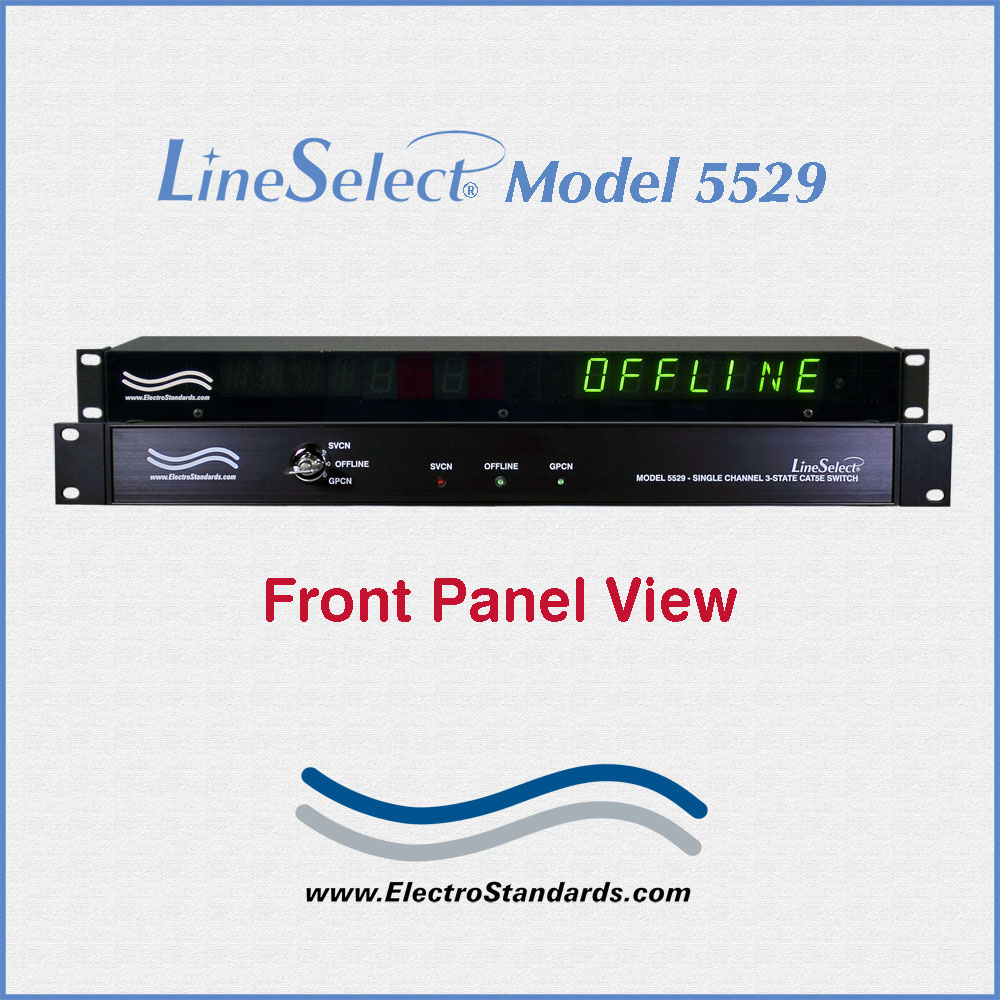

Model 5529 3-State RJ45, Cat5e Keylock Switch shown with the Model 5527A
Display Indicator Unit, Cat. No. 305527A in the OFFLINE position.

5529 3-State RJ45, Cat5e Keylock Switch with M5527A Display Unit in OFFLINE position

Ordering Information

Catalog Number: 305529
Model Number: 5529
Base Price: See website or contact us for current pricing and availability.
Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
We welcome international inquiries and ship worldwide.

Shipping and Returns

Shipped via UPS ground (unless otherwise requested).
Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

LineSelect® and PathWay® are a registered trademarks of Electro Standards Laboratories.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

All ESL products are available for export. Electro Standards welcomes business from International companies: commutateur de réseau, conmutador de red, switch di rete, przelacznik sieciowy , switch de rede, nätverksswitch.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.
