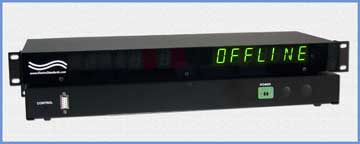

Catalog # 305527A - Model 5527A Display for 5528A Video Conference Room Switch

    A SVCN/GPCN/OFFLINE Display for 5528A
Click image to enlarge
Base Price:
$1,100.10
Catalog No: 305527A
Model No: 5527A
Positions:3, Offline
Cable Type/Port Connector:RJ45
Security:Offline Position
Configuration:Rackmount

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

Video Conference Room Switch, Display Indicators

  • Model 5527A SVCN/GPCN/OFFLINE Display Indicator Unit

  • Conference Room Application:  Model 5527A Displays the GPCN/SVCN/OFFLINE Status of the Model 5528A Switch.

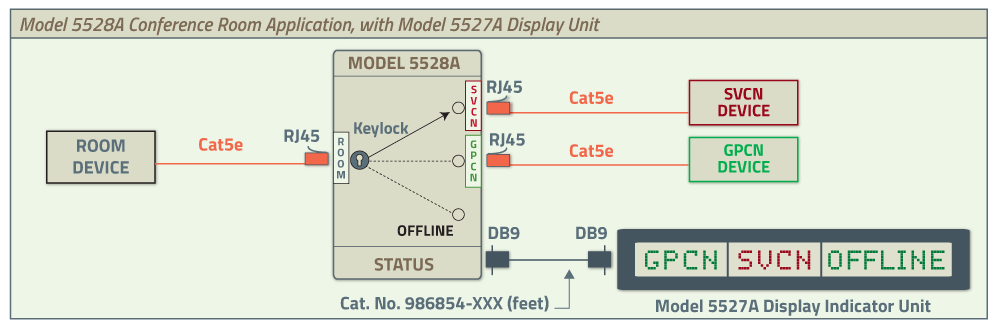

CONFERENCE ROOM APPLICATION:

Model 5527A displays the GPCN/SVCN/OFFLINE Status of the Model 5528A Switch.

5527A Single Channel SVCN/GPCN/OFFLINE RJ45 CAT5e Switch Application Note

 FEATURES:

  • The front panel LED Display on the Model 5527A will display the SVCN/GPCN/OFFLINE status of the Model 5528A switch.
  • Display Indicator unit connects to status port of the Model 5528A switch.
  • Display is always showing one of the three possible states of the companion switch.
  • Power for the LED's of the Model 5528A switch is provided via the Control port of the Model 5527A Display Indicator Unit.
  • Installs in a standard 19" equipment rack.
  • Occupies only 1U height (1.75").
  • Power: UL approved 120 VAC, 60 Hz wall mount power module supplies 12VDC, 500mA to the unit.



CONFERENCE ROOM APPLICATION: Model 5527A displays the GPCN/SVCN/OFFLINE Status of the Model 5528A

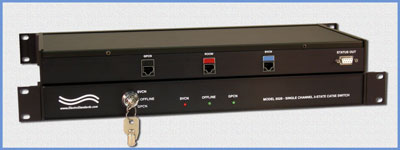

The Model 5527A is designed to display the isolation/connection status of communications equipment.  This equipment comprises a switching system that includes the Model 5528A Single Channel 3-State Cat5e switch.  Users can link these units to create a Robust Conference Communications switch system.  The dimensions of the Model 5527A are 1.75"H x 8"D x 19"W and the unit mounts in a standard 19" equipment rack.  The unit weight is approximately 2.0 lbs.

OPTION: WIDE RANGE POWER MODULE (Cat No. 517277) CE and UL listed table mount power module, 100VAC/240VAC, 50Hz/60Hz in place of standard 115VAC or 120VAC power module.  Ideal for international applications.



















PathWay®  is a registered trademark of Electro Standards Laboratories.

All ESL products are available for export.
Electro Standards welcomes International inquiries: commutateur d'ordinateur,  equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
 *Prices online are subject to change and verification.

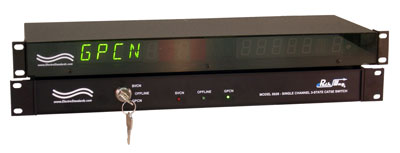

Model 5527A Display Indicator Unit showing the GPCN position
of the Model 5528A, Cat. No. 305528A

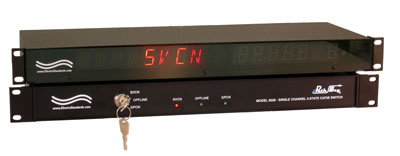

Model 5527A Display Indicator Unit showing the SVCN position
of the Model 5528A, Cat. No. 305528A

 FEATURES:
  • The front panel LED Display on the Model 5527A will display the SVCN/GPCN/OFFLINE status of the Model 5528A switch.
  • Display Indicator unit connects to status port of the Model 5528A switch.
  • Display is always showing one of the three possible states of the companion switch.
  • Power for the LED's of the Model 5528A switch is provided via the Control port of the Model 5527A Display Indicator Unit.
  • Installs in a standard 19" equipment rack.
    Occupies only 1U height (1.75").
  • Power: UL approved 120 VAC, 60 Hz wall mount power module supplies 12VDC, 500mA to the unit.
OPTION: WIDE RANGE POWER MODULE (Cat No. 517277) CE and UL listed table mount power module, 100VAC/240VAC, 50Hz/60Hz in place of standard 115VAC or 120VAC power module.  Ideal for international applications. Click Product Accessories Tab!

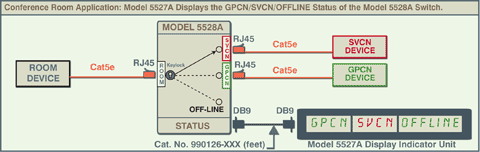

 CONFERENCE ROOM APPLICATION:
Model 5527A displays the GPCN/SVCN/OFFLINE Status of the Model 5528A Switch.


Custom Network Switches are available. Contact us by phone, email, or complete the Online Custom Products Form. /Products-Custom/Copper-Switch/

 Electro Standards can supply all of your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.
