Catalog # 306250 - Model 6250 4-Channel, 2-Position SC Duplex SMF Fiber Optic Switch, Independent & Simultaneous Pushbutton Control

4-Channel SC Duplex A/B Fiber Optic Switch, Single Mode

Click image to enlarge

Base Price:

$12,717.00

Catalog No:

306250

Model No:

6250

Product Type:

Switches: Fiber Optic

Positions:

Cable Type/Port Connector:

Channels per Switch Chassis:

Electronic Switches/Power Required:

QuickSwitch® Fiber Optic

Channel Control:

Simultaneous Channel Control, Independent Channel Control

Compliance/Standards:

TIA/EIA-568-B.3

Configuration:

Rackmount

Fiber Mode:

Single Mode

Fiber Size:

9/125

Fiber Type:

Duplex

Local Control:

Pushbutton

Mirror Technology:

Wavelength Nano:

dual window of 1300nm and 1550nm

Qty

Add to Cart

All A, B, and C ports are SC, Single Mode (SMF-28), 9/125 micron and support a dual window wave length of 1300nm and 1550 nm.
Local Control Only

SPECIFICATION SHEET

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

QuickSwitch® 6250 4-Channel SC Duplex SMF A/B Fiber Optic Switch, Independent & Simultaneous Pushbutton Control

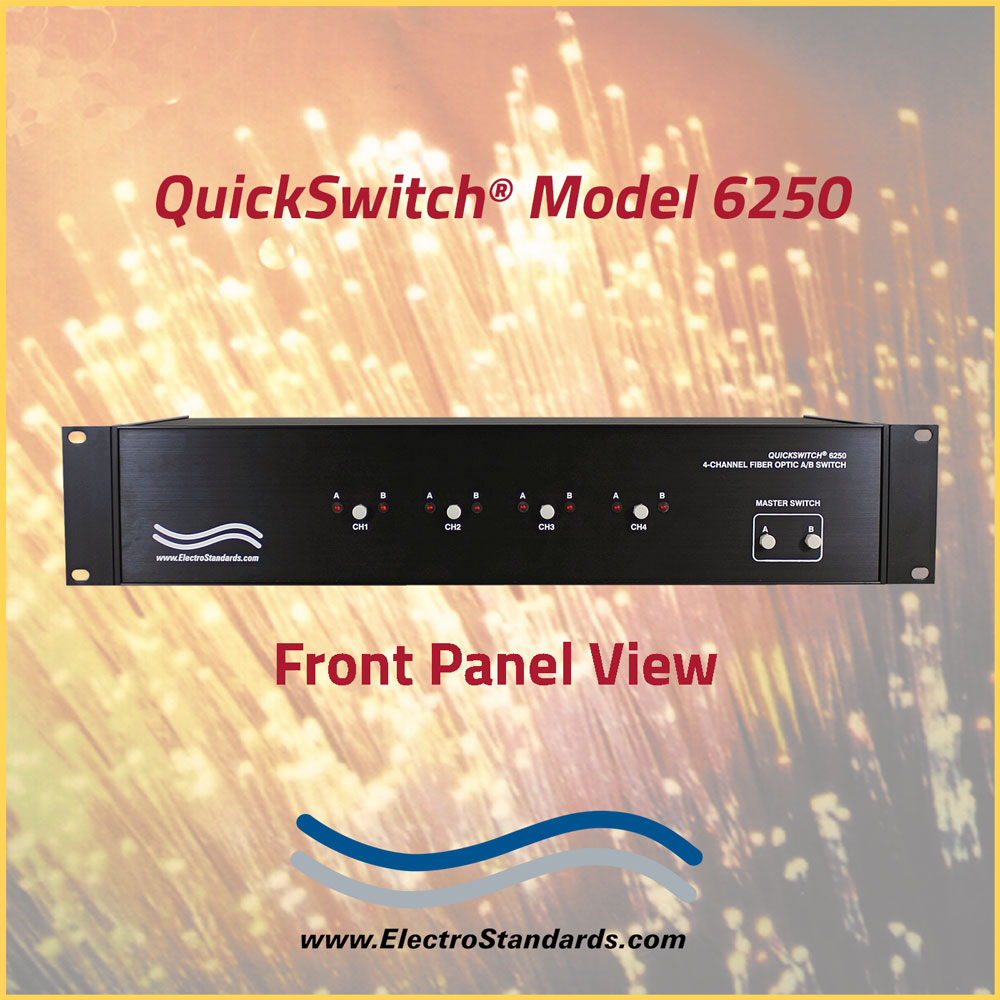

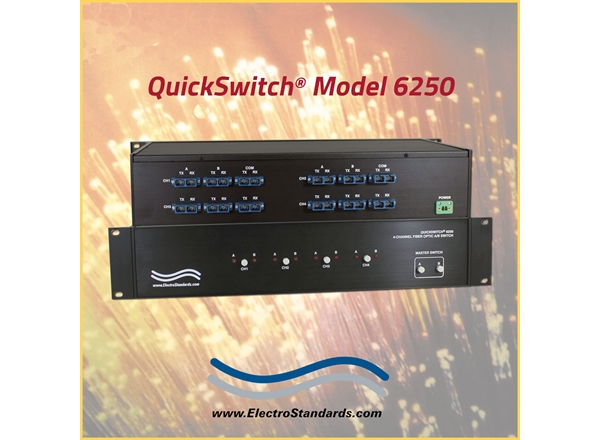

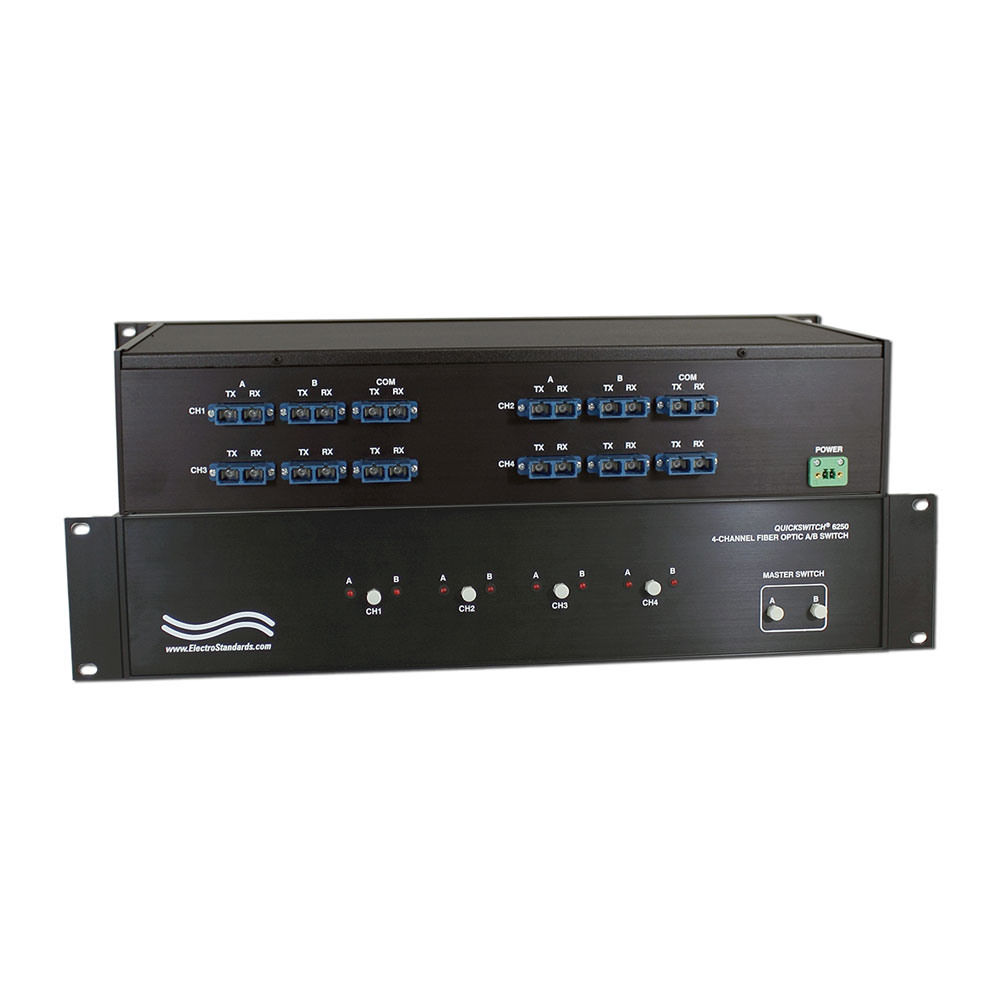

The QuickSwitch® 6250 Quad Channel SC Duplex SMF A/B Switch, with local control only allows a device connected to the "COM" port access to the A or B port for each of the four channels. The Model 6250 is enclosed in a 2U, full rack size, all metal black chassis designed to fit in a standard 19" rack. The switch can ONLY be controlled manually via the front panel pushbuttons. Four front panel pushbuttons allow independent control of each channel. Two front panel Master Switch pushbuttons allow the 4 channel A/B positions to be changed simultaneously. Switch position status may be attained via front panel LED display.

Local, Manual Control Only
No Remote Control Minimizes Cyber Risks.
Independent and Simultaneous Pushbutton Control

FEATURES OF THE MODEL 6250 SC DUPLEX SMF FIBER SWITCH:

Each of four channels allows quick connection to any one of two SC interface devices from one COMMON device.
The switch ports are transparent to all data.
All fiber signals are switched via break-before-make MEMS-based mirror/prism switch technology.
The unit maintains last set position on power loss and continues to pass data.
Front panel pushbutton control.
Independent control of channels via Channel pushbuttons.
Simultaneously switch all channels via Master Switch pushbuttons.
Ideal for "Local control only" applications. There is no Remote Control on the Quickswitch® 6250.
No remote control minimizes cyber risks.
Front panel LED's display present position and power status.
Switch position status may be attained via front panel LED display.
All A, B, and COM ports are SC duplex, Single Mode (SMF-28), 9/125 micron, and support a dual window wavelength of 1300nm and 1550nm.
The fiber ports are configured per TIA/EIA-568-B.3, where the TX of the COM port is routed to the RX of the A/B ports and vice versa.

SPECIFICATIONS:

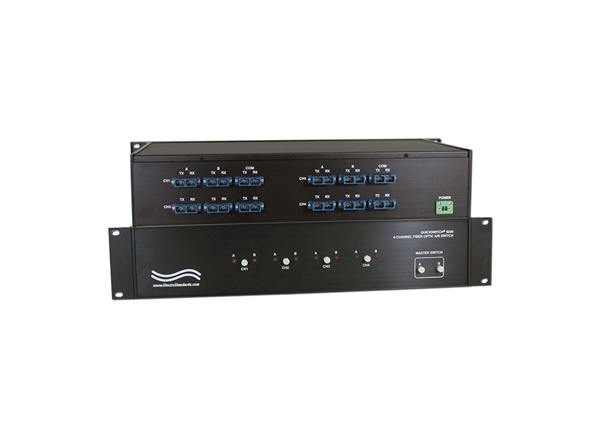

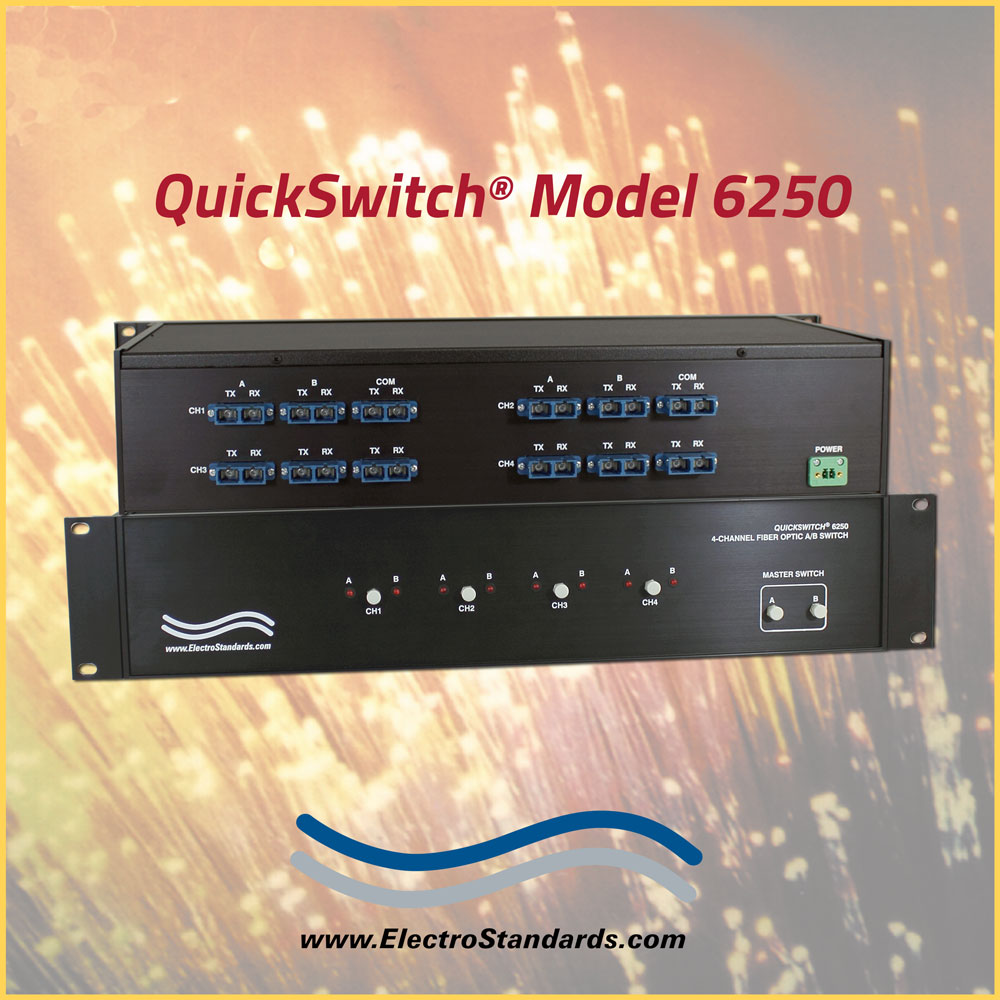

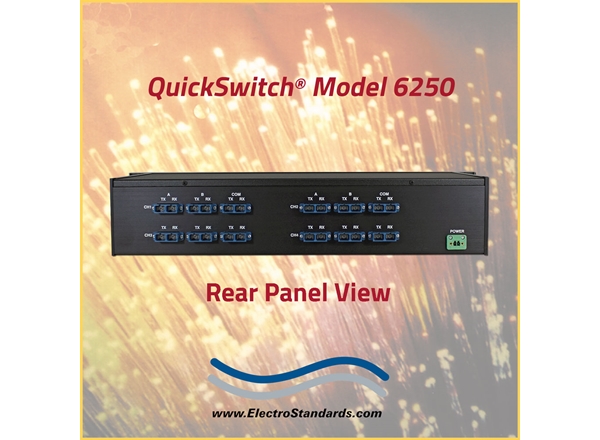

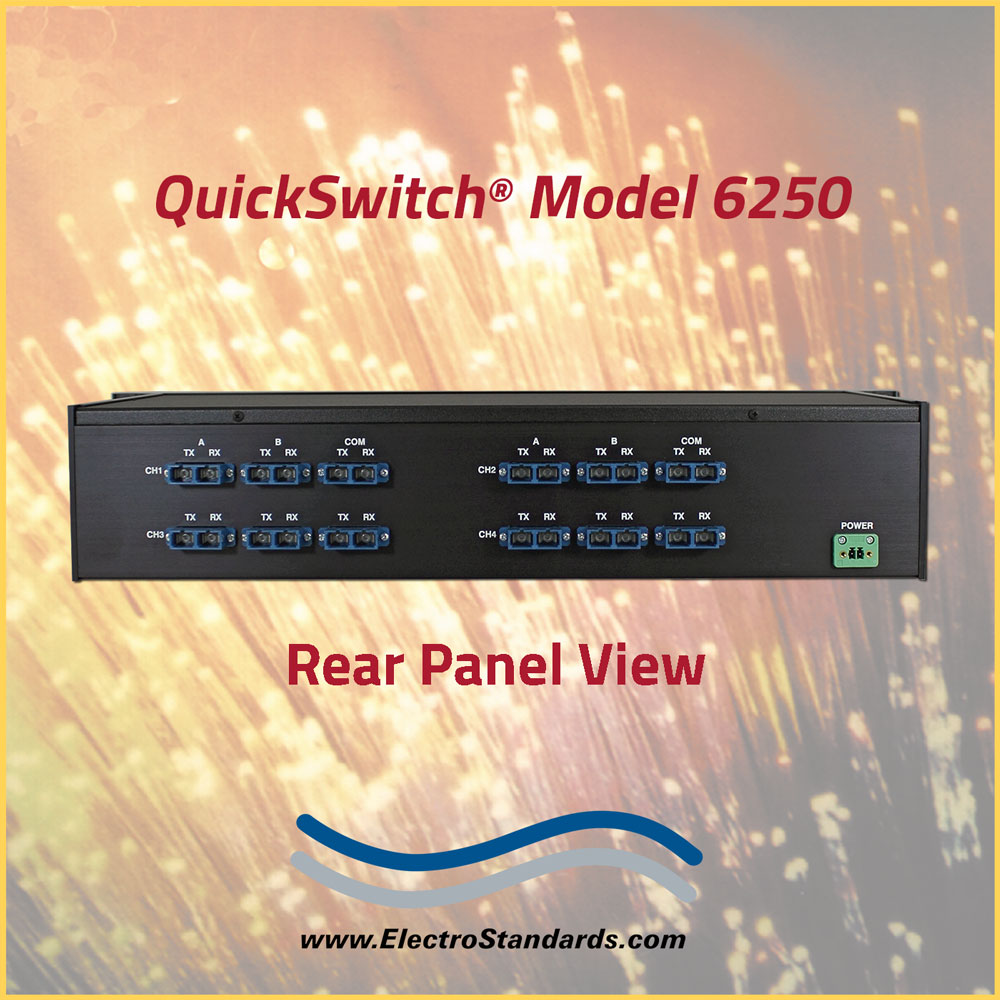

PORT CONNECTORS: (3) SC Duplex female connectors labeled A, B, and COMMON for each of four channels.
FRONT PANEL CONTROL:

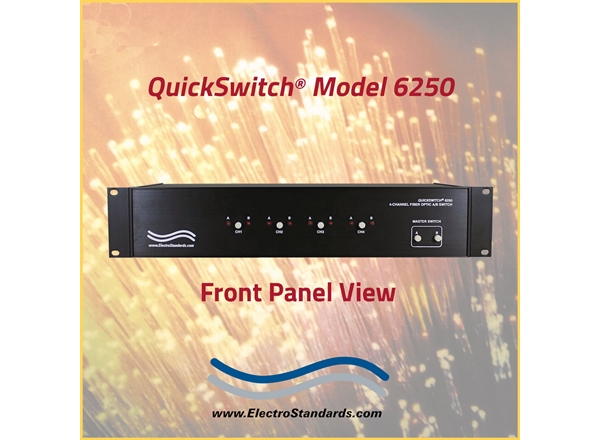

CHANNEL PUSHBUTTONS (CH1-CH4) - Four front panel channel pushbuttons allow the switch position to be changed independently for each channel.
MASTER PUSHBUTTONS (A/B) - Two front panel master pushbuttons allow the channel positions to be changed simultaneously.
POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
DISPLAY: (8) Front panel LED's display switch position and power status.
DIMENSIONS: Rackmount configuration: 19.0" W x 3.5" H x 9.1" D. (48.3 x 8.9 x 23.3 cm)
WEIGHT: Approx. 5.6 lbs. (2.6 kg)

QuickSwitch® 6250 Quad Channel SC Duplex A/B Switch application; Single Mode:

All A, B, and C ports are SC, Single Mode (SMF-28), 9/125 micron and support a dual window wave length of 1300nm and 1550 nm.
Local Control Only!

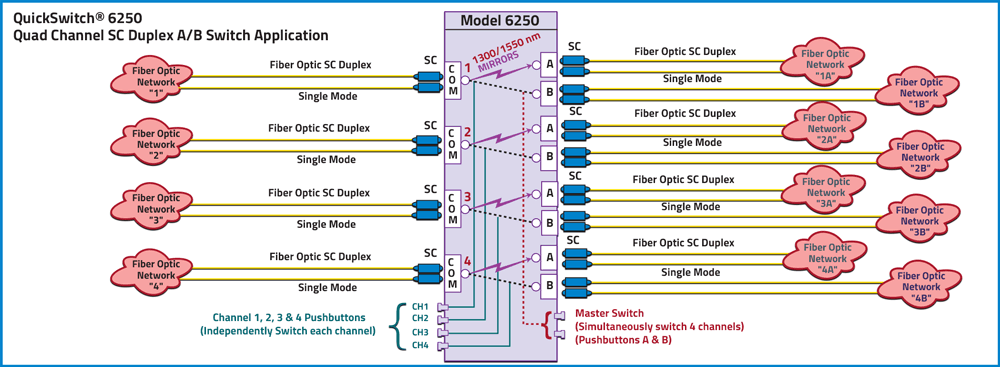

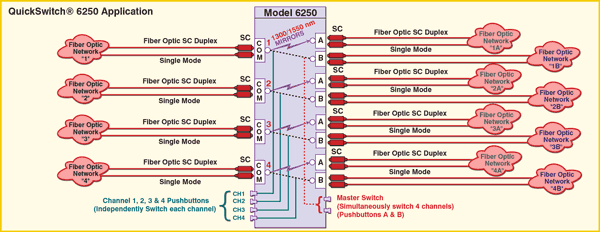

The drawing illustrates a Fiber Optic Network connected to the SC Duplex, Single Mode, Common port with access to two Fiber Optic Networks A and B connected to the SC Duplex Single Mode A and B ports for each of four channels. Control of the unit is via front panel pushbuttons. Four Channel pushbuttons allow the user to individually control each of the four channels. Two Master switch buttons allow the user to simultaneously switch position from A to B or B to A via Master Pushbutton A, or Master Pushbutton B.

QuickSwitch 6250 Quad Channel SC Duplex A/B Switch, Duplex Single Mode

The Model 6250 utilizes SMF (Single Mode Fiber), which supports long-distance transmission with minimal signal loss. Single Mode Fiber is well suited for campus, outdoor, secure, and mission-critical applications. It is commonly used in defense, transportation, utilities, and telecommunications environments.

Why Choose a Single Mode Fiber (SMF) Switch?

Single Mode Fiber is commonly used for long-distance, high-speed fiber optic communications.
SMF delivers higher bandwidth, lower signal loss, and superior reliability over kilometers of fiber—while remaining immune to interference and easy to scale as your network grows.
Ideal for campuses, data centers, enterprise networks or any fiber optic network that demands performance and longevity.

Ordering Information

Catalog Number: 306250
Model Number: 6250
Base Price: See website or contact us for current pricing and availability.
Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
We welcome international inquiries and ship worldwide.
