DB9 Manual Network Switch, Rotary Switch

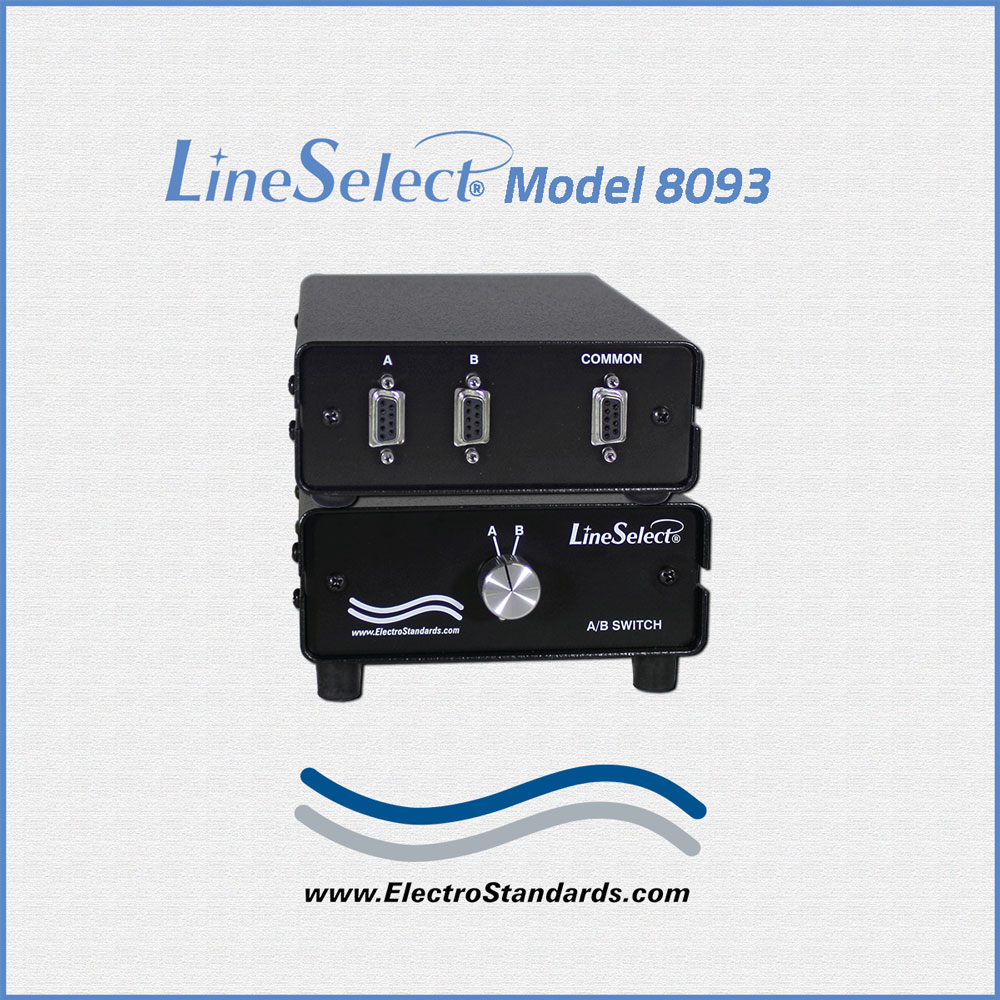

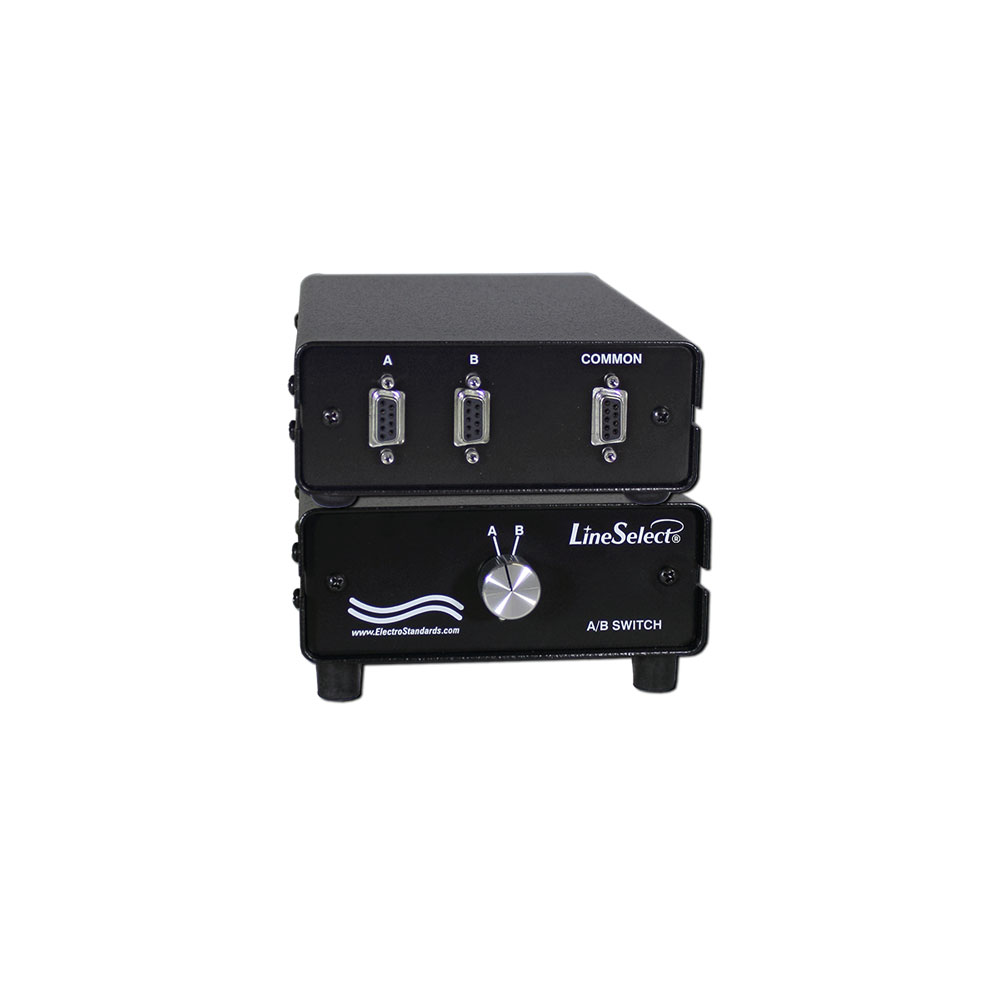

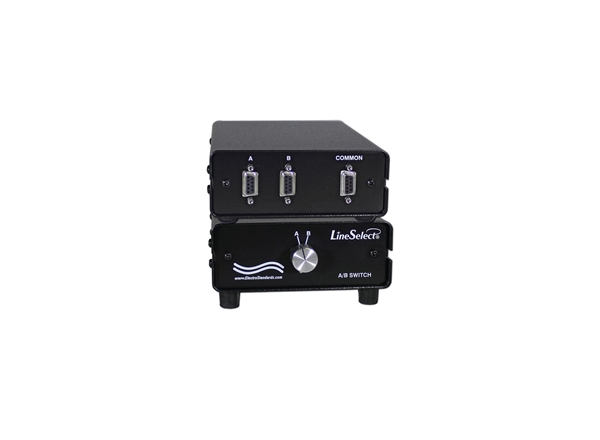

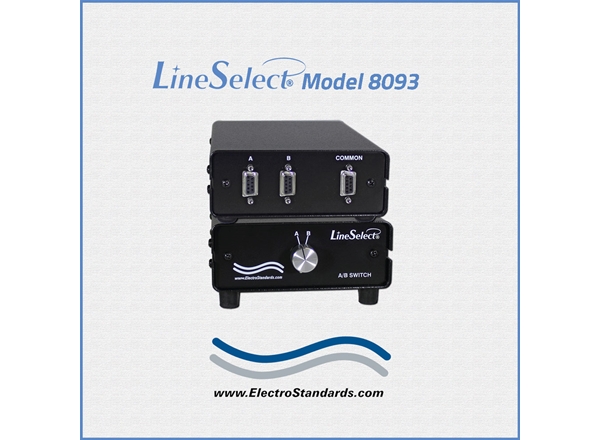

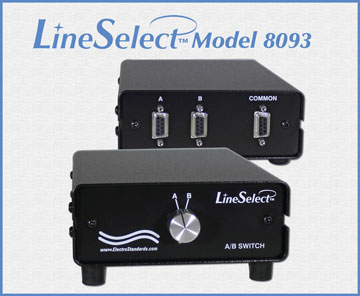

Model 8093 DB9 A/B Switch, All F Connectors, Manual, Desktop
- Adds efficiency to network; allows sharing of ANY DB9 interface devices.

SPECIFICATIONS:
- CONNECTORS: (3) DB9 (F) ports on rear panel.
- CONTROL: (1) Rotary switch on front panel selects A or B.
- PINS SWITCHED: All 9 pins switched.
- POWER: No power required.
- ENCLOSURE: Shielded Aluminum Enclosure.
- DIMENSIONS: 5.25" W x 2.0" H x 7.25" D. (13.3 x 5.1 x18.4 cm)
- WEIGHT: Approximately 1.5 lbs (0.7kg)

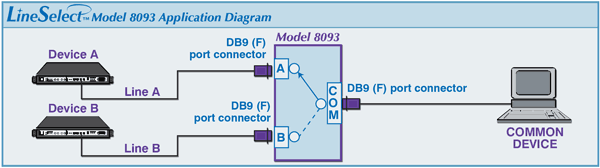

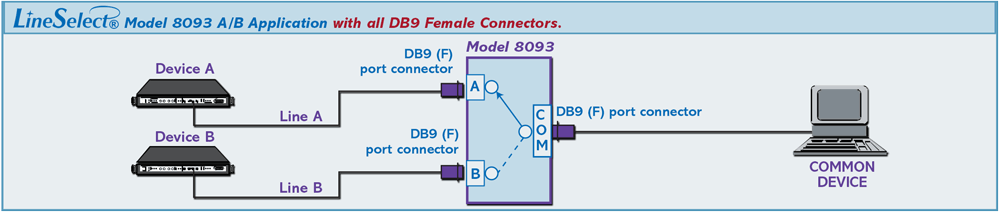

DB9 (ALL FEMALE CONNECTORS) A/B SWITCH APPLICATION: The diagram illustrates a DB9 manual switch with three DB9 female port connectors. A device connected to the DB9 female COMMON port shares among two other devices connected to the DB9 female A port and the DB9 female B port.

FEATURES:
- Allows quick connection to any one of two DB9 interface devices from one COMMON device.
- Manual operation via front-panel rotary switch.
- High quality sealed switch with self-wiping low impedance contacts.
- Transparent to data speed and format.
- All (9) pins of the DB9 interface are switched via break-before-make rotary switch.
- Eliminates the need to plug and unplug cables.
- Improves computer network efficiency by allowing sharing of peripherals.
- No external power required.
- Attractive anodized black box packaging provides EMI/RFI shielding.
- Also available with MMF connectors. See Model 8092, Cat. No. 304380.
- Custom length DB9 cables available for your switch application..
- Lifetime warranty against manufacturing defects.
The LineSelect™ Model 8093 DB9 A/B Switch allows the user to access two DB9 devices connected to the A and B ports from one DB9 device connected to the COMMON port. Switching between devices A and B is quick and easy via the front panel rotary selector - No need to plug and unplug cables; no chance for network reconfiguration errors. The Model 8093 is packaged in a slim desktop sytle enclosure.
Custom Length DB9 cables available for your switch installation.
State cable length (XXX) when ordering. |
Part Number |
Description |
990127-XXX |

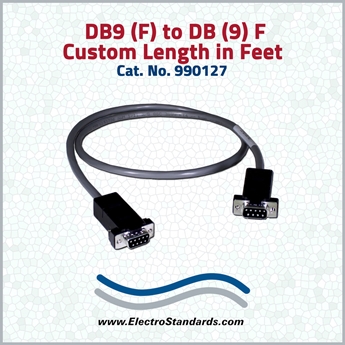

XXX Feet, DB9 F/F, 9-Conductor Unshielded PVC Cable |
990125-XXX |
XXX Feet, DB9 M/F, 9-Conductor Unshielded PVC Cable |
990126-XXX |
XXX Feet, DB9 M/M, 9-Conductor Unshielded PVC Cable |
