Catalog # 304380 - Model 8092 DB9 2-Position Switch, MMF Connectors & Mounting Brackets

    DB9 2-Position Switch, MMF Connectors
Click image to enlarge
Base Price:
$159.00
Catalog No: 304380
Model No: 8092
Feature:Mounting Brackets
Switch Media:Copper
Positions:2
Channels per Switch Chassis:1
Connector/Port:DB9
Manual Control/No Power Required:LineSelect® Manual Operation
Enclosure Configuration:Desktop
Pins Switched:9
Local Control:Rotary Knob

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

DB9 Manual Network Switch, Rotary Switch

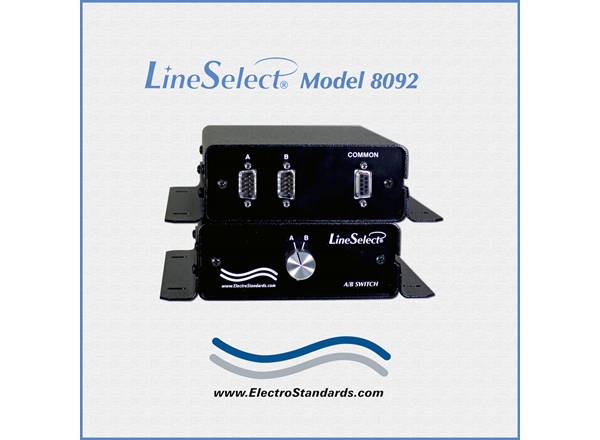

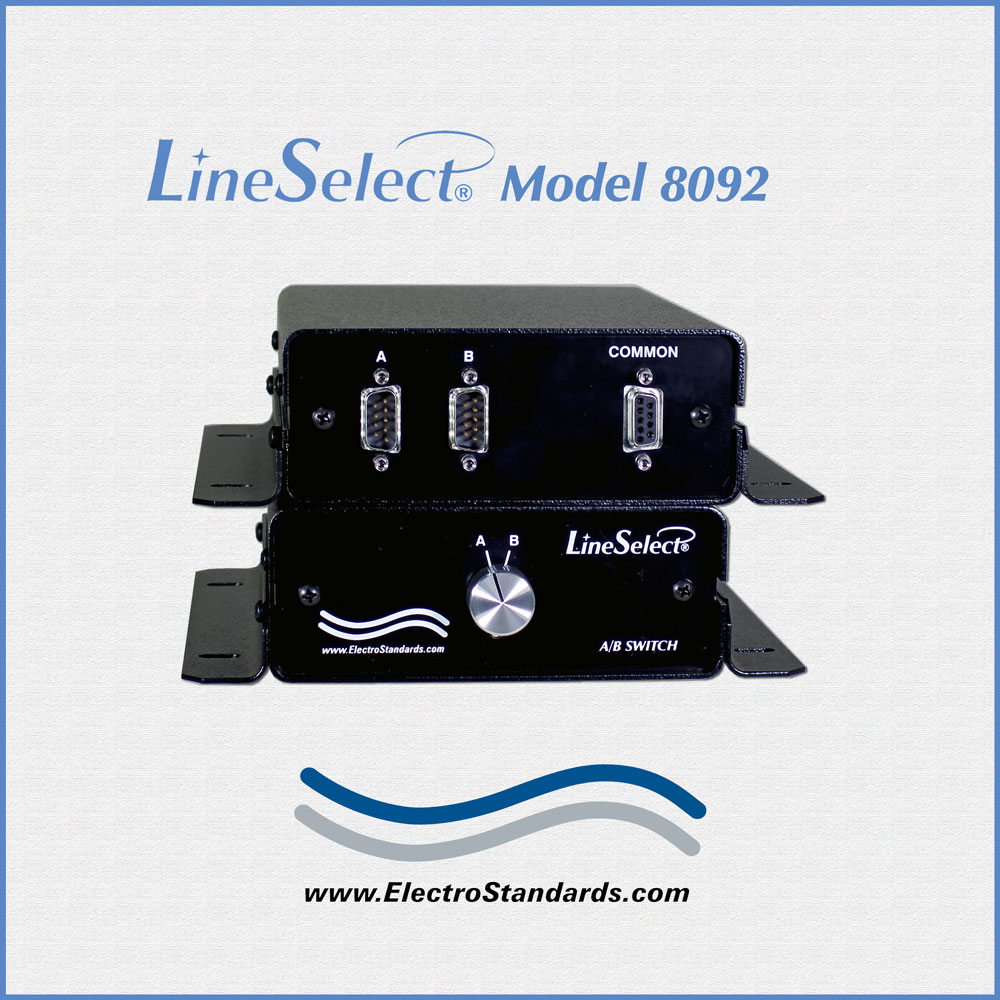

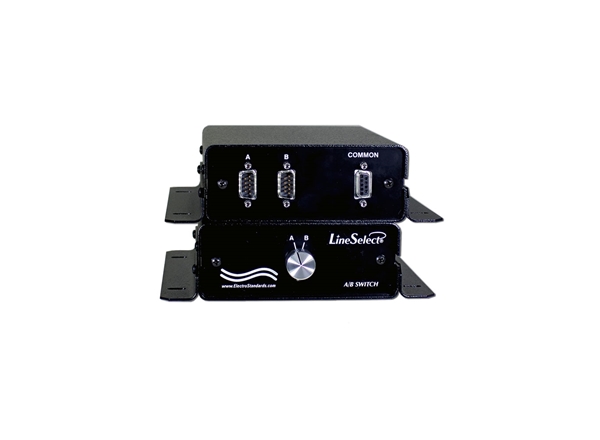

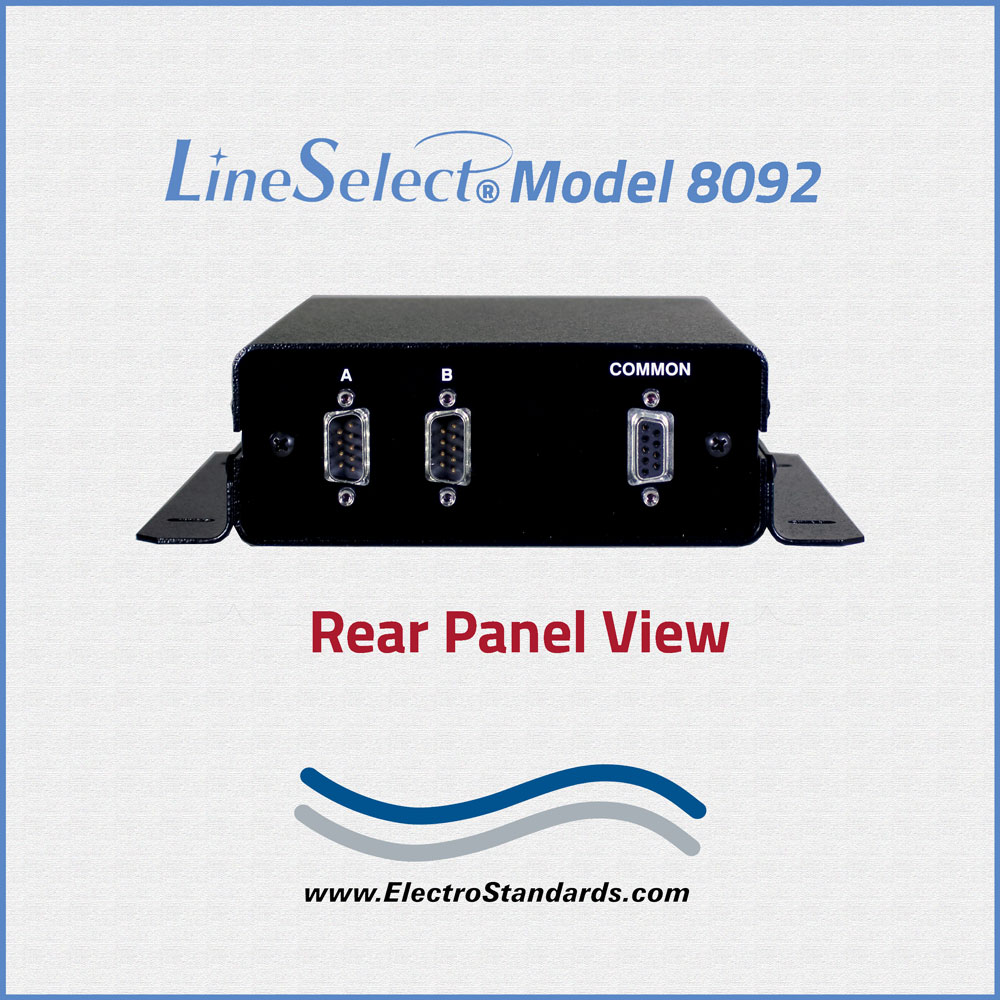

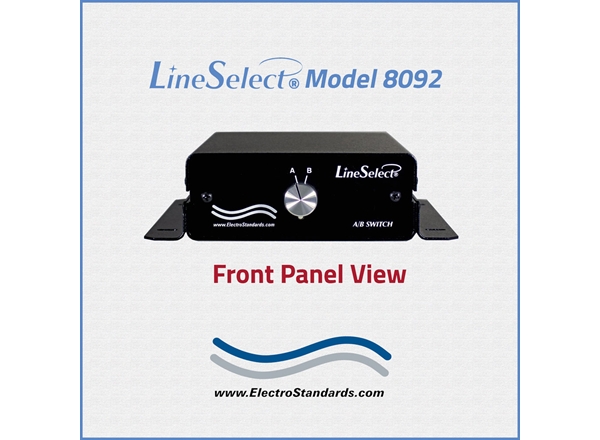

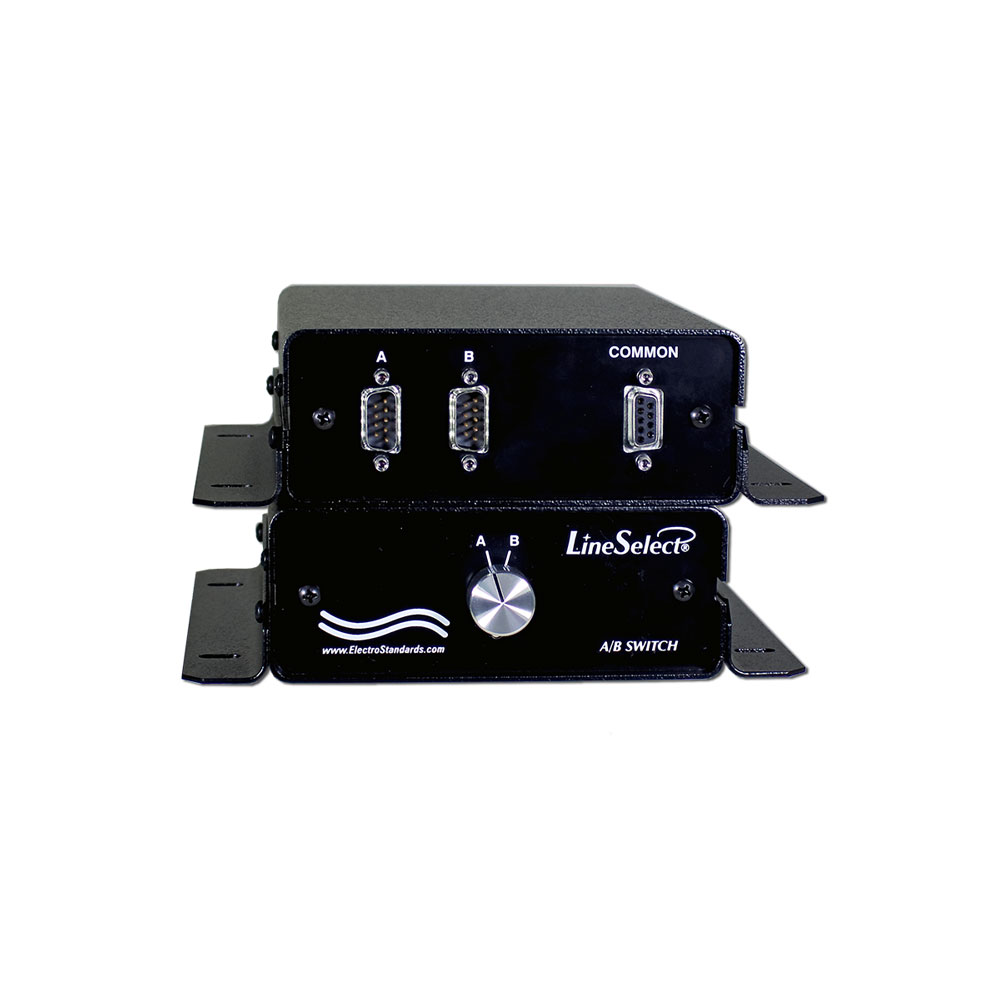

Model 8092 DB9 A/B Switch, MMF Connectors, Manual, with Desktop Mounting Brackets

  • Adds efficiency to network; allows sharing of ANY DB9 interface devices.
  • Made in USA

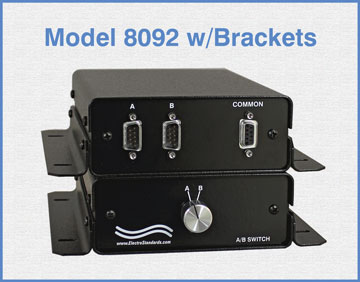

Model 8092 DB9 A/B Switch, MMF Connectors, Manual, with Desktop Mounting brackets

SPECIFICATIONS:

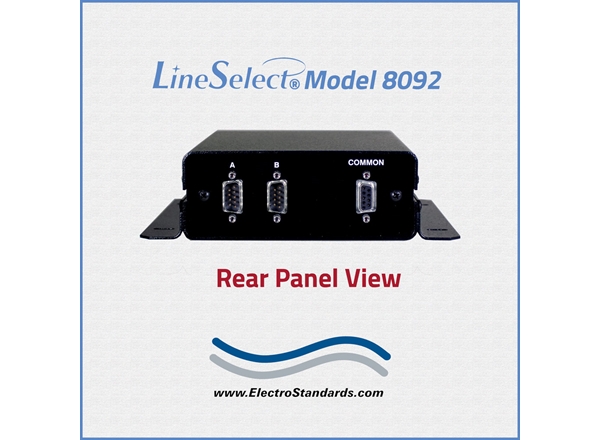

  • CONNECTORS: (2) DB9 (M) labeled A and B.  (1) DB9 (F) port labeled COMMON.

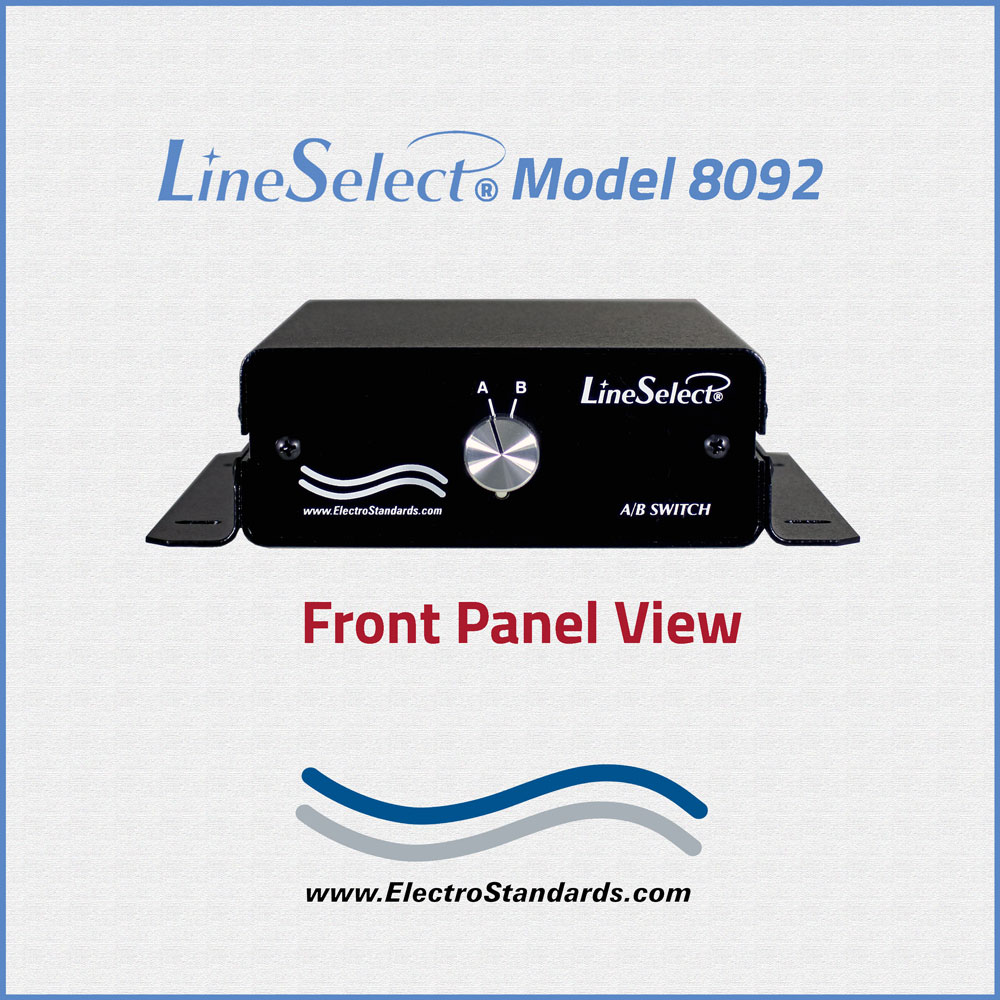

  • CONTROL: (1) Rotary switch on front panel selects A or B.
  • PINS SWITCHED: All 9 pins switched.
  • POWER: No power required.
  • ENCLOSURE: Desktop Aluminum Enclosure with rugged mounting brackets.
  • DIMENSIONS: 7.28" W x 2.05" H x 7.81" D. (with brackets)
    (18.5 x 5.2 x 19.9 cm)
  • WEIGHT:  Approximately 1.1 lbs (0.5 kg)

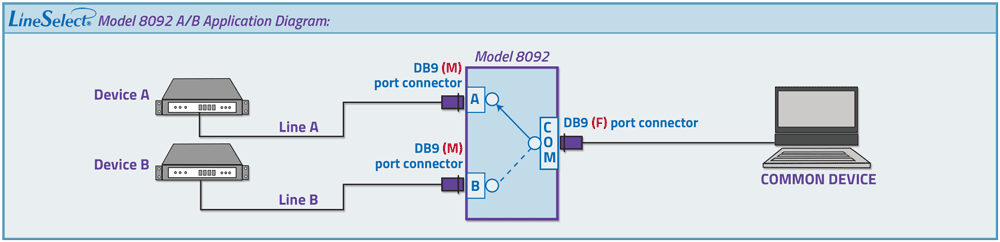

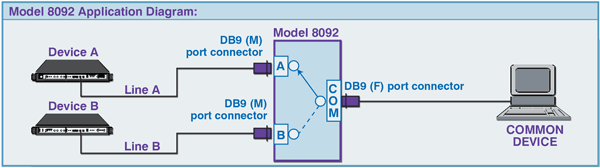

DB9 MMF A/B SWITCH APPLICATION: The diagram illustrates a DB9 manual switch with two DB9 male port connectors labeled A and B, and one DB9 female port labeled COMMON. A device connected to the DB9 female COMMON port shares among two other devices connected to the DB9 male A port and the DB9 male B port.

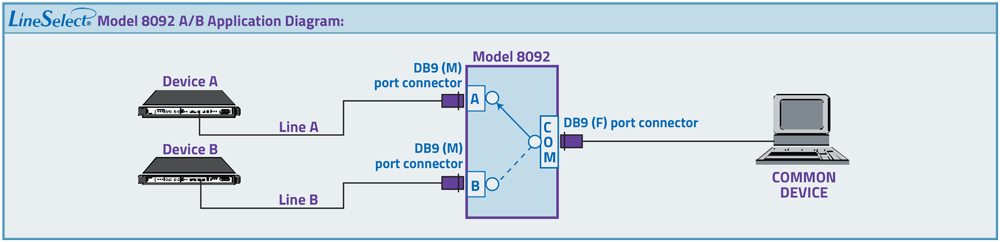

Network Application Diagram for Model 8092 DB9 A/B Switch, MMF Connectors, Desktop
