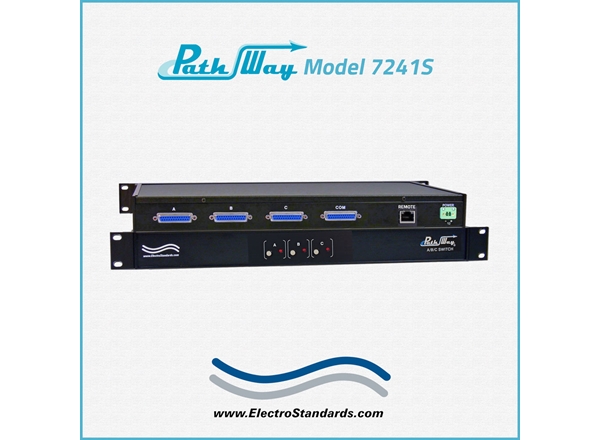

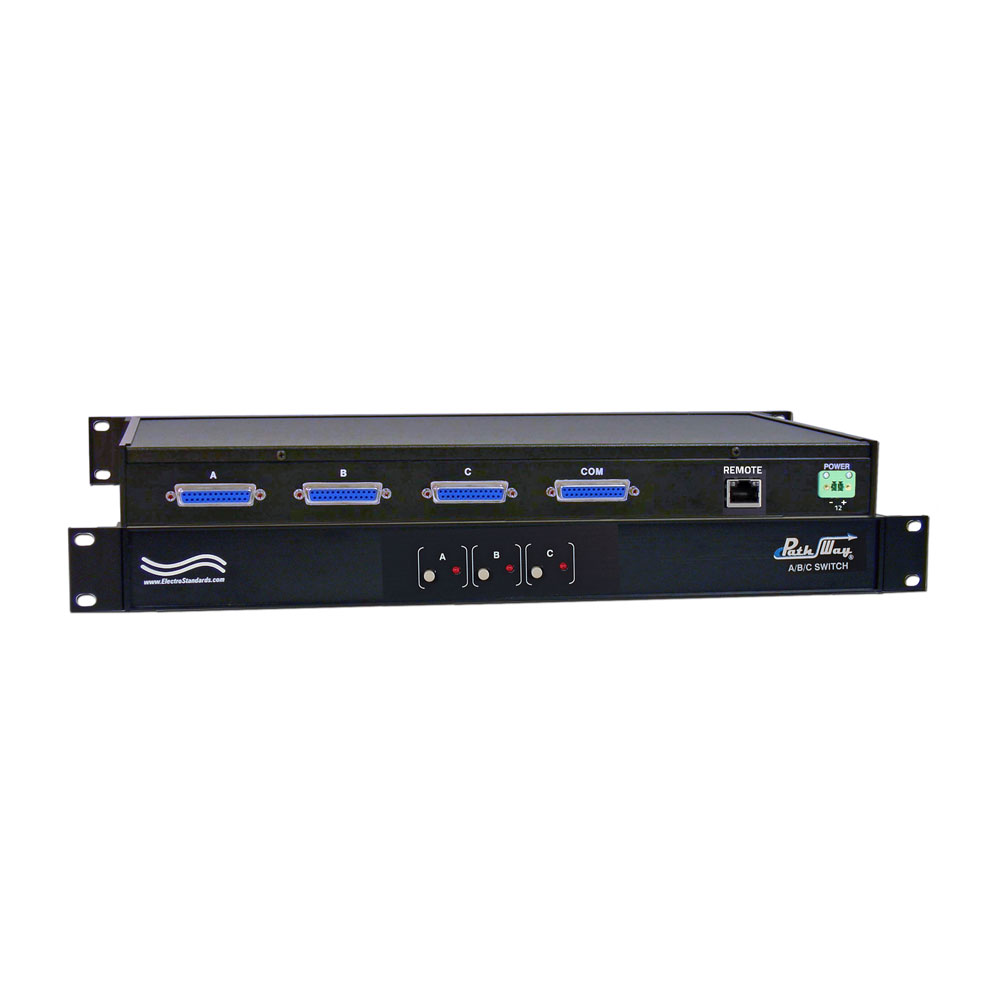

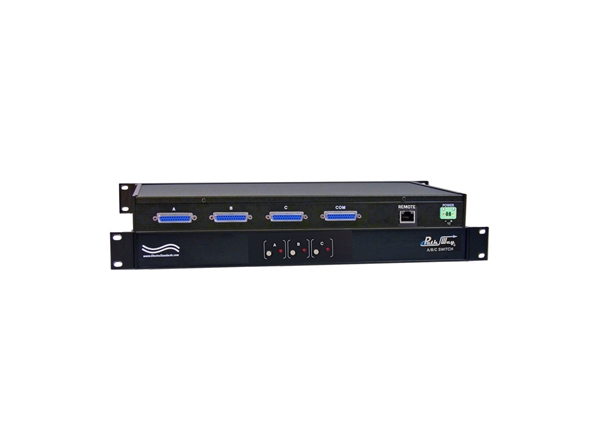

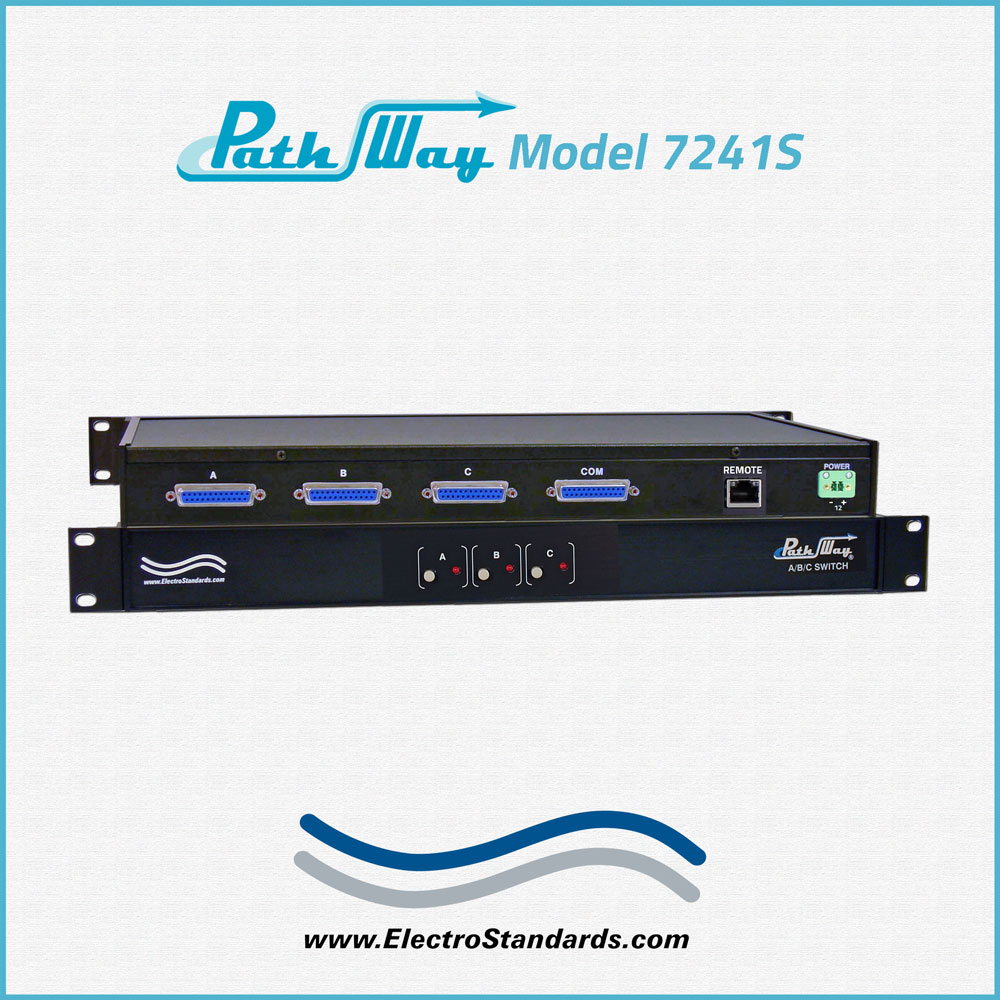

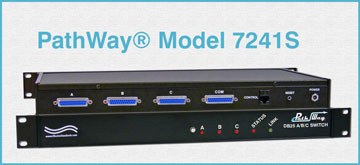

Path Way® Model 7241S Secure DB25 A/B/C Data Switch, Rackmount Configuration

Overview

The PathWay® Model 7241S Single Channel RS232/RS530 DB25 A/B/C Network Switch provides one channel switching in a low profile, 19" 1U rack unit.

The user has the capability of sharing a single DB25 interface device connected to the COMMON port among three other devices connected to the "A", "B", and "C" ports. The switch may be controlled locally by manually operating the front panel pushbutton or remotely over the 10 Base-T RJ45 remote port located on the rear of the unit. The front panel LED display indicates the switch position.

The switched DB25/Female ports (A, B, C, and COMMON) are transparent to all data. The ports may be switched via the front panel pushbutton or the Remote-Control port on the rear of the unit. Remote switching of the unit is done through the 10/100 Base-T Control port on the rear of the panel. This control interface has an IP address and listens on the standard TELNET port (23) for incoming connection.

10/100 BASE-T Secure Setup, Remote Interface
IP Addressable Data Network Switch

FEATURES OF THE MODEL 7241S A/B/C DATA SWITCH:

Secure Setup/Configuration access limited by password protection.
Local switching via front panel pushbutton.
All 25 pins of the DB25 interface are switched.
DB25 female ports are located on the rear panel; one each for position A, B, C, and COMMON.
Switch maintains position and continues to pass data during power loss.
Password protected remote switching via 10/100 Base-T remote command interface.
Switch monitors remote contact port for connection.
Remote command for lockout of front panel pushbutton.
Remote command for query of current switch state.
Network Connection Status and Link LEDs on front panel.
Municipalities, schools, government: This product is on the GSA Schedule!

TECHNICAL SPECIFICATIONS:

PORT CONNECTORS: (4) DB25 (F) connectors labeled A, B, C and COMMON on rear panel.
REMOTE CONTROL: (1) RJ45 female connector on rear panel accepts 10/100Base-T LAN access Ethernet for Remote Control operation.
LOCAL CONTROL: (1) Front panel pushbutton allows local control of switch.
DISPLAY: (3) LEDs on front panel display indicate switch position and power presence.
POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12VDC, 500mA to the unit. Has 2-Prong, US, non-polarized plug.
DIMENSIONS: 19" W x 1.75" H x 8" D. (48.3 x 4.4 x 20.3 cm)
WEIGHT: 4.5 lbs. (2.0 kg)

PathWay® Model 7241S DB25 A/B/C Application with Secure Setup, Remote Interface:

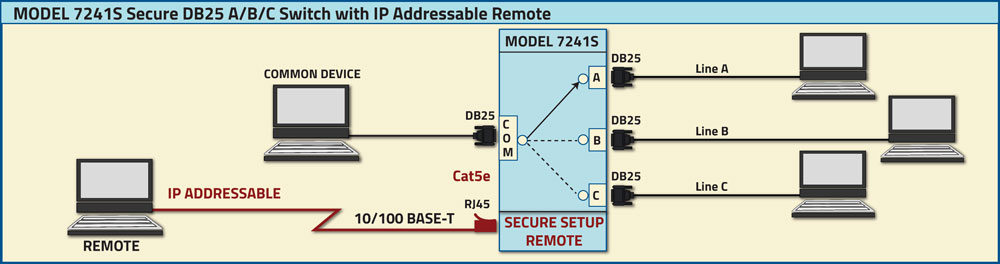

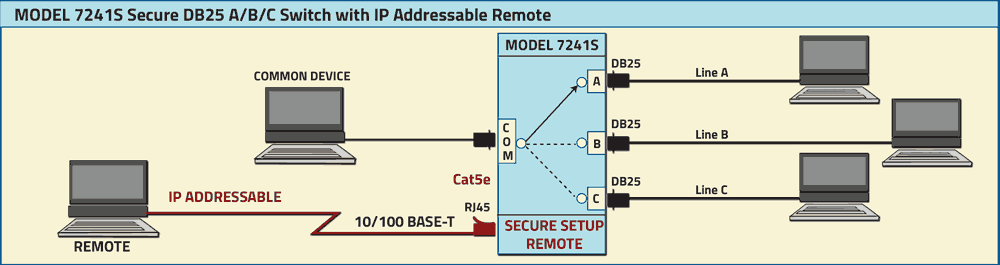

The drawing illustrates a COMMON computer connected to the DB25 COMMON port accessing one of three computers connected to the DB25 A, B, and C ports. The 10/100 Base-T RJ45 Secure Setup Remote port is password protected. Upon entering the correct password, a user can control the switch remotely via TELNET commands.

PathWay Model 7241S Secure DB25 A/B/C Switch with Secure Setup, Remote Interface Application
