Catalog # 305280 - Model 9101 DB25 4-Position Switch

    DB25 4-Position SwitchDB25 4-Position SwitchDB25 4-Position SwitchModel 9025 Rackmount Chassis for switch modules and filler panels
Click image to enlarge
    • DB25 4-Position Switch
    • DB25 4-Position Switch
    • DB25 4-Position Switch
    • Model 9025 Rackmount Chassis for switch modules and filler panels
Base Price:
Catalog No: 305280
Model No: 9101
Product Type:Switches: Copper
Cable Type/Port Connector:DB25 Switch Ports
Channels per Switch Chassis:1
Manual Control/No Power Required:LineSelect® Manual Operation
Pins Switched:2-25, Pin 1 Bussed Thru.
Local Control:Rotary Knob
Feature:Modular Design for System Expansion


Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request


Model 9101 DB25 A/B/C/D Switch Module, Rackmount Configuration

EIA RS-232 / V.24 Data Interface

  • You can add switch modules to the rack as your system expands.
  • High Quality Manual Data Network Switches Increase the Reliability of Your Network!

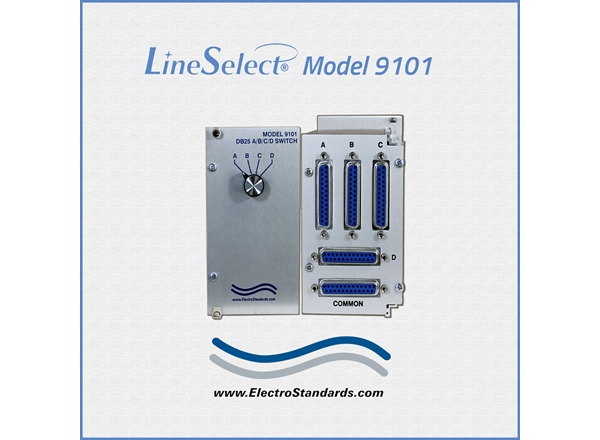

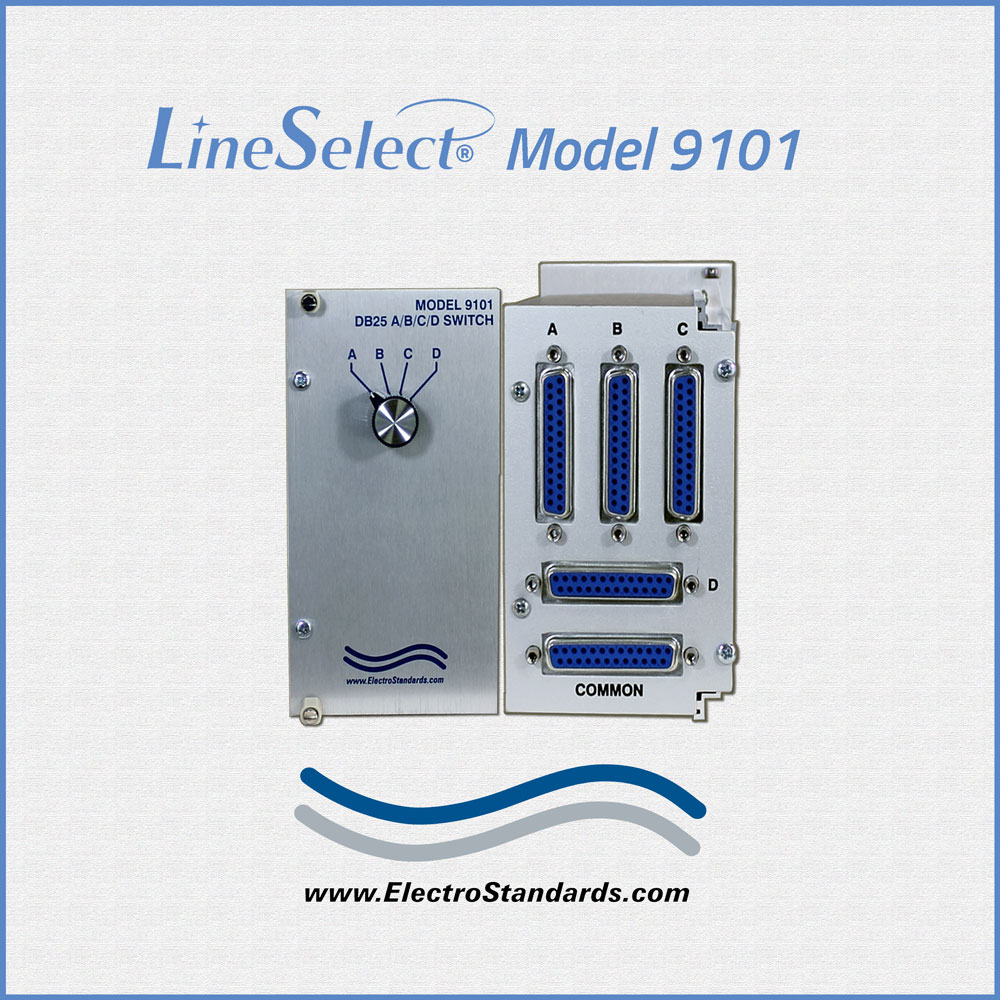

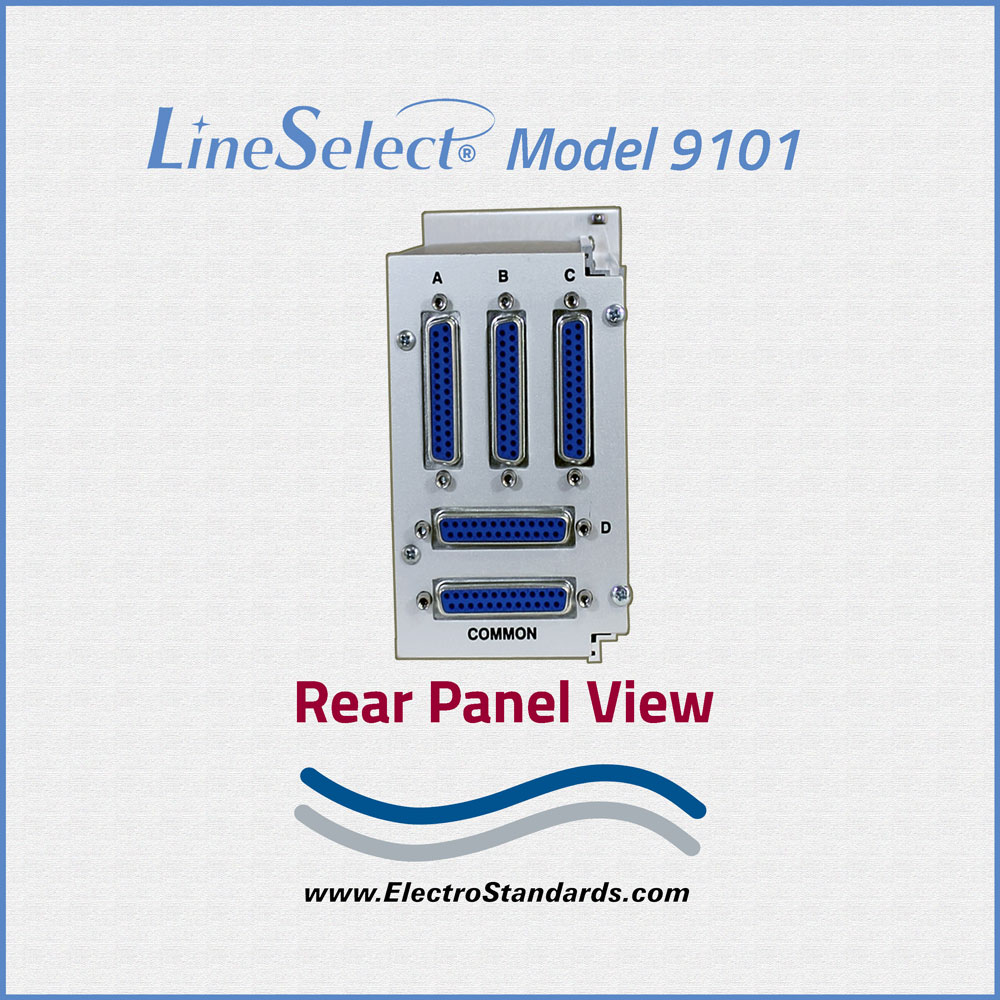

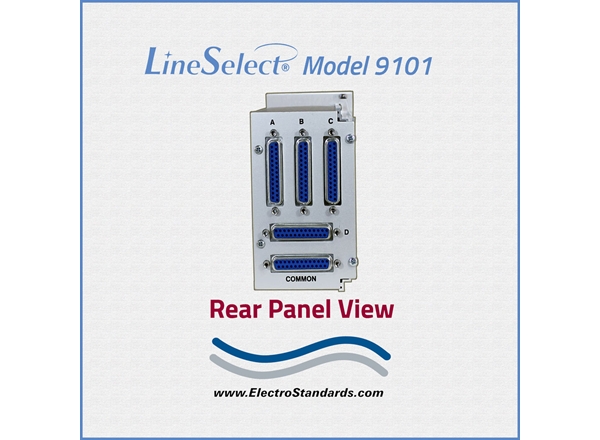

  • PORT CONNECTORS: (5) DB25 female connectors labeled A, B, C, D and COMMON.

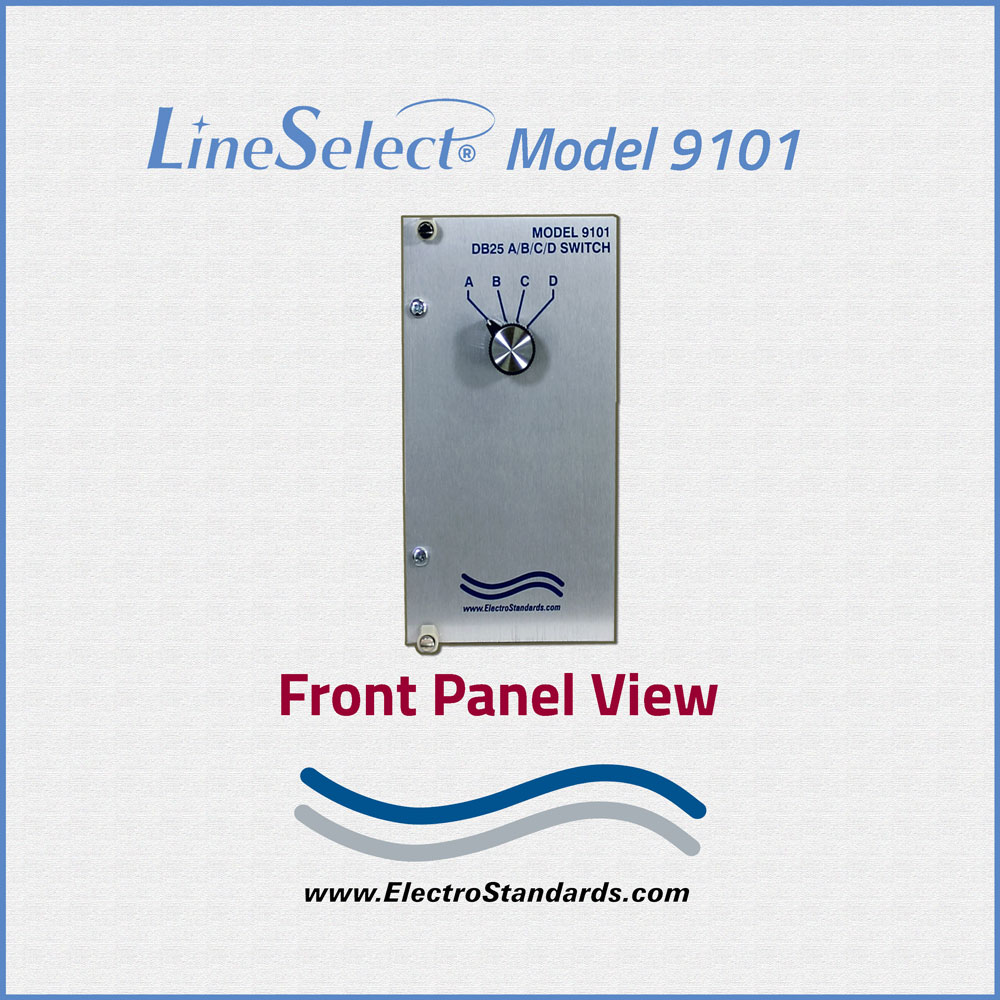

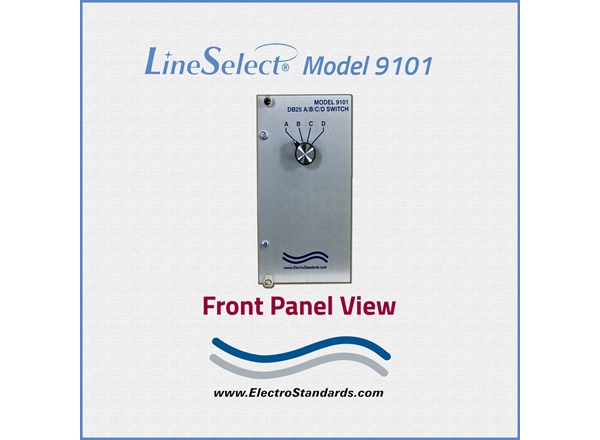

  • FRONT PANEL CONTROL: (1) Rotary switch on front panel selects A, B, C, or D.
  • POWER:  Manually operated. No power required.
  • DIMENSIONS:  2.8"W x 5.06"H x 7.52"D. [7.1 x 12.9 x 19.1 cm]
  • WEIGHT:  Approximately 1.1 lb. (0.5 kg)

LineSelect® Model 9101 DB25 A/B/C/D Switch Module Application (EIA RS232 / V.24):

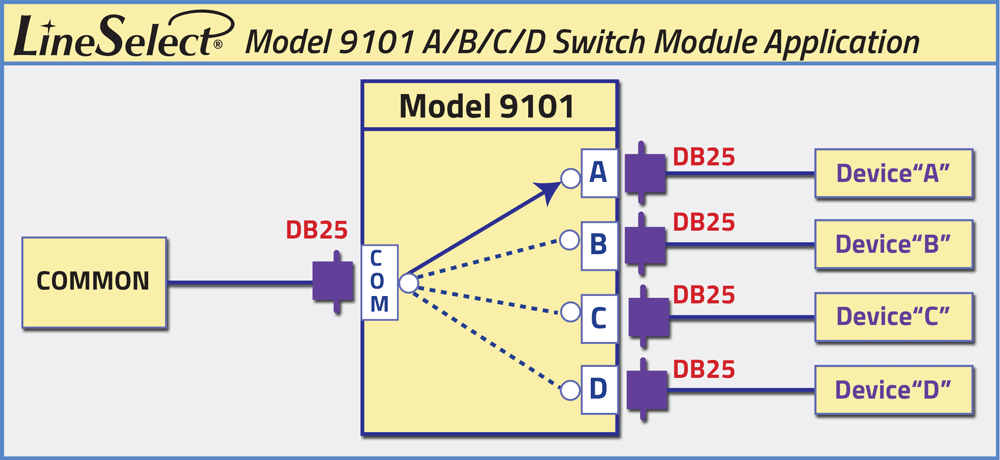

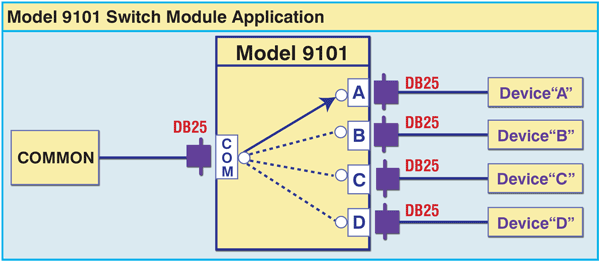

The drawing illustrates the function of one Model 9101 switch module. A COMMON device is connected to the DB25 COMMON port with access to four devices, connected to the DB25 A, B, C and D ports. Expand your application by installing up to six Model 9101 units into the Model 9025 Rack.

Model 9101 DB25 A/B/C/D Network Switch, EIA RS-232 / V.24 Data Interface Application


  • Allows quick connection to any one of four devices from one COMMON device.
  • Pins 2 - 25, of the DB25 interface are switched via break-before-make rotary switch. Pin 1, chassis ground, is bussed thru.
  • High quality sealed switch with self-wiping low impedance contacts.
  • Transparent to data speed and format.
  • Attractive anodized aluminum packaging provides EMI/RFI shielding.
  • No external power required. Manual operation.
  • Up to six Model 9101 Switch Modules can be housed in the Model 9025 Rack Chassis.
  • Lifetime warranty against manufacturing defects.
  • Modular approach to switch requirements allows expansion to more channels on an as-needed basis.
  • Custom length DB25 cables available for your switch installation.

The LineSelect® Model 9101 switch module allows the user to quickly and easily switch a device connected to the COMMON port between devices connected to ports A, B, C or D. The LineSelect® Model 9101 is an open frame module designed to installed in the Model 9025 Rack.

The Model 9025 Rack accommodates up to 6 LineSelect® Model 9101's. The Model 9025 is a 3U, full rack size chassis designed to fit in a standard 19" rack.

System Expands to meet your needs!

This modular approach to switch system requirements allows expansion to more channels on an as-needed basis. Filler panels are available to attractively cover unused modules slots.

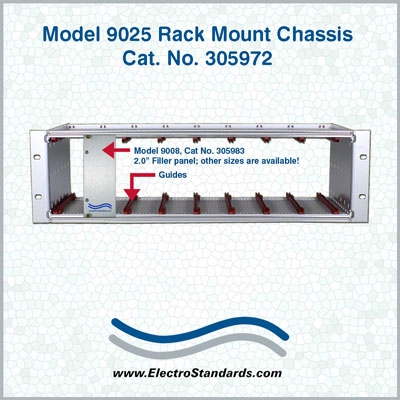

 Model 9025 Rack Mount Chassis Cat No 305972
