304139EU - 4139EU HP Fiber to RS232 Converter

    HP Fiber to RS232 ConverterHP Fiber to RS232 ConverterHP Fiber to RS232 ConverterHP Fiber to RS232 Converter
Click image to enlarge
    • HP Fiber to RS232 Converter
    • HP Fiber to RS232 Converter
    • HP Fiber to RS232 Converter
    • HP Fiber to RS232 Converter
Base Price:
$357.00
Catalog No: 304139EU
Model No: 4139EU
Conversion Type:POF/Plastic/Polymer Fiber, RS232
Converter Port Connector:DB9, Versatile Link
Enclosure Configuration:Desktop
Speed:Up to 120 Kbps (enhanced RS232)
Wavelength Nano:660 nm (red)

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

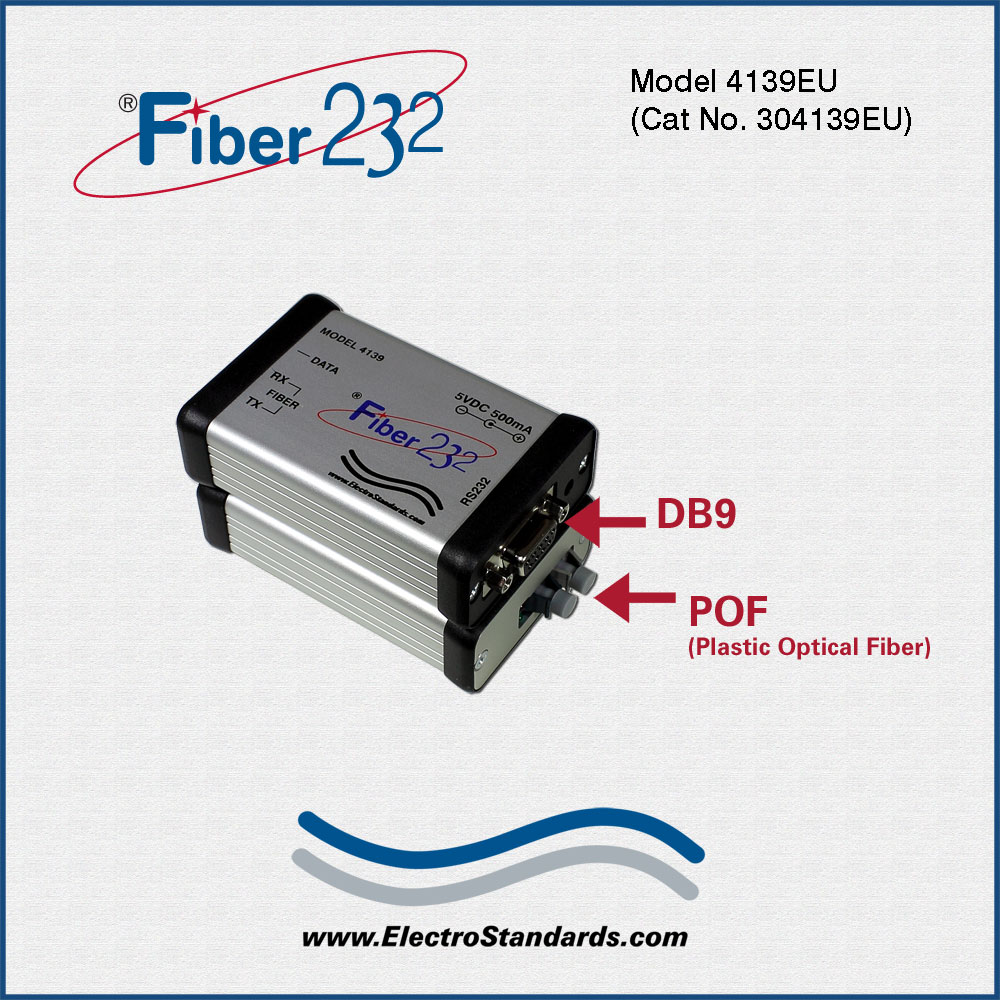

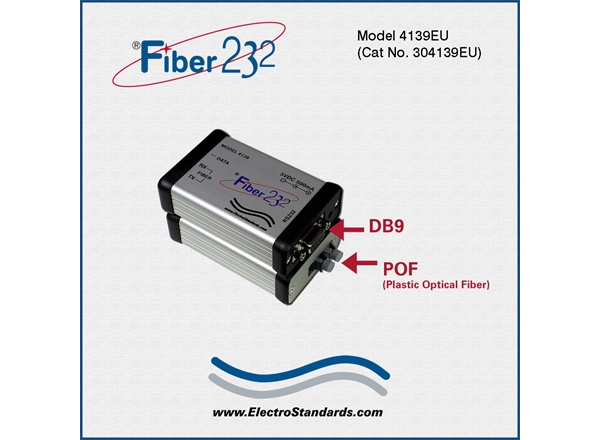

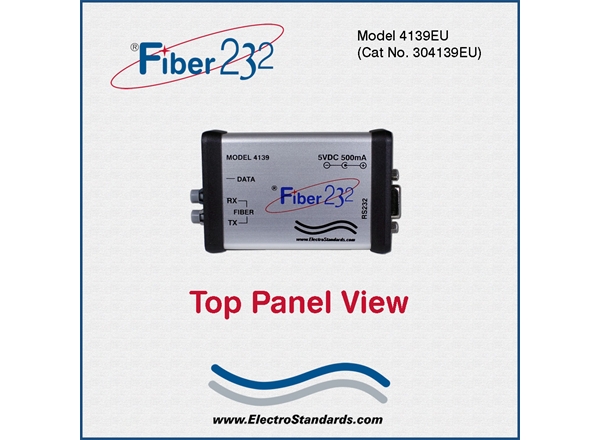

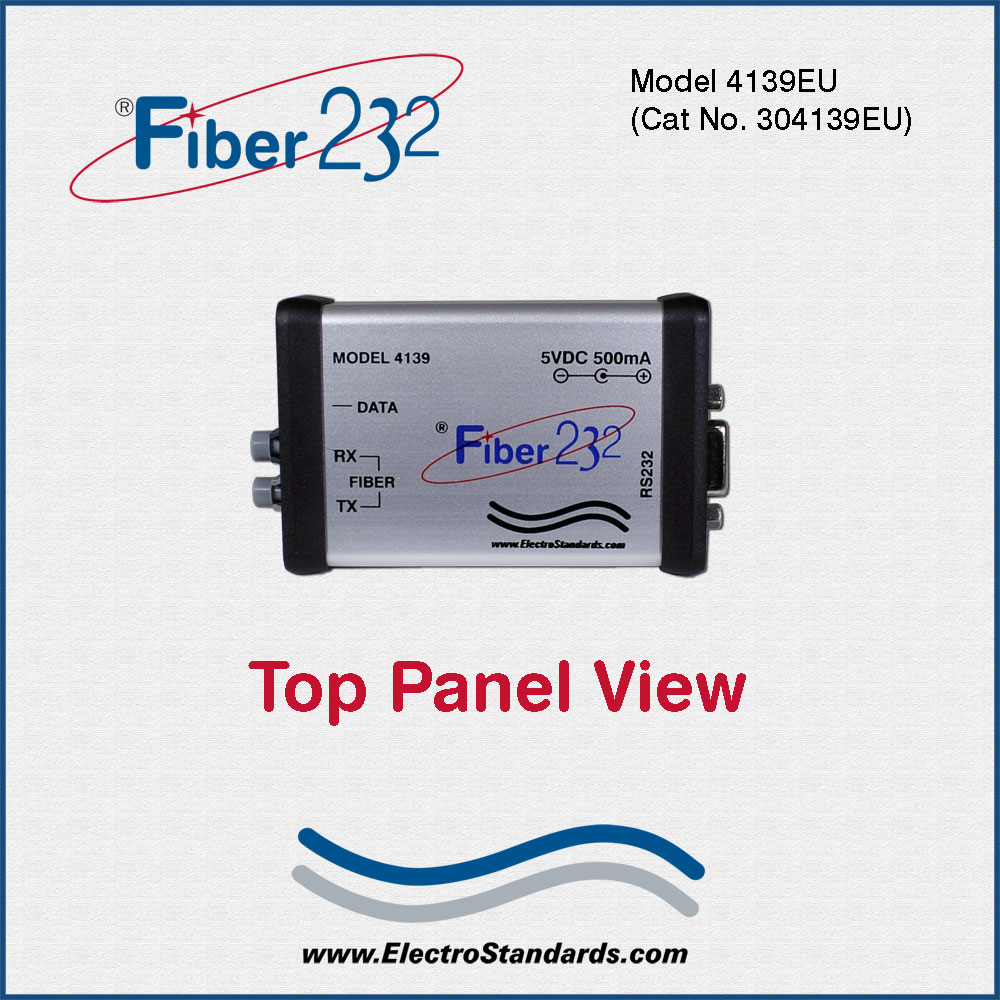

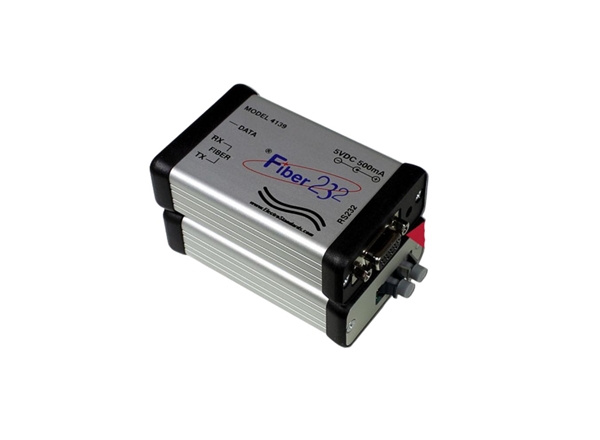

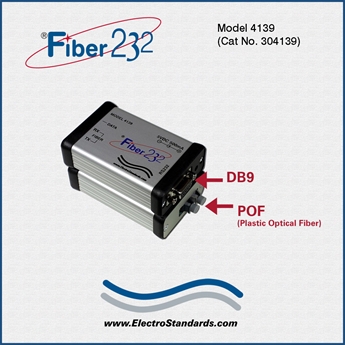

Fiber 232® Model 4139EU HP Versatile Link Fiber to RS232 Converter with European 2-Pin Power Supply

  • Allow Connection of HP Fiber Optic Linked Terminals to RS232 Port of Controller

  • Provides Electrical-to-Optical, Optical-to-Electrical Conversion

  • Ideal for Casino Networks Linking Lottery Terminals & Video Gaming Machines

SPECIFICATIONS:

  • Data Transfer Rate: Up to 120 Kbps (enhanced RS-232).
  • Fiber Transmission Distance: 75m (250 ft.) using TC 1000 W type plastic fiber cable.
  • RS232 Transmission Distance: Greater than 15 m (50 ft.).

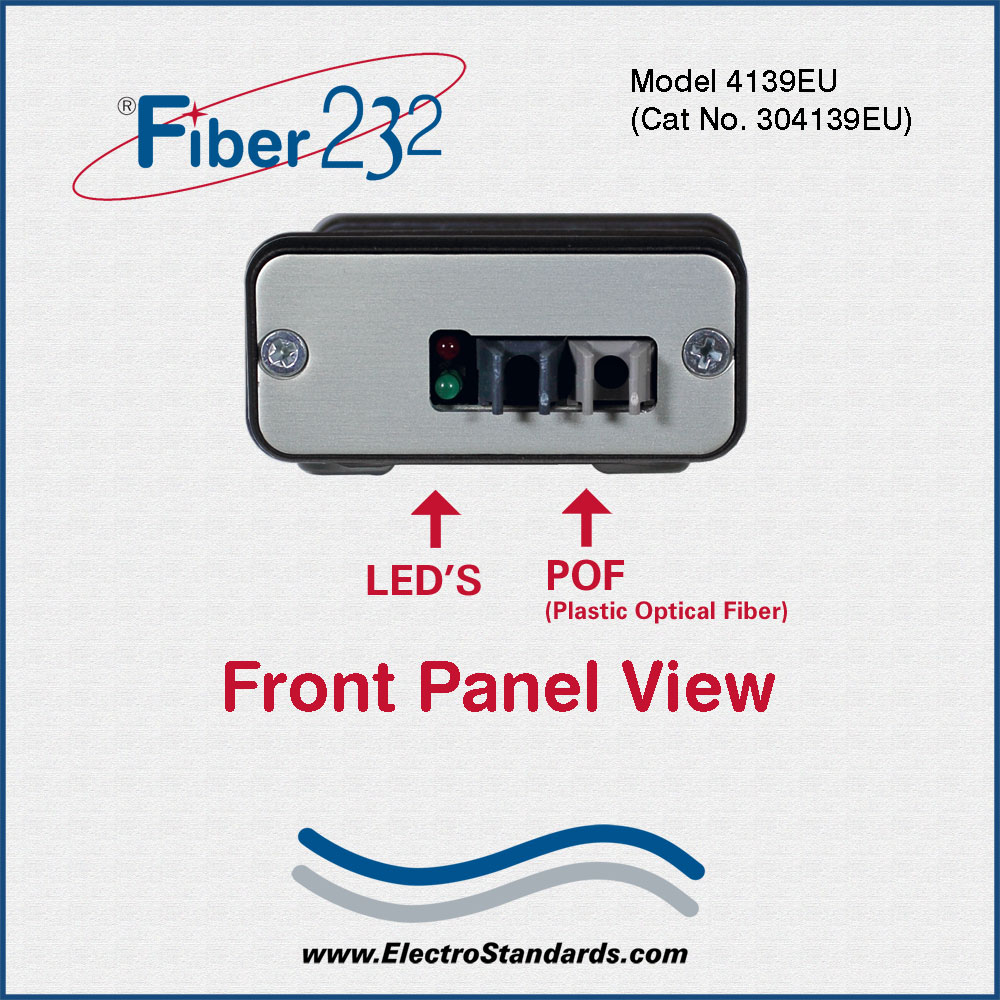

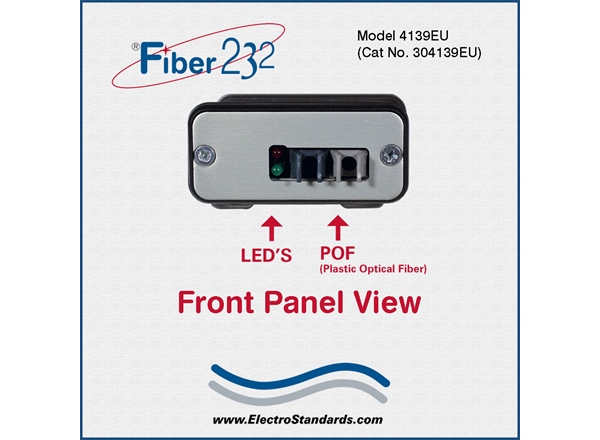

  • Optical Fiber Connectors: HP/Agilent Versatile Link

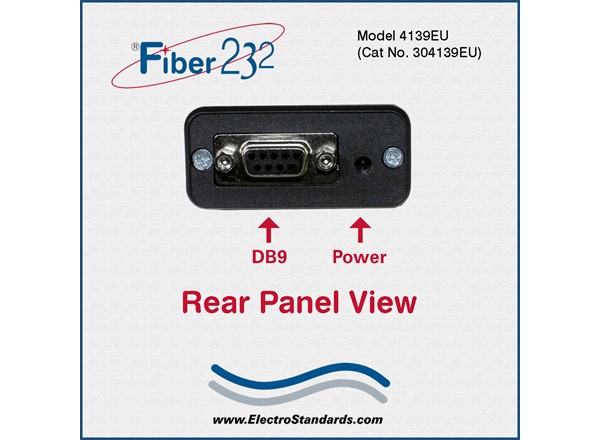

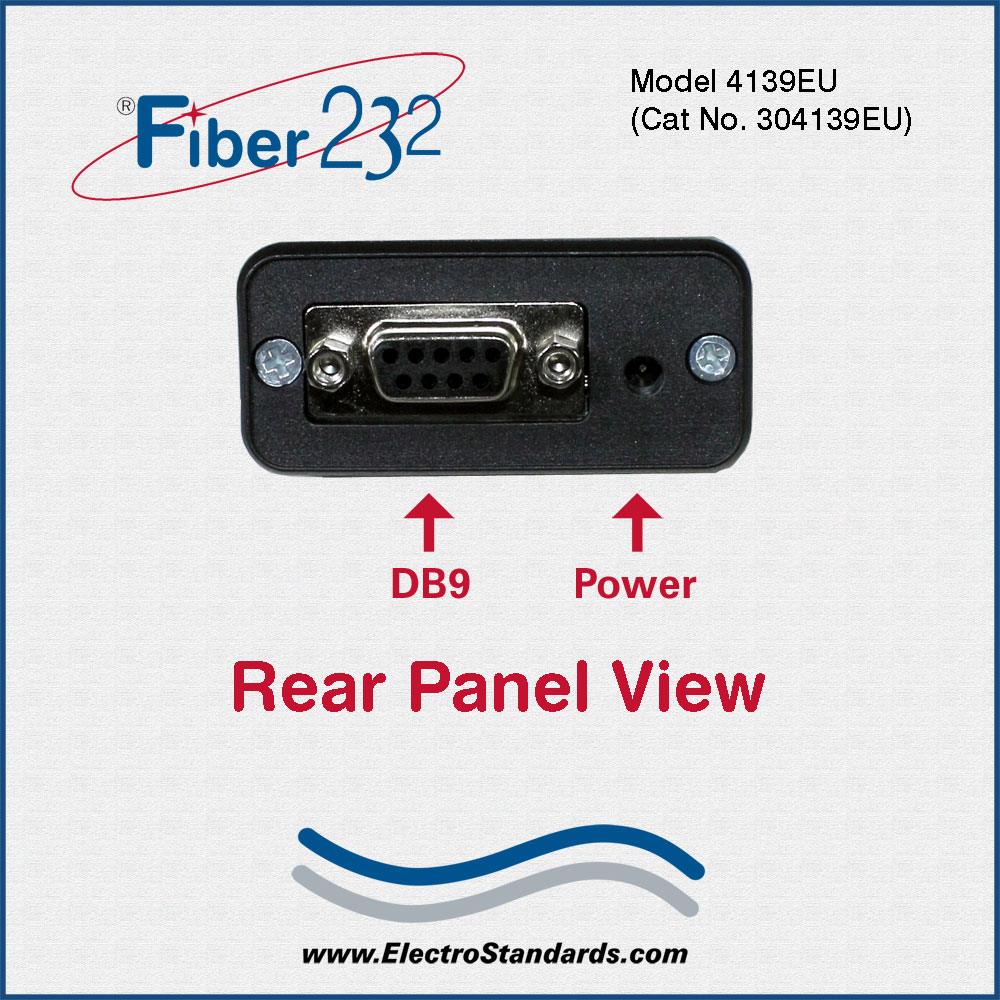

  • RS232 Connector:  DB9 Female port connector.
  • Optical Cable Type: 1mm plastic optical film.
  • Optical Wavelength: 660 nm (red).
  • External Power Supply: 120 VAC, 60 Hz wall mount power supply is included with each unit (Cat No 534194).
  • Dimensions: 2.24" x 1.1" x 3.88" (5.7cm x 2.8cm x 9.9cm).
  • Weight: 0.3 lb. (93.5 grams).
  • Status Display: Red LED.

Model 4139EU Interface Converter Application:

The HP VersaLink Fiber to RS232 Converters are used to connect fiber optic linked Video Lottery Terminals to a controller having an RS232 interface port. While RS232 is a versatile communication standard, conversion to a fiber optic communication standard also allows data transmission that is no longer susceptible to electrostatic or electromagnetic fields. Additionally, the ports of the connected terminals are protected from damage by potential differences (ground variations) that often exist between them.

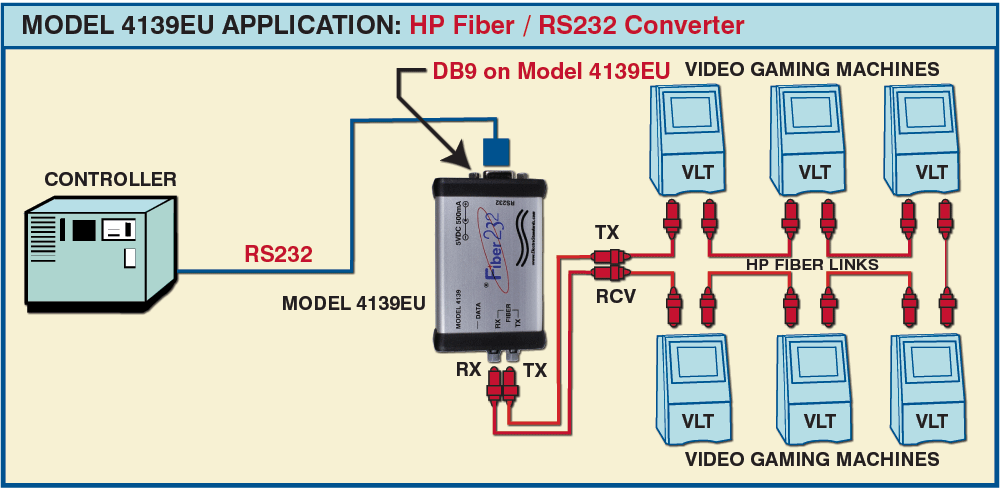

HP FIBER / RS 232 CONVERTER APPLICATION FOR CASINO NETWORKS LINKING VIDEO LOTTERY TERMINALS & VIDEO GAMING MACHINES.

The illustration shows a Controller connected to the Model 4139EU DB9 port and Video Gaming Machines linked to the HP/Agilent Versatile Link connectors via HP Versatile Link Plastic Core Cables.

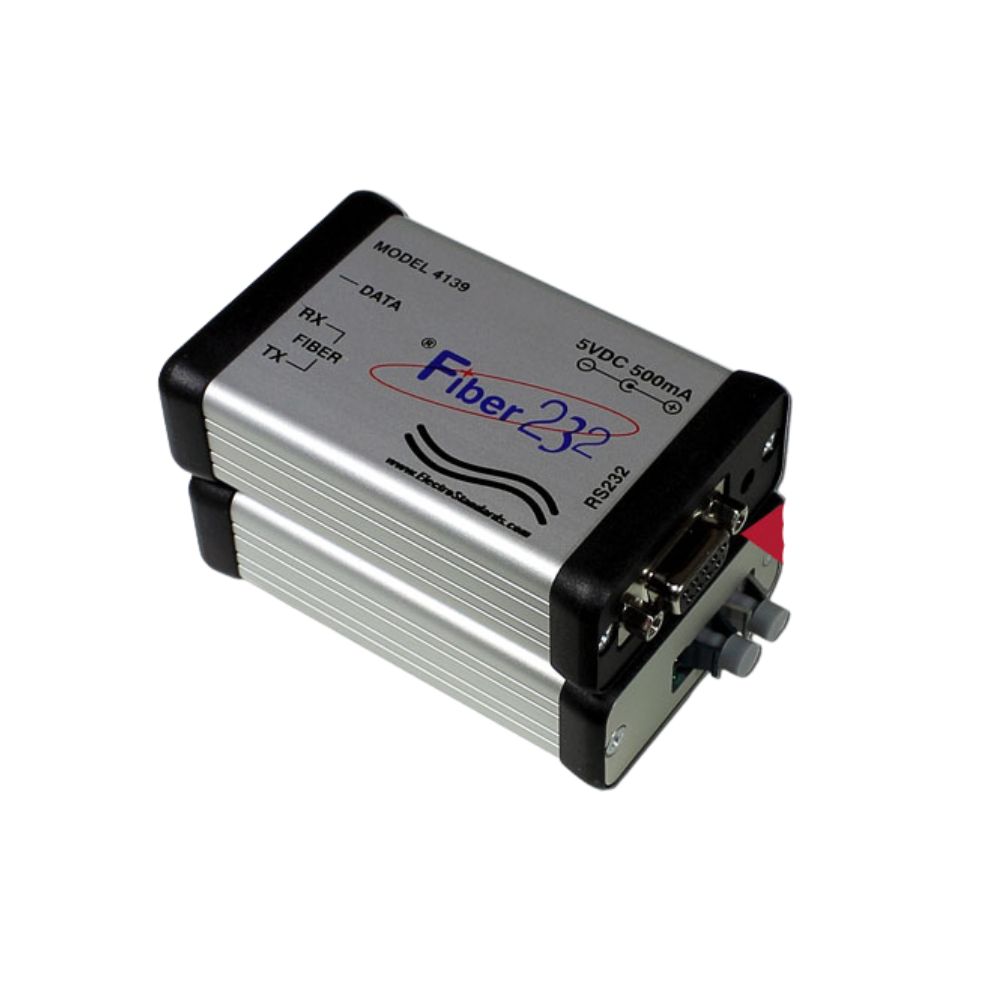

Model 4139EU HP Fiber-to-RS232 Converter



Model 4139EU HP Fiber to RS232 Converter Features:

  • RS232 connection via a DB9 connector.
  • Converts RS232 Serial Communication Interface to HP Versatile Link Plastic Core Cable.
  • Provides full galvanic isolation (no metallic connection) between connected devices.
  • Full duplex connection between HP Versatile Link fiber optic interface device or network and an RS232 interface device.
  • Allows the interference-free fiber optical transfer of data to be utilized by the device having an RS232 interface.
  • Data transfer rate up to 120 Kbps (enhanced RS-232).
  • Fiber connections via two standard Versatile Link connectors.
  • Model 4139 is configurable for use as DCE or DTE. It is factory configured as a DCE unless otherwise specified with order.To reconfigure the unit to a different setting in the field, jumpers on the board must be changed.
  • Maximum Link distance: greater than 500 meters (1640 feet) with 2.00 mm Hard Clad Silicon Fiber Cable.
  • Provided with external wall-mount power supply, UL approved.
  • The Model 4139EU media converter is ideal for European Casino Data Networks

POWER:  Provided with European 2-Pin external wall-mount power supply, Cat. No. 534194, 90-264 VAC, 50/60 Hz. The Model 4139EU comes with a power supply for use in Europe.

RS232 Signals
 Model 4139EU
 DTE
 Model 4139EU
 DCE
Model 4137EU
 Signal  Signal Direction
 DB9 Pin#

 DB9 Pin#

 RJ45 Pin#
 2  3  4  RXD  ← IN
 3  2  1  TXD  → OUT
 5  5  5  REF/GND

 Please check out Model 4137EU, Cat No 304137EU HP Fiber to RS232 interface Converter via an RJ45 connector.

Please check out our HP VersaLink Plastic Core Cables and Interface Converters on our Related products tab.
HP VERSATILE LINK PLASTIC CORE CABLES
 LENGTH  CATALOG NUMBER
 10 FEET  986625-010
 20 FEET  986625-020
 30 FEET  986625-030
 40 FEET  986625-040
 Custom length HP Fiber Cables Available
 Order: Catalog Number 986625 - Length (in feet)

Please check out our HP Versalink Plastic Core Cables and Interface Converters.

To view more of Electro Standards' Media Converters, click here: Interface Converters.

Electro Standards can supply all your Network Cable requirements. Click here to reach our FIBER OPTIC CABLES Webpage, or our COPPER NETWORK CABLES Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online custom product request form.

All data switches, data communication products, and data acquisition products are subject to a one-year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
