Catalog # 305527 - Model 5527 Display Unit for 5528 Video Conference Room Switch

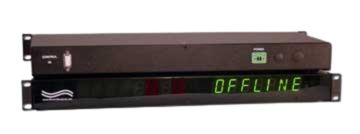

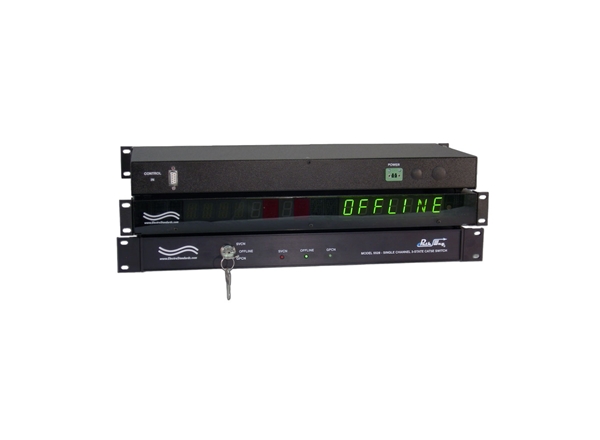

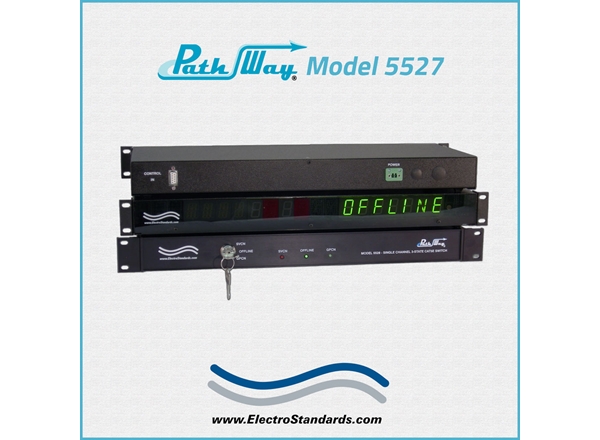

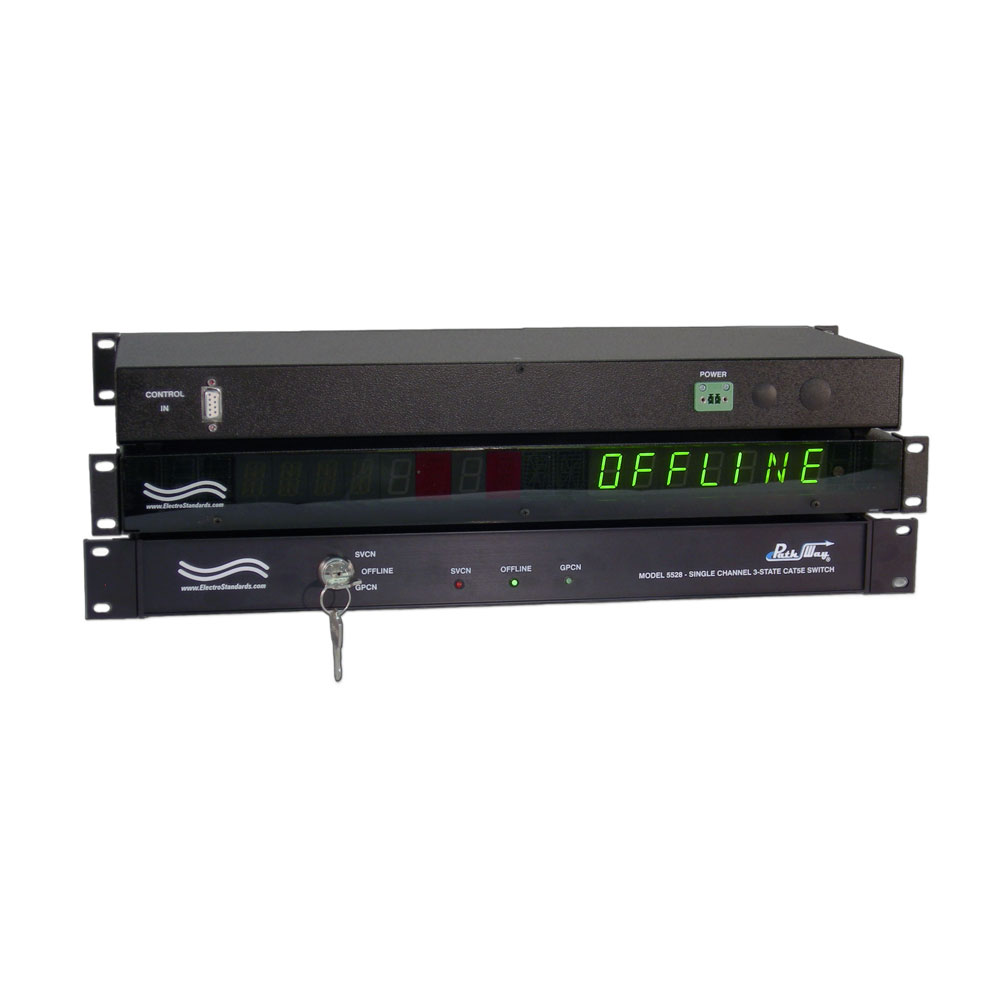

    SVCN/GPCN/OFFLINE Display For 5528SVCN/GPCN/OFFLINE Display For 5528
Click image to enlarge
    • SVCN/GPCN/OFFLINE Display For 5528
    • SVCN/GPCN/OFFLINE Display For 5528
Base Price:
Catalog No: 305527
Model No: 5527
Positions:3, Offline
Cable Type/Port Connector:DB9 Switch Ports
Security:Offline Position


Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request


 Video Conference Room Switch, Display Indicators
 Model 5527 SVCN/GPCN/OFFLINE Display Indicator Unit

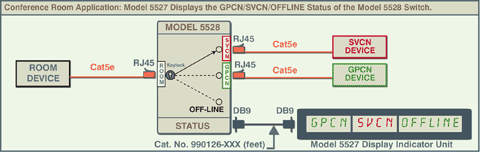

  • Conference Room Application:  Model 5527 Displays the GPCN/SVCN/OFFLINE Status of the Model 5528 Switch.
 5527 SVCN/GPCN/OFFLINE Display Indicator Unit for Model 5528 Switch

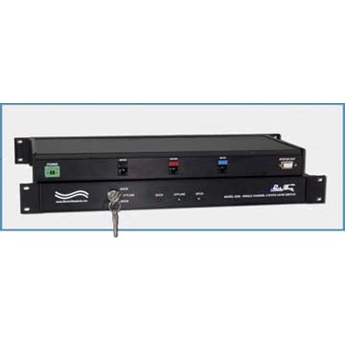

Use with Model 5528 3-State Cat5e Switch to Create a Robust Conference Communications Switching System.  Great for Video Conference Rooms!

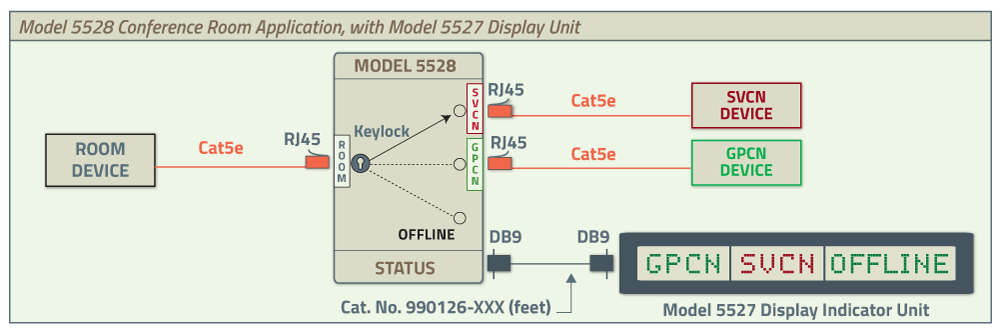

 Conference Room Network Application Diagram for Model 5527 Display Indicator Unit

The Model 5527 is designed to display the isolation/connection status of communications equipment.  This equipment comprises a switching system that includes the Model 5528 Single Channel 3-State Cat5e switch.  Users can link these units to creat a robust conference communications switching system.  The dimensions of the Model 5527 are 1.75"H x 8"D x 19"W and the unit mounts in a standard 19" equipment rack.  The unit weight is approximately 2.0 lbs.

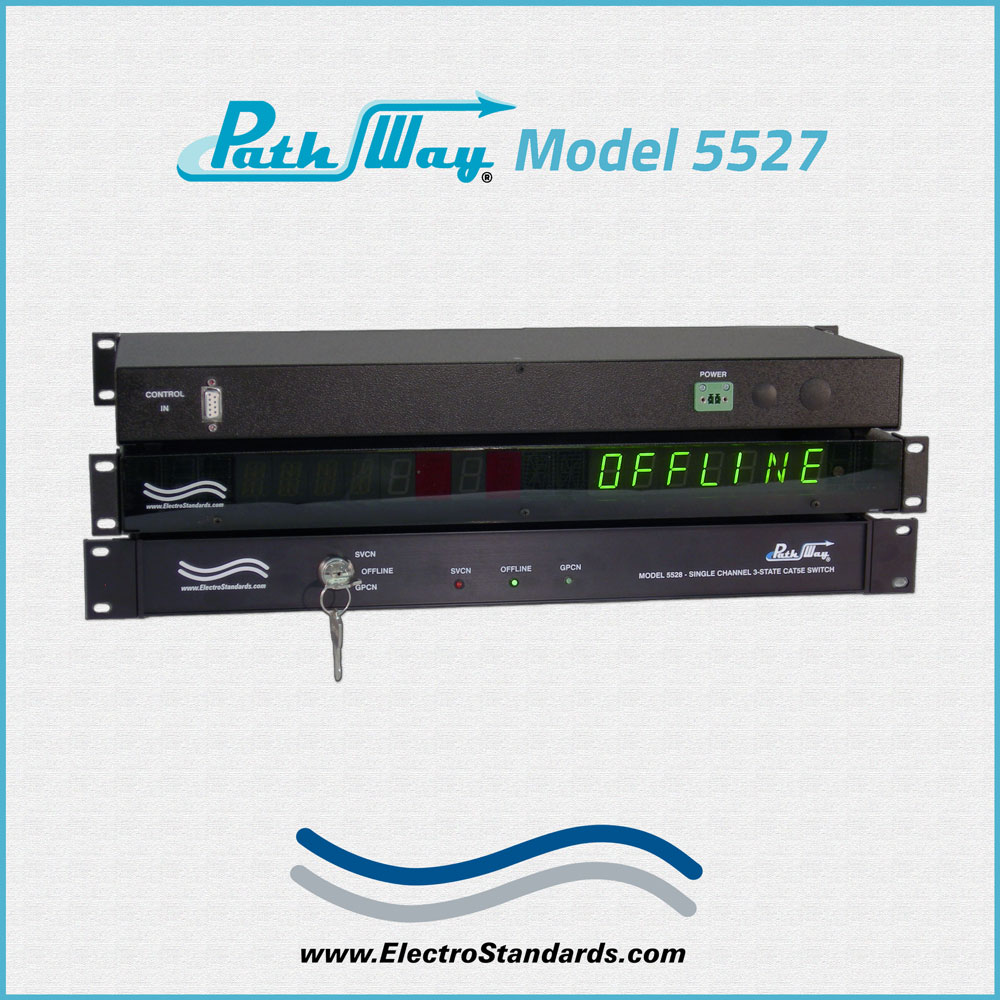

Model 5527 SVCN/GPCN/OFFLINE Display Indicator Unit for Model 5528

Model 5527 Display Indicator Unit showing the GPCN position
of the Model 5528, Cat. No. 305528
 Model 5527 SVCN/GPCN/OFFLINE Display Indicator Unit for Model 5528
Model 5527 Display Indicator Unit showing the SVCN position
of the Model 5528, Cat. No. 305528
  • Single line LED Display indicates isolation state (OFFLINE status), and connection state (GPCN or SVCN) of conference room equipment.
  • Display Indicator units connect to status ports of ESL switch units that are designed to provide status via contact open close state.
  • Display is always showing one of the three possible states.
  • Control port for linking the Model 5527 to the Model 5528 switch.
  • Installs in a standard 19" equipment rack.
    Occupies only 1U height (1.75").
  • The front panel LED Display on the Model 5527 will display the SVCN, GPCN, and OFF-LINE status of the switch system.
  • Power: UL approved 120 VAC, 60 Hz wall mount power module supplies 12VDC, 500mA to the unit.
OPTION: WIDE RANGE POWER MODULE (Cat No. 517277) CE and UL listed table mount power module, 100VAC/240VAC, 50Hz/60Hz in place of standard 115VAC or 120VAC power module.  Ideal for international applications. Click Product Accessories Tab!

Custom Network Switches are available. Contact us by phone, email, or complete the Online Custom Products Form. /Products-Custom/Copper-Switch/

 Electro Standards can supply all of your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

All data switch boxes, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
