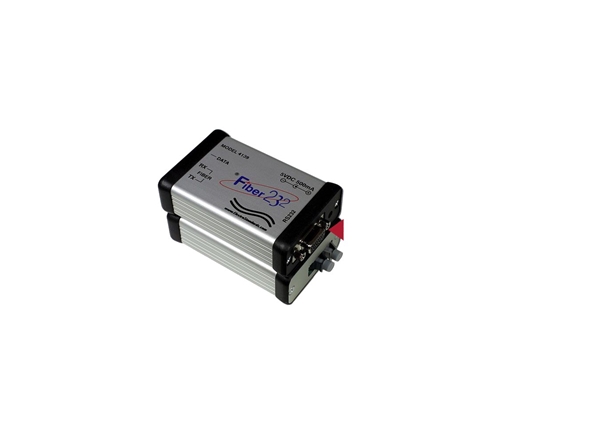

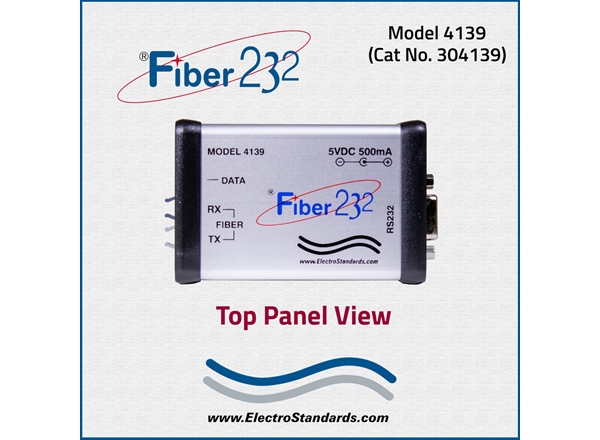

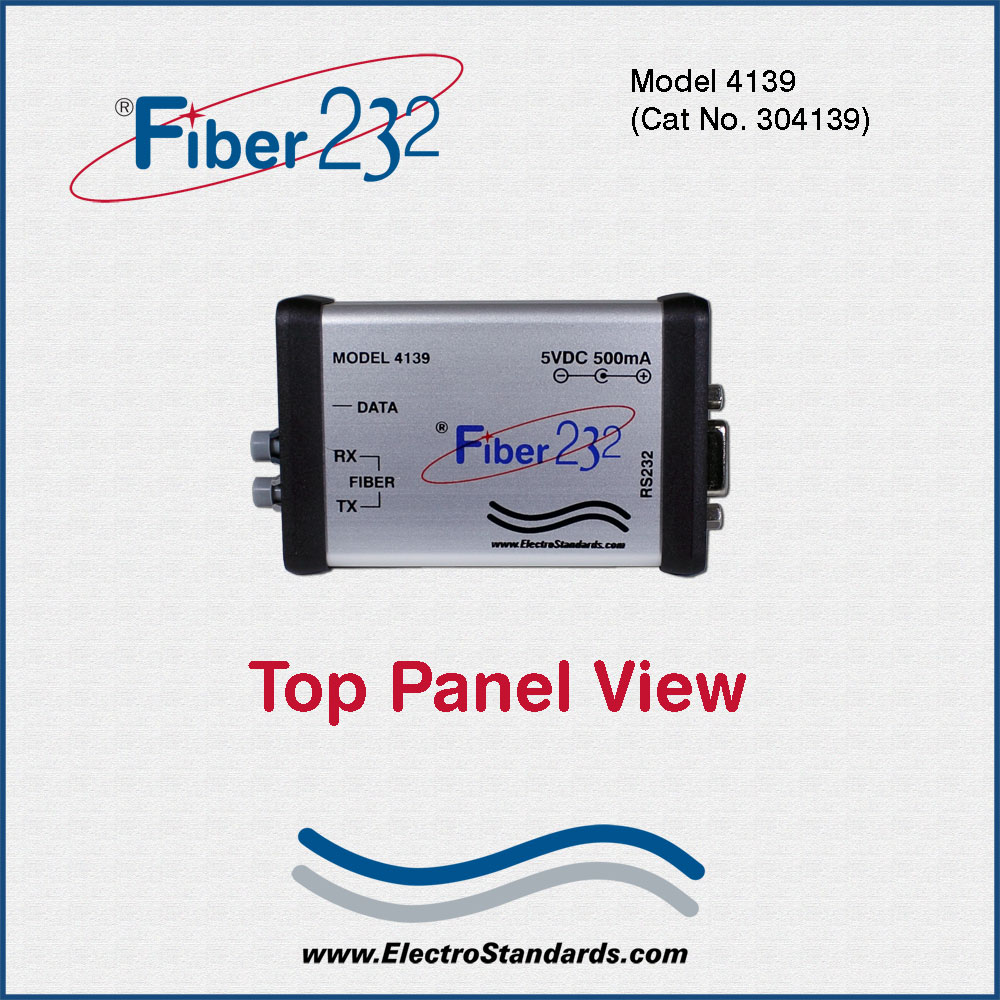

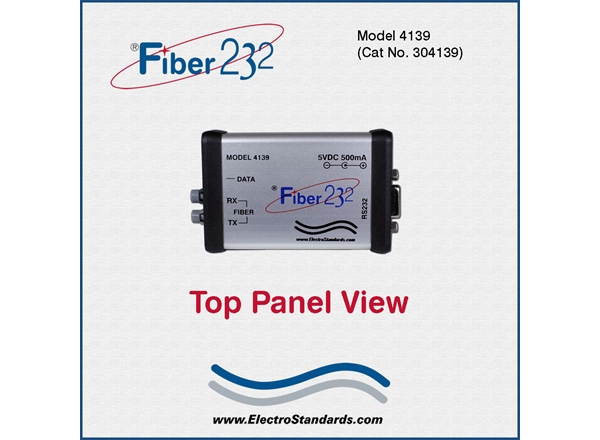

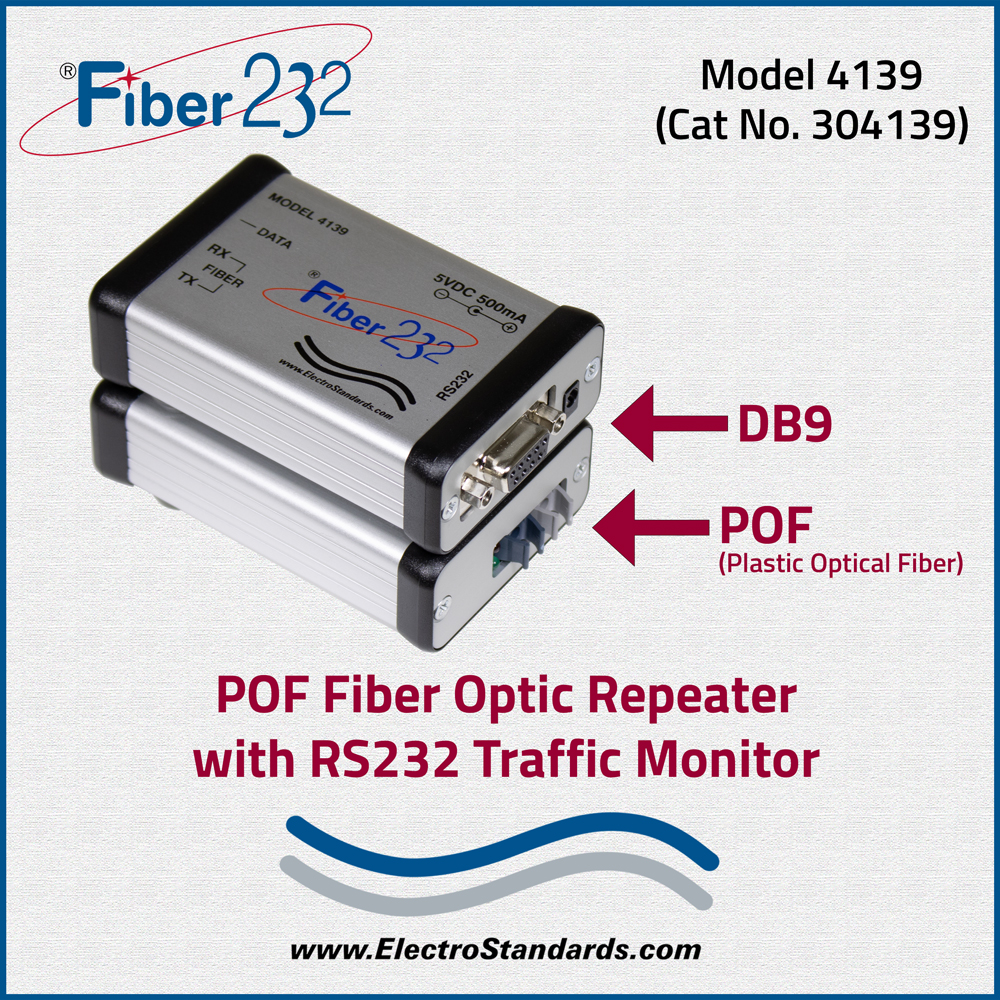

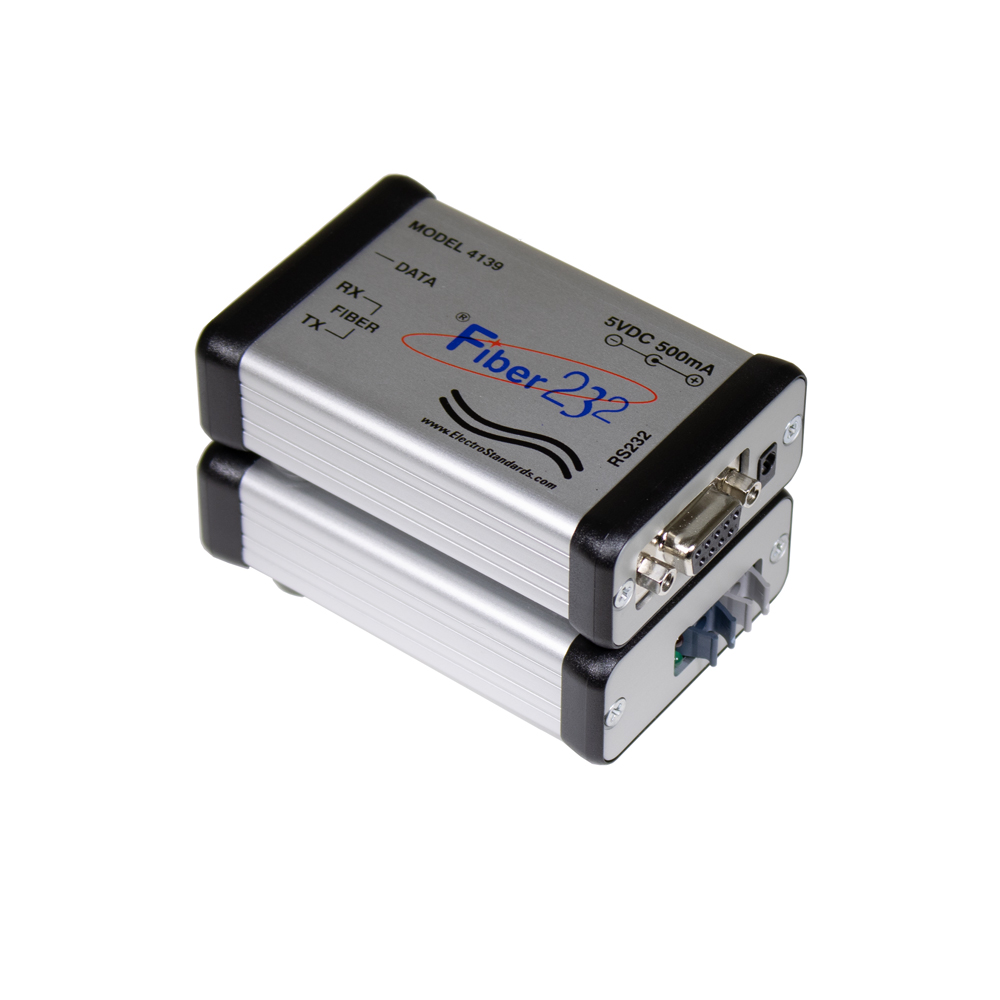

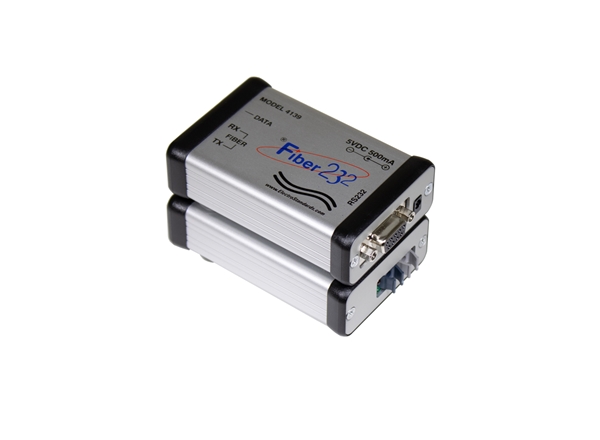

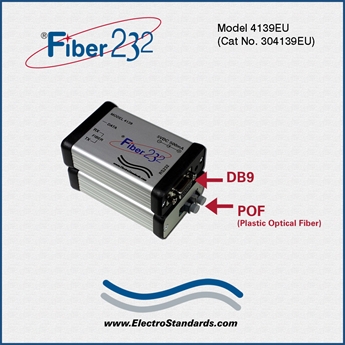

Fiber 232® Model 4139 (POF) Plastic Optical Fiber to RS232 Converter
Allow Connection of POF Plastic Fiber Optic Linked Terminals to RS232 Port of Controller
Provides Electrical-to-Optical, Optical-to-Electrical Conversion
Ideal for Casino Networks, Laboratories, or ANY Network Linking Terminals or Machinery to a Controller.
- Data Transfer Rate: Up to 120 Kbps (enhanced RS-232).
- Fiber Transmission Distance: 75m (250 ft.) using TC 1000 W type plastic fiber cable.
- RS232 Transmission Distance: Greater than 15 m (50 ft.).

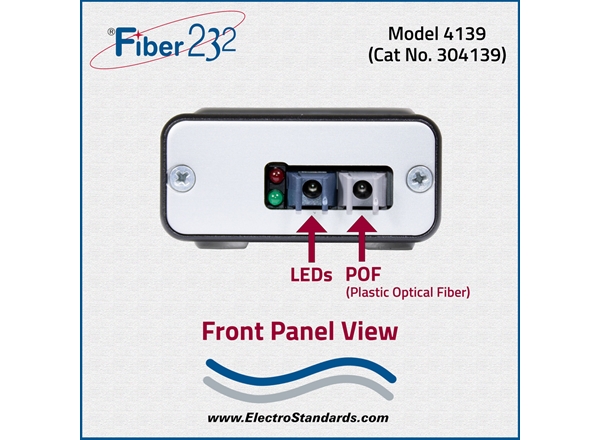

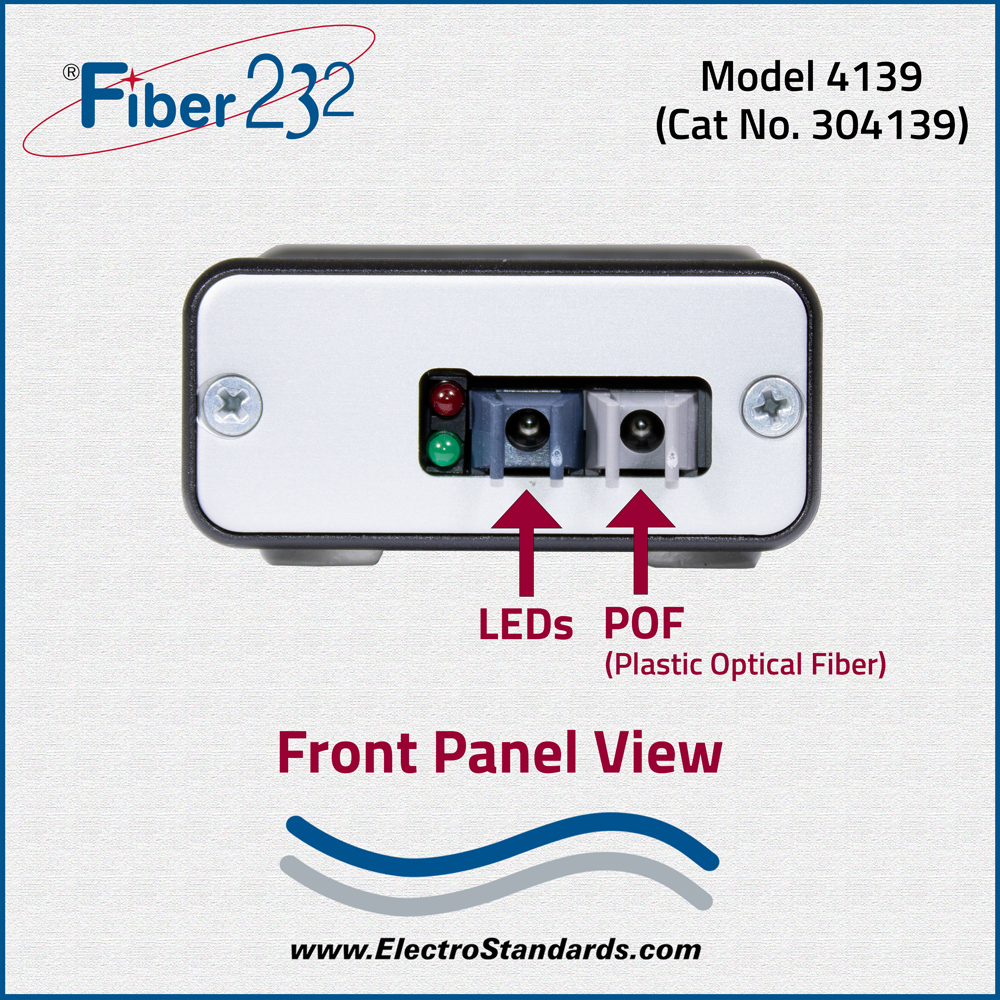

- Optical Fiber Connectors: HP/Agilent Versatile Link

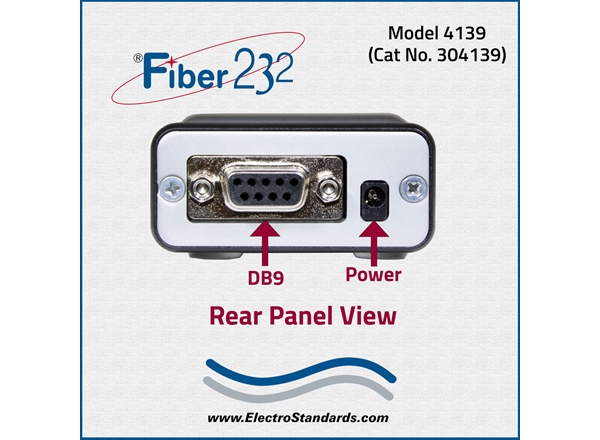

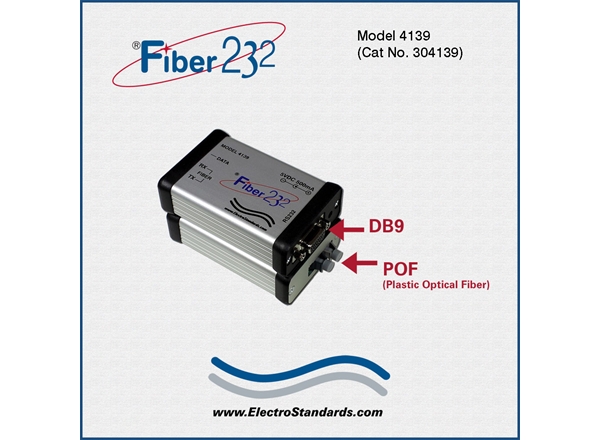

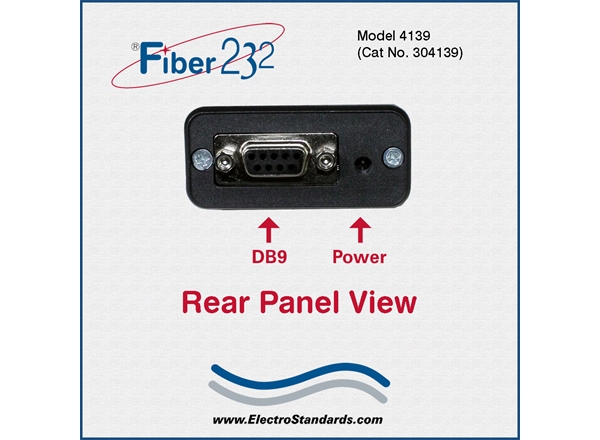

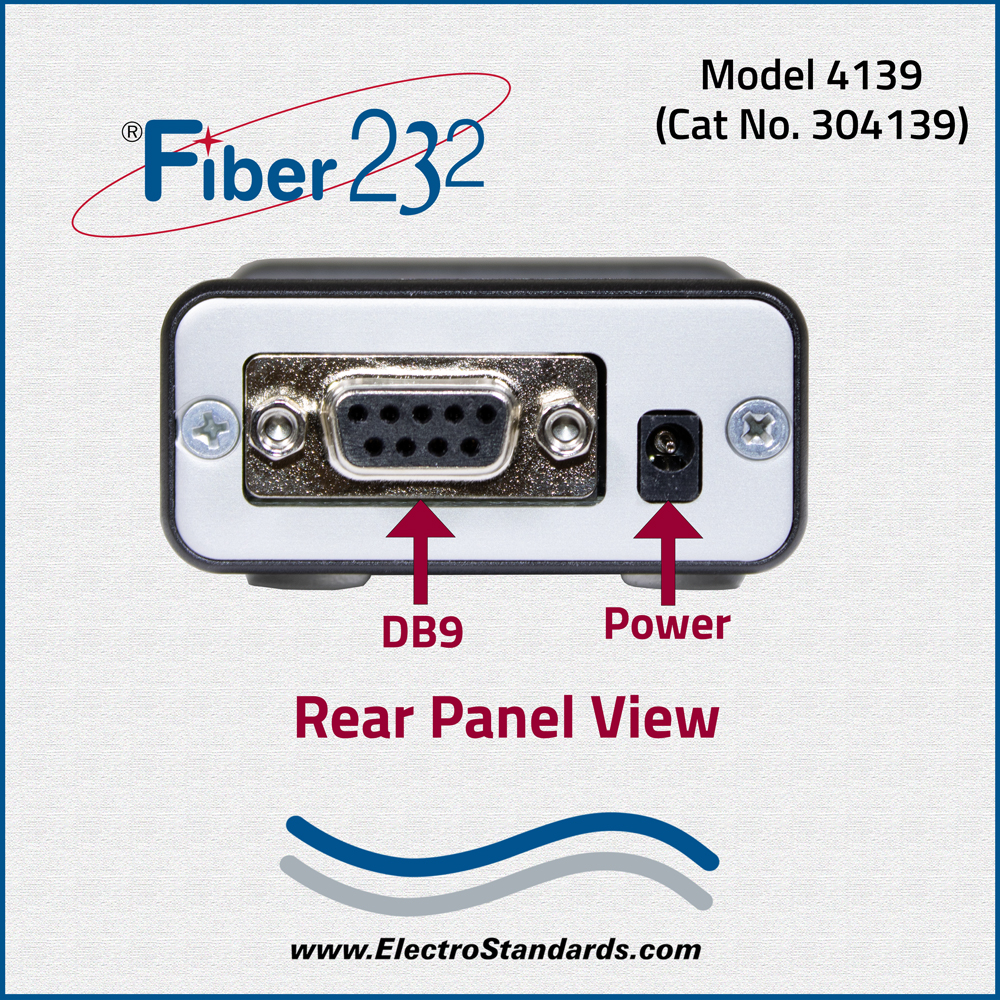

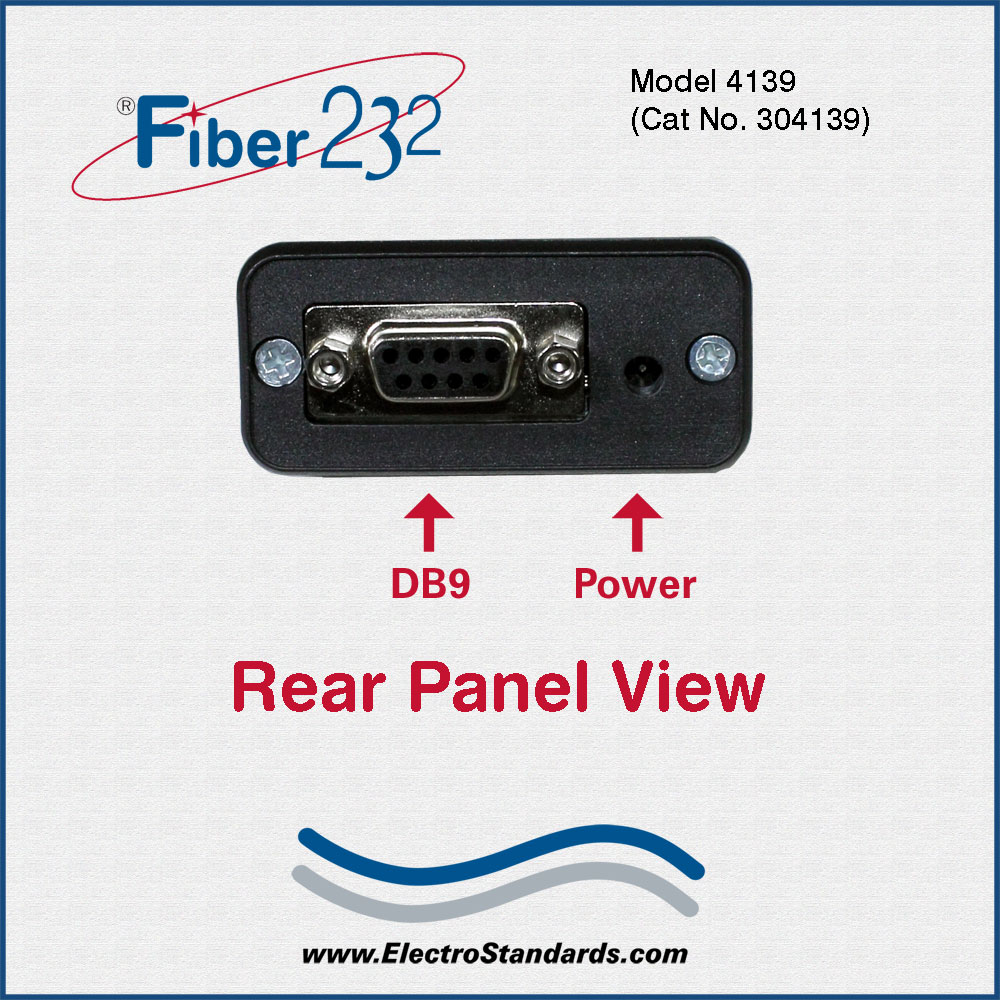

- RS232 Connector: DB9 Female on Model 4139 HP Fiber / RS232 Converter.

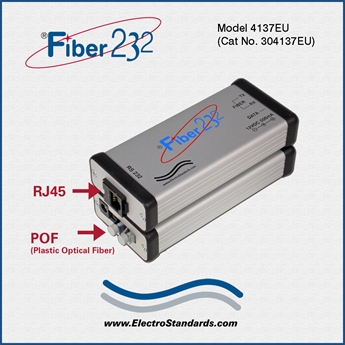

- See Model 4137 HP Fiber / RS232 Converter for an RJ45 connector.
- Optical Cable Type: 1mm plastic optical film.
- Optical Wavelength: 660 nm (red).
- External Power Supply: 120 VAC, 60 Hz wall mount power supply is included with each unit (Cat No 533973).
- Dimensions: 2.24" x 1.1" x 3.88" (5.7cm x 2.8cm x 9.9cm).
- Weight: 0.3 lb. (93.5 grams).
- Status Display: Red LED.
Model 4139 Interface Converter Application:
The HP VersaLink Fiber to RS232 Converters are used to connect fiber optic linked Video Lottery Terminals to a controller having an RS232 interface port. While RS232 is a versatile communication standard, conversion to a fiber optic communication standard also allows data transmission that is no longer susceptible to electrostatic or electromagnetic fields. Additionally, the ports of the connected terminals are protected from damage by potential differences (ground variations) that often exist between them.
HP FIBER / RS 232 CONVERTER APPLICATION FOR CASINO NETWORKS LINKING VIDEO LOTTERY TERMINALS & VIDEO GAMING MACHINES.

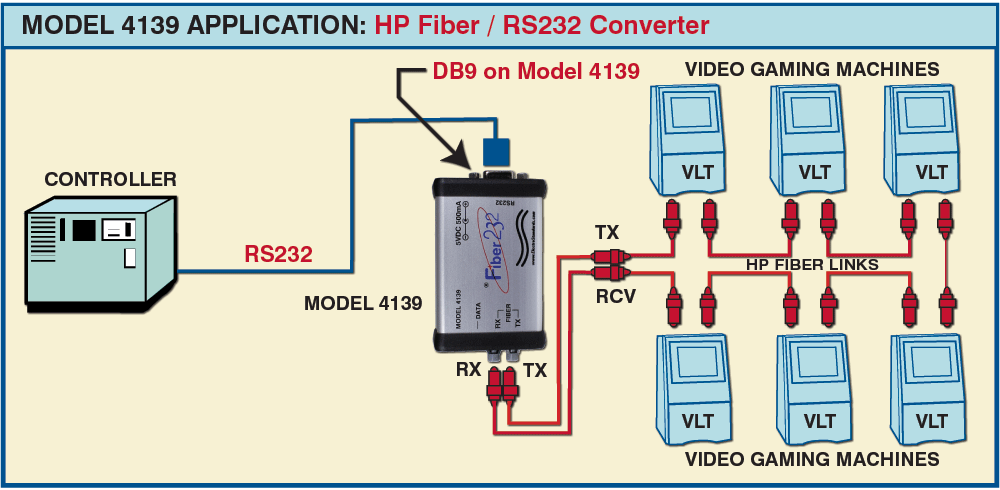

The illustration shows a Controller connected to the Model 4139 DB9 port and Video Gaming Machines linked to the HP/Agilent Versatile Link connectors via HP Versatile Link Plastic Core Cables.
Model 4139 HP Fiber to RS232 Converter Features:
- RS232 connection via a DB9 connector.
- Converts RS232 Serial Communication Interface to HP Versatile Link Plastic Core Cable.
- Provides full galvanic isolation (no metallic connection) between connected devices.
- Full duplex connection between HP Versatile Link fiber optic interface device or network and an RS232 interface device.
- Allows the interference-free fiber optical transfer of data to be utilized by the device having an RS232 interface.
- Data transfer rate up to 120 Kbps (enhanced RS-232).
- Fiber connections via two standard Versatile Link connectors.
- Model 4139 is configurable for use as DCE or DTE. It is factory configured as a DCE unless otherwise specified with order.To reconfigure the unit to a different setting in the field, jumpers on the board must be changed.
- Maximum Link distance: greater than 500 meters (1640 feet) with 2.00 mm Hard Clad Silicon Fiber Cable.
- Provided with external wall-mount power supply, UL approved.
- The Model 4139 media converter is ideal for casino data networks
| Model 4139
| Model 4139
| Model 4137
|| Signal Direction
| DB9 Pin#
| RJ45 Pin#
|| ← IN
|| → OUT
Please check out Model 4137, Cat No 304137 HP Fiber to RS232 interface Converter via an RJ45 connector.
