Model 7322 8-Channel RJ45 Cat6 A/B Switch, Manual Control, Simultaneous Control, Catalog #307322

    8-Channel RJ45 Cat6 A/B Switch8-Channel RJ45 Cat6 A/B Switch8-Channel RJ45 Cat6 A/B Switch8-Channel RJ45 Cat6 A/B Switch
Click image to enlarge
    • 8-Channel RJ45 Cat6 A/B Switch
    • 8-Channel RJ45 Cat6 A/B Switch
    • 8-Channel RJ45 Cat6 A/B Switch
    • 8-Channel RJ45 Cat6 A/B Switch
Base Price:
$3,427.00
Catalog No: 307322
Model No: 7322
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:8
Manual Control/No Power Required:LineSelect® Manual Operation
Channel Control:Simultaneous Channel Control
Compliance/Standards:Cat6
Configuration:Rackmount
Pins Switched:8 pins
Local Control:Rotary Knob

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

LineSelect® Model 7322 8-Channel RJ45 Cat6 A/B Switch, Manual, Simultaneous Control, Rackmount

Overview

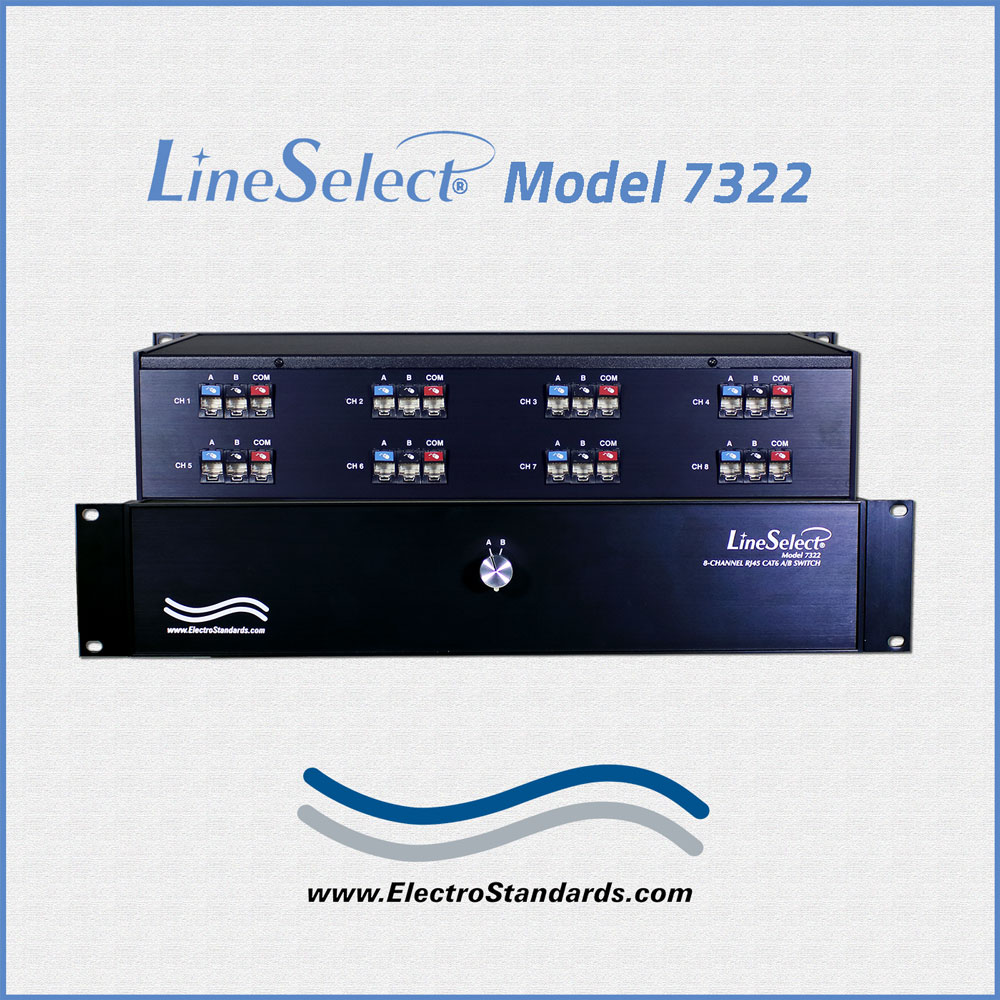

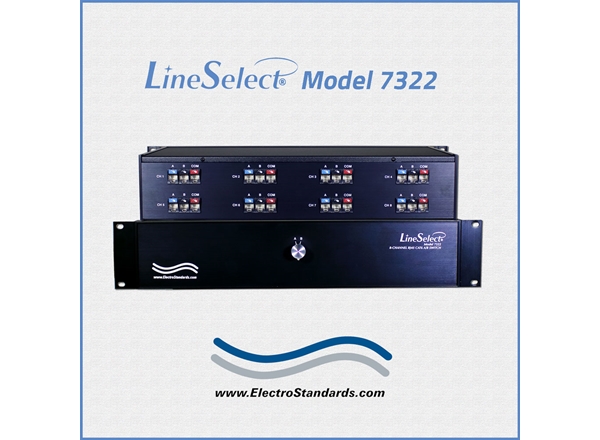

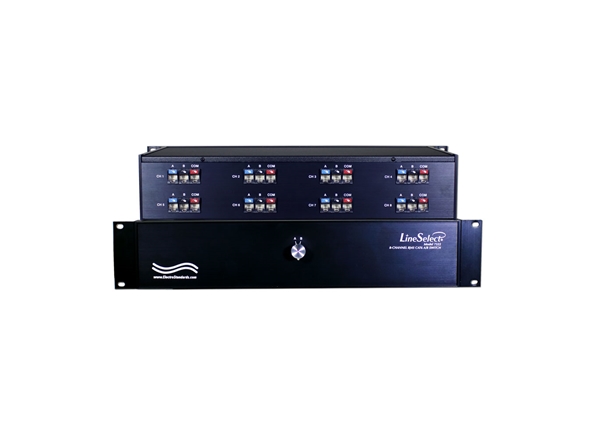

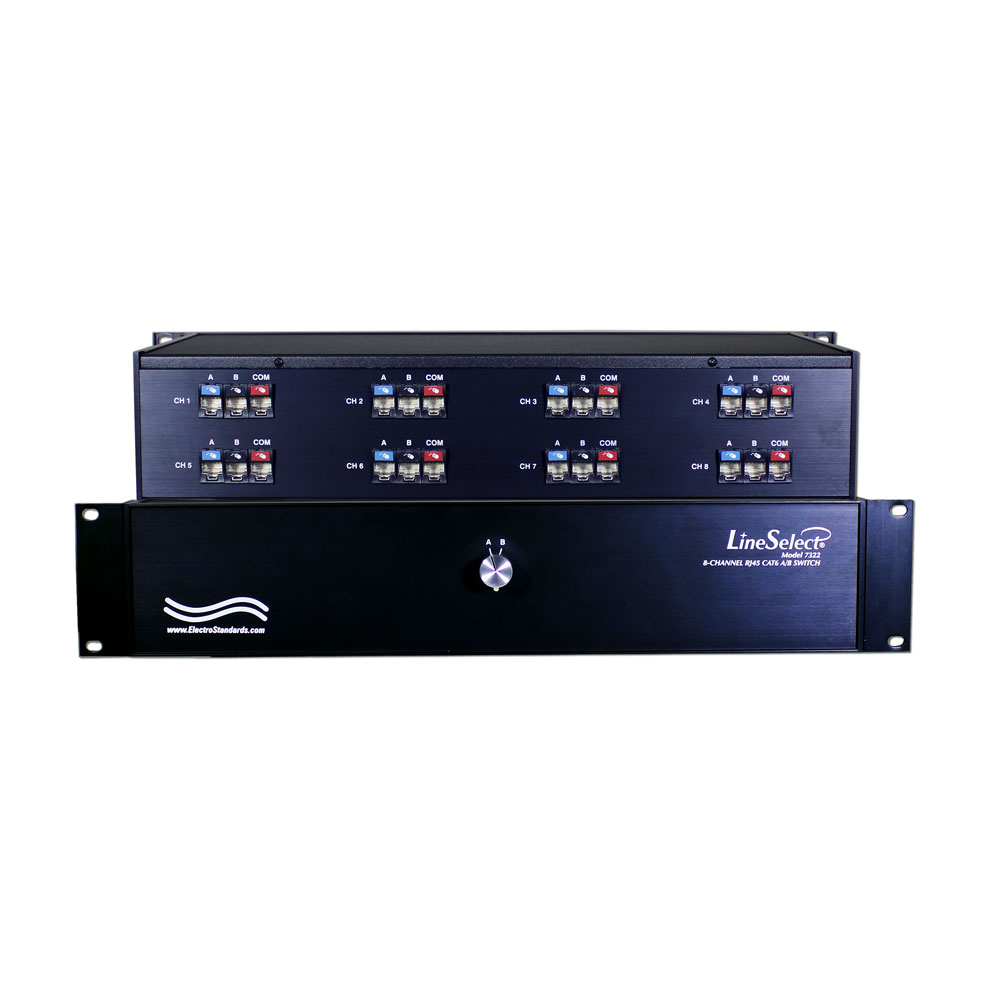

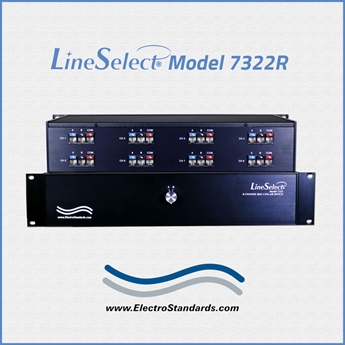

The LineSelect® Model 7322 8-Channel RJ45 Cat6 A/B Switch.  All eight channels switch to A or B simultaneously. Each of the eight channels reroutes data from its COMMON port to its A or B port depending on switch position. The unit supports all 8 pins of the RJ45 Cat6 interface. The Model 7322R is enclosed in a 2U, full rack size, all metal black chassis designed to provide EMI/RFI shielding.

  •  All Ports are Shielded RJ45 Connectors

  • Applicable to switching ANY RJ45 Interface, quickly and reliably

FEATURES OF THE MODEL 7322 8-CHANNEL A/B SWITCH:

  • LineSelect® Model 7322 allows quick connection to any one of two devices from one Common device for each channel.
  • Certified Cat 6 Compliance.
  • All ports are shielded RJ45 connectors.
  • All 8 pins of the RJ45 interface are switched via break-before-make rotary switch.
  • The switch ports are transparent to all data.
  • Simultaneously switches both channels via front-panel rotary switch.
  • High quality sealed switch with self-wiping precious metal contacts.
  • Eliminates the need to plug and unplug cables.
  • No external power is required.
  • Rackmount configuration.
  • Attractive all metal black box packaging provides EMI/RFI shielding.
  • Lifetime warranty against manufacturing defects.
  • Custom length Cat6 cables available for your switch application.

TECHNICAL SPECIFICATIONS:

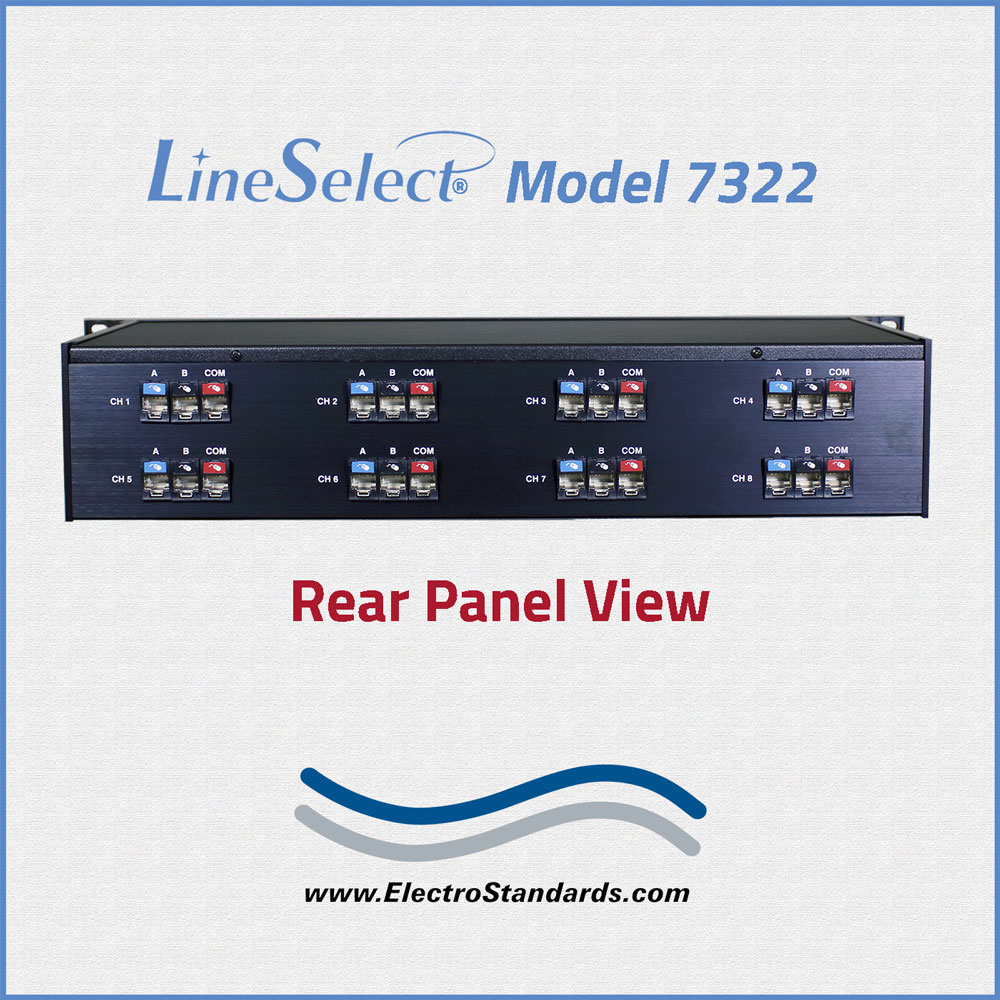

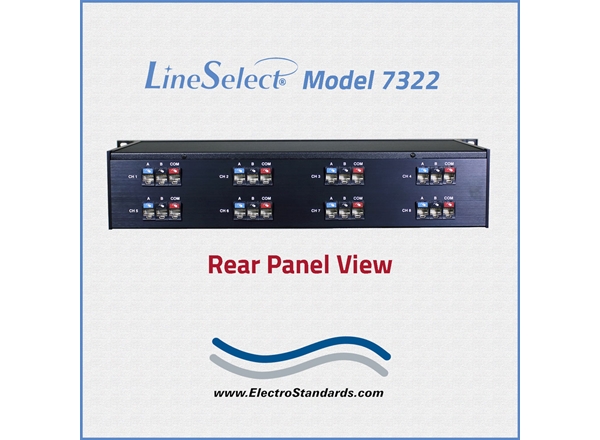

  • PORT CONNECTORS: (3) RJ45 shielded connectors labeled A, B, and COMMON, for each of the Channels 1-8.

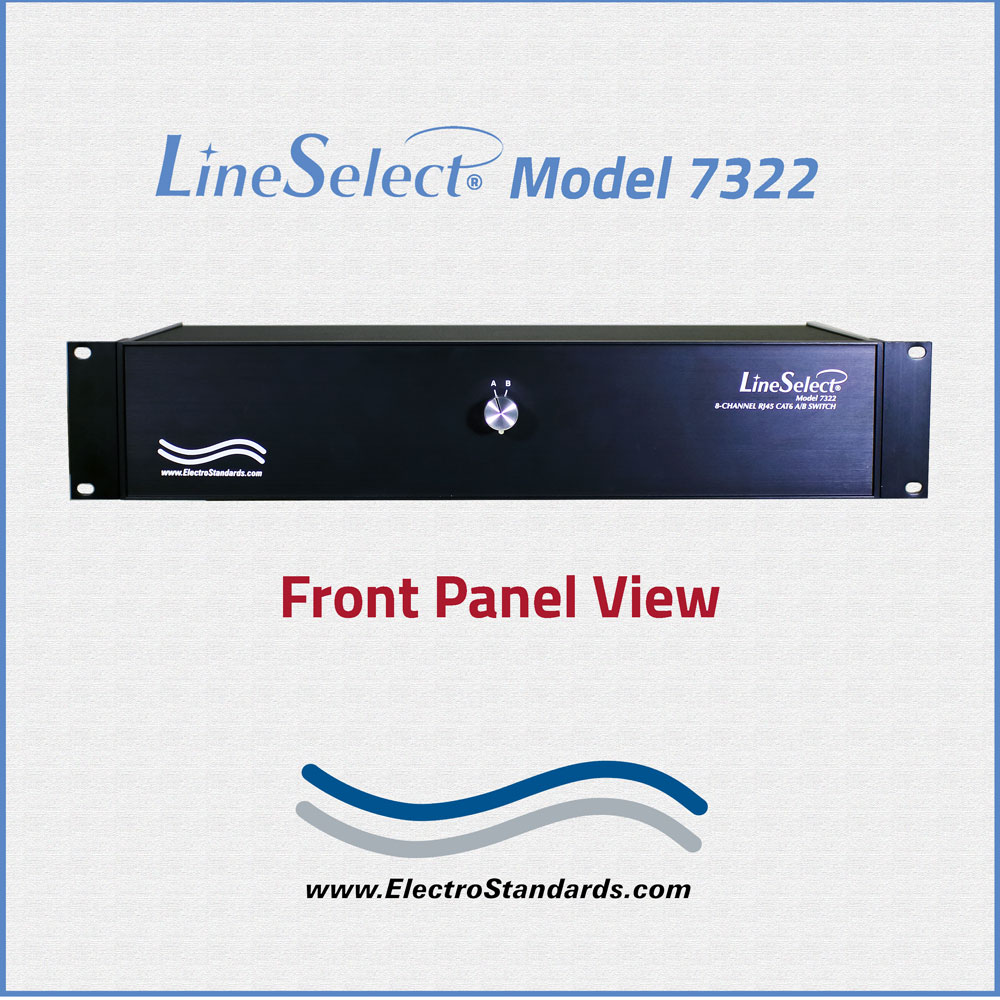

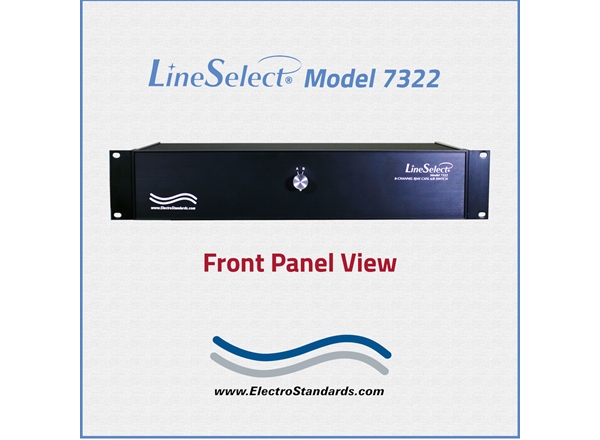

  • FRONT PANEL CONTROLS: (1) Rotary switch on front panel selects A or B for all eight channels, simultaneously.
  • POWER: No power required. Manually operated.
  • DIMENSIONS: Rackmount 19" W x 3.5" H x 8.75" D. (48.3 x 8.9 x 22.3 cm)
  • WEIGHT: Approximately 6.3 lbs. (2.9 kg)

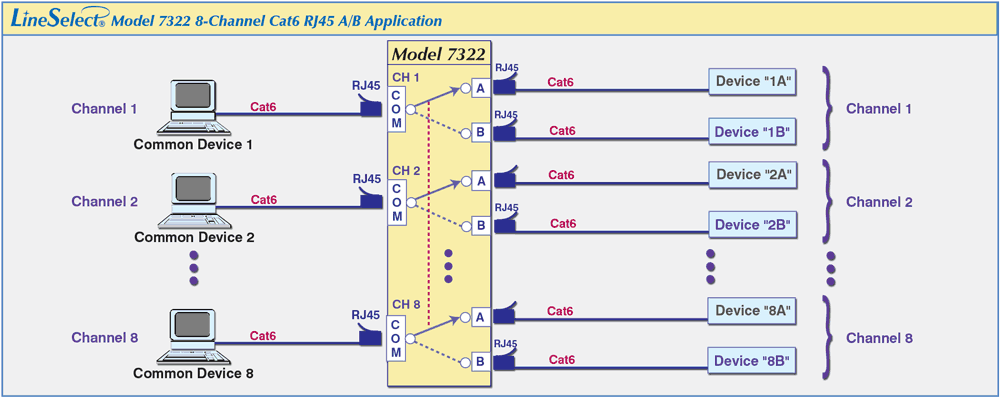

LineSelect® Model 7322 8-Channel RJ45 Cat6 A/B Application: Shielded RJ45 Connectors, Category 6

For each of 8 channels, a COMMON Device is connected to a COMMON port with access to two devices connected to Ports A and Port B. All of the 8 channels are switched simultaneously from Position A to Position B and from Position B to Position A.

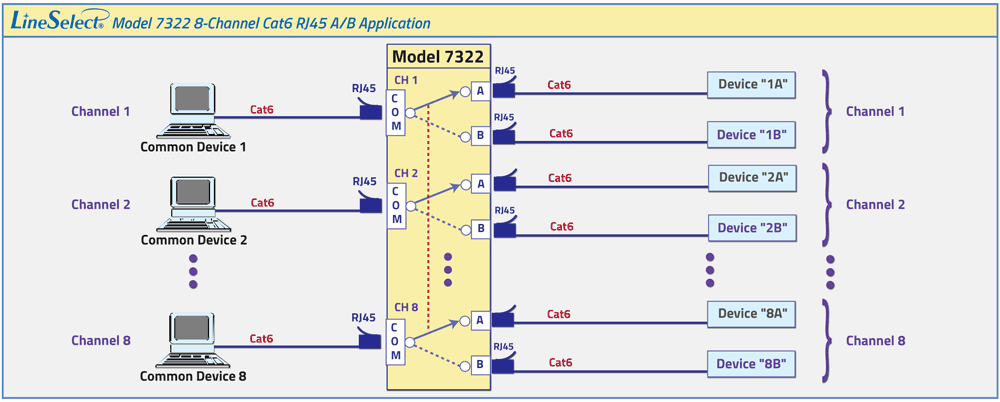

LineSelect® Model 7322 8-Channel RJ45 Cat6 A/B Switch application

Ordering Information

  • Catalog Number: 307322
  • Model Number: 7322
  • Base Price: See website or contact us for current pricing and availability.

Documentation & Support

  • Specification Sheet (PDF) Download Available.
  • Product Manual available upon request.
  • For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
  • We welcome international inquiries and ship worldwide.
