LineSelect® Model 9028 Single Channel USB 2.0 A/B Switch Module

Overview

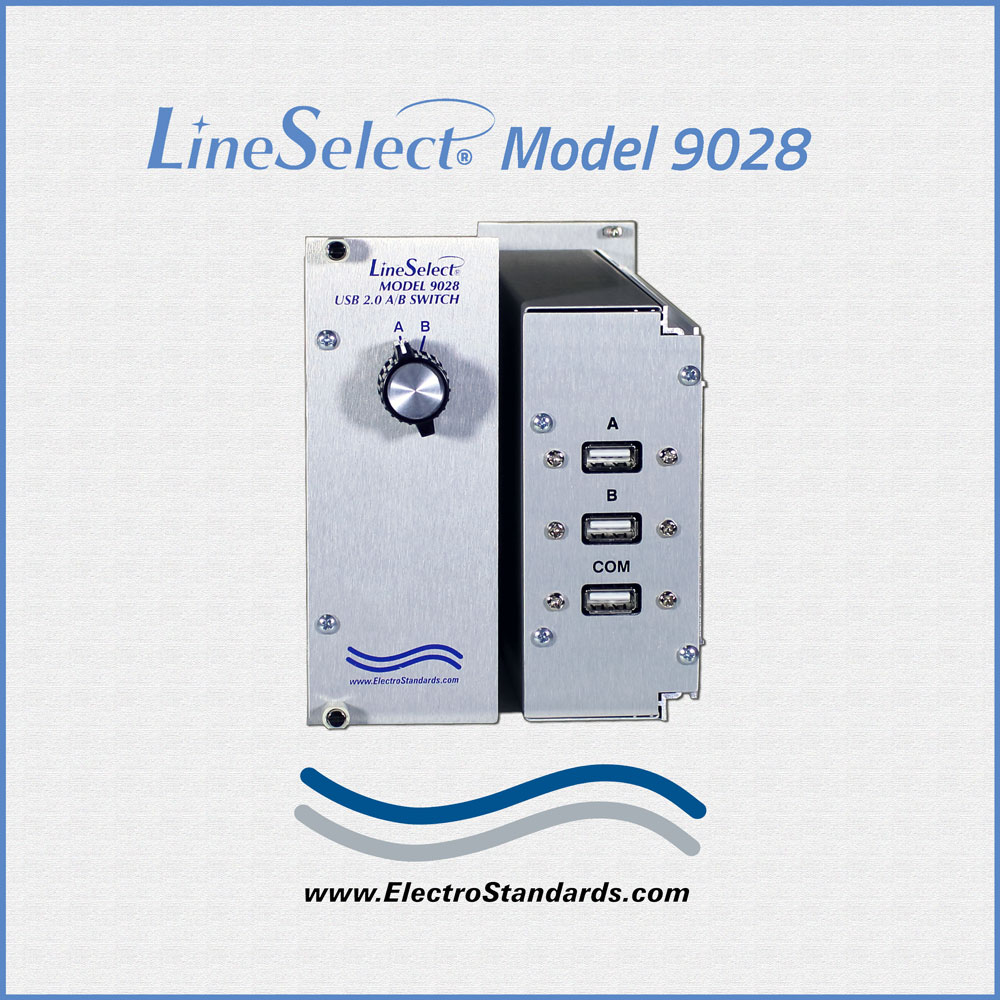

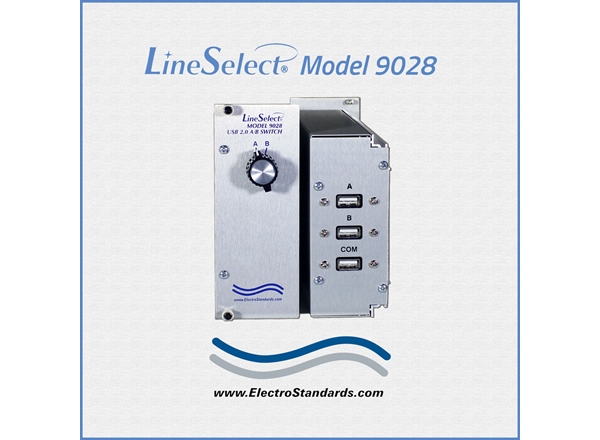

The LineSelect® Model 9028 USB 2.0 Switch Module allows the user the capability of sharing a single device connected to the COMMON port among two devices connected to the “A” and “B” ports. The switch may be controlled manually via the front panel rotary switch. The Model 9025 Rack accommodates up to 8 Model 9028 Open Frame Switch Modules. Expand the system of switches by adding modules, as your requirement grows.

Switch between two 2.0 Type-A Devices to one COMMON 2.0 Type-A Device without having to disconnect cables.
Perfect to connect a device to multiple PC’s USB 2.0 Devices.
Modular approach allows system expansion to meet your needs.

FEATURES OF THE MODEL 9028 SINGLE CHANNEL A/B SWITCH:

Allows quick connection to any one of two USB Type-A interface devices from one COMMON device!
Eliminates the need to plug and unplug cables.
Compatible with Hi-Speed USB 2.0 devices.
The switch ports are transparent to all data.
All (4) pins of the USB interface are switched via break-before-make rotary switch.
No external power required.
Up to eight Model 9028 Switch Modules can be housed in one Model 9025 Rack Chassis.
Add more modules having various switch functions as your system grows.
Lifetime warranty against manufacturing defects.

TECHNICAL SPECIFICATIONS:

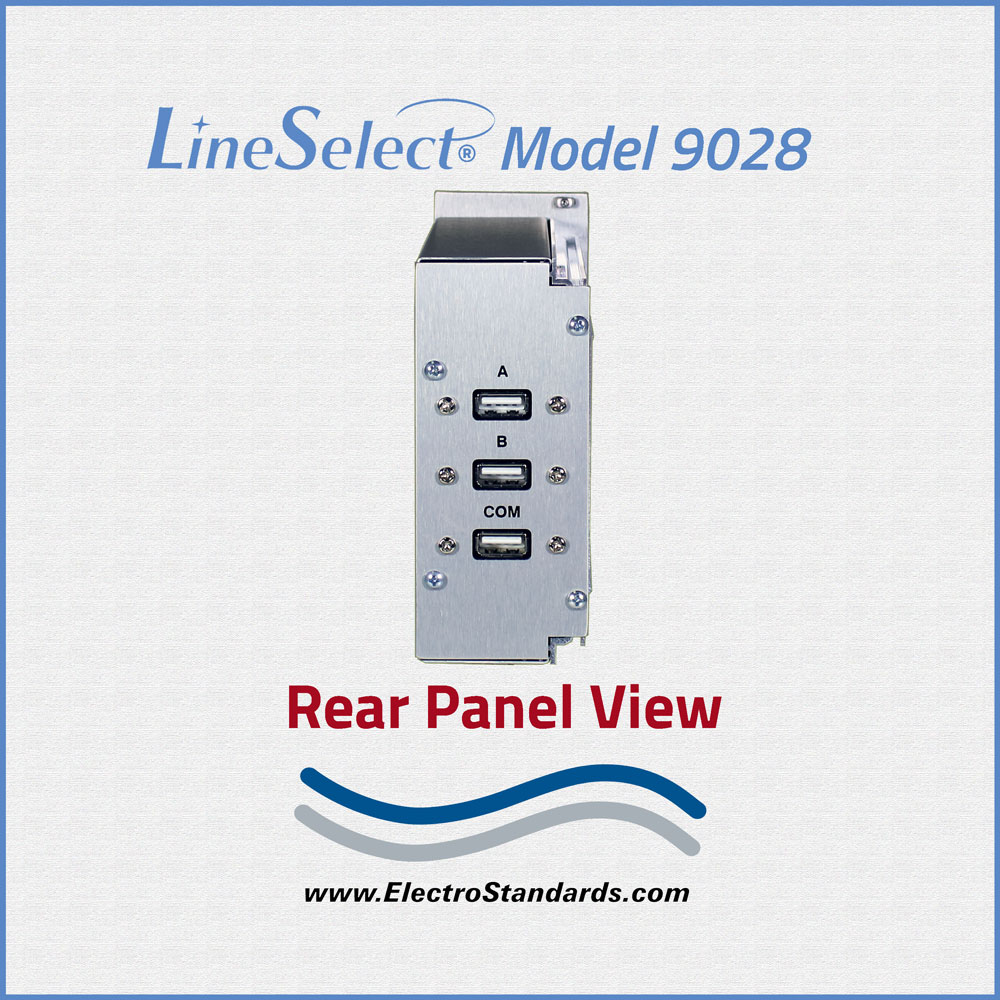

PORT CONNECTORS: (3) USB 2.0 Type-A connectors labeled A, and B, and COMMON.

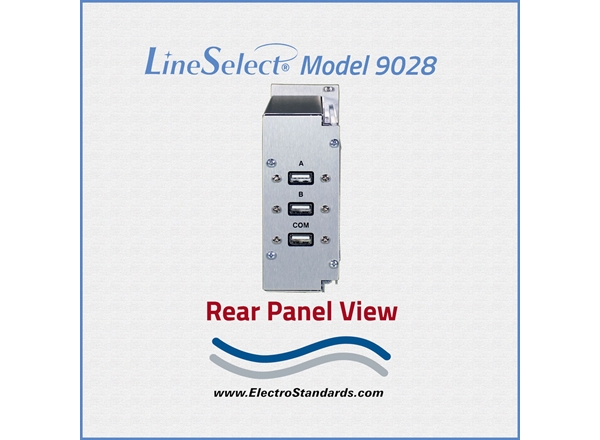

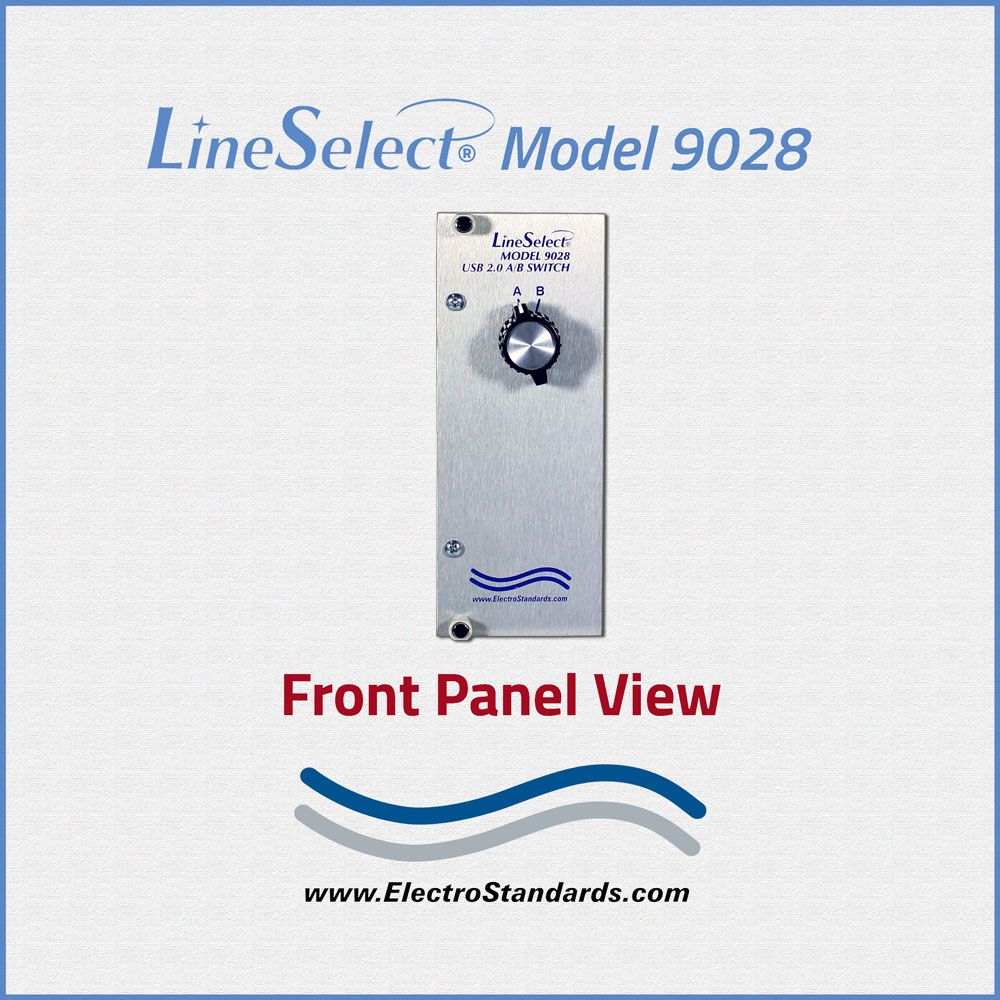

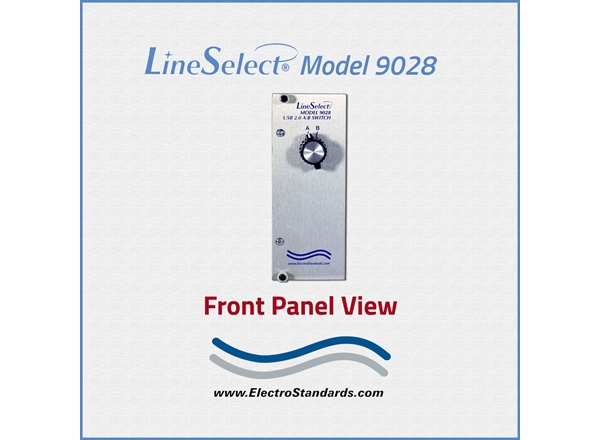

FRONT PANEL CONTROL: (1) Rotary switch allows local switching.
POWER: Manually operated. No power required
MODULE DIMENSIONS: 2.0” W x 5.25”H x 7.0” D. (5.1 x 13.3 x 17.8 cm)
WEIGHT: 0.8 lb. (0.45 kg)

LineSelect® Model 9028 USB 2.0 A/B Switch Module Application:

The application drawing illustrates a COMMON device connected to the USB 2.0 Common port with access to Device A or Device B connected to the USB 2.0 A and B ports, respectively.

(3) USB 2.0 A, B and COMMON ports.
Compatible with Hi-Speed USB 2.0 devices.
Up to eight of the Model 9028 switch modules can be installed in Rackmount Chassis, Cat. No. 305972.

System Expands to meet your needs!

This modular approach to switch system requirements allows expansion to more channels on an as-needed bases. Filler panels are available to attractively cover unused module slots. Model 9008, Cat No 305983 for a two-inch filler panel.

Model 9025 Rackmount Chassis for Switch Modules (Cat No 305972) Features:

Rack can accommodate up to eight Model 9028 A/B modules (2.0" W).
Rackmount chassis supports multiple switch module chassis of various widths.
Rack Size: 19" W x 5.25" H x 7" D. (48.3 x 13.3 x 17.8 cm)
Full opening for modules is 16.8" W. (42.7 cm)

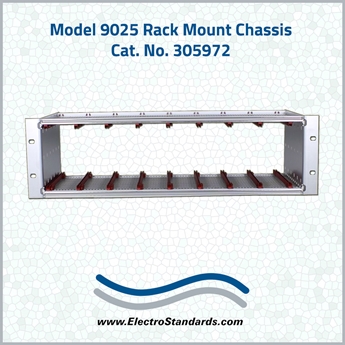

Model 9025 Rack Mount Chassis Cat No 305972

Ordering Information

Catalog Number: 309028
Model Number: 9028
Base Price: See website or contact us for current pricing and availability.

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
