PathWay® Model 4502 USB Type-A Switch with USB 2.0 A/B Switching and RS232 Remote Control

Overview

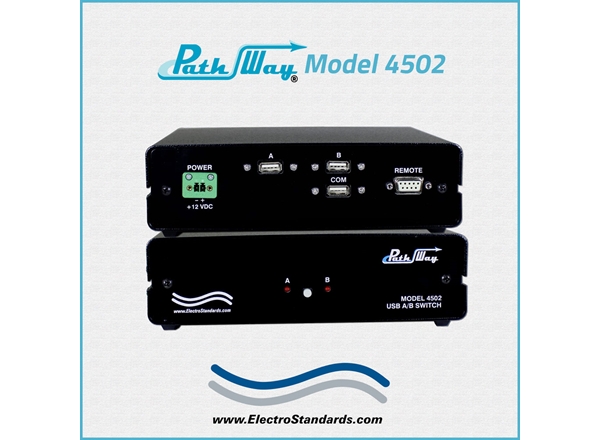

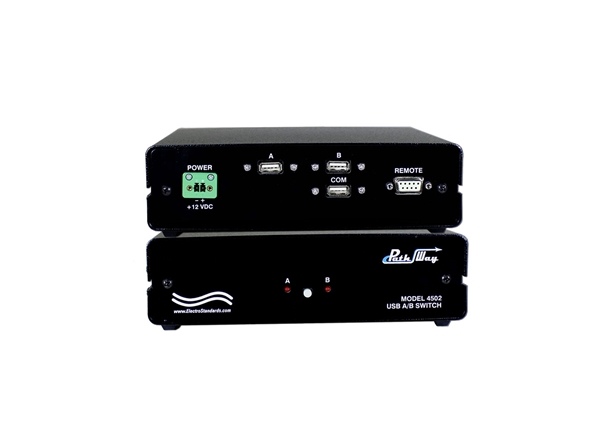

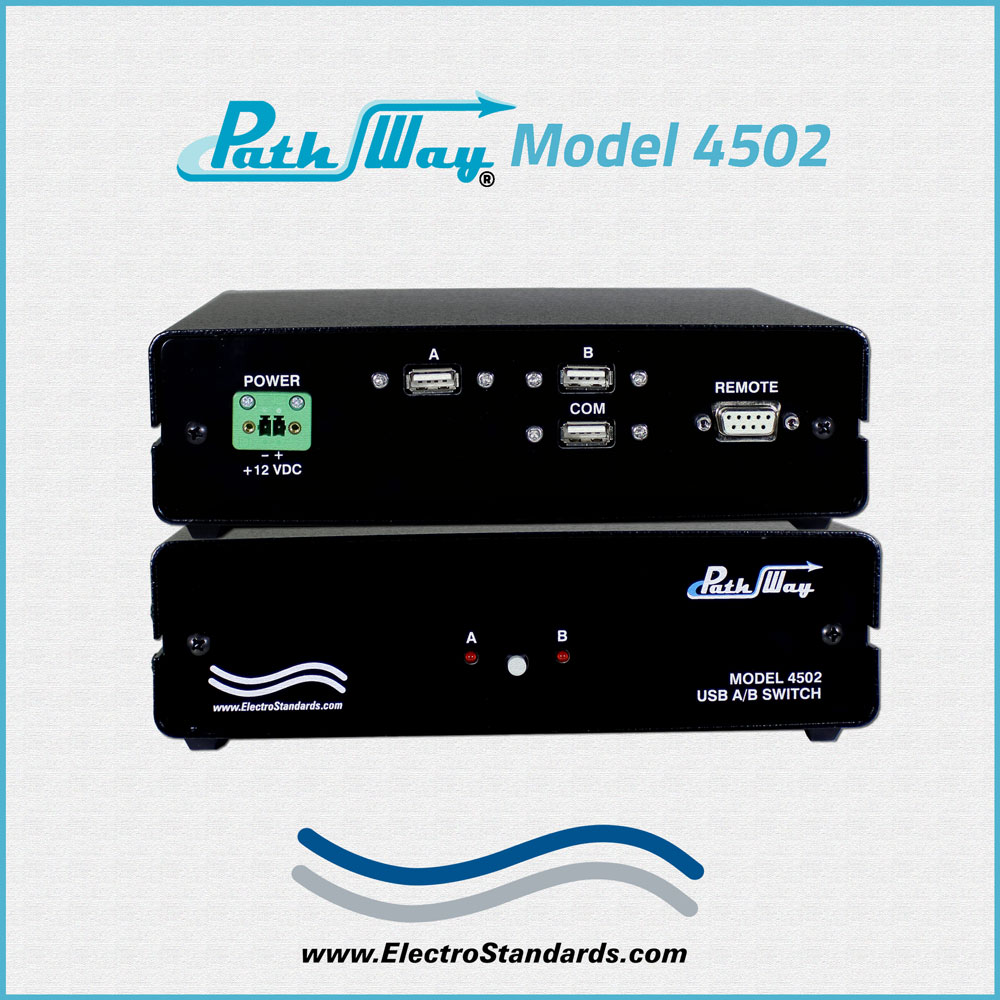

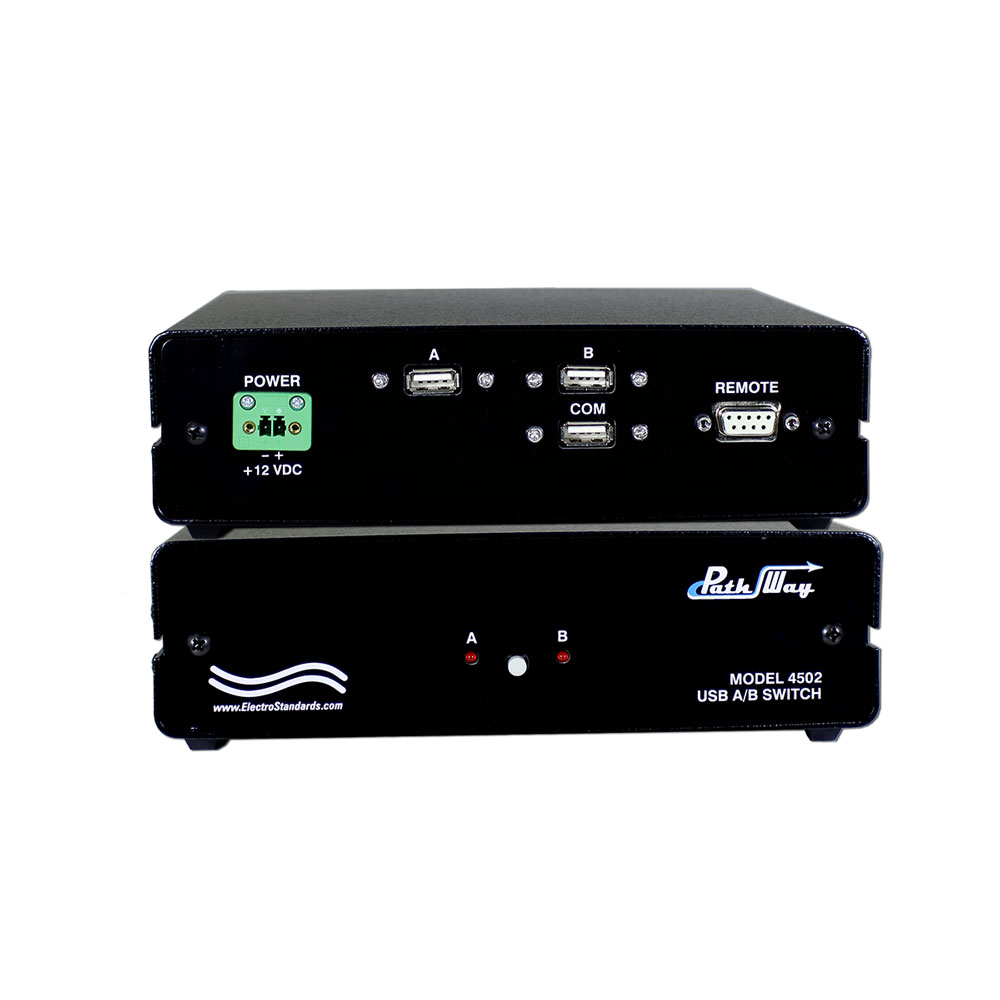

The PathWay® Model 4502 USB 2.0 Type-A Switch with Remote Control allows the user the capability of sharing a single USB2 Type-A interface device connected to the COMMON port among two other USB2 Type A devices connected to the A and B ports.  The Model 4502 is packaged in a slim desktop style enclosure. The switch may be controlled manually via the front panel pushbutton or remotely from an RS232 serial port located on the rear of the unit.  Switch position status may be attained via the front panel LED display, or the REMOTE RS232 serial port (DB9) located on the rear of the unit.

• Switch between two USB devices without having to disconnect cables

• Share a USB 2.0 device between 2 PC's

• Perfect to connect a computer to multiple USB 2.0 devices

THE MODEL 4502 USB 2.0, TYPE-A SWITCH FEATURES:

• Allows quick connection to any one of two USB Type-A interface devices from one COMMON device!
• Compatible with Hi-Speed USB 2.0 devices.
• The switch ports are transparent to all data.
• All (4) pins of the USB interface are switched via break-before-make electromechanical relays.
• The unit maintains last set position on power loss and continues to pass data.
• Eliminates the need to plug and unplug cables.
• Front-panel pushbutton control.
• The REMOTE RS232 ASCII commands that allow the user to control switch position, lockout front panel operations, obtain switch status, as well as, query firmware version number, query serial number and enable/disable autosend of switch positions.
• Front panel LED's display switch position and power status.
• Attractive all metal black box packaging provides EMI/RFI shielding.
• Municipalities, schools, government: This product is on GSA Schedule!

SPECIFICATIONS:

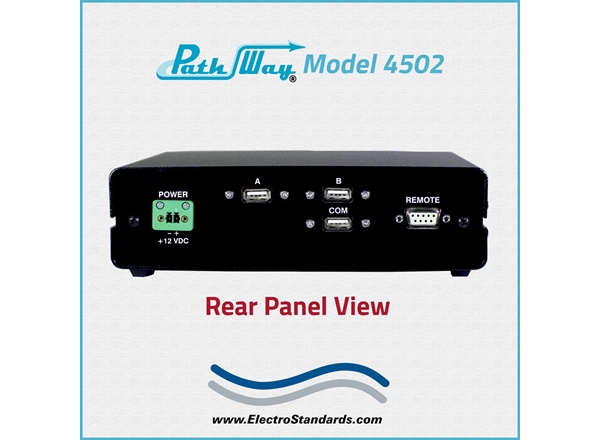

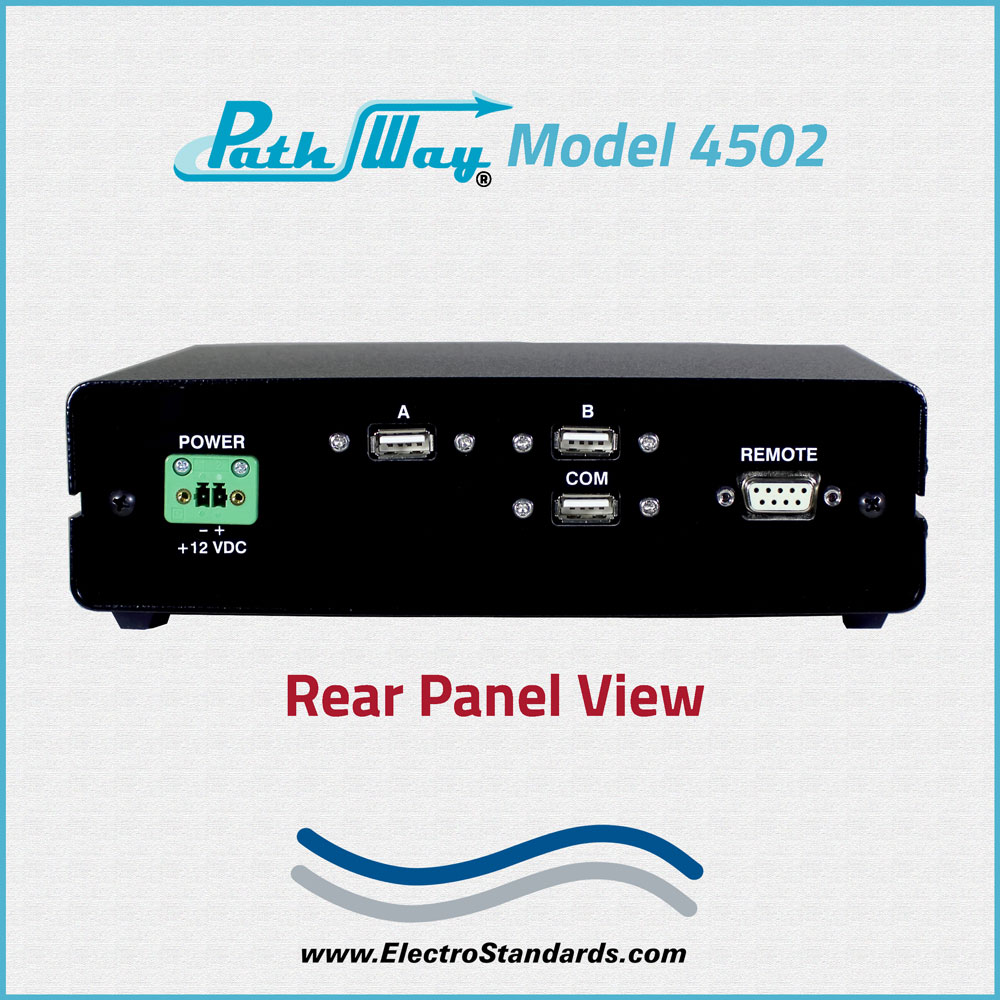

• PORT CONNECTORS: (3) USB Type A connectors labeled A, B, and Common.

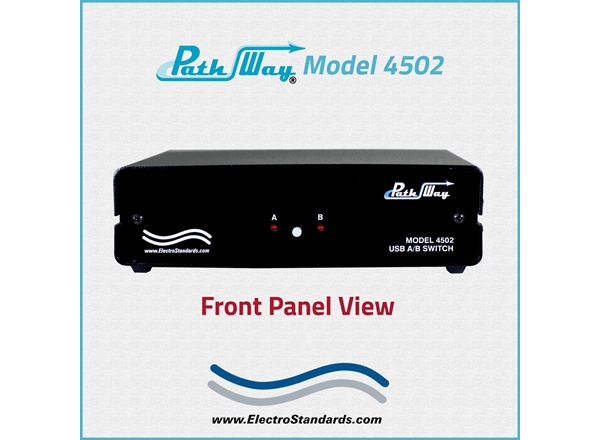

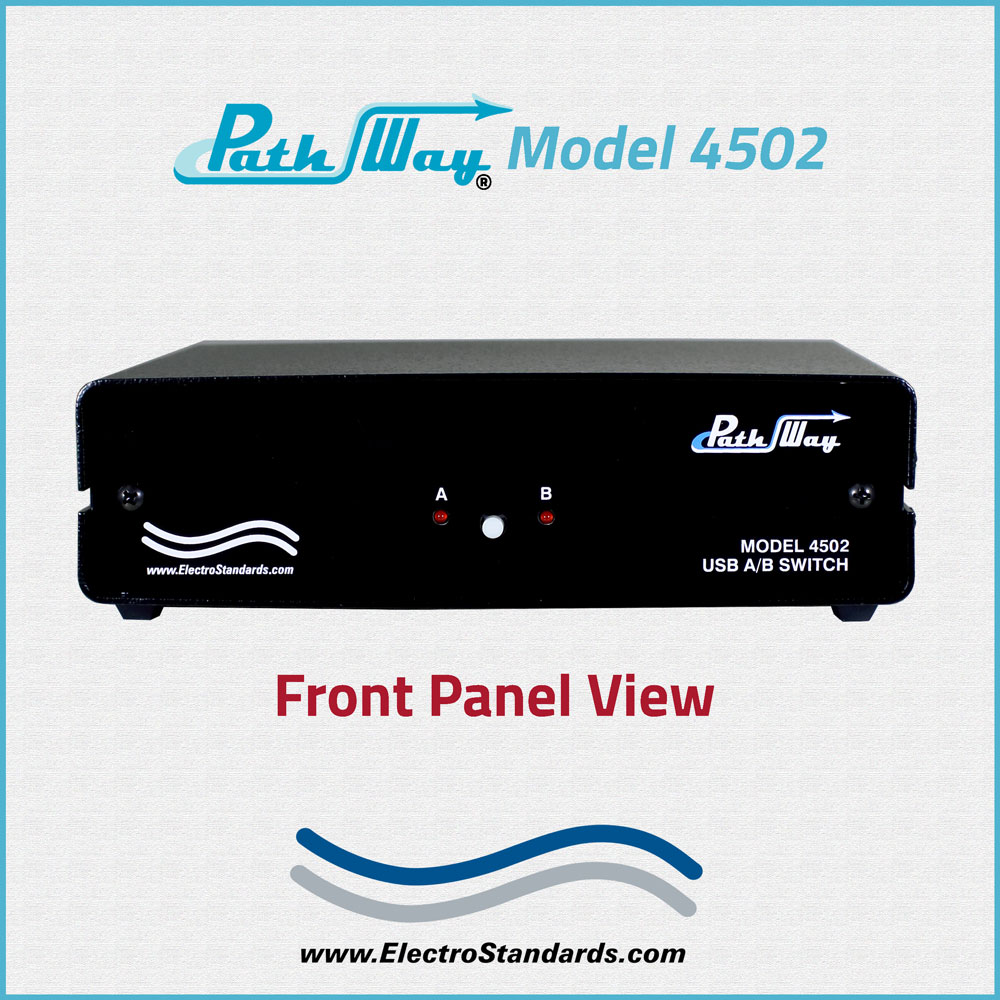

• FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
• DISPLAY: (2) Front panel LED's display switch position and power status.
• REMOTE: (1) DB9 (F) connector on rear panel accepts ASCII RS232 Serial Data for Remote Control operation.
• POWER: UL approved 100VAC-240VAC, 50Hz-60Hz wall mount power module supplies 12 VDC, 500 mA to the unit. Has 2-prong, US, non-polarized plug.
• DIMENSIONS: Desktop configuration 8.10" W x 2.43" H x 7.33" D (20.6 x 6.2 x 18.7 cm)
• WEIGHT: Approximately 1.8 lbs. (0.8 kg)

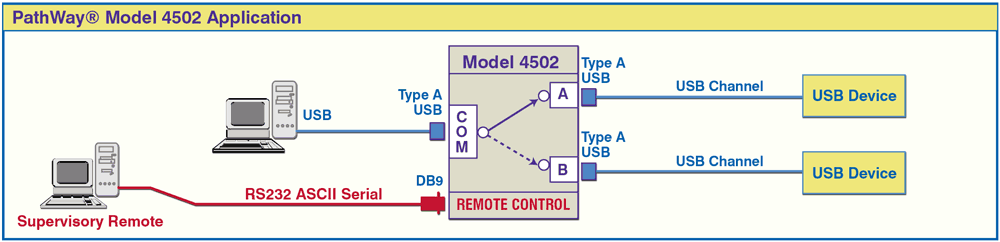

PathWay® Model 4502 USB Type-A A/B Switch Application w/RS232 Remote Control:

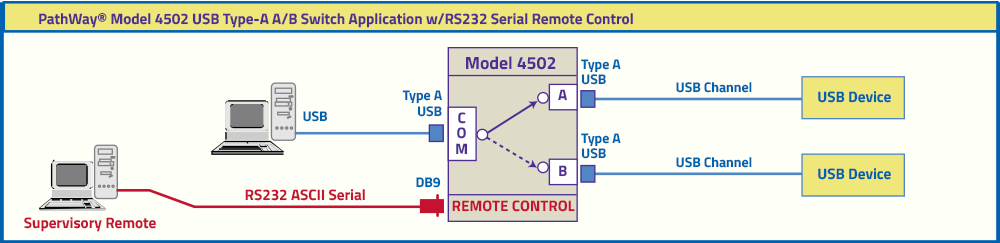

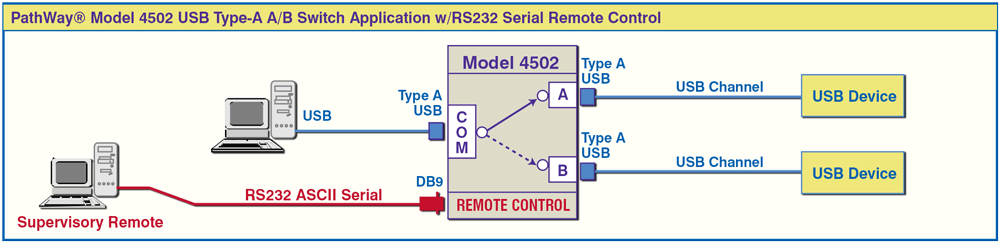

 The diagram illustrates a computer connected to the COMMON port accessing two USB devices connected to the A and B ports.  The DB9 REMOTE port allows the user to obtain switch position and lockout status using RS232 serial data commands as well as query firmware version, query serial number and enable/disable autosend of switch positions.

• USB (Universal Serial Bus) is designed to connect peripherals such as, keyboards, mice, scanners, digital cameras, printers, hard disks, and networking components to the PC USB Interface.

Why USB 2.0?

Choosing the right USB standard isn’t about going for the newest or flashiest, it’s about matching the interface to what you actually need. Good engineering always means picking the simplest, most cost-efficient solution that meets requirements.

Even today, USB 2.0 remains highly relevant. With a maximum data rate of 480 Mbps, USB 2.0 (High-Speed USB) is often more than sufficient for low-bandwidth devices - think keyboards, mice, printers, simple flash drives, and many other everyday peripherals.  USB 2.0 is often more economical and tends to be more robust and easier to implement reliably.

When selecting components or designing systems, you should pick the USB standard that matches your needs and not the one with the highest specs. If you value compatibility, reliability, simplicity, and cost-efficiency over high data throughput, a USB 2.0 Type-A or even Type-C implementation is frequently the wisest choice.
