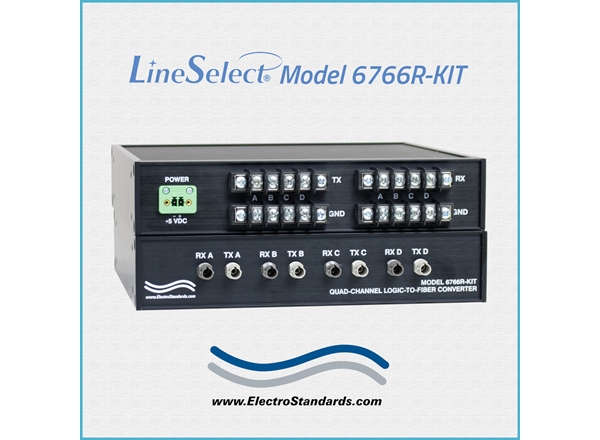

Model 6766R-KIT Four Channel TTL Logic-to-ST Fiber Interface Converter with DIN Rail Mounting Kit
Overview
The Model 6766R-KIT is a high speed TTL digital logic level to fiber interface converter from Electro Standards Laboratories. It translates four input/output logic pairs into four fiber pairs, resulting in a total of eight fiber optic connections. Typical operating speeds are up to 5 Mbps. Features include ESD protection on all copper interfaces, convenient ST fiber connectors, and logic test points that allow for signal monitoring. Provision for user selectable jumpers for fiber light ON/OFF polarity located on circuit board inside the Model 6766R-KIT enclosure.
DIN Rail mounting clip included for additional installation options. DIN rail mounting kit attaches to the bottom cover of the Model 6766R-KIT Fiber interface converter.
-
Converts TTL Logic signals to ST Fiber Optic signals.
-

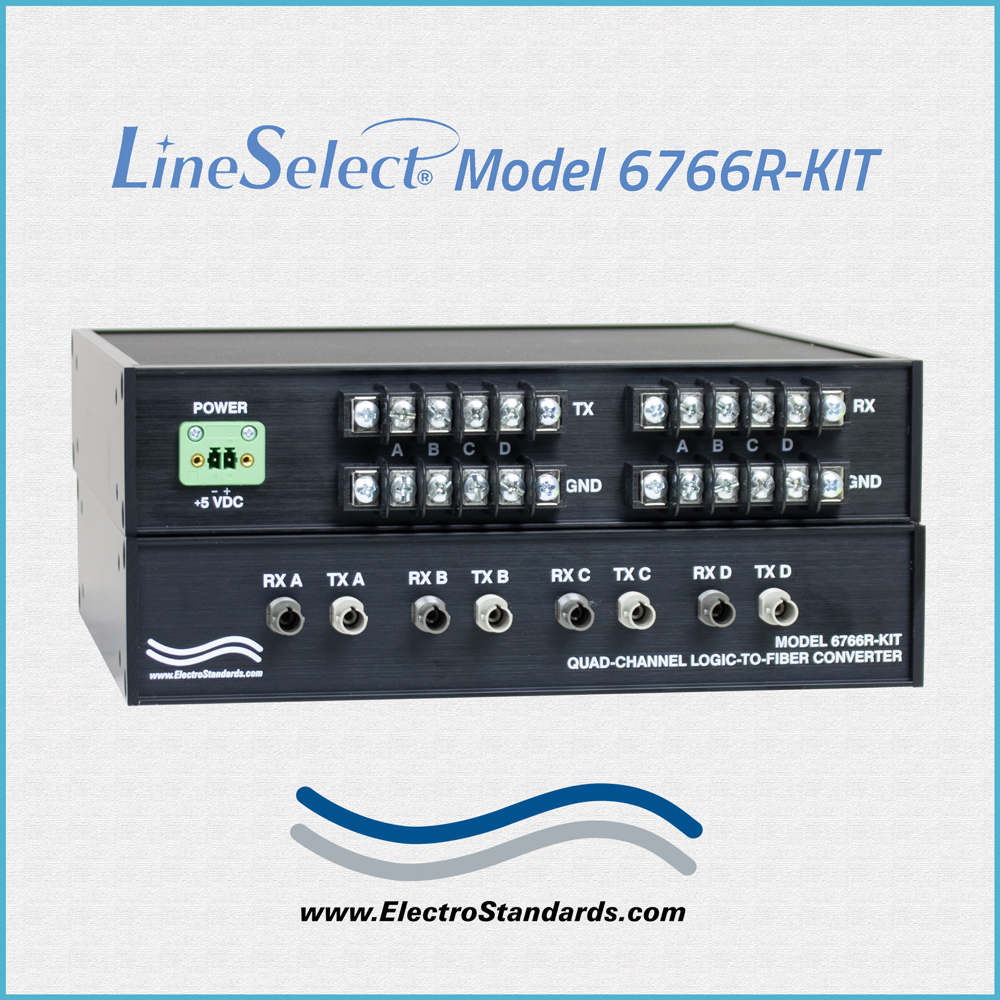

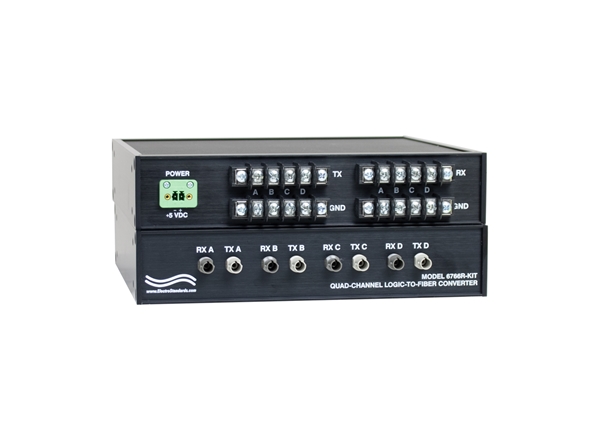

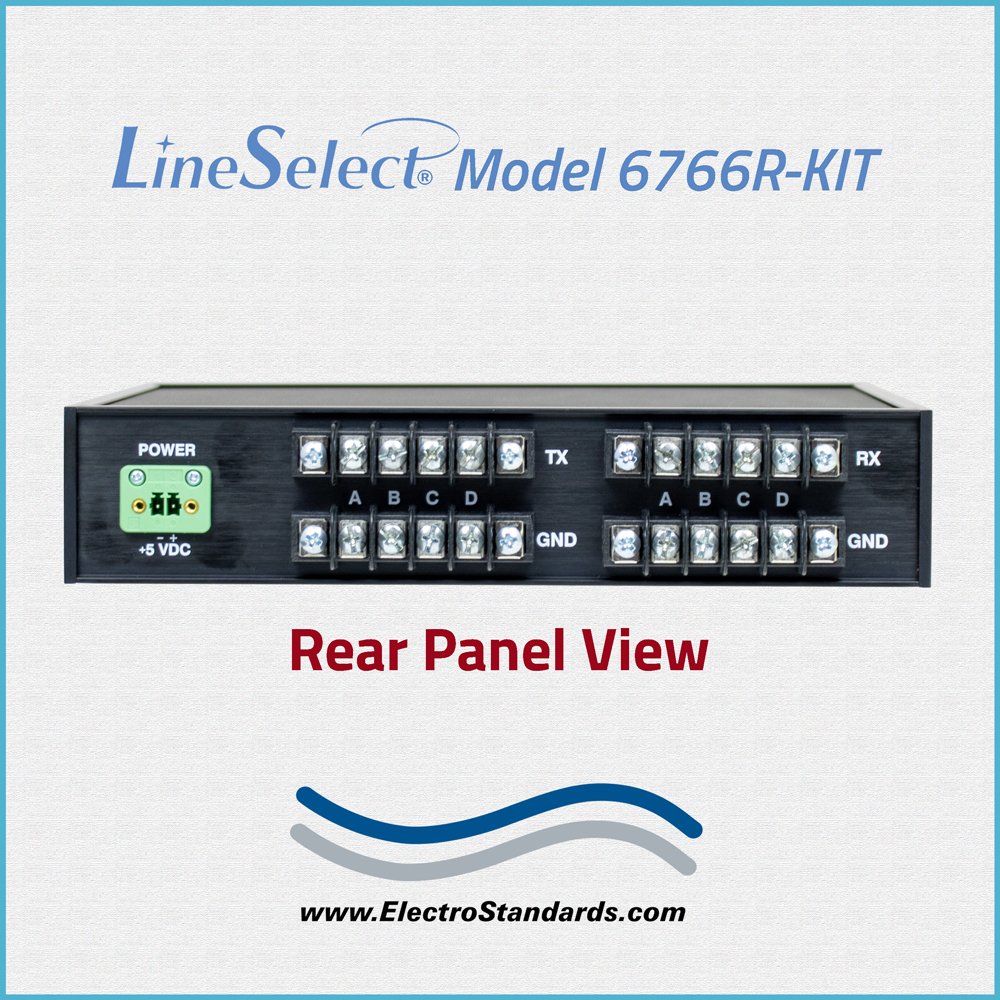

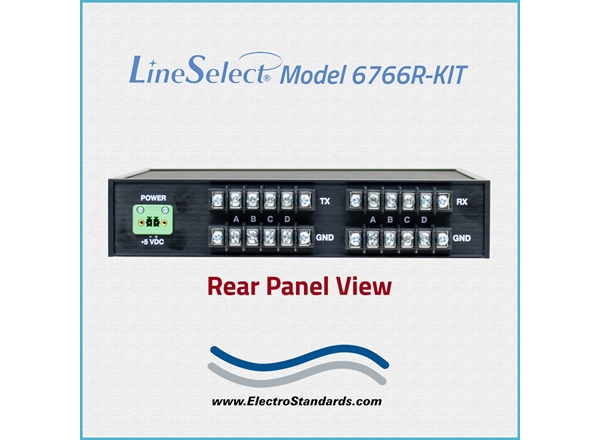

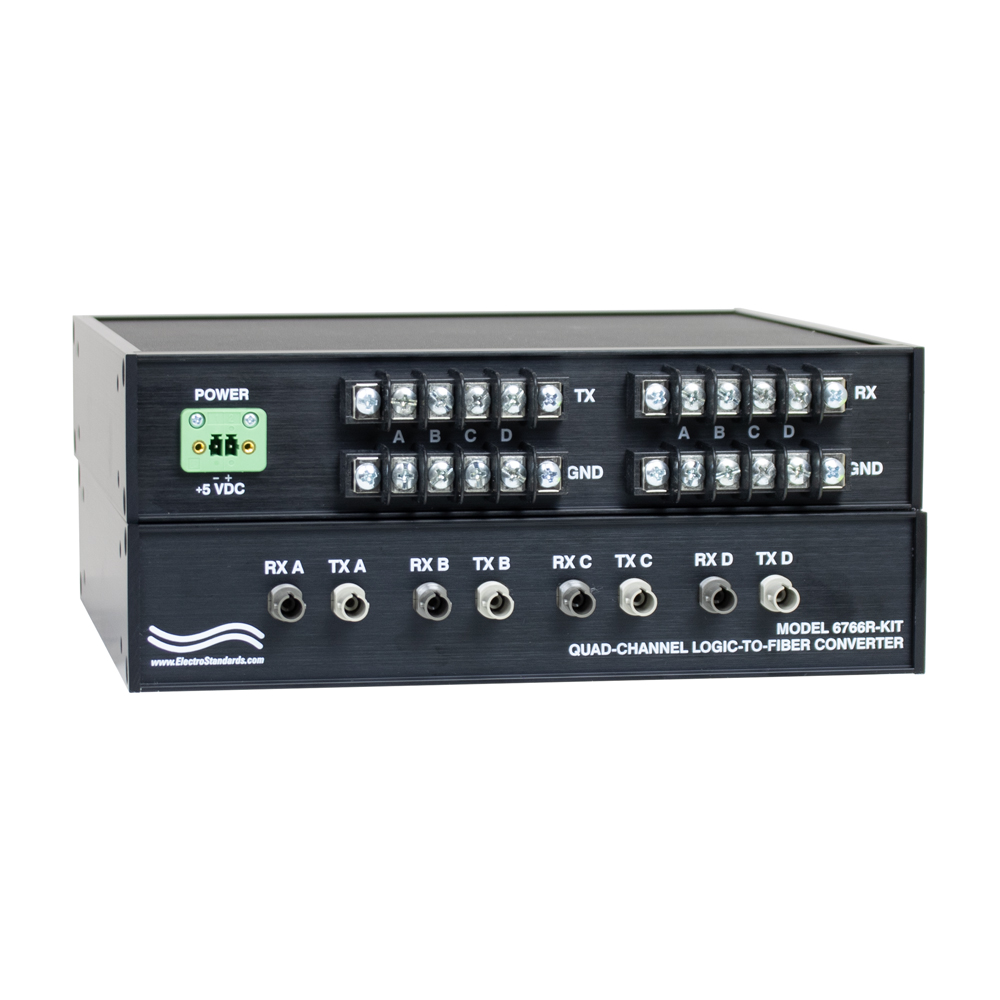

Model 6766R-KIT desktop unit has screw terminal strips for easy connection of the copper logic signals.
TECHNICAL SPECIFICATIONS:
Optical Interface:
- TX Power: -17 dBm
- RX Sensitivity: -27.5 dBm
- Wavelength: 820 nm, multimode
- Fiber Size: Accepts 50/125 micron, 62.5/125 micron, or 100/140 micron
Fiber Polarity:
- Logical 0 = Light ON/OFF: User Selectable via Jumper
- Logical 1 = Light ON/OFF: User Selectable via Jumper
Copper Interface:
- Type: TTL Logic
- Vih range: (3.3 - 5)Vdc Voh Range (3.8-50)Vdc
- Vil range: (0 - 1.5)Vdc Vol Range (1-5)Vdc
- Bit Rate (nom.):
- 0 to 5 Mbps, Nominal
Operating Environment:
Model 6766R-KIT, Cat. No. 306766R-KIT Desktop Unit:
Copper Connectors: Copper Terminal Strips:
- Terminal Strip: Channels TXA, TXB, TXC, TXD.
- Terminal Strip: Channels RXA, RXB, RXC, RXD
- Terminal Strips: Digital Ground, for each channel.
Glass Fiber Connectors:
- (8) ST Connectors: RXA, TXA, RXB, TXB, RXC, TXC, RXD, TXD
Power:
- Supply Voltage: (4.75 – 5.25) Vdc
- Supply Current: 350 mA
- Power Supply Included (ESL PN: 521091)
Mechanical: Model 6766R-KIT / 306766R-KIT (Desktop Unit)
- Size 8.38" W x 1.73" H x 8.0" D [21.9 x 4.6 x 22.9 cm]
- Weight: 2.5 lbs (1.1 kg)
DIN Rail Mounting Kit Included (Cat. No. 520418). Attaches to the bottom cover of the Model 6766R-KIT Fiber Interface Converter for applications requiring a DIN Rail.
Model 6766R-KIT Desktop Unit:

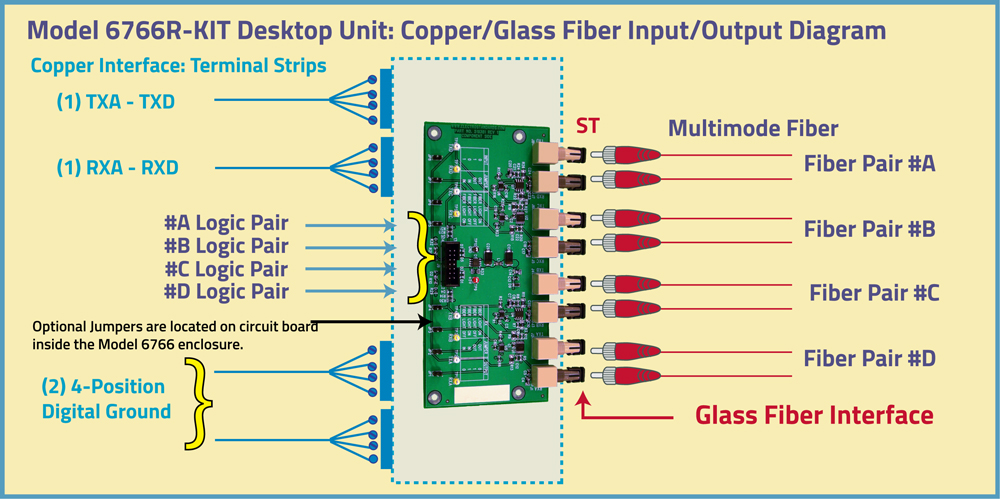

Copper/Glass Fiber Input/output Diagram:
TTL Logic Pair A, B, C and D convert signals to the ST Fiber Pair, A, B, C, and D.
- Copper Interface:
- (2) Terminal Strips, CH A, CH B, CH C, CH D
- (2) Terminal Strips, Digital Ground

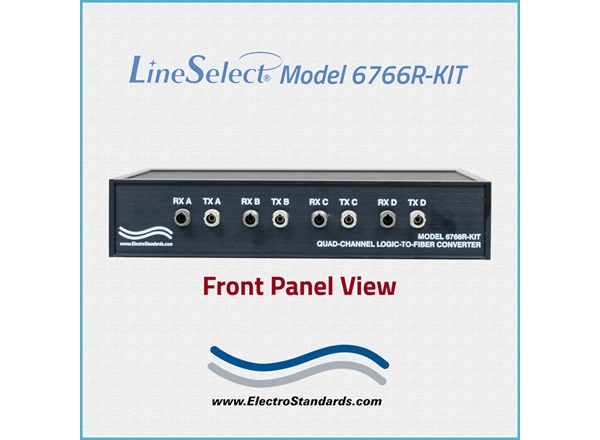

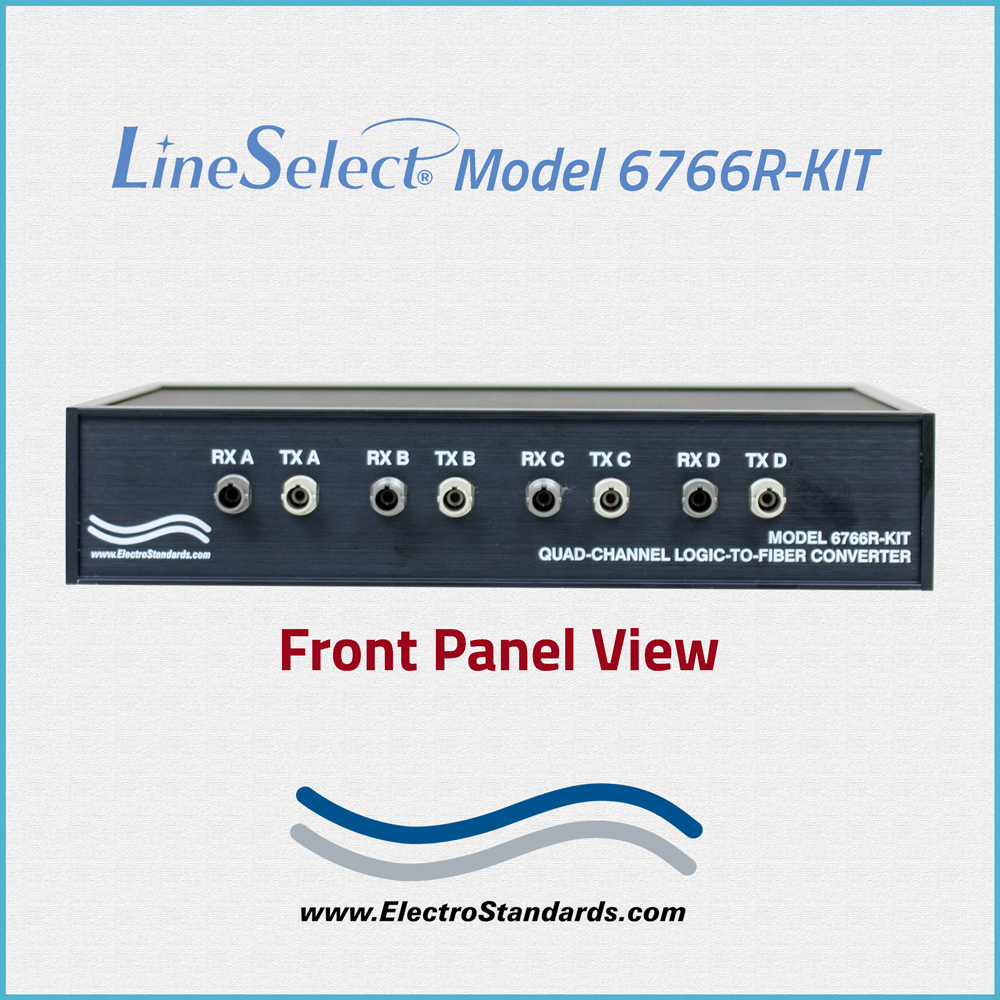

- Glass Fiber Optic Interface: ST, Multimode, 820 nm on front panel

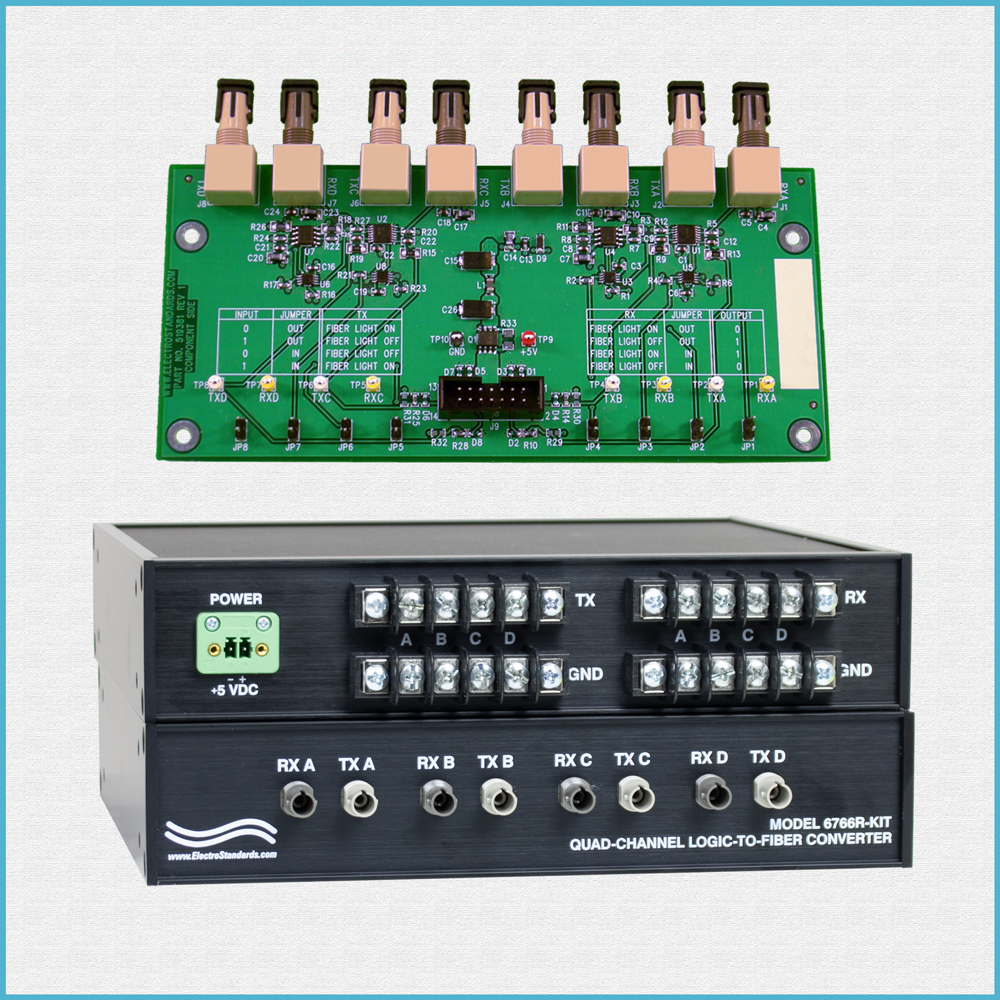

- Optional jumpers are located on circuit board inside the Model 6766 enclosure.
Model 6766R-KIT Desktop Unit Four Channel TTL Logic-to-ST Fiber Converter Input/Output Diagram

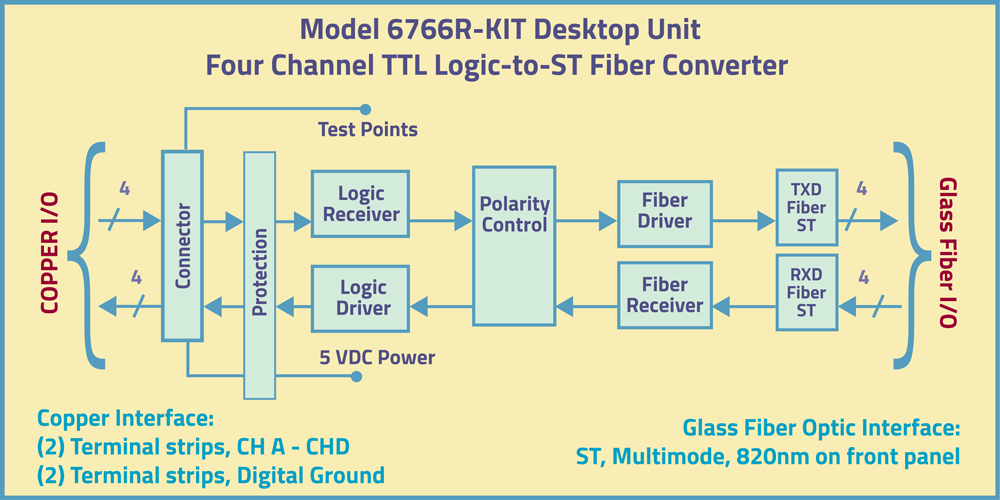

Model 6766R-KIT Desktop Unit Four Channel TTL Logic-to-ST Fiber Converter Block Diagram
Click here to view more of ESL's Media Converters:
What is a TTL to Fiber Interface Converter?
TTL to Fiber Interface Converters are devices that translate electrical Transistor-Transistor Logic (TTL) signals into optical signals for transmission over fiber optic cable. This allows for the reliable transmission of digital signals over much longer distances and provides immunity to electromagnetic interference (EMI) and ground loops.
Why Use a TTL to Fiber Interface Converter?
TTL to Fiber Converters are designed to overcome the distance limitations and noise susceptibility of traditional copper wiring when dealing with TTL signals.
Common Applications for TTL to Fiber Converters include:
• Industrial Control & Automation Networks: Factories often need noise-immune communication between sensors, actuators, and controllers. TTL to Fiber Converters extend the reach of copper signals and reduce electromagnetic interference.
• Laboratory and Test Instrumentation Networks: Research environments often use TTL digital signaling for triggers, timing, etc., between devices and computers converting them to optical signals to avoid interference.
