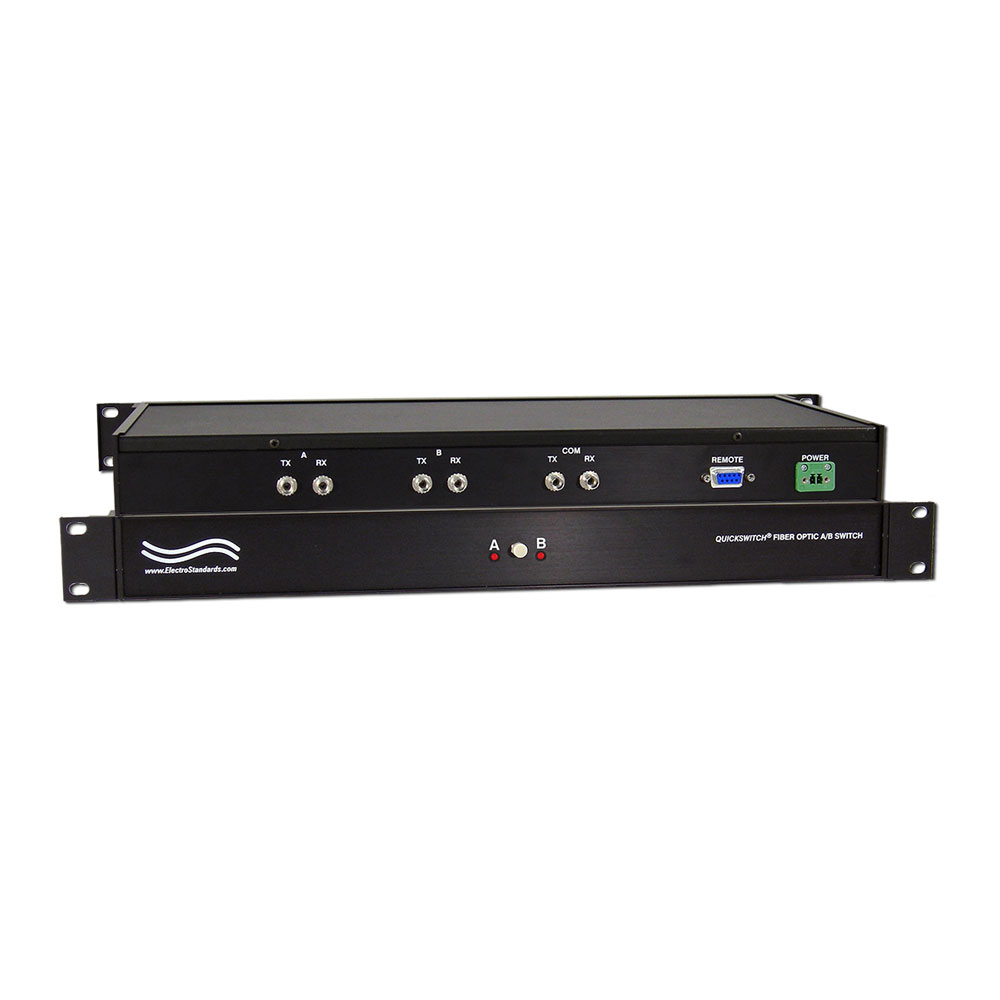

Model 6276 ST Duplex A/B Fiber Optic Switch with DB9 Voltage Control Remote , Catalog # 306276

Gigabit ST Duplex A/B Fiber Optic Switch

Click image to enlarge

Base Price:

$3,330.00

Catalog No:

306276

Model No:

6276

Product Type:

Switches: Fiber Optic

Positions:

Cable Type/Port Connector:

Channels per Switch Chassis:

Electronic Switches/Power Required:

QuickSwitch® Fiber Optic

Remote Control:

Voltage Control

Configuration:

Rackmount

Fiber Mode:

Multimode

Fiber Size:

62.5/125

Fiber Type:

Duplex

Remote Port:

DB9

Mirror Technology:

Speed:

Gigabit

Wavelength Nano:

850

Qty

Add to Cart

SPECIFICATION SHEET

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

QuickSwitch® Model 6276 Single Channel ST Duplex A/B Fiber Optic Switch with DB9 for Voltage Remote Control Operation

Overview

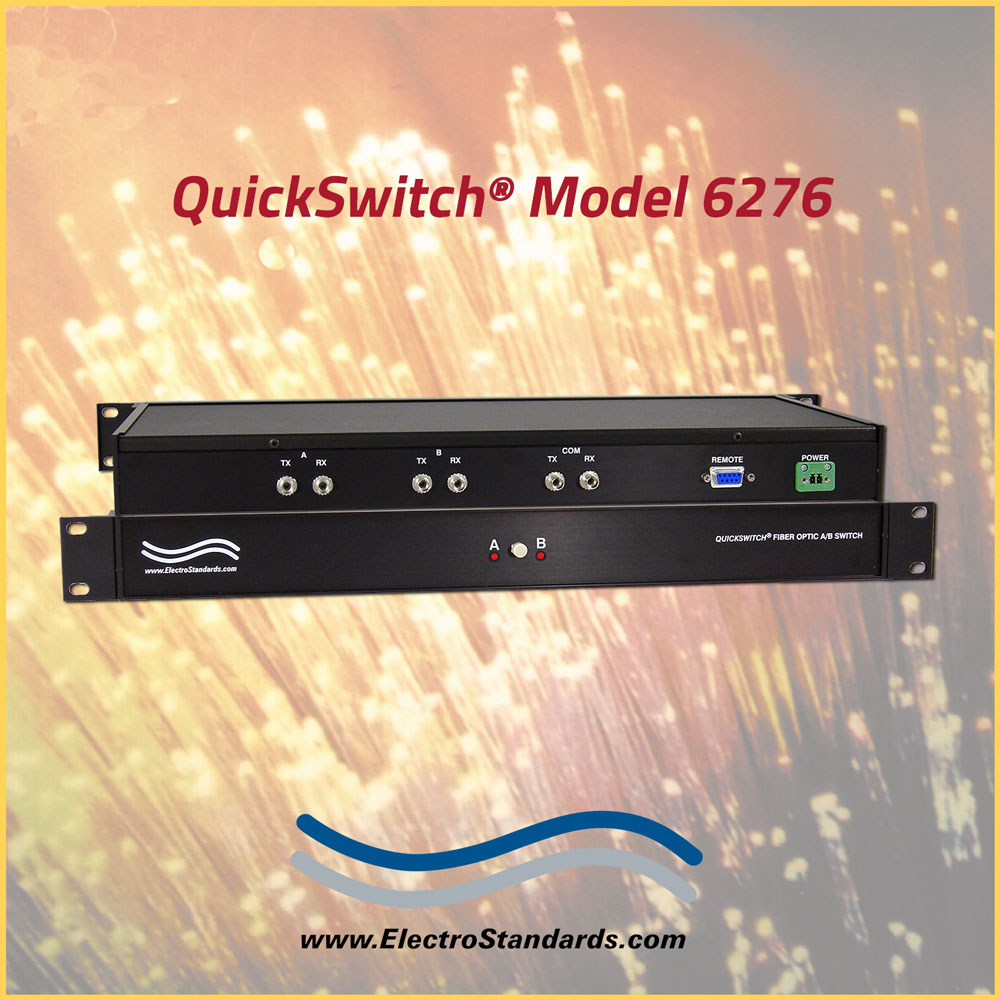

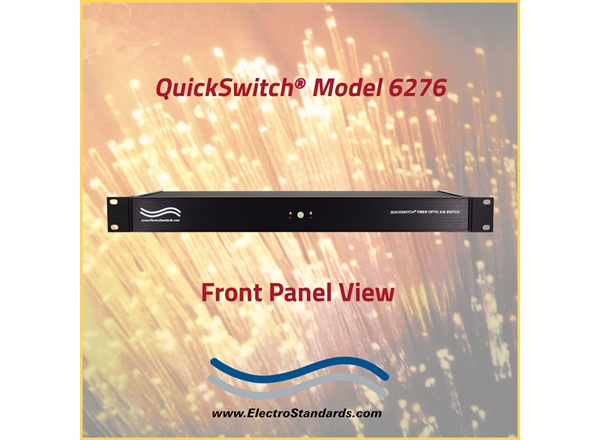

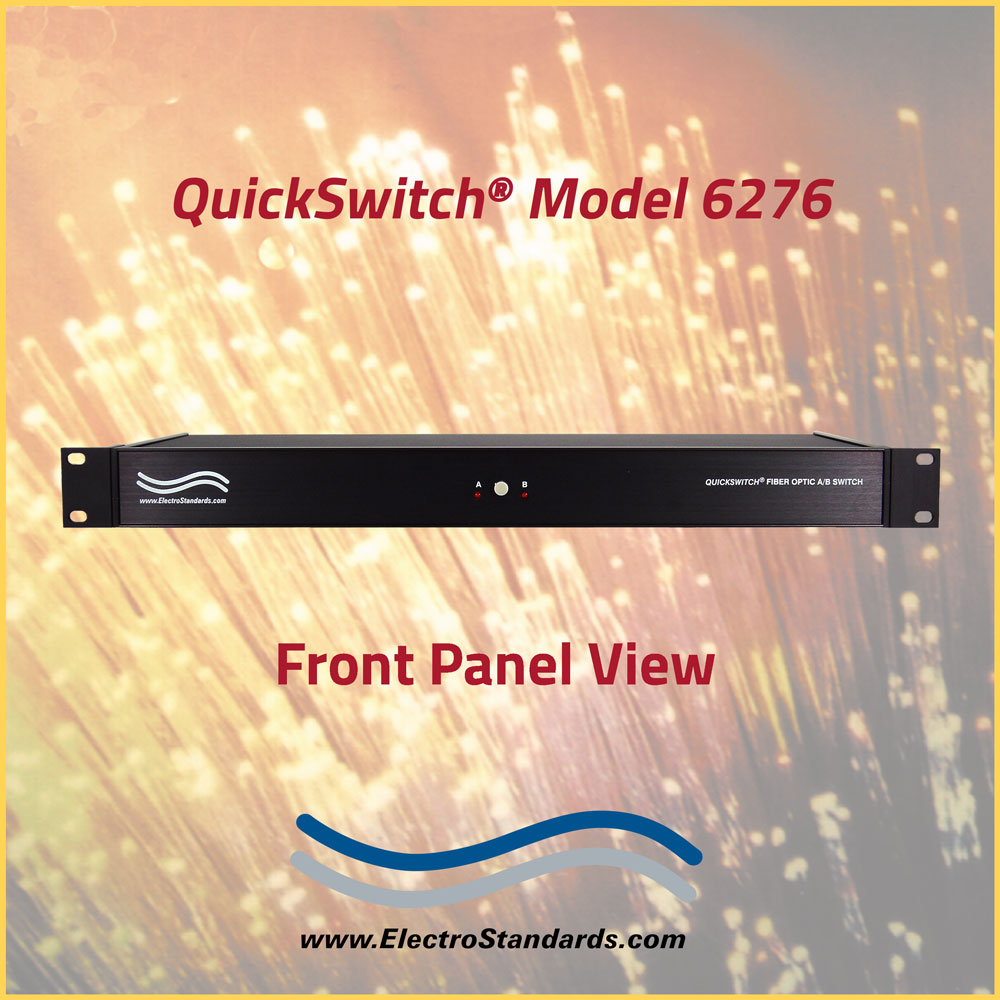

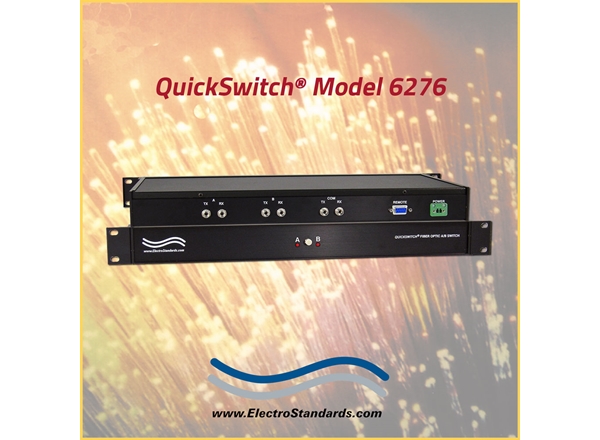

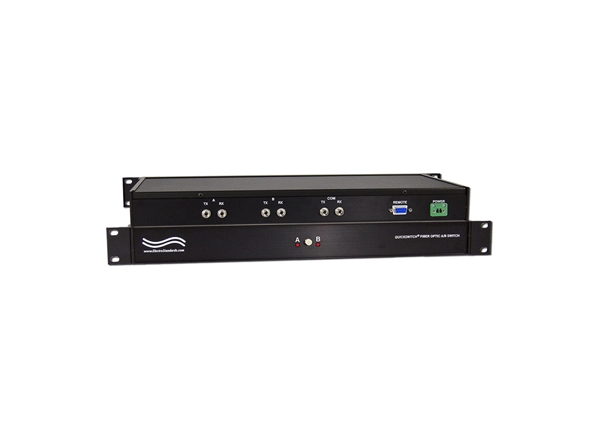

The QuickSwitch® 6276 Single Channel ST Duplex A/B Switch with Voltage Control Remote allows a device connected to the “COM” port access to the “A” or “B” port. The switch may be controlled locally by manually operating the front panel pushbutton or remotely via the DB9 Voltage Control Remote port located on the rear of the unit. The DB9 REMOTE port provides control by voltage level logic and allows the user to monitor the switch remotely by a set of dry contacts. The front panel LED display indicates the switch position and unit power status.

FEATURES OF THE MODEL 6276 ST DUPLEX VOLTAGE REMOTE SWITCH:

Access any one of two separate fiber optic networks from one computer.
The switch ports are transparent to all data.
All fiber signals are switched via break-before-make MEMS-based mirror/prism switch technology.
The unit maintains last set position on power loss and continues to pass data.
Front-panel pushbutton control.
Remote Voltage control provides voltage level logic to allow the control of the position as well as a set of dry contacts for obtaining the present position.
Front panel LED's display present position and power status.
All A, B, and COM ports are ST duplex, Multi-mode, 62.5/125 micron and support a wavelength of 850 nm.
The fiber ports are configured per TIA/EIA-568-B.3, where the TX of the COM port is routed to the RX of the A/B ports and vice versa.
Optical data throughput scalability.
Custom length rigorously tested and certified, ST cables available for your switch installation.

The QuickSwitch 6276 is enclosed in a 1U, full rack size, all metal, black chassis designed to fit in a standard 19” rack.

TECHNICAL SPECIFICATIONS:

PORT CONNECTORS: (3) ST duplex connectors, labeled A, B, COMMON.
FIBER INTERFACE: ST, Multimode, 62.5/125 micron, wavelength 850 nm.
FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.

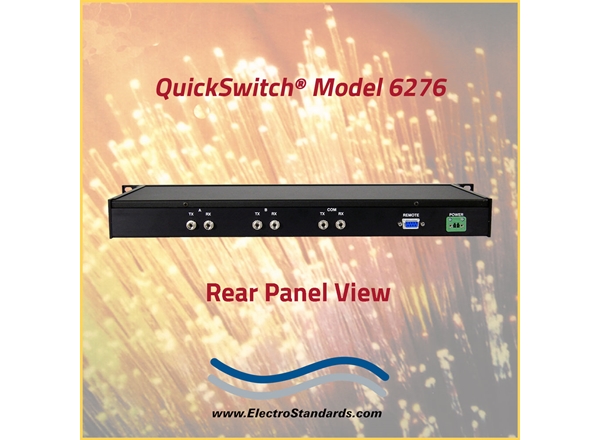

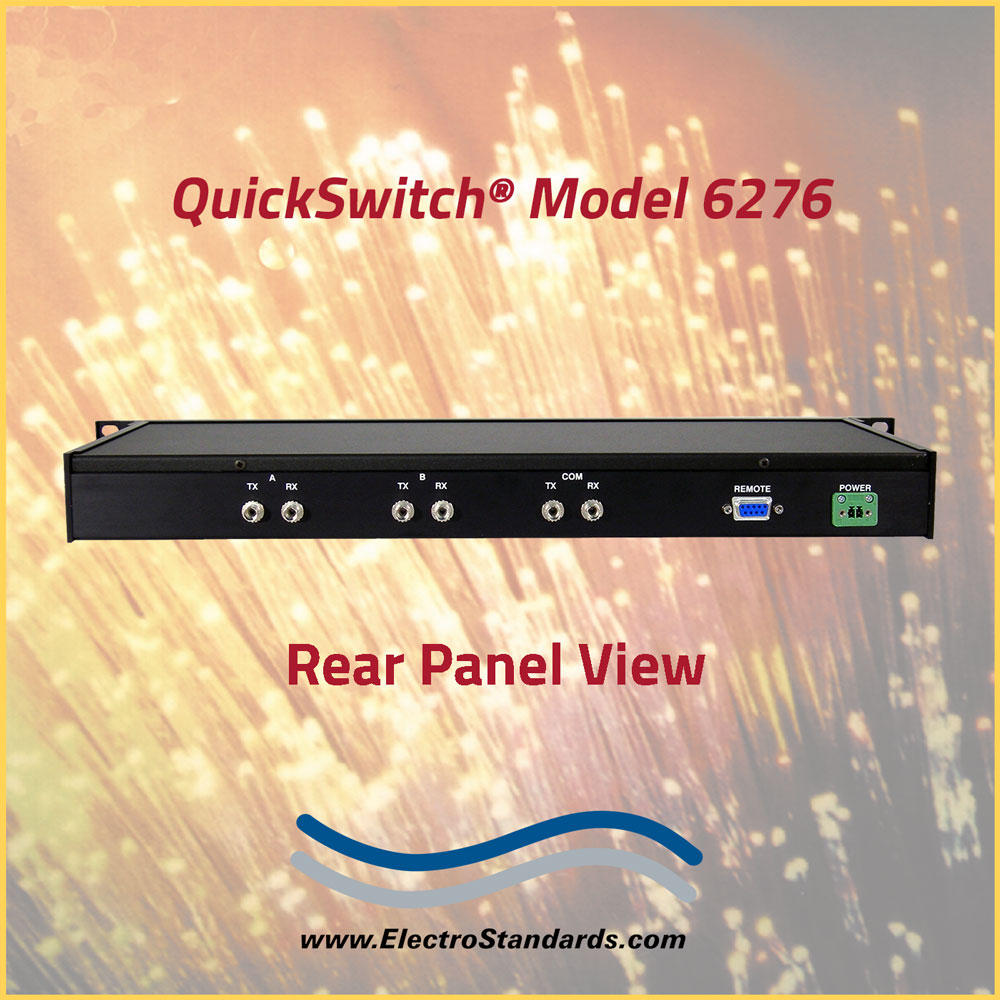

REMOTE CONTROL: (1) DB9 female connector on rear panel accepts voltage transition signals for Remote Control operation.
DISPLAY: (2) Front panel LED's display switch position and power status.
POWER: UL Approved 100VAC-240VAC, 50Hz-60Hz wall mount power module supplies 12VDC, 500 mA to the unit. Has 2-prong, US, non-polarized plug.
DIMENSIONS: 19.0" W x 1.75" H x 8.70" D (48.3 x 4.4 x 22.1 cm)
WEIGHT: Approximately 4.1 lbs (1.9 kg)

Option: Wide Range Power Supply: (Cat No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC-240VAC, 50-60Hz for use in place of the standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.

QuickSwitch® 6296 ST Duplex A/B Fiber Optic A/B Switch Network Application with Voltage Control Remote:

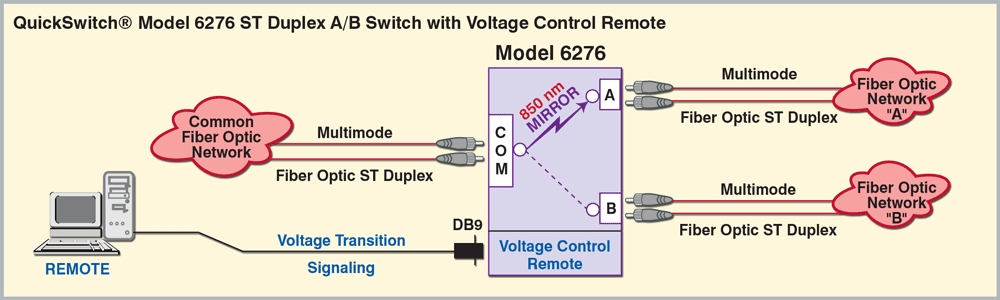

The diagram illustrates a single channel ST Duplex, multimode fiber optic network switch showing access to any one of two fiber optic networks from one computer. The DB9 Remote is a Voltage Control Remote and accepts voltage transition signals for Remote Control operation.

QuickSwitch® 6276 ST Duplex A/B Switch network application with Voltage Control Remote
