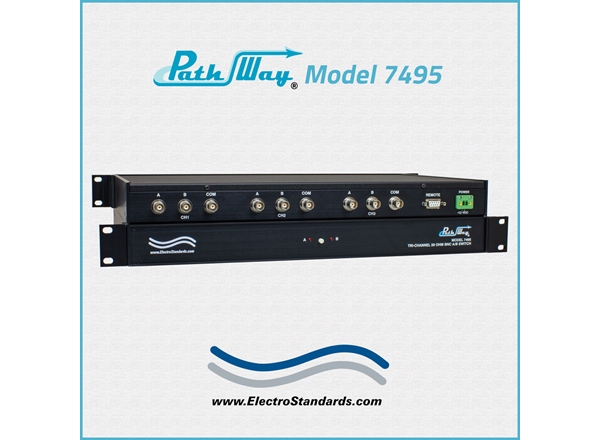

Catalog # 307495 Model 7495 3-Channel BNC A/B Switch with Low-Voltage TTL Remote and Lockout

3-Channel BNC A/B Switch, Low Voltage TTL Remote

Click image to enlarge

Base Price:

$1,904.00

Catalog No:

307495

Model No:

Product Type:

Switches: Copper

Positions:

Cable Type/Port Connector:

Coax Switch Ports

Channels per Switch Chassis:

Electronic Switches/Power Required:

PathWay® Copper

Channel Control:

Simultaneous Channel Control

Configuration:

Rackmount

Pins Switched:

Center and Shell

Remote Port:

DB9

Local Control:

Pushbutton

Feature:

Contact Closure Remote

Qty

Add to Cart

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

PathWay® Model 7495 Tri-Channel BNC A/B Switch, with Low-Voltage TTL Remote and Lockout

Overview

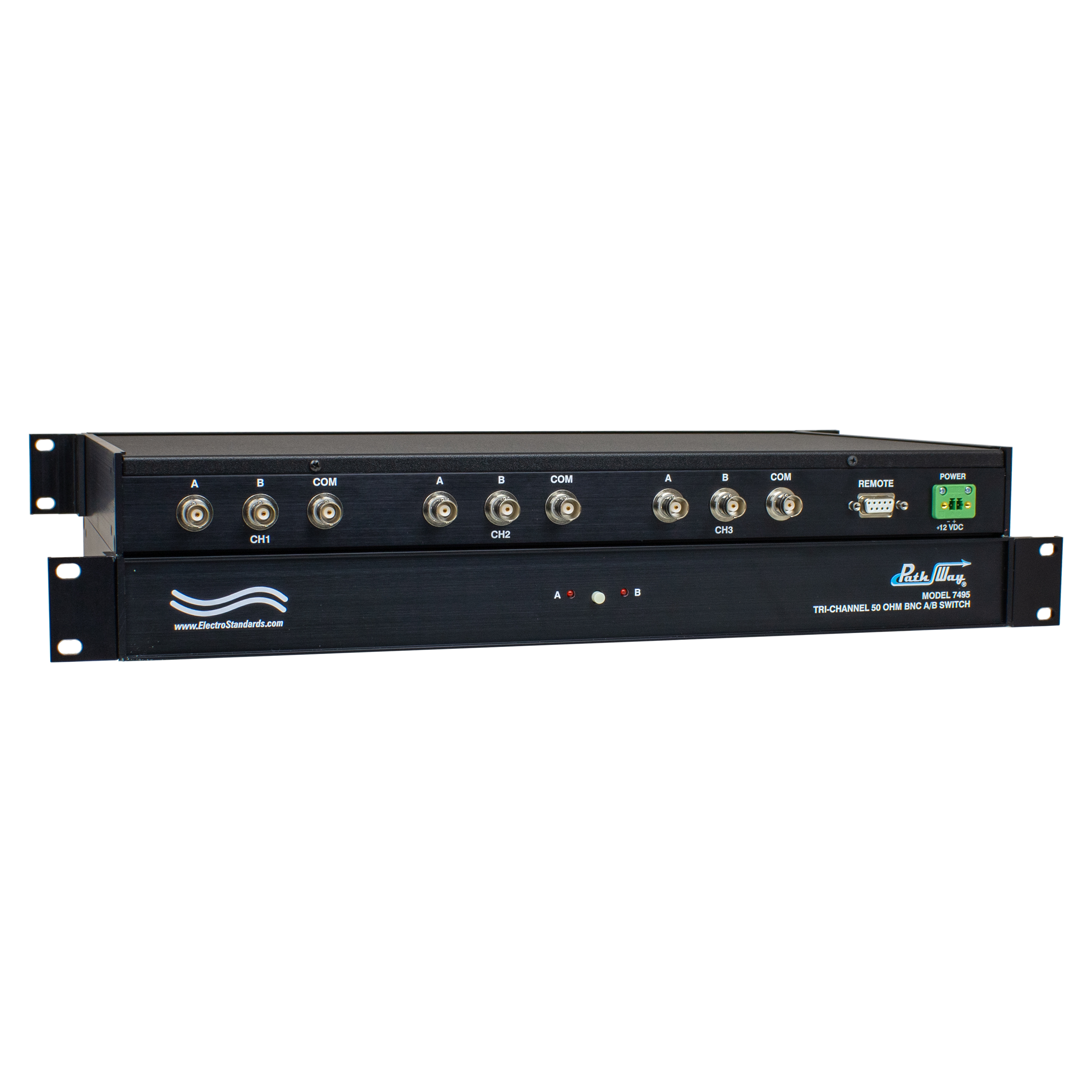

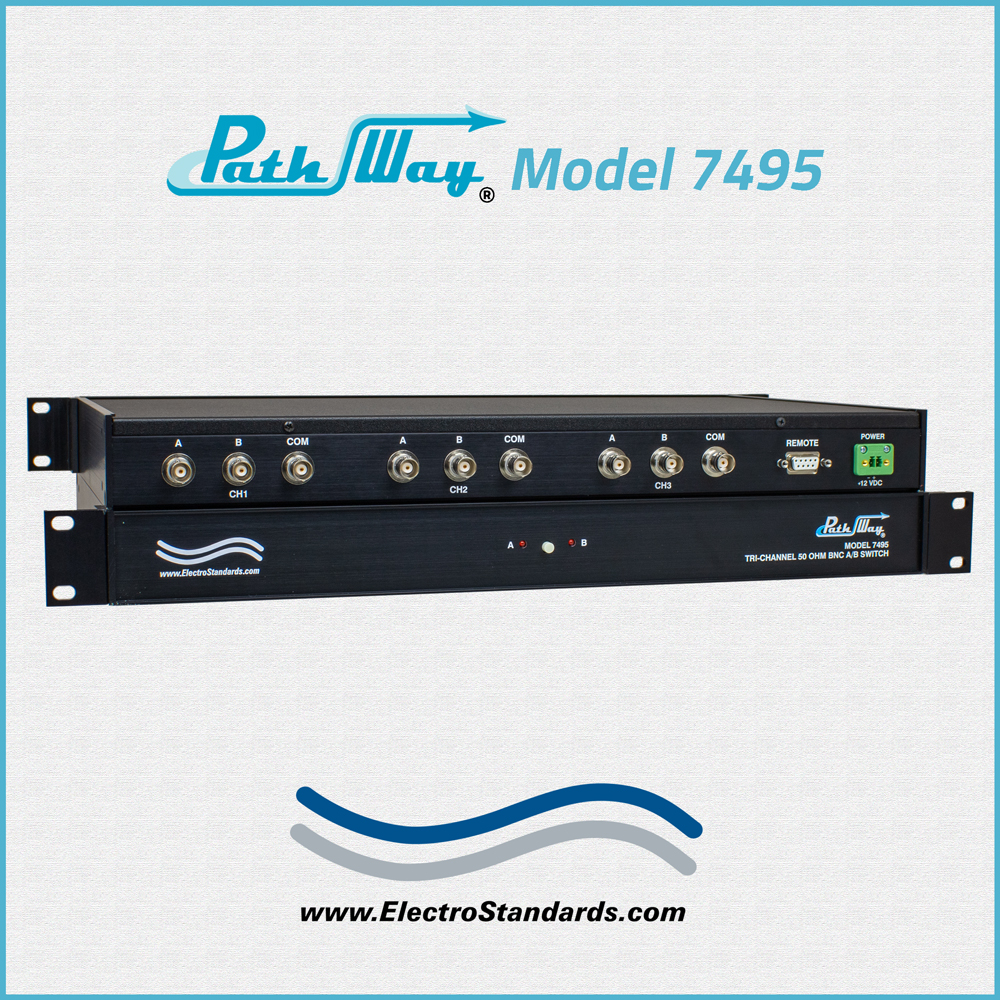

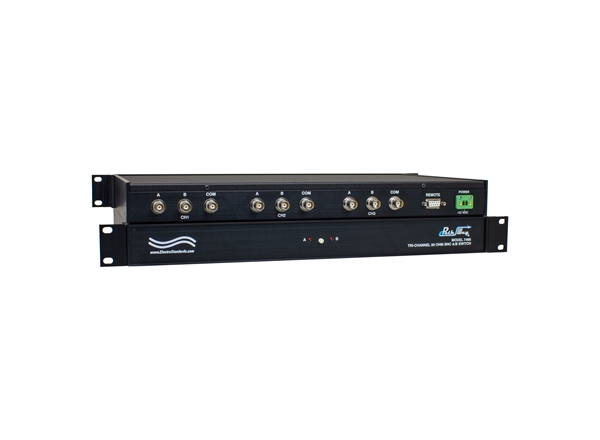

The Model 7495 Tri-Channel BNC A/B Switch with Low-Voltage TTL Remote and Lockout allows the user the capability of accessing three channels of two separate devices, ports A and B, via connection through a device connected to the Common port. The Model 7495 is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19” rack. The switch may be controlled manually via the front panel pushbutton or remotely from a DB9 port located on the rear of the unit. Switch position state may be attained via the front panel LED's.

Great for Audio, Video Remote Switch Applications!
All BNC ports are impedance matched to support 75 Ohm equipment.

FEATURES OF THE MODEL 7495 3-CHANNEL BNC SWITCH:

The switch ports are transparent to all data.
Both the Center and Shell of the BNC interface are switched via break-before-make electromechanical relays.
The unit maintains last set position on power loss and continues to pass data.
Front panel pushbutton control.
Upon power up, the unit remains in the last known position.
The DB9 Remote port provides access to remotely control the switch position, obtain switch position status and lockout the front panel operations via TTL logic.
Simultaneous control of all channels.
Front panel LED’s display present position and power status.
All BNC ports are impedance matched to support 75 Ohm equipment.

TECHNICAL SPECIFICATIONS:

PORT CONNECTORS: (3) BNC (F) connectors labeled A, B, and COMMON for each channel.

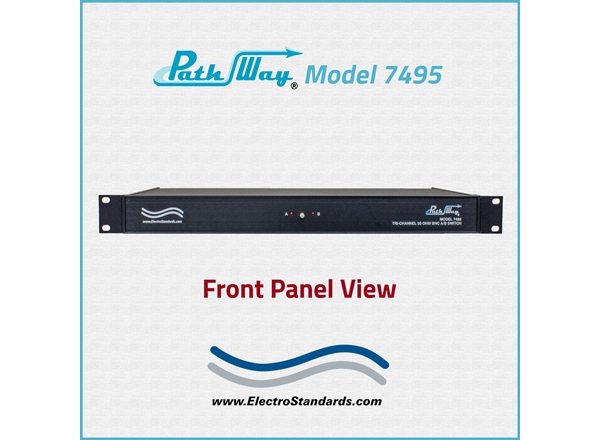

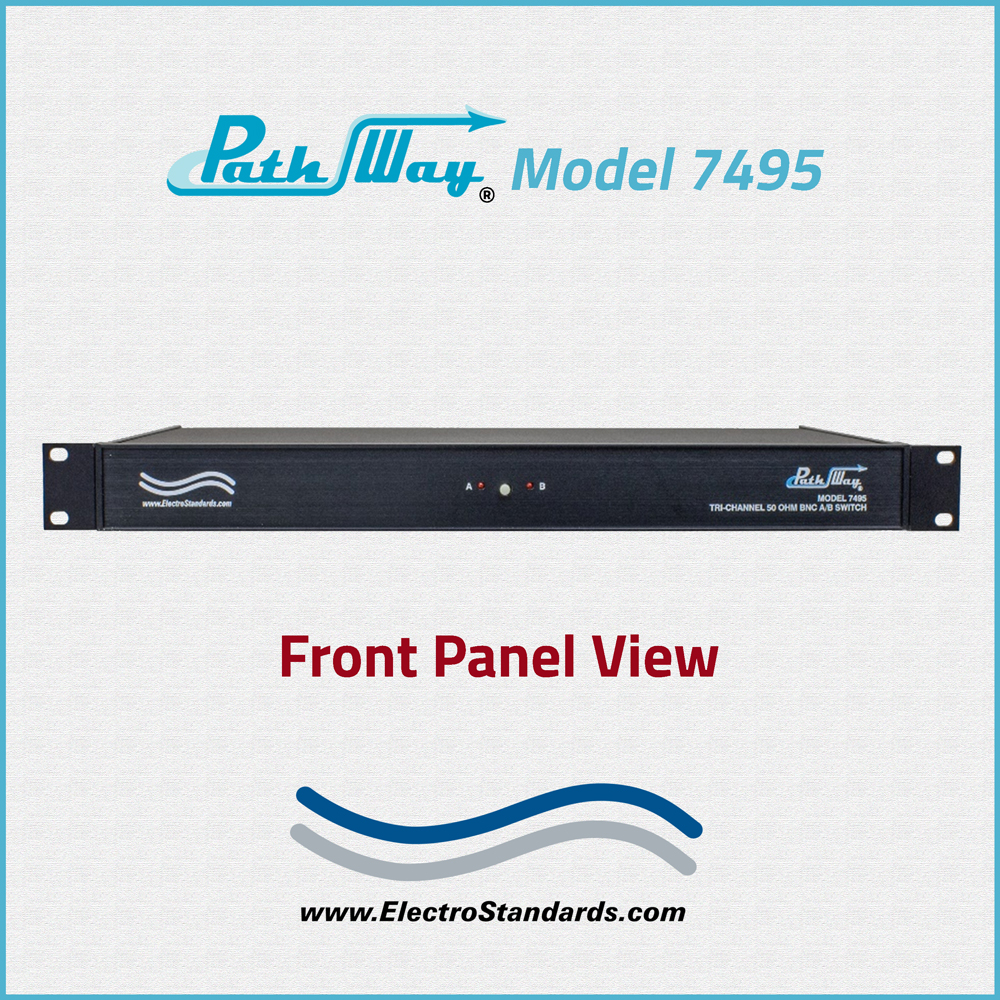

DISPLAY: (2) Front panel LED's display switch position and power status.

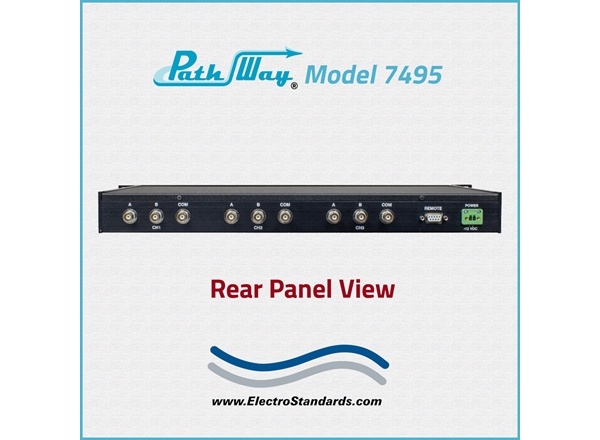

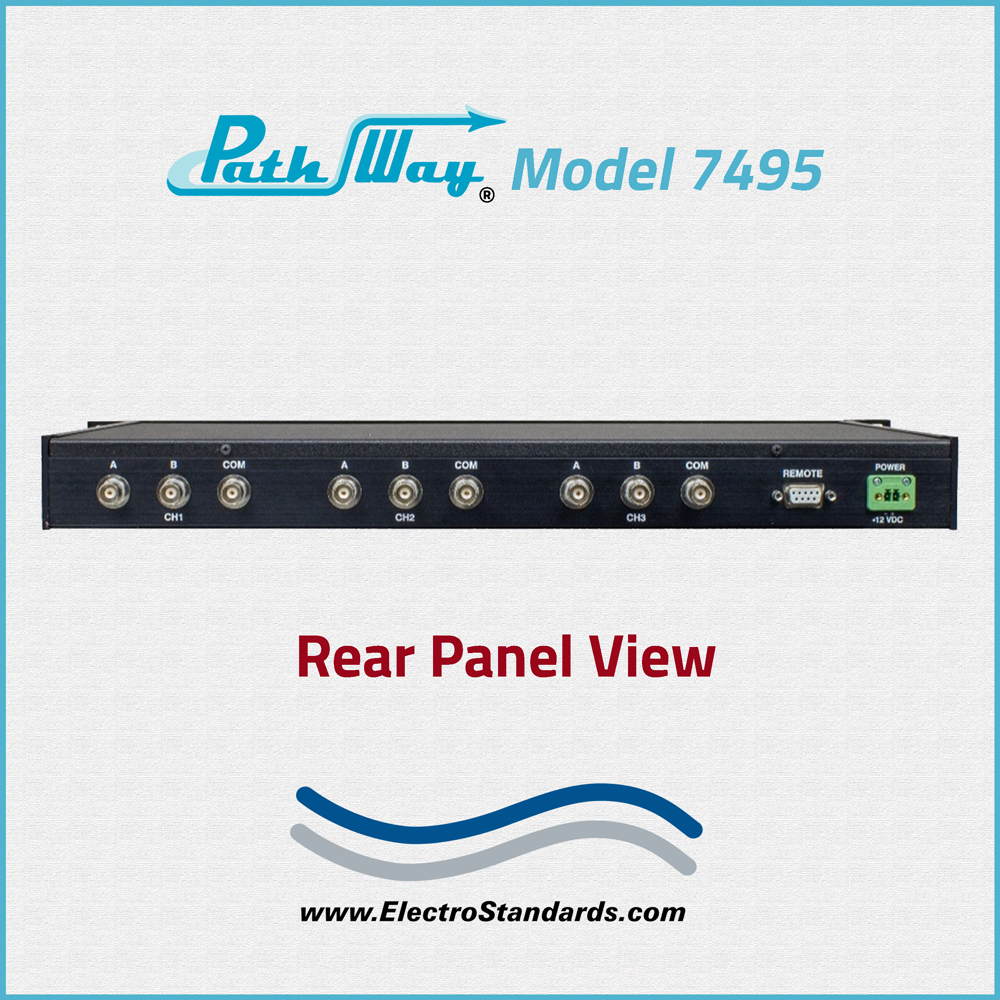

REMOTE: (1) DB9 female TTL port with custom pinout.
POWER: UL approved 100VAC-240VAC, 50Hz-60 Hz wall mount power module supplies 12 VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
DIMENSIONS: Rackmount 19.0" W x 1.72" H x 10.6" D (48.3 x 4.4 x 27 cm), (1U rack height).
WEIGHT: Approximately 5.3 lbs (2.5 kg)

OPTION: WIDE RANGE POWER MODULE

(Cat No 517277) CE, RoHS, and UL listed table mount power module, 100 VAC-240 VAC, 50Hz-60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.

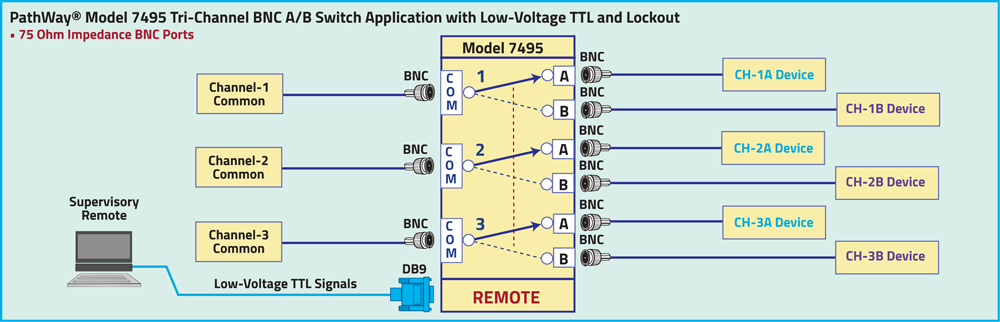

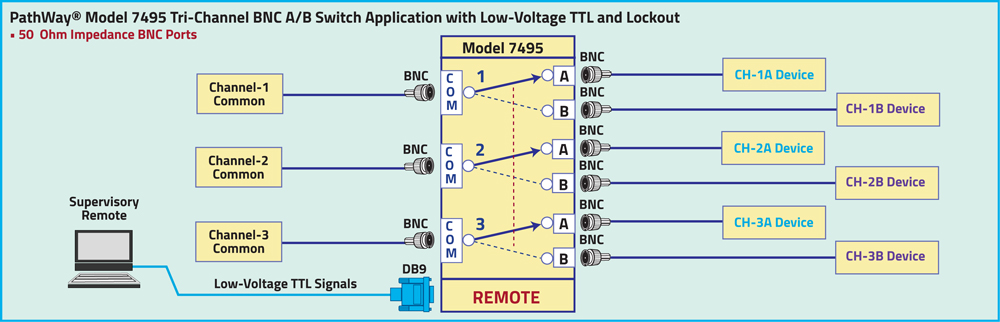

PathWay® Model 7495 Tri-Channel BNC A/B Application w/TTL Remote Control:

PathWay® Model 7495 Application diagram illustrates a COMMON device connected to the BNC COM port for Channel 1, Channel 2, and Channel 3. Each channel's COMMON device has access to two other BNC Interface devices connected to BNC ports A, and B. Simultaneously control all three channels from position A to position B or Position B to Position A. A REMOTE DB9 port can be used to Remotely Control the unit via TTL Signals.

PathWay Model 7499 Tri-Channel BNC A/B Application with Contact Closure Remote

Ordering Information

Catalog Number: 307495
Model Number: 7495
Base Price: See website or contact us for current pricing and availability.
Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
