Model 8019 BNC Coaxial A/B Switch with Manual Desktop Enclosure and 75 Ohm Impedance, Catalog# 308019

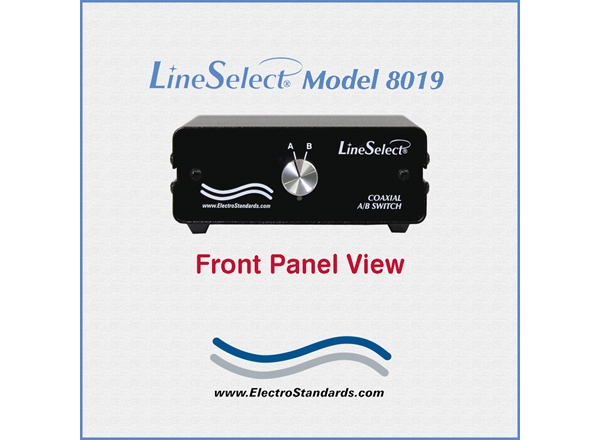

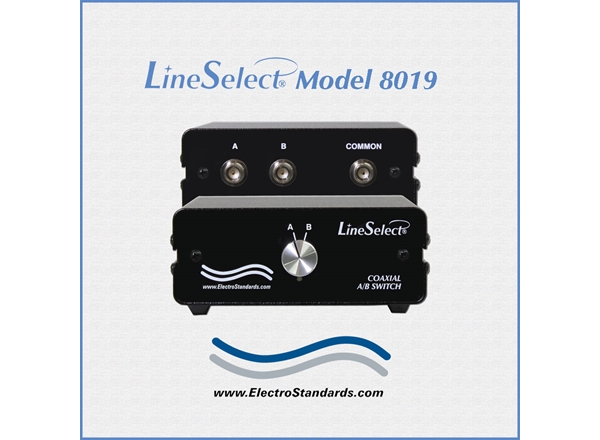

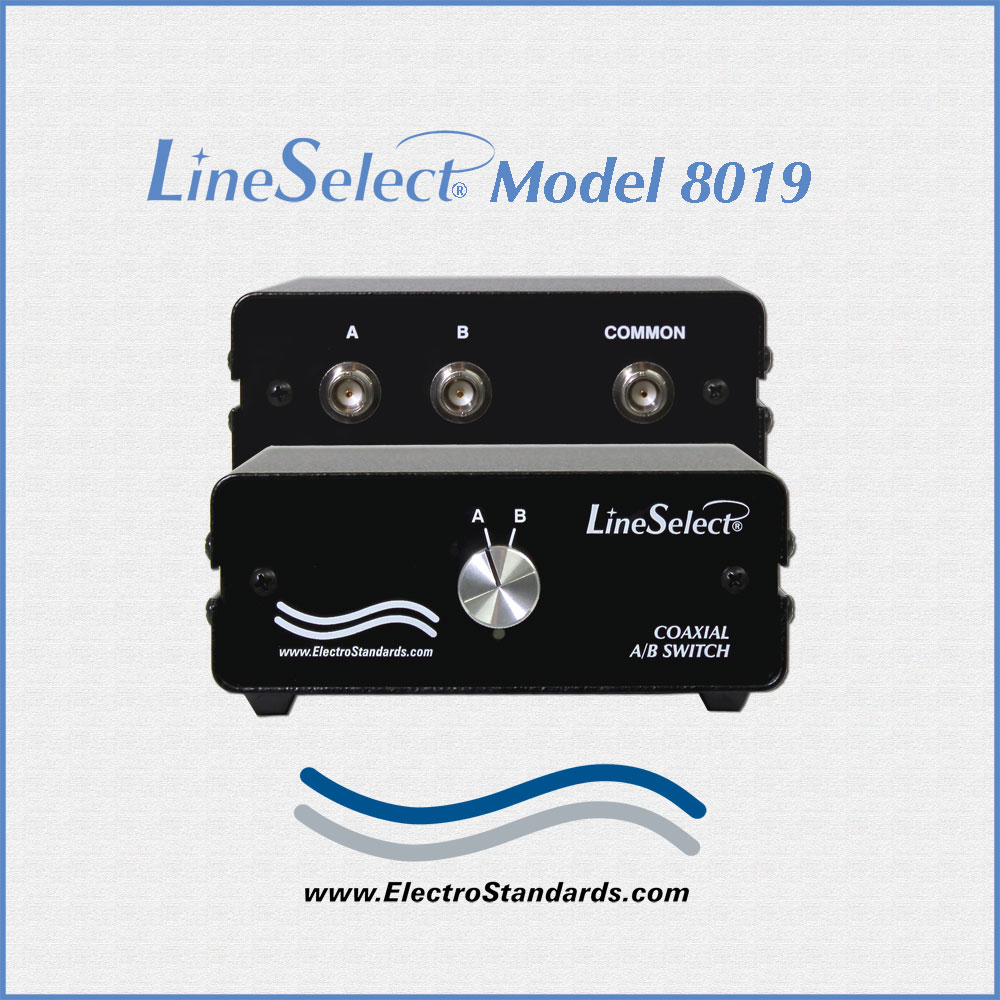

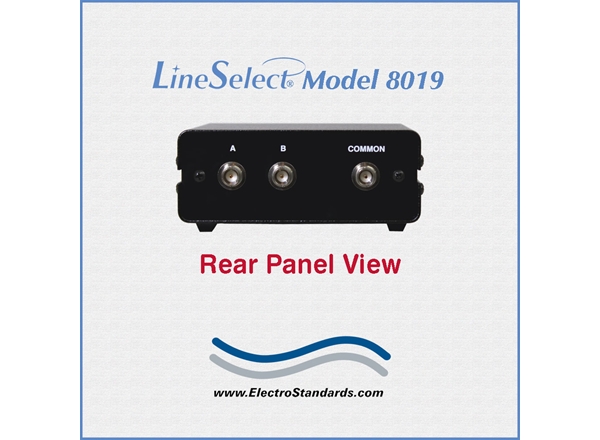

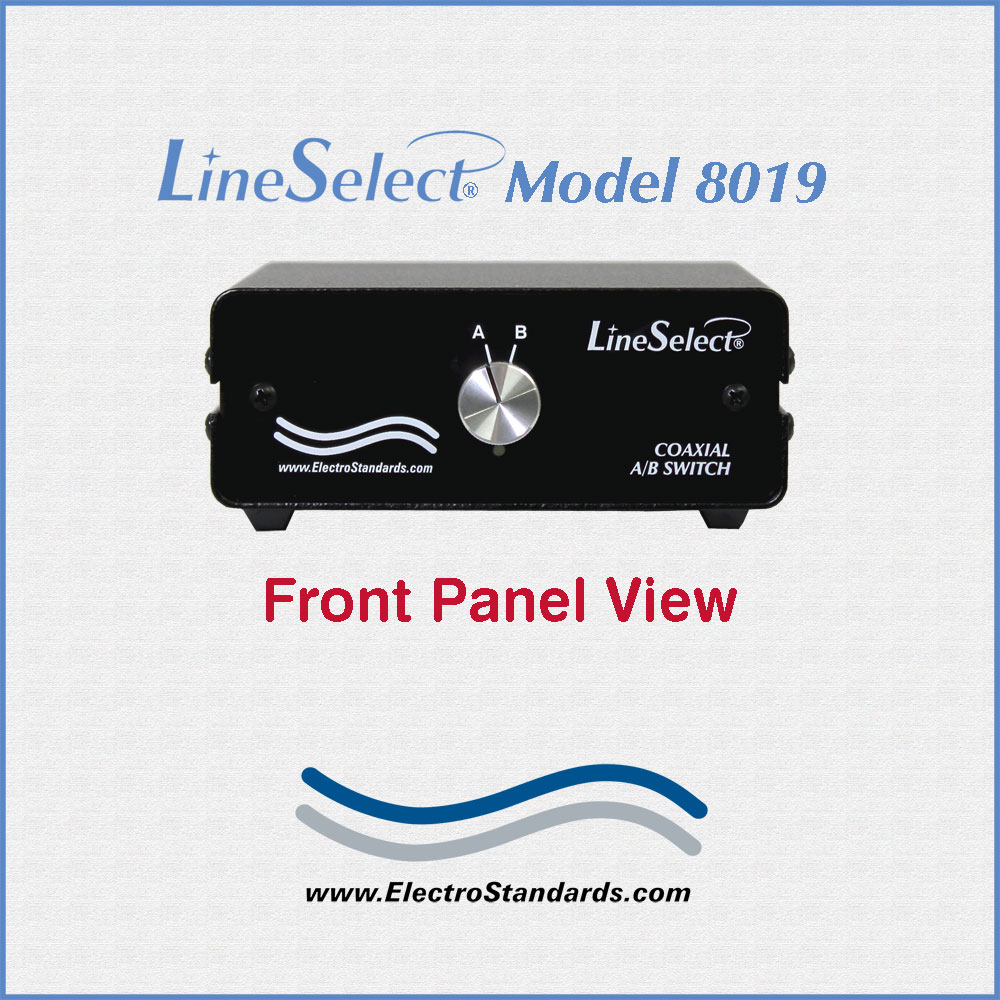

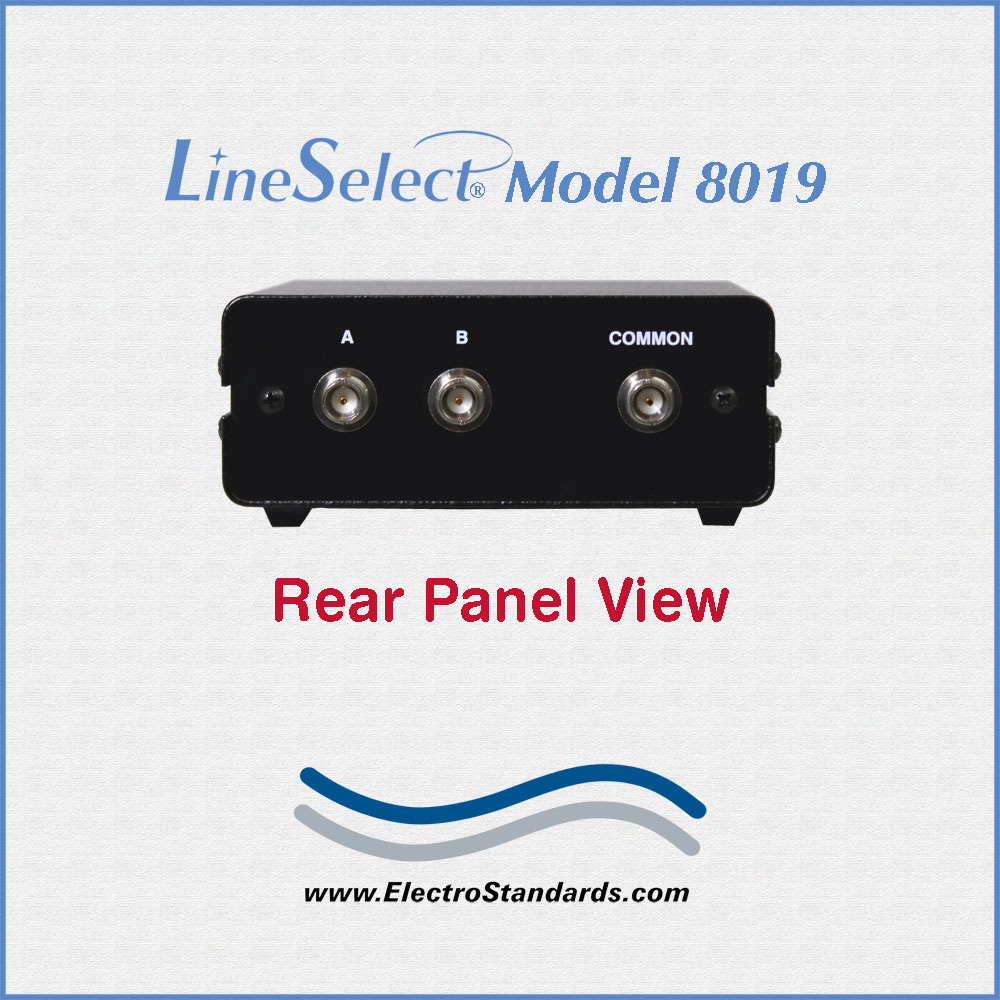

    Coaxial BNC A/B SwitchCoaxial BNC A/B SwitchCoaxial BNC A/B Switch
Click image to enlarge
    • Coaxial BNC A/B Switch
    • Coaxial BNC A/B Switch
    • Coaxial BNC A/B Switch
Base Price:
$392.00
Catalog No: 308019
Model No: 8019
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:Coax Switch Ports
Channels per Switch Chassis:1
Manual Control/No Power Required:LineSelect® Manual Operation
Configuration:Desktop
Pins Switched:Shield and Center Conductor of Coaxial Interface
Impedance:75 Ohm
Local Control:Rotary Knob

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

LineSelect® Model 8019 A/B BNC Coaxial A/B Switch, Manual Desktop, 75 Ohm Impedance

The Model 8019 BNC Coaxial A/B Switch allows the user to reroute data between either of two 75 Ohm BNC interface devices to one Common device with the simple flip of a rotary selector switch.  It is ideal for use in coaxial network device sharing or network sharing applications.  Both the center conductor and the shield of the coaxial interface are switched via break-before-make rotary switch. The Model 8019 is packaged in a slim desktop enclosure.

  • Simple Manual Operation: Quick and intuitive channel selection with clearly labeled controls

  • Robust Mechanical Switching: Designed for repeated use without performance degradation

  • Compact Bench-Top Design: Space-saving solution for labs and test stations

  • Share any BNC peripherals that have 75 Ohm BNC Coaxial Interface

  • A Field-Proven High Quality Data Network Switch

FEATURES OF THE MODEL 8019 BNC COAXIAL SWITCH:

  • Ideal for switching 10 Base-T BNC Network devices.
  • Share one controller with two workstations.
  • Share one terminal with two controllers.
  • Both the shield and center conductor of the coaxial interface are switched via break-before-make rotary switch.
  • High quality, sealed switch with self wiping precious metal contacts.
  • Manual operation. No power required.
  • Attractive anodized black box packaging provides EMI/RFI shielding.
  • Custom length 75 Ohm BNC Coaxial cables available for your switch installation.

TECHNICAL SPECIFICATIONS:

  • PORT CONNECTORS: (3) isolated coaxial female connectors labeled A, B, and Common.
  • FRONT PANEL CONTROL: (1) Manual rotary selector switch allows local switching.
  • POWER: No power required.
  • DIMENSIONS: 5.46" W x 2.28" H x 8.2" D (13.9 x 5.8 x 20.9 cm)
  • WEIGHT: Approximately 1.2 lb. (0.6 kg)

LineSelect® Model 8019 Coaxial A/B Rotary Switch Application:

Ideal for use in coaxial network device sharing or network sharing applications. Share any BNC peripherals that have BNC Coaxial Interface.

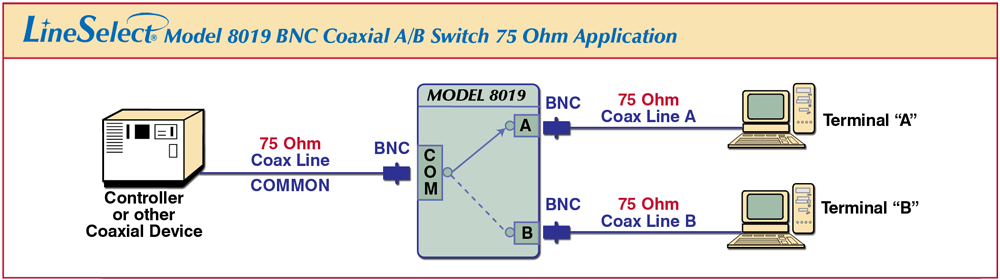

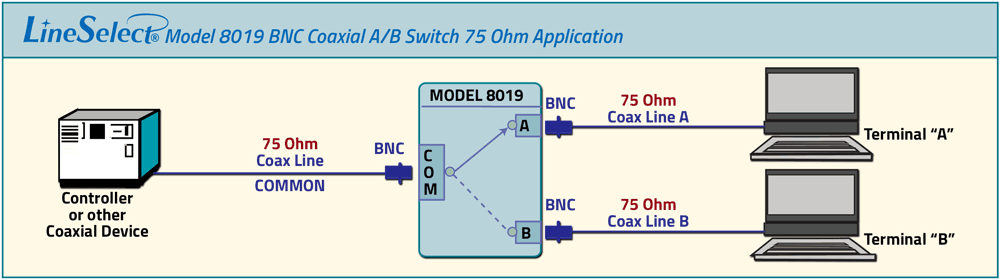

The drawing illustrates a Controller or Coaxial Device connected to the BNC COMMON port. Terminal A and Terminal B are connected to BNC ports A and B. The COMMON device has access to Terminal A and Terminal B via ports A and B.
