Overview
Telephone/Telecom Test Kit

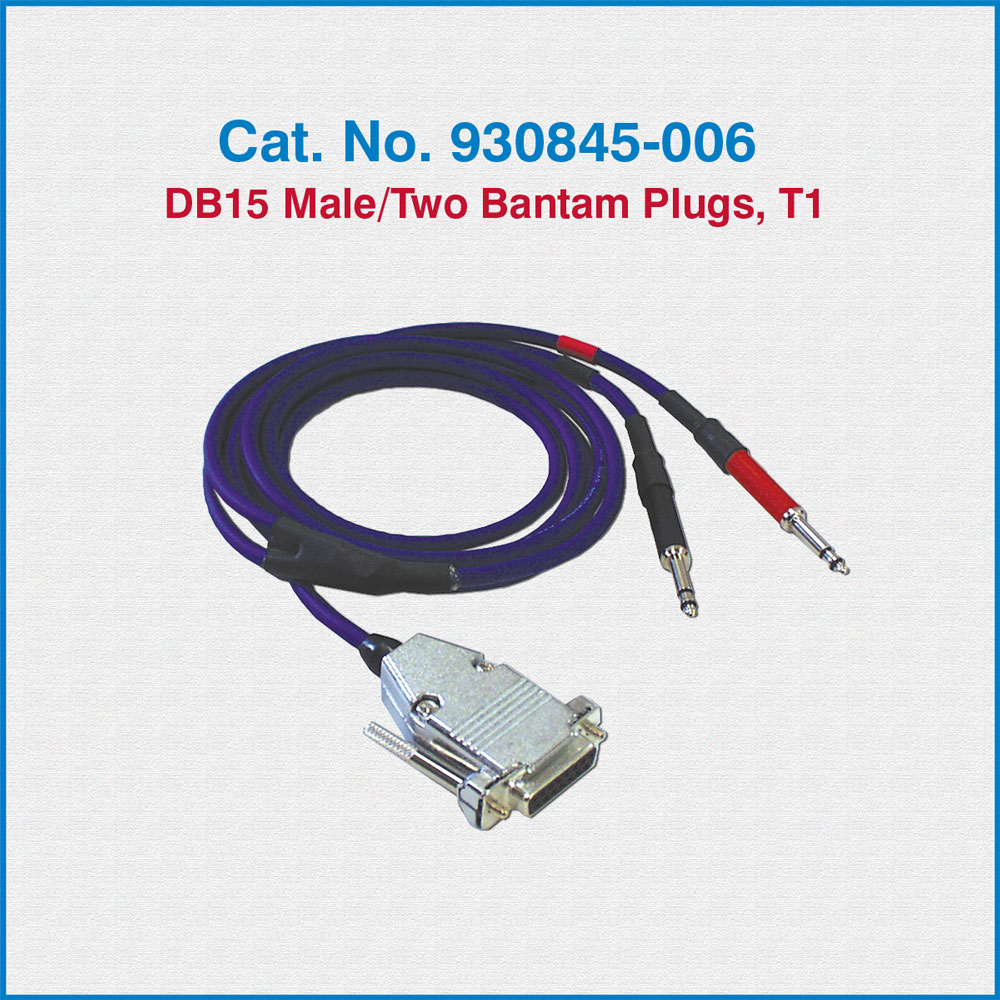

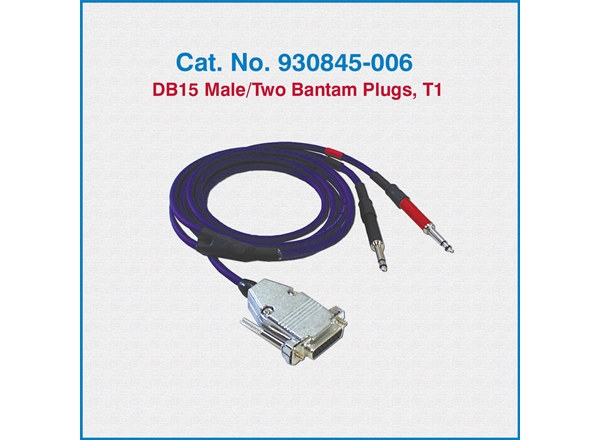

DB-15 Male/Two Bantam Plugs, T-1 Six-foot Telco Test Cable,
Catalog No. 930845-006
- High quality Telco cables designed to facilitate test and access of high speed data interface.
- Designed with input from Telco/Telecom Installers, Telco Linesmen, and Field Technicians
- Use this Catalog Number to purchase this cable separately from Telephone/Telco Test Kit and other telco test cables, see Catalog Number 980849 for complete Test Kit.
- A DB-15 male connector, metal hood with thumbscrews, connected to two miniature 3-conductor nickel phone plugs.
- The cable is 26 AWG, shielded, twisted pair with high-flex PVC jacket.
- Paired: Pins 1 & 9 to TX Tip & Ring, pins 3 & 11 to RX Tip & Ring.
- Standard length is 6 feet.
- The TX plug is red,
- The RX plug is black.
Electro Standards also provides custom data network cables. Click here for your On-Line Custom Data Cable Form:
/Products-Custom/Data-Cable/
All ESL products are available for export.
*Prices online are subject to change and verification.
