Catalog # 307180 - Model 7180 BNC 2-Channel Switch, 50 Ohm, Contact Closure

    BNC 2-Channel Switch, 50 Ohm, Contact ClosureBNC 2-Channel Switch, 50 Ohm, Contact ClosureBNC 2-Channel Switch, 50 Ohm, Contact ClosureBNC 2-Channel Switch, 50 Ohm, Contact Closure
Click image to enlarge
    • BNC 2-Channel Switch, 50 Ohm, Contact Closure
    • BNC 2-Channel Switch, 50 Ohm, Contact Closure
    • BNC 2-Channel Switch, 50 Ohm, Contact Closure
    • BNC 2-Channel Switch, 50 Ohm, Contact Closure
Base Price:
Catalog No: 307180
Model No: 7180
Product Type:Switches: Copper
Switch Application:Audio/Video Switching
Cable Type/Port Connector:Coax Switch Ports
Channels per Switch Chassis:2
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Simultaneous Channel Control
Remote Control:Contact Closure
Pins Switched:Both Center and Shell of BNC Interface
Remote Port:DB9
Local Control:Pushbutton
Feature:BNC ports are impedance matched to support 50 Ohm


Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request


Path Way® Remotely Controllable Network Switch, BNC Coaxial

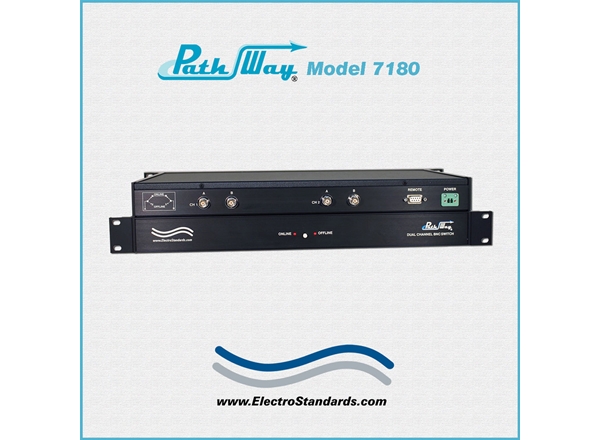

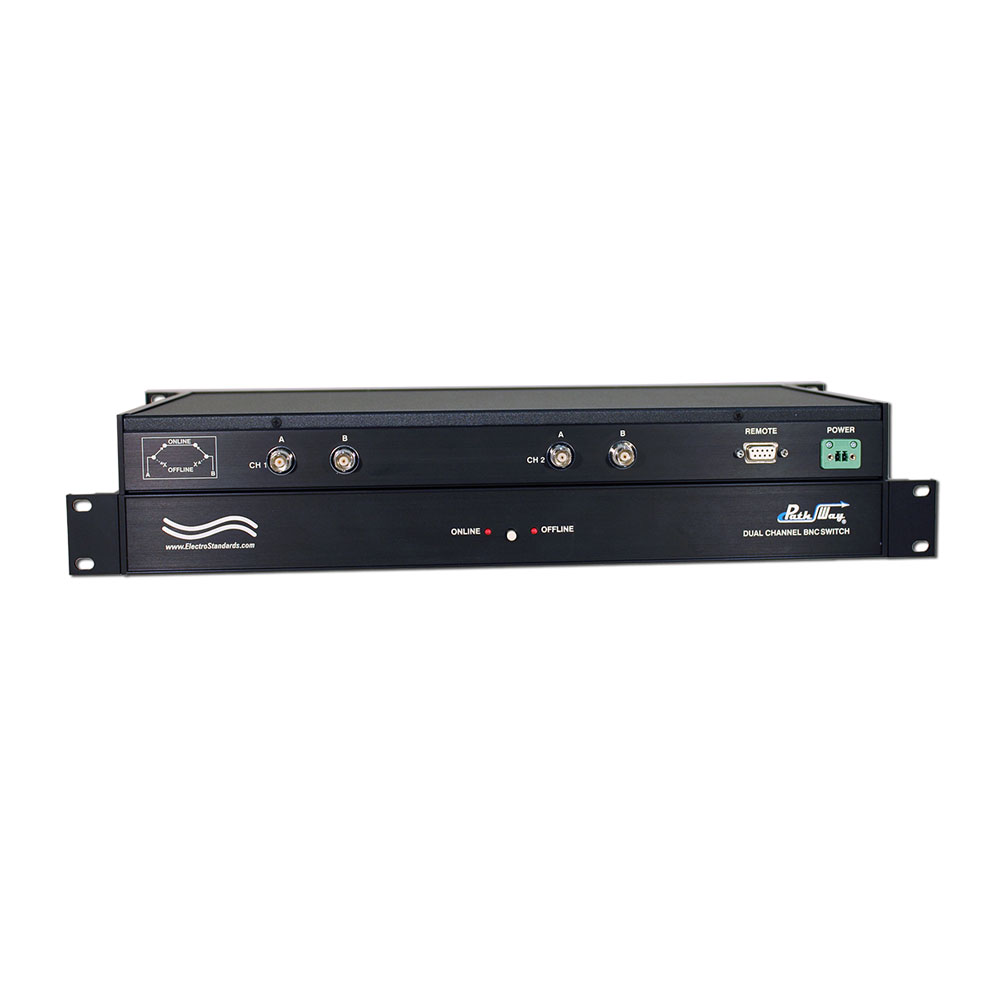

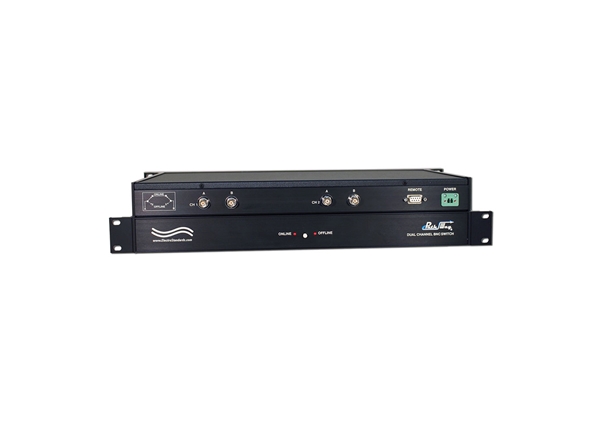

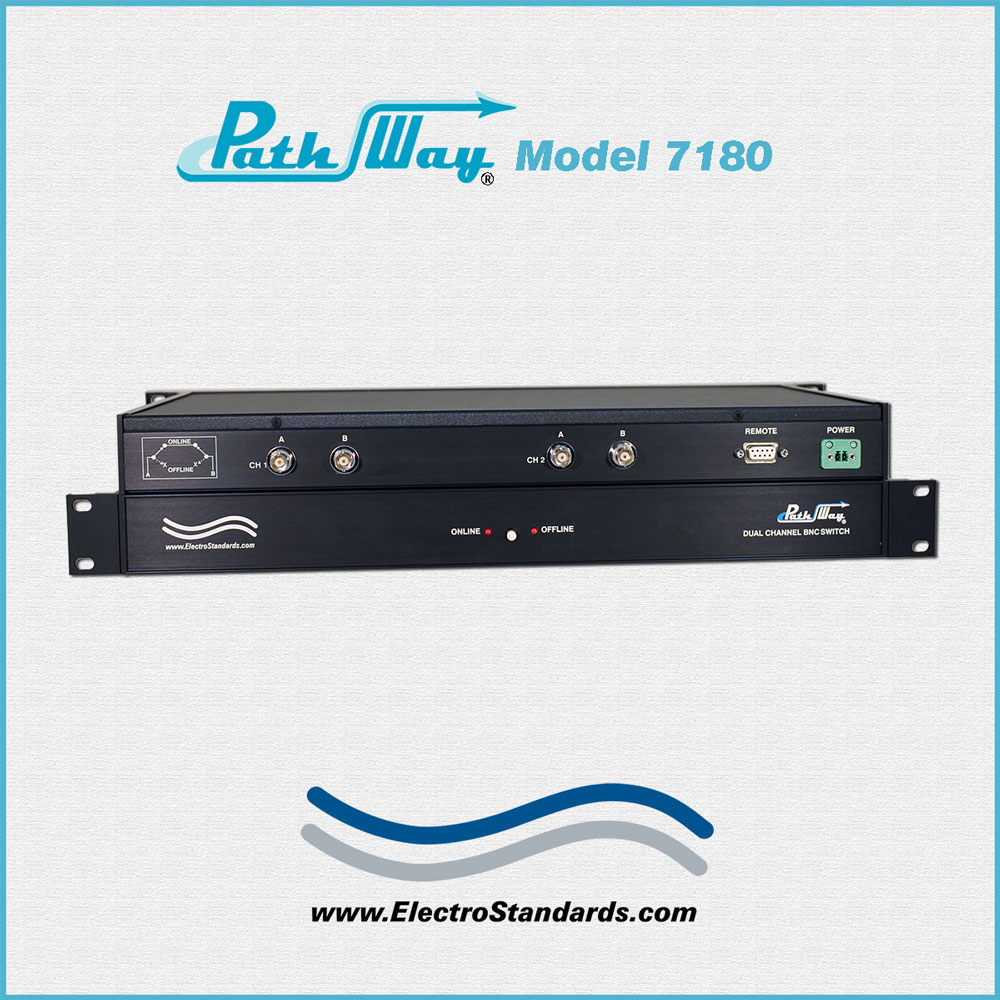

Model 7180 Dual Channel BNC 50 OhmOnline/Offline Switch with Contact Closure Remote and Position Feedback

  • Ideal for switching BNC connections remotely via contact closure signaling.

  • Outstanding for switching Audio.


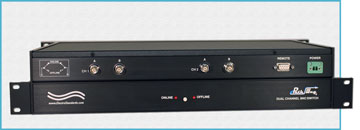

  • PORT CONNECTORS: (2) BNC (F) connectors labeled A and B for each Channel.

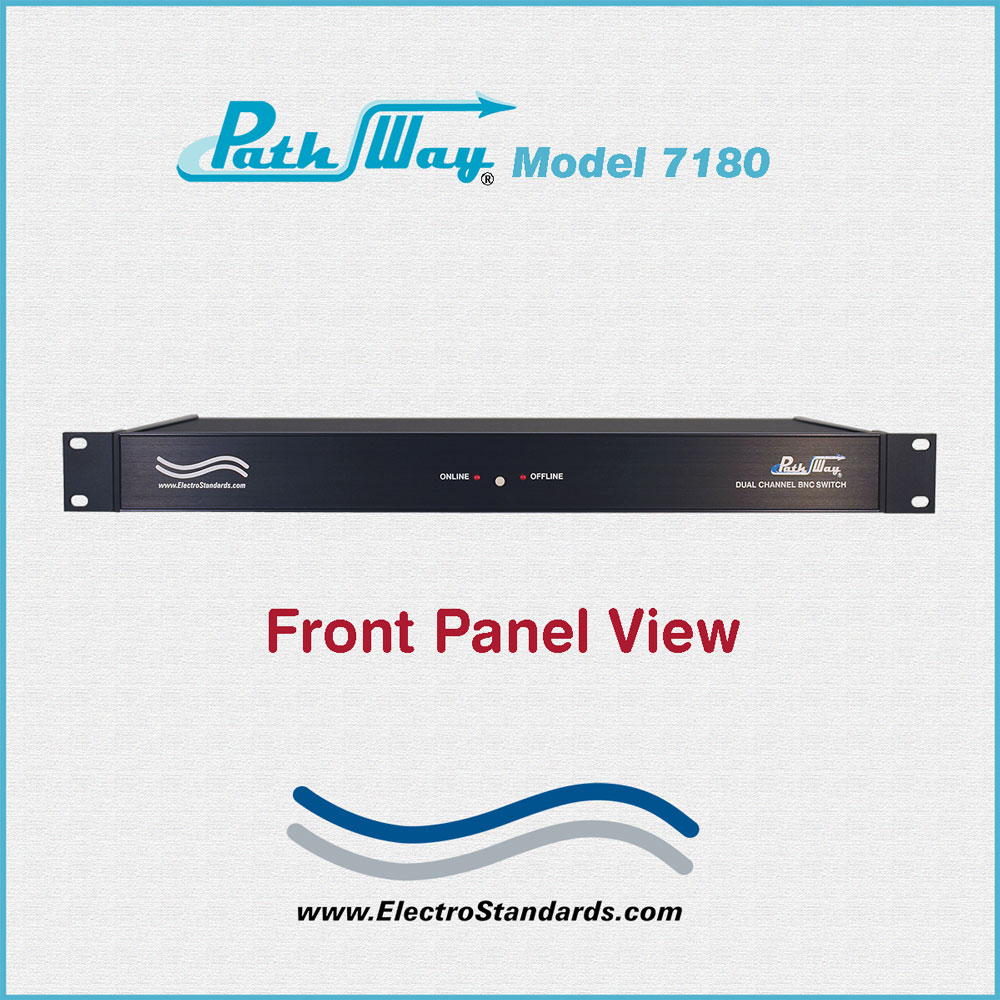

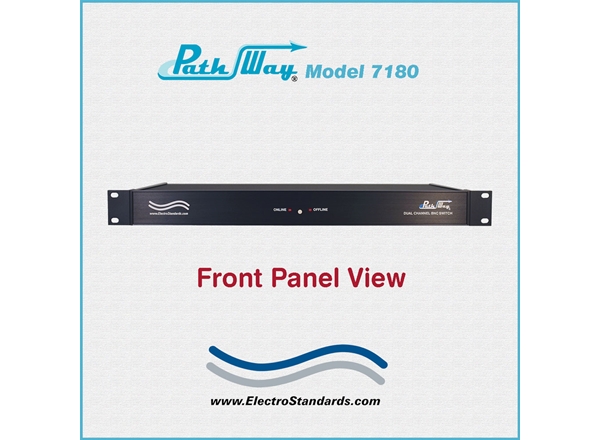

  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
  • DISPLAY: (2) Front panel LED's display switch position and power status.

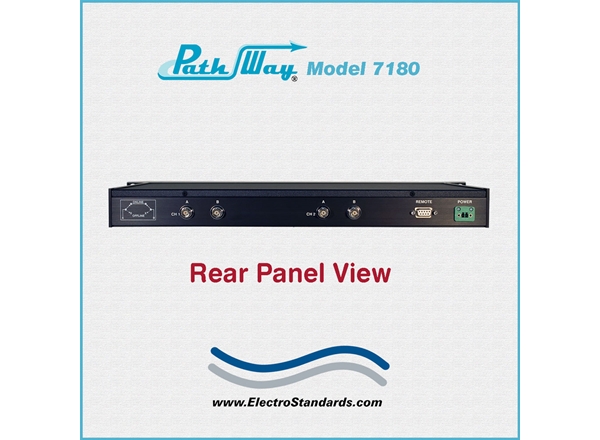

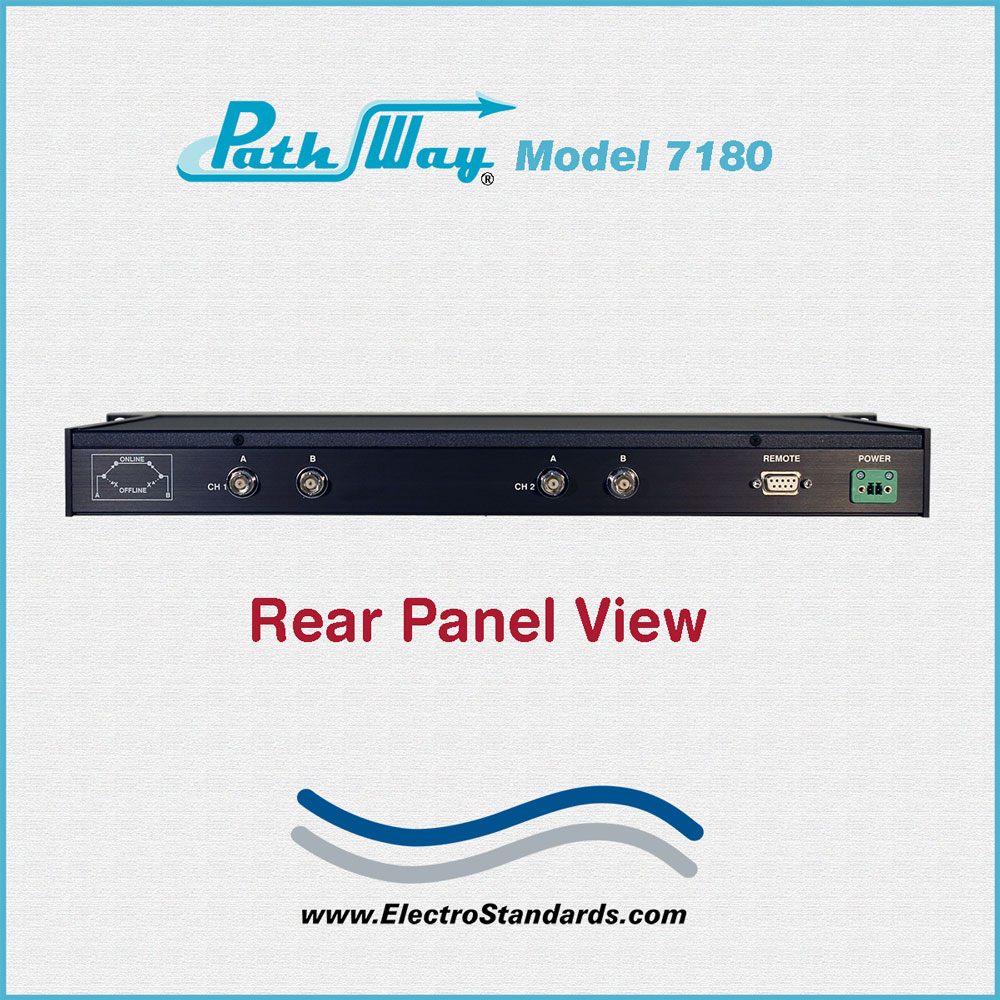

  • REMOTE: (1) DB9 female connector on rear panel accepts Contact Closure Signals for Remote Control Operation.
  • POWER: UL approved 100VAC-240VAC, 50Hz-60Hz wall mount power module supplies 12VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Rackmount 19.0" W x 1.75" H x 10.0"D. (1U rack height) (48.3 x 4.4 x 25.4 cm)
  • WEIGHT:  Approximately 5.0 lbs. (2.3 kg)

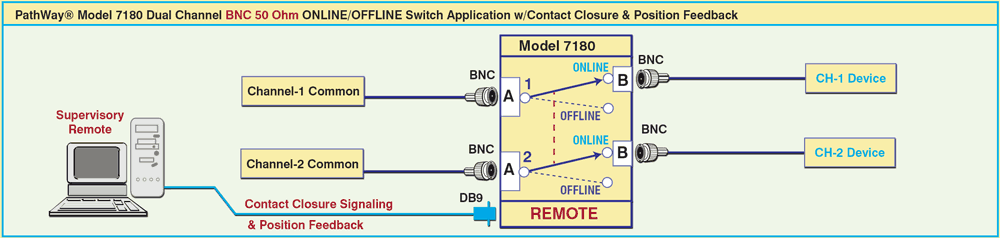

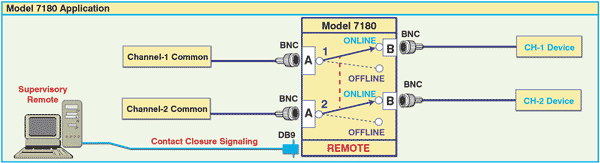

PathWay® Model 7180 Dual Channel BNC 50 Ohm ONLINE/OFFLINE Switch Application w/Contact Closure & Position Feedback Remote:
