514077 Model 4077 2-Channel Network Switch Control Unit

    Remote Switch/ Contact Control UnitRJ45 Male to DB15 Male CableDB15 Female to male adaptorPanel Mount Adaptor Optiion
Click image to enlarge
    • Remote Switch/ Contact Control Unit
    • RJ45 Male to DB15 Male Cable
    • DB15 Female to male adaptor
    • Panel Mount Adaptor Optiion
Base Price:
$165.00
Catalog No: 514077
Model No: 4077
Feature:Provides Contact Closure to Control M7266
Positions:2
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:2
Remote Control:Contact Closure
Configuration:Desktop
Remote Port:Dual, RJ45
Local Control:Toggle

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

Model 4077 Dual Channel Remote Control Unit with LED Display

  • Provides Contact Closure Signals to Two Remotely Located Switches.

  • Select (2) Models 7266, (2) Model 7276, (2) Model 7392, or (2) Model 7312 units to be controlled simultaneously via the Model 4077 unit.

FEATURES:

  • Two separate RJ45 connector ports, labeled CHANNEL 1 and CHANNEL 2, allow the user to run separate cables to the remotely located switches being controlled.
  • High intensity red LED indicators display switch position of each channel.

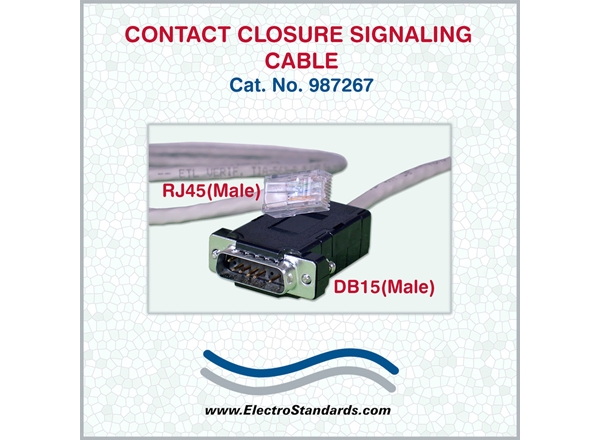

  • A special cable from the Model 4077 (RJ45) to the Model's 7266, 7276, 7392 or 7312 (DB15) passes the required signals to control the switch position.
  • Custom length control cables available. See Cat. No. 987267(order in feet)
  • Low profile toggle A/B Switch located on front panel.
  • Small, metal enclosure, 1.24" H x 2.77" W x 5.92" D. (3.2 x 7.1 x 15.1 cm)
  • Weight: 0.5 BLS (0.3 kg)

Model 4077 Contact Closure Remote Unit Application:

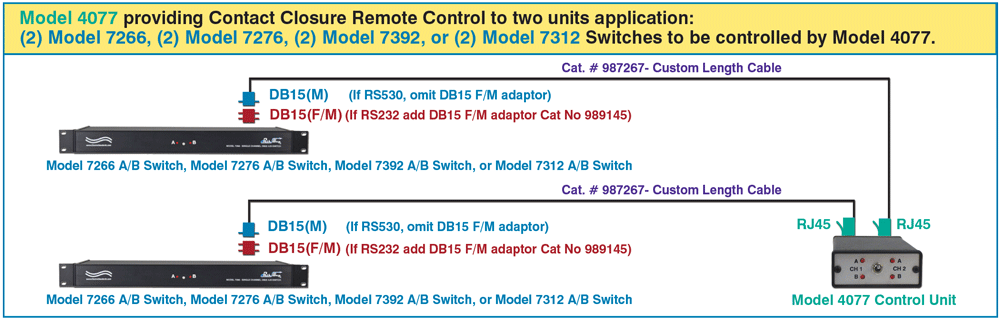

  • The application drawing shows the Model 4077 connected to two switches using two special RJ45 to DB15 cables (Cat No 987267).
  • The Model 4077 can be used with Models 7266, 7276, 7392, and 7312 to control switch position of two units simultaneously.
  • A cable from the Model 4077 “CH 1” port to a Model 7266, Model 7276, Model 7392, or Model 7312 Control port will control the switch, and a second cable from the Model 4077 “CH 2” port will control a second unit.
  • Both channels of the Model 4077 are controlled simultaneously.
  • A custom cable of length in feet is catalog number 987267 feet.
  • The Model 4077 provides the Contact Closure required to remotely control the A/B Switches.
  • Each channel of the Model 4077 has a dedicated pair of LED’s to display the status of each of the units connected.

Model 4077 Dual Channel Remote Control Unit Application

Model 4077 Dual Channel Remote Control Unit remotely controls up to two Model 7266, Model 7276, Model 7392, or  Model 7312 RS232/RS530 Single Channel A/B Switch units.  There is a DB15 Control port on the rear of the Model 7266, Model 7276, and Model 7392.  A special cable from the Model 4077 (RJ45) to the Model 7266, Model 7276, Model 7392, or the Model 7312 DB15 passes the required signals to control the switch position.  Status contact leads also present on the switch units are also available via the Remote Connection, allowing the front panel LED's to accurately display the position of the switch units.

A cable from the M4077 "CH 1" port to the M7266, Model 7276, Model 7392, or Model 7312 Control port will control the switch, and a second cable from the M4077 "CH 2" port will control a second unit. Both channels of the Model 4077 are controlled simultaneously.   A cable of custom length in feet is catalog number 987267.  The Model 4077 provides the contact closure required to remotely control the A/B Switches.  Each channel of the Model 4077 has a dedicated pair of LED's to display the status of each of the units connected.

DB15 / RJ45 cables are available in any length to connect between the units.  Call Electro Standards, 401-943-1164 to order cables made to length required.

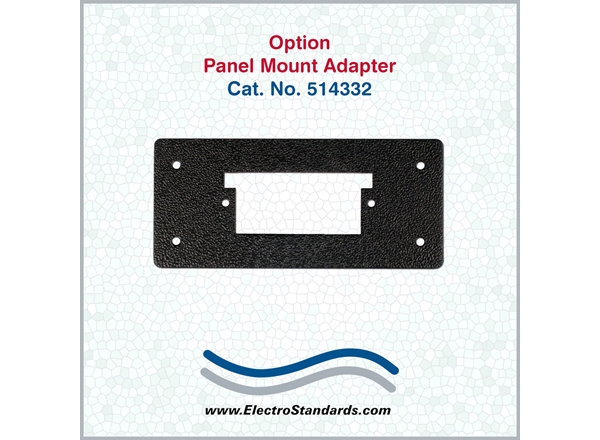

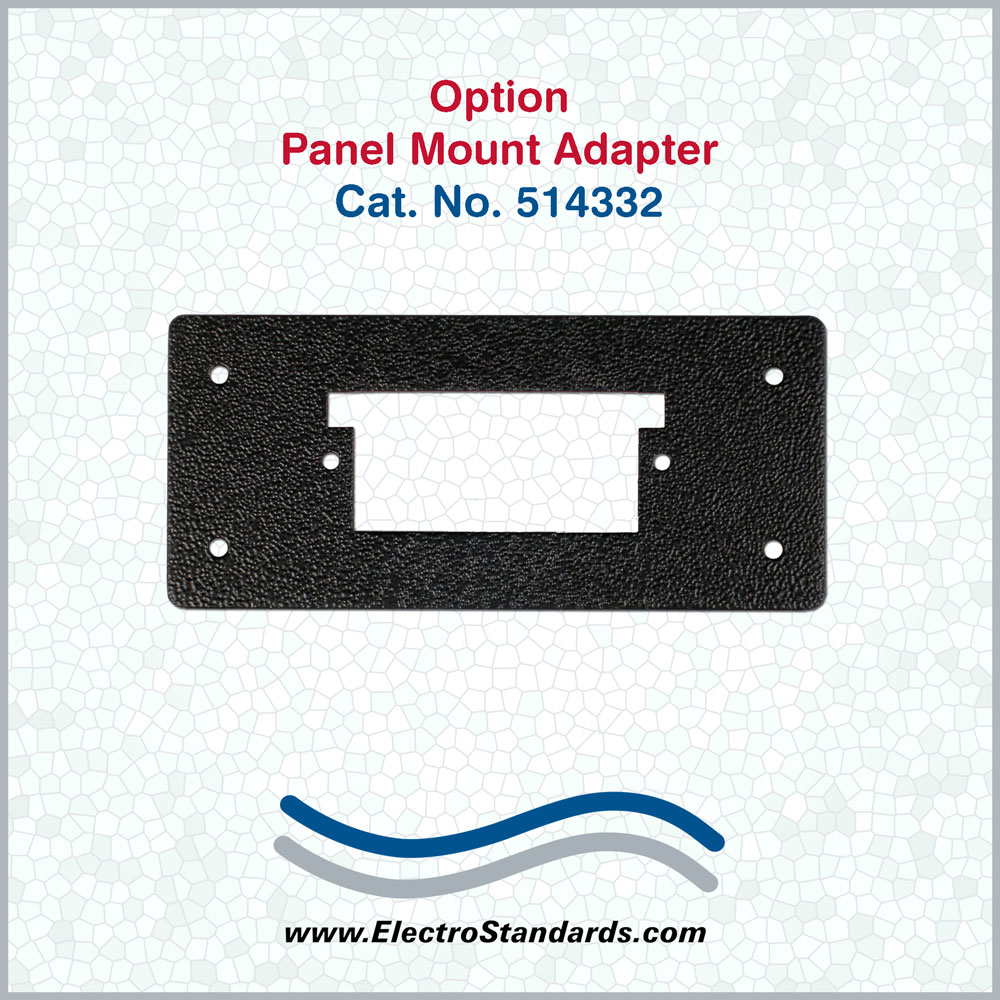

Panel Mount Adaptor Plate Option:

Optional mounting plate is available that allows the unit to be mounted to a panel.  The mounting plate is Cat. No. 514332 pictured with the photos above.  Overall dimensions are 2.2" x 4.75" (.06 aluminum).

Model 4077 Accessories:

Custom Length RJ45(M) to DB15(M) cables available to connect the Model 4077 to two units (7266, 7276, or 7392. State cable length in feet when ordering.
Part Number  Description
987267  RJ45/M to DB15/M
989145 Adaptor DB15 F/M
514332
 Option: Panel Mount Adaptor

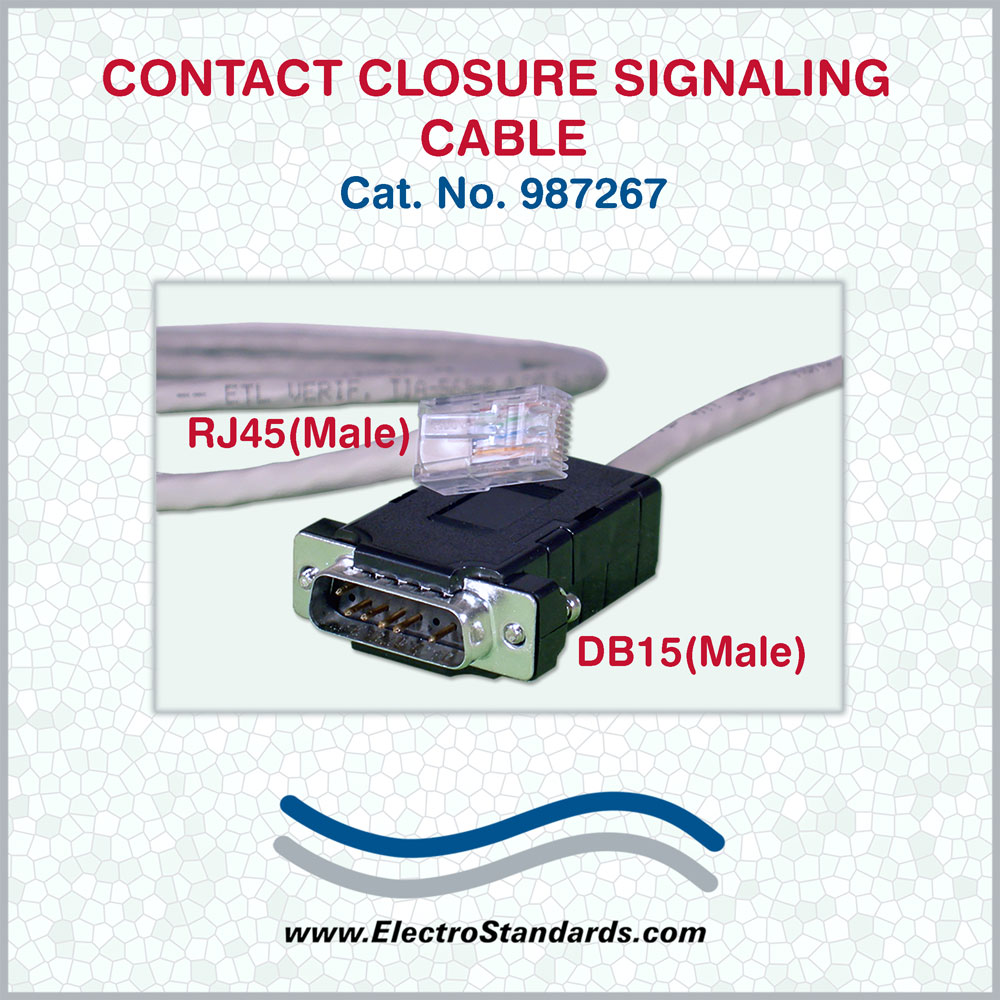

Cable Cat. No. 287267  RJ45/M to DB15/M Pin Out Chart
RJ45/M
 DB15/M
Pin#  Pin#
 1
 4
 2
 2
 3    5
 6    6
 4    15
 5    7
 7    NC
 8    NC

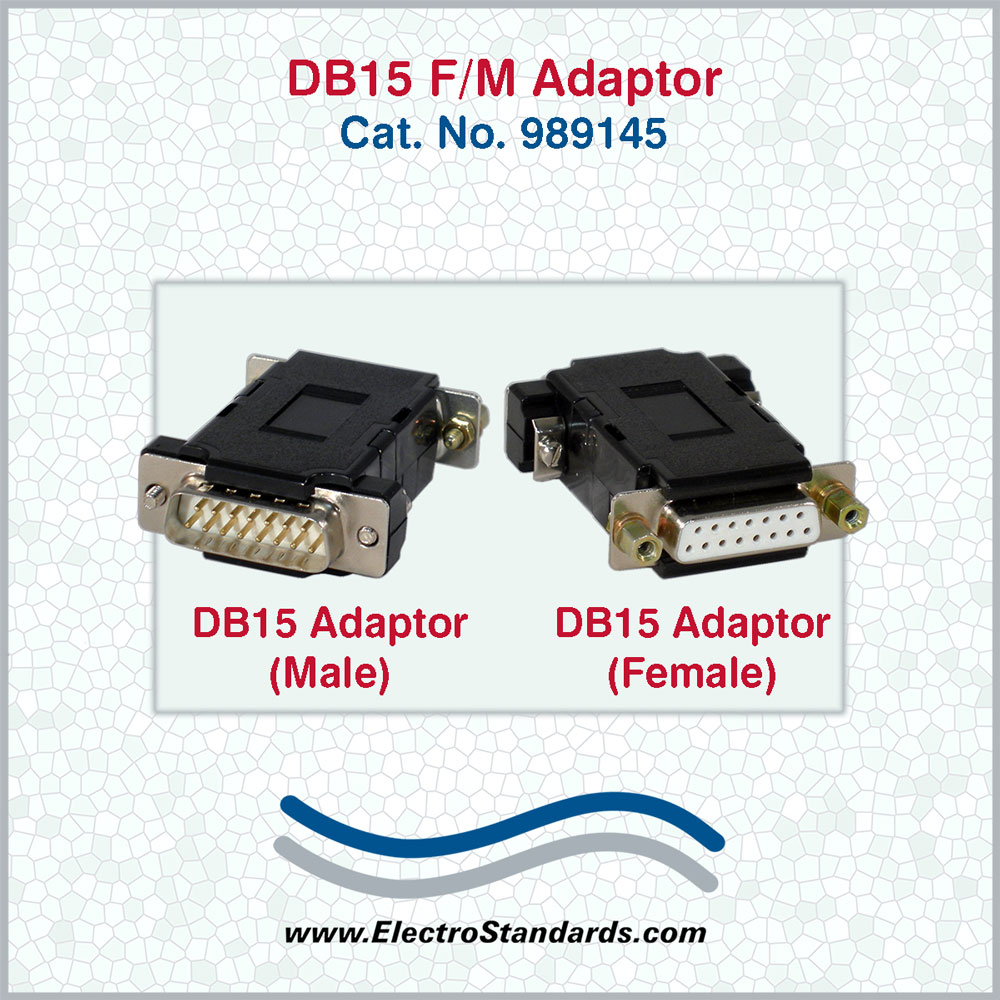

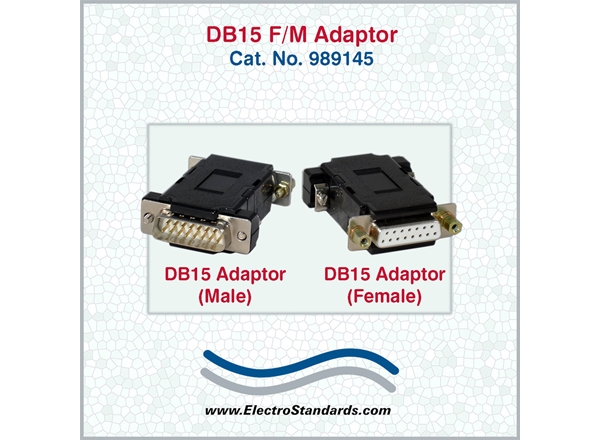

Adaptor Cat. No.  989145 Pin Out Chart
DB15/M
 DB15/F
Pin#  Pin#
 1
 1
 2
 2
 3    3

 •

 •

 •







 •

 •

 •

 13    13
 14
 15  15

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.
