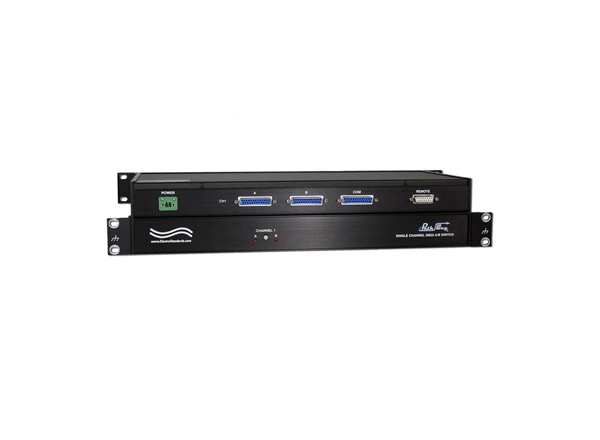

307276 Model 7276 DB25 RS232/RS530 A/B Switch

    DB25 RS232/RS530 A/B SwitchDB25 RS232/RS530 A/B SwitchDB25 RS232/RS530 A/B SwitchModel 4077 Contact Closure DeviceDB25 RS232/RS530 A/B Switch
Click image to enlarge
    • DB25 RS232/RS530 A/B Switch
    • DB25 RS232/RS530 A/B Switch
    • DB25 RS232/RS530 A/B Switch
    • Model 4077 Contact Closure Device
    • DB25 RS232/RS530 A/B Switch
Base Price:
$775.00
Catalog No: 307276
Model No: 7276
Feature:RS-232 / RS-530
Protocol:Data Activity or DCD
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:DB25 Switch Ports
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:Auto Fallback, Contact Closure
Configuration:Rackmount
Auto Fallback:Data Activity & DCD Trigger Monitor, Monitors Port A
Pins Switched:1-6 & 8-25 switched, Pin 7 Ground tied to all ports
Remote Port:DB15
Local Control:Pushbutton

Single-Channel RS232/RS530 A/B Switch with Auto Fallback & Auto Recovery: (Rackmount Unit)

  • DB15 Remote Control Port, Contact Closure Signaling
  • Control two Model 7276 via the Model 4077 Contact Control Device
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

Path Way® Remotely Controllable Network Switch, DB25, Auto Fallback

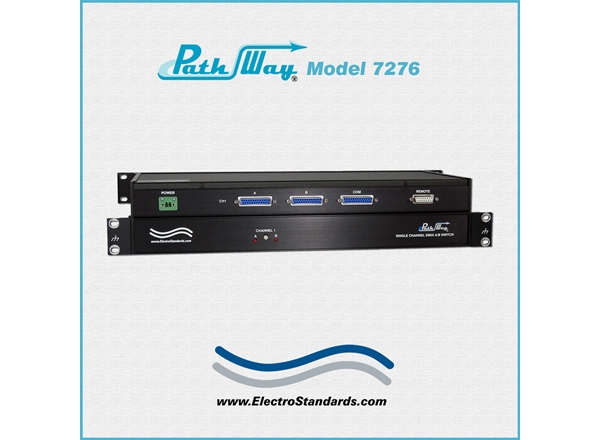

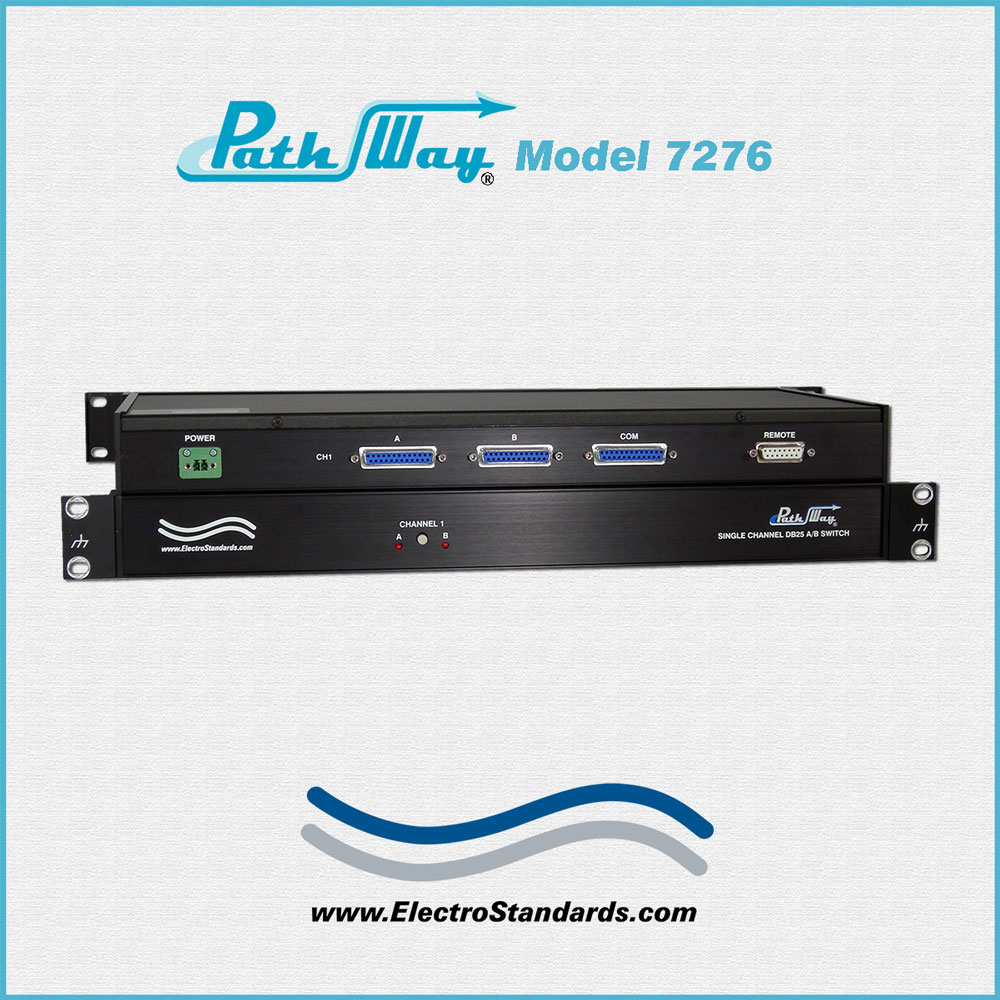

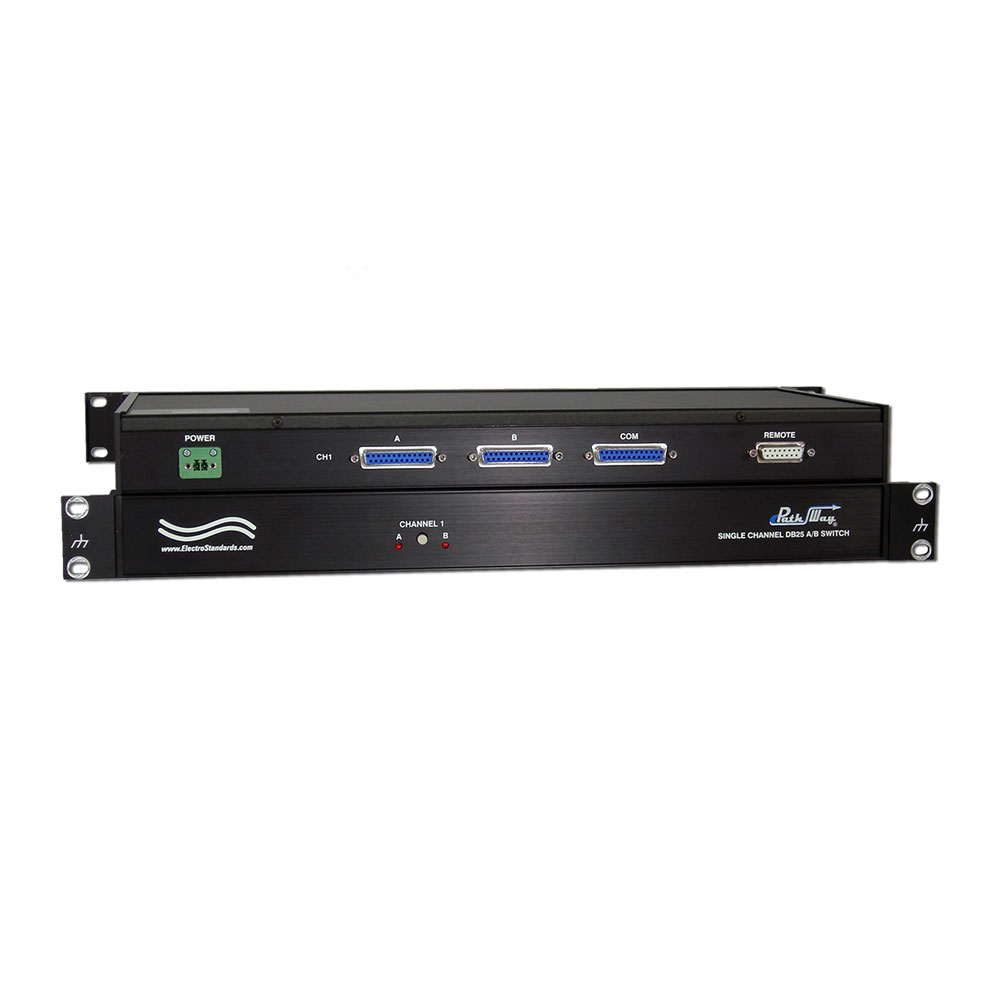

Model 7276 Single Channel RS-232 / RS-530 A/B Switch with Auto Fallback & Auto Recovery

  • Automatic Switch to Backup via Data Activity and Data Carrier Monitor!

  • Doubles the Reliability of Data Throughput in Critical Network Applications.

SPECIFICATIONS:

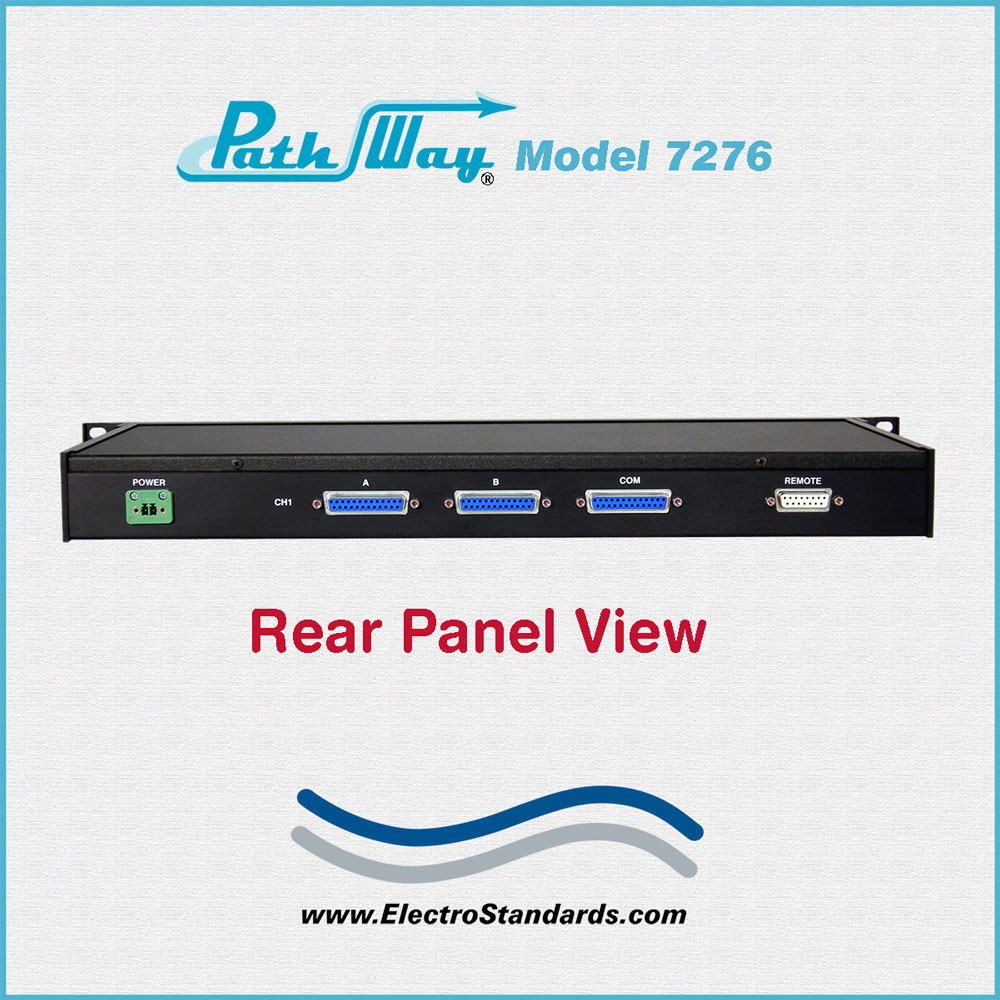

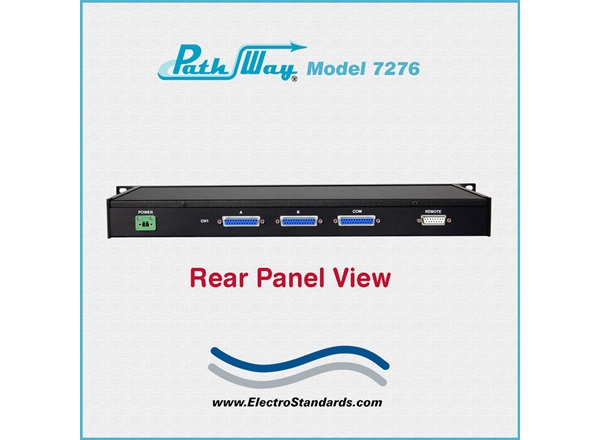

  • CONNECTORS: (3) DB25 (F) connectors on rear panel labeled A, B and COMMON.

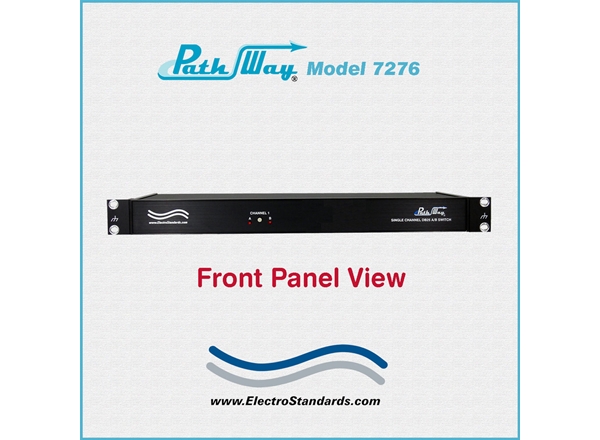

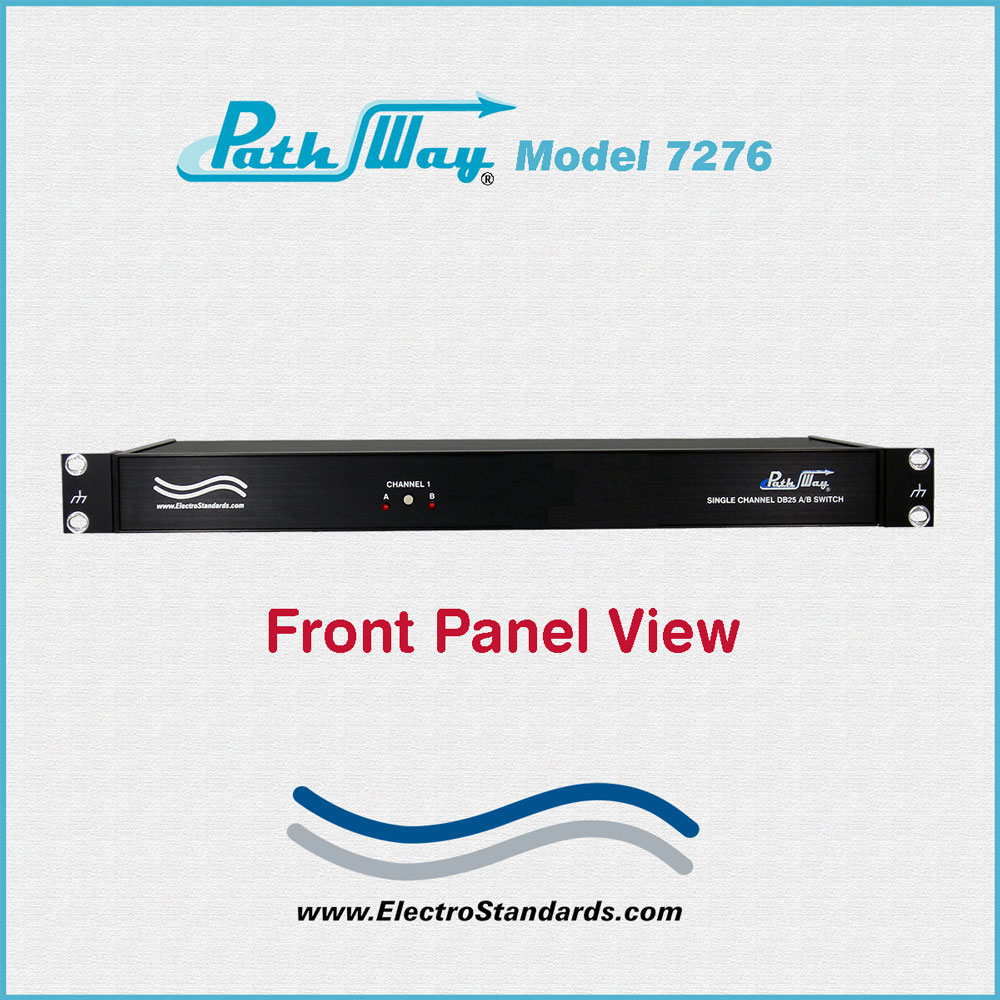

  • FRONT PANEL CONTROL: Manual pushbutton allows alternate action A/B switching when in manual mode.

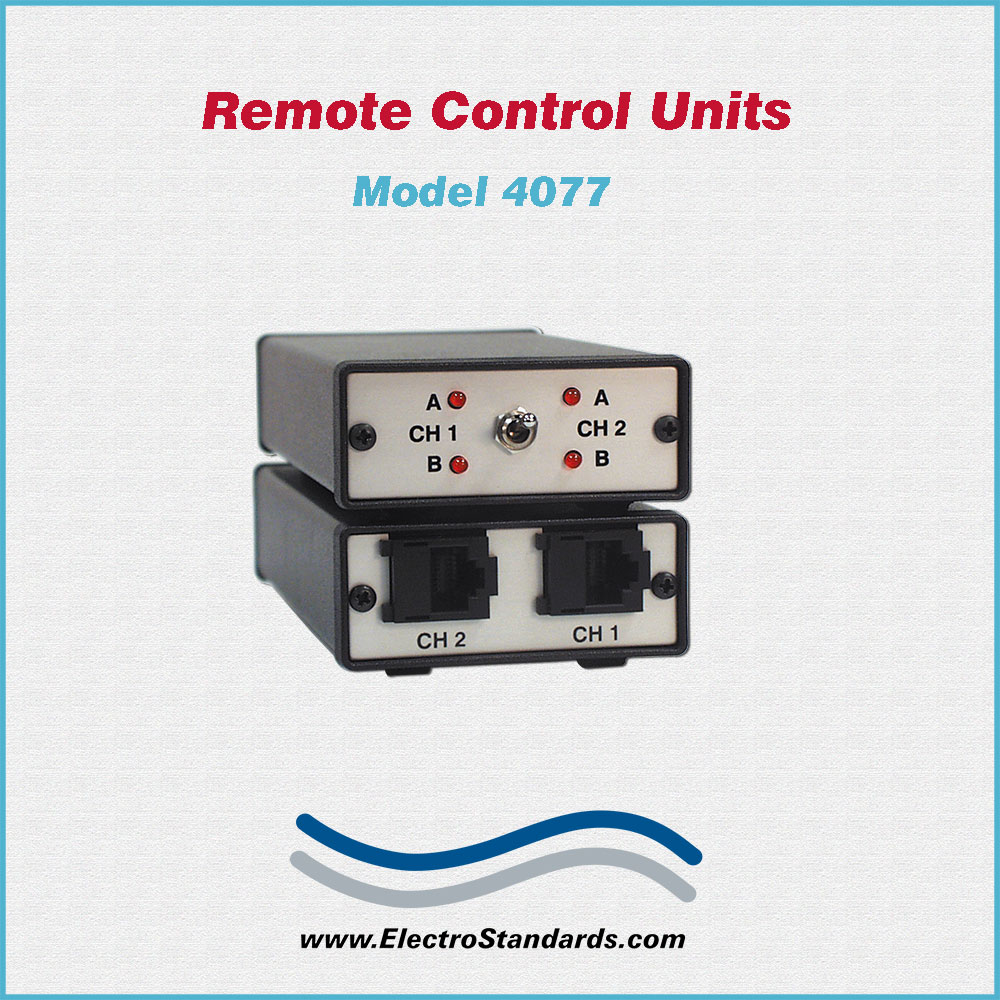

  • REMOTE CONTROL: (1) DB15 (F) connector on rear panel accepts contact closure signals from Model 4077, Cat No. 514077, or similar device.
  • FRONT PANEL DISPLAY: (2) LEDs labeled A and B display switch position and power status.
  • POWER: UL Approved, 100VAC-240VAC, 50Hz-60Hz wall mount power module supplies 12 VDC, 500mA to the unit.  Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Rackmount, 1.75" H x 19.0" W x 8.0" D (48.3 x 4.4 x 20.3 cm)
  • WEIGHT: Approx. 4.9 lbs. (2.2 kg)

PathWay® Model 7276 Single Channel RS232/RS530 A/B Switch Application w/Auto Fallback & Recovery: (DB15 Remote Control via Contact Closure)

Automatic switch to backup via Data Activity and Data Carrier Monitor. The automatic Fallback Mode monitors port "A" only for RD Activity or DCD presence. The DB15 REMOTE port can be used to obtain switch position status via contact closure signals).

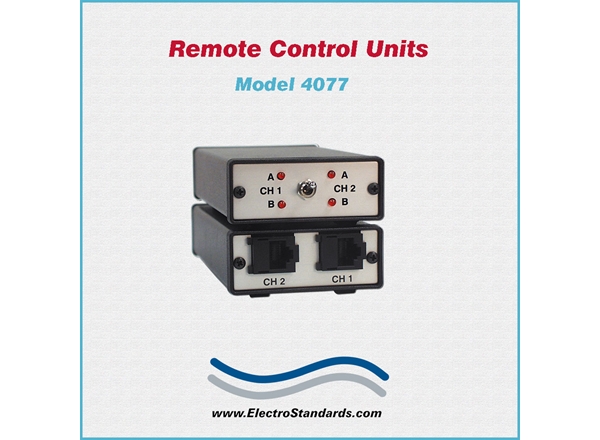

  • Model 4077 Remote Contact Closure Application: Use Model 4077 as your contact closure device along with cable, Cat No. 987267 to complete your system.

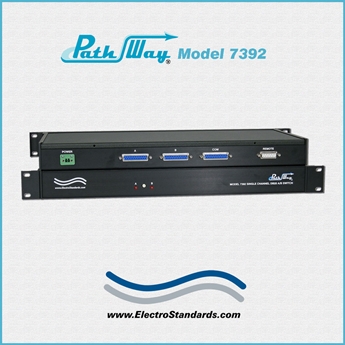

  • If using RS530, simply connect the DB15 cable end into Model 7266, 7276, or 7392. If using RS232, then insert the DB15 F/M adaptor (Cat. No. 989145) between the DB15 end of the cable and the unit.
  • The Model 4077 can be used with Models 7266, 7276, 7392, and 7312 to control switch position.

PathWay Model 7276 Single channel Rs232 /RS530 A/B Switch Application

  FEATURES:

  • Switch to backup automatically via Data Activity or DCD trigger monitor. Switches back when signals restore.
  • The switch ports are transparent to all data.
  • Pins 1-6 and 8-25 of the DB25 interface are switched. Pin 7 (signal ground) of all ports tied together.
  • All switched signals are passed via latching copper contact relays that maintain their position and continuity even in the event of power loss or failure.
  • When power is restored, the unit loads previous position and mode of operation and checks DIP switch settings and remote port to determine the correct startup configuration.
  • Automatic switching based on either RD Activity or DCD presence on Port "A" only.
  • Port A Pins Monitored.
    • Port A, RS232 RD: Pin 3 with respect to Pin 7.
    • Port A, RS232 DCD: Pin 8 with respect to Pin7.
    • Port A, RS530 RD: Pins 3 and 16.
    • Port A, RS530 DCD: Pins 8 and 10.
  • Remote control of the switch position from a contact closure REMOTE port.
  • Front panel LED's display position, mode, and power status.
  • Approvals:
    •  Certified compliant with EMC Regulations:
    • EN 55022:2006/A1:2007 Class A ITE Emissions Requirements (EU).
    • ICES-003 Issue 4 Class A Digital Apparatus Emissions Requirements (Canada).
    • FCC 47 CFR Part 15 Class A Emissions Requirements (USA).
    • Certified compliant with Safety Regulation:
    • EN 60950-1 including deviations to UL/CSA 60950-1 2nd edition.

The PathWay® Model 7276 Single Channel RS-232 / RS-530 A/B Network Switch with Auto Fallback and Auto Recovery allows the user the capability of sharing a single port interface device connected to the Common port among two other devices connected to the A and B ports with remote access functionality.  The remote port can be used to attain switch position status by using the provided set of contact closure pins.  The remote port can also be used to control the switch position using a separate set of contact closure pins.

When in automatic fallback mode the unit monitors either RD activity or DCD presence on port A only.  If activity or presence of the selected trigger signal (RD or DCD) is detected on Port A, the unit switches to the A Position and stays in this position while there is still activity or presence detected.  If activity or presence of the selected trigger signal (RD or DCD) is lost on Port A, the unit switches to the B Position and stays in this position until activity or presence is detected on Port A.  The user can override automatic fallback operation from the front panel or remote port and force the unit to operate as an A/B switch.

Option: Wide Range Power Module: (Cat No. 517277) CE, RoHS and UL listed table mount power module, 100VAC-240VAC, 50Hz-60Hz in place of the standard power module that is included with the unit.  Has IEC 60320 C14 inlet.  Ideal for international applications.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
