Model 9457 1-Channel/2-Channel RJ45 Cat5e Switch, Manual, Catalog # 309457

Click image to enlarge

Base Price:

$1,478.00

Catalog No:

309457

Model No:

9457

Product Type:

Switches: Copper

Positions:

2, 3

Cable Type/Port Connector:

RJ45

Channels per Switch Chassis:

Manual Control/No Power Required:

LineSelect® Manual Operation

Channel Control:

Simultaneous Channel Control, Independent Channel Control

Compliance/Standards:

Cat5e

Configuration:

Rackmount

Pins Switched:

Each channel switches all 8 leads.

Local Control:

Rotary Knob

Feature:

Rated for 10/100/1000 networks (up to Cat5e)

Qty

Add to Cart

Certified for Cat 5e Compliance.
2-Channel RJ45 A/B/C Cat5e, Simultaneous Switching
1-Channel RJ45 A/B Cat5e, Indpendent Switching

SPECIFICATION SHEET

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Model 9457 2-Channel, RJ45 A/B/C Cat 5e and 1-Channel, RJ45 A/B Cat 5e Switch, Manual Control, Rackmount

Overview

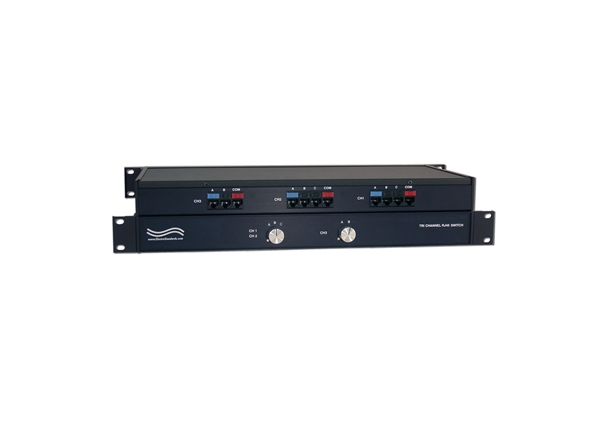

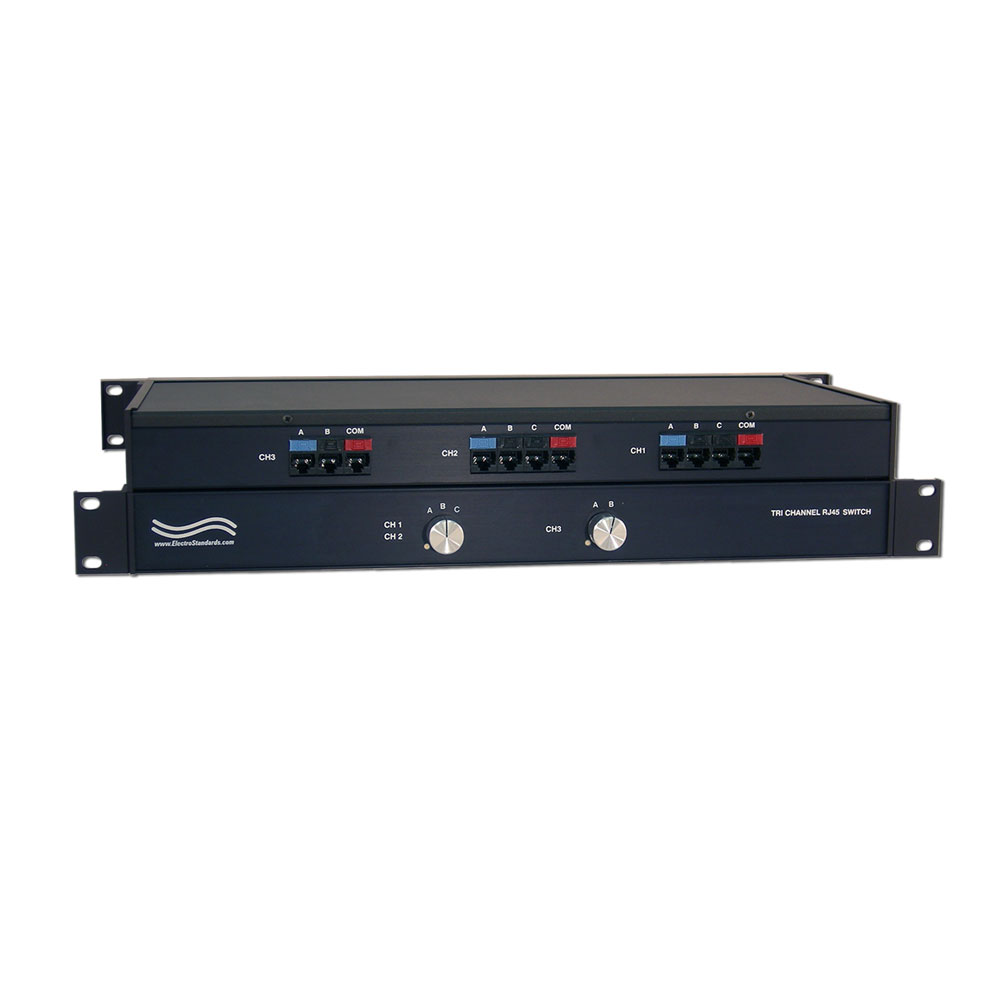

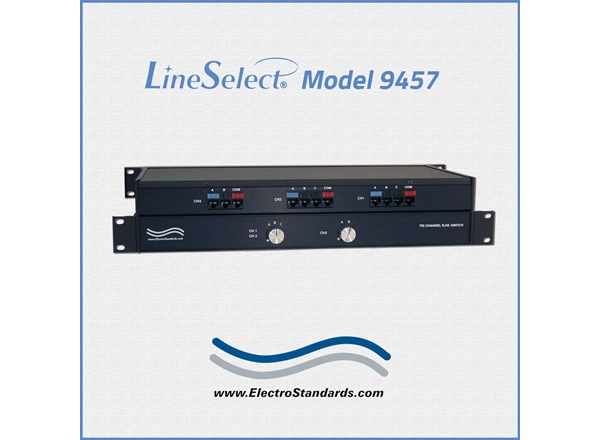

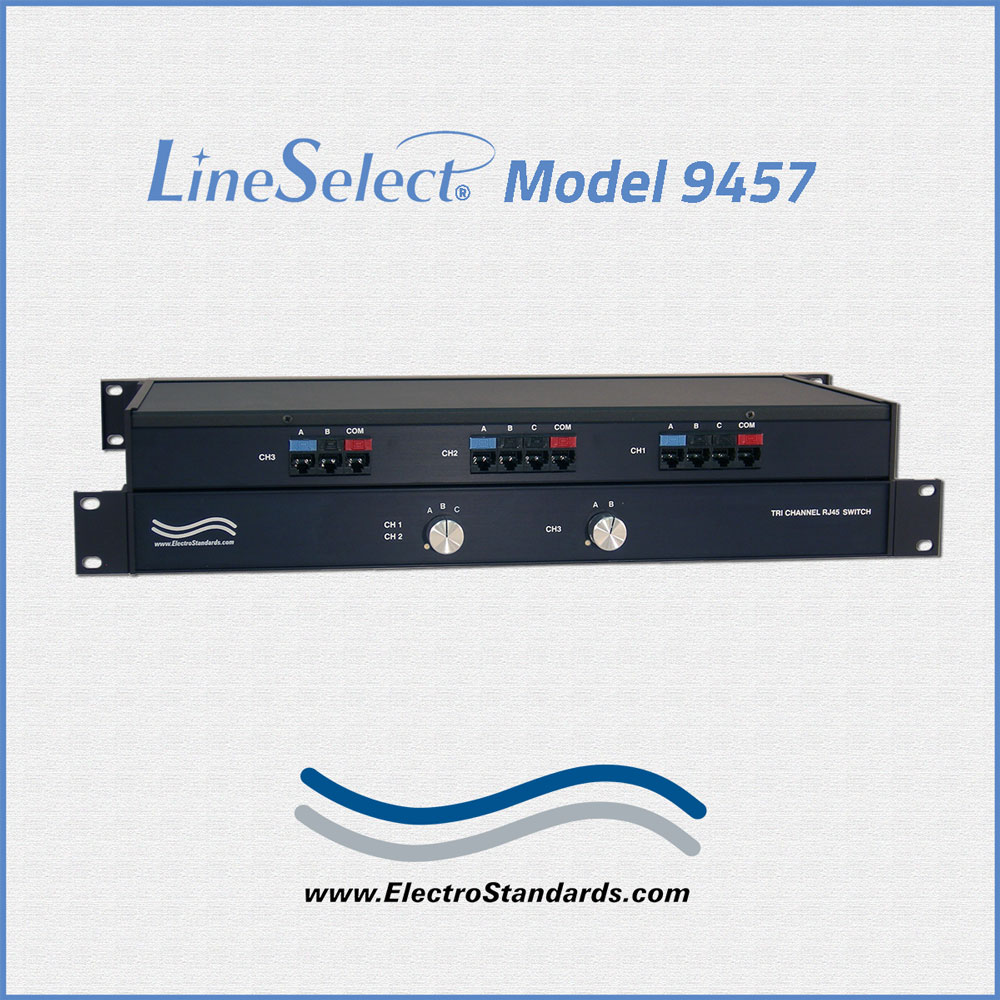

The LineSelect® Model 9457 is a unique device comprised of a 2-Channel RJ45 A/B/C, Cat5e Switch and a 1-Channel RJ45 A/B Cat5e Switch, all packaged in a slim 1U (1.75: high, 19-inch wide rackmount unit. The switches are manually controlled via two front panel knobs.
The A/B/C switches are operated simultaneously by knob 1, and the single channel A/B Switch is operated by knob 2.

Certified for Cat 5e Compliance.

FEATURES OF THE MODEL 9457 2-CHANNEL CAT5E SWITCH:

Simultaneously switch Channel 1 and Channel 2 via Knob 1.
Switch Single Channel 3 with the second knob, independently.

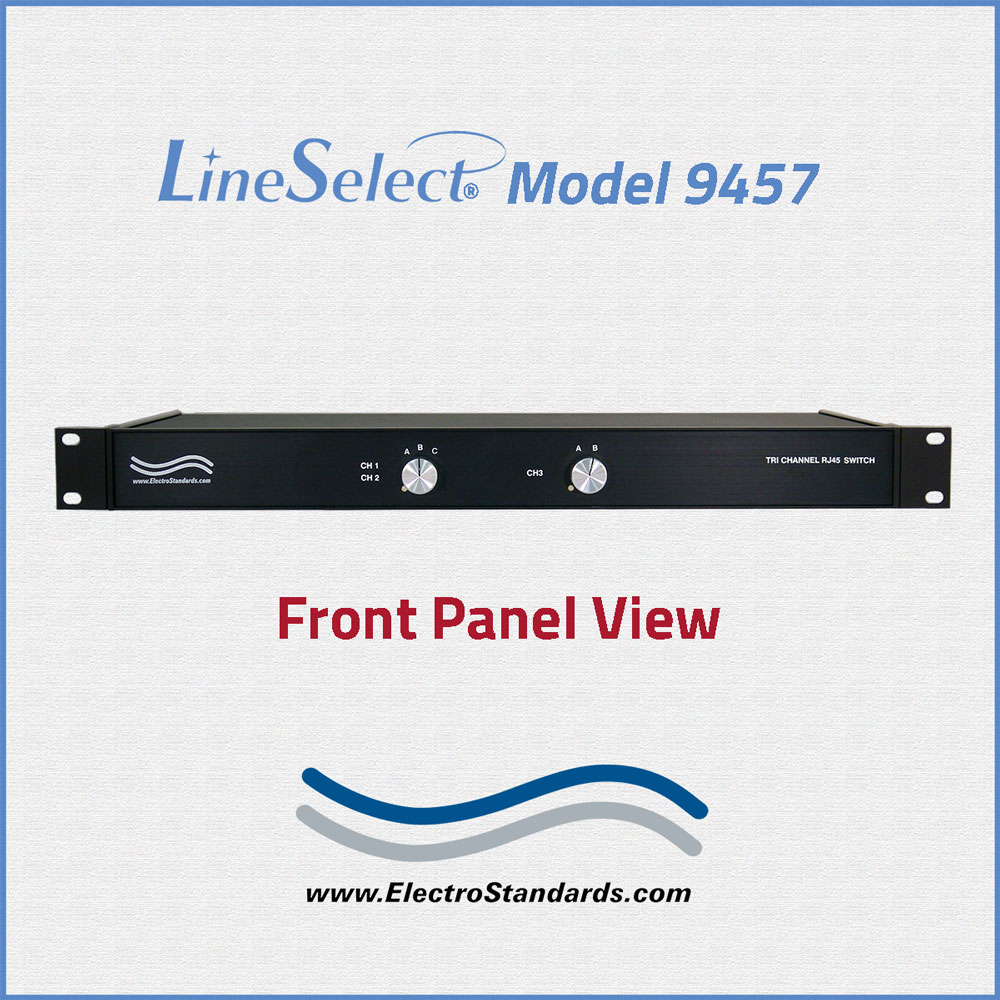

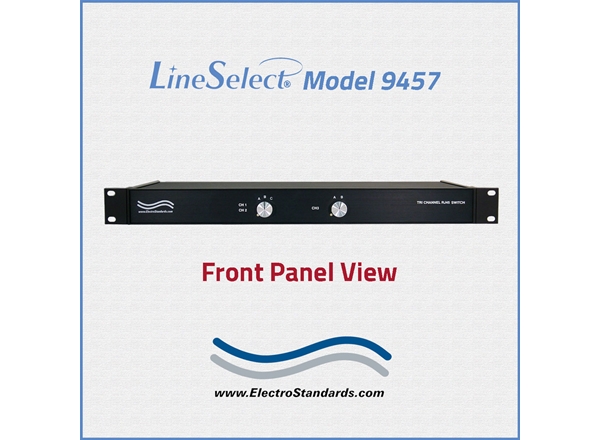

Both knobs are located on the front panel.
No external power is required.
Rated for 10/100/1000 networks (Up to Cat5e).
The switch ports are transparent to all data.
For each of the three channels, all pins of the RJ45 interface are switched via break-before-make rotary switch .
High quality sealed switch with self-wiping precious metal contacts.
Eliminates the need to plug and unplug cables.
Rackmount configuration.
Attractive all metal, black box packaging provides EMI/RFI shielding.
Lifetime warranty against manufacturing defects.
Custom length Cat5e cables available for your switch application.

TECHNICAL SPECIFICATIONS:

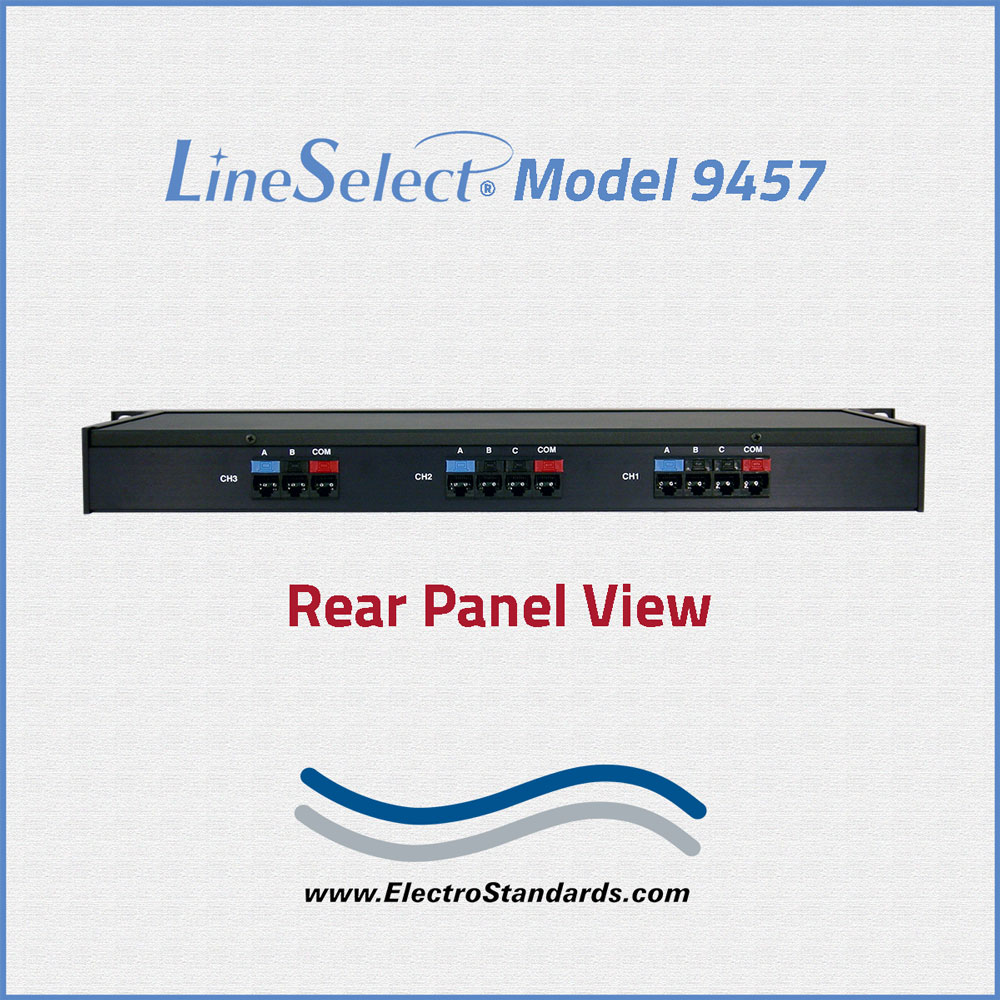

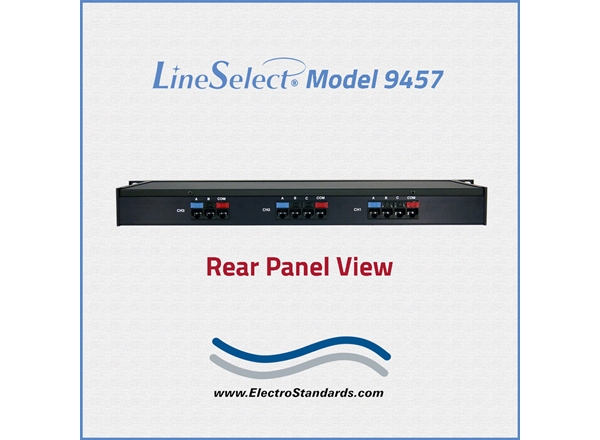

PORT CONNECTORS: Channel 1 and Channel 2 Switch: (4) RJ45 ports labeled A/B/C/COM.
Channel 3: (3) RJ45 ports labeled A/B/COM.
FRONT PANEL CONTROLS: (1) Rotary switch on front panel selects A, B, or C position for Channel 1 and Channel 2, simultaneously. Channel 3 is switched via Knob 2, independently.
POWER: No power required. Manually operated.
DIMENSIONS: Rackmount 19” W x 1.75” H x 8.69” D. (48.3 x 4.4 x 22.1 cm)
WEIGHT: Approximately 4.2 lbs. (1.9 kg)

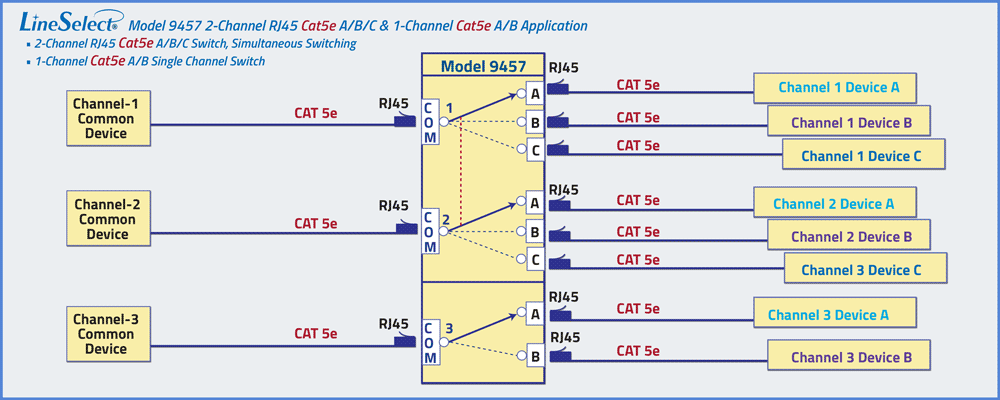

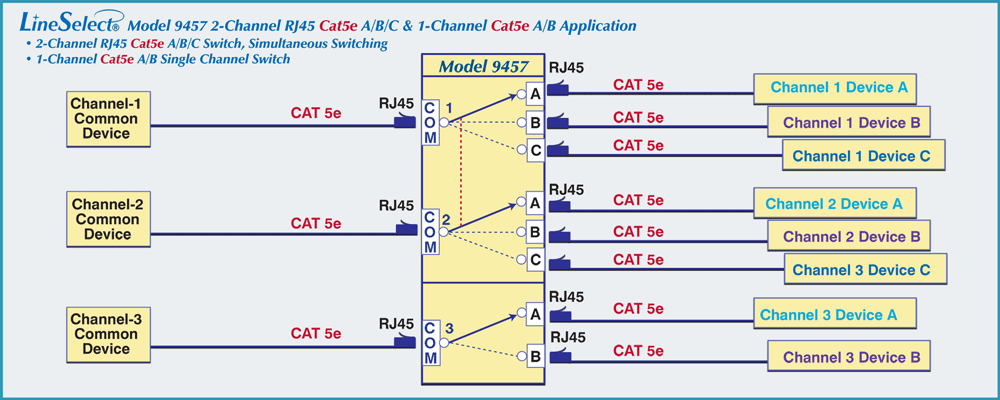

LineSelect® Model 9457 2-Channel RJ45 A/B/C Cat5e Switch and 1-Channel A/B Cat5e Switch Application Drawing.

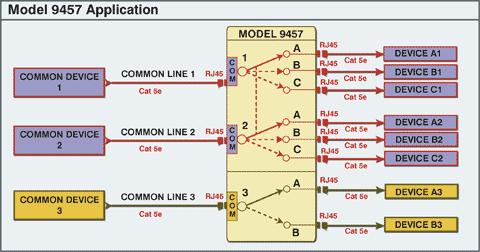

The application drawing illustrates Channel 1 and Channel 2 A/B/C Cat5e switch can be switched simultaneously. Channel 3 A/B Cat5e switch can be switched independently.
