Overview

 PathWay┬«
Path Way® Remotely Controllable Network Switch, Cat5e, RJ45

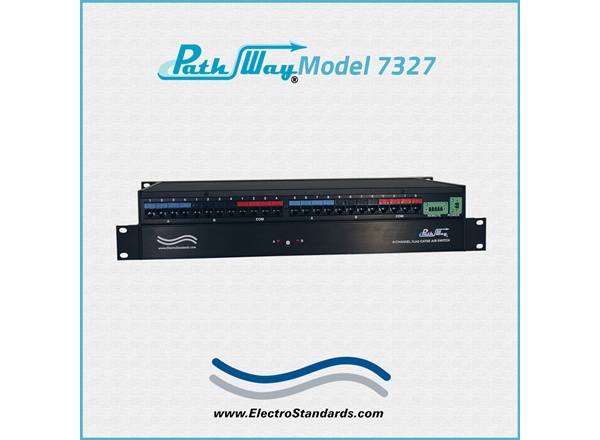

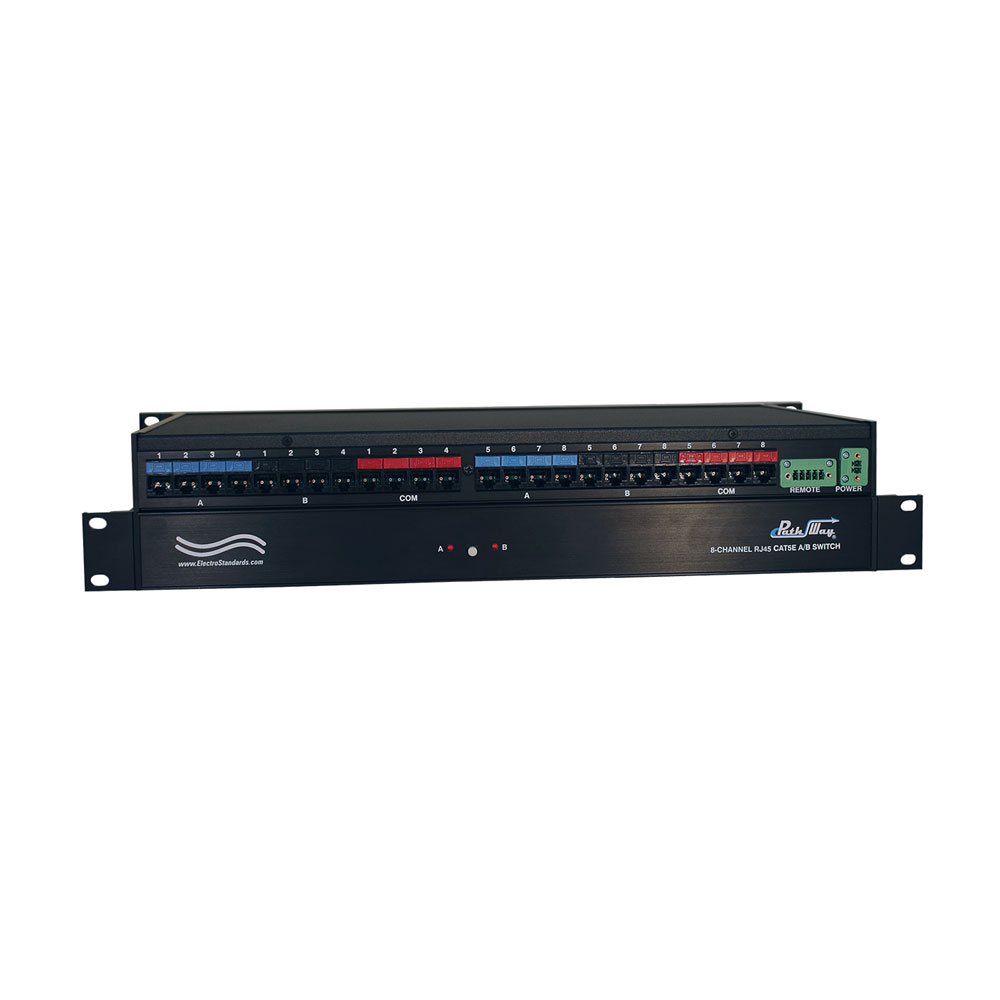

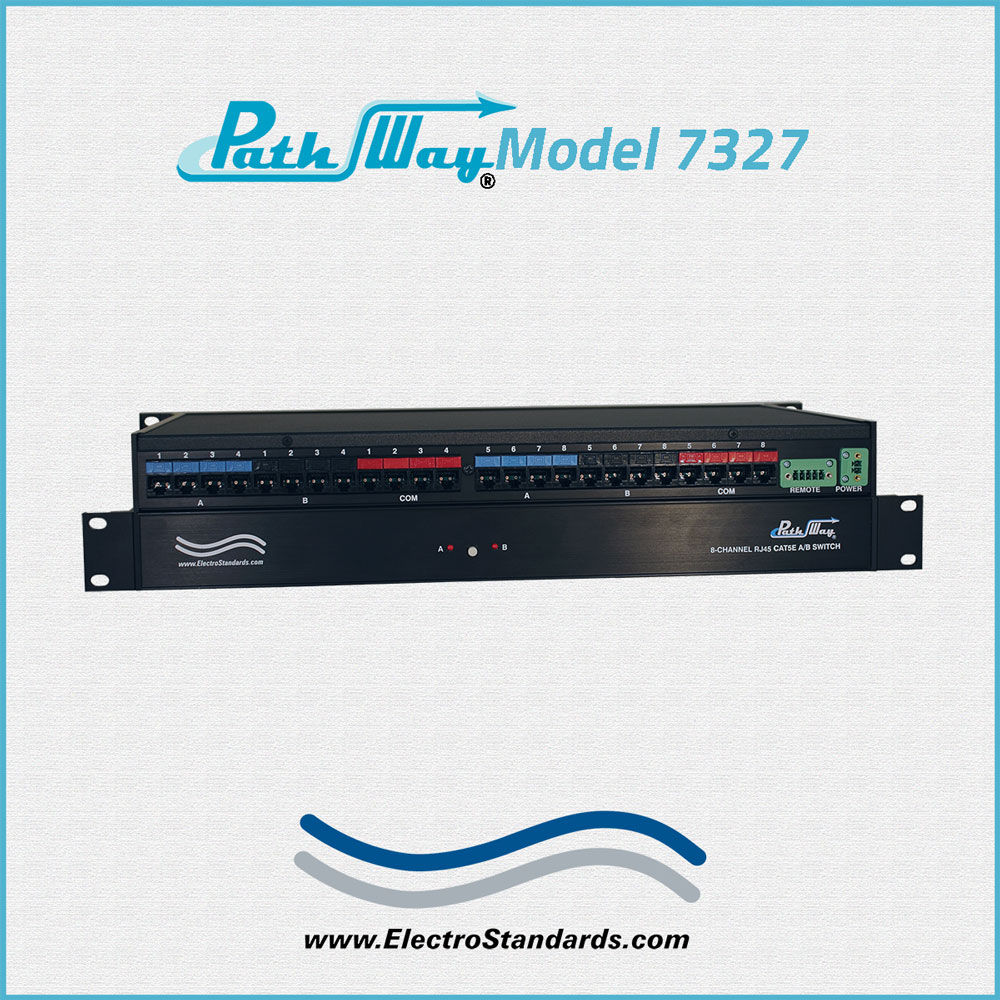

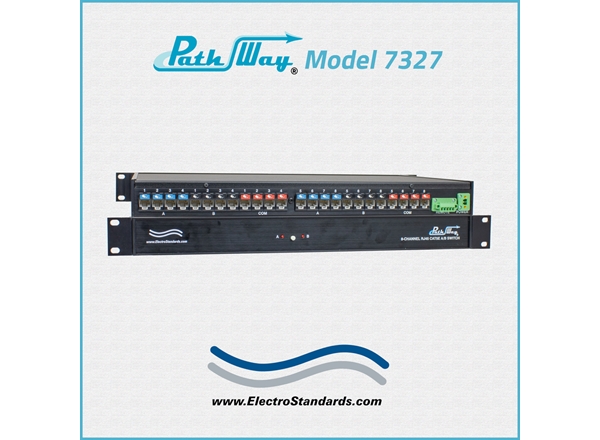

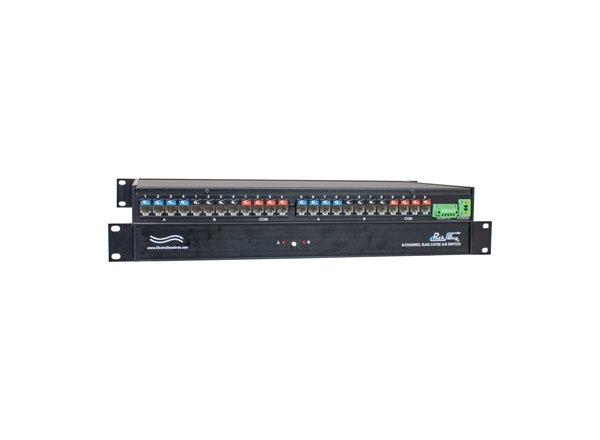

Model 7327 8-Channel Cat5e RJ45 A/B Switch with Voltage Remote Control

  • Certified for Cat5e Compliance

SPECIFICATIONS:

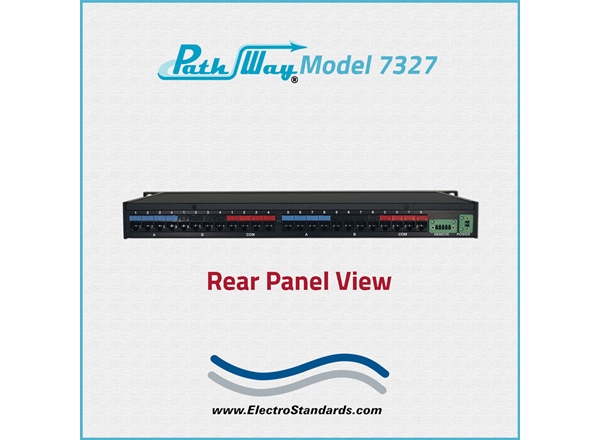

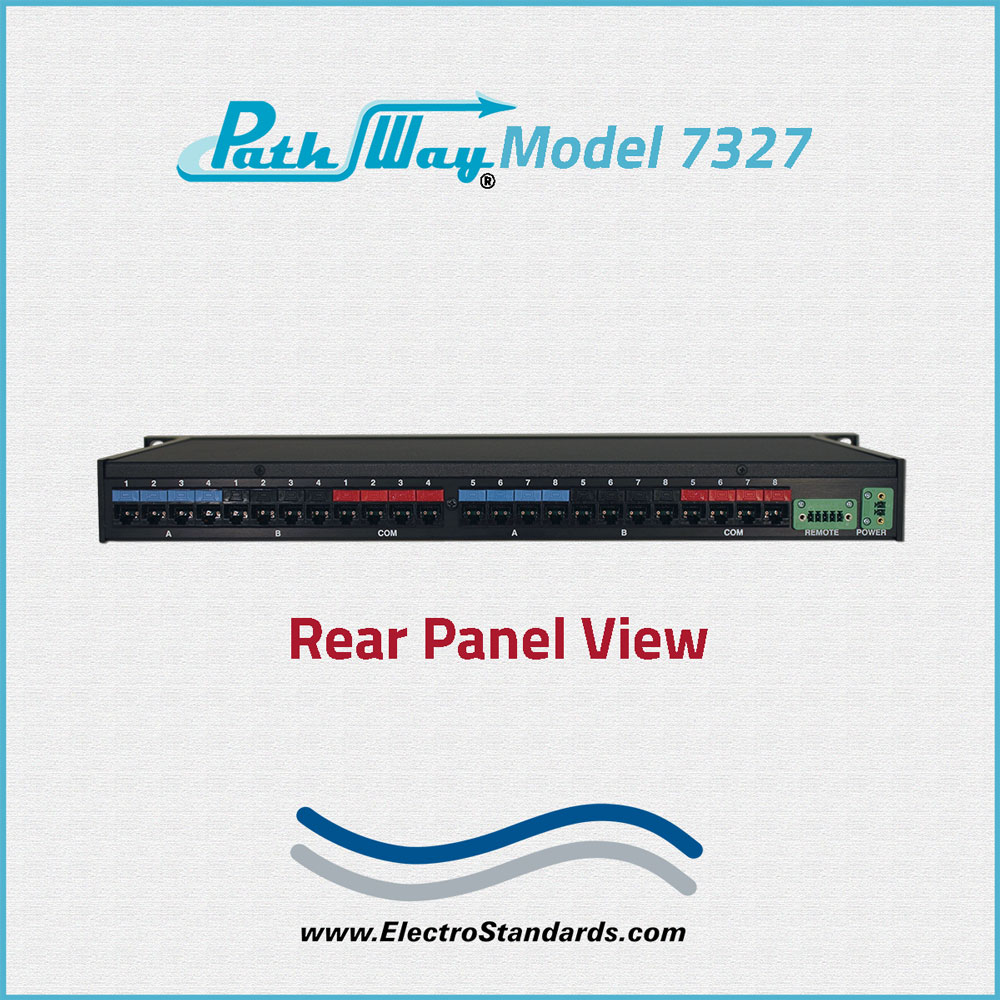

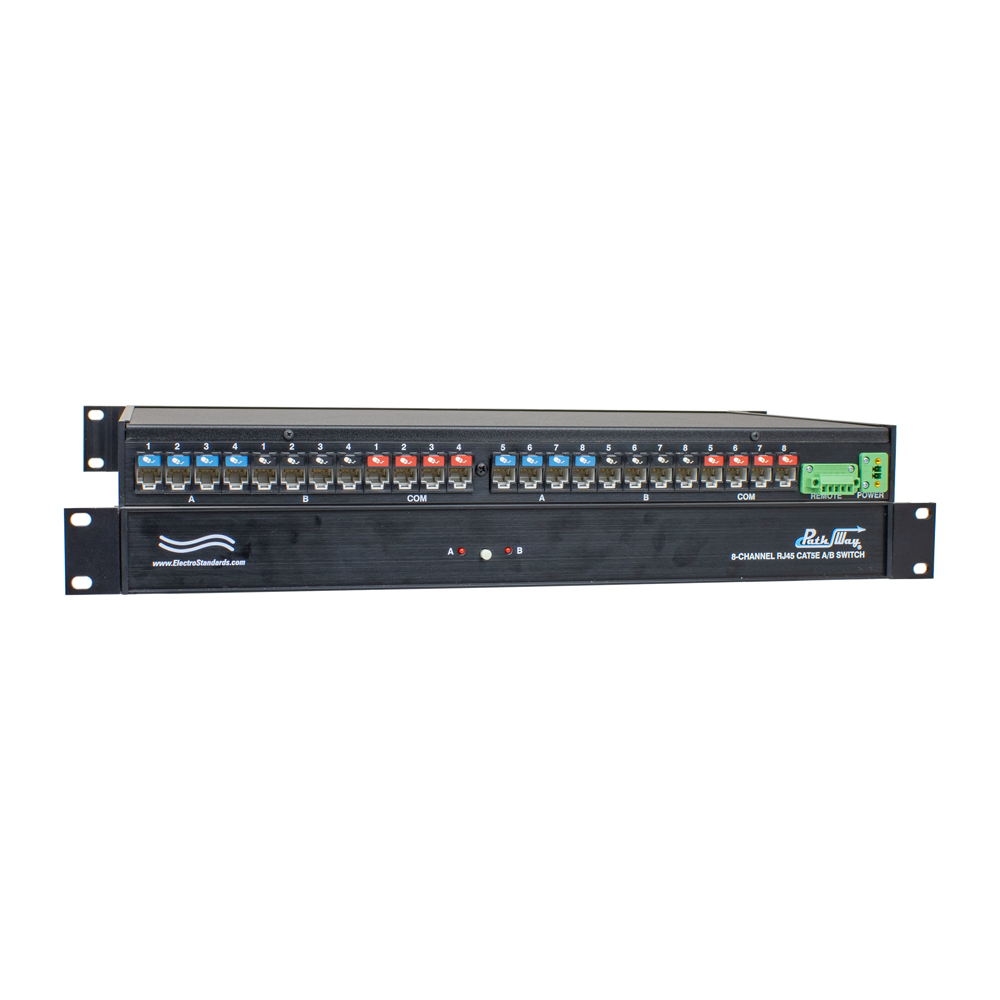

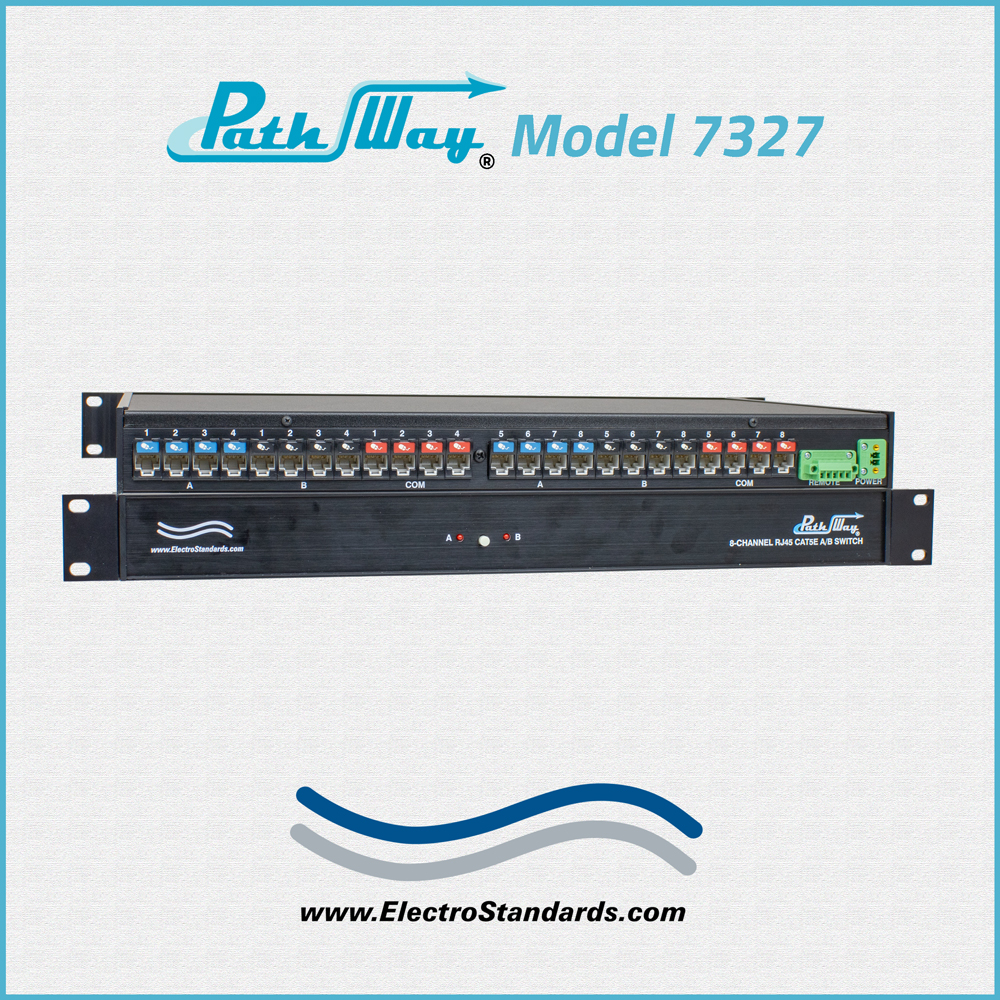

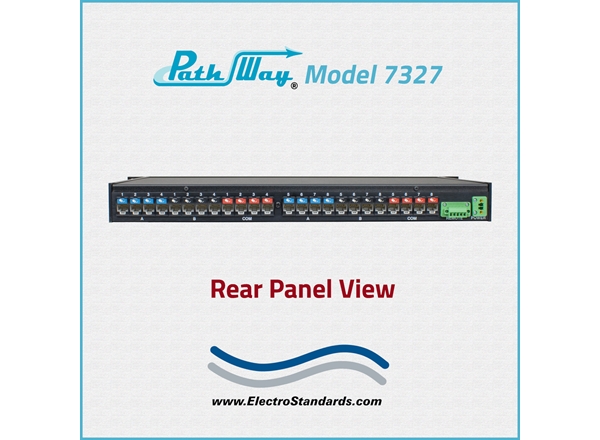

  • PORT CONNECTORS: (24) RJ45 female ports are located on rear panel:
    • (8) A ports
    • (8) B ports
    • (8) Common ports

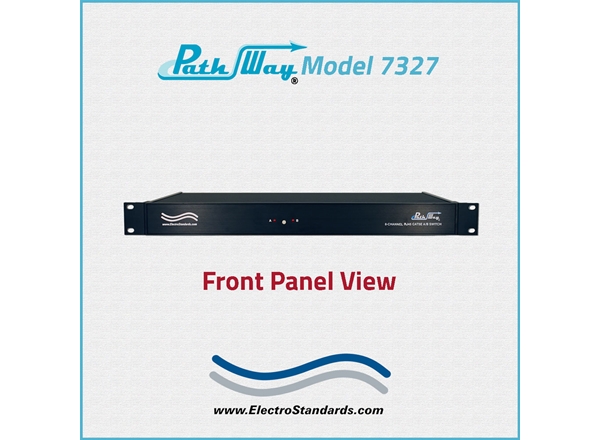

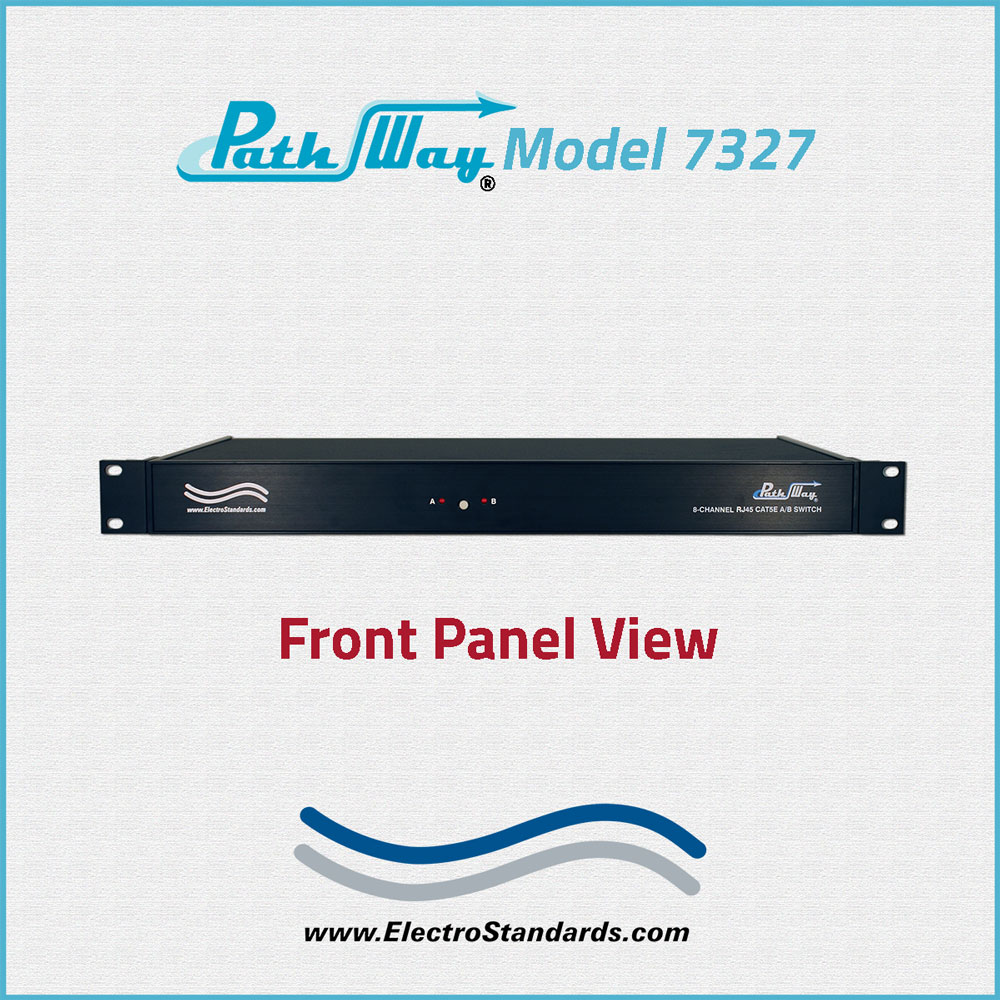

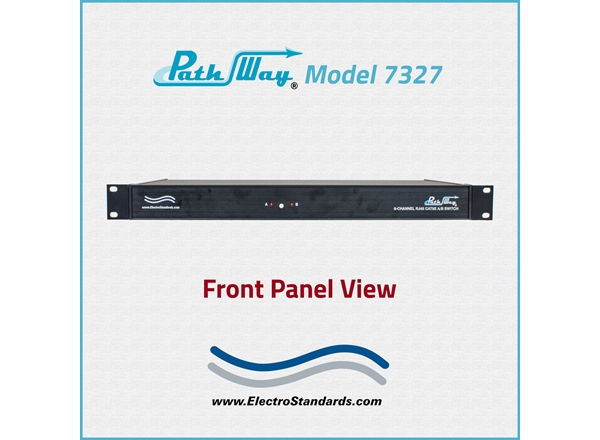

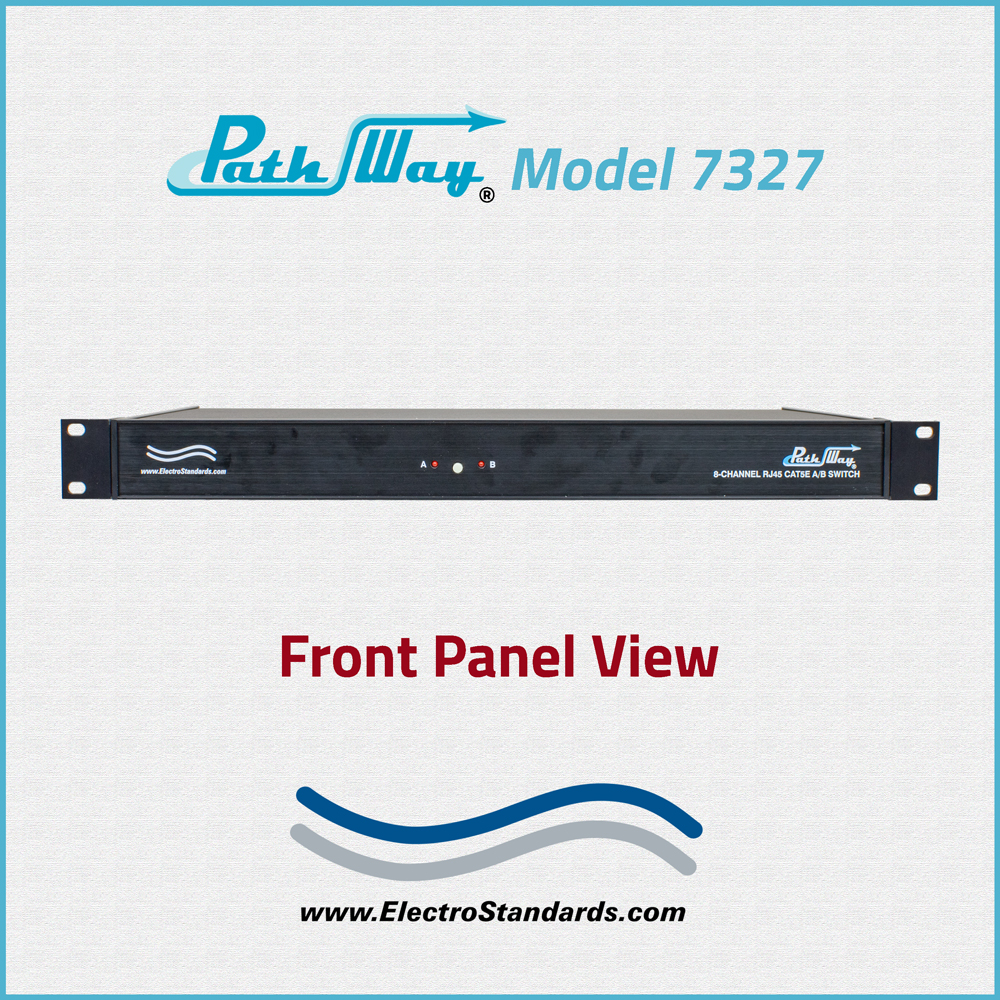

  • FRONT PANEL CONTROLS: (1) Manual pushbutton for local switching.
  • DISPLAY: (2) Front panel LED's labeled A and B display switch position and power status.
  • REMOTE CONTROL: (1) 5-Position Screw Terminal Strip on rear panel accepts 24Vdc signaling for Remote Control operation.
  • POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wallmount power module supplies 12 VDC, 500 mA supplied to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Rackmount 19.0" W x 1.75" H x 10.16" D. (48.3 X 4.4 X 25.9 cm)
  • WEIGHT: 6.3 lbs. (2.9 kg)

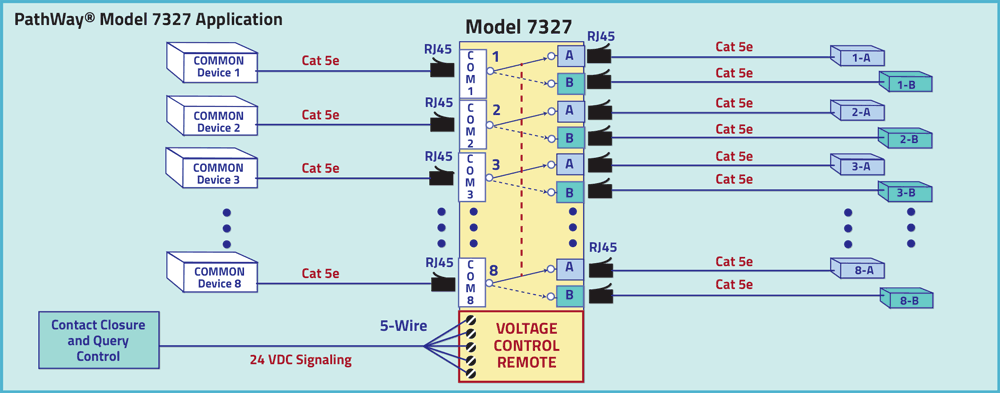

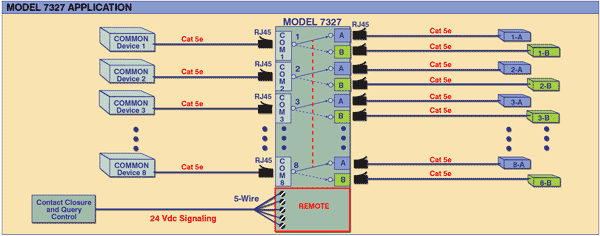

The CAT5e RJ45 8-CHANNEL A/B SWITCH APPLICATION w/TERMINAL STRIP REMOTE: The drawing illlustrates a COMMON Device connected to the COMMON port with access to two separate devices connected to the A and B ports for each of the eight channels. Simultaneously switch all eight channels for position A to position B, or from position B to position A. The REMOTE port is a terminal strip that accepts 24Vdc signaling for Remote Control operation of the unit.

Network Application Diagram for Model 7327 8-Channel Cat5e RJ45 A/B Switch with Remote

FEATURES:

  • Simultaneously switch all eight channels either locally via a front panel pushbutton or remotely via a terminal block remote port that accepts 24Vdc signaling.
  • The switch ports are transparent to all data.
  • Remote port allows position control and query of switch position.
  • Remote position control from the REMOTE terminal block port is with two contacts.  Contacts support 24Vdc signaling. Upon transition to 24Vdc, the switch connects COMMON ports to A ports. Upon transition from 24Vdc to 0Vdc, the switch connects COMMON ports to B ports.
  • Remote query of the switch position from the REMOTE terminal block port is a three contact configuration. When the common contact is connected to the A contact the switch is in the A position. When the common contact is connected to the B contact the switch is in the B position. The energy applied to the common contact is provided by the user. The contacts will support up to 30Vdc at 0.5 A.
  • All (8) pins fo the RJ45 interface are switched via break-before-make electromechanical relays.
  • Front panel LED indicators display switch position and power status.
  • The unit maintains last set position on power loss and continues to pass data.
  • Upon power up, unit switches based on level of Voltage Signal.

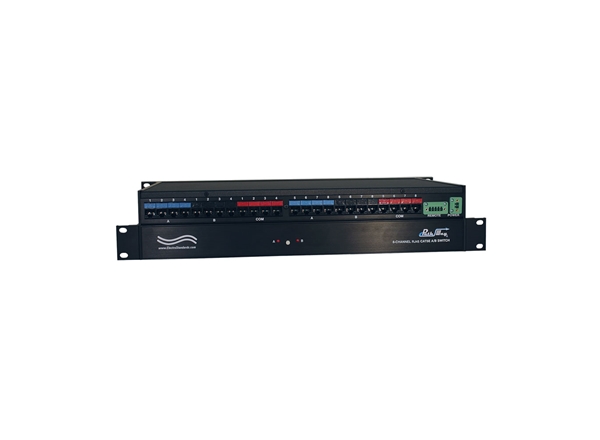

The PathWay® Model 7327 8-Channel RJ45 Cat5e A/B switch with Remote Control allows the user the capability of accessing two separate devices, ports A and B, via connection through a device connected to the Common port, for each of the switch's eight channels. The Model 7327 is enclosed in a1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack..

The switch may be controlled locallly by manually operating the front panel pushbutton or remotely from the Terminal Strip.
