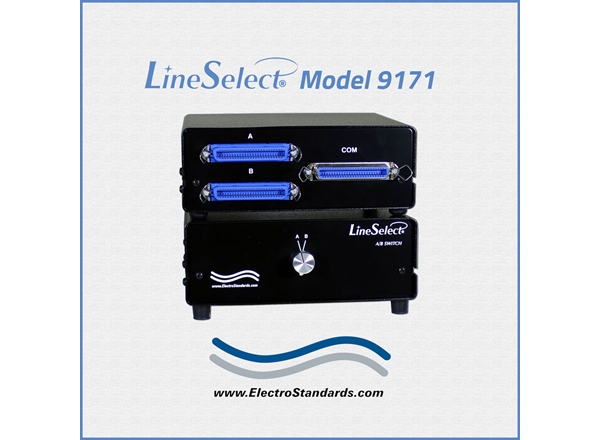

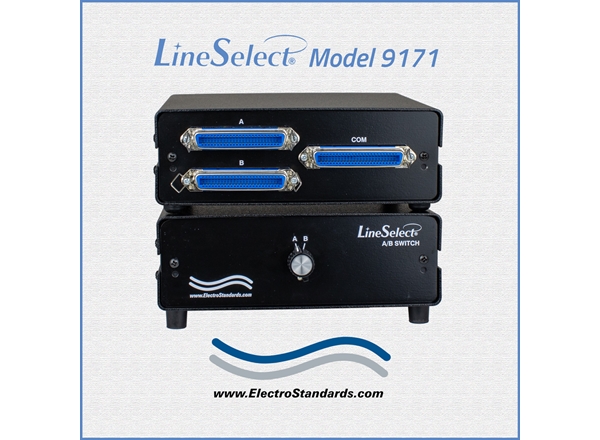

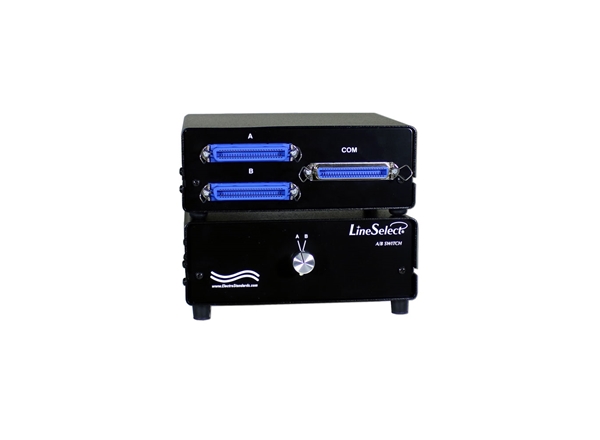

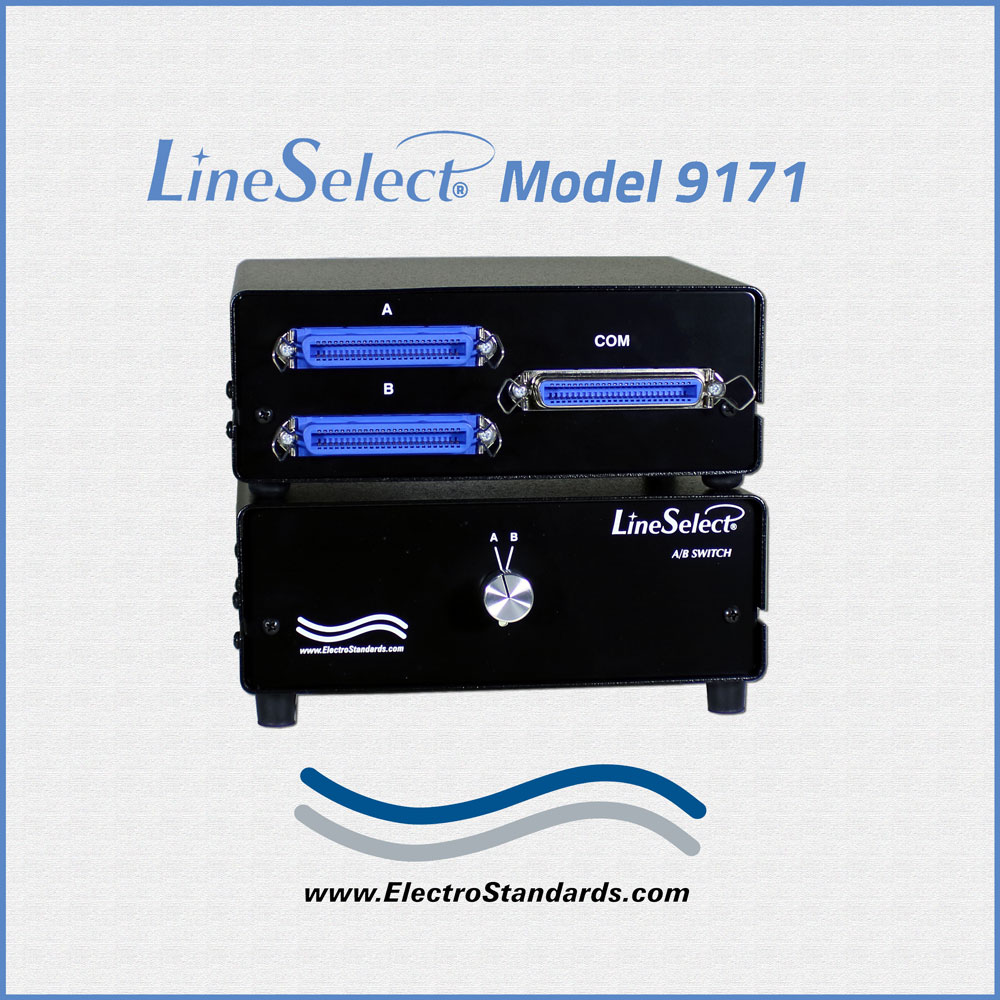

Model 9171 RJ21/50-Pin A/B Switch with Front Panel Pushbutton Operation & Desktop Configuration

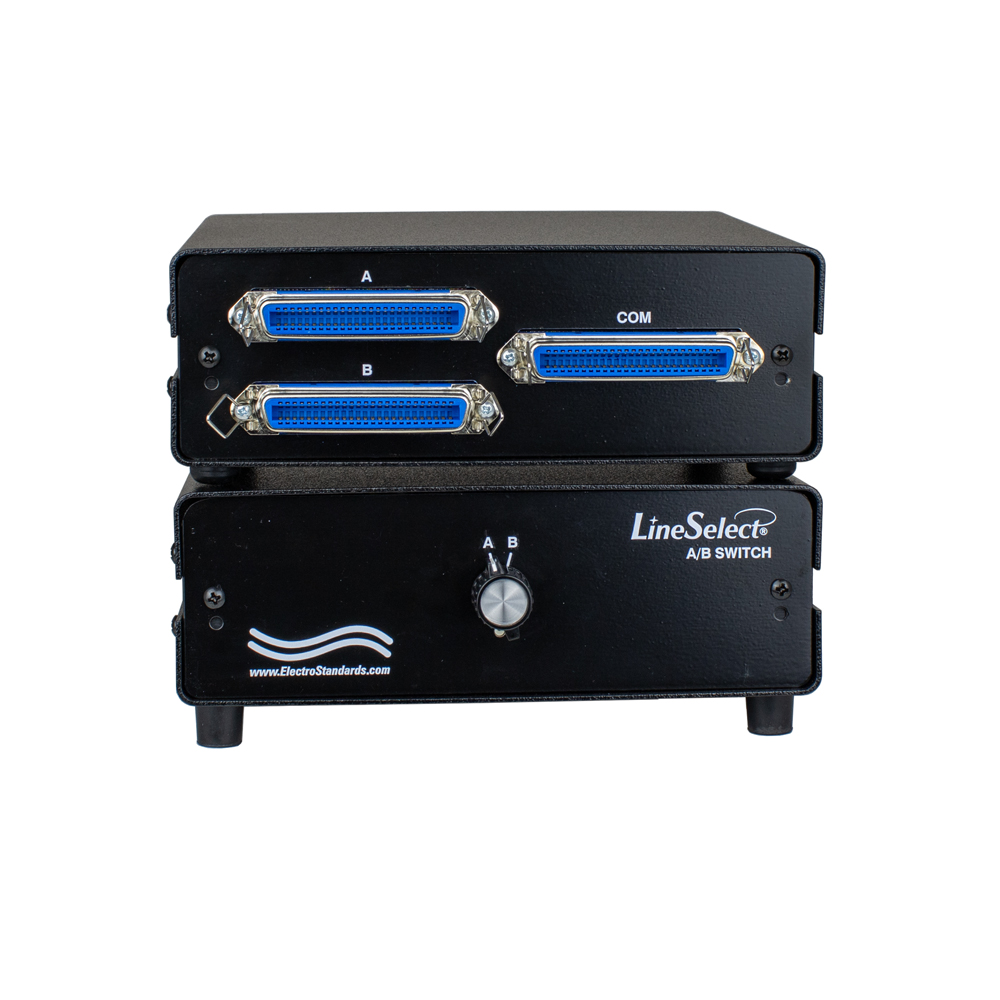

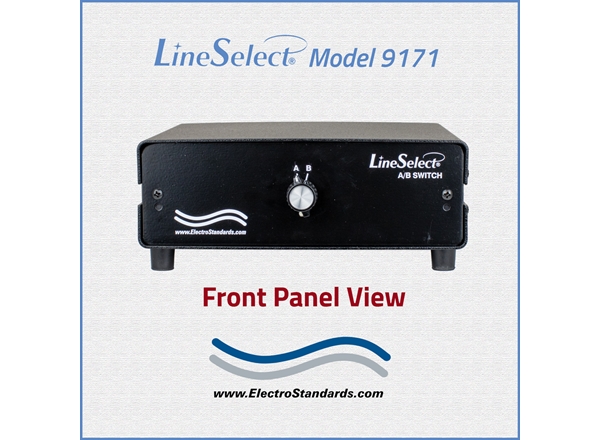

The LineSelect® Model 9171 RJ21/50-Pin interface A/B Switch allows the user to access two devices connected to A and B ports from on COMMON port.  Switching between device A and B is quick and easy via the front panel rotary selector.  No need to plug and unplug interconnection cables thereby eliminating connector wear and/or errors when reconfiguring system connections.  The LineSelect® Model 9171 is packaged in a compact desktop style enclosure.

  • For fast swapping 25-Pair (RJ21) station cable connections.

  • Industrial Control, High Density Signal Routing - Flips all 50 Conductors Simultaneously!

  • Ideal for Warehouse Automation environments where reliable, high-density signal routing is essential.

FEATURES:

  • Allows quick connection to any one of two RJ21/50-Pin interface devices from one COMMON port.
  • High quality sealed switch with self-wiping precious metal contacts.
  • The ports are transparent to all data.
  • All (50) pins of the RJ21 interface are switched via break-before-make rotary switch.
  • Eliminates the need to plug and unplug cables.
  • No external power required.
  • Manual operation via front-panel rotary switch.
  • Attractive anodized black box packaging provides EMI/RFI shielding.
  • Custom length, RJ21 cables available for your switch installation.
  • Lifetime warranty against manufacturing defects.

SPECIFICATIONS:

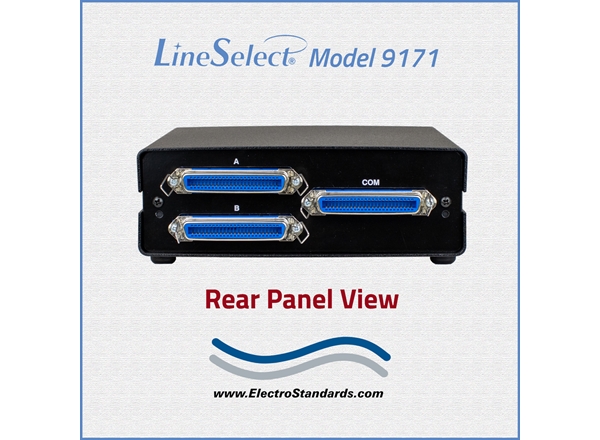

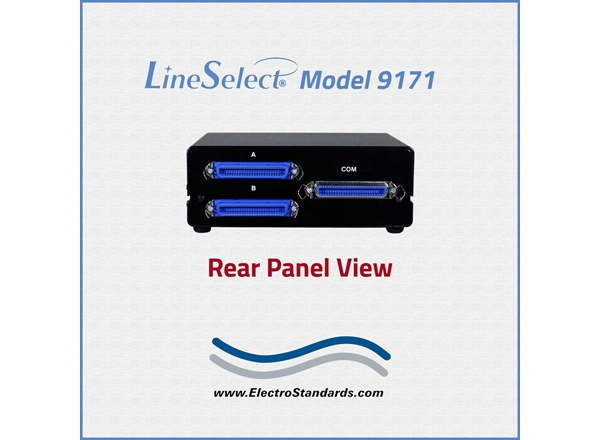

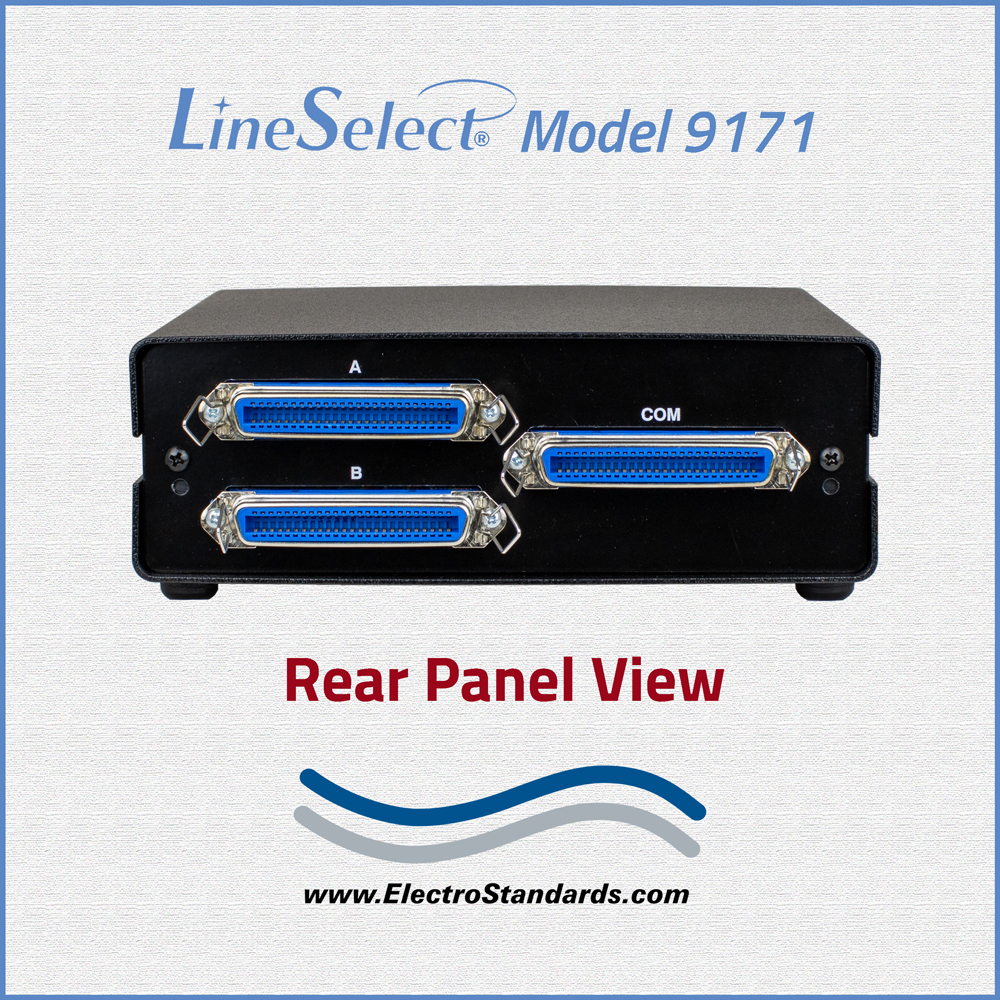

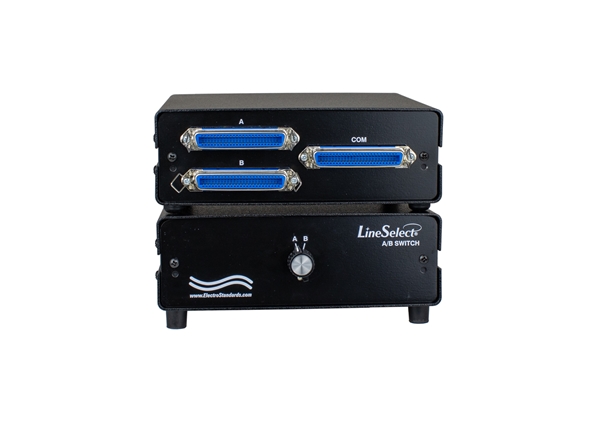

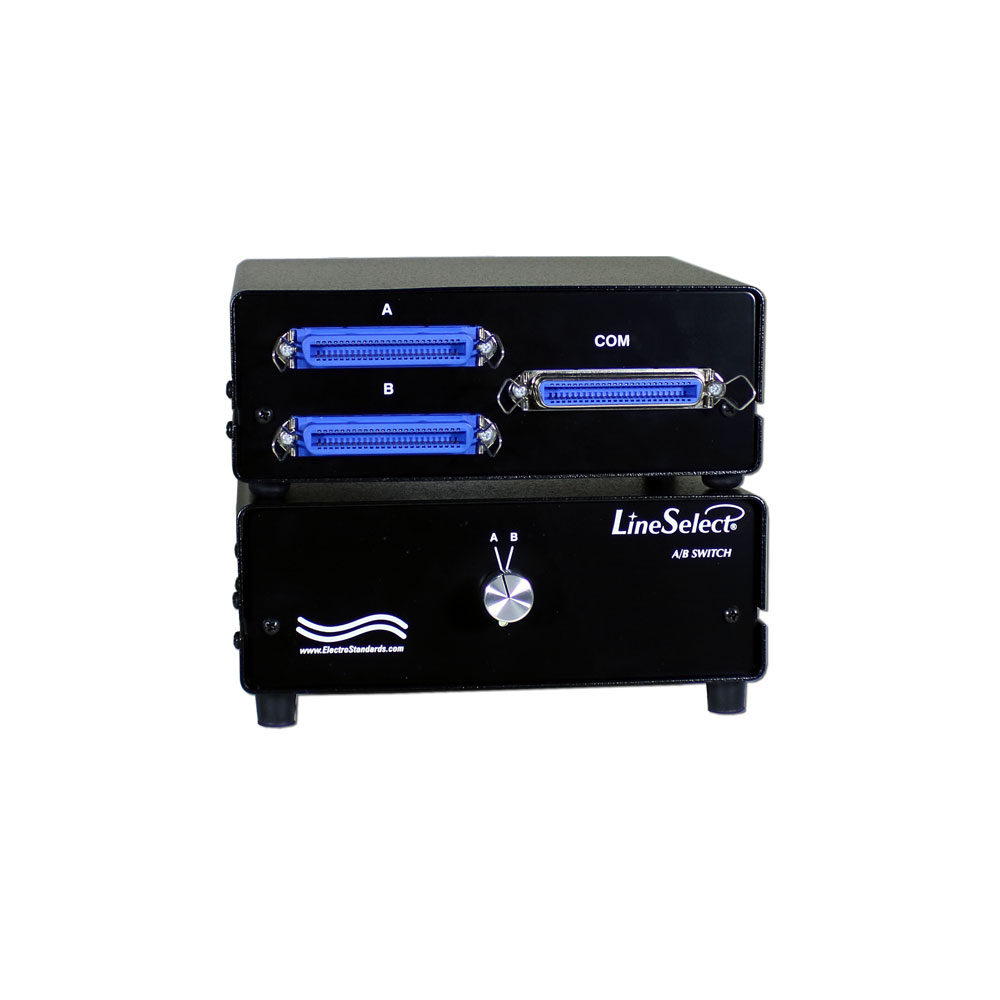

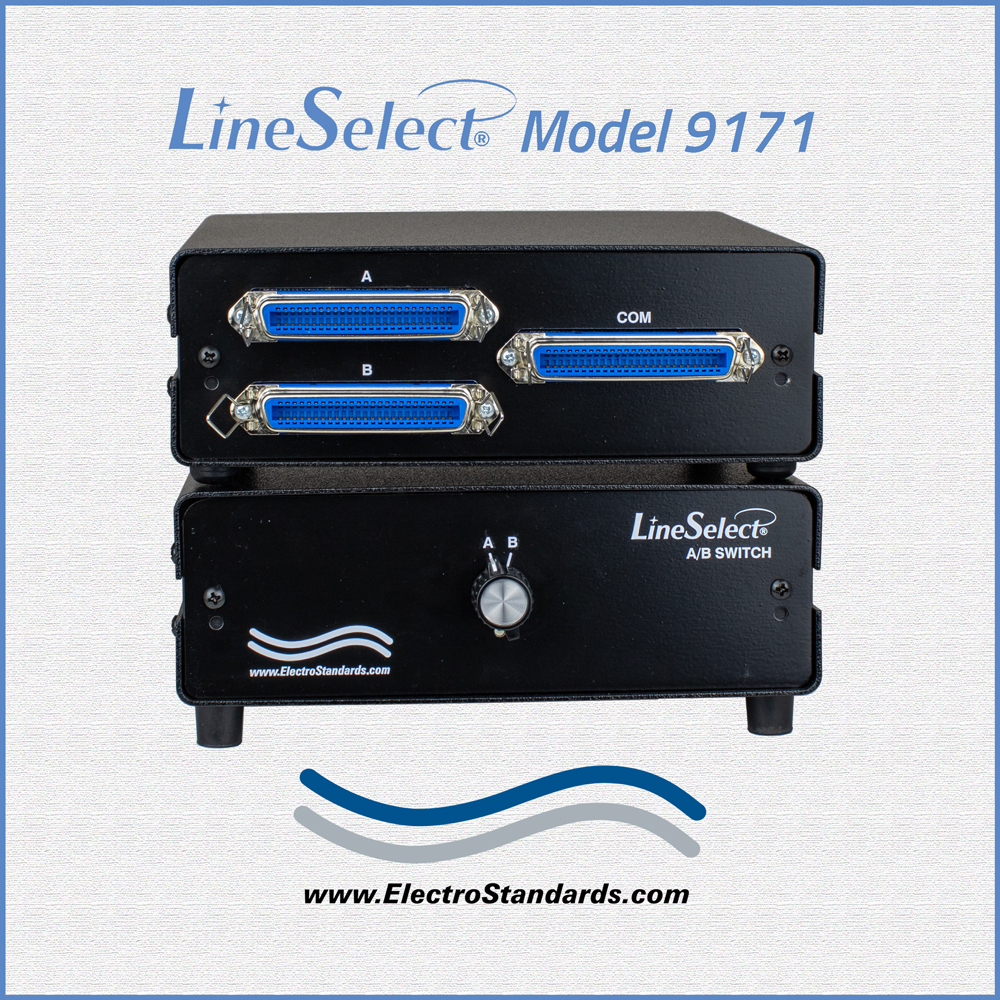

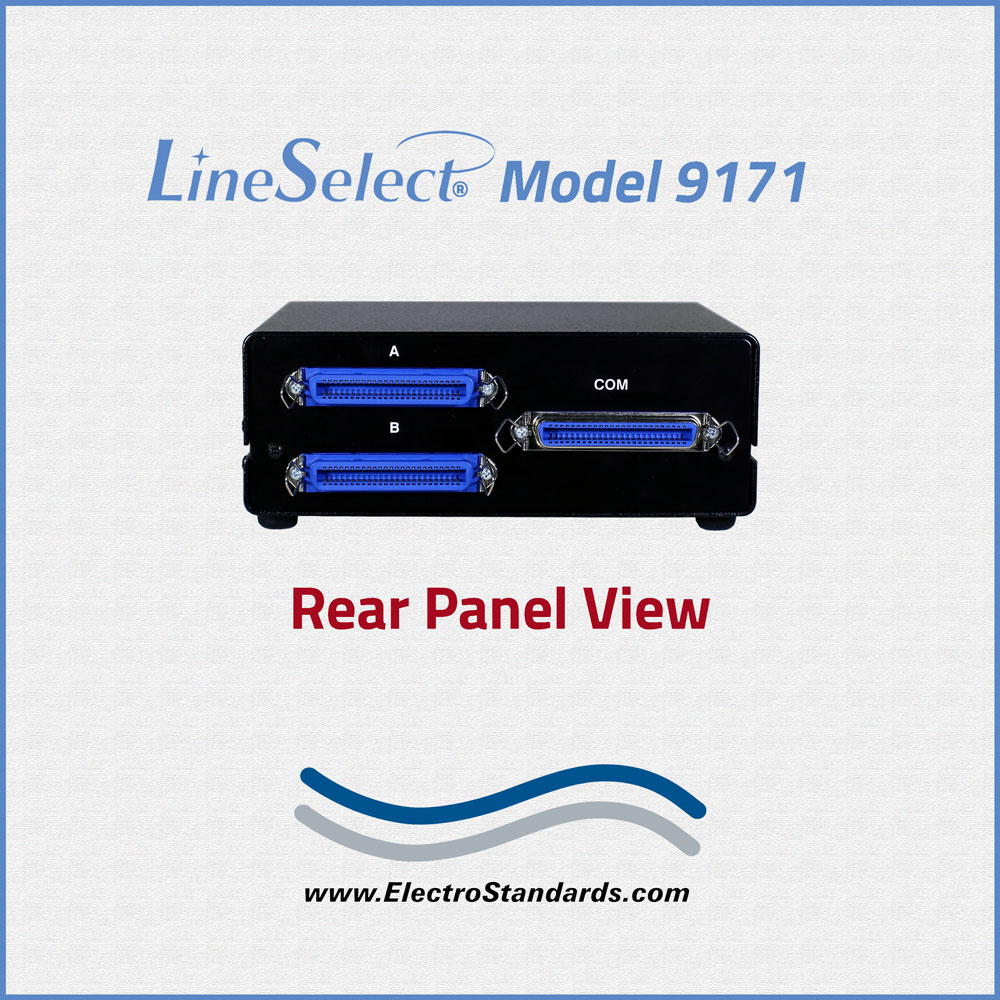

  • PORT CONNECTORS: (3) RJ21/50-Pin female connectors labeled A, B, and COMMON.

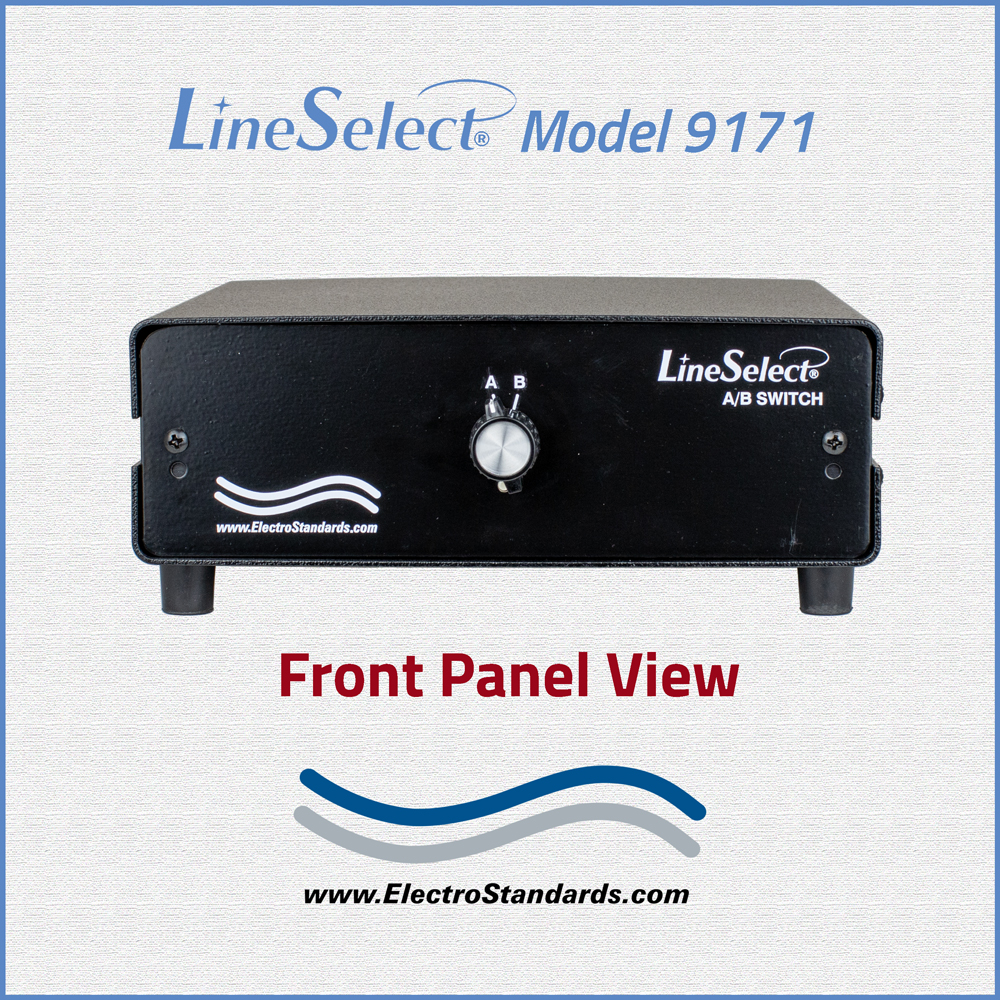

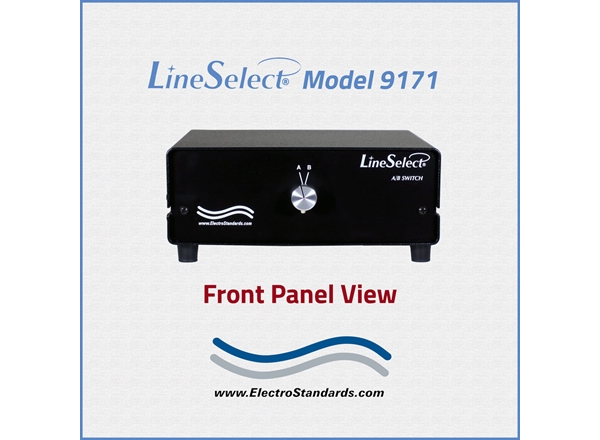

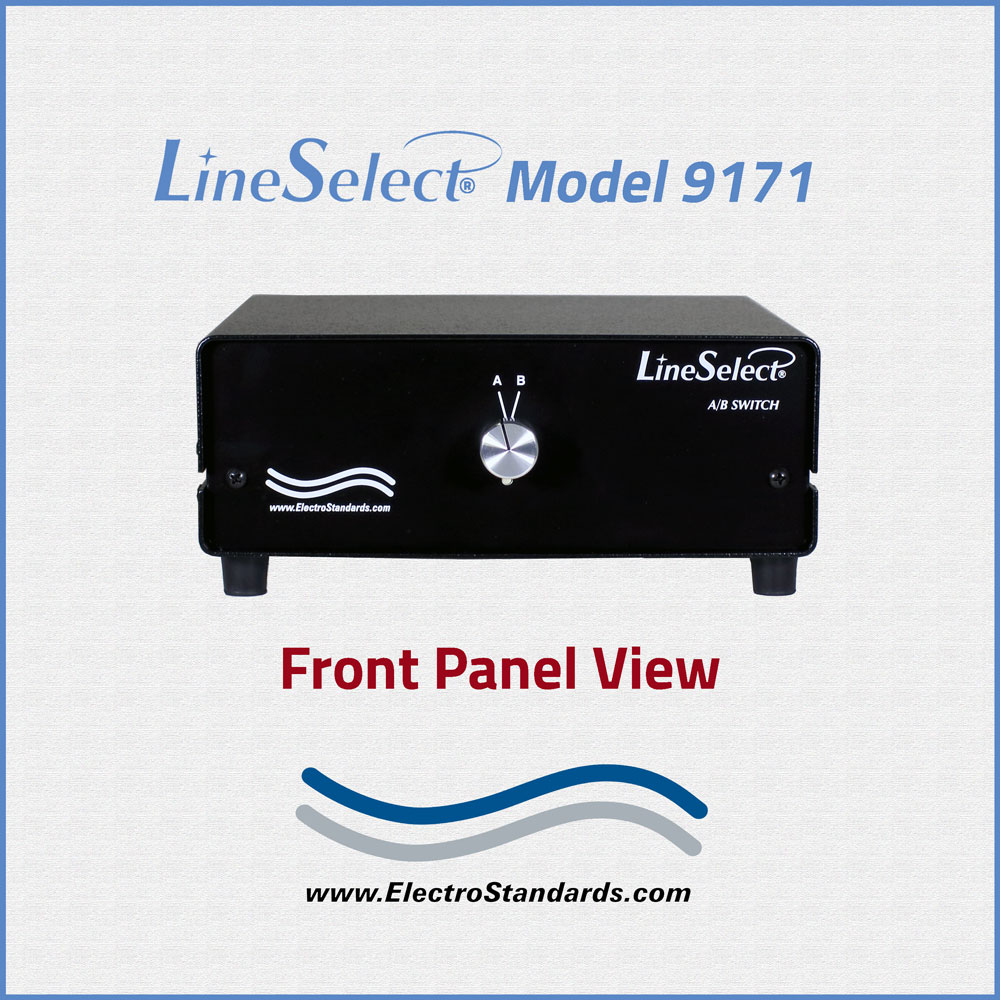

  • FRONT PANEL CONTROLS: (1) Rotary Switch on front panel selects A or B.
  • POWER: Manually operated.  No power required.
  • DIMENSIONS: Desktop 8.1"W x 3.25"H x 8.67"D (20.7 x 8.3 x 22.1 cm)
  • WEIGHT: Approximately 1.76 lbs. (0.8 kg)

RJ21/50-PIN A/B SWITCH APPLICATION:

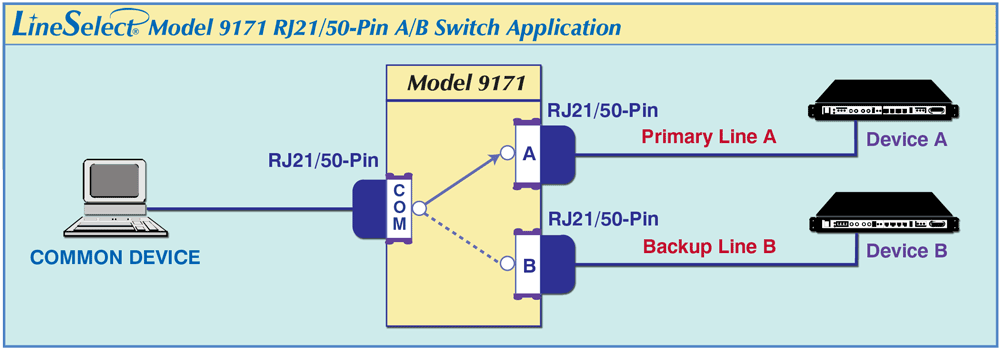

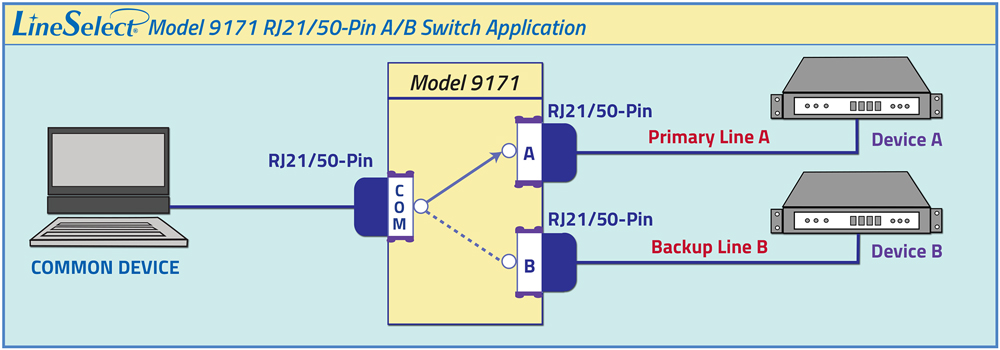

The drawing illustrates a COMMON device connected to the RJ21/50-Pin COMMON port with access to two other devices connected to the RJ21/50-Pin A (Primary Line A) and B (Backup Line B) ports.

LineSelect®Model 9171RJ21/50-Pin Switch Application

Use Cases for the Model 9171 RJ21/50-Pin Switcher: Industrial Automation

Bulk signal switching: It flips all 50 conductors simultaneously, which is ideal when systems use multi-pair bundles common in industrial control wiring.
Manual, robust operation: No power needed; the sealed rotary switch is rugged and simple, suitable for shop floors.
Reduces wear & errors: Avoids repeated plugging/unplugging of dense multi-pin connectors, reducing mechanical stress and errors on mission-critical connections.

The Model 9171 can be used as a manual signal path selector in situations where:

  • multiple control cabinets or redundant systems need to share a single high-density wiring harness,

  • technicians need to quickly switch test or field connections,

  • large bundles of discrete/control signals must be rerouted without rewiring, and

  • fallback or alternate system configurations are required.
    All of these are common in conveyor and warehouse automation environments where reliable, high-density signal routing is essential.
