Model 9126 Dual Channel Coaxial BNC A/B Switch, 50 Ohm, Manual, Catalog # 309126

Click image to enlarge

Base Price:

$536.00

Catalog No:

309126

Model No:

9126

Positions:

Cable Type/Port Connector:

Coax Switch Ports

Channels per Switch Chassis:

Manual Control/No Power Required:

LineSelect® Manual Operation

Configuration:

Rackmount

Ohms:

Qty

Add to Cart

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

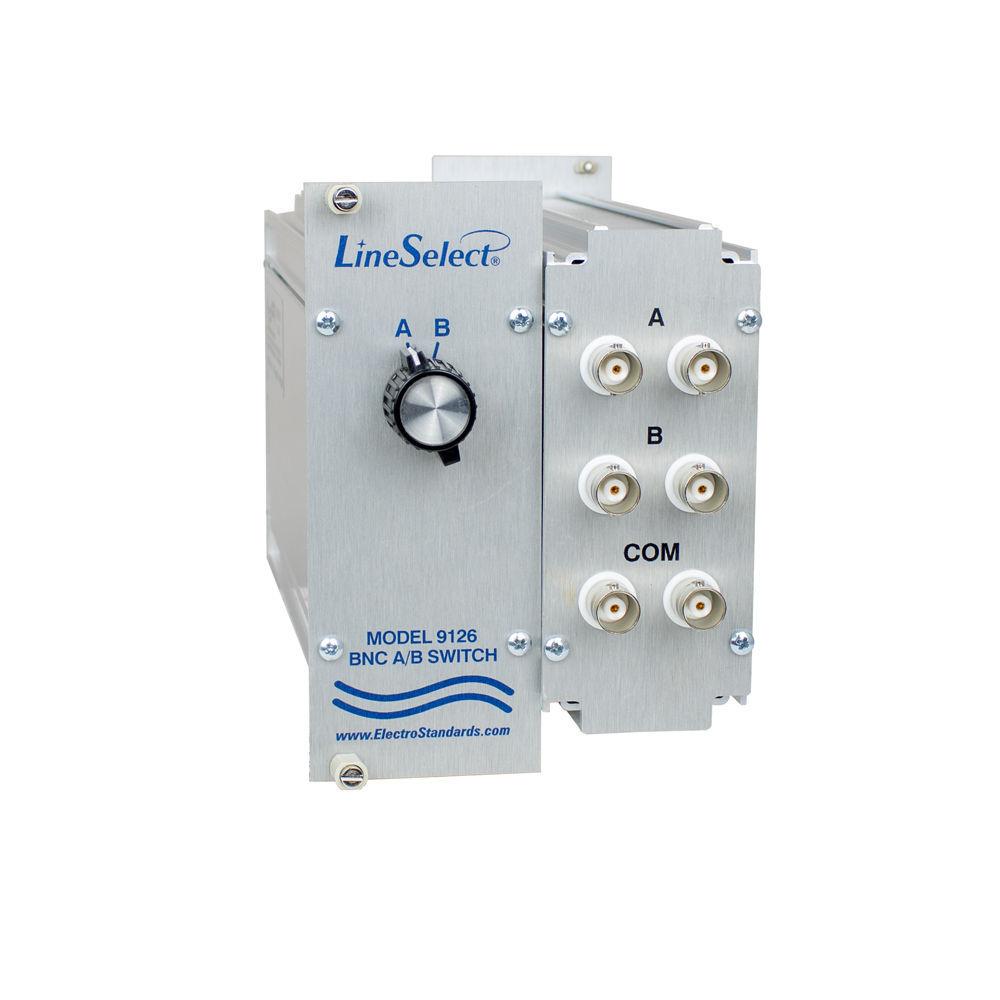

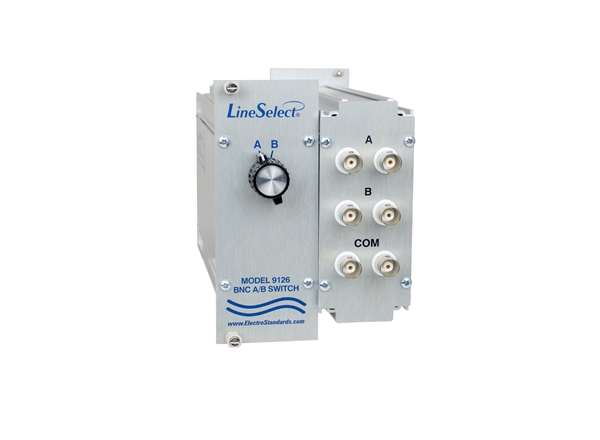

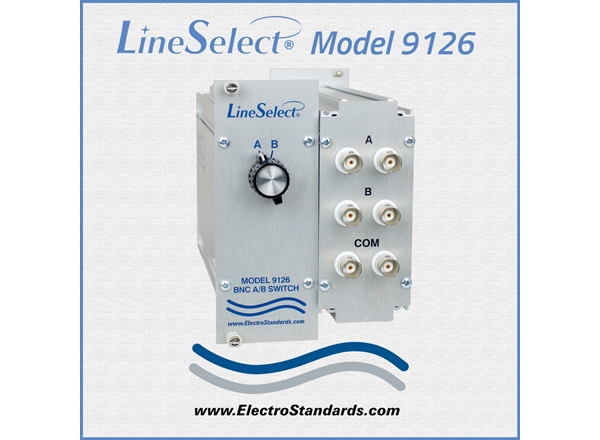

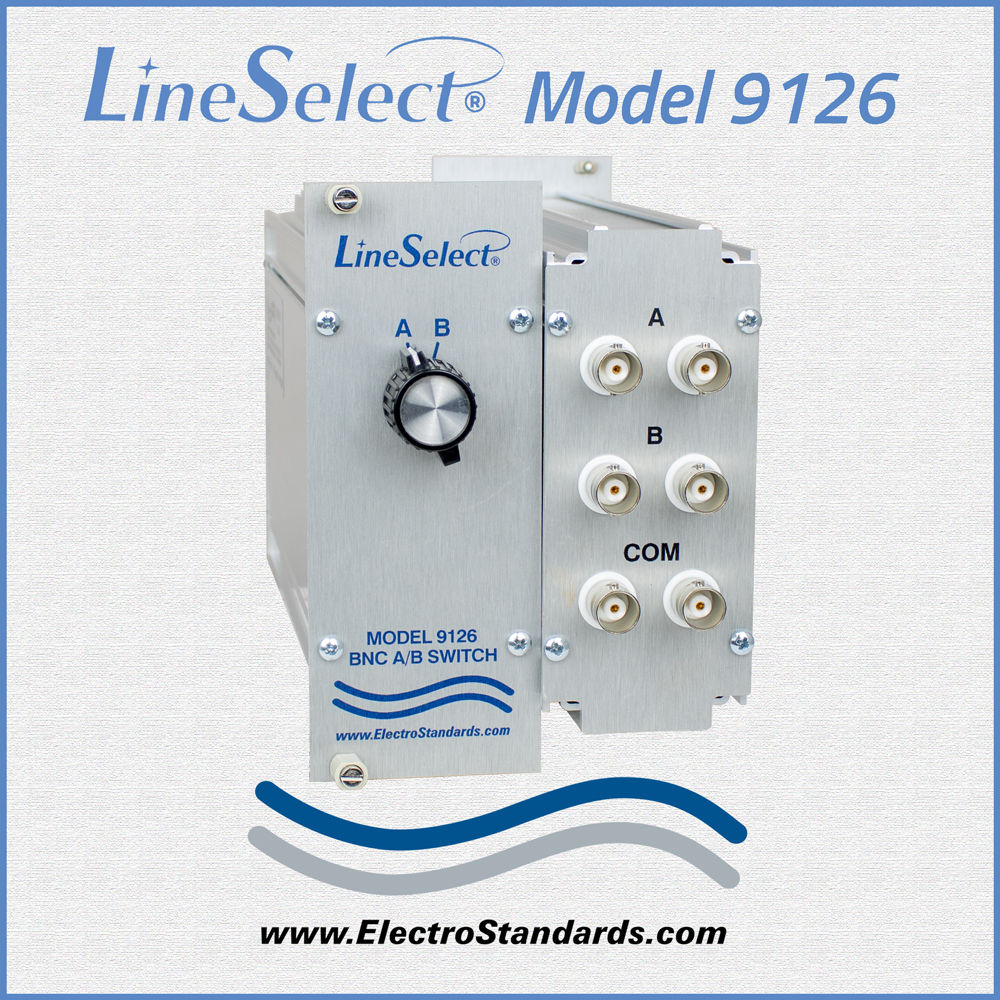

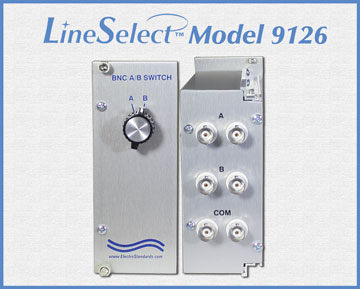

LineSelect® Model 9126 Dual Channel Coaxial BNC A/B Switch Module, 50 Ohm

Overview

The Model LineSelect® 9126 switch module allows the user to switch a device connected to the COMMON port between devices connected to ports A and B for each channel. The LineSelect® Model 9126 is an open frame module designed to be installed in the Model 9025 rack. The Model 9025 rack accommodates up to 8 LineSelect® Model 9126's. The Model 9025 is a 3U, full rack size chassis designed to fit in a standard 19" rack.

High Quality Manual Data Network Switches Increase the Reliability of Your Network!
Ideal for data, GPS, and test measurement coaxial networks!
Modular approach allows system expansion to meet your needs.

FEATURES OF THE MODEL 9126 BNC A/B SWITCH:

Each channel allows quick connection to any one of two devices from one COMMON device.
Simultaneously switches both channels via a front-panel rotary switch.
Switches both the shield and center conductor of the coaxial interface via break-before-make rotary switch.
High quality sealed switch with self-wiping low impedance contacts.
The ports are transparent to all data.
No external power required. Manual operation.
Switch case is a rugged aluminum enclosure for EMI/RFI shielding.
Up to eight LineSelect® Model 9126 Switch Modules can be housed in the Model 9025 Rack Chassis.
Lifetime warranty against manufacturing defects.
Modular approach to switch requirements allows expansion to more channels on an as-needed basis.
Custom length BNC cables available for your switch installation.

TECHNICAL SPECIFICATIONS:

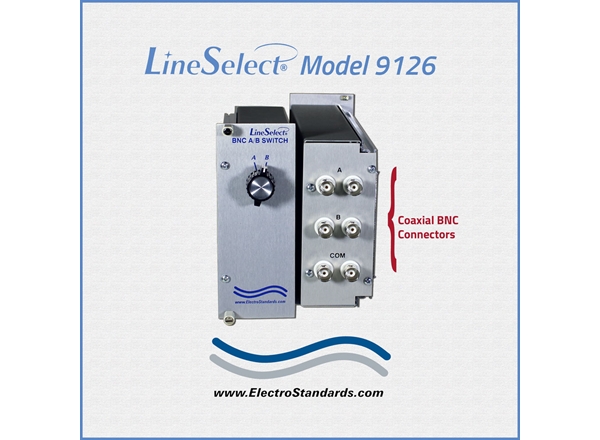

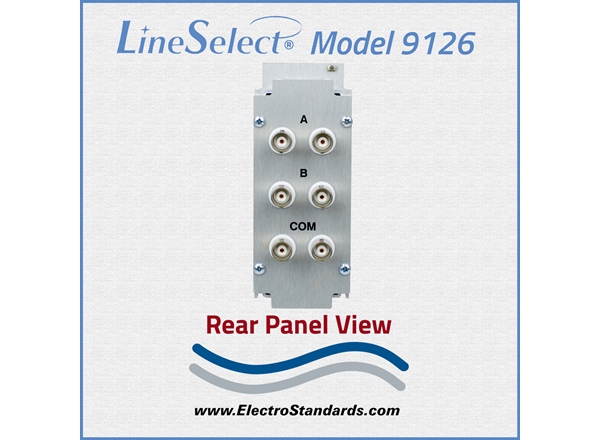

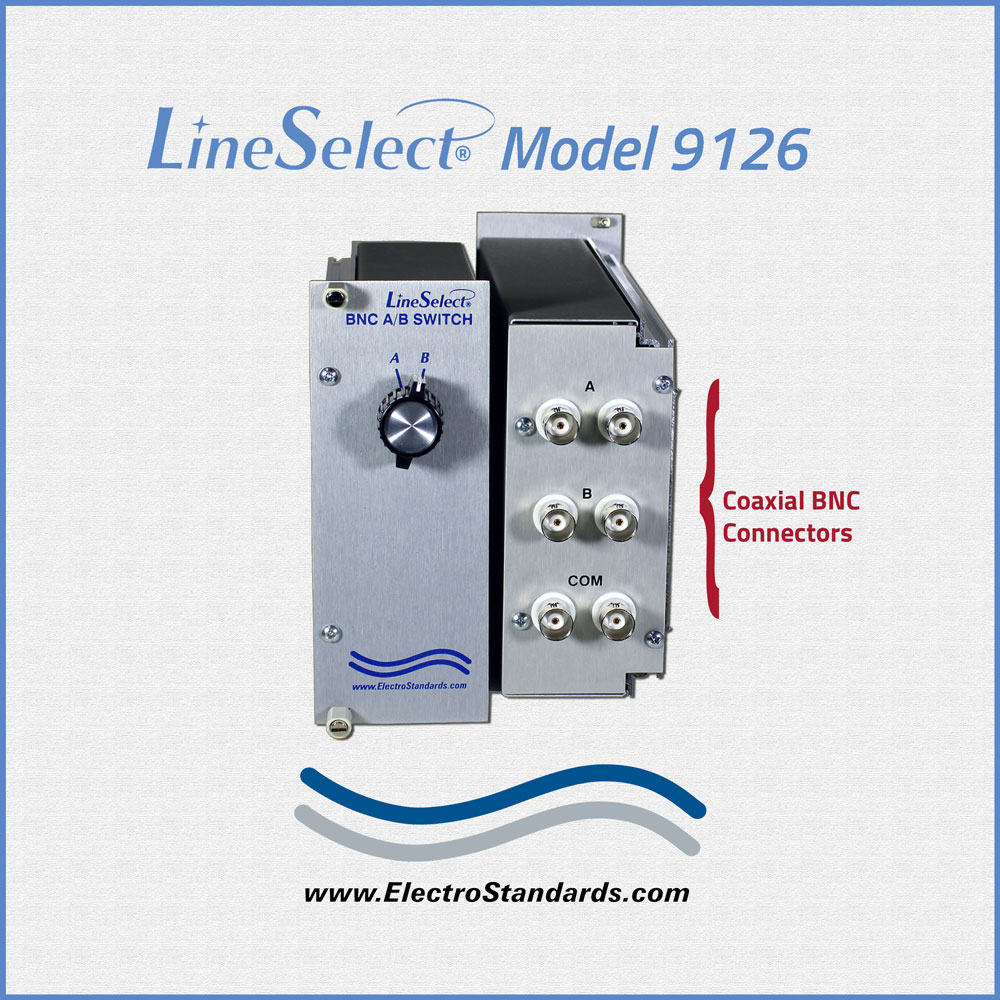

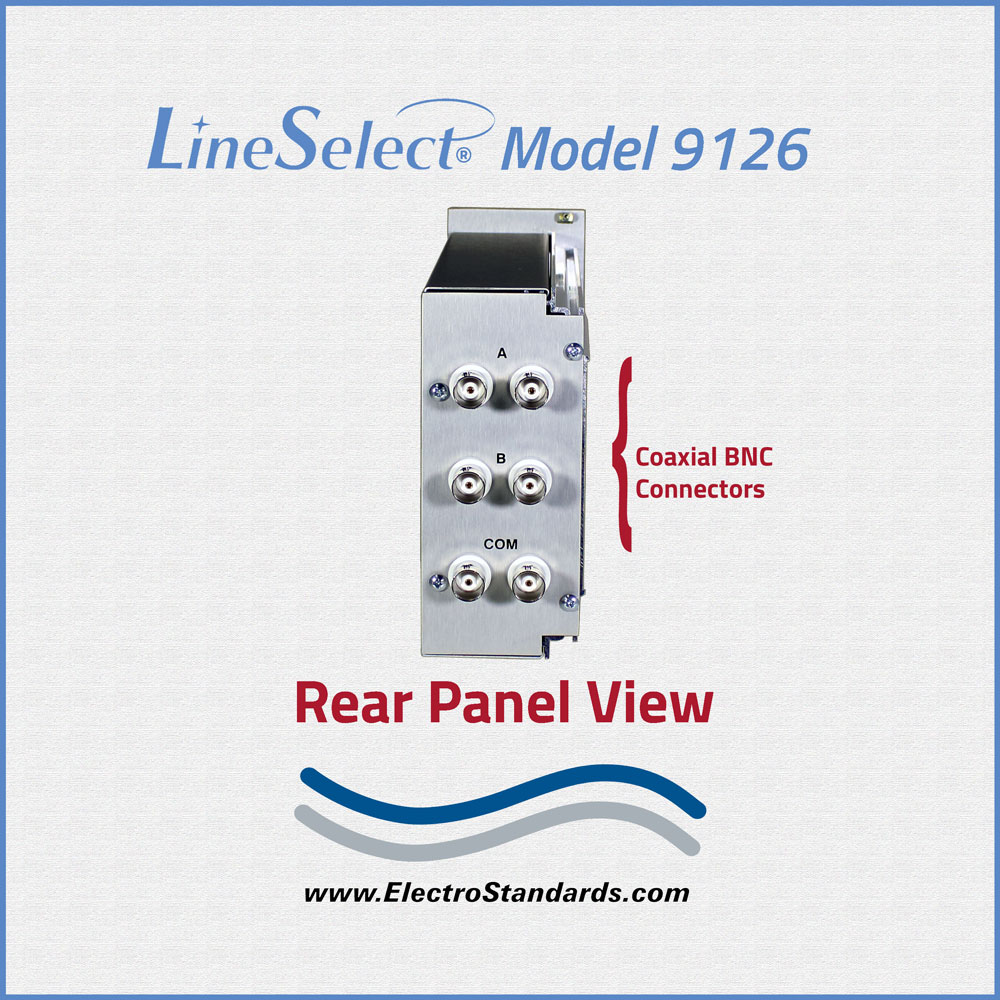

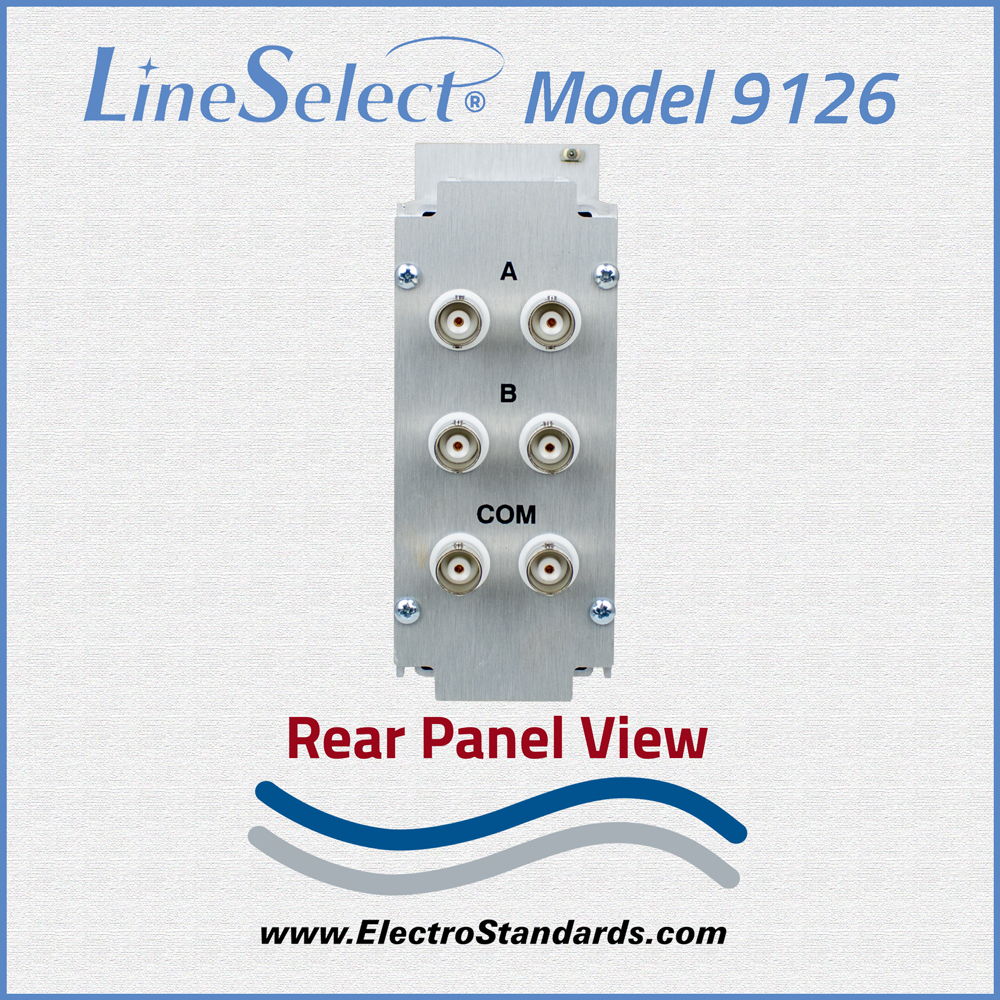

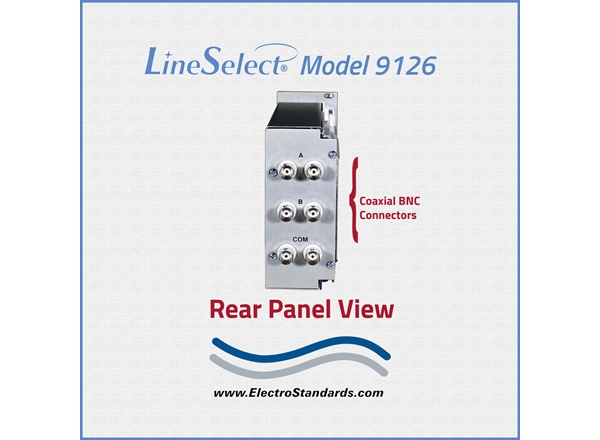

PORT CONNECTORS: (3) BNC connectors labeled A, B, and COMMON for each channel.

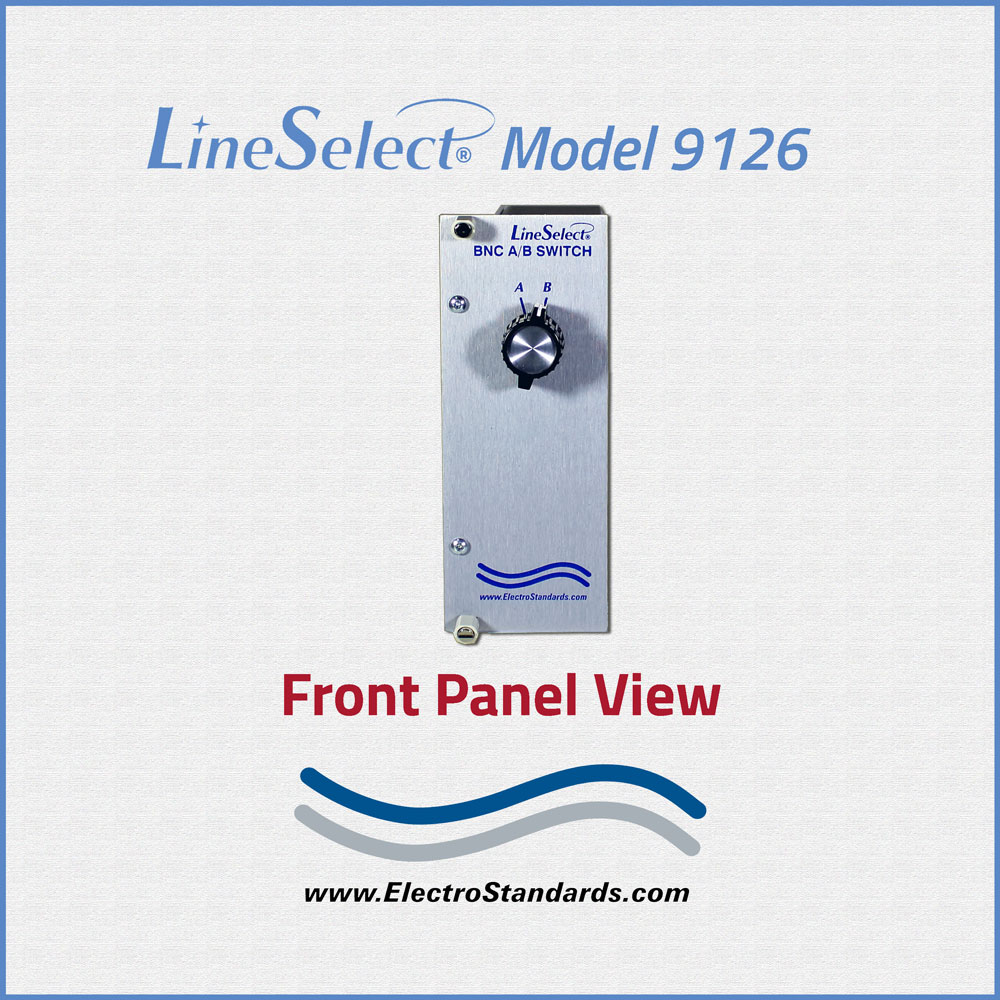

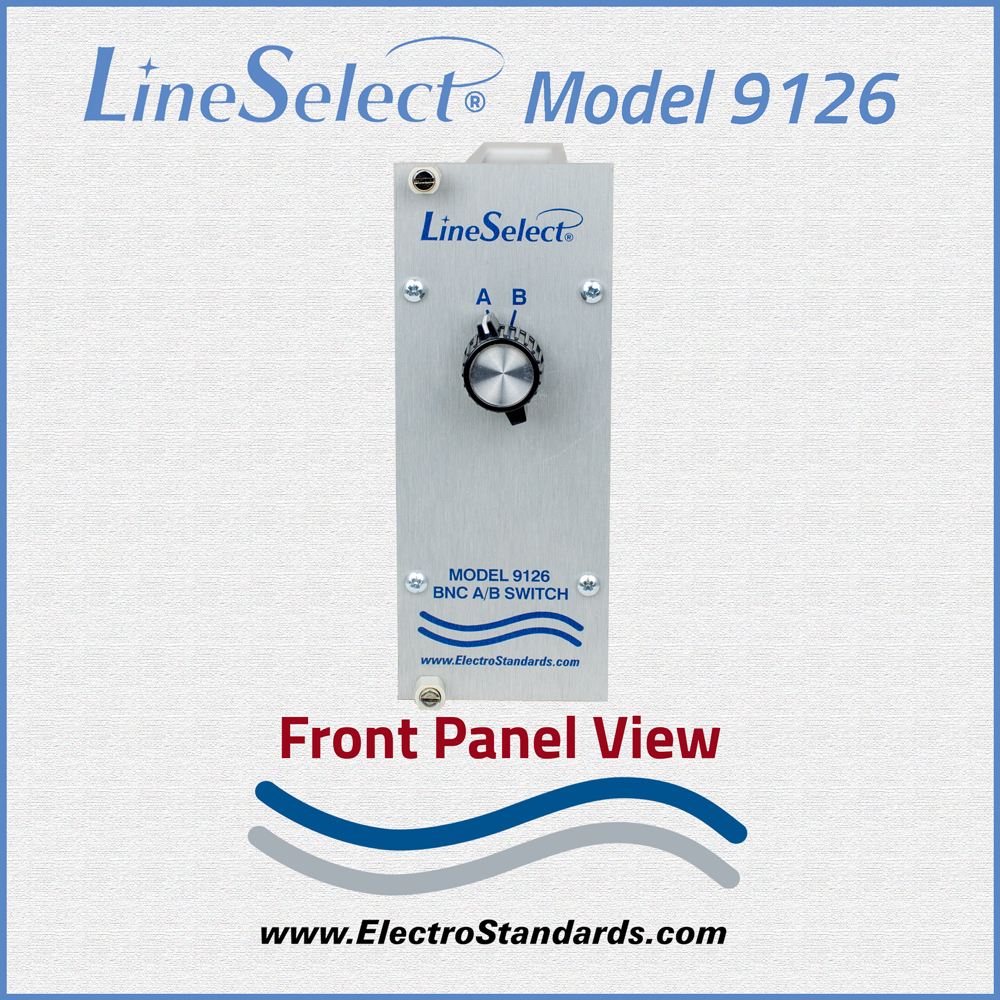

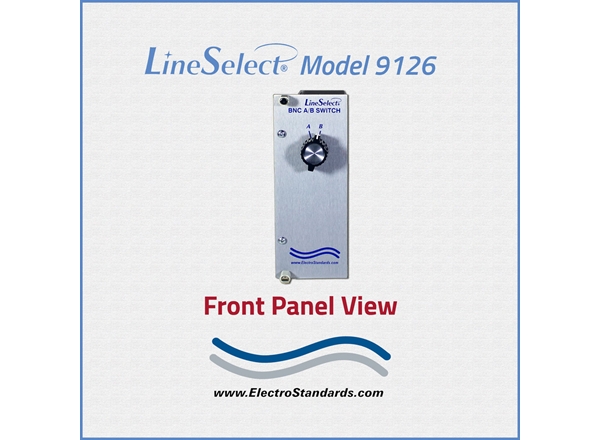

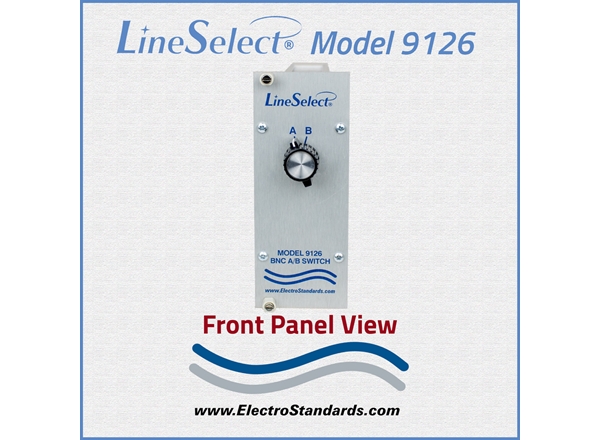

FRONT PANEL CONTROL: (1) Manual Rotary Switch on front panel selects A or B.
POWER: No power required. Manually operated.
DIMENSIONS: Module 1.98" W x 5.06" H x 7.15" D. (5.1 x 12.9 x 18.2 cm).
WEIGHT: Approximately 0.8 lb (0.4 kg).

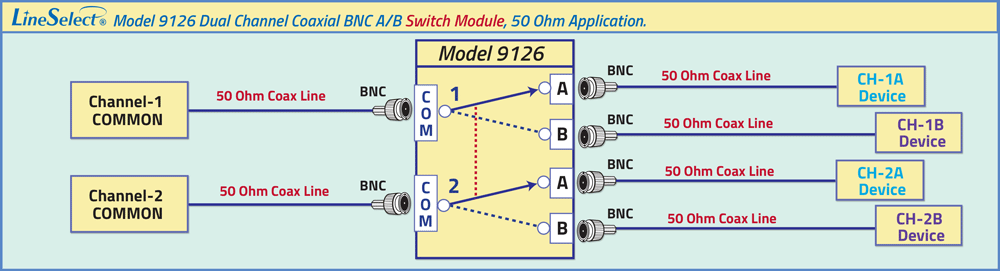

LineSelect® Dual Channel Coaxial BNC A/B, 50 Ohm Application

The drawing illustrates a COMMON device connected to the BNC COMMON port accessing two other devices connected to the BNC A and B ports for each of two channels. Both channels are switched simultaneously. This dual channel BNC A/B switch can give you access to 16 channels by installing eight individual dual channel BNC switch modules into the Model 9025 rack mount chassis.

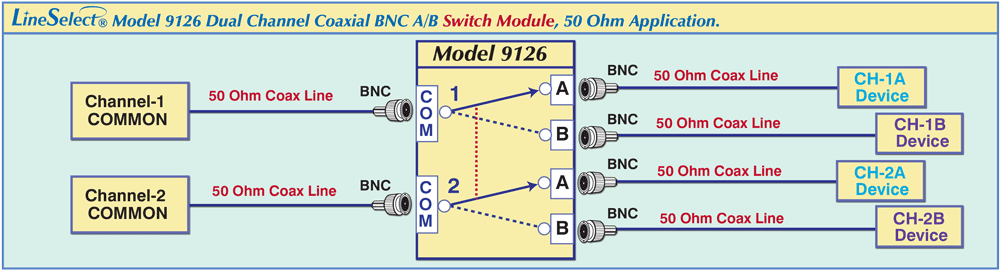

LineSelect® Model 9126 Dual Channel Coaxial BNC A/B Switch Module 50 Ohm Application

Model 9025 Rackmount Chassis for Switch Modules (Cat No 305972) Features:

Rack can accommodate up to eight Model 9126 A/B modules (2.0" W). (5.1 cm)
Rackmount chassis supports multiple switch module chassis of various widths.
Rack Size: 19" W x 5.25" H x 7" D. (48.3 x 13.3 x 17.8 cm)
Full opening for modules is 16.8" W. (42.7 cm)

Ordering Information

Catalog Number: 309126
Model Number: 9126
Base Price: See website or contact us for current pricing and availability.

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
We welcome international inquiries and ship worldwide.

Shipping and Returns

Shipped via UPS ground (unless otherwise requested).
Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

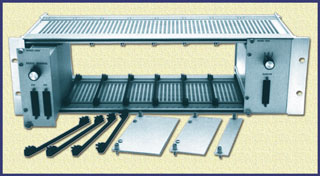

Model 9025 Rack Chassis illustrated with a 2" filler panel Model 9008 and Module Guides. Other filler panel sizes are available!

Optional:

Module rack filler panel, 2.0" W (5.1 cm), Cat No 305983 - Model 9008.
Module rack filler panel, 0.8" W, (2 cm), Cat No 305981 - Model 9011.
Other filler sizes available.

Check out suggested cables for use with the Model 9126 Switch.

Suggested cables for use with Model 9126 Switch
Part Number	Description
990136-006 990136-010 890426-006 890426-010	RG58 Coaxial Cable, 50 ohm, 6ft. (M/M) RG58 Coaxial, 50 ohm, 10ft. (M/M) Thinnet RG58 Coaxial Cable, 50 ohm, 6ft (M/M) Thinnet RG58 Coaxial Cable, 50 ohm, 10ft (M/M)

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.
