Manual Network Switch, DB9 A/B, 2-Positions, Rotary Switch
LineSelect® Model 9442R DB9 A/B Switch with Half Rack & Full Rackmount Enclosure, RoHS Compliant
Applicable to ANY DB9 Interface since all 9 pins switched.
High Quality Manual Data Network Switches increase the reliability of your Network.

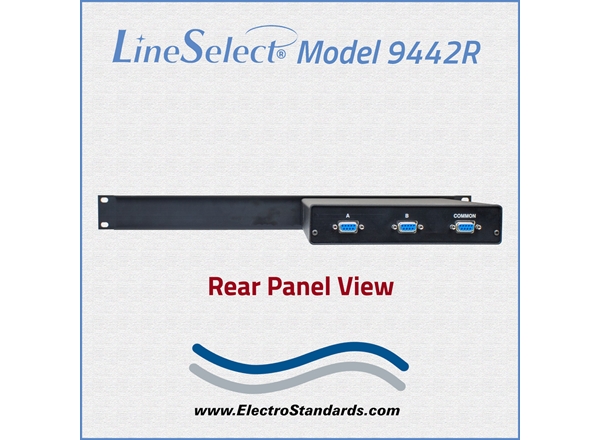

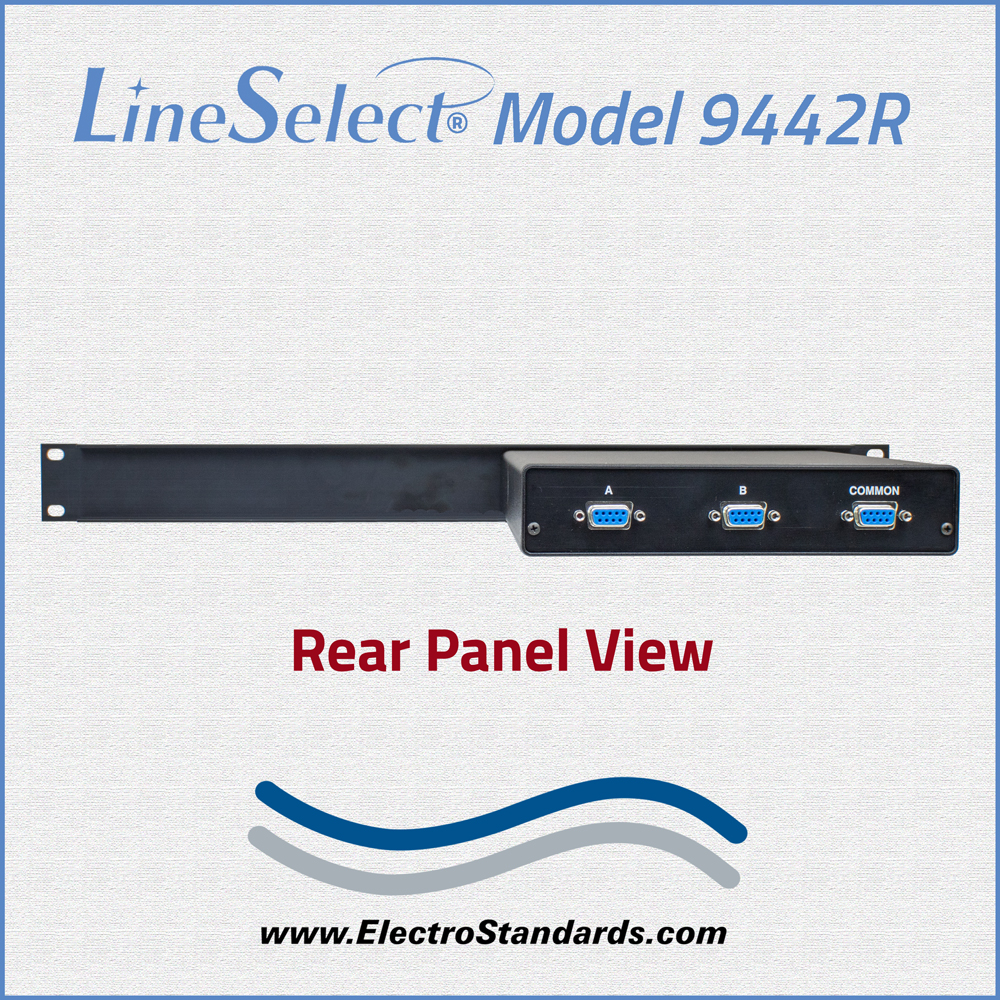

- PORT CONNECTORS: (3) DB9 female connectors on rear panel labeled A, B, and COMMON.

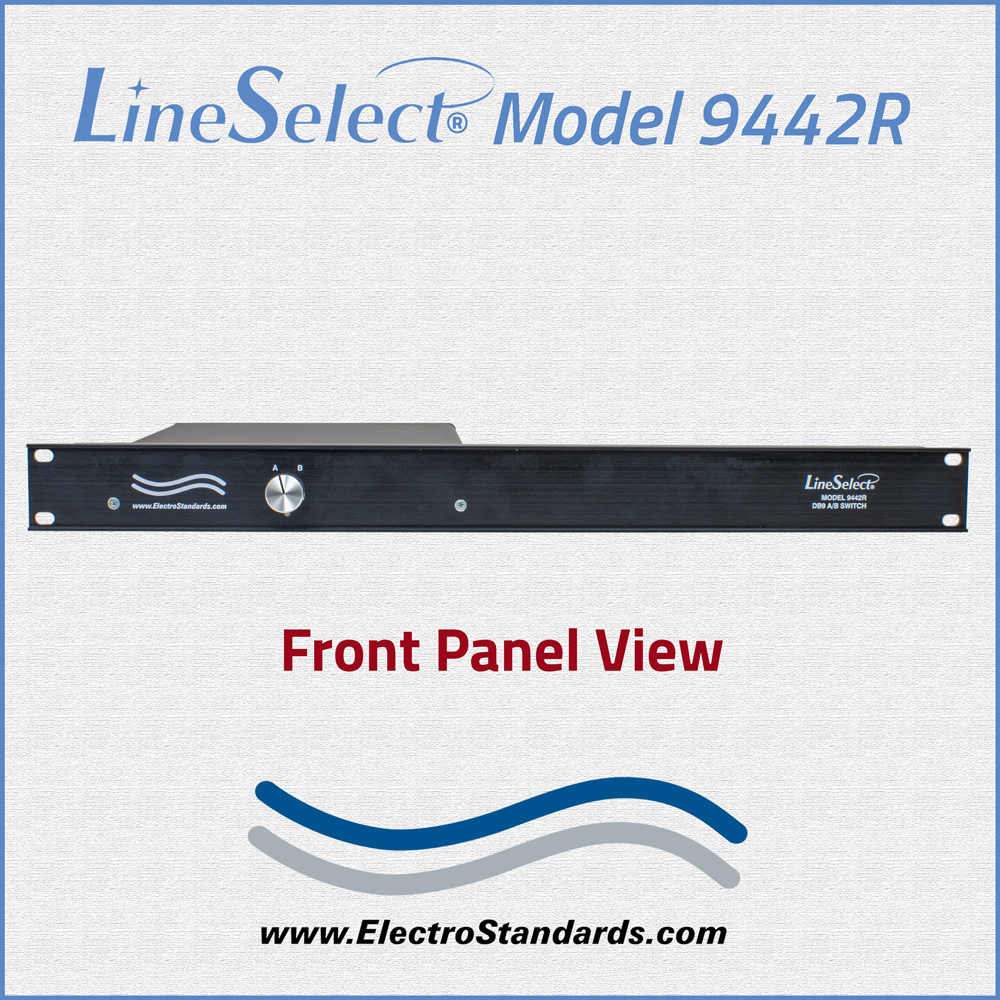

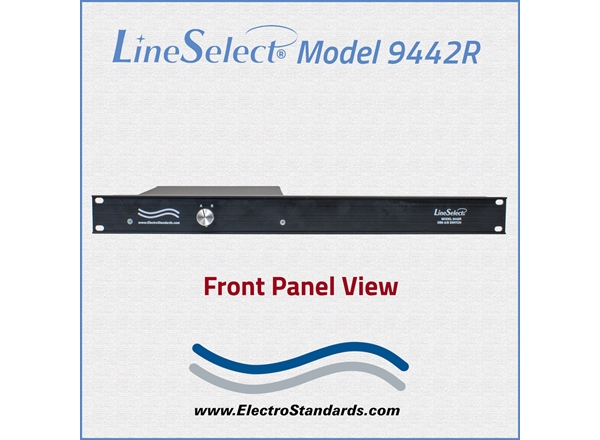

- FRONT PANEL CONTROL: (1) Rotary Switch on front panel selects A or B.
- PIN SWITCHED: 9 pins switched.
- POWER: No power required.
- ENCLOSURE: Aluminum slim rackmount enclosure.
- DIMENSIONS: 19.0" W x 1.75" H x 8.0" D. [48.3 x 3.8 x 20.3 cm]
- WEIGHT: Approximately 2.0 lbs. 0.9 kg)
LineSelect® Model 9442R DB9 A/B APPLICATION:

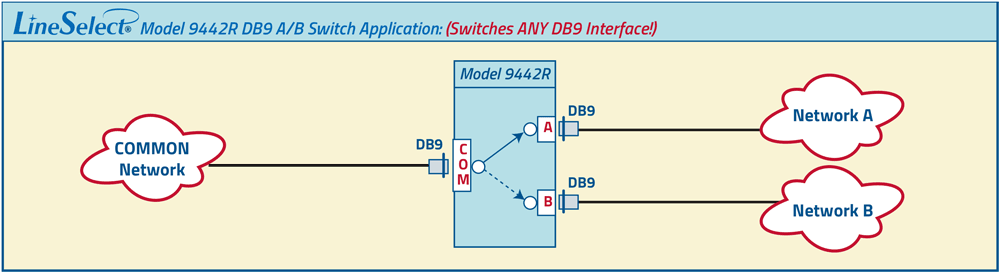

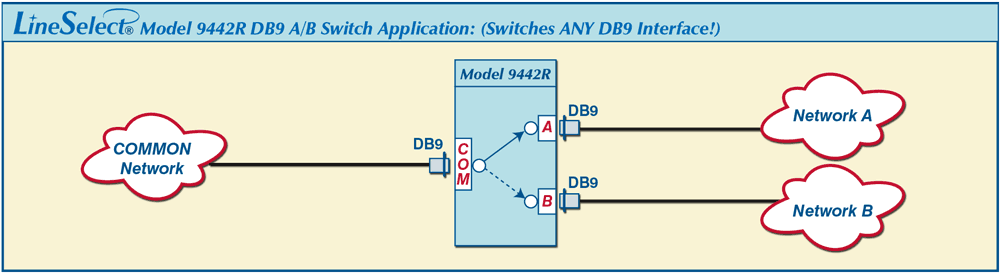

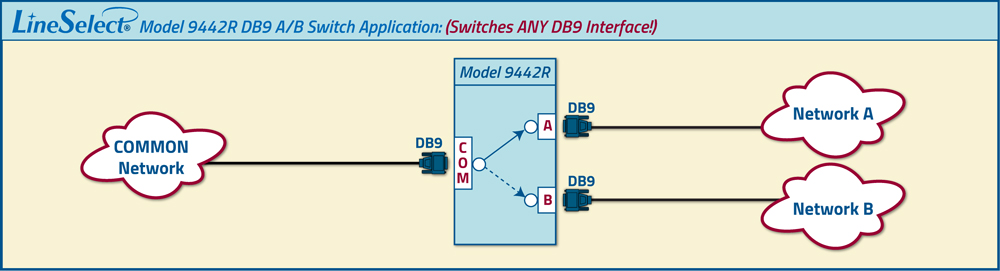

The drawing illustrates a COMMON Device connected to the DB9 port with access to either Network A or a Network B. The Network A is connected to the DB9 port A and the Network B is connected to the DB9 port B.
- Allows quick connection to either Network A or a Network B from one COMMON device.
- Certified RoHS compliant.
- High quality sealed switch with self-wiping low impedance contacts.
- All ports are transparent to all data.
- All 9 pins of the DB9 interface are switched via break-before-make rotary switch.
- DB9 female connectors used for the A, B, & COMMON ports.
- Manually operated. No power required.
- Attractive all metal black box packaging provides EMI/RFI shielding.
- Lifetime warranty against manufacturing defects.
- Custom length DB9 cables available for your switch installation.

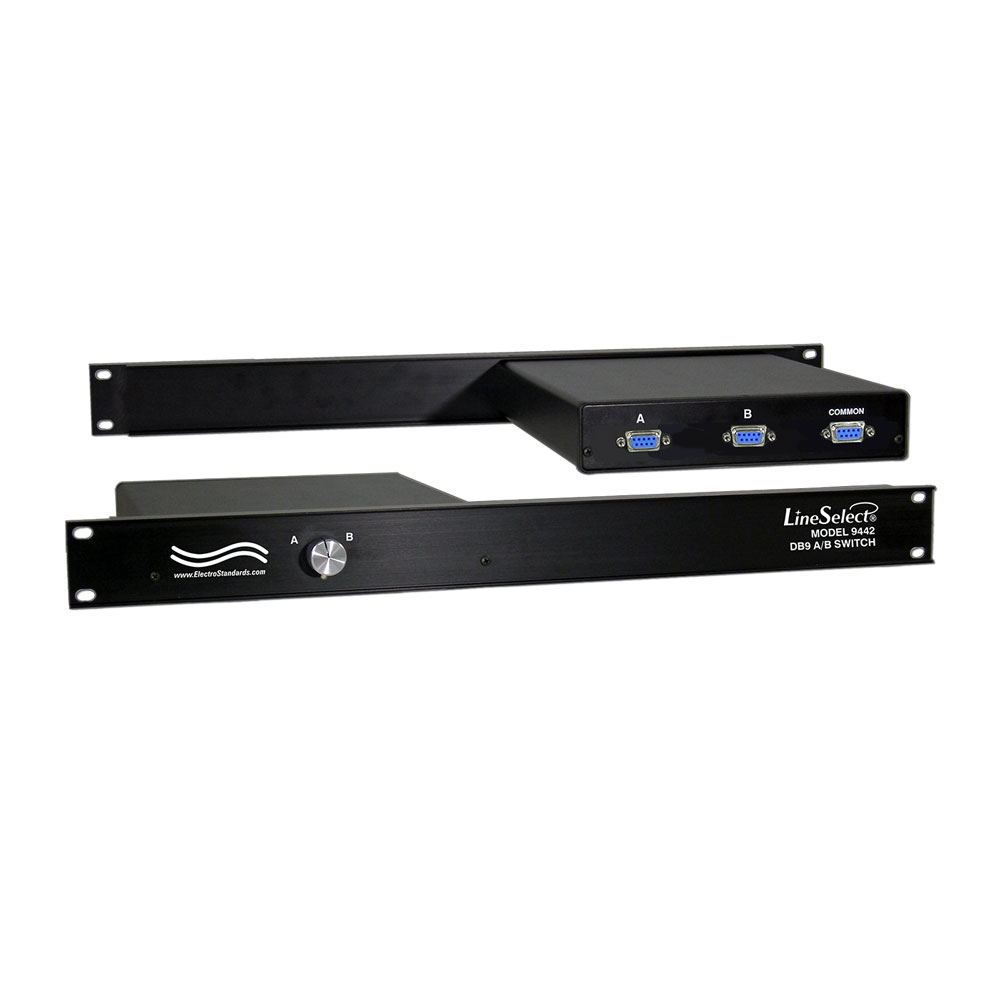

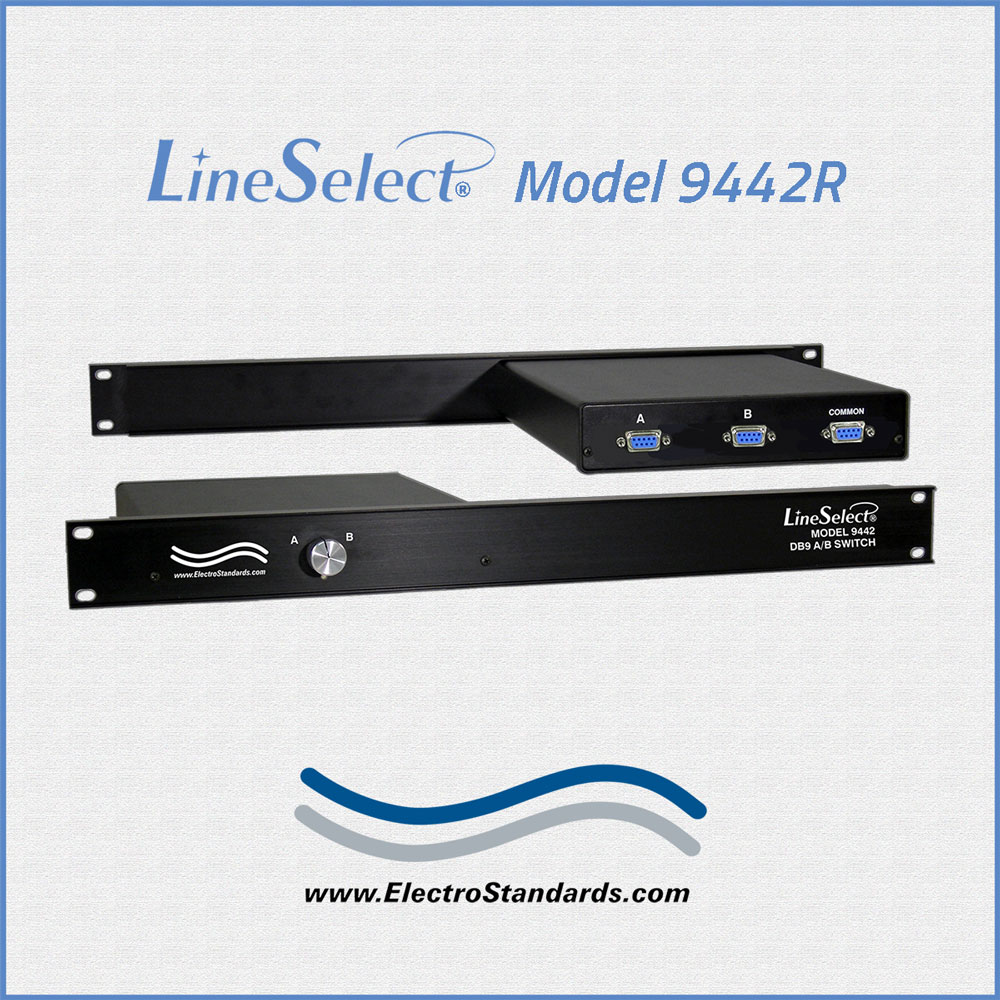

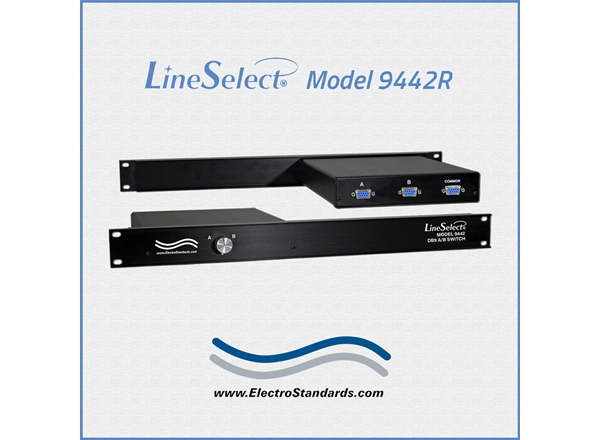

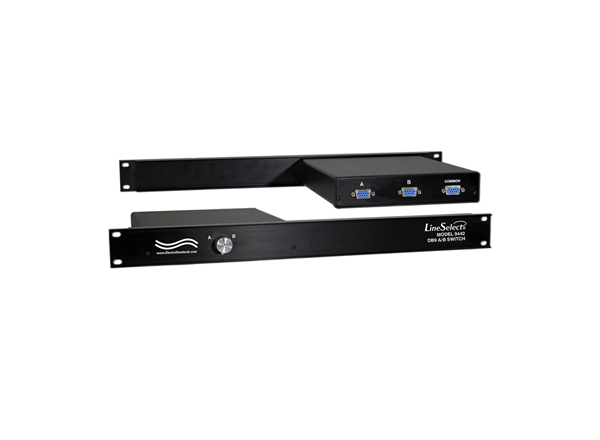

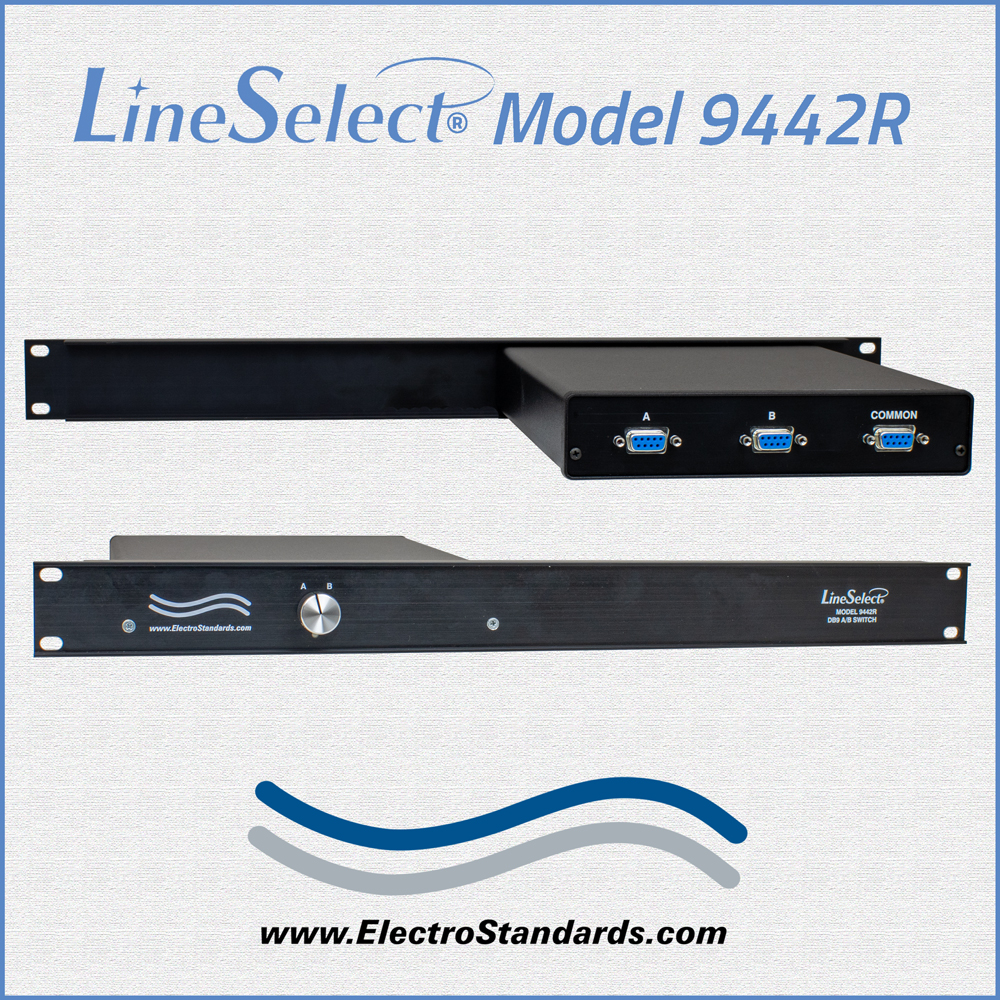

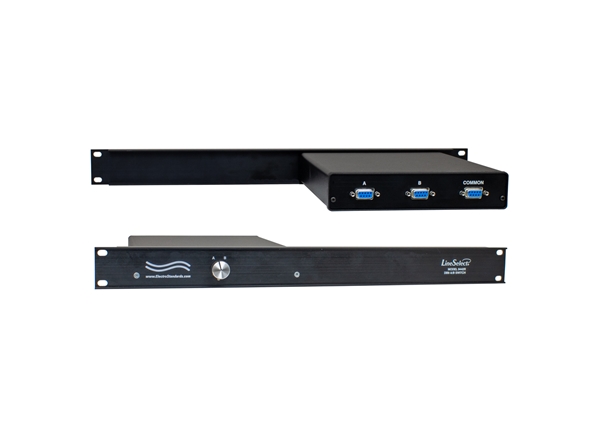

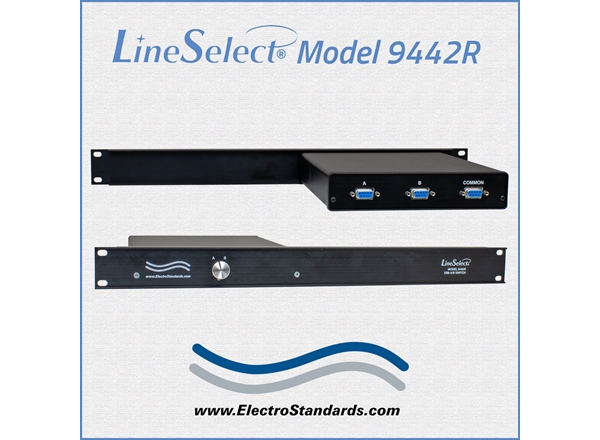

The LineSelect® Model 9442R Single Channel DB9 A/B Switch allows the user to switch COMMON equipment to either A or B ports with a simple turn of a rotary switch knob. The unit supports all 9 pins of the DB9 interface. No need to plug and unplug cables, thereby eliminating connector wear. The LineSelect® Model 9443R is enclosed in a desktop size enclosure with a 1U full rack size front panel, and an all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.
