Catalog # 309088 - Model 9088 2-Channel DB9 & 1 Channel RJ45 Cat5e A/B Switch w/Terminal Strip

    2-Channel DB9 & 1 Channel RJ45 Cat5e A/B Switch w/Terminal Strip

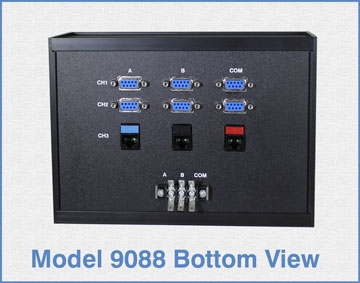

Click image to enlarge
Base Price:
$985.00
Catalog No: 309088
Model No: 9088
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:RJ45, DB9 Switch Ports
Channels per Switch Chassis:3
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Simultaneous Channel Control
Remote Control:Contact Closure
Compliance/Standards:Cat5e
Configuration:Rackmount
Pins Switched:All 8 Pins of RJ45, All 9 pins of DB9
Remote Port:Terminal/Barrier Strip
Local Control:Rotary Knob
