Catalog # 309480 - Model 9480 2-Channel RJ45 Cat5e Online/Offline Manual Switch

    2-Channel RJ45 Cat5e Switch2-Channel RJ45 Cat5e Switch2-Channel RJ45 Cat5e Switch2-Channel RJ45 Cat5e Switch
Click image to enlarge
    • 2-Channel RJ45 Cat5e Switch
    • 2-Channel RJ45 Cat5e Switch
    • 2-Channel RJ45 Cat5e Switch
    • 2-Channel RJ45 Cat5e Switch
Base Price:
$1,265.00
Catalog No: 309480
Model No: 9480
Product Type:Switches: Copper
Interface:RJ45, 10/100/1000 Cat5e
Positions:2
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:1
Manual Control/No Power Required:LineSelect® Manual Operation
Channel Control:Simultaneous Channel Control
Compliance/Standards:Cat5e
Configuration:Rackmount
Pins Switched:8
Local Control:Rotary Knob
Feature:Rated for 10/100/1000 networks up to CAT5e

Add to Cart
  • RJ45 Cat6 connectors.
  • Certified for Cat6 Compliance.
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

RJ45 Manual Network Switch, Cat6, Rotary Switch
LineSelect® Model 9480 Dual Channel RJ45 Cat6 Online/Offline Switch, Manual, Simultaneous Switching, Rackmount

  • Certified for Cat 6 Compliance.

  • Share ANY RJ45 Interface Networks or Devices, "Quick and Easy!"

  • Field Proven, Highly Reliable

SPECIFICATIONS:

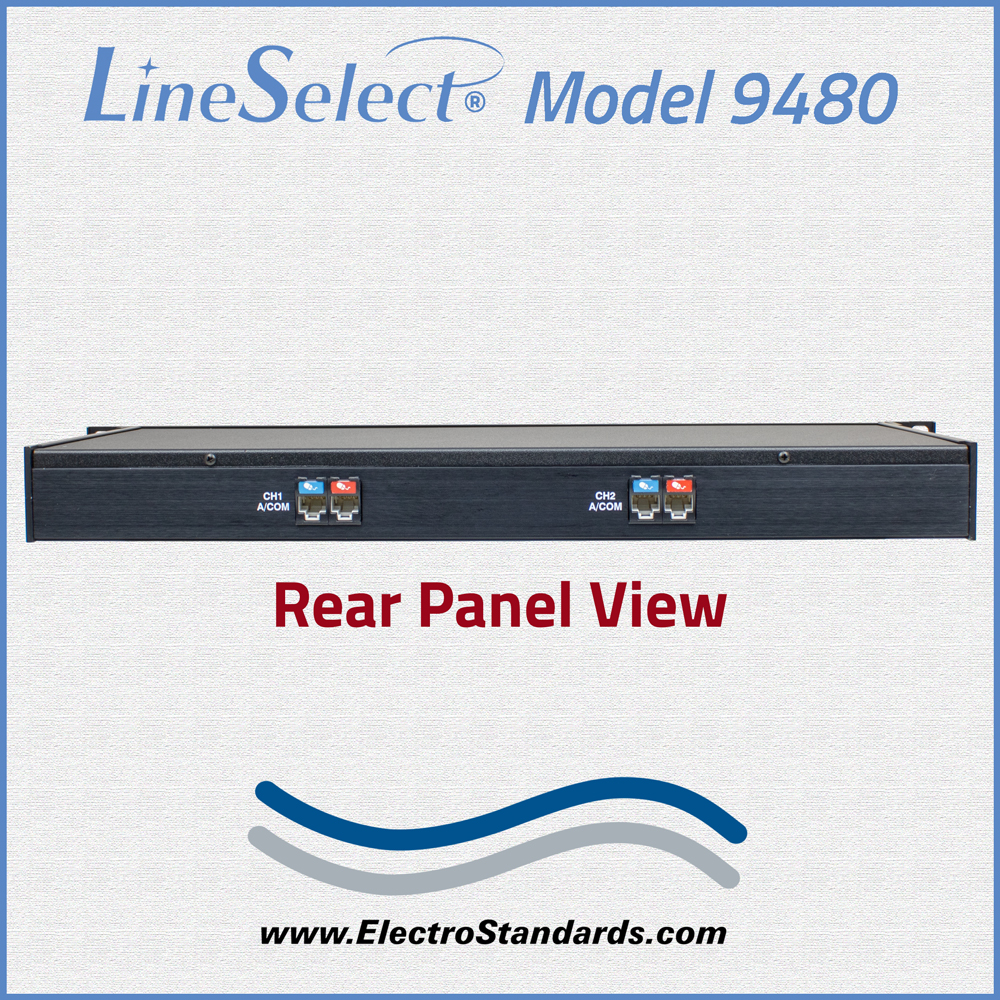

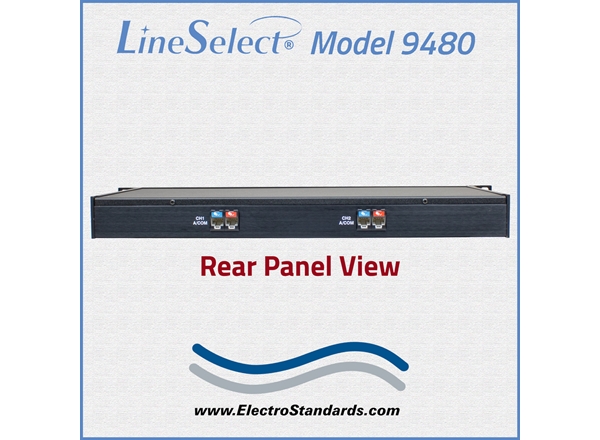

  • PORT CONNECTORS: (4) RJ45 female connectors (A and Common for each of the two channels)

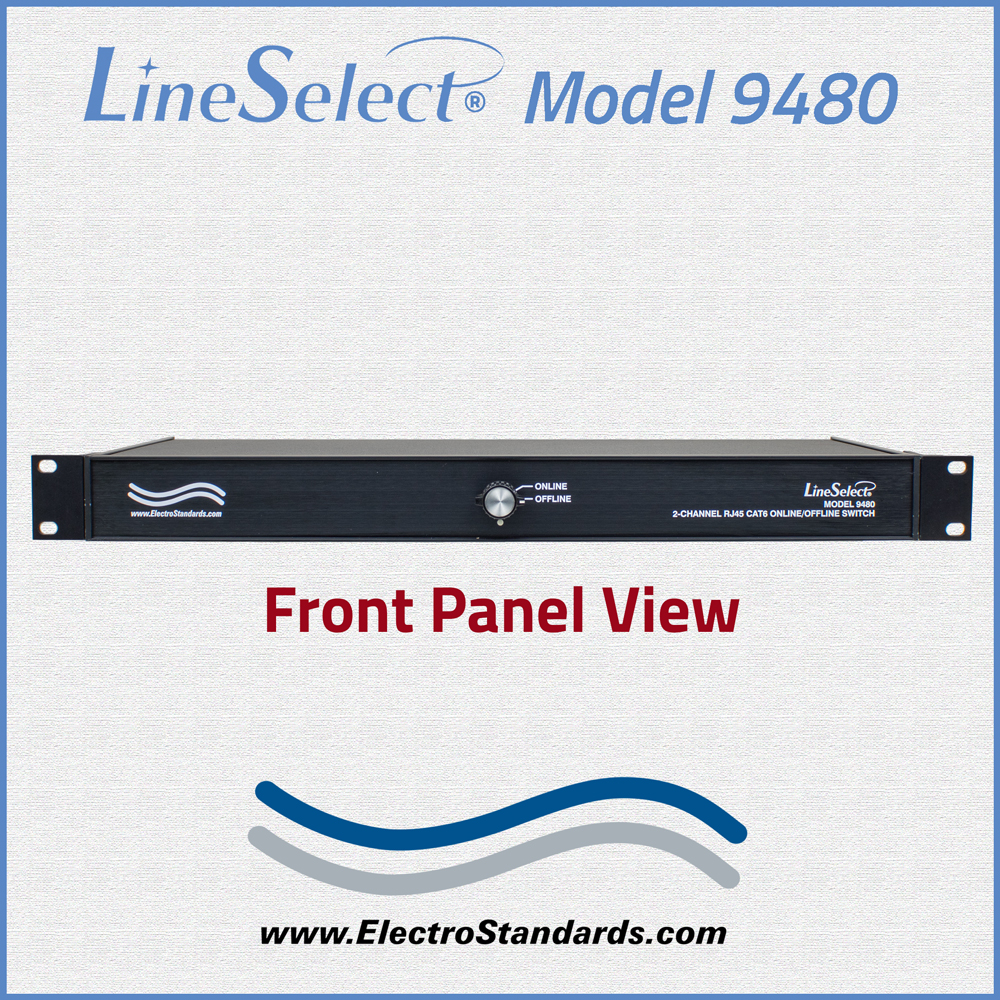

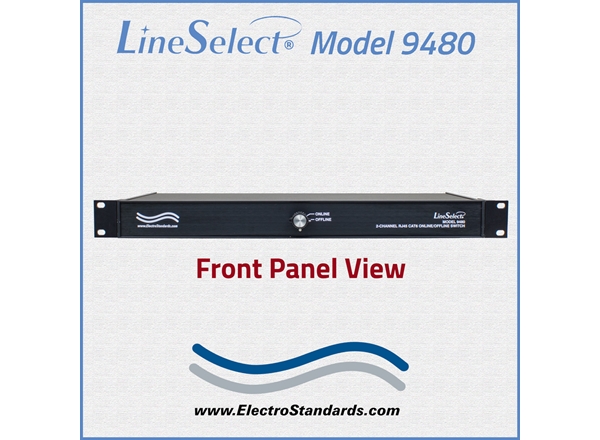

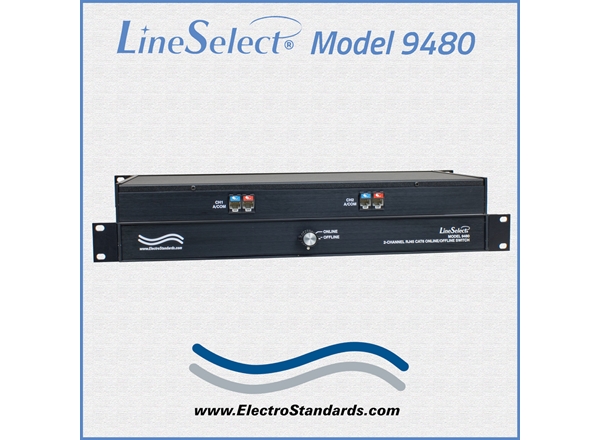

  • FRONT PANEL CONTROLS: (1) Rotary switch on front panel selects ONLINE or OFFLINE position for both channels simultaneously.
  • POWER: No power required. Manually Operated.
  • DIMENSIONS: Rackmount 19"W x 1.75"H x 8.7 D (48.3 x 4.4 x 22.1 cm).
  • WEIGHT: Approximately 3.9 lb. (1.8 kg)

LineSelect® Model 9480 Online/Offline Manual Switch Application:

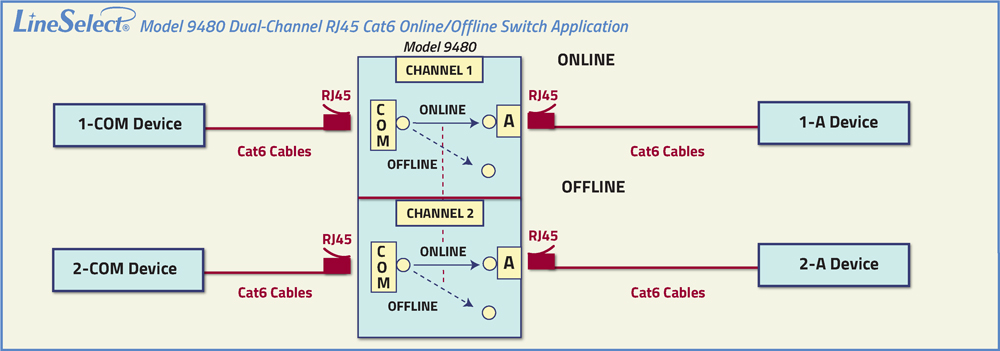

The drawing illustrates 2 COMMON devices connected to the RJ45 COMMON ports with access to other RJ45 interface devices connected to the RJ45 ports labelled "A". Both channels can be simultaneously switched to either the ONLINE or OFFLINE position.

LinesSelect® Model 9480 Dual Channel RJ45 Cat 6 Application Drawing

FEATURES:

  • Each channel allows quick connection to any one device from COMMON device.
  • Rated for 10/100/1000 Base-T networks (up to Cat 6).
  • All 8 pins of the RJ45 interface are switched via break-before-make rotary switch.
  • Transparent to data speed and format.
  • Simultaneously switches Online/Offline Channels via the front-panel rotary switch.
  • High quality sealed switch with self-wiping precious metal contacts.
  • Eliminates the need to plug and unplug cables.
  • No external power required.
  • Rackmount configuration.
  • Attractive all metal black box packaging provides EMI/RFI shielding.
  • Lifetime warranty against manufacturing defects.
  • Custom length Cat6 cables available for your switch application.

The LineSelect® Model 9480 is a dual-channel RJ45 Cat5e Online/Offline Switch. Both channels switch to ONLINE or OFFLINE simultaneously. Each of the two channels reroutes data from its COMMON port to its A port, depending on switch position. The LineSelect® Model 9480 is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur,  equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.
