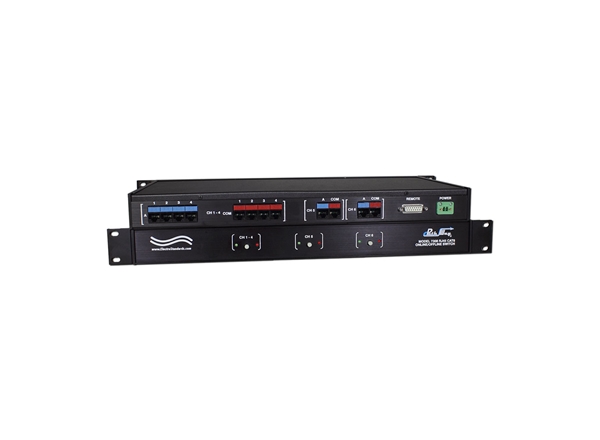

Model 7308 RJ45 CAT6 Online/Offline Network Switch, Remotely Controllable, Catalog #307308

Click image to enlarge

Base Price:

$3,131.00

Catalog No:

307308

Model No:

7308

Product Type:

Switches: Copper

Positions:

2, Offline

Cable Type/Port Connector:

RJ45

Channels per Switch Chassis:

Electronic Switches/Power Required:

PathWay® Copper

Channel Control:

Simultaneous Channel Control, Independent Channel Control

Remote Control:

Contact Closure

Security:

Offline Position

Compliance/Standards:

Cat6

Configuration:

Rackmount

Pins Switched:

Remote Port:

DB15

Local Control:

Pushbutton

Feature:

Remote Control, Cat6, Secure Offline

Qty

Add to Cart

Cat6 Online/Offline Switch
Simultaneous control of the quad channel. (Channels 1 thru 4)
Independent control for each single channel. (Channel 5, Channel 6)

SPECIFICATION SHEET

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

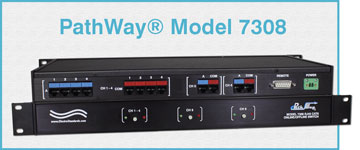

Path Way® Model 7308 RJ45 Cat6 ONLINE/OFFLINE Switch

Overview

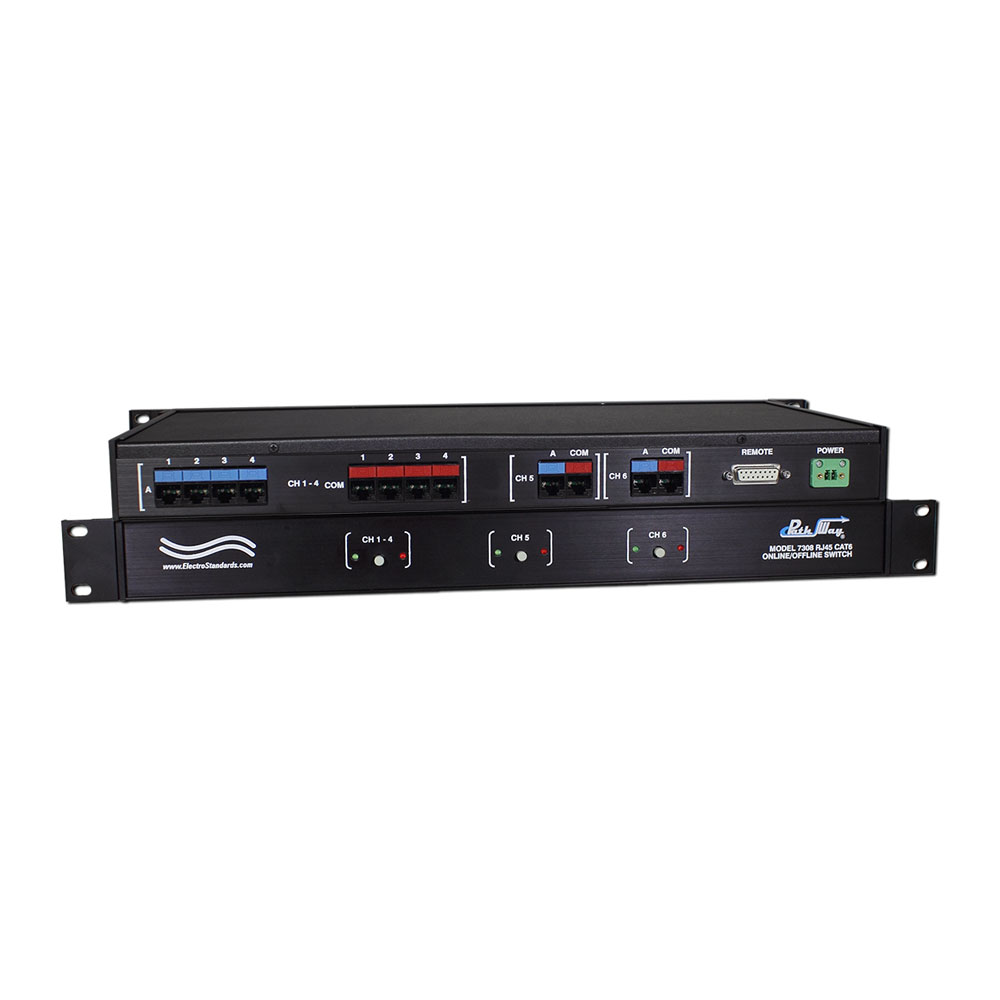

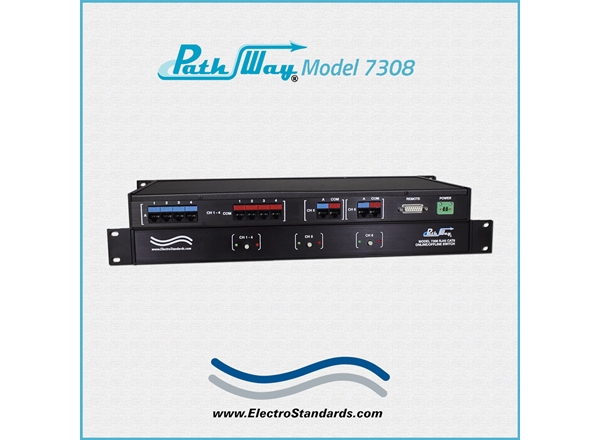

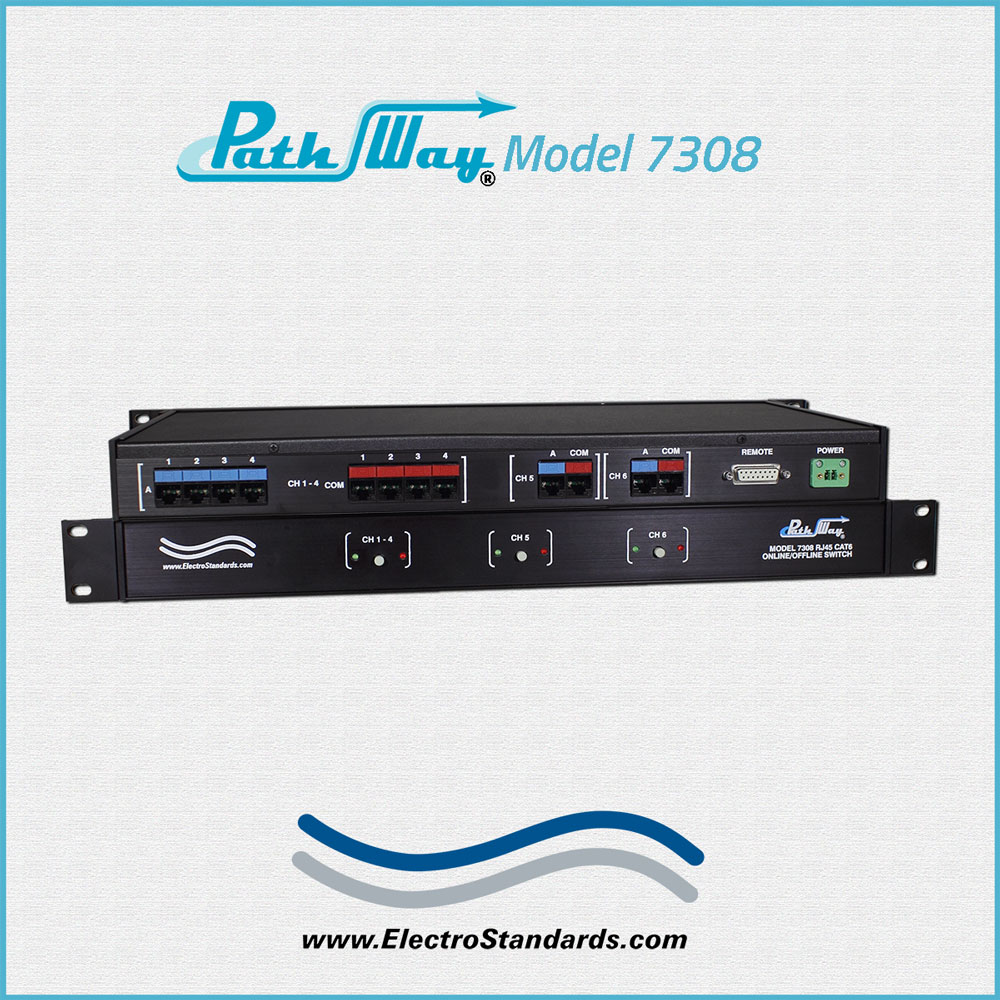

The PathWay® Model 7308 Multi-Channel RJ45 Cat6 Online/Offline Switch consists of one Quad-Channel RJ45 Cat6 Online/Offline switch and two Single Channel RJ45 Cat6 Online/Offline switches.

The Quad channel allows the capability of connecting two separate devices, ports A and COM, via an Online or Offline connection for four channels (Channels 1-4). All four channels simultaneously switch.

Both Single channel switches (Channels 5 and 6) allow the capability of connecting two separate devices, ports A and COM, via an Online or Offline connection for independent channel switching. The Model 7308 is enclosed in a 1U, full rack size, all metal, black chassis designed to provide EMI/RFI shielding. Switch position state may be attained via the front panel LED's or from the DB15 Remote port.

(1) Quad ONLINE/OFFLINE, (2) Single ONLINE/OFFLINE with Contact Closure Remote
COMPLIANCE: Interface meets or exceeds Cat 6 performance.

FEATURES OF THE MODEL 7308 CAT6 ONLINE/OFFLINE SWITCH:

The switch ports are transparent to all data.
All (8) pins of the RJ45 interface are switched via break-before-make electromechanical relays
The unit maintains last set position on power loss and continues to pass data.
Upon power up, unit switches based on the state of the Contact Closure.
Three front panel pushbuttons: one for quad channel and one for each of two single channels.
Simultaneous control of the quad channel. (Channels 1 thru 4)
Independent control for each single channel. (Channel 5, Channel 6)
Remote Contact Closure control and status provides dry contact logic to allow control of switch position as well as obtain the present position.
LED's display present position and power status.
Certified for Cat6 compliance.
Attractive all metal, black box packaging provides EMI/RFI shielding.
Eliminates the need to plug and unplug cables.
Custom length RJ45 cables available for your switch installation.

TECHNICAL SPECIFICATIONS:

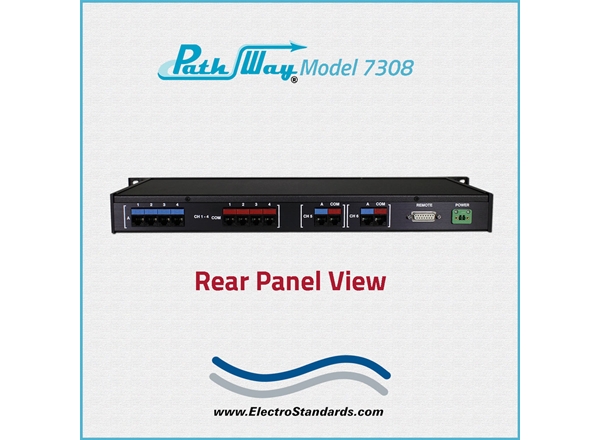

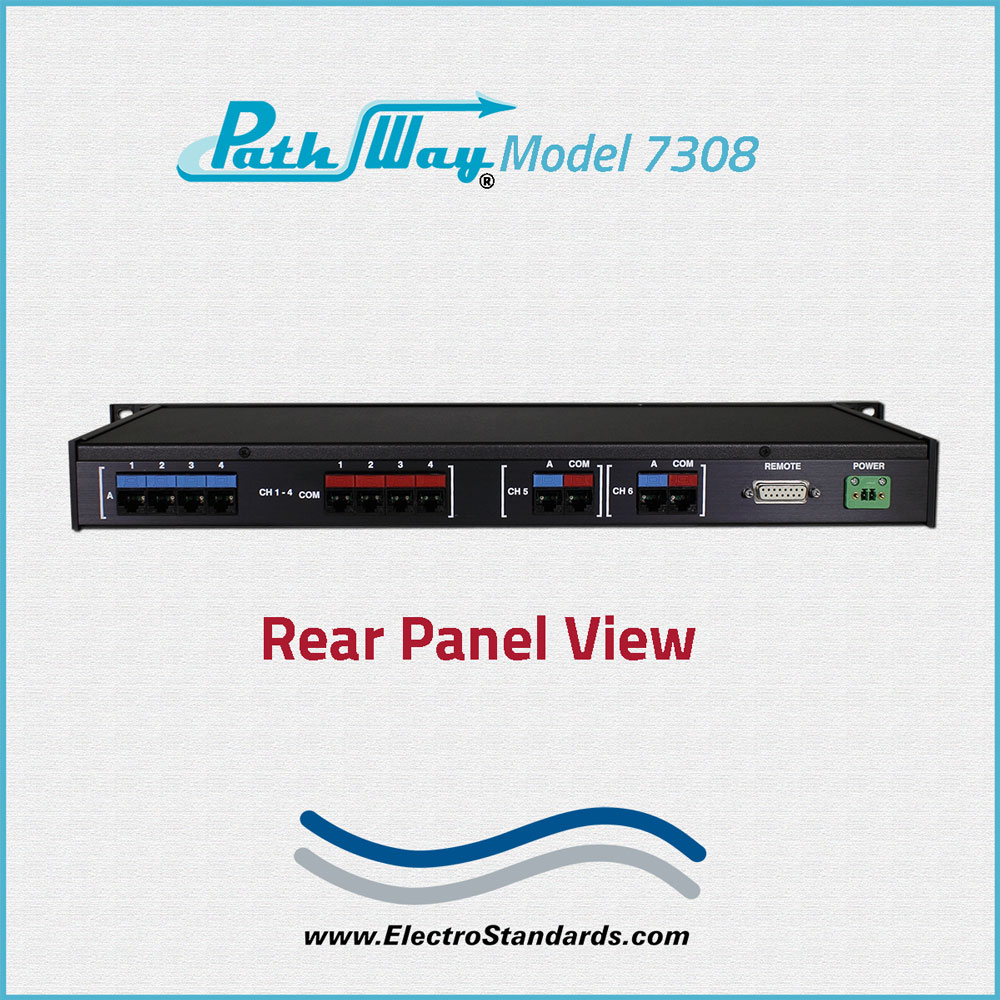

PORT CONNECTORS:

Channels 1-4: (8) RJ45 female Cat6 connectors.
Channel 5: (2) RJ45 female Cat6 connectors.
Channel 6: (2) RJ45 female Cat6 connectors.

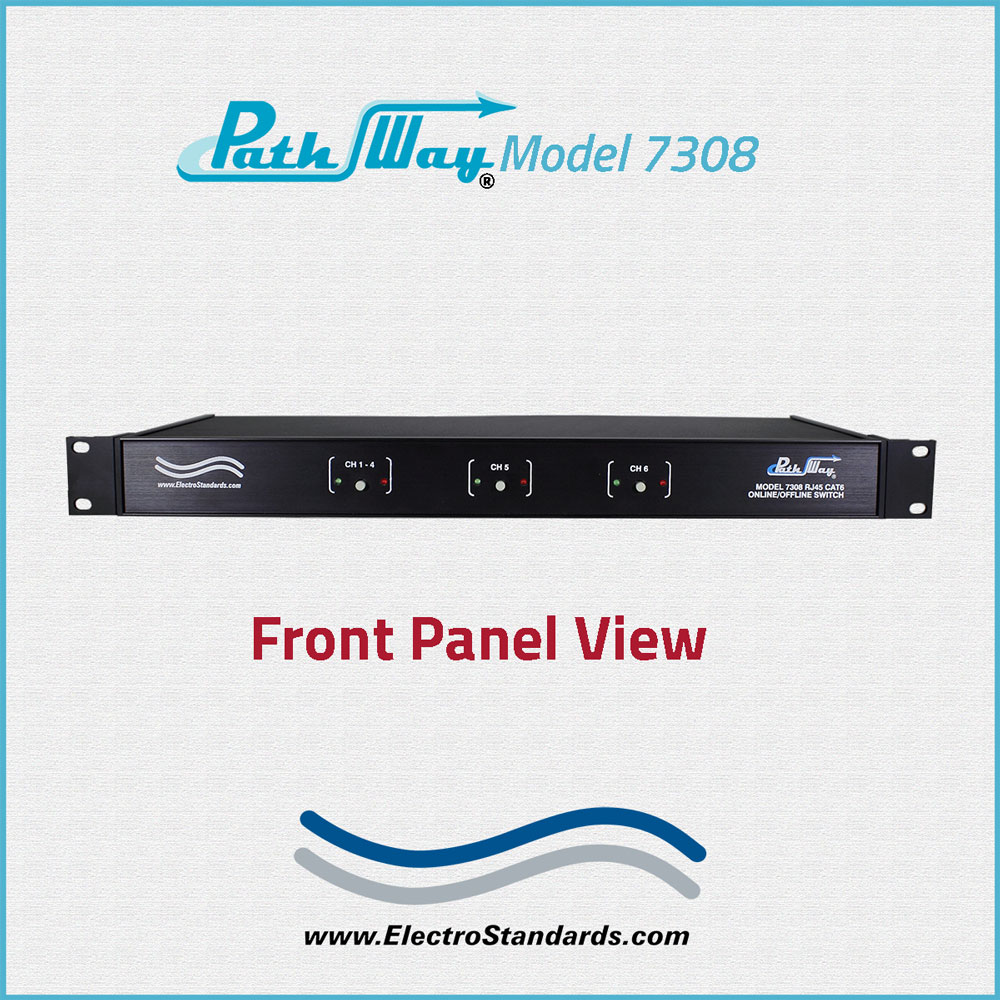

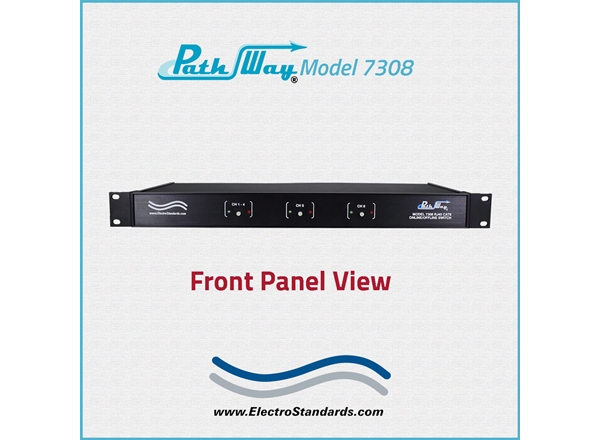

FRONT PANEL CONTROLS:

Channels 1-4 (simultaneous switching):
(1) Pushbutton
(1) Green LED (ONLINE)
(1) Red LED (OFFLINE)

Channel 5 (independent switching):
(1) Pushbutton
(1) Green LED (ONLINE)
(1) Red LED (OFFLINE)

Channel 6 (independent switching):

(1) Pushbutton
(1) Green LED (ONLINE)
(1) Red LED (OFFLINE)

REMOTE CONTROL:

(1) DB15 female connector on rear panel accepts Contact Closure signaling.

POWER:

UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500 mA to the unit. Has 2-prong, US, non-polarized plug.

DIMENSIONS:

19.0" W x 1.75" H x 8.23" D (48.3 x 4.5 x 21.0 cm)

WEIGHT:

Approximately 4.7 lbs. (2.2 kg)

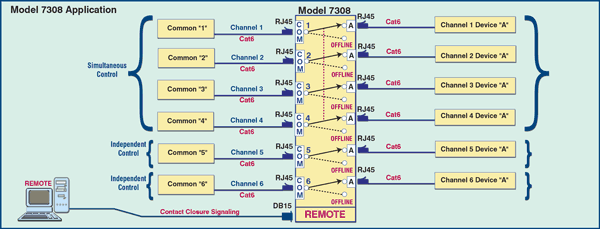

PathWay® Model 7308 CAT6 Online/Offline Application w/Contact Closure Remote:

The drawing illustrates an RJ45 Cat6 Online/Offline Switch.

There is one Quad Channel to simultaneously switch four channels to Offline or back to Online (Channels 1 - 4).
There are two single channel Online/Offline switches (Channel 5 and Channel 6). Channel 5 and Channel 6 can be switched independently.
A DB15 Remote port can be used to control the switch or monitor the position of the unit via Contact Closure Signaling.

PathWay Model 7308 Cat6 RJ45 Online/Offline Switch with Contact Closure application diagram with (1) Quad ONLINE/OFFLINE and (2) Single ONLINE/OFFLINE channels with Remote Control

Ordering Information

Catalog Number: 307308
Model Number: 7308
Base Price: See website or contact us for current pricing and availability.
Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
We welcome international inquiries and ship worldwide.

Shipping and Returns

Shipped via UPS ground (unless otherwise requested).
Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

OPTION: WIDE RANGE POWER MODULE

(Cat No 517277) CE, RoHS, and UL listed table mount power module, 100 VAC - 240 VAC, 50Hz-60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.
