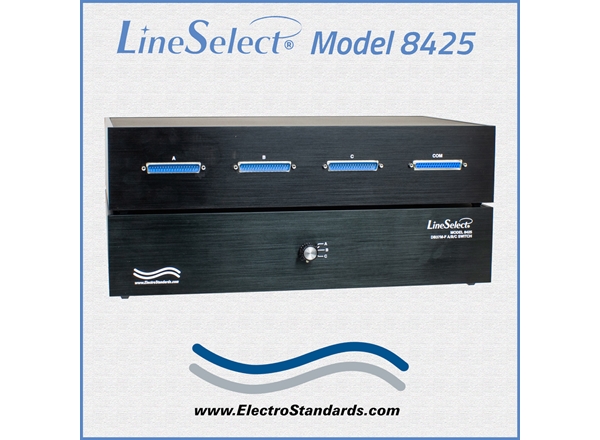

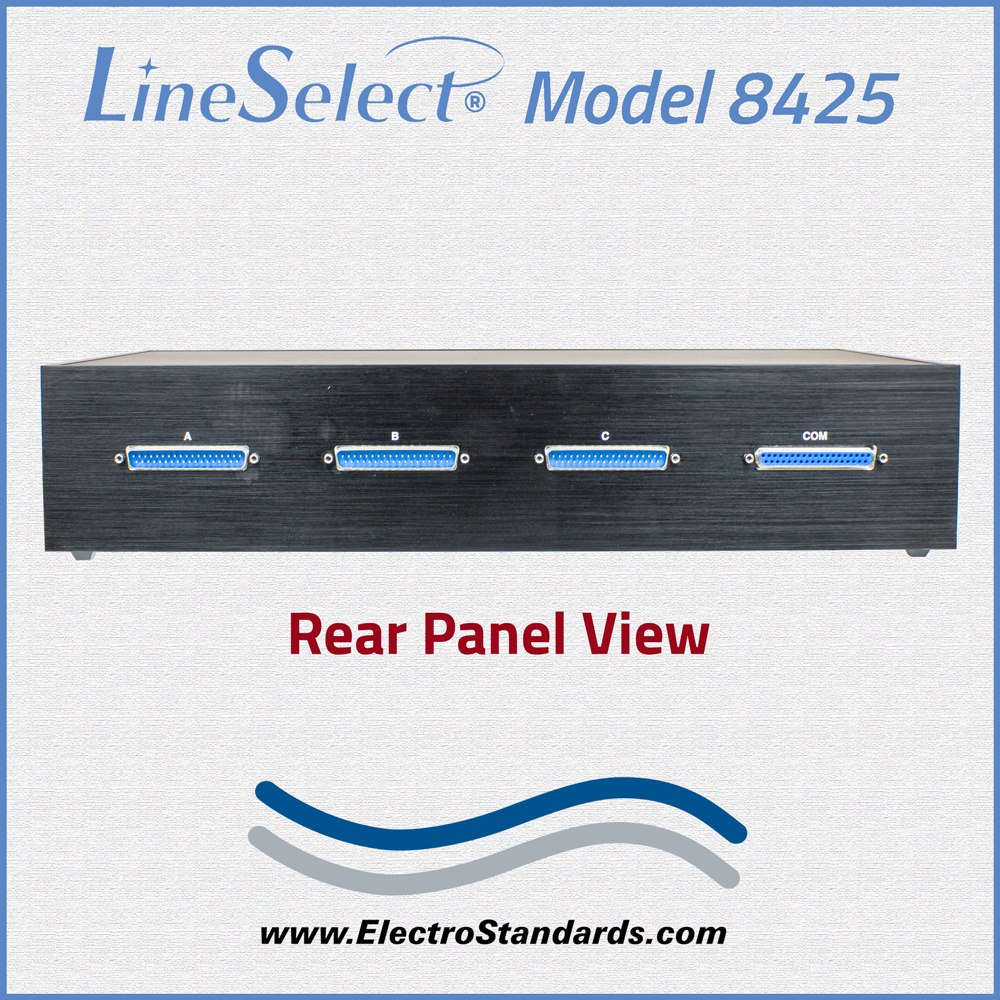

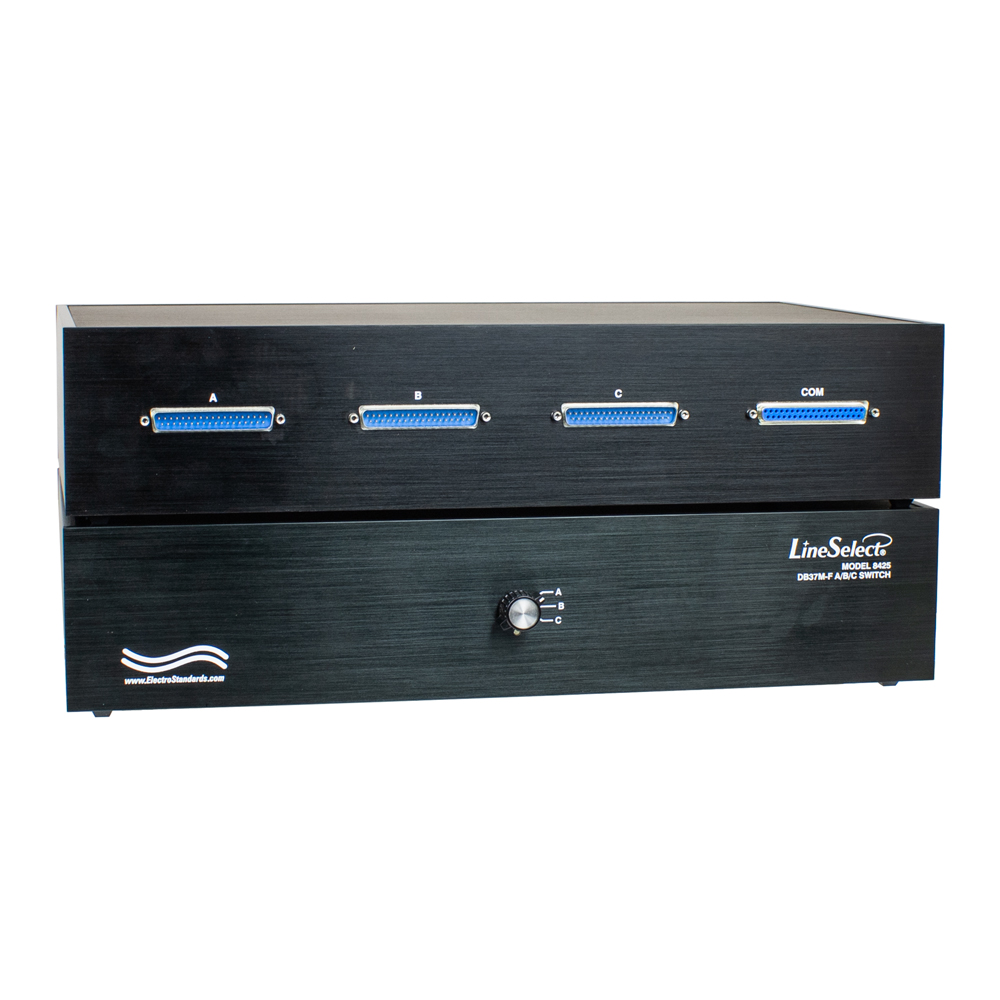

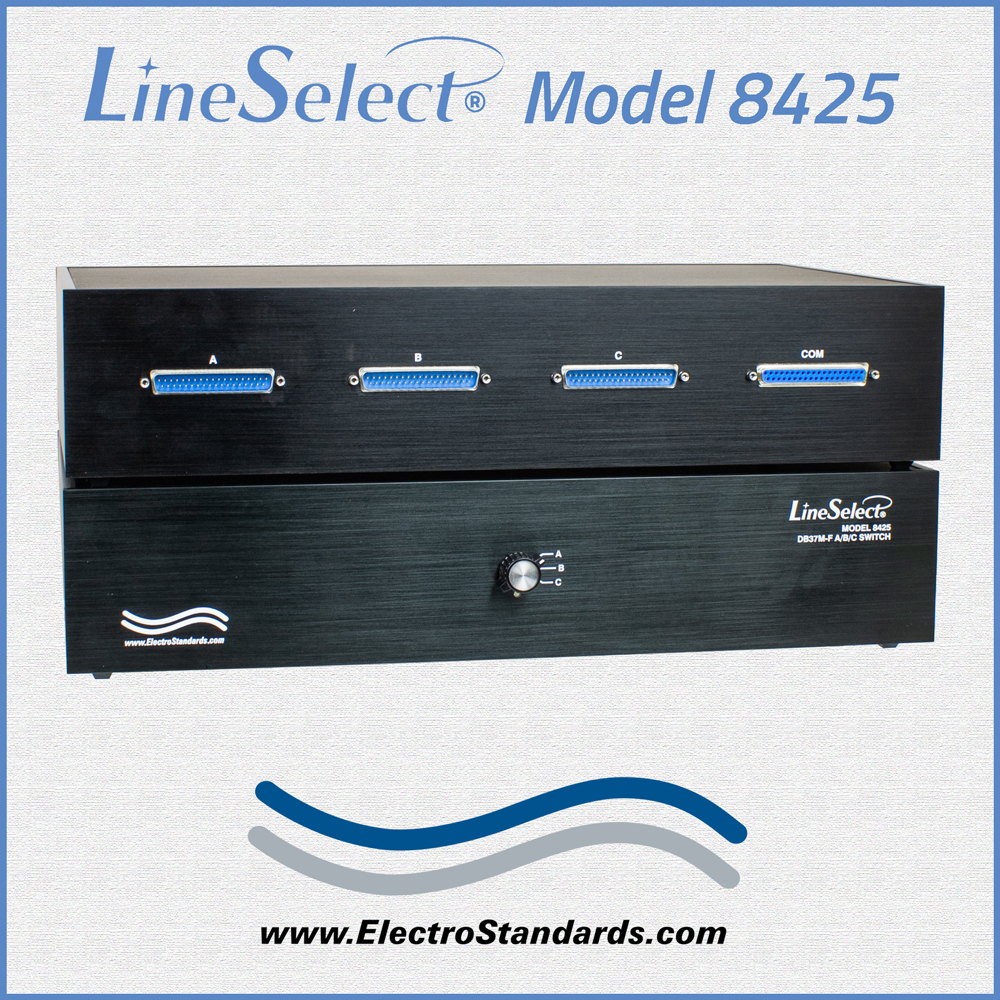

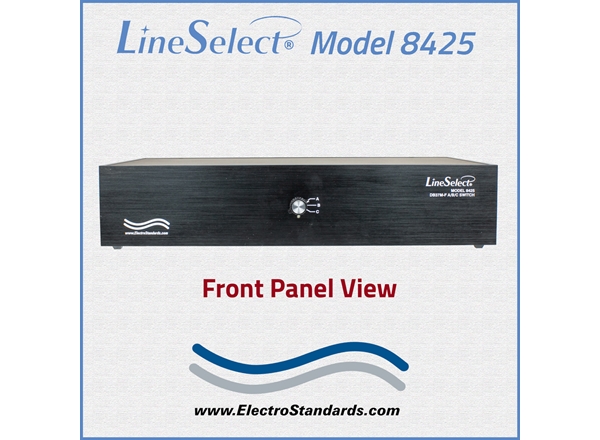

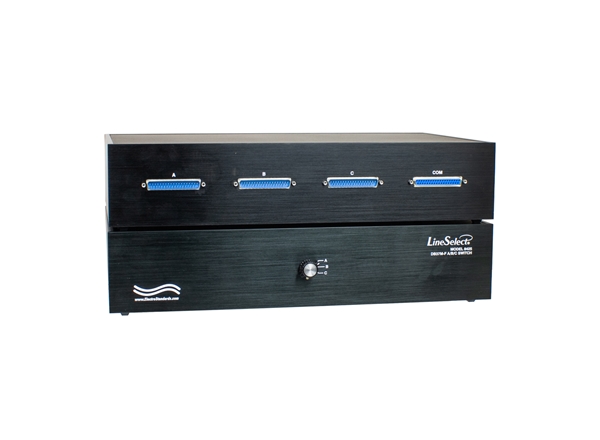

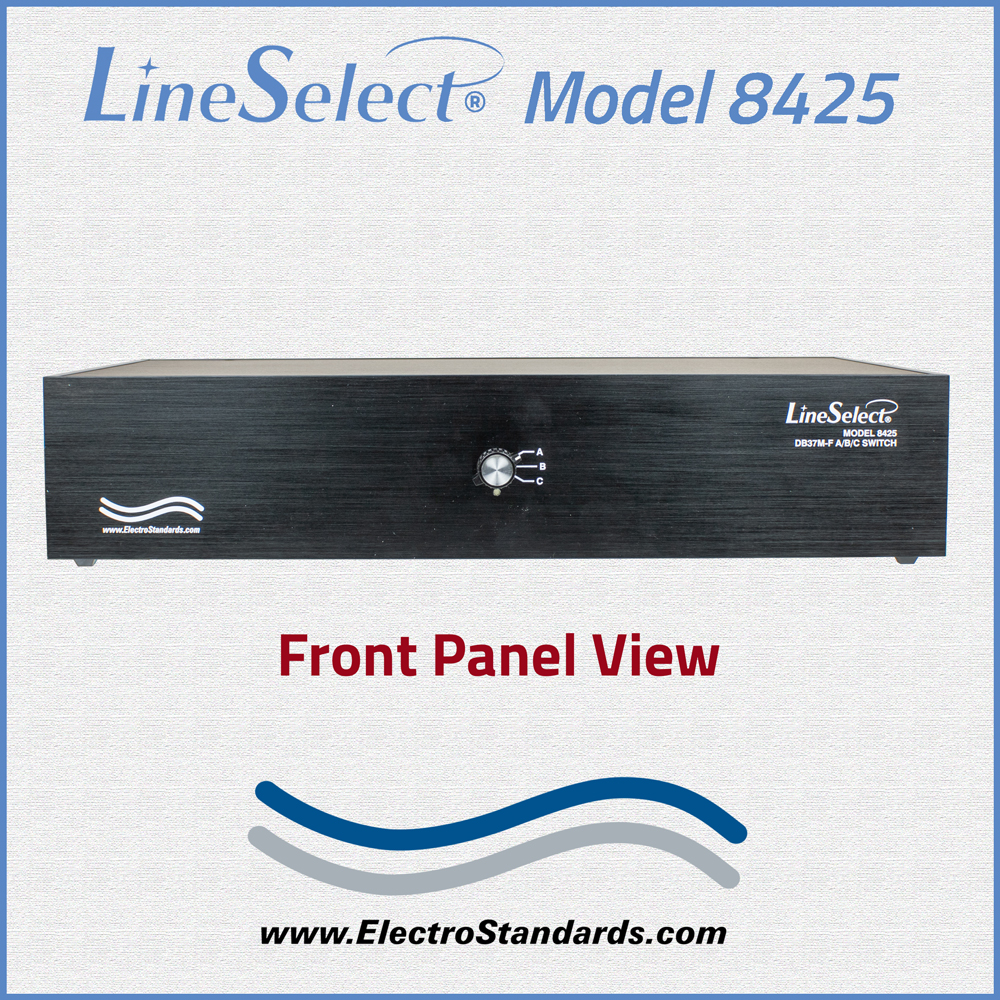

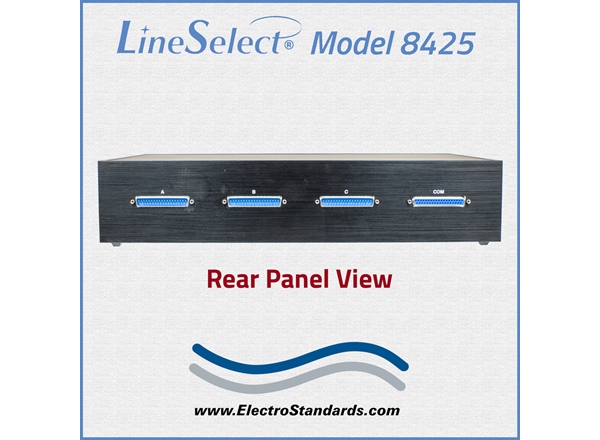

Model 8425 DB37 A/B/C, Manual Rotary Switch, Ideal for Switching DB37 Torque Transducers, Catalog # 308425

    DB37 A/B/C Manual Rotary SwitchDB37 A/B/C Manual Rotary SwitchDB37 A/B/C Manual Rotary SwitchDB37 A/B/C Manual Rotary SwitchDB37 A/B/C Manual Rotary Switch
Click image to enlarge
    • DB37 A/B/C Manual Rotary Switch
    • DB37 A/B/C Manual Rotary Switch
    • DB37 A/B/C Manual Rotary Switch
    • DB37 A/B/C Manual Rotary Switch
    • DB37 A/B/C Manual Rotary Switch
Base Price:
$1,012.00
Catalog No: 308425
Model No: 8425
Product Type:Switches: Copper
Positions:3
Cable Type/Port Connector:DB37
Manual Control/No Power Required:LineSelect® Manual Operation
Channel Control:Independent Channel Control

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

LineSelect® Model 8425 DB37 A/B/C Manual Switch

Overview

The LineSelect® Model 8425 DB37 A/B/C switch allows the user to access three DB37 devices connected to its A, B, and C ports with one DB37 device connected to its COMMON port. The unit is a manually operated switch, requiring no power. Port selection is quick and easy via a front panel rotary switch. The Lineselect® Model 8425 switch is enclosed in a 2U all metal black chassis designed to provide EMI/RFI Shielding.

  • Ideal for switching Torque Calibration Systems with multiple Torque Transducers OR Other device-sharing applications that utilize ANY DB37 interface devices

FEATURES OF THE MODEL 8425 A/B/C MANUAL SWITCH:

  • Allows (1) COMMON DB37 port to be shared among any one of (3) DB37 ports A, B, or C.
  • Manual Operation via front panel mounted rotary switch.
  • Manually operated. No power required!
  • (3) DB37 Male output ports, (1) DB37 Female input port.
  • Custom Length DB37 cables available.

TECHNICAL SPECIFICATIONS:

  • PORT CONNECTORS: (3) DB37 male connectors labeled "A", "B", and "C", (1) DB37 female connector labeled "COM"
  • FRONT PANEL CONTROLS: (1) Rotary switch allows local switching.
  • All pins of the DB37 interface are switched
  • POWER: No power required. Manually operated.
  • ENCLOSURE:  Black box packaging provides EMI/RFI shielding.
  • DIMENSIONS: Rackmount 19.0" W x 3.5" H x 10.67" D. (48.3 x 8.9 x 27.2 cm)
  • WEIGHT: Approximately 5.4 lbs. (2.5 kg)

Real-World Application & Customer Benefit

A calibration laboratory utilizes the Model 8425 DB37 Switch in a torque calibration system. Previously, the lab had (3) Torque Transducers and (1) Display. Each time the technician switched from one transducer to another, they had to unplug and re-plug cables—a process that introduced wear and tear, increased downtime, and raised the risk of damage to expensive transducer cabling.

By installing the Model 8425, the lab now simply rotates the front-panel switch on the Model 8425 to select the desired transducer (A, B, C) connected to their display (Common port).

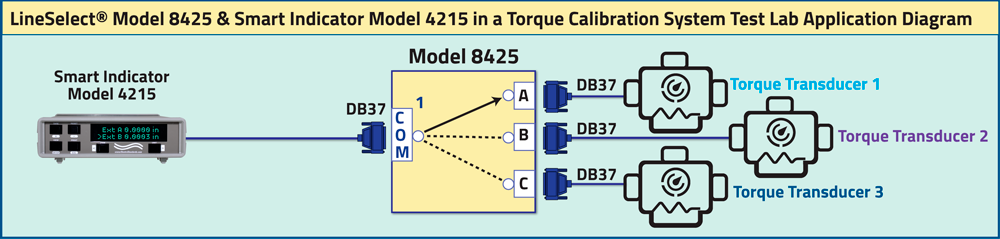

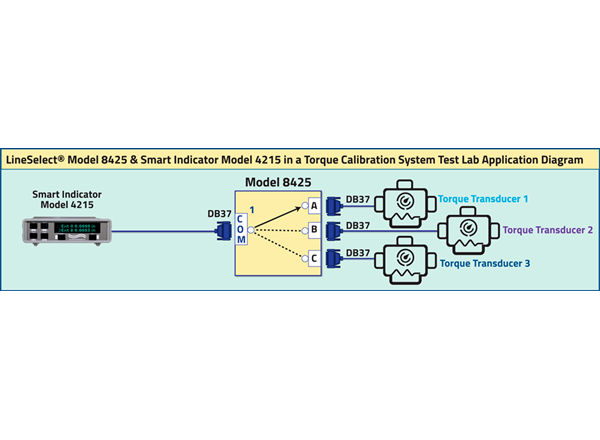

LineSelect® Model 8425 in a Torque Calibration System Test Lab Application Diagram
