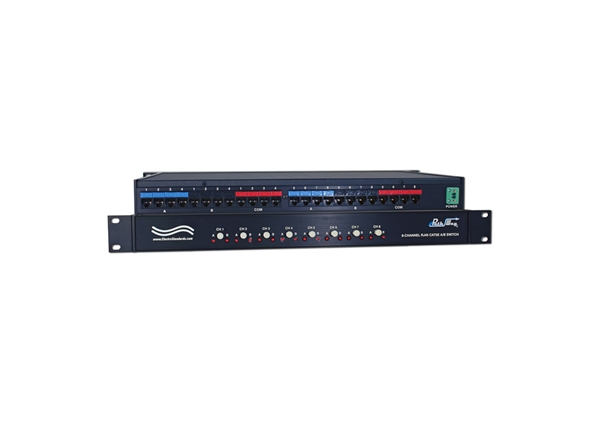

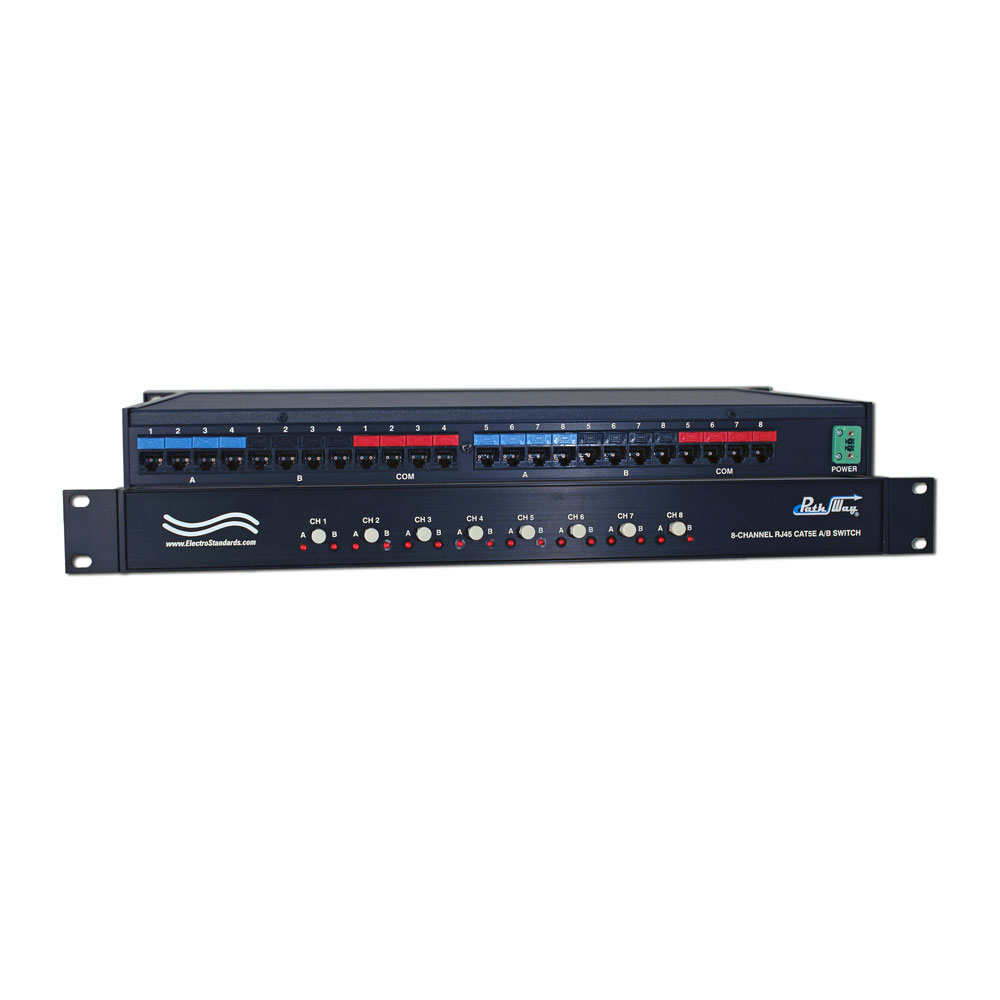

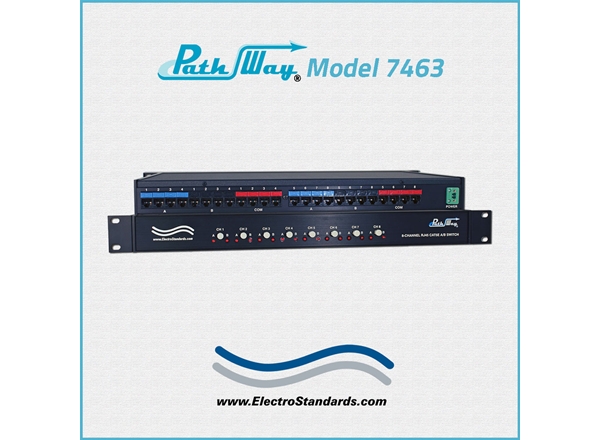

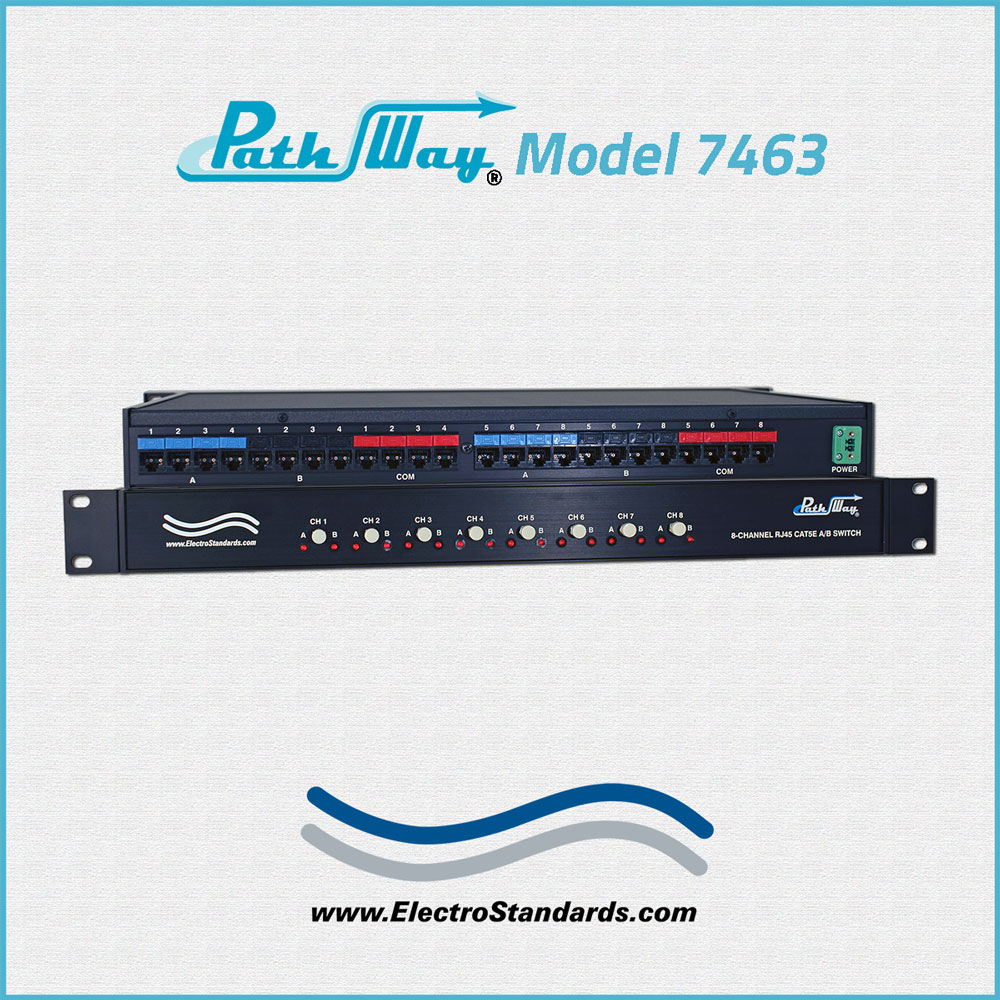

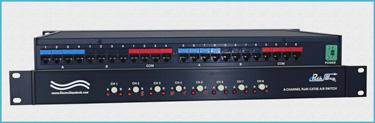

Model 7463 8-Channel RJ45 Cat5e A/B Network Switch — Independent & Group Switching

The Model 7463 is an industrial-grade, 8-channel RJ45 Cat5e A/B network switch that lets you manually select between two network paths for each channel without unplugging cables. Designed for technical environments such as data centers, test labs, communications closets, and network backup systems, this rackmount switch simplifies device sharing and backup routing while minimizing downtime.

Each of the eight channels has three RJ45 ports — Common, A, and B — so one device can be switched between two networks or connections. Independent front-panel pushbuttons allow quick local switching per channel, and simultaneous channel switching can be triggered by holding a button for three seconds. All eight pins of the Cat5e interface are switched through break-before-make electromechanical relays for reliable signal integrity.

Certified for Cat5e compliance with an all-metal, EMI/RFI-shielded 1U rack chassis, the 7463 maintains its last switch position during power loss and continues passing data uninterrupted, offering dependable performance in mission-critical networks.

  • Improves Efficiency by Providing Reliable Data Backup Switching.

FEATURES:

  • Each channel allows access to two RJ45 Cat5e networks from one COMMON network or device.
  • The switch ports are transparent to all data.
  • All (8) pins of the RJ45 interface are switched via break-before-make electromechanical relays.
  • The unit maintains last set position on power loss and continues to pass data.
  • Front panel pushbutton control.
  • The Model 7463 can be operated by the front panel pushbuttons only.
  • Independent control of channels, with gang commands via front panel pushbuttons.
  • No Remote Control.
  • Front panel LED's display present position and power status.
  • Certified for Cat5e compliance.
  • Attractive all metal, black box packaging provides EMI/RFI shielding.
  • Custom length RJ45 Cat5e cables available for your switch installation.

SPECIFICATIONS:

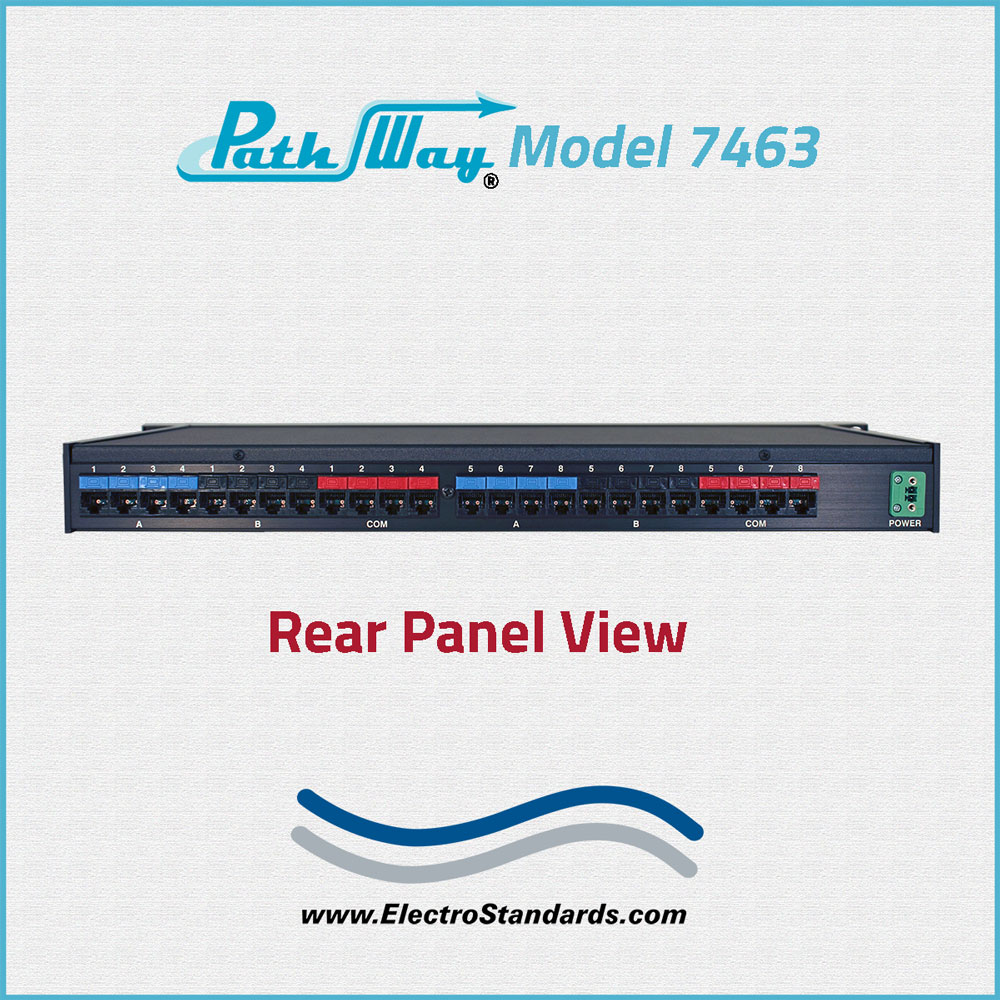

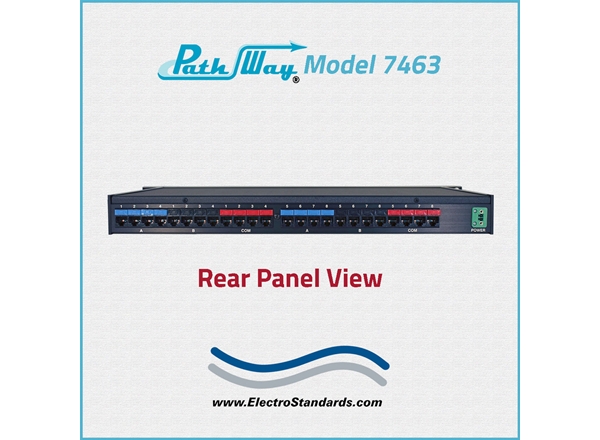

  • PORT CONNECTORS: (24) RJ45(F) connectors total.
    • (8) A ports
    • (8) B ports
    • (8) Common ports

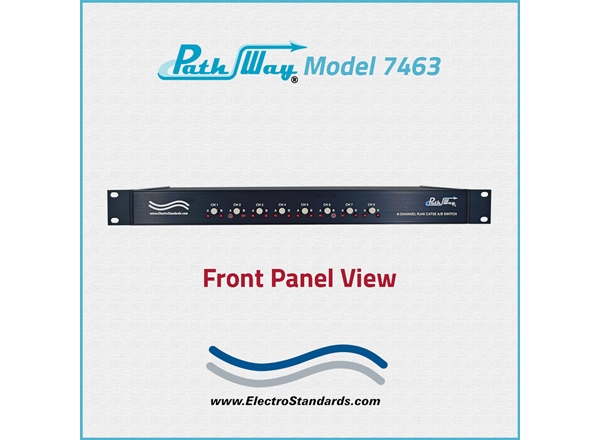

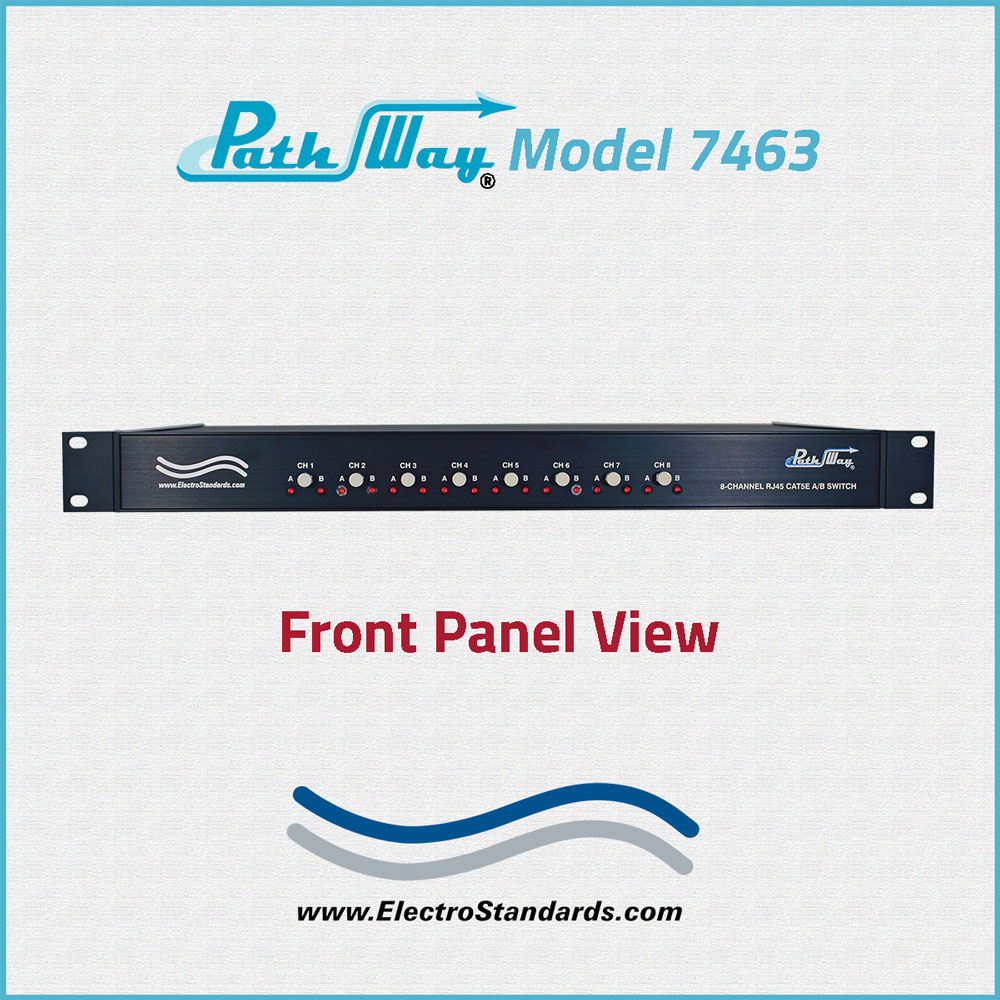

  • FRONT PANEL CONTROLS: (8) Pushbuttons labeled Channel 1 through Channel 8.
  • DISPLAY: (16) Red LED's total indicate the A or B switch positions for each of the eight channels.
  • POWER: UL Approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12VDC, 500 mA to the unit.  Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Rackmount configuration 19" W x 1.75" H x 10.0" D. [48.3 x 4.4 x 25.4 cm]
  • WEIGHT: 6.2 lbs. (2.9 kg)

PathWay® Model 7463 8-Channel Cat5e A/B SWITCH APPLICATION:

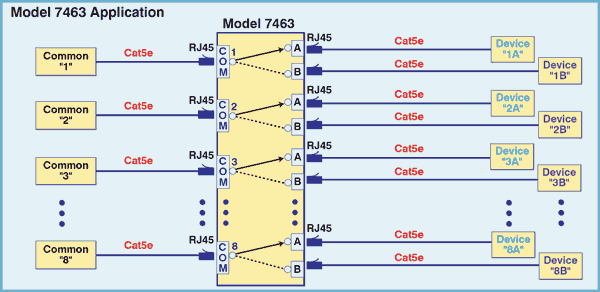

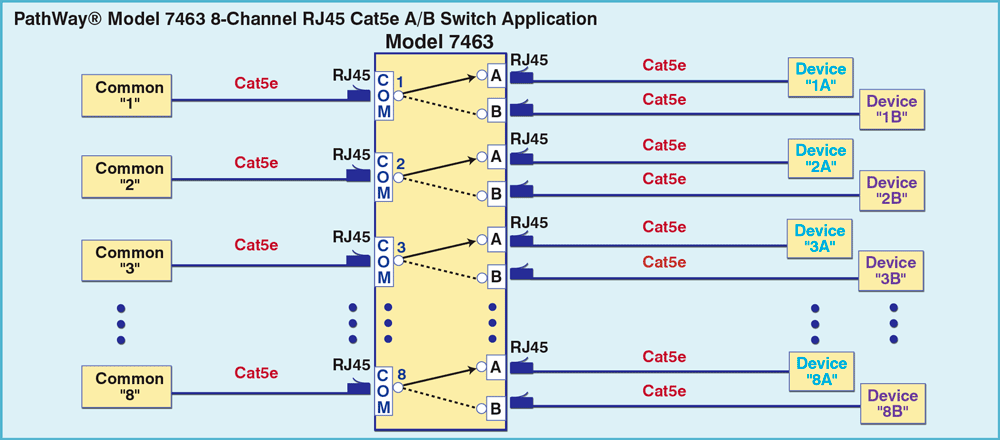

The drawing illustrates eight Cat5e A/B switches. Each channel is controlled independently via front-panel pushbutton controls with group/simultaneous option. For each channel, a COMMON device is connected to the RJ45 COMMON port with access to two other devices connected to the RJ45 A and B ports.

  • There are eight front panel pushbuttons for independent channel switching.
  • Holding a pushbutton for 3 seconds will simultaneously switch channels as a group (Simultaneous Switching).

PathWay® Model 7463 8-Channel RJ45 Cat5e A/B Switch application



The PathWay® Model 7463 8-Channel RJ45Cat 5e  A/B Switch allows the user the capability of sharing a single port interface device connected to the Common port among two other devices connected to the A and B ports for each channel.  The Model 7463 is enclosed in a 1U, full rack size, all metal, black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

The switch may be controlled manually via front panel pushbuttons only. Switch position status may be attained via the front panel LED display.

OPTION: WIDE RANGE POWER MODULE (Cat. No. 517277) CE, and UL listed table mount power module, 100VAC-240VAC, 50Hz-60Hz for use in place of the standard power module that is included with the unit.  Has IEC 60320 C14 inlet.  Ideal for international applications.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
