Catalog # 307197 - Model 7197 BNC 4-Position Switch, RS422 Serial Remote

    BNC 4-Position Switch, RS422 Serial RemoteBNC 4-Position Switch, RS422 Serial RemoteBNC 4-Position Switch, RS422 Serial RemoteBNC 4-Position Switch, RS422 Serial Remote

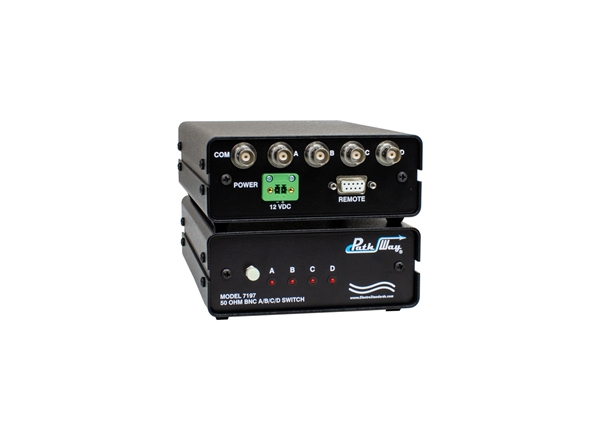

Click image to enlarge
    • BNC 4-Position Switch, RS422 Serial Remote
    • BNC 4-Position Switch, RS422 Serial Remote
    • BNC 4-Position Switch, RS422 Serial Remote
    • BNC 4-Position Switch, RS422 Serial Remote
Base Price:
$827.00
Catalog No: 307197
Model No: 7197
Product Type:Switches: Copper
Positions:4
Cable Type/Port Connector:Coax Switch Ports
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:RS422/485 Serial
Configuration:Desktop
Pins Switched:Both Center Pin and Shell
Remote Port:DB9
Local Control:Pushbutton
Feature:RS422 Remote
Protocol:ASCII

Add to Cart
  • BNC A/B/C/D Switch with RS422 Remote Control
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview



Path Way® Remotely Controllable Network Switch, BNC Coaxial

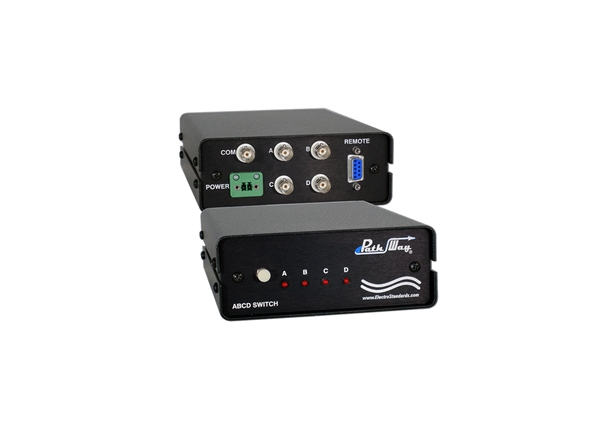

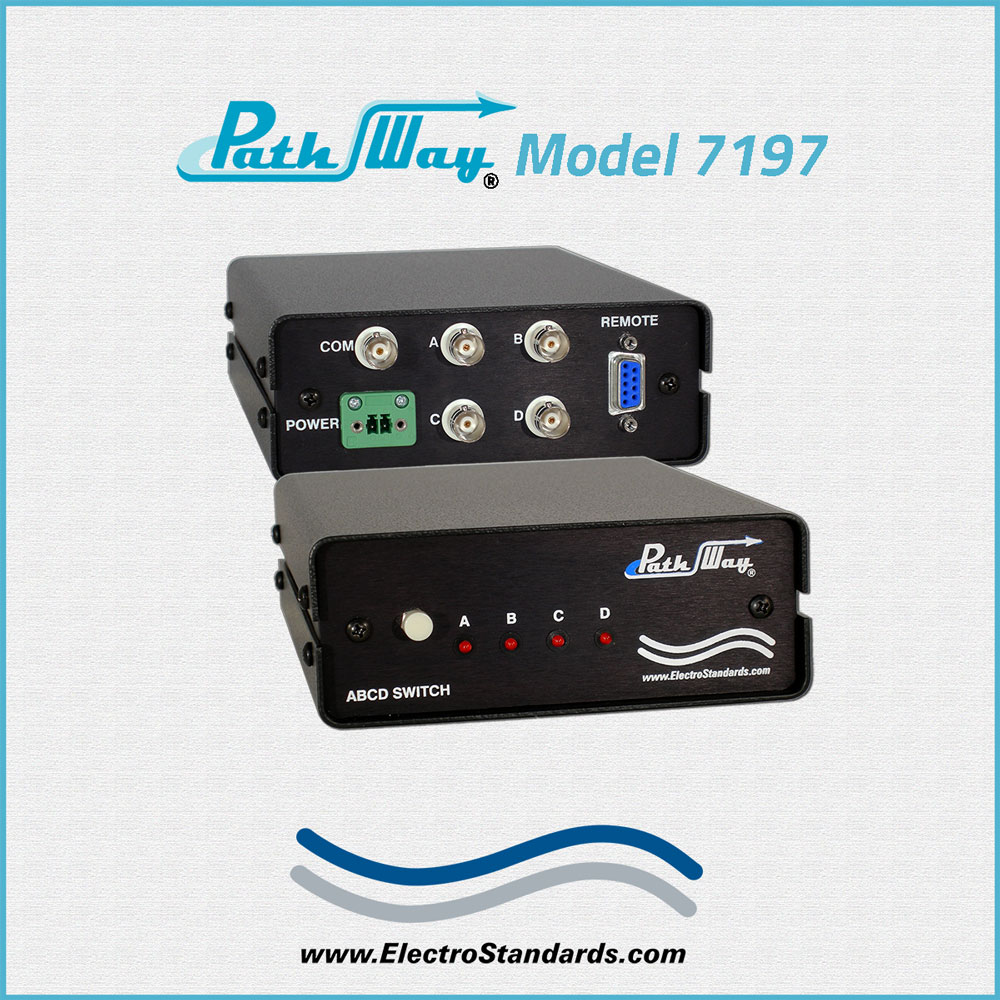

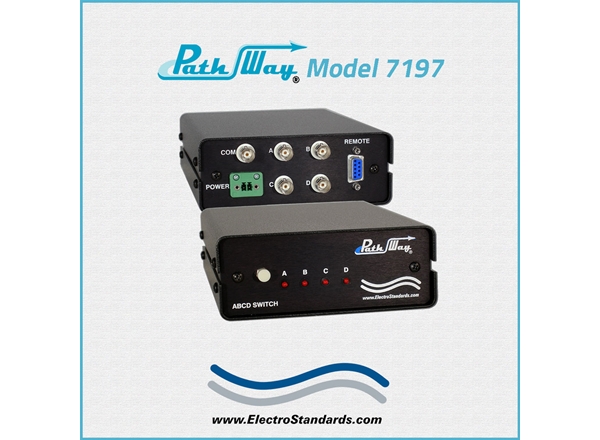

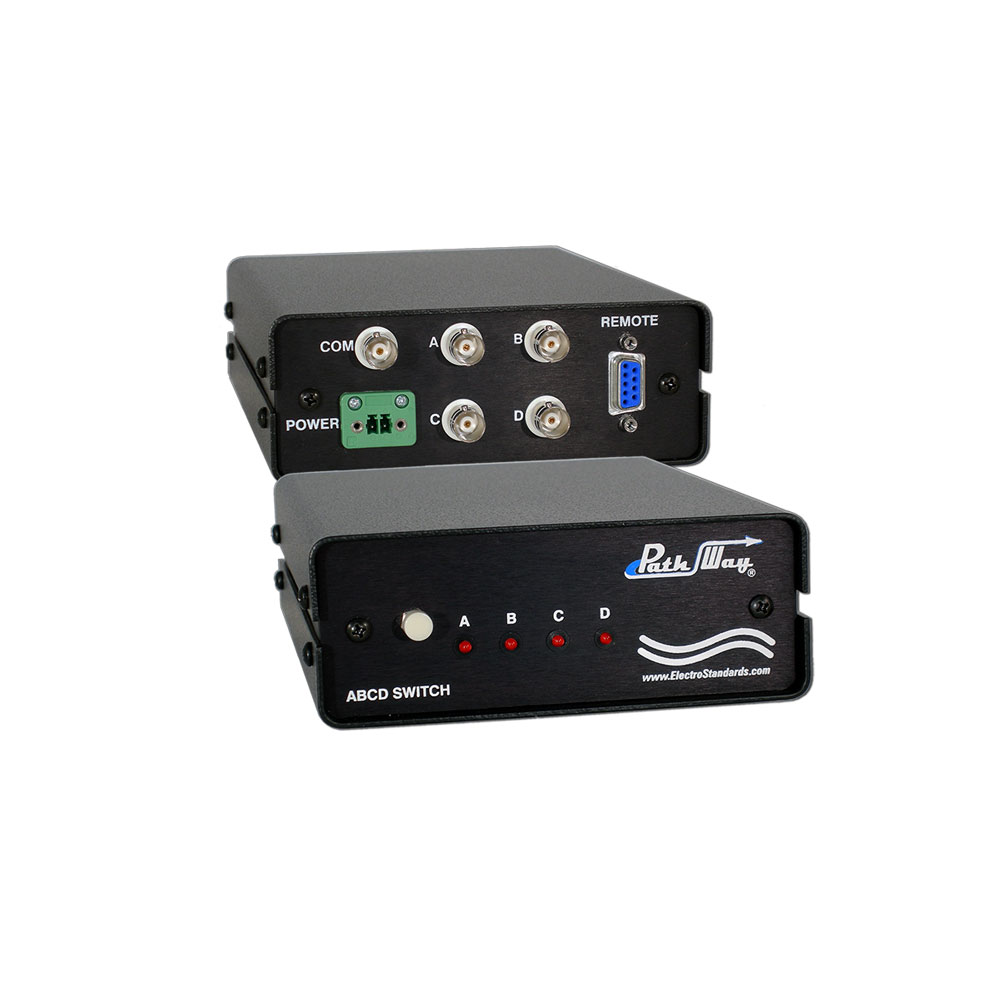

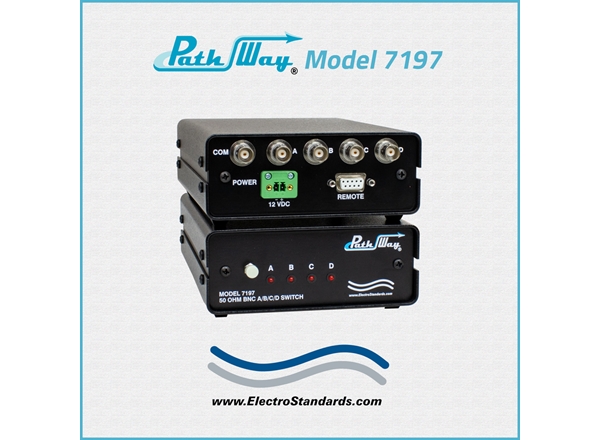

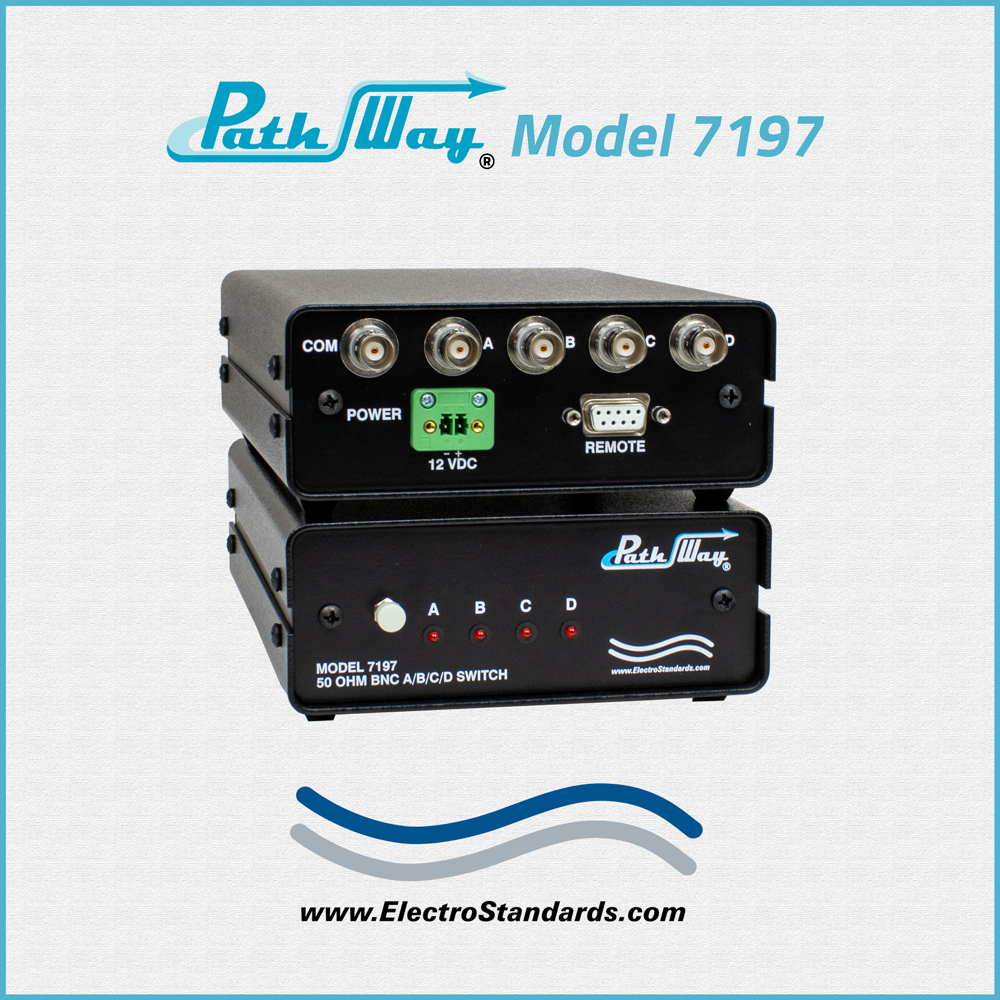

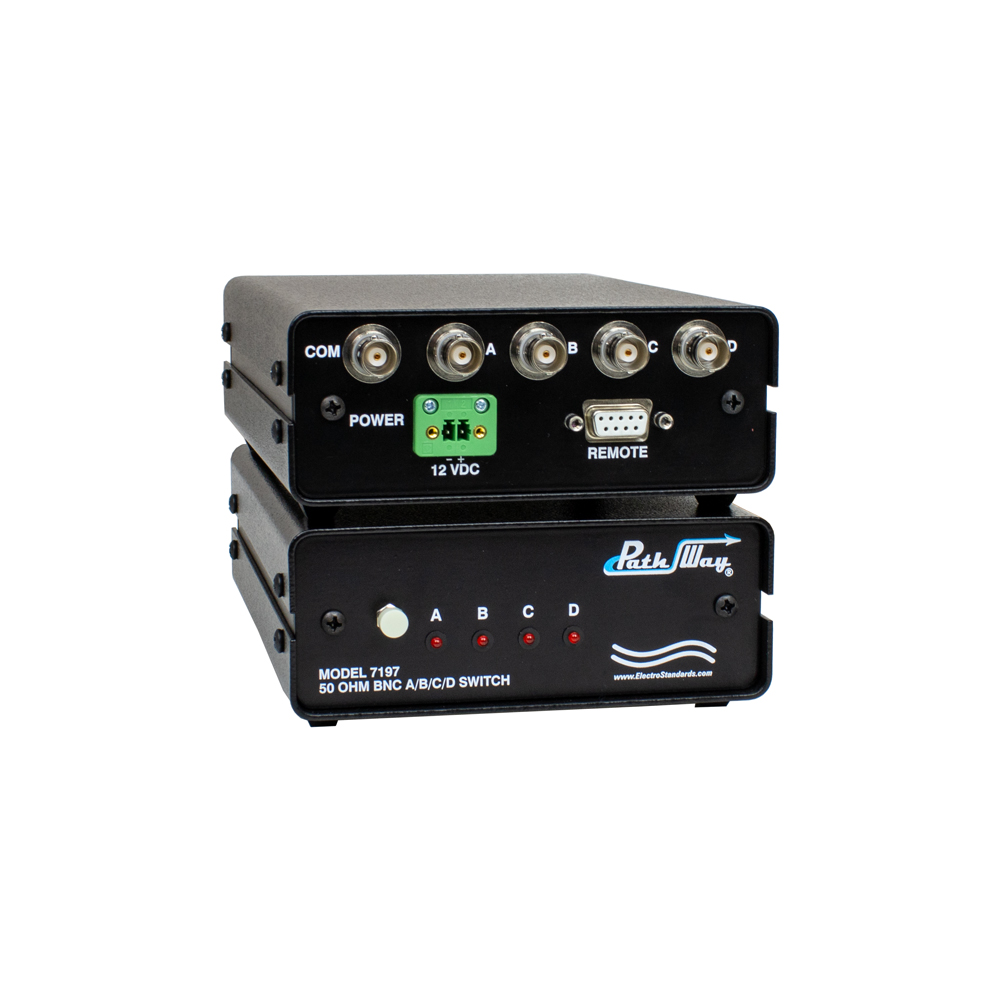

Model 7197 BNC A/B/C/D Switch Box with RS422 Serial Remote, Desktop

  • Select signals from any one of four BNC Interface Devices

MODEL 7197 SPECIFICATIONS:

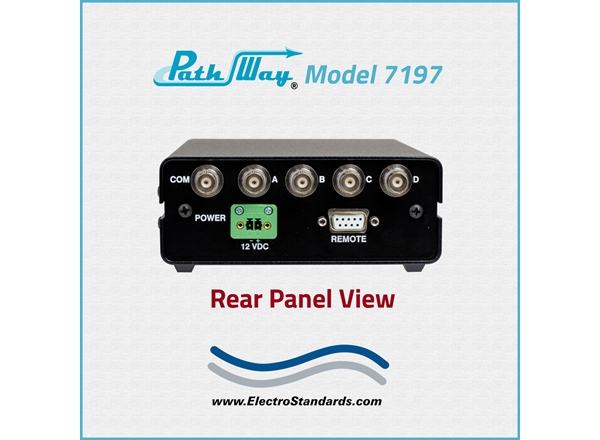

  • PORT CONNECTORS: (5) BNC (F) connectors labeled A, B, C, D and COMMON.

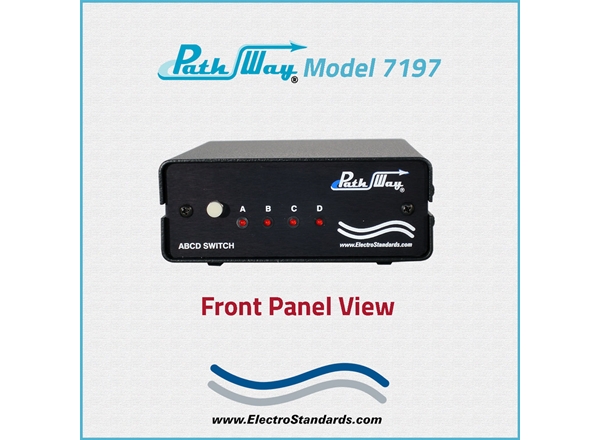

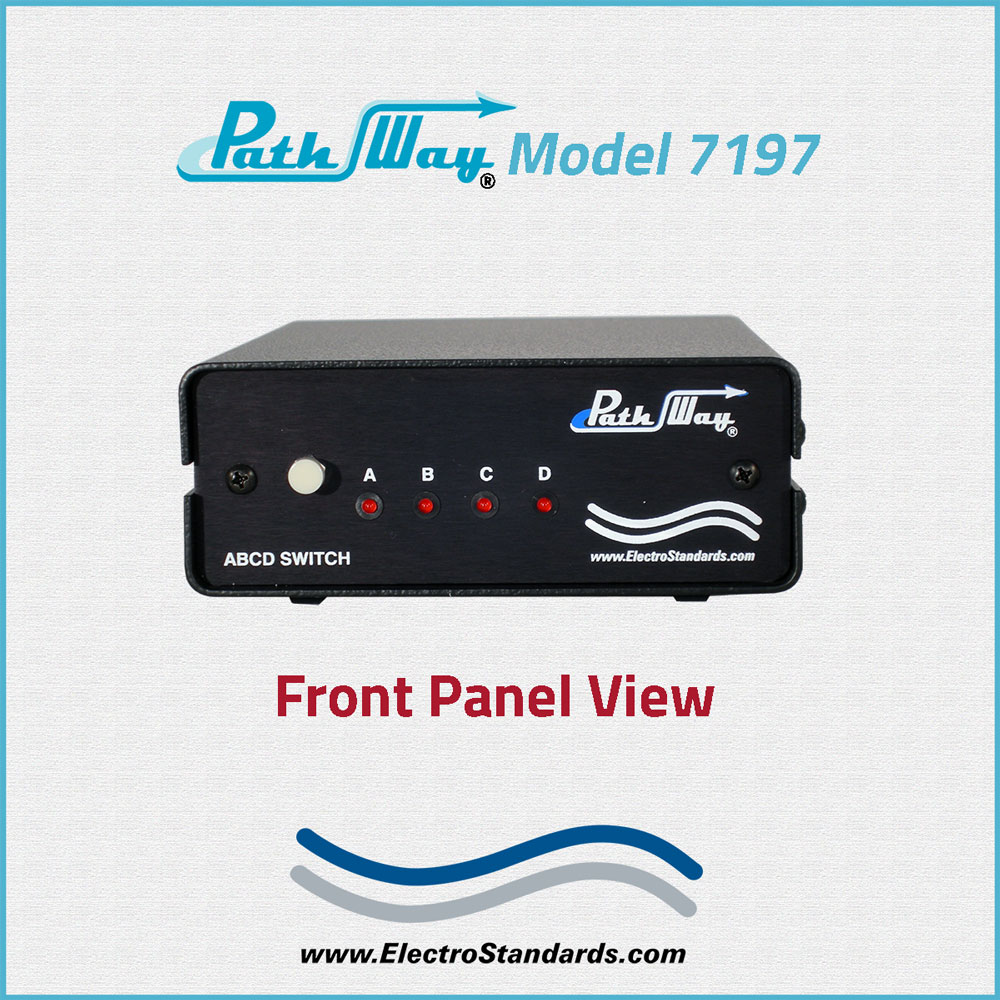

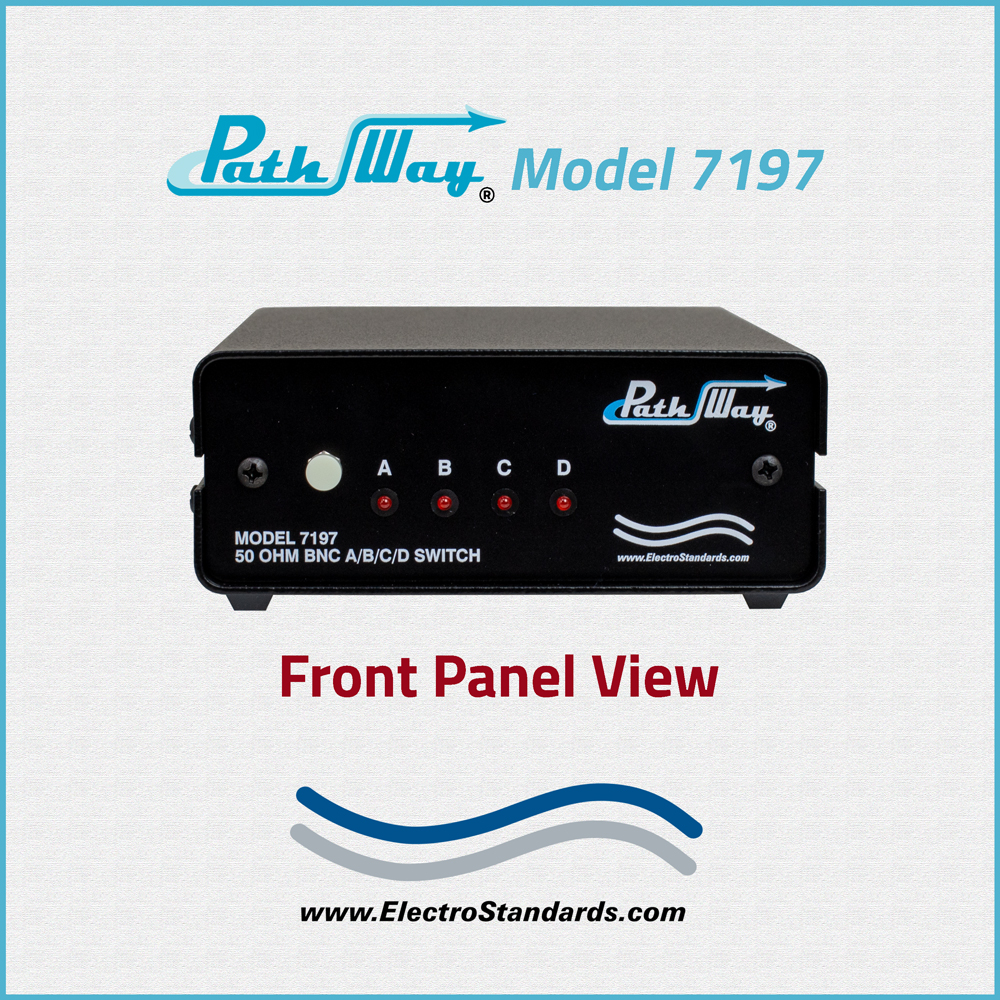

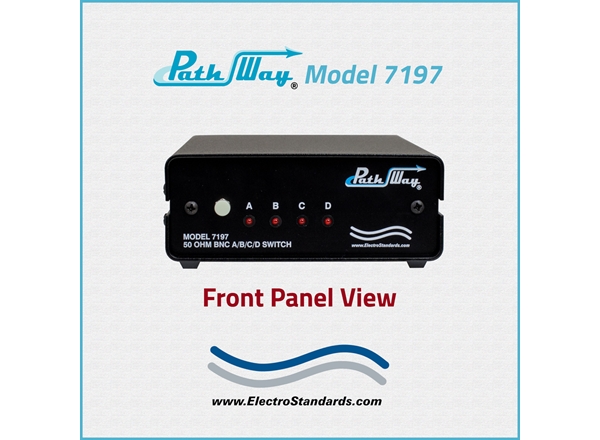

  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
  • DISPLAY: (4) Front panel LED's display switch position and power status.

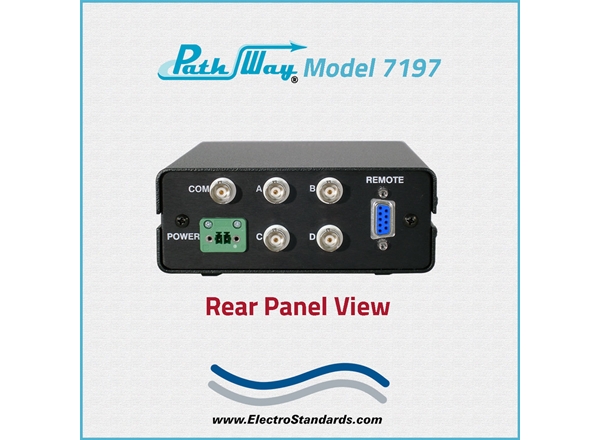

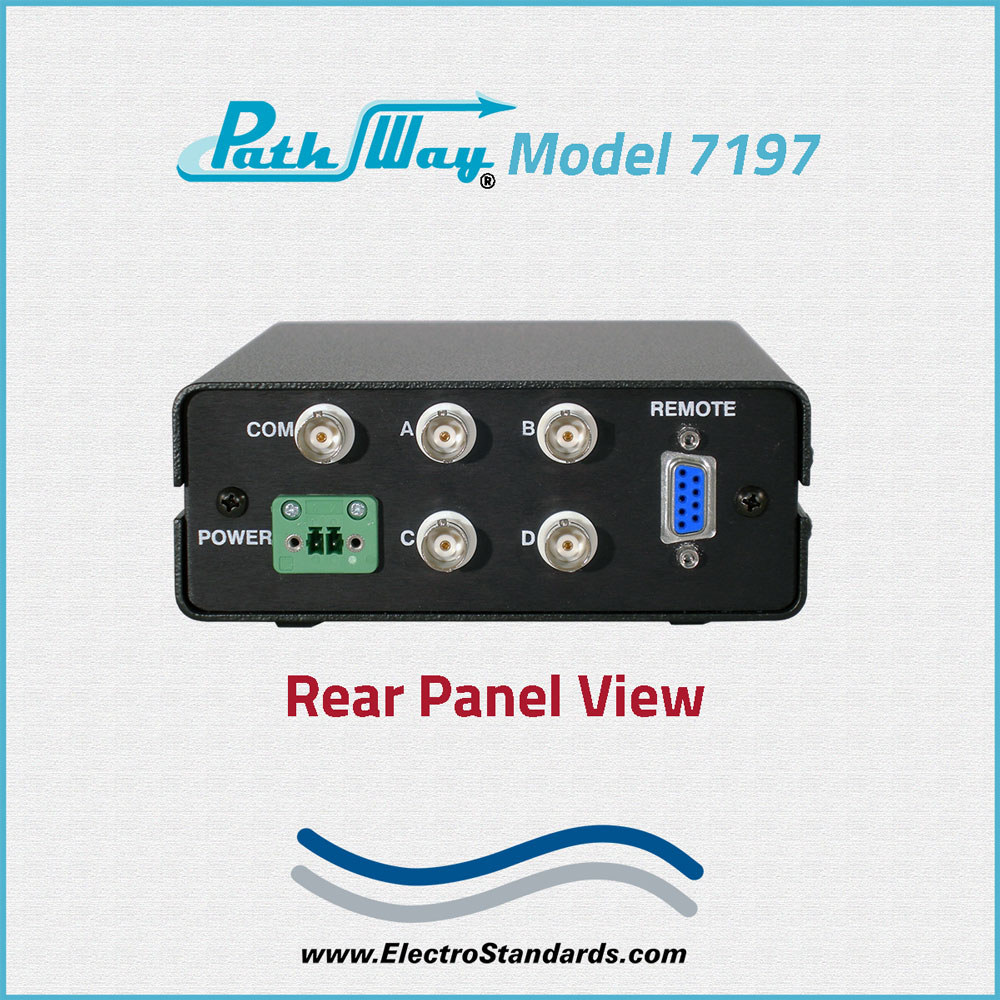

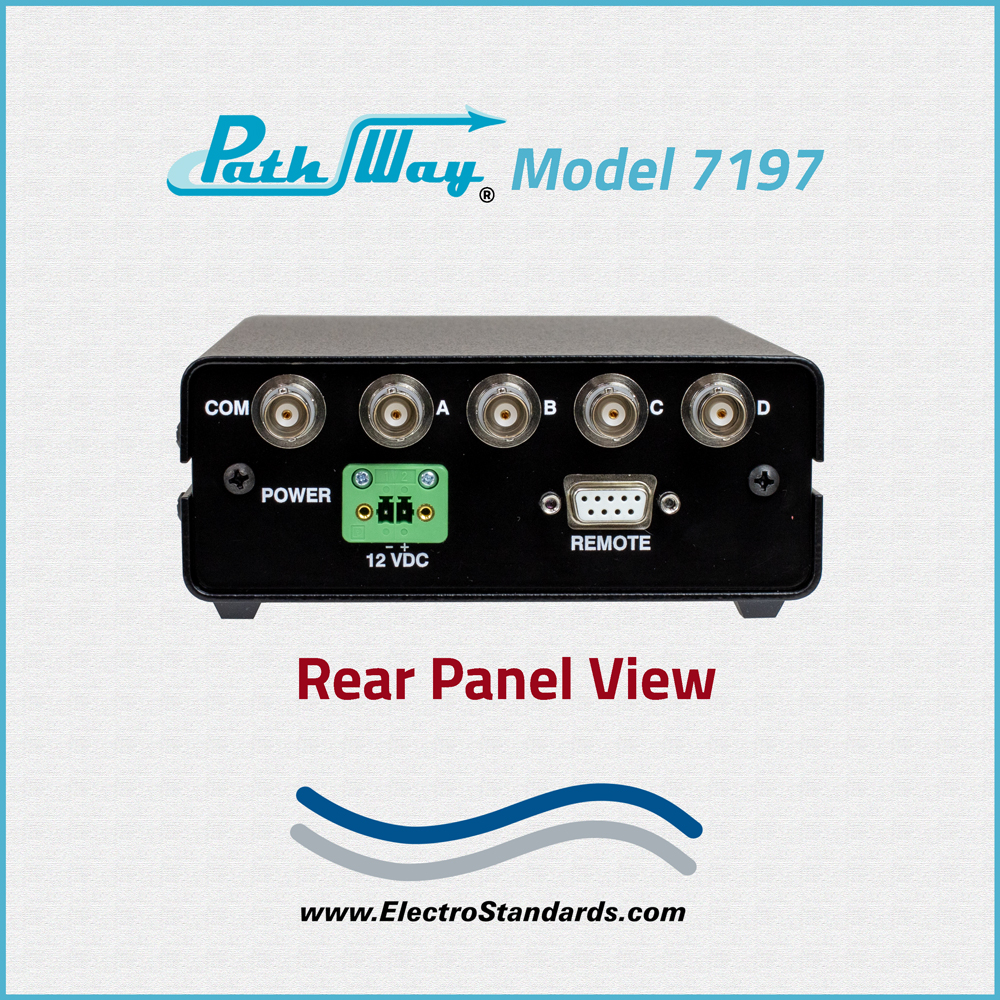

  • REMOTE CONTROL: (1) DB9 (F) Remote connector on rear panel accepts ASCII RS422 Serial Data.
  • POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Desktop 5.25" W x 7.25" D x 2.0" H (13.3 x 18.4 x 5.1 cm)
  • WEIGHT:  Approximately 2.5 lbs. (1.1 kg)

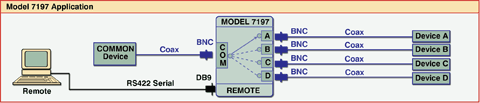

PathWay Model 7197 BNC A/B/C/D APPLICATION WITH RS422 REMOTE:

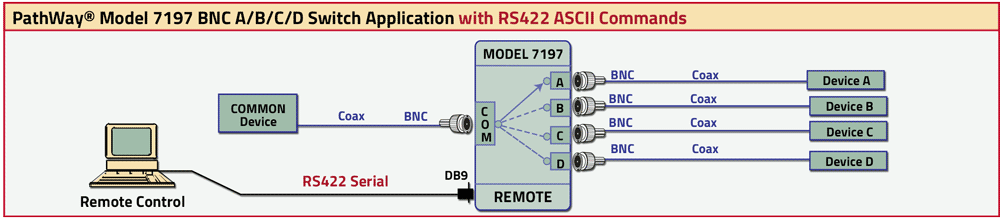

The drawing illustrates a COMMON device connected to the BNC COMMON Port accessing Devices A, B, C, and D connected to the BNC Ports A, B, C, and D. The DB9 REMOTE Control port accepts ASCII RS422 commands for remote control operation of the unit.

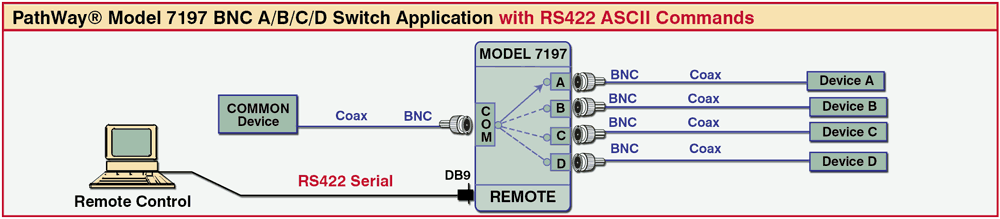

PathWay Model 7197 BNC A/B/C/D Switch with RS422 ASCII Commands application

MODEL 7197 FEATURES:

  • The switch ports are transparent to all data.
  • Both the center pin and shell of the BNC interface are switched via break-before-make electromechanical relays.
  • Front panel pushbutton control.
  • Switch maintains position on power loss and continues to pass data.
  • Remote RS422 ASCII commands that allow the user to control switch position, lockout front panel operations and obtain switch status.
  • Front panel LED's display current position and power status.

The PathWay® Model 7197Single Channel BNC A/B/C/D Switch with RS422 Remote allows the user the capability of sharing a single port interface device connected to the COMMON port among four other devices connected to the A, B, C, and D ports, with remote access functionality.  Remote Control access can be accomplished using ASCII RS422 commands.

OPTION: WIDE RANGE POWER MODULE

(Cat No 517277) CE, RoHS, and UL listed table mount power module, 100 VAC-240 VAC, 50Hz-60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet.  Ideal for international applications.

Check out suggested cables for use with the Model 7197 Switch.

Suggested cables for use with Model 7197 Switch
Part Number  Description

990136-006
990136-010
890426-006
890426-010

RG58 Coaxial Cable, 50 ohm, 6ft. (M/M)
RG58 Coaxial, 50 ohm, 10ft. (M/M)
Thinnet RG58 Coaxial Cable, 50 ohm, 6ft (M/M)
Thinnet RG58 Coaxial Cable, 50 ohm, 10ft (M/M)

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
