Catalog # 306292 - Model 6292 A/B/C, LC Duplex Fiber Optic Switch, SMF-28, 9/125, Telnet

    A/B/C  Fiber Optic SwitchA/B/C  Fiber Optic SwitchA/B/C  Fiber Optic Switch
Click image to enlarge

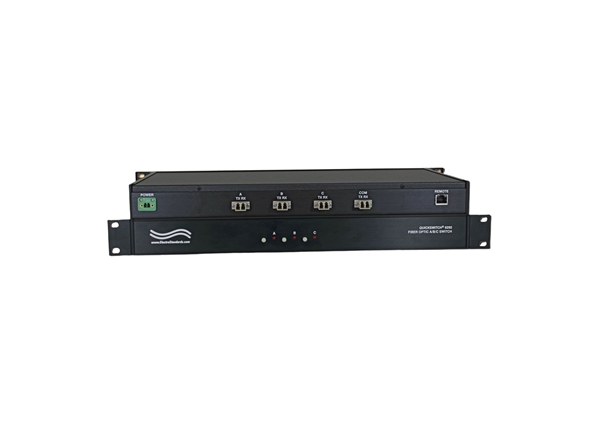

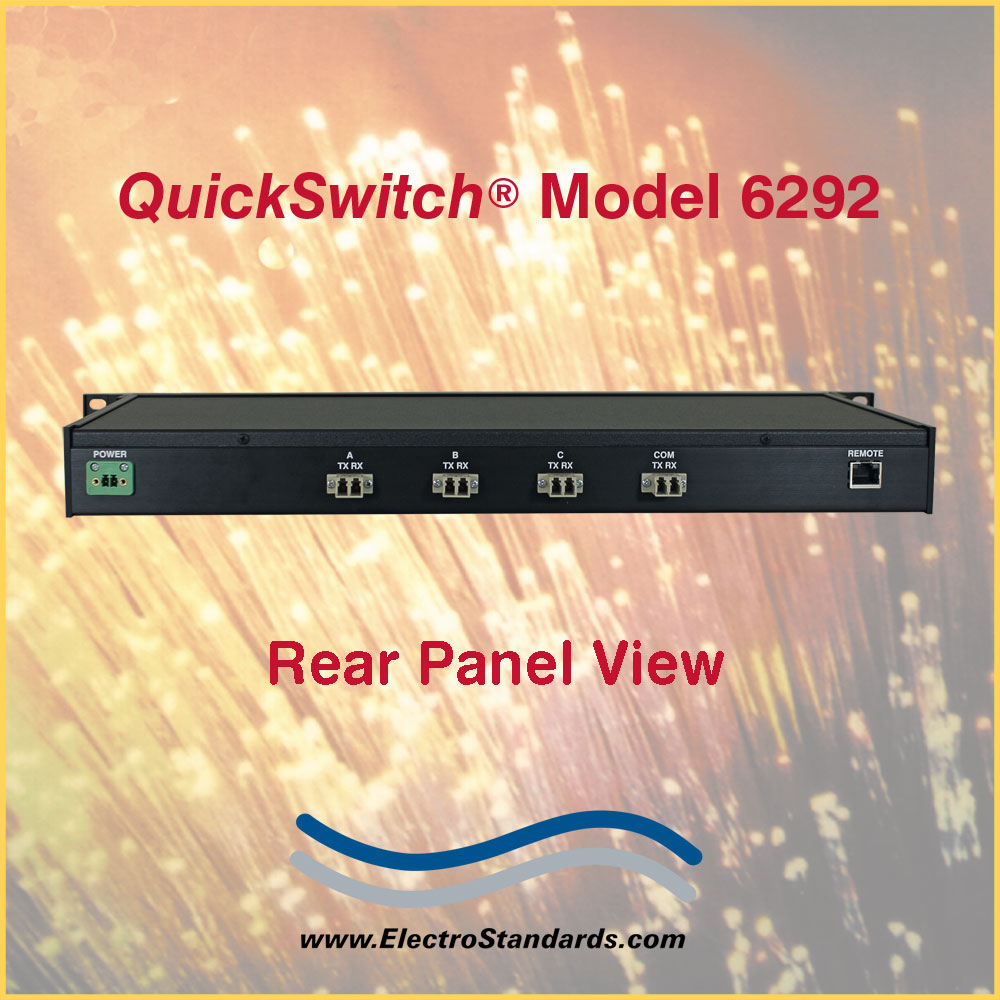

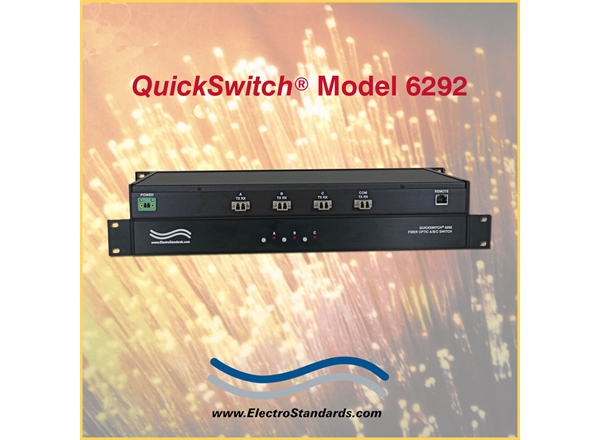

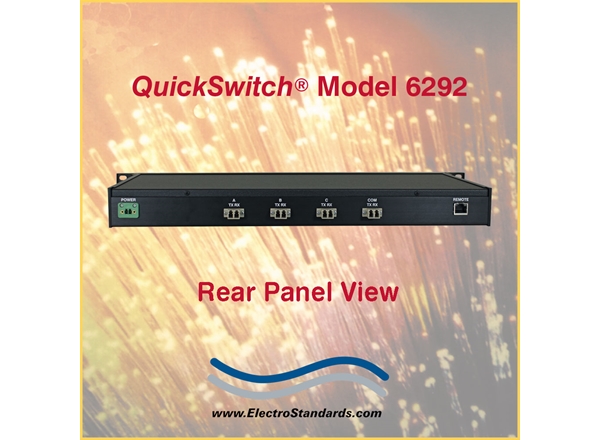

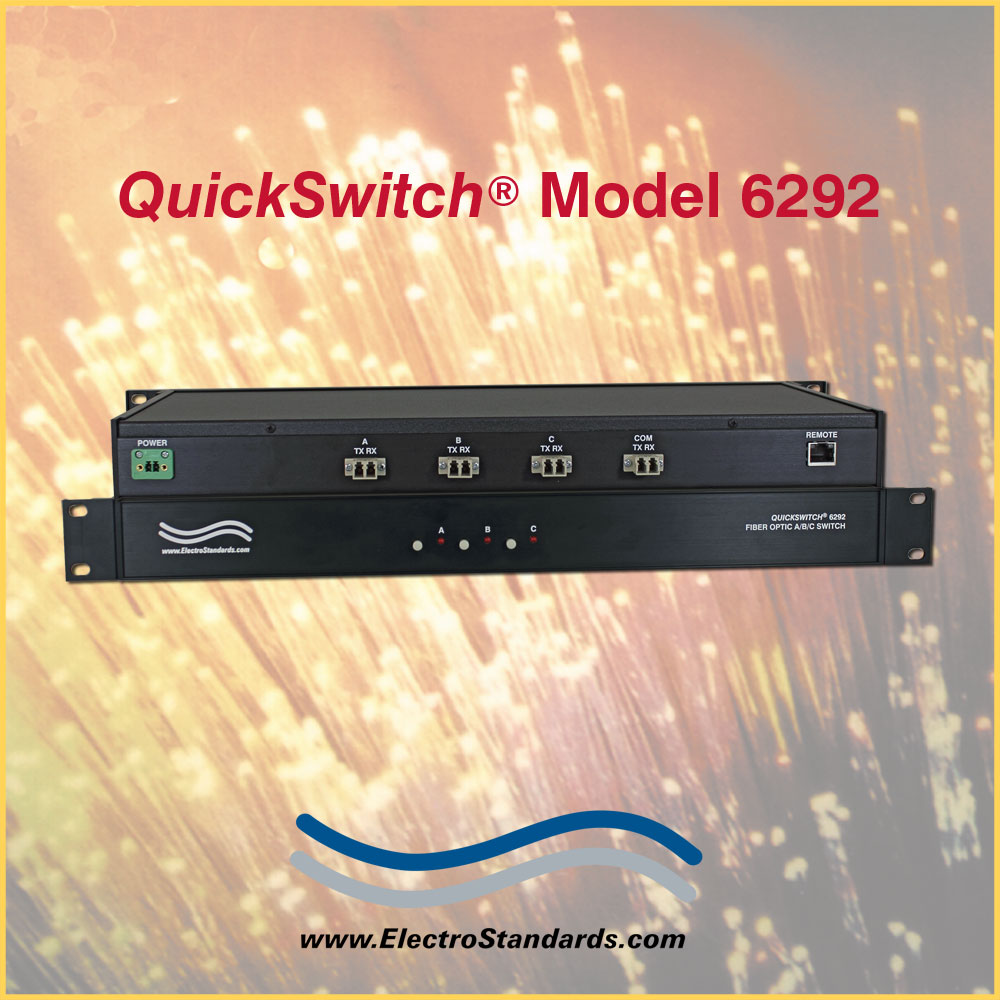

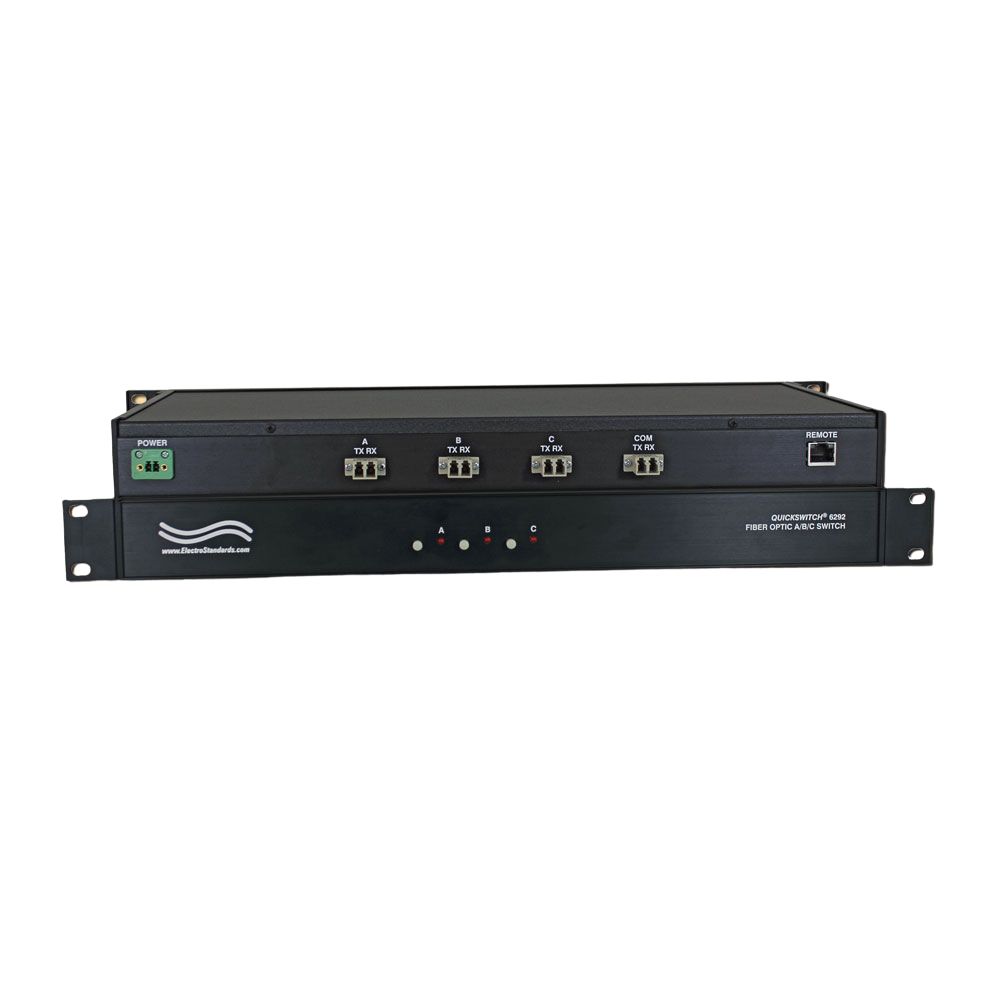

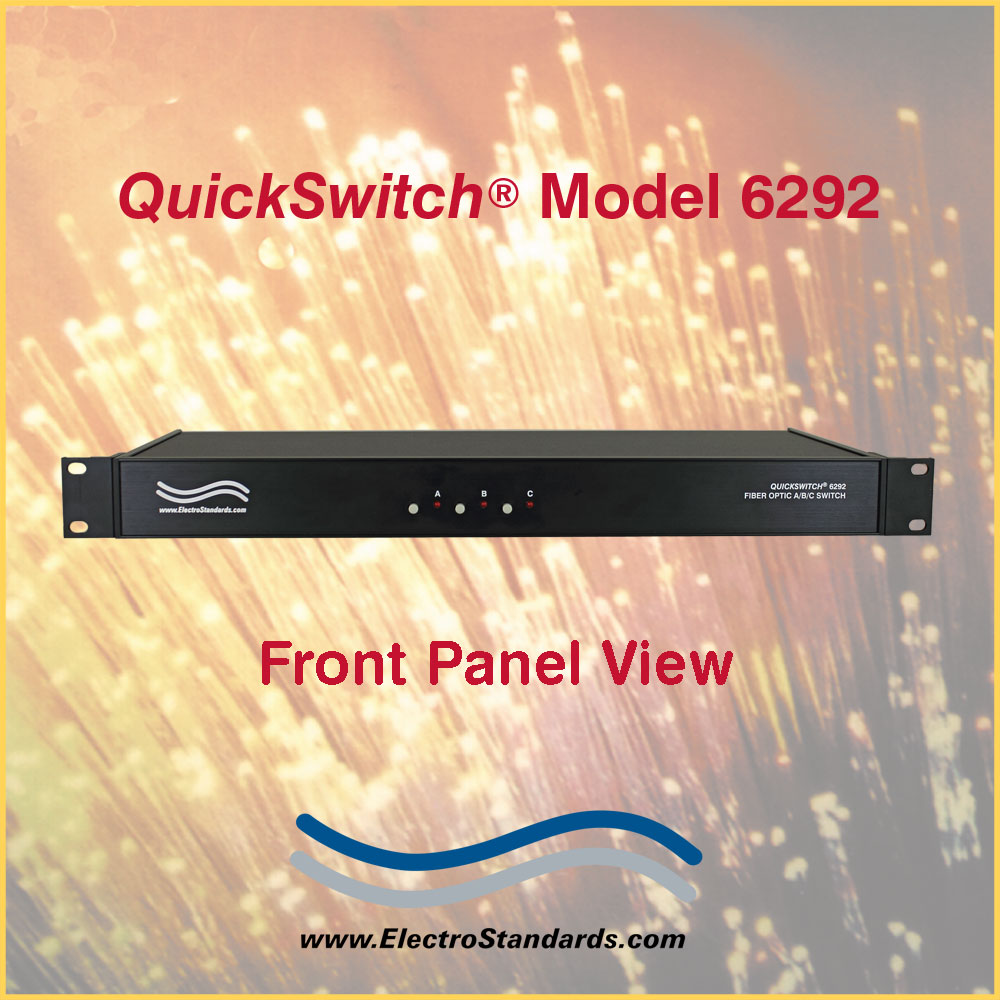

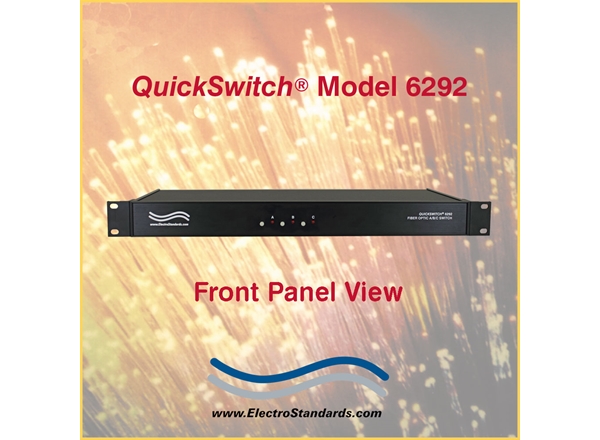

    • A/B/C  Fiber Optic Switch
    • A/B/C  Fiber Optic Switch
    • A/B/C  Fiber Optic Switch
Base Price:
$5,345.00
Catalog No: 306292
Model No: 6292
Product Type:Switches: Fiber Optic
Positions:3
Cable Type/Port Connector:LC
Channels per Switch Chassis:1
Electronic Switches/Power Required:QuickSwitch® Fiber Optic
Remote Control:Ethernet
Configuration:Rackmount
Fiber Mode:Single Mode
Fiber Size:9/125
Fiber Type:Duplex
Remote Port:RJ45
Local Control:Pushbutton
Mirror Technology:OO
Wavelength Nano:1310 or 1550
